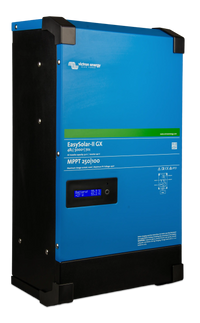

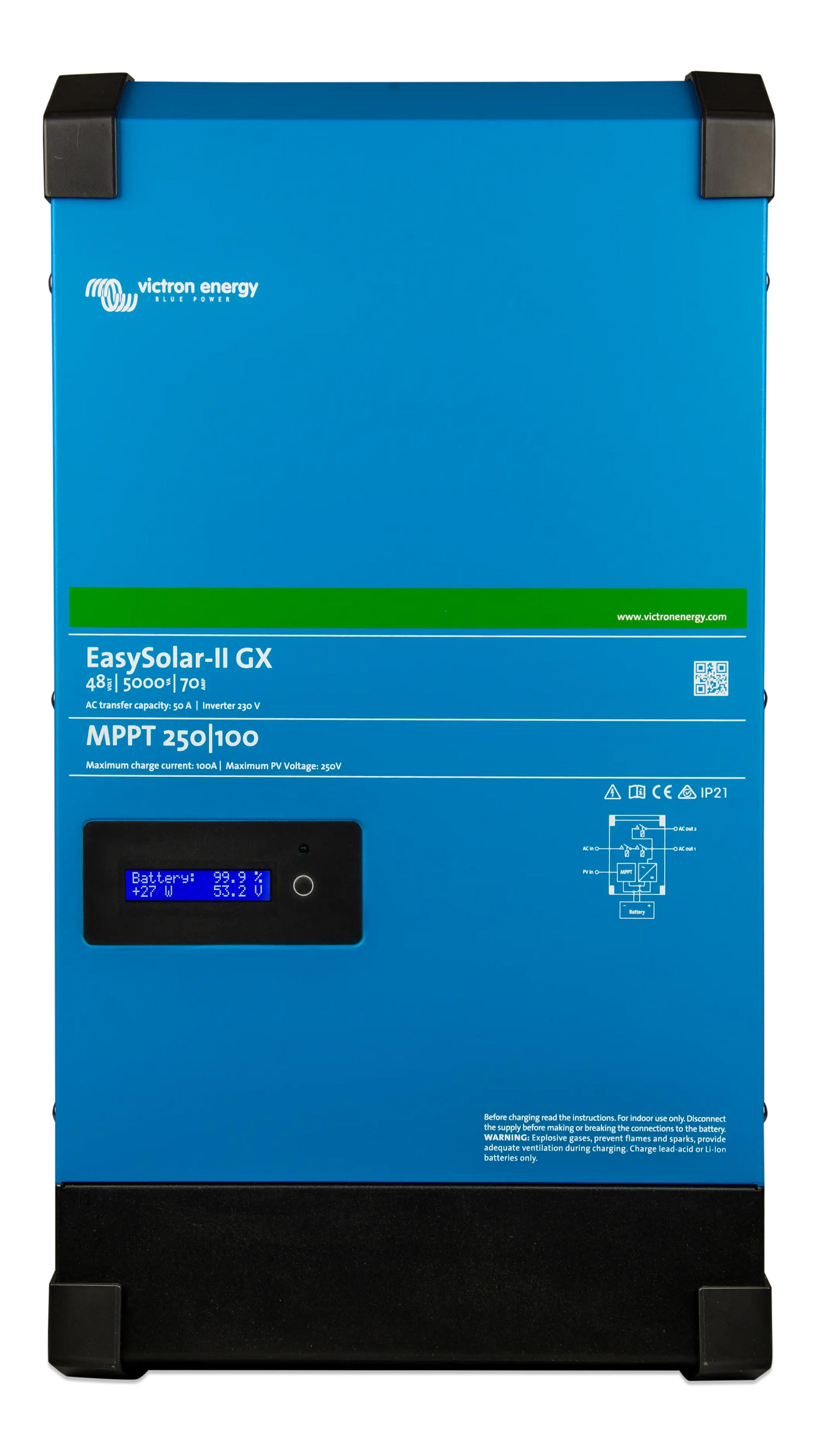

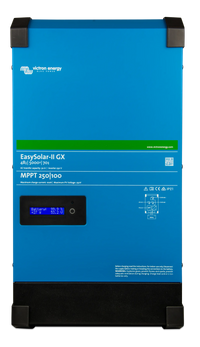

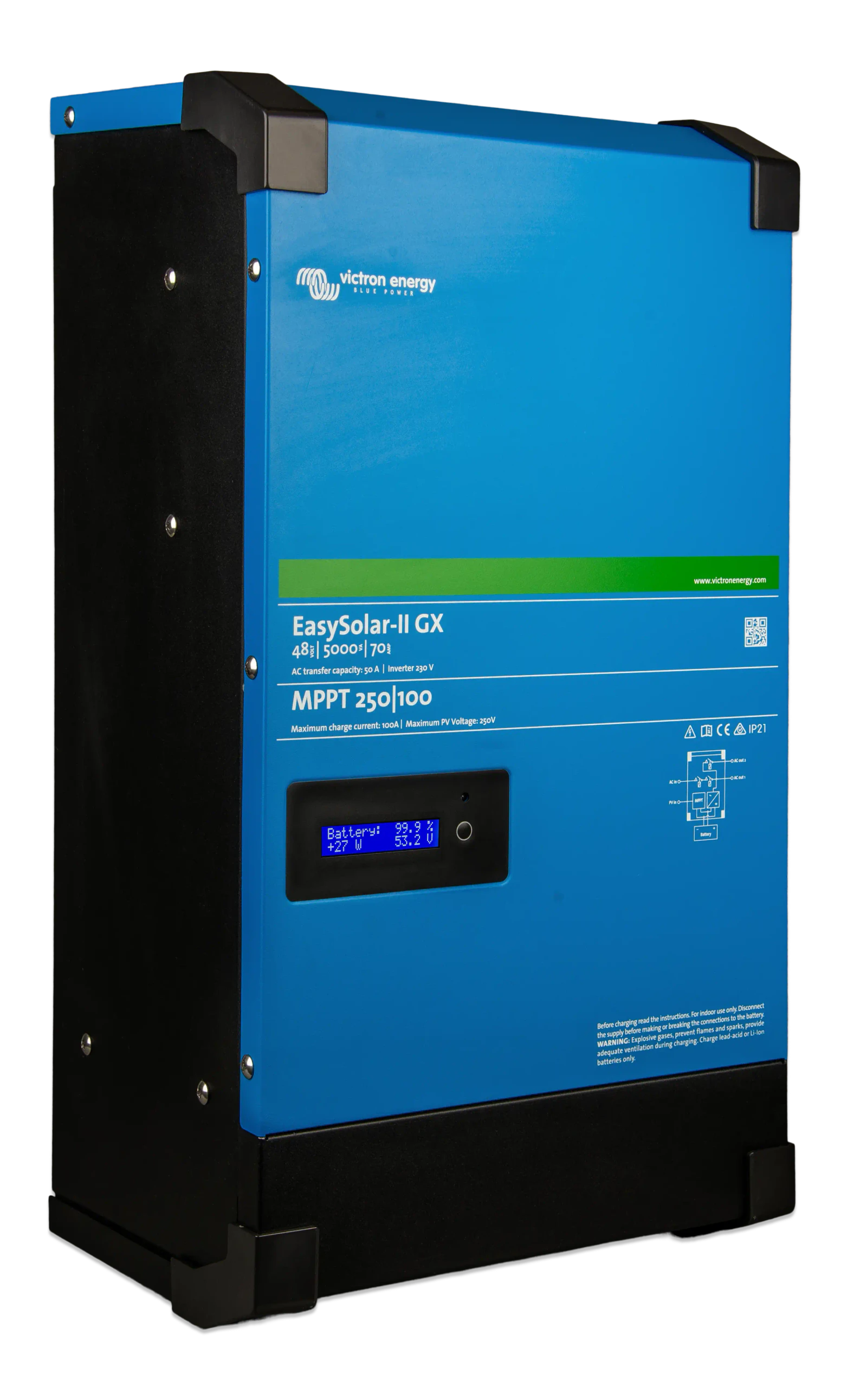

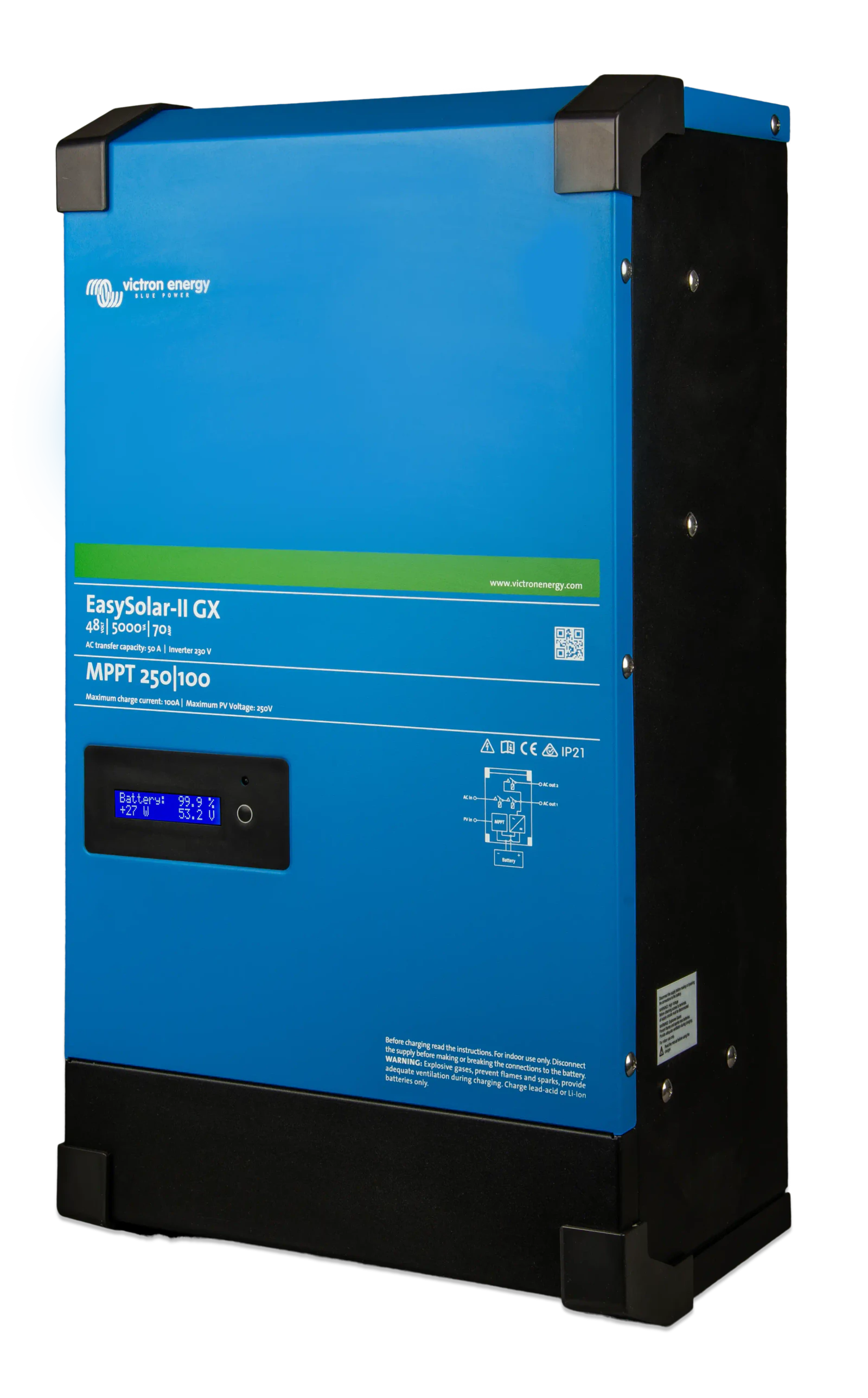

Victron 48V 5000VA EasySolar-II 48/5000/70-50 Inverter/Charger/MPPT 250/100 GX
Victron 48V 5000VA EasySolar-II 48/5000/70-50 Inverter/Charger/MPPT 250/100 GX
5000VA Inverter, 70A Charger, 100A MPPT with GX Monitoring
Key features: Integrated 100A SmartSolar MPPT charge controller, Built-in GX device for system monitoring and control, Pure sine wave 5000VA inverter with 9000W peak power, Dual AC outputs for critical and non-critical loads, PowerControl and PowerAssist features to prevent grid overload.

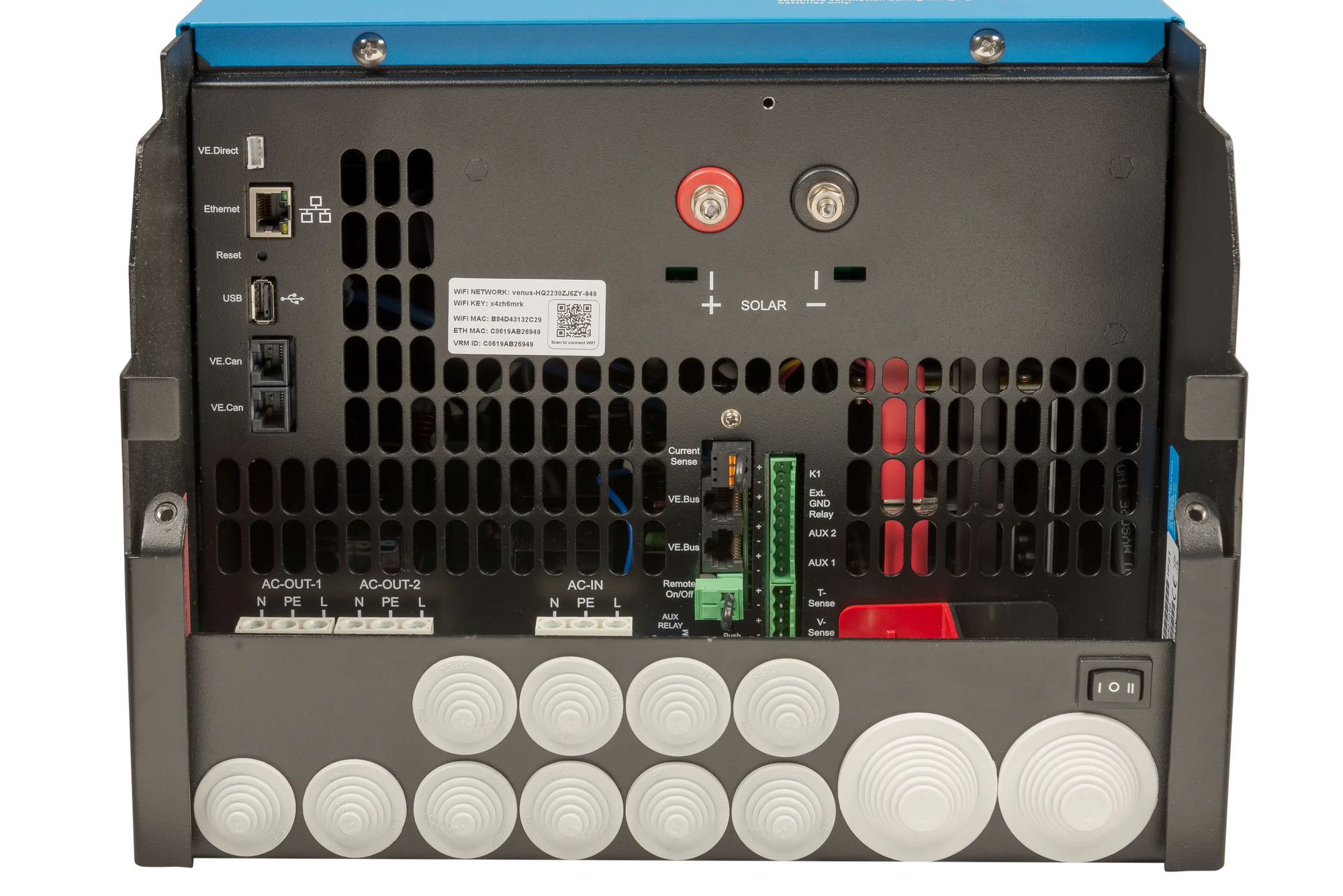

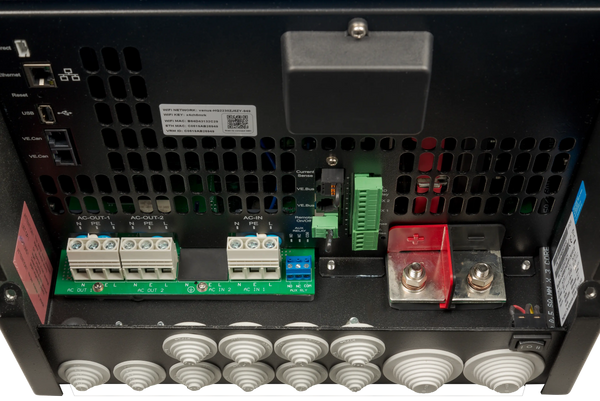

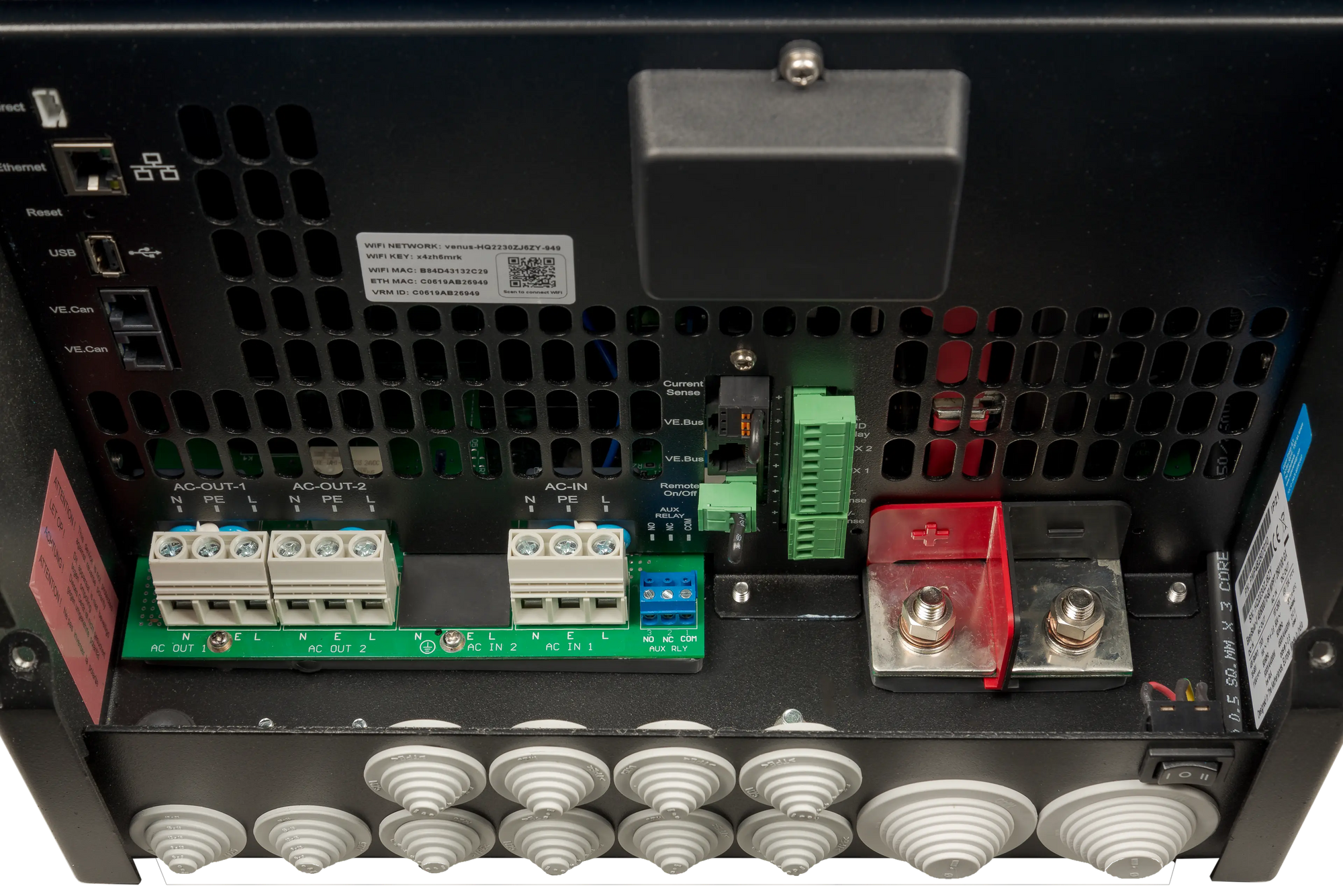

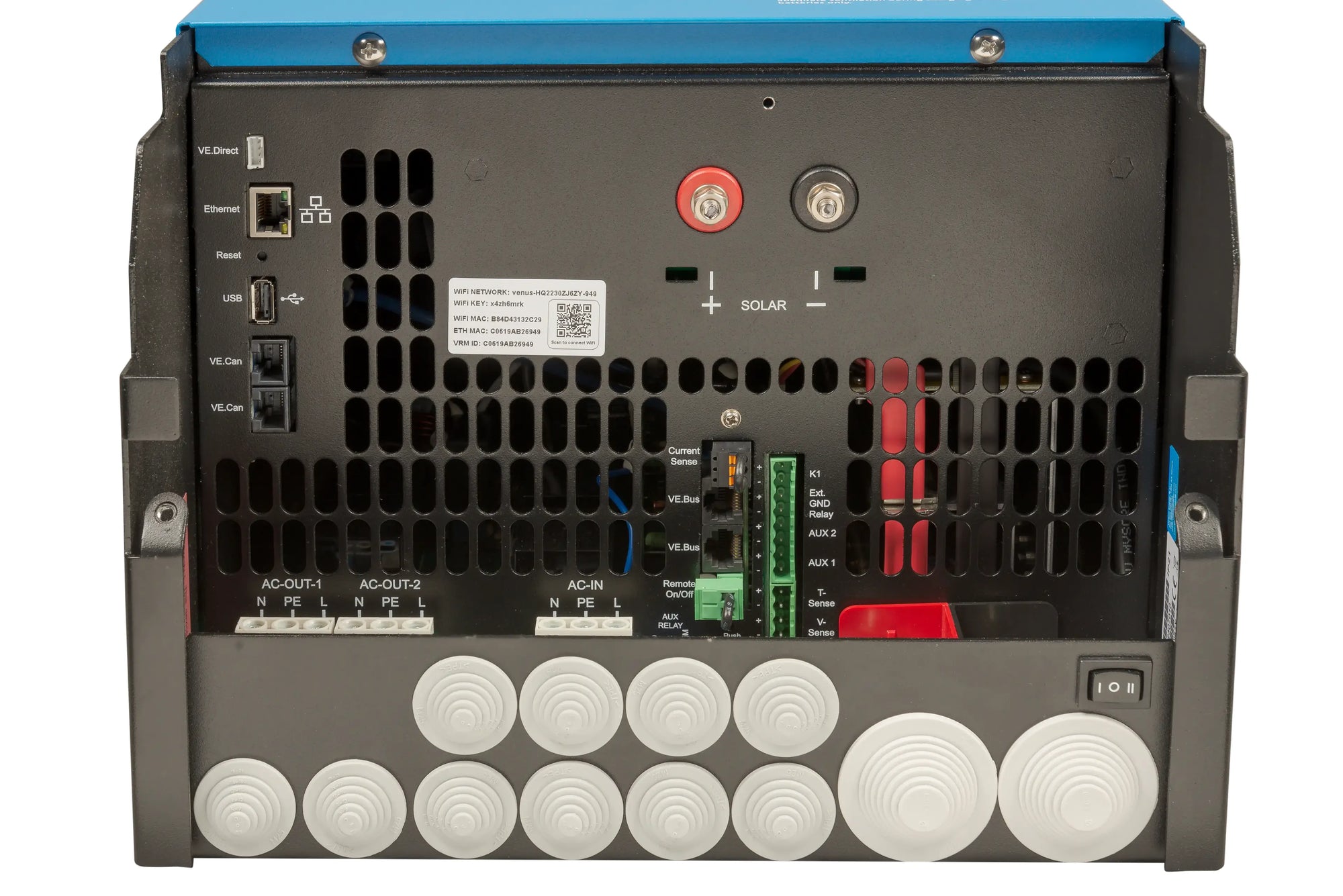

Detailed view of the internal wiring bay featuring heavy-duty battery terminals, AC input and output terminals, and multiple communications ports for system integration
Highlights:Integrated GX Interface: Ethernet, USB, and VE.Can ports for local networking and VRM cloud connectivity,Solar PV Input: High-voltage M6 studs for direct solar array connection up to 250V,AC Terminals: Secure 16mm2 screw terminals for AC grid input and dual AC outputs,Control Bus: VE.Direct and VE.Bus connection points for Victron accessories and BMS,Cable Glands: Multiple flexible entries for organised routing of power and data cables.


DESCRIPTION
Victron EasySolar-II 48/5000/70-50: Integrated 48V Inverter, Charger, and MPPT for Off-Grid Power
Unified Energy Management for Demanding Off-Grid and Backup Systems
The Victron EasySolar-II 48/5000/70-50 MPPT 250/100 GX consolidates a powerful 5000VA pure sine wave inverter, a 70A adaptive battery charger, and an advanced 100A SmartSolar MPPT charge controller into a single, space-efficient enclosure. By integrating these core components, this all-in-one 48V power hub reduces external wiring, simplifies installation, and minimises potential points of failure—making it an excellent foundation for off-grid solar systems, remote cabins, tiny homes, and critical backup power applications.
Designed for Australian conditions, the EasySolar-II delivers reliable AC power for household appliances, workshop tools, and sensitive electronics. Its integrated GX communication centre provides local and remote monitoring via Wi-Fi, Ethernet, and the Victron Remote Management (VRM) portal, giving you full control over your energy system from anywhere.
Reliable 5000VA Inverter with High Surge Capacity
At the heart of the EasySolar-II is a 5000VA (4000W continuous) inverter that produces clean, stable 230V AC power. This output is suitable for running demanding loads such as air conditioners, water pumps, and kitchen appliances. For equipment with high inrush currents—like compressors or induction motors—the inverter provides up to 9000W peak power, ensuring reliable starts without voltage dips. The PowerAssist feature intelligently supplements limited grid or generator supply with battery power, preventing overload trips and maintaining system stability.
High-Performance MPPT 250/100 Solar Charge Controller
The built-in SmartSolar MPPT 250/100 maximises energy harvest from your photovoltaic array. With a 250V maximum open-circuit voltage and 100A charge current, it can handle up to 5800W of solar input. Victron’s ultra-fast Maximum Power Point Tracking (MPPT) algorithm adapts rapidly to changing light conditions, capturing up to 30% more energy than conventional PWM controllers—particularly beneficial during overcast weather or partial shading. Direct M6 bolt connections for the PV array ensure secure, low-resistance terminations.
Integrated GX Monitoring and Control
The onboard GX device serves as the communication hub, eliminating the need for an external control unit. It features a built-in digital display for real-time system data and supports connectivity via VE.Can, VE.Direct, USB, Ethernet, and Wi-Fi. This enables seamless integration with managed lithium batteries (BMS-Can), Victron accessories, and the VRM portal. Through VRM, you can monitor performance, adjust settings, and receive alerts from any smartphone or computer, providing peace of mind whether you’re on-site or away.
Key Features
- All-in-one integration: Combines inverter, charger, MPPT, and GX control in a single IP21-rated aluminium enclosure, saving wall space and installation time.
- 9000W surge capability: Starts heavy inductive loads with ease, reducing the risk of nuisance tripping.
- Ultra-fast MPPT 250/100: Processes up to 5800W of solar power with 99% peak efficiency for optimal energy yield.
- Comprehensive connectivity: Onboard Wi-Fi, Ethernet, VE.Can, and VE.Direct for BMS integration and remote monitoring via VRM.
- Adaptive 70A charger: Multi-stage charging with temperature compensation extends battery service life.
- Dual AC outputs: Separate connections for critical and non-critical loads, enhancing system flexibility.
Simplified Installation, Reduced Footprint
Traditional off-grid setups require separate mounting and cabling for the inverter, solar charge controller, and monitoring gateway. The EasySolar-II integrates these functions internally, dramatically reducing the physical footprint and the labour associated with external DC wiring and communication cables. The M8 battery bolts provide secure, high-current connections, while the AC screw terminals accommodate up to 16 mm² (approx. 6 AWG) conductors. This streamlined design not only speeds up commissioning but also lowers material costs and potential points of failure.
Built for Australian Off-Grid Environments
Housed in a durable aluminium enclosure (RAL 5012 blue) with IP21 protection, the EasySolar-II is engineered for indoor installation in demanding off-grid settings. Its fan-assisted cooling maintains performance in ambient temperatures from -20°C to +45°C, while the conformally coated electronics resist humidity and dust. The unit’s programmable relay can be configured for generator start/stop, low-battery alarms, or other custom functions, adding a layer of automation to your power system.
Take Command of Your Energy
Whether you’re building a new off-grid residence, upgrading a remote workstation, or designing a resilient backup system, the Victron EasySolar-II 48/5000/70-50 delivers integrated intelligence and dependable performance. Order your EasySolar-II today and experience the simplicity of unified power management with professional-grade Victron engineering.

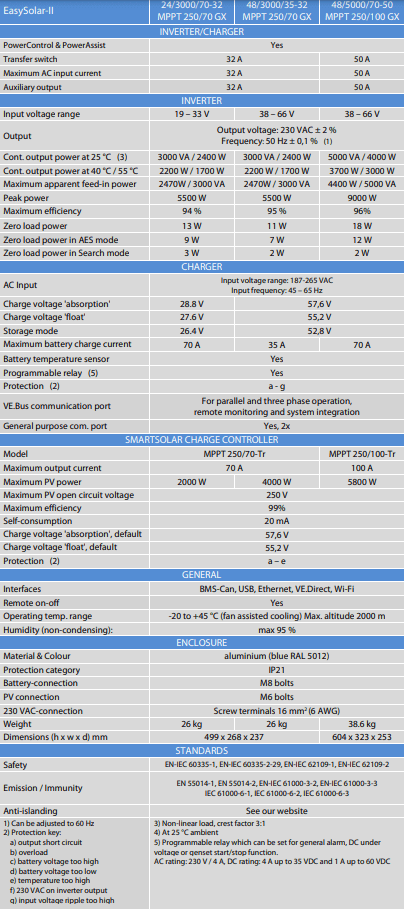

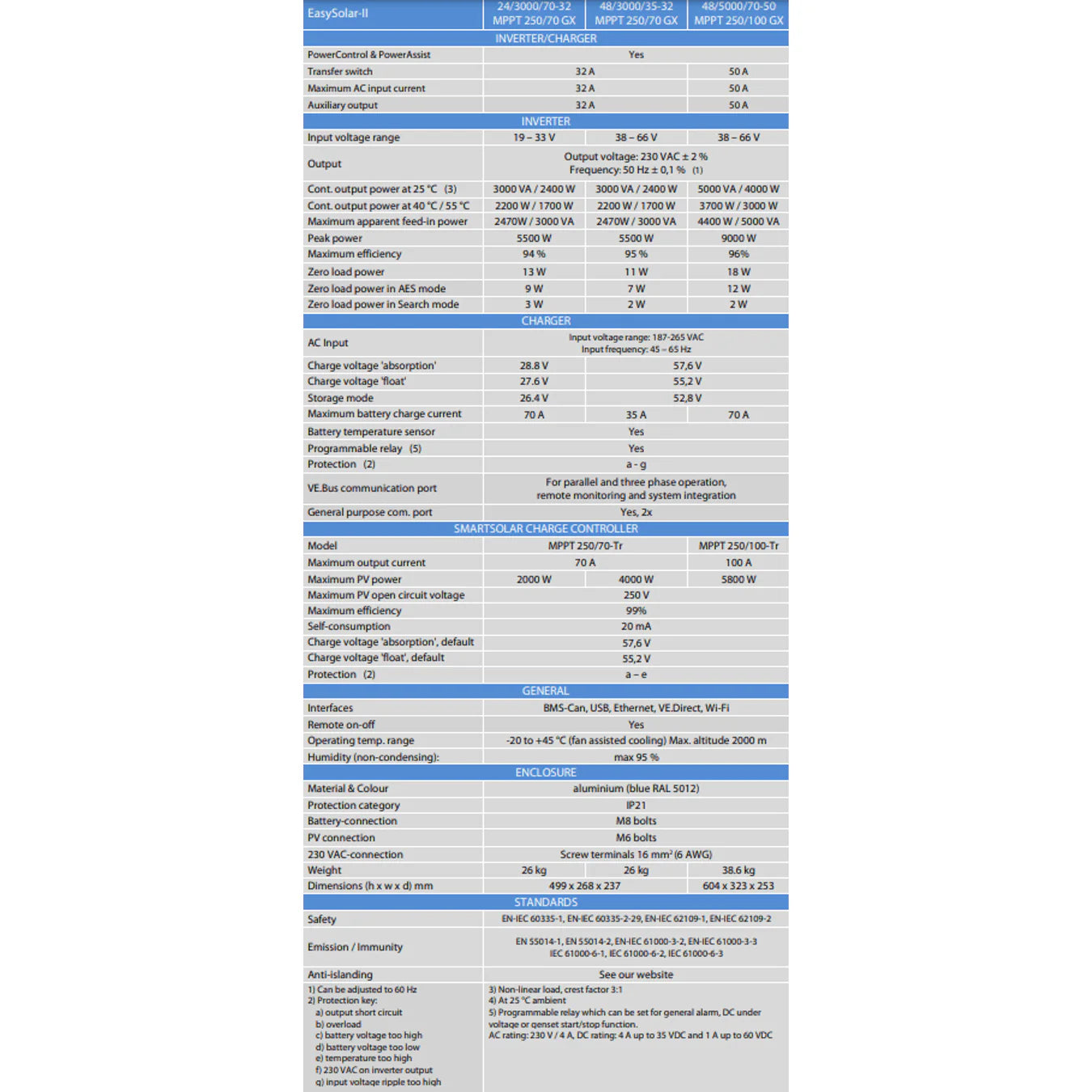

SPECIFICATIONS
Specifications
| Model | EasySolar-II 48/5000/70-50 MPPT 250/100 GX |
|---|---|
| Inverter/Charger | |
| PowerControl & PowerAssist | Yes |
| Transfer switch | 50A |
| Maximum AC input current | 50A |
| Auxiliary output | 50A |
| Inverter | |
| Input voltage range | 38 – 66V |
| Output voltage | 230 VAC ± 2% |
| Frequency (1) | 50 Hz ± 0.1% |
| Cont. output power at 25°C (3) | 5000 VA / 4000 W |
| Cont. output power at 40°C / 55°C | 3700 W / 3000 W |
| Maximum apparent feed-in power | 4400 W / 5000 VA |
| Peak power | 9000 W |
| Maximum efficiency | 96% |
| Zero load power | 18 W |
| Zero load power in AES mode | 12 W |
| Zero load power in Search mode | 2 W |
| Charger | |
| AC Input voltage range | 187-265 VAC |
| Input frequency | 45 – 65 Hz |
| Charge voltage 'absorption' | 57.6 V (adjustable) |
| Charge voltage 'float' | 55.2 V (adjustable) |
| Storage mode | 52.8 V (adjustable) |
| Maximum battery charge current | 70 A |
| Battery temperature sensor | Yes |
| Programmable relay (5) | Yes |
| Protection (2) | a - g |
| VE.Bus communication port | Yes |
| General purpose com. port | Yes, 2x |
| SmartSolar Charge Controller | |
| Model | MPPT 250/100-Tr |
| Maximum output current | 100 A |
| Maximum PV power | 5800 W |
| Maximum PV open circuit voltage | 250 V |
| Maximum efficiency | 99% |
| Self-consumption | 20 mA |
| Charge voltage 'absorption', default | 57.6 V |
| Charge voltage 'float', default | 55.2 V |
| Protection | a – e |
| General | |
| Interfaces | BMS-Can, USB, Ethernet, VE.Direct, Wi-Fi |
| Remote on-off | Yes |
| Operating temp. range | -20 to +45°C (fan assisted cooling) |
| Max. altitude | 2000 m |
| Humidity (non-condensing) | max 95% |
| Enclosure | |
| Material & Colour | aluminium (blue RAL 5012) |
| Protection category | IP21 |
| Battery-connection | M8 bolts |
| PV connection | M6 bolts |
| 230 VAC-connection | Screw terminals 16 mm² (6 AWG) |
| Weight | 38.6 kg |
| Dimensions (h x w x d) mm | 604 x 323 x 253 |
| Standards | |
| Safety | EN-IEC 60335-1, EN-IEC 60335-2-29, EN-IEC 62109-1, EN-IEC 62109-2 |
| Emission / Immunity | EN 55014-1, EN 55014-2, EN-IEC 61000-3-2, EN-IEC 61000-3-3 IEC 61000-6-1, IEC 61000-6-2, IEC 61000-6-3 |
| Anti-islanding | See our website |
1) Frequency Adjustment: Can be adjusted to 60 Hz
2) Protection Key: a) Output short circuit b) Overload c) Battery voltage too high d) Battery voltage too low e) Temperature too high f) 230 VAC on inverter output g) Input voltage ripple too high
3) Load Handling: Non-linear load, crest factor 3:1
4) Operating Conditions: At 25 °C ambient
5) Programmable Relay: Can be set for general alarm, DC under voltage or genset start/stop function. AC rating: 230 V / 4 A, DC rating: 4 A up to 35 VDC and 1 A up to 60 VDC
| SKU: | VIC-PMP482507010 |
| Barcode: | 8719076049333 |
| Model #: | PMP482507010 |
| MPN: | PMP482507010 |
