MC4 Fuses & Blocking Diodes
Inline MC4 solar fuses and blocking diodes from 5A to 20A for panel protection
MC4 Inline Solar Fuses and Blocking Diode Connectors
These MC4 inline fuses and solar blocking diodes add protection directly into your PV cabling, with no separate enclosure or fuse block needed. Each connector fits inline between a solar panel lead and your extension cable. This keeps installations neat on caravan roofs, 4WD canopies, boats, tiny homes and off-grid cabins.

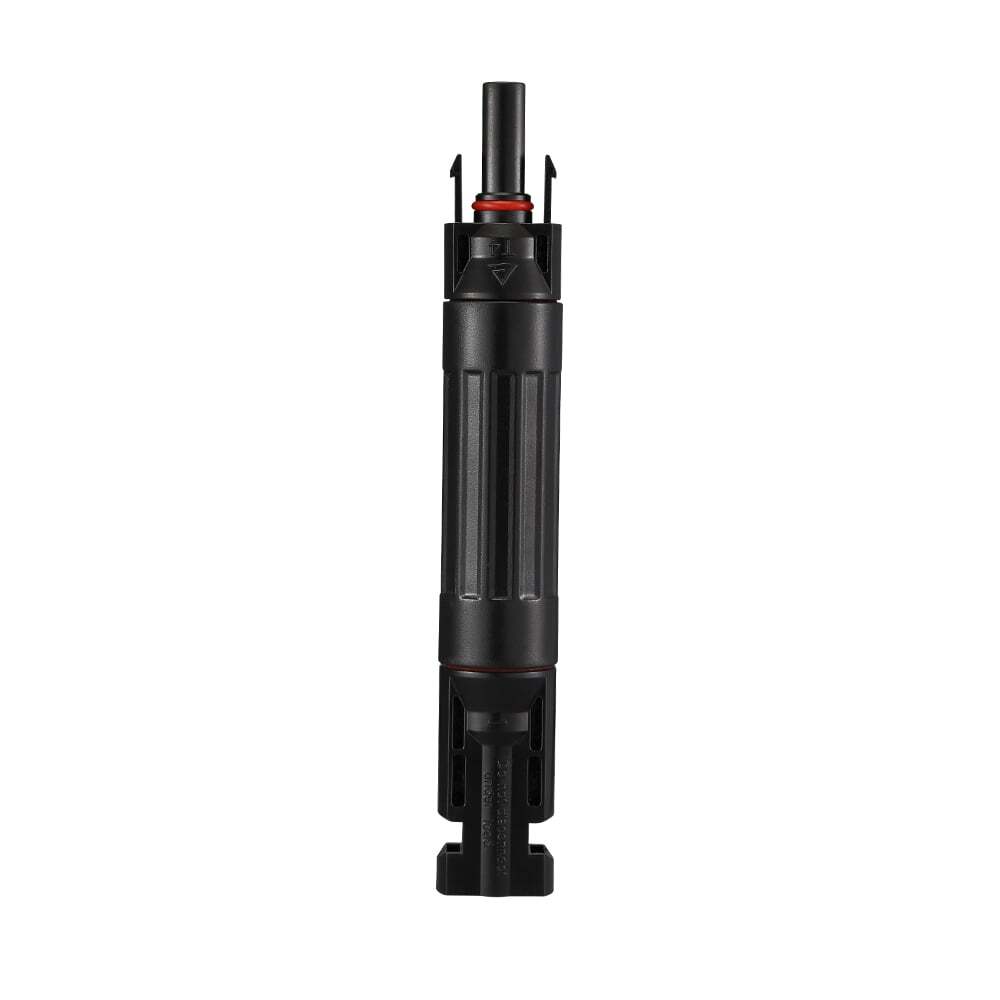

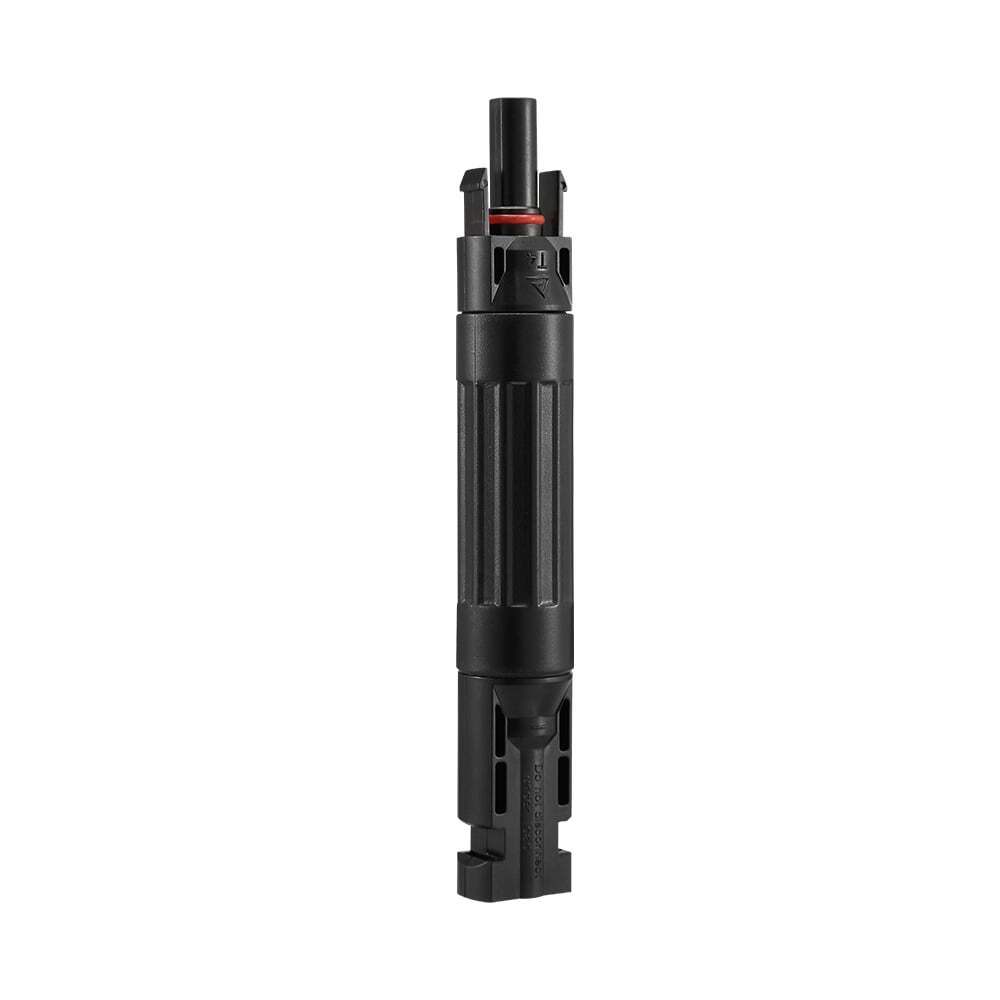

MC4 Inline Fuse Connectors
An inline solar fuse protects panel wiring from overcurrent. This matters most when two or more panels are wired in parallel. If one panel or cable develops a fault, the others can feed their combined current into it. A correctly rated fuse on each panel lead opens the circuit before the cable or module is damaged. The range covers 5A, 10A, 15A and 20A ratings, so you can match the fuse to anything from a small folding panel to a larger fixed roof panel.

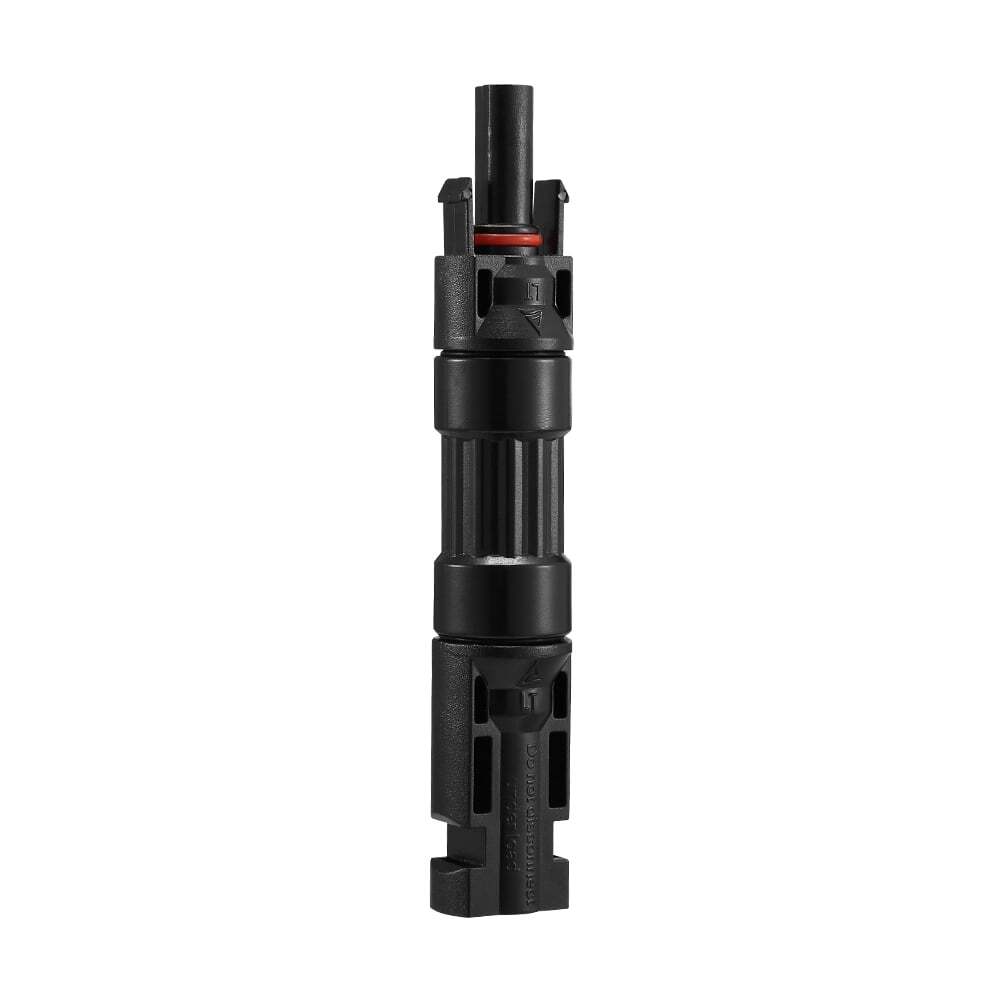

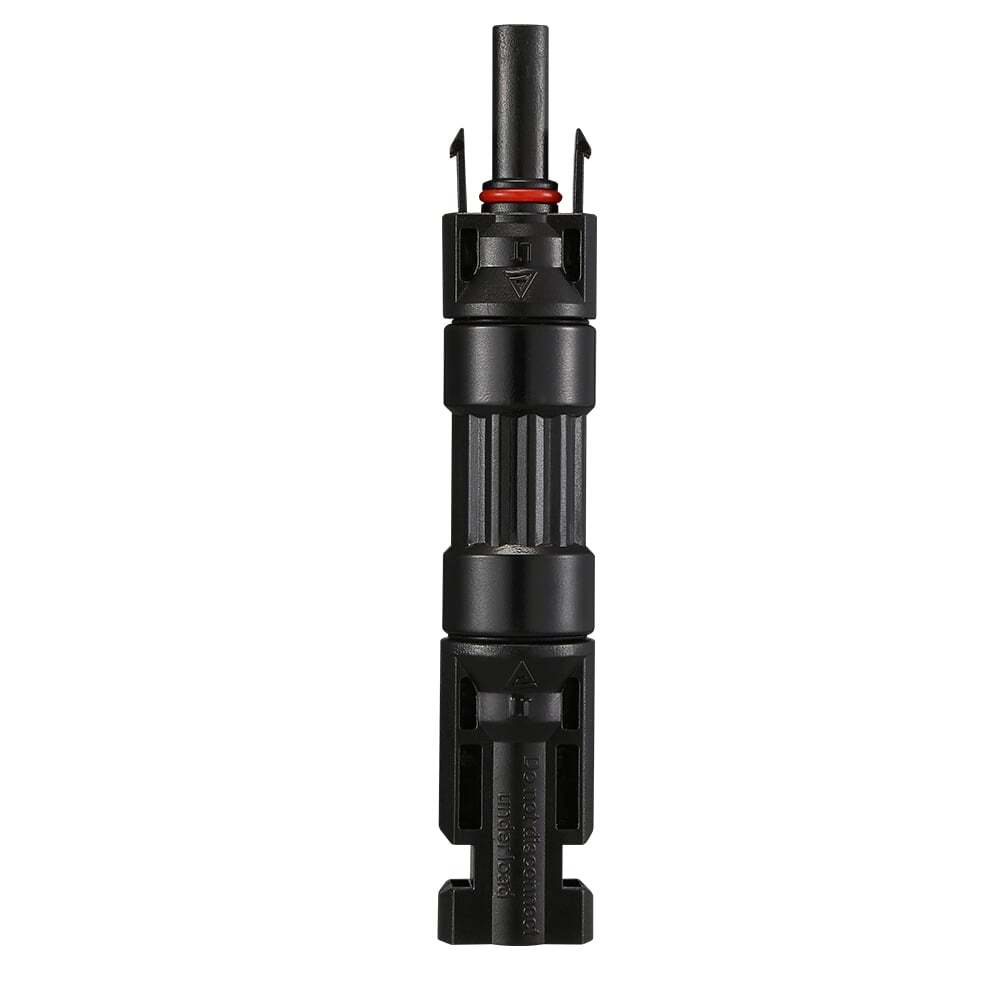

MC4 Blocking Diode Connectors
A blocking diode lets current flow in one direction only. In solar systems it helps prevent reverse current flowing back into a panel. This can occur when panels with uneven output are paralleled, or when one panel is shaded. Diode connectors are available in 10A, 15A and 20A ratings. Like any diode, they introduce a small forward voltage drop, so they are best used where reverse current protection is genuinely needed.
Common Applications
- Fusing individual panels in parallel solar arrays on caravans, RVs and motorhomes
- Adding a second or third panel to an existing roof or portable setup
- Isolating shaded or mismatched panels with an inline blocking diode
- Protecting PV leads on boats, trucks and remote off-grid installs
- Neat, weatherproof inline protection where a fuse box is impractical
For a full walkthrough of series and parallel layouts, including where fuses and diodes belong, see our solar panel wiring guide.
How to Choose the Right MC4 Fuse or Diode
Fuse rating: Check the specification label on your panel. Select a fuse rated above the panel's short-circuit current (Isc) and no higher than the module's maximum series fuse rating.
Diode rating: Choose a diode connector with a current rating comfortably above the panel's operating and short-circuit current. This allows headroom for bright, cool conditions.
Fuse or diode: Fuses protect against overcurrent faults. Diodes manage current direction. Many parallel arrays need fusing, while diodes suit specific reverse current scenarios.
Orientation: Both connector types are directional. Confirm polarity and the correct male and female ends before final connection.
For battery-side and load protection, browse fuses and fuse holders or DC circuit breakers and enclosures. Select the rating that matches your panel specifications and add simple, reliable inline protection to your solar array today.
