Sunman eArc Solar Panels

Lightweight, ultra thin Sunman eArc flexible panels from 85W to 430W for curved and weight-sensitive roofs

Total: 8 Products

Sunman eArc Flexible Solar Panels for Weight-Sensitive Installations

Sunman eArc solar panels replace heavy glass with glass fibre-reinforced composite polymers, similar to the materials used in aircraft windows. The result is a frameless, lightweight solar panel around 2mm thick that can follow gently curved surfaces. These panels suit roofs that cannot carry conventional framed glass modules. The range runs from a compact 9V 85W panel to a high-output 430W panel, covering small 12V setups through to larger caravan, marine and building installs.

eArc development was supported by $3.3M in Australian Renewable Energy Agency (ARENA) funding. The goal was durability comparable to conventional solar panels, and eArc is a CEC-accredited lightweight panel approved for grid connect on buildings. The technology has been featured by ABC News. It is used on the Byron Bay solar train and on the Sydney Maritime Museum's heritage building, where 812 panels (235kW) were fitted to a structure that could not support framed glass panels.

Why Choose eArc Panels

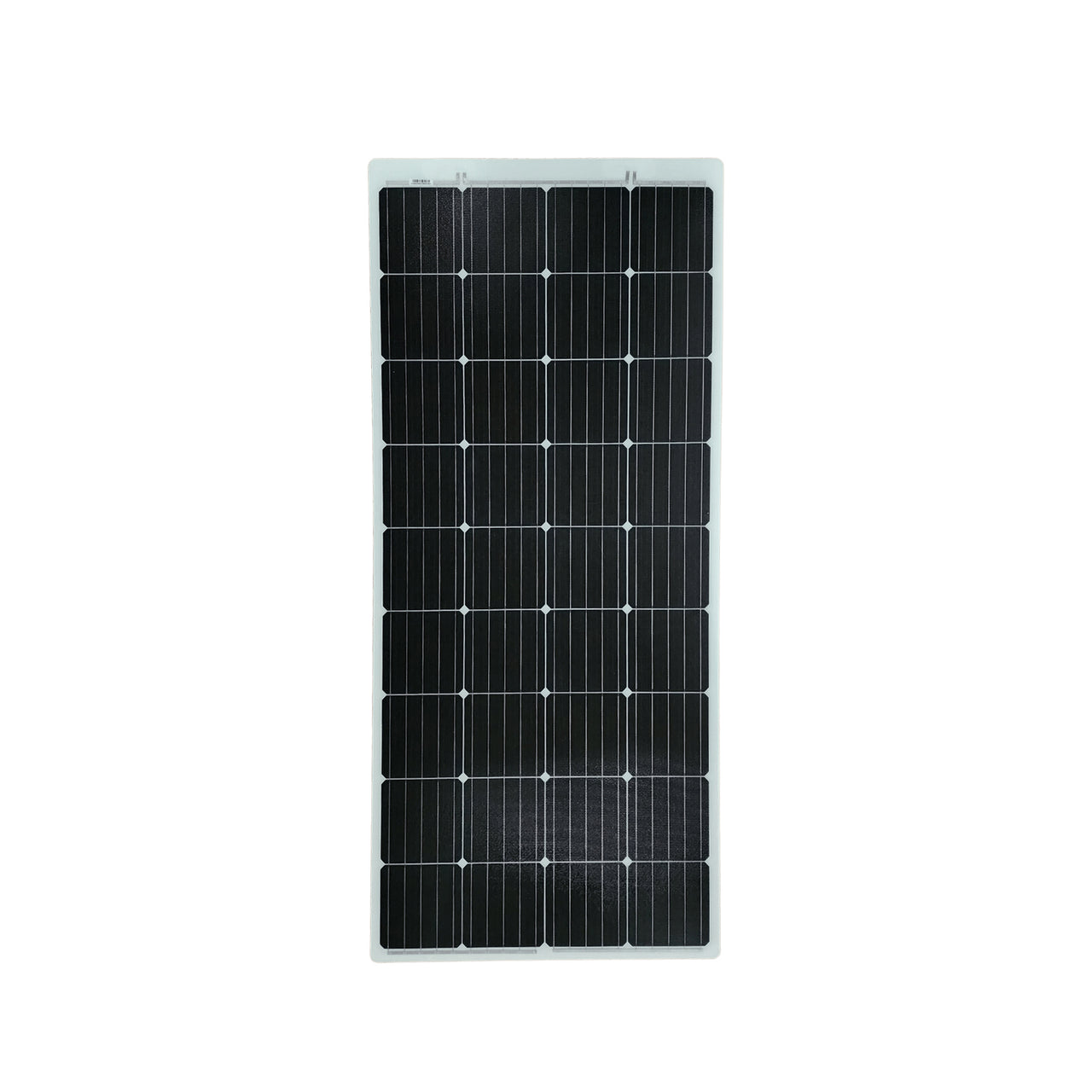

  • Lightweight: the 175W frameless panel weighs about 3kg.
  • Thin profile: about 2mm thick, so the panels sit low on the roof and reduce wind drag.
  • Hail tested: tested with 35mm, 200g ice stones at 39.5m per second.
  • Load rated: rated to 2400 pascals for wind and 2400 pascals for load.
  • Monocrystalline cells: provide efficient energy harvest.
  • Warranty: 10-year product warranty for building use and 5 years for mobile applications.

Choosing the Right Size

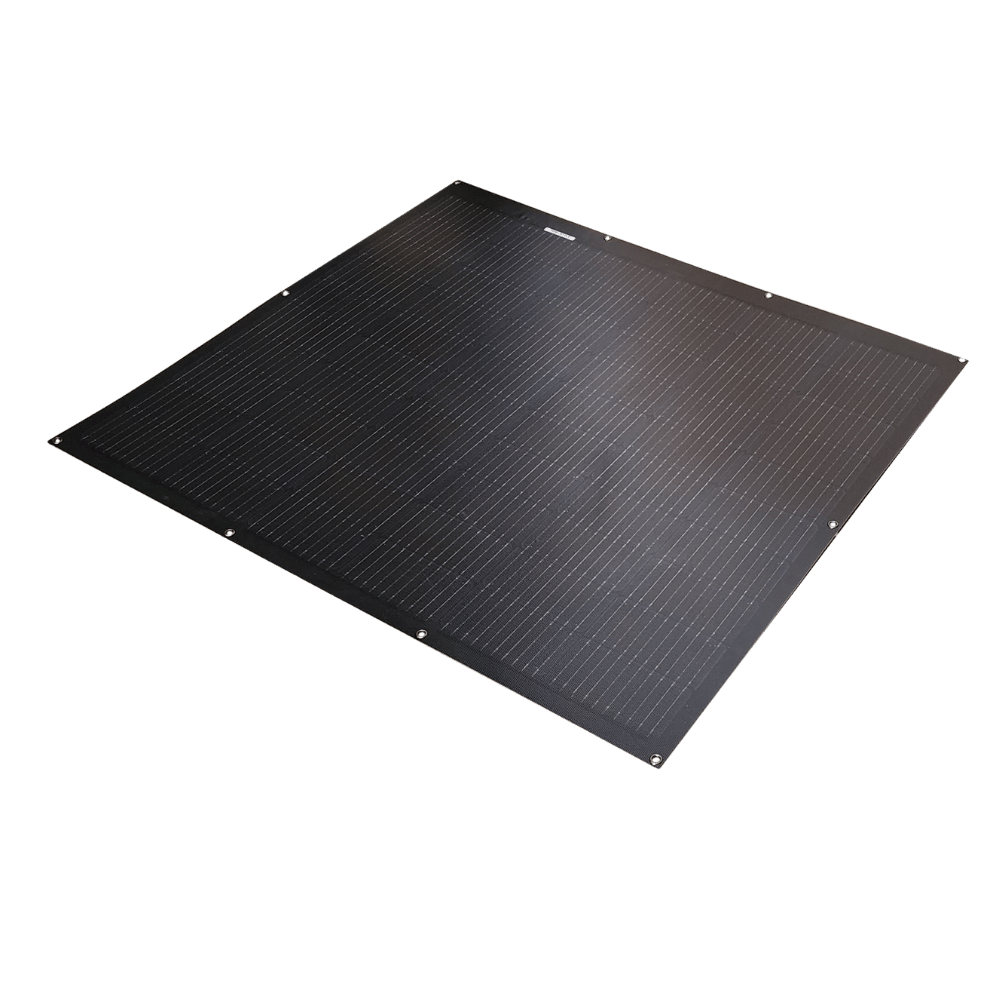

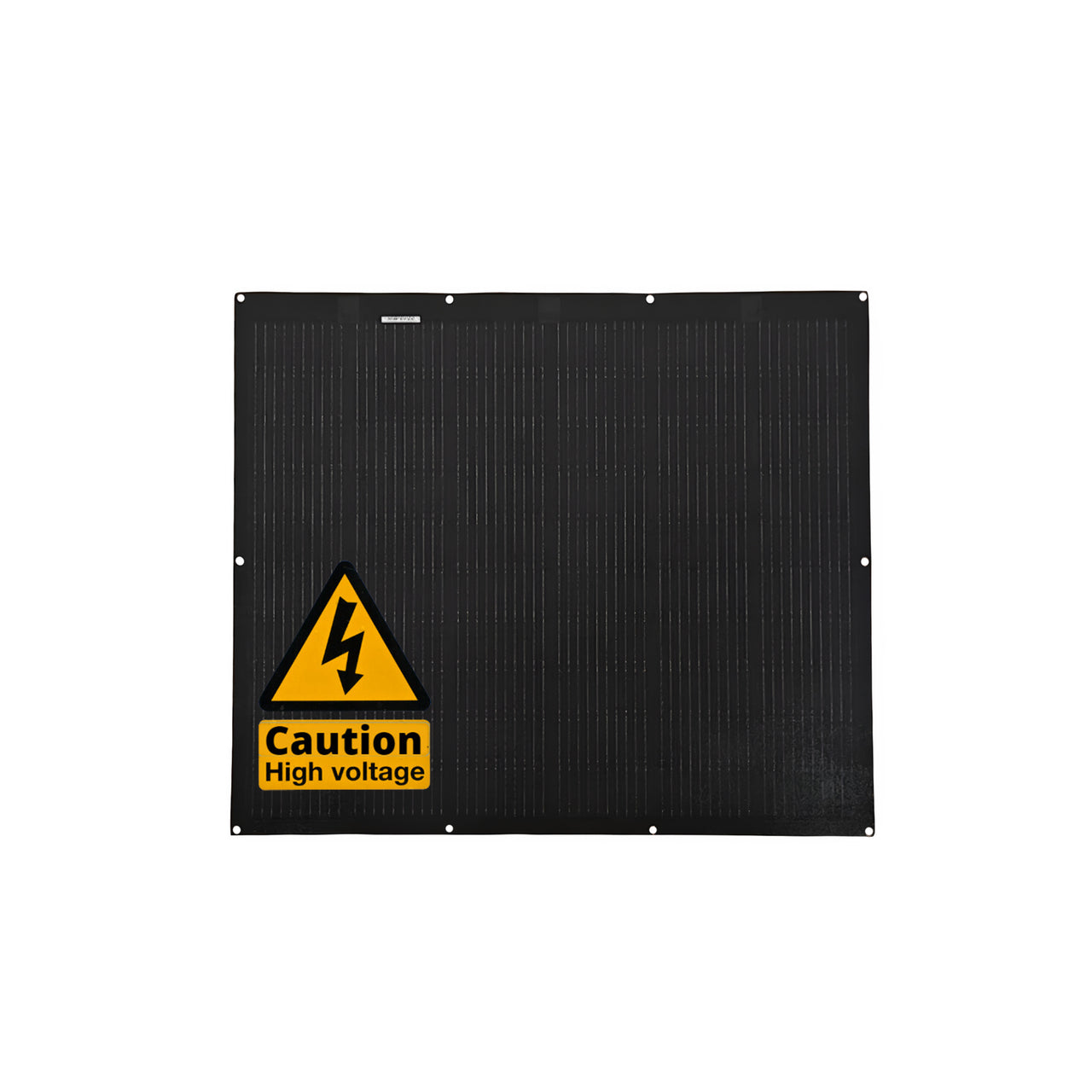

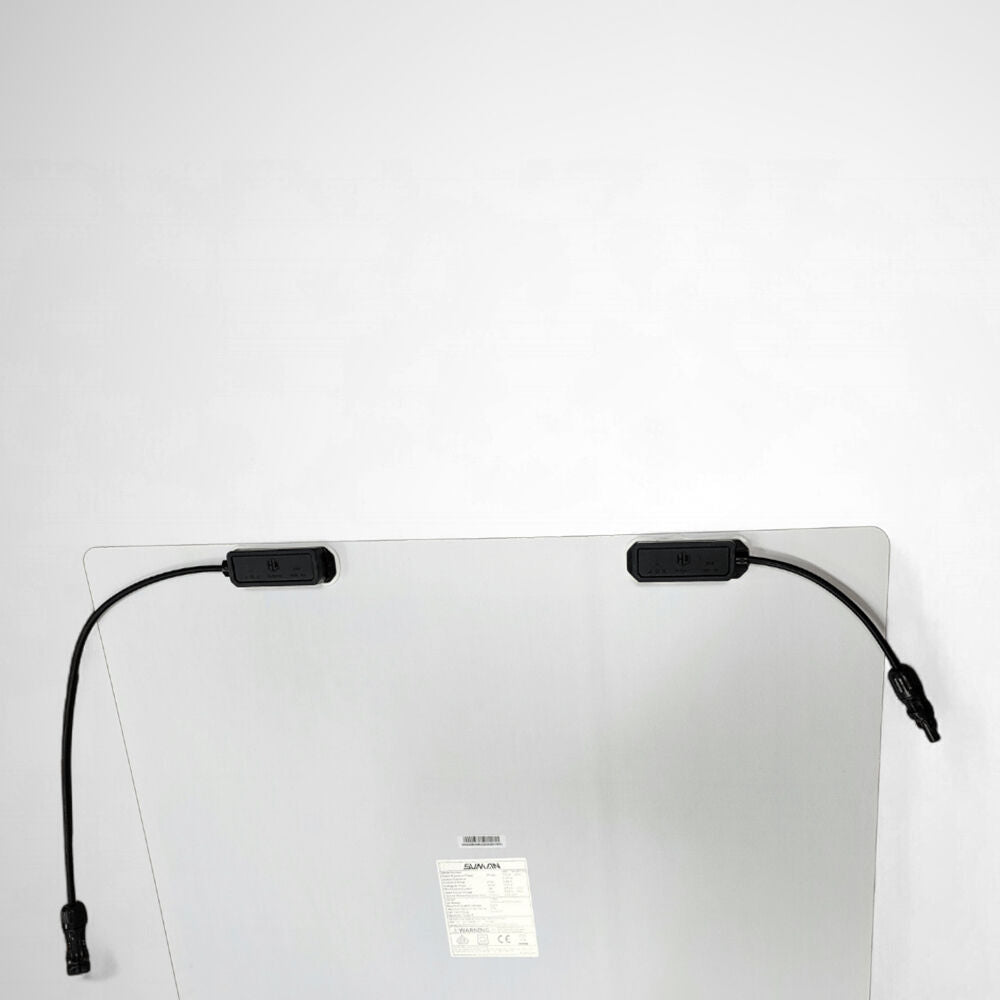

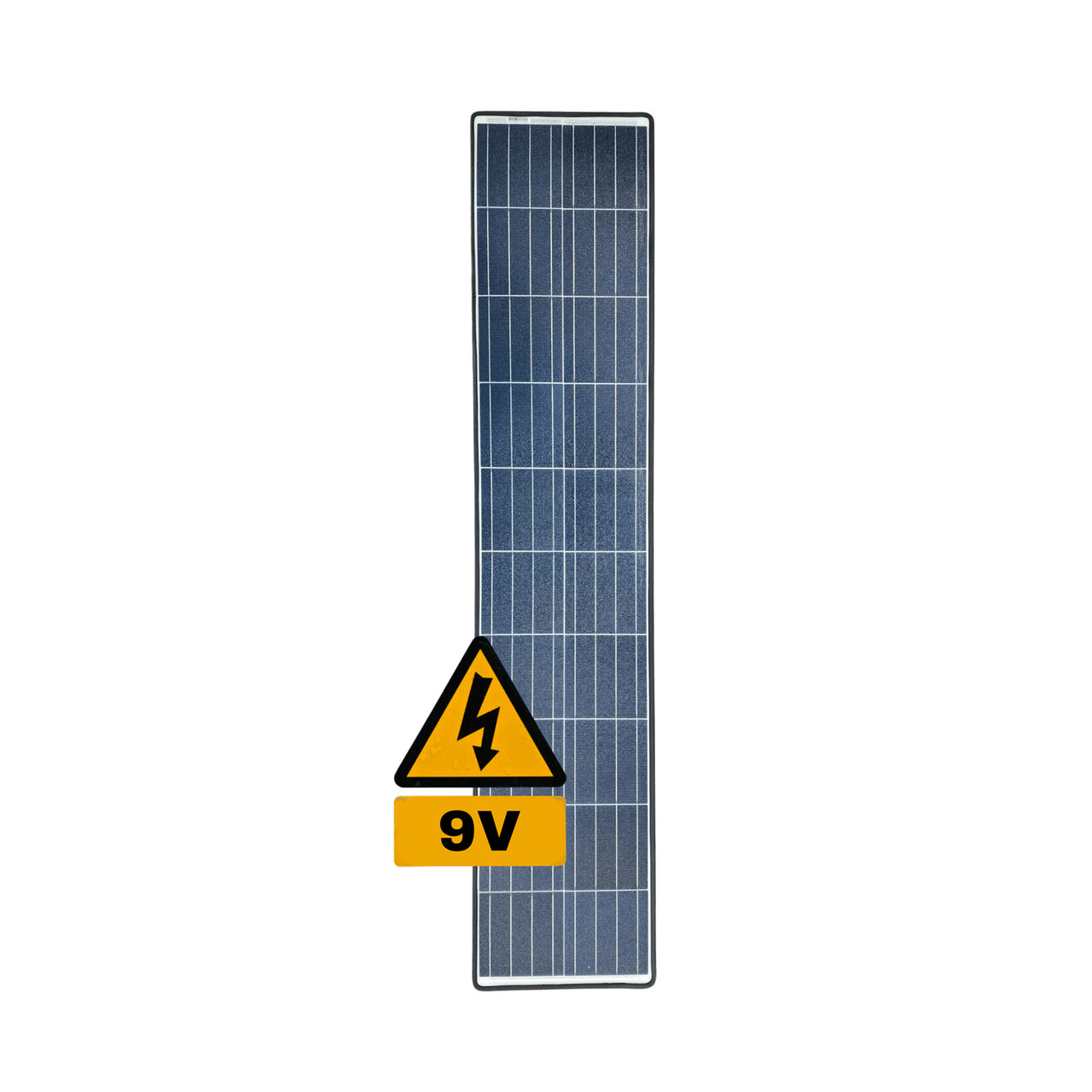

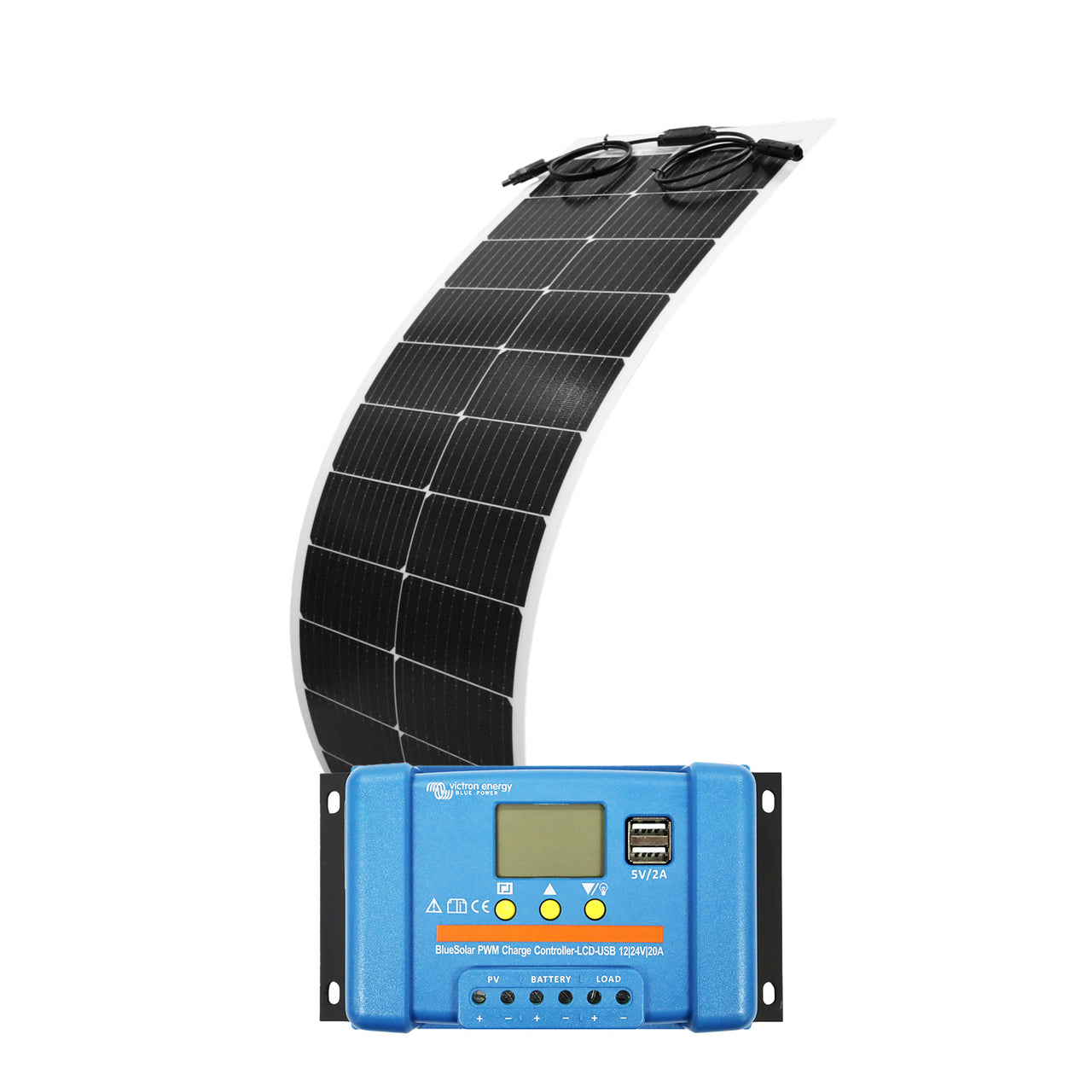

The 100W eArc Narrow Flexible Solar Panel suits tight roof strips on caravans, campers and boats. It is also offered as a bundle with a Victron 20A BlueSolar PWM charge controller for a simple 12V starter system. The 175W and 200W Black Square panels have the junction box underneath, which gives a cleaner look and keeps cabling protected. For larger battery banks, the 230W, 320W and 430W panels deliver more output per panel. The 9V 85W panel suits compact or specialised builds.

Typical applications include caravans, motorhomes, 4WD campers, boats, golf carts, buses and lightweight commercial roofs. If you are comparing materials and constructions, see our wider range of flexible solar panels. For portable charging away from the vehicle, see our foldable and blanket solar panels.

Sunman eArc FAQs

Can eArc panels be mounted on a curved caravan or boat roof?

Yes. Their thin composite construction allows them to follow gently curved surfaces. Correct adhesive selection and surface preparation are essential. Our flexible and lightweight solar panel mounting guide covers the process step by step.

Are eArc panels as durable as glass panels?

eArc panels were developed to match conventional panel durability. They are hail tested, rated to 2400Pa for wind and load, and CEC-accredited for building installations.

Do I need a charge controller?

Yes. A solar charge controller is needed to charge a battery safely. The 100W narrow bundle includes a Victron 20A BlueSolar PWM controller for a ready-matched setup.

Choose the eArc panel that suits your roof space and power needs. Order today for a lighter, slimmer solar setup with proven Australian-developed technology.
