Waterproof DC-DC Converter

Sealed IP67 Victron Orion converters for 24V to 12V and 12V to 24V systems


IP67 Waterproof DC-DC Converters for Harsh Environments

When a converter must sit in a wet engine bay, a bilge, under a truck chassis or inside a dusty 4WD canopy, an open-frame unit is a poor choice. This collection brings together Victron Orion non-isolated DC-DC converters with IP67 sealed housings. They are built to deliver stable output voltage where moisture, spray, dust and vibration are part of daily operation.

The range covers two common conversion needs. Step-down Orion 24/12 models run 12V appliances from a 24V battery bank. The step-up Orion 12/24-50A powers 24V equipment from a 12V system.

Available Models and Key Features

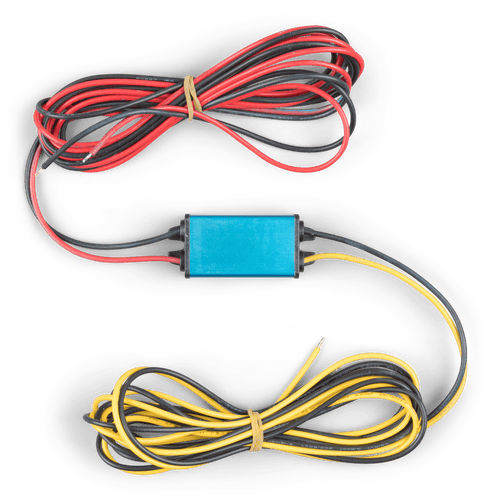

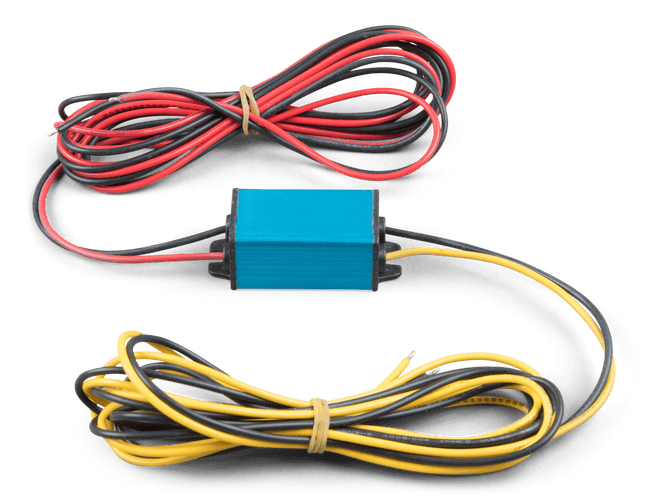

  • Orion 24/12-5A: compact step-down unit for radios, USB outlets, LED lighting and small 12V accessories on 24V trucks and boats.

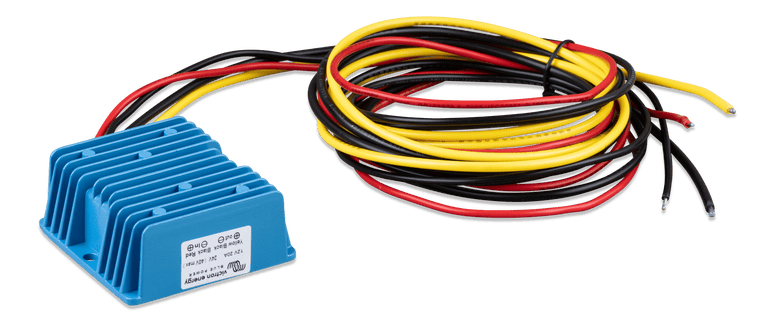

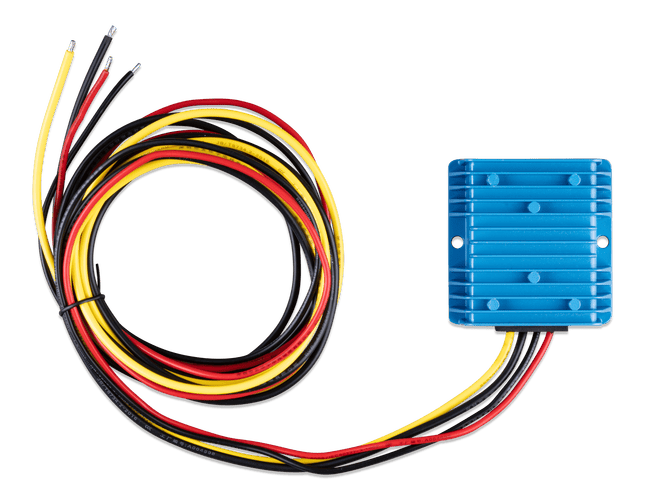

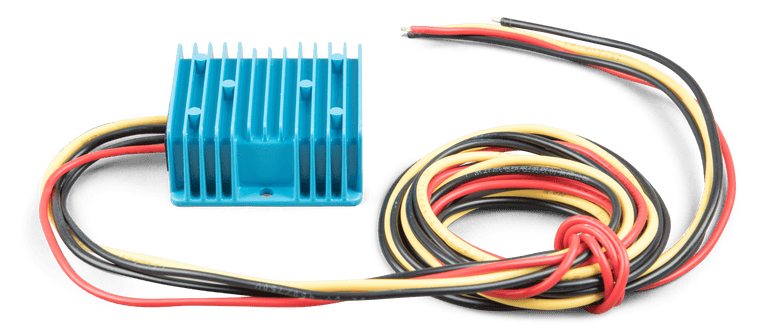

  • Orion 24/12-10A and 24/12-20A: mid-range output for fridges, pumps, navigation electronics and 12V sockets.

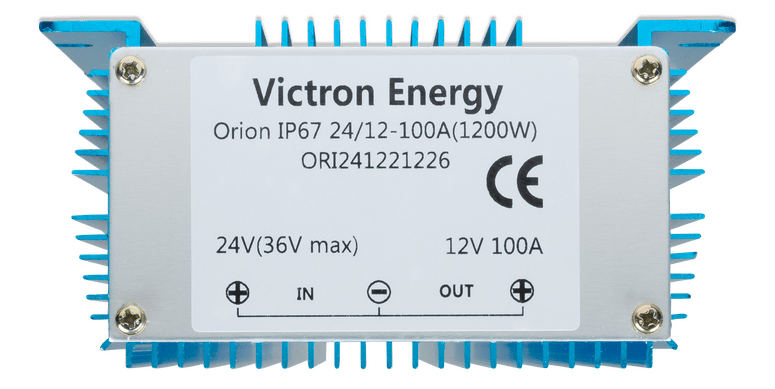

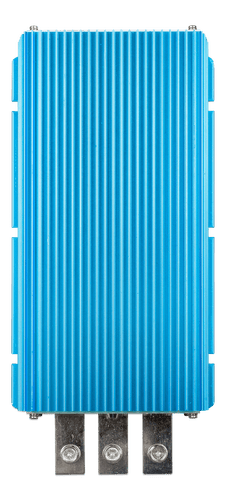

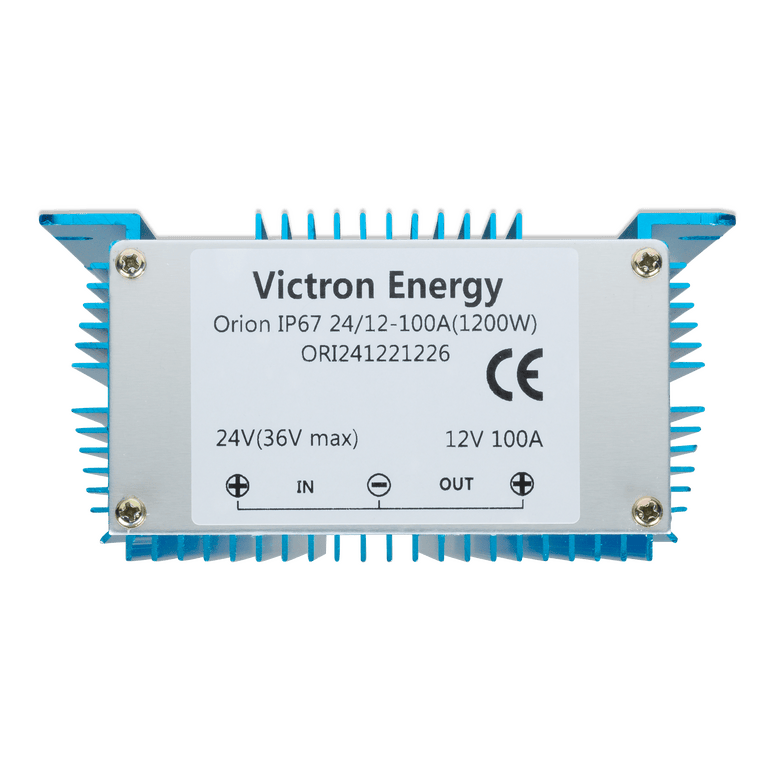

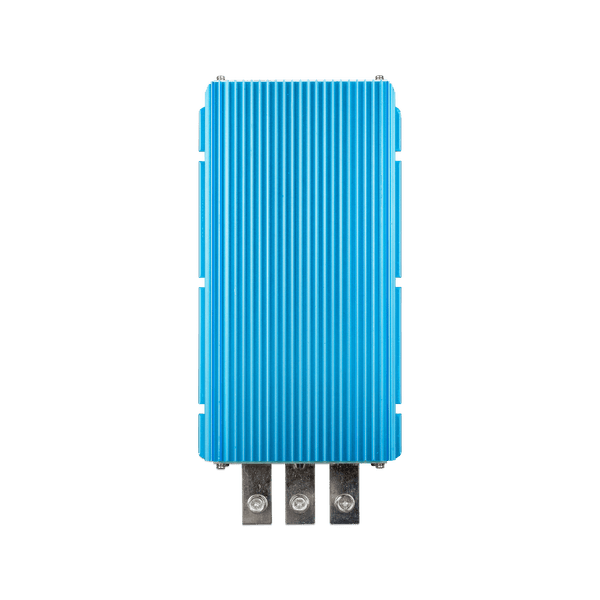

  • Orion 24/12-100A: high-current step-down for larger 12V distribution panels in buses, heavy vehicles and commercial vessels.

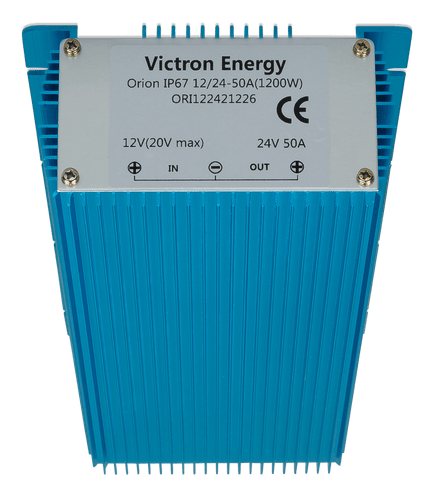

  • Orion 12/24-50A: step-up converter for running 24V winches, pumps or marine equipment from a 12V battery.
  • IP67 sealed construction: protects against dust ingress and water immersion, suiting marine, mining, agricultural and off-road installs.

If your installation needs a fixed 24V to 12V supply in a dry location, compare options in our 24V to 12V DC-DC converters range.

Why Choose a Non-Isolated Converter?

In a non-isolated converter, the input and output share a common negative. This design is compact and highly efficient. It suits vehicles and vessels where the 12V and 24V circuits already share a single chassis or negative bus. Common examples are trucks with a 24V starting system and 12V accessories, or boats with a 24V house bank feeding 12V electronics.

Where galvanic separation is required, an isolated design is the better fit. Typical cases include sensitive marine electronics, separate earthing systems or long cable runs prone to noise. Browse our isolated DC-DC converters for those applications. For a detailed comparison of both topologies, read our guide to isolated vs non-isolated converters and DC-DC chargers.

Selection Tips for Matching a Converter to Your Setup

Confirm direction first. Choose a 24/12 model to step down from a 24V system, or the 12/24-50A to step up from 12V.

Size for continuous load. Add up the current draw of every appliance that may run at once, then select a model with comfortable headroom above that figure. A 20A unit running a 15A load will work less hard than one operating at its limit.

Plan cabling and protection. High-current models such as the 24/12-100A need correctly sized cable and fusing on the input side to keep voltage drop low and circuits protected.

Check the negative arrangement. Make sure your system can share a common negative before choosing a non-isolated unit.

Reliable Conversion That Stands Up to the Elements

Select the Victron Orion IP67 converter that matches your voltage and current needs. Order today to give your truck, boat, caravan or 4WD sealed power conversion built for demanding conditions.
