Victron 24V to 12V Orion 24/12-10A Non-Isolated IP67 DC-DC Converter
Victron 24V to 12V Orion 24/12-10A Non-Isolated IP67 DC-DC Converter
Waterproof

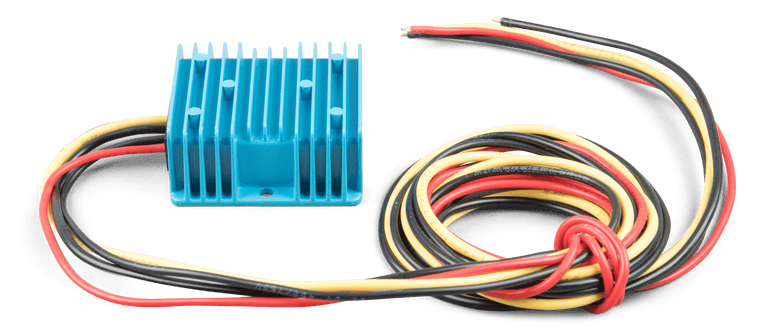

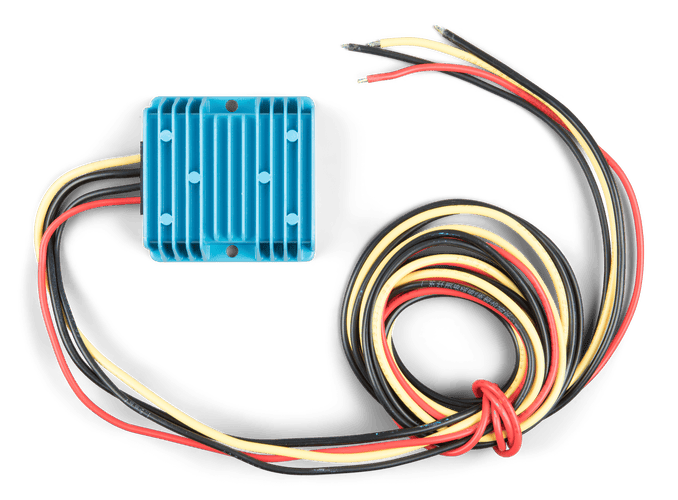

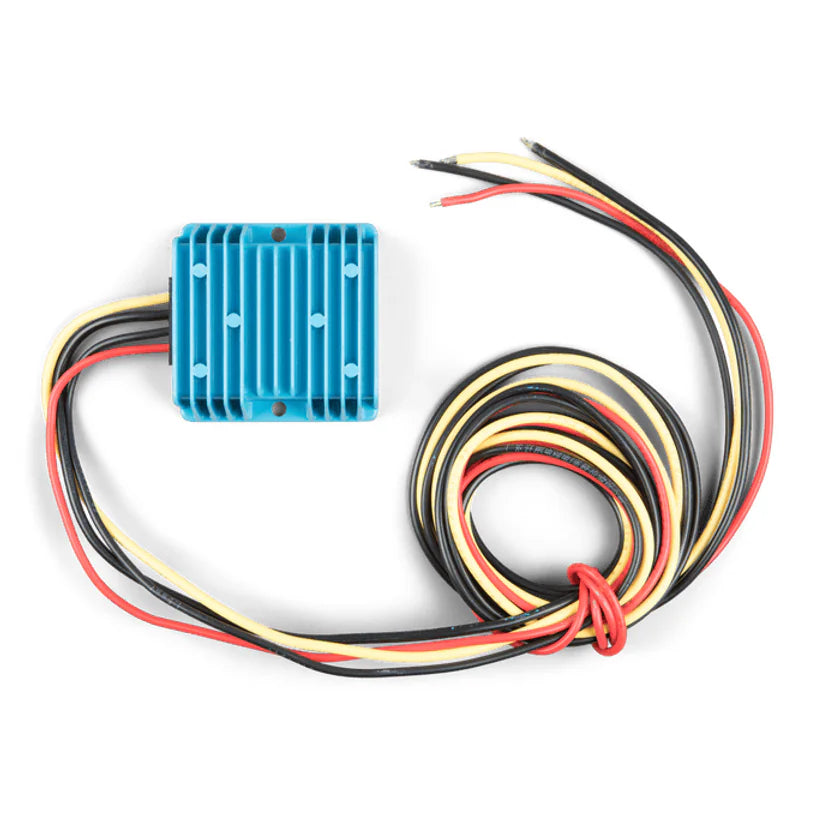

Highlights:Integrated Heatsink: Blue aluminium housing with integrated fins for efficient passive cooling,Mounting Hole: Pre-drilled 5mm holes in the aluminium flange for secure surface mounting,Pre-wired Leads: Four 1.8m long input and output cables for straightforward electrical installation,Waterproof Body: Completely sealed IP67 rated enclosure that is waterproof and shockproof.
Key features: IP67 waterproof and shockproof rating, 93% high-efficiency power conversion, 1.8m long pre-terminated 1.5mm² cables, Compact blue aluminium heatsink enclosure, Automatic recovery overload protection.

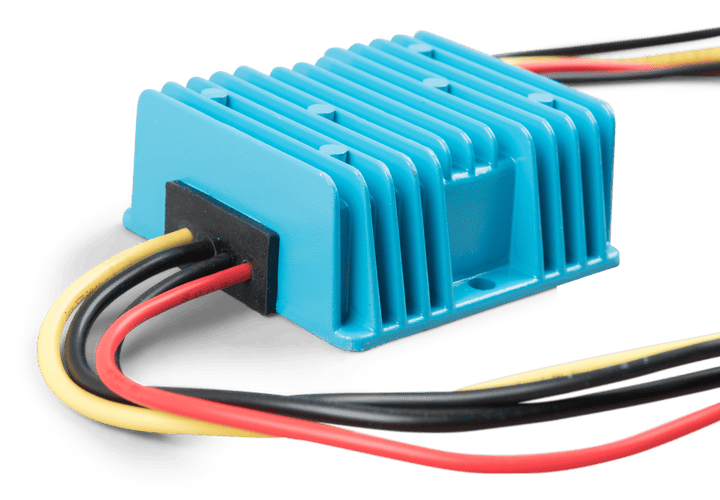

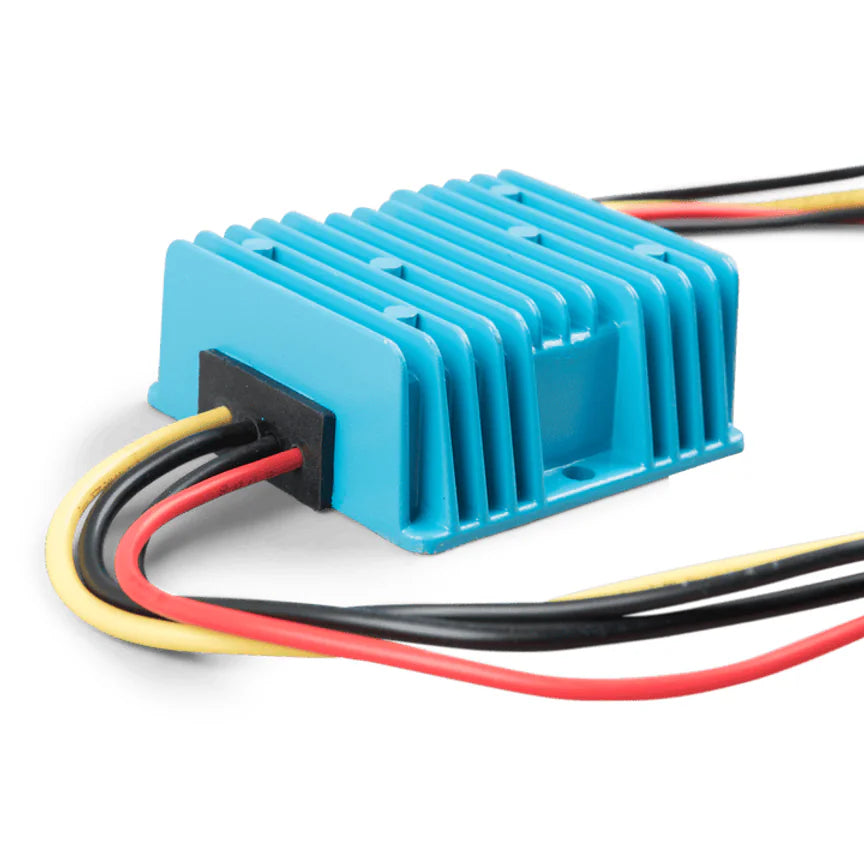

Close-up of the robust cable exit point where pre-wired leads emerge from the sealed IP67 aluminium enclosure, designed for harsh marine and automotive environments

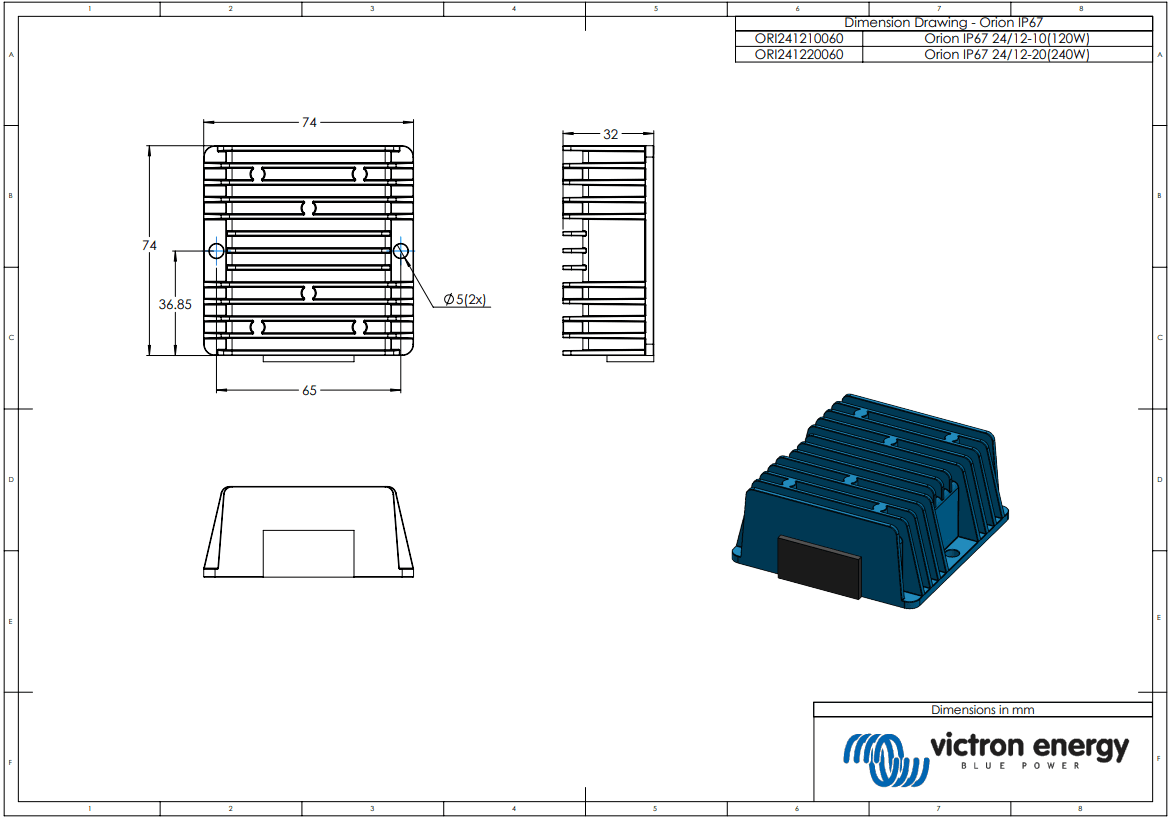

Technical drawing detailing the 74mm by 74mm dimensions and mounting hole spacing for the Orion IP67 DC-DC converter range
DESCRIPTION
Victron 24V to 12V Orion 24/12-10A (120W) Non-Isolated IP67 DC-DC Converter
Completely Encapsulated for Ultimate Protection
The Victron Orion 24V to 12V DC-DC Converter is designed to withstand the toughest conditions, making it an ideal choice for demanding environments. Its encapsulated design ensures that it is:
- Waterproof: Perfect for marine applications or areas prone to water exposure.
- Shockproof: Can endure harsh vibrations, ideal for industrial and mobile applications.
- Ignition Protected: Safe to use in environments where sparks could pose a danger.
Built to Withstand Elements
Constructed with a robust cast aluminium casing and electronics moulded in resin, this converter is highly resistant to water, oil, and dirt. You can trust the Orion IP67 DC-DC Converter to perform reliably in the harshest conditions.
Extra-Long Input and Output Cables
Featuring 1.8-meter input and output cables, the Victron Orion converter eliminates the need for additional cable interconnections in most setups. This not only simplifies installation but also enhances reliability by reducing potential points of failure.
Wide Input Voltage Range
With a wide input voltage range of 15 to 40 volts, this converter ensures a stable 12V output even during voltage surges or drops, providing consistent power to your equipment.
Overheating Protection
Designed to operate efficiently in hot environments, such as machine rooms, the Orion converter includes overheating protection to ensure safe and reliable performance.
Ideal Applications
- Caravans: Reliable power conversion for onboard electronics.
- RVs: Robust and weatherproof for outdoor adventures.
- Marine: Waterproof design perfect for boats and yachts.
- Off-Grid: Stable power supply for remote installations.
- Industrial: Durable and shockproof for factory and machinery use.
Upgrade Your Power System Today!
Ensure your power system is reliable and efficient with the Victron 24V to 12V Orion 24/12-10A Non-Isolated IP67 DC-DC Converter. Order now to experience ultimate protection and performance in any environment!

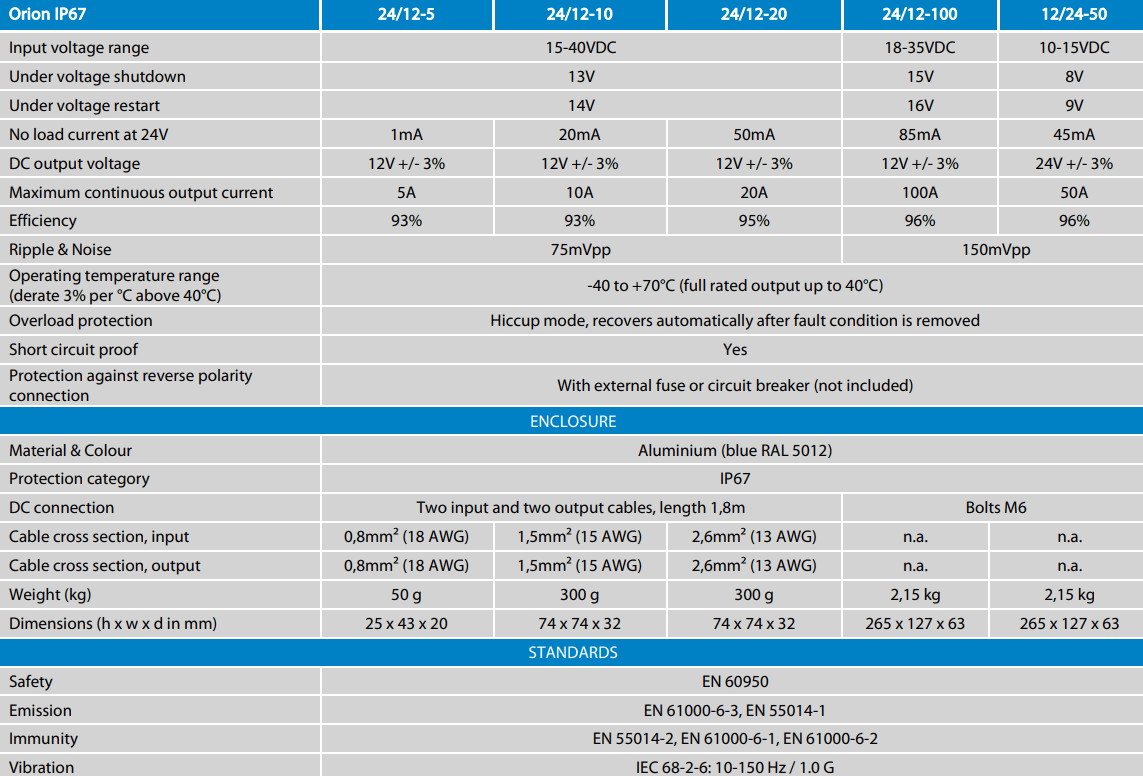

SPECIFICATIONS
Specifications
| Orion IP67 | 24/12-10 |
|---|---|
| Input voltage range | 15-40VDC |
| Under voltage shutdown | 13V |
| Under voltage restart | 14V |
| No load current at 24V | 20mA |
| DC output voltage | 12V +/- 3% |
| Maximum continuous output current | 10A |
| Efficiency | 93% |
| Ripple & Noise | 75mVpp |
| Operating temperature range | -40 to +70°C (full rated output up to 40°C) |
| Overload protection | Hiccup mode, recovers automatically after fault condition is removed |
| Short circuit proof | Yes |
| Protection against reverse polarity connection | With external fuse or circuit breaker (not included) |
| Material & Colour | Aluminium (blue RAL 5012) |
| Protection category | IP67 |
| DC connection | Two input and two output cables, length 1.8m |
| Cable cross section, input | 1.5mm² (15 AWG) |
| Cable cross section, output | 1.5mm² (15 AWG) |
| Weight (kg) | 300 g |
| Dimensions (h x w x d in mm) | 74 x 74 x 32 |
| Safety | EN 60950 |
| Emission | EN 61000-6-3, EN 55014-1 |
| Immunity | EN 55014-2, EN 61000-6-1, EN 61000-6-2 |
| Vibration | IEC 68-2-6: 10-150 Hz / 1.0 G |
| SKU: | Vic-ORI241210260 |
| Barcode: | 8719076048435 |
| Model #: | ORI241210260 |
| MPN: | ORI241210260 |
