MRBF Fuses & Holders

Space-Saving Battery Terminal Fuse Protection

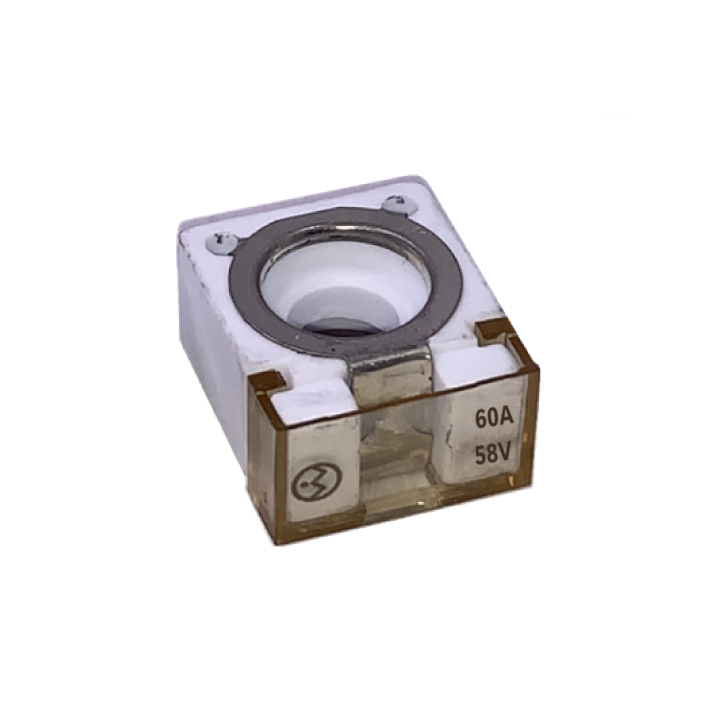

Protect your off-grid and marine electrical systems directly at the source with an MRBF (Marine Rated Battery Fuse). Designed to mount directly to your battery post, an MRBF terminal fuse block eliminates the need to run an unprotected length of cable between the battery and a traditional standalone fuse holder. This close-quarters mounting is crucial for safety. Whether you are wiring a compact 4WD canopy, a demanding marine vessel, a robust truck setup, or a large-scale caravan power system, these fuses provide exceptional short-circuit and overcurrent protection in a highly compact footprint. The battery post fuse approach is increasingly popular for its simplicity and safety.

High-Performance MRBF Fuses and Blocks

We carry a comprehensive selection of premium MRBF fuses and battery terminal fuse holders from trusted electrical brands like Exotronic and Blue Sea Systems. Exotronic offers excellent performance and durability, aligning perfectly with our commitment to robust off-grid solutions, alongside the globally recognised Blue Sea range. With a wide array of sizes spanning from 30A all the way up to heavy-duty 300A models, you can precisely match the circuit protection to your system's specific demands, whether it is a small auxiliary circuit or a primary inverter feed.

• Ignition protected: Safe for installation in engine compartments, boat bilges, and environments where combustible fumes may be present.
• Space-efficient design: The MRBF fuse block attaches straight to the battery terminal, drastically reducing the required mounting space compared to standard MIDI or MEGA fuse blocks.
• High interrupt capacity: Engineered to safely handle massive short-circuit currents from large lithium and AGM battery banks without catastrophic failure.
• Single and dual configurations: Choose from a single terminal fuse block for one circuit or a dual holder to protect two independent cable runs from the exact same battery post.

Built for Harsh Australian Conditions

Reliability is critical when traveling off-grid or navigating rough waters. Both the Exotronic and Blue Sea MRBF terminal fuses feature robust, weather-resistant construction to withstand heavy vibration, high temperatures, and the corrosive realities of marine and coastal travel. As an Australian family business with over a decade of experience, we focus heavily on providing high-quality products that give you peace of mind on the road or the water. We back every purchase with dedicated before and after support, helping you select the correct components for your build. With fast dispatch on all orders, you can get your 12V, 24V, or 48V installation completed without frustrating delays.

Compatibility Notes

Properly sizing and installing your battery terminal fuse is vital for overall system safety. Ensure your chosen MRBF rating correctly matches the continuous current rating of your connected appliances and the safe carrying capacity of your primary cables. When building out your system, remember that the MRBF holder bolts directly to the battery's threaded stud. The outgoing cable must be securely crimped using heavy-duty cable lugs that fit smoothly over the MRBF threaded stud (typically an M8 size). Pair your fuses with high-quality battery and welding cables to minimise dangerous voltage drop across your battery bank. Always ensure you install the supplied insulating cover over the MRBF fuse block to prevent accidental short circuits from dropped spanners or stray metal debris. If you are designing a broader and more complex power distribution board, explore our complete range of circuit protection, breakers, and switches today to secure your off-grid investment and travel with complete confidence.
