Victron 12/24/48V 20A SmartSolar MPPT 100/20 Bluetooth Solar Charge Controller

Bluetooth built-in for remote monitoring and control


Front view of blue Victron SmartSolar MPPT 100/20 charge controller showing status LEDs and terminalsHighlights:Status LEDs: Indicates current charging stage including Bulk, Absorption, and Float,QR Code: Quick access to the product manual and VictronConnect app download,IP43 Rating: Weather protection rating for electronic components against spray,Battery Terminals: Secure connections for 12V, 24V, or 48V battery systems,PV Solar Input: Accepts solar input with up to 100V open circuit voltage,Load Output: Intelligent load output to prevent battery over-discharge.
Angled perspective of Victron MPPT showing green screw terminal block and aluminium heatsinkKey features: Built-in Bluetooth for wireless monitoring and configuration via smartphone, Large aluminium heatsink for efficient passive cooling without internal fans, Secure 6mm² green screw terminal blocks for reliable electrical contact, Integrated 25A user-replaceable blade fuse for internal circuit protection, Automatic battery voltage recognition for versatile 12V, 24V, and 48V setups.Low angle front view focusing on the terminal connection area of the MPPT controllerHigh-visibility terminal area featuring clearly labelled screw connections for battery, solar PV, and DC load outputs with robust terminal spacing.Side perspective view of a blue Victron SmartSolar MPPT 100/20 charge controllerBottom profile view showing the internal terminal block and cooling finsSmartphone displaying VictronConnect app status screen showing 425W solar yieldBluetooth monitoring via the VictronConnect app, displaying real-time data including solar wattage, voltage, battery current, and charging state.Smartphone screen showing 30-day history charts of solar harvest in the VictronConnect appDetailed 30-day historical data logging viewable on mobile, tracking daily solar yield, maximum power, and battery voltage extremes.Technical specification comparison table for the Victron SmartSolar MPPT controller rangeFull technical specifications for the SmartSolar range, detailing charge current, PV power limits, and efficiency ratings across various models.Engineering dimensional drawing of the SmartSolar MPPT 100/20 with metric measurementsTechnical dimension drawing showing a product footprint of 100 x 131 x 60 mm with precise mounting hole locations for system integration.
Front view of blue Victron SmartSolar MPPT 100/20 charge controller showing status LEDs and terminals
Victron 12/24/48V 20A SmartSolar MPPT 100/20 Bluetooth Solar Charge Controller
Angled perspective of Victron MPPT showing green screw terminal block and aluminium heatsink
Low angle front view focusing on the terminal connection area of the MPPT controller

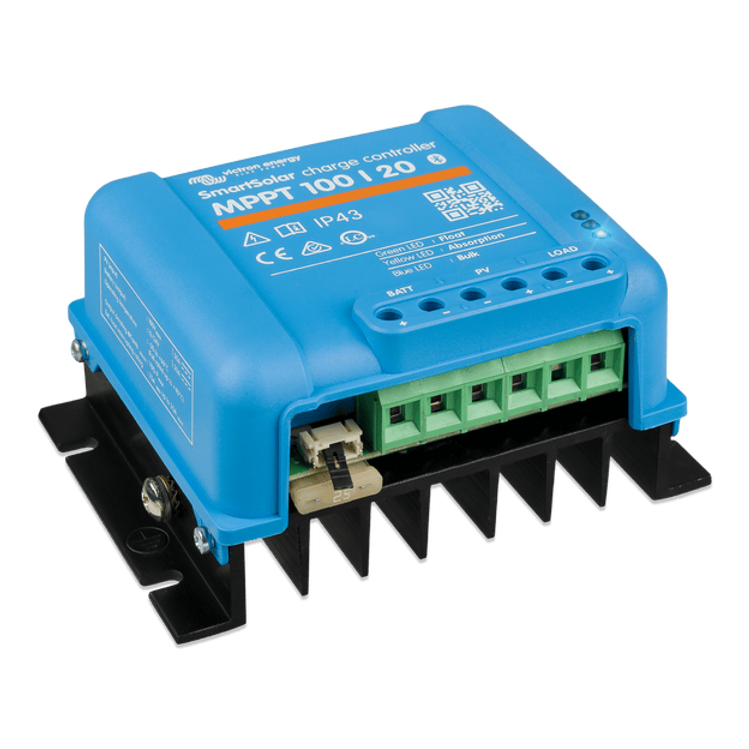

Side perspective view of a blue Victron SmartSolar MPPT 100/20 charge controller

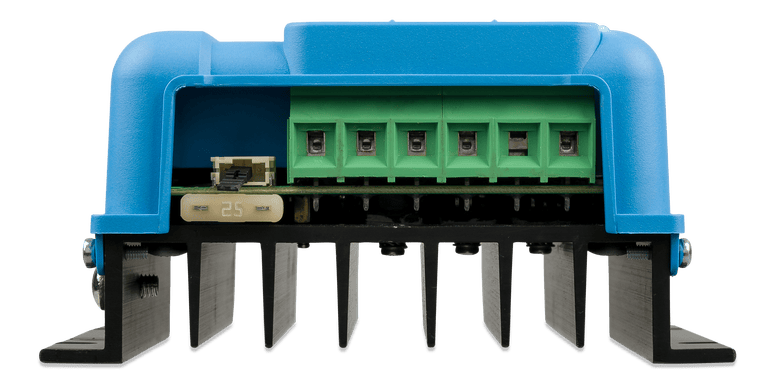

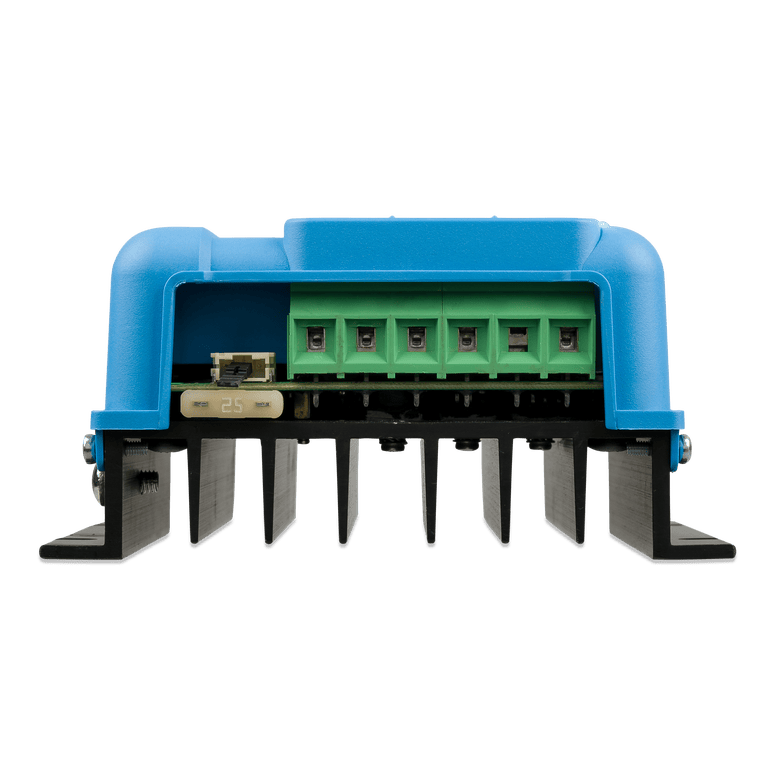

Bottom profile view showing the internal terminal block and cooling fins
Smartphone displaying VictronConnect app status screen showing 425W solar yield

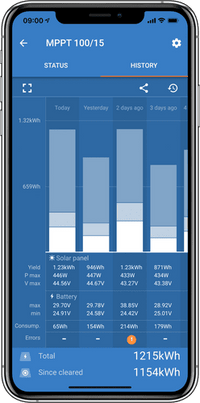

Smartphone screen showing 30-day history charts of solar harvest in the VictronConnect app
Technical specification comparison table for the Victron SmartSolar MPPT controller range
Engineering dimensional drawing of the SmartSolar MPPT 100/20 with metric measurements
Regular price $115.57
$168.30
/
Availability: In Stock
View all products from Victron
Guaranteed Safe and Secure Checkout
American Express Apple Pay Google Pay MastercardPayPalShop Pay Union PayVisa

29
Front view of blue Victron SmartSolar MPPT 100/20 charge controller showing status LEDs and terminals

Victron 12/24/48V 20A SmartSolar MPPT 100/20 Bluetooth Solar Charge Controller

DESCRIPTION

Victron 12/24/48V 20A SmartSolar MPPT 100/20 Bluetooth Solar Charge Controller

Elevate your solar power system with the Victron 12/24/48V 20A SmartSolar MPPT 100/20 Bluetooth Solar Charge Controller, designed for optimal efficiency and user-friendly operation. This advanced charge controller harnesses the power of Bluetooth Smart technology for effortless solar management, making it a perfect addition to any solar energy setup.

Bluetooth Smart: Seamless Solar Management

Enjoy the convenience of wireless setup, monitoring, updates, and synchronization with our SmartSolar Charge Controllers. This built-in Bluetooth Smart feature transforms your solar energy management experience, offering unparalleled ease of use.

VE.Direct: Wired Data Connection Excellence

Achieve a flawless wired data connection to Cerbo GX and other GX devices, PCs, or additional devices through VE.Direct. This feature ensures efficient data sharing and device integration, enhancing your system's overall performance.

Ultra-fast MPPT: Maximize Solar Energy Harvest

With our cutting-edge ultra-fast Maximum Power Point Tracking (MPPT) technology, increase your energy harvest by up to 30% over PWM charge controllers and by up to 10% over slower MPPT controllers. Ideal for fluctuating light conditions and cloudy skies, ensuring you get the most out of your solar panels.

Load Output: Protect Your Battery

Prevent battery over-discharge by connecting all loads to the load output. The intelligent load output disconnects the load when the battery voltage drops to a preset level, safeguarding your battery with our intelligent battery management algorithm.

Battery Life: Prolong Battery Longevity

Our innovative Battery Life algorithm enhances the efficiency of your solar charge controller, promoting optimal battery charging and avoiding the harmful cycling between partially charged and fully discharged states. This approach helps maintain near full recharge approximately once every week, significantly extending battery life.

Programmable Battery Charge Algorithm: Tailored Charging

Dive into the software section on our website to discover how you can customize the battery charge algorithm to suit your specific needs, ensuring your system operates at peak efficiency.

Day/Night Timing and Light Dimming

Explore advanced features like day/night timing and light dimming options for added control and efficiency. Visit our software section for more information on how to implement these features.

Internal Temperature Sensor: Precise Charge Compensation

Benefit from accurate charge compensation with our internal temperature sensor, which adjusts absorption and float charge voltages in response to temperature fluctuations, ensuring efficient and accurate charging under all conditions.

Optional External Battery Voltage and Temperature Sensing

Enhance your monitoring capabilities with optional devices such as Smart Battery Sense or a BMV-712 Smart Battery Monitor. These accessories communicate critical battery voltage and temperature information to your SmartSolar Charge Controllers via Bluetooth, further improving your system's performance.

Advanced Charging Features

Adaptive 3-Stage Battery Charging

Victron's sophisticated 3-stage charging process includes Bulk, Absorption, and Float stages, meticulously designed to ensure efficient battery charging and maximized battery health.

  • Bulk Stage: Rapidly charges the batteries with maximum current until the absorption voltage is reached.
  • Absorption Stage: Switches to constant voltage mode, gradually reducing current to maintain battery health.
  • Float Stage: Maintains batteries at a reduced voltage, ensuring they remain fully charged without overcharging, particularly during nighttime when solar power is not available.

Flexible Charge Algorithm and Equalization Charging

Utilize the VictronConnect App to select from 8 pre-set charge algorithms or create a fully programmable charge algorithm, allowing for complete customization of charge voltages, stage durations, and current for optimal efficiency. Additionally, activate equalization charging for specific lead-acid battery types to balance cell voltages, ensuring longevity and reliability.

Transform your solar power system with the Victron 12/24/48V 20A SmartSolar MPPT 100/20 Bluetooth Solar Charge Controller for unparalleled efficiency, advanced battery management, and user-friendly operation.

SPECIFICATIONS

Specifications

Solar Charge Controller MPPT 100/20
Battery voltage (auto select) 12/24/48 V (36V available via Bluetooth Setting)
Rated charge current 20 A
Nominal PV power, 12 V 290 W
Nominal PV power, 24 V 580 W
Nominal PV power, 48 V 1160 W
Max. PV short circuit current 20 A
Automatic load disconnect Yes
Max. PV open circuit voltage 100 V
Peak efficiency 98%
Self-consumption – load on 12 V: 26 mA 24 V: 20 mA 48 V: 19 mA
Self-consumption – load off 12 V: 10 mA 24 V: 8 mA 48 V: 7 mA
Charge voltage 'absorption' 14.4 V / 28.8 V / 57.6 V (adj.)
Charge voltage 'float' 13.8 V / 27.6 V / 55.2 V (adj.)
Charge algorithm multi-stage adaptive
Temperature compensation -16 mV / °C resp. -32 mV / °C
Max. continuous load current 12 V: 20 A 24 V: 20 A 48 V: 1 A
Low voltage load disconnect 11.1 V / 22.2 V / 44.4 V or 11.8 V / 23.6 V / 47.2 V or Battery Life algorithm
Low voltage load reconnect 13.1 V / 26.2 V / 52.4 V or 14 V / 28 V / 56 V or Battery Life algorithm
Protection Output short circuit / Over temperature
Operating temperature -30 to +60 °C (full rated output up to 40 °C)
Humidity 95%, non-condensing
Data communication port VE.Direct
Enclosure
Colour Blue (RAL 5012)
Power terminals 6 mm² / AWG10
Protection category IP43 (electronic components), IP22 (connection area)
Weight 0.65 kg
Dimensions (h x w x d) 100 x 131 x 60 mm
Standards
Safety EN/IEC 62109-1, UL 1741, CSA C22.2
Stored Trends
Data stored Battery voltage, current and temperature, as well as load output current, PV voltage and PV current.
Number of days trends data is stored 46

Note:

1a) If more PV power is connected, the controller will limit input power. 1b) The PV voltage must exceed Vbat + 5 V for the controller to start. Thereafter, the minimum PV voltage is Vbat + 1 V.

2. A PV array with a higher short circuit current may damage the controller.


SKU: VIC-SCC110020160R
Barcode: 8719076043027
Model #: SCC110020160R
MPN: SCC110020160R
