ANL/ CNN Fuses & Holders
Bolt-down ANL and CNN fuses from 40A to 600A, plus single, dual and covered holders.
ANL Fuses and Holders for High-Current DC Systems
ANL fuses are bolt-down, high-current DC fuses. They have slotted end tabs that clamp onto threaded studs in a dedicated fuse holder. They are a common choice for main battery feeds, inverter cables and heavy DC circuits in caravans, RVs, boats, 4WDs, trucks and off-grid installs. This collection covers ANL fuses from 40A to 600A, Victron 80V-rated ANL and CNN fuses, and a choice of single, dual and covered ANL fuse holders for 12V, 24V and 48V systems.
What Is in the Range

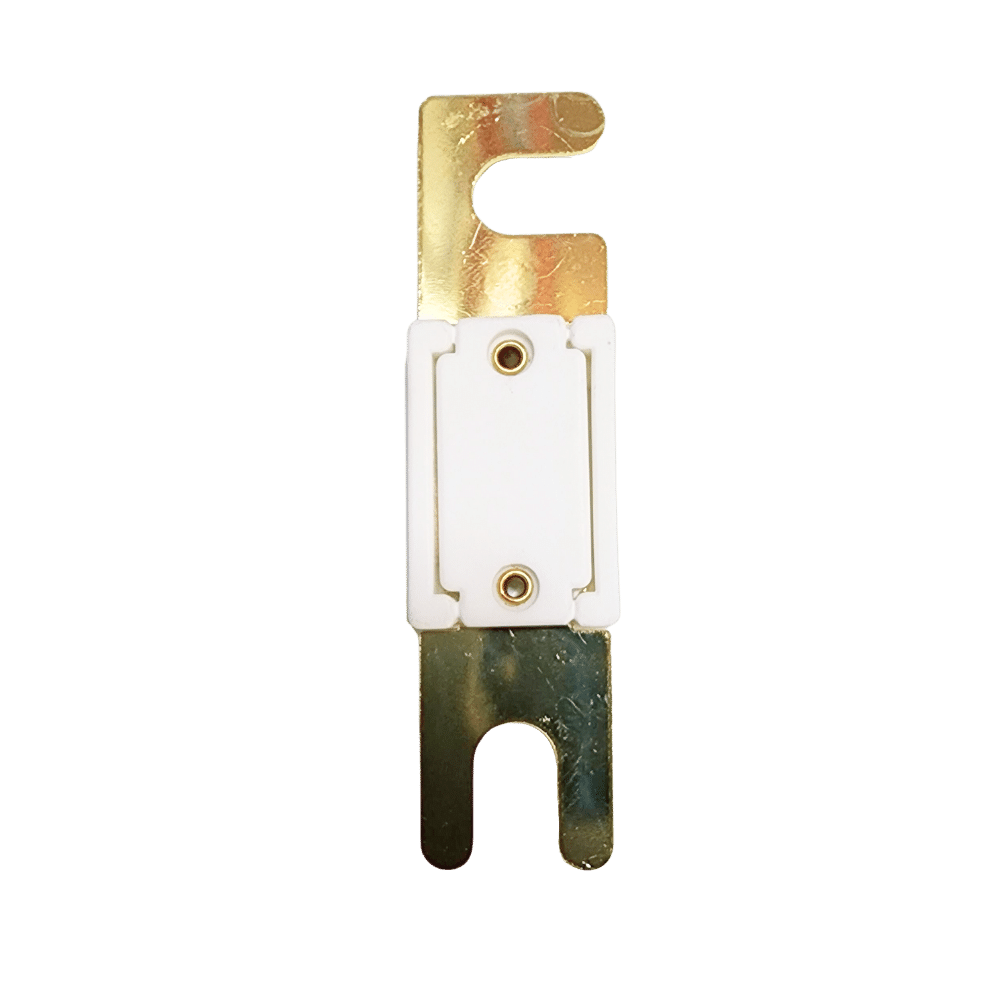

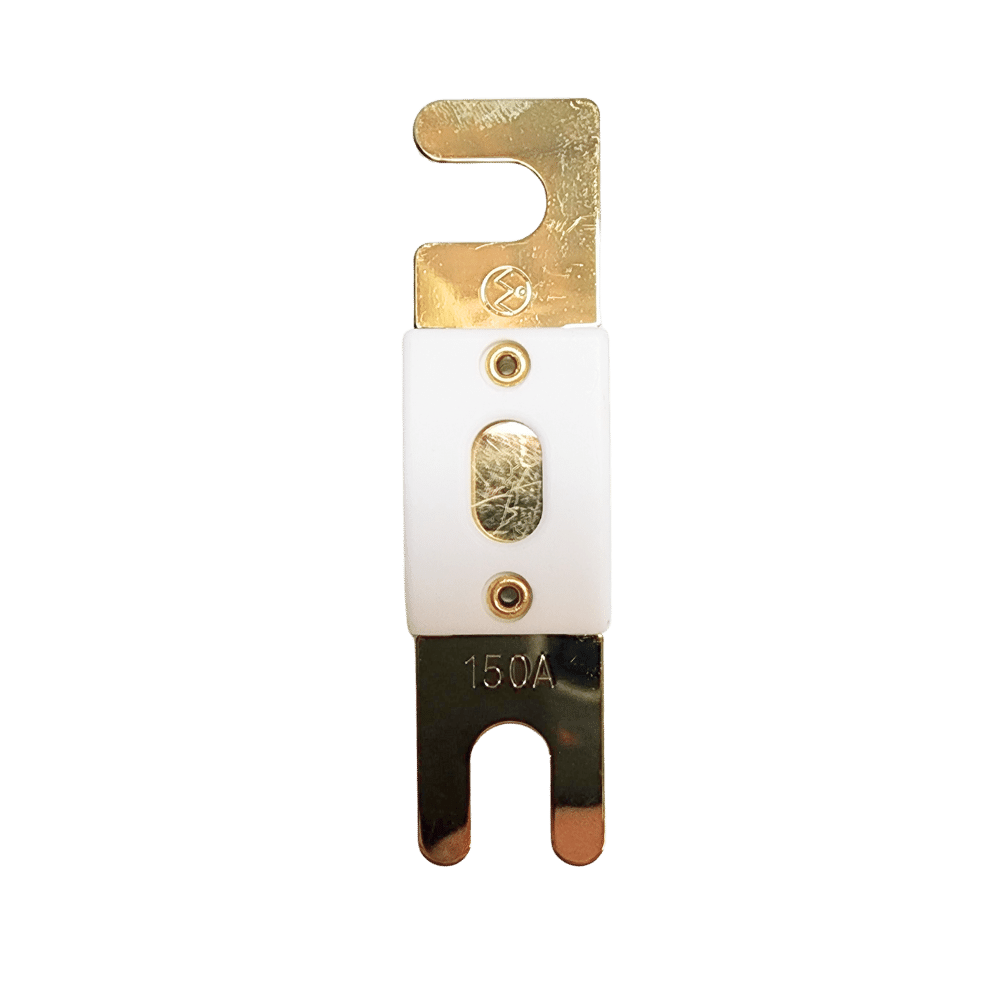

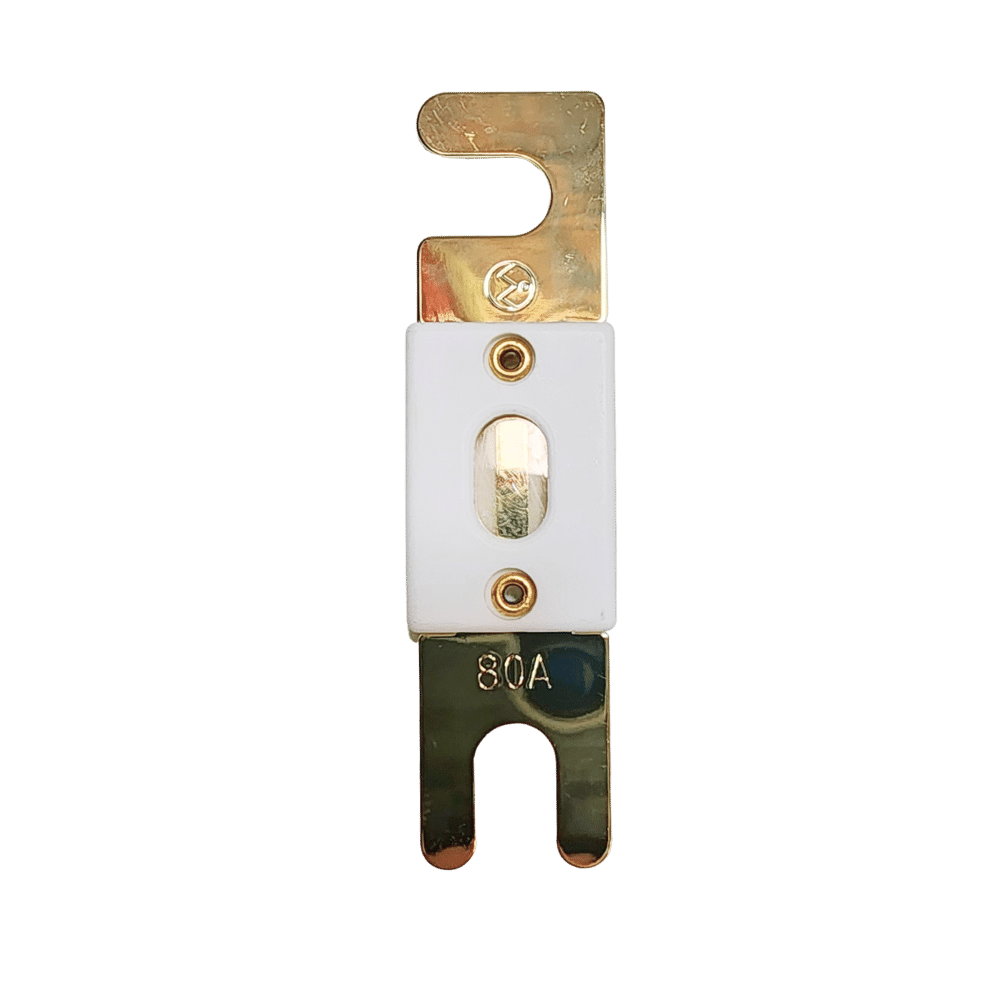

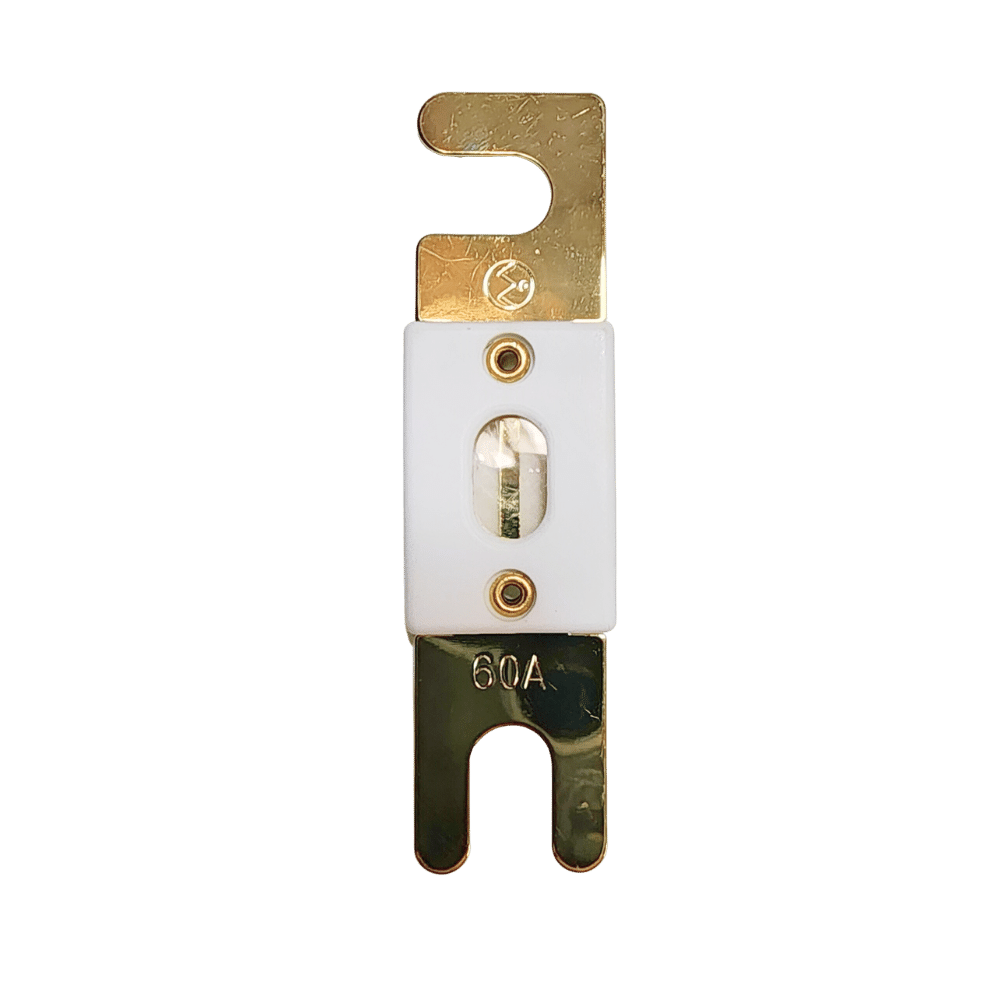

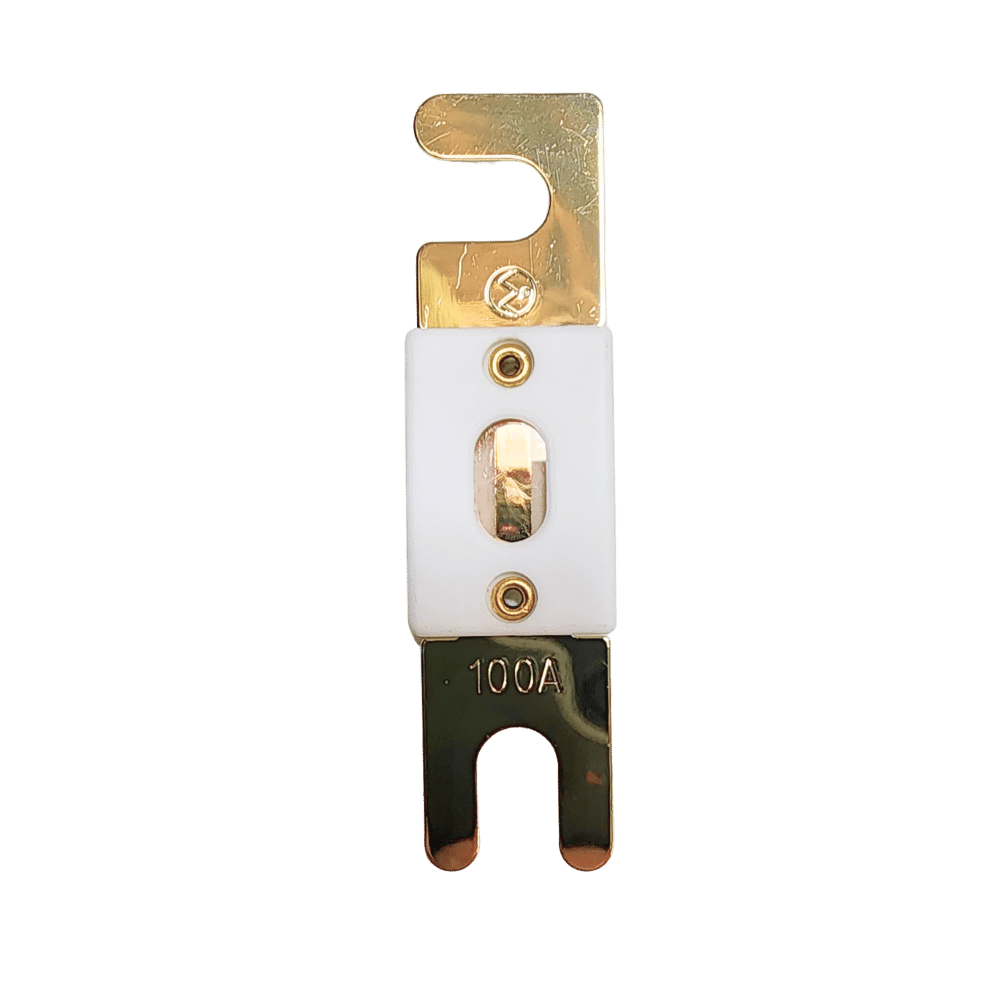

- ANL fuses, 40A to 600A: Individual fuses in 40A, 60A, 80A, 100A, 125A, 150A, 175A, 200A, 250A, 300A, 400A, 500A and 600A ratings. These let you match the fuse to the cable and load on each circuit.
- Victron 80V ANL fuses: 5-packs in 300A, 400A and 500A. They suit 48V battery systems and Victron-based builds where an 80V fuse rating is required.

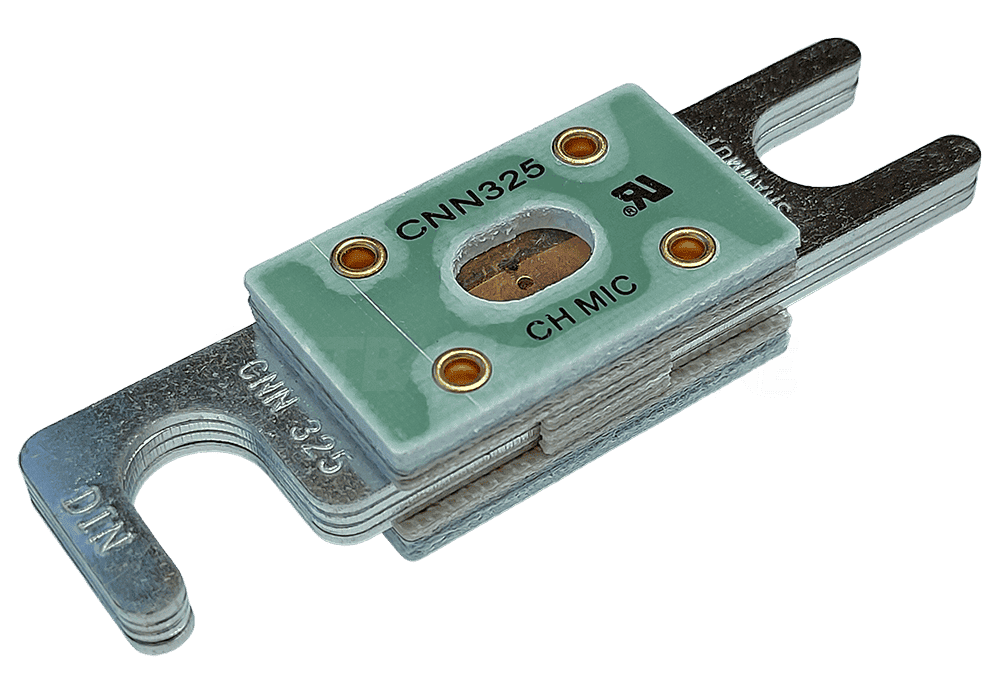

- Victron 80V 325A CNN fuse: Made for use with the Victron Lynx Shunt.
- Victron M10 ANL fuse holder: A compact holder with M10 studs for heavy battery lugs.

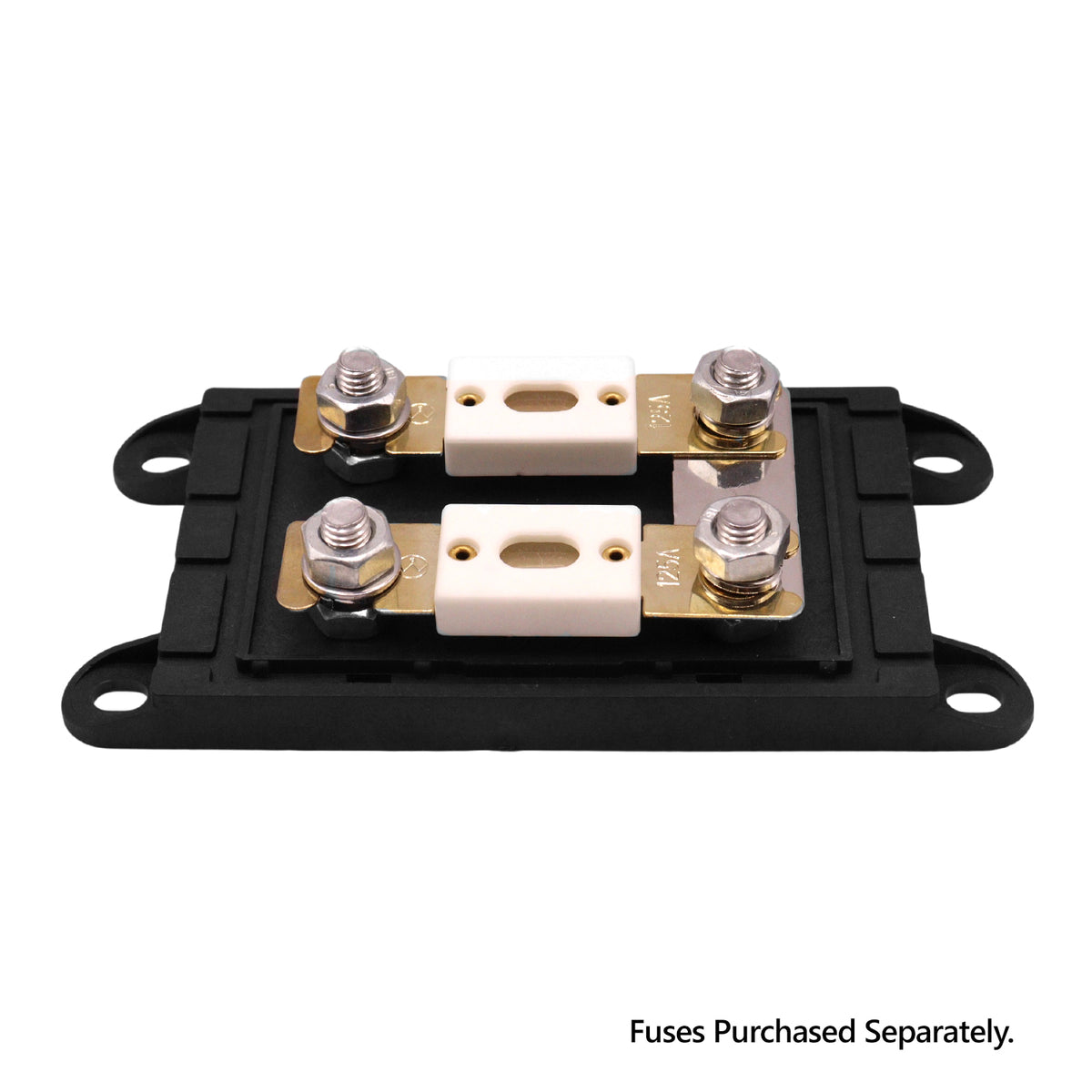

- ANL/CNN fuse holders: Single and dual versions. The dual holder protects two circuits from one mounting point.
- Covered ANL fuse holders: The Blue Sea 35-750A ANL fuse holder with cover and a 750A ANL fuse holder with cover. Both help shield live terminals from accidental contact.
Choosing the Right ANL Fuse Rating
Size an ANL fuse to protect the cable first. The fuse rating should sit at or below the continuous current rating of the conductor it protects, while staying above the normal operating current of the load. Inverters need special care. Their startup and surge draw can be well above continuous load, so the rating must allow for this without nuisance blowing. Our guide on how to determine the correct fuse for your inverter walks through this calculation step by step.
Holder choice matters as much as the fuse:
- Choose a covered holder for exposed or high-traffic locations.
- Choose a dual holder where two feeds leave the same battery bank.
- Choose the M10 holder where larger cable lugs are used.
Compatibility Notes
Check the holder's amp range and stud size against your fuse and cable lugs before ordering. For example, the Blue Sea holder is rated from 35A to 750A. On 48V systems, confirm the fuse voltage rating suits your battery voltage. The Victron 80V ANL and CNN fuses are listed for exactly this reason. The 325A CNN fuse is matched to the Victron Lynx Shunt rather than general-purpose holders.
Large lithium battery banks can deliver very high fault currents. These systems may call for a fuse with a higher interrupt rating at the battery terminal. In that case, compare these fuses with our Class T fuses and holders, and use ANL fuses for downstream circuits. For smaller branch circuits and other fuse styles, browse the full fuses and fuse holders range.
Protect your battery and inverter cabling with a correctly rated ANL fuse and holder. Select your amp rating above and order the matching holder at the same time, so your install is complete in one delivery.
