12V to 48V DC-DC Converters
Isolated Victron step-up converters that run 48V equipment reliably from an existing 12V battery bank.
Isolated 12V to 48V Step Up Converters

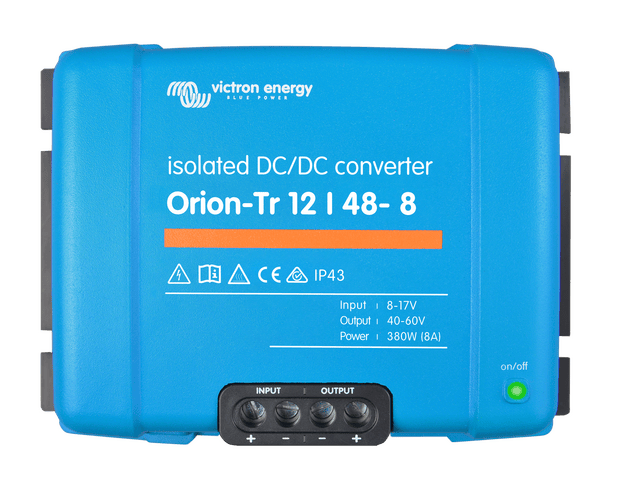

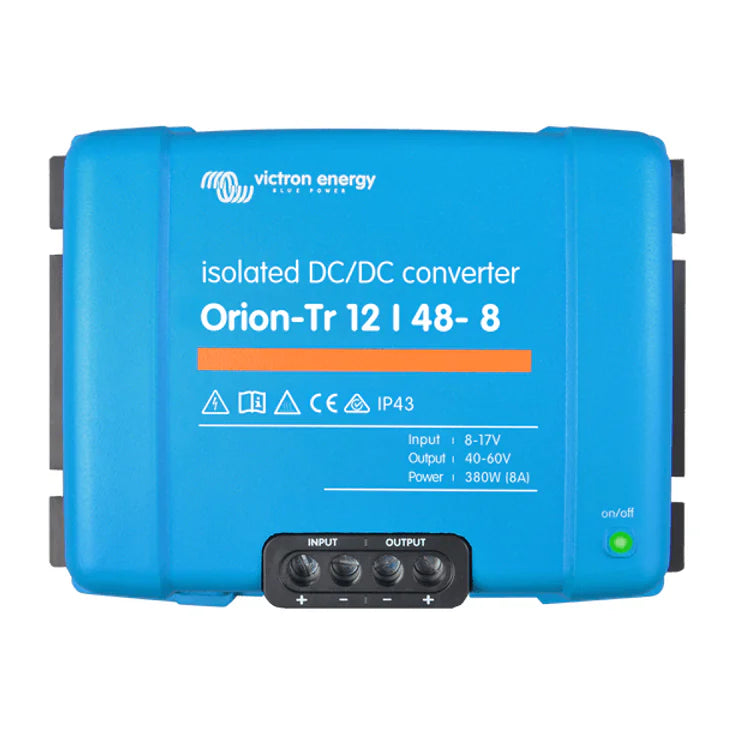

A 12V to 48V DC-DC converter lets you run 48V equipment from a standard 12V battery bank without building a second battery system. This collection features the Victron Orion-Tr 12/48-8A Isolated DC-DC Converter. It takes a 12V nominal input and boosts it to a regulated 48V output of up to 8A, so your 48V loads get stable, clean power even as the 12V supply rises and falls during charging and discharge.
The converter is used across caravan, RV, marine, 4WD, truck, tiny home and commercial installs. It suits builds where most of the system stays at 12V but one or more devices need a 48V supply.
Why Choose an Isolated 12V Step Up Converter?
The Orion-Tr 12/48-8A is a fully isolated unit. Its input and output circuits are galvanically separated, with no shared negative. This breaks ground loops, reduces electrical noise and helps protect sensitive 48V electronics from faults on the 12V side. If you are unsure whether your build needs isolation, our guide to isolated vs non-isolated converters and DC-DC chargers explains the differences in detail.
Key reasons to choose the Victron Orion-Tr 12/48-8A:
- Regulated 48V output: Supplies a steady voltage to 48V loads regardless of fluctuations in the 12V battery voltage.
- Galvanic isolation: Separate input and output grounds help prevent ground loops and interference in boat, RV and vehicle electrical systems.
- 8A continuous output: Suited to moderate 48V loads such as communications gear, control electronics and specialised accessories.
- Robust Orion-Tr construction: A compact, ruggedised housing designed for mobile and off-grid installations where vibration and heat are common.
- System flexibility: Keeps your existing 12V battery, alternator and solar charging setup intact while adding a dedicated 48V supply.
For other voltage pairings or isolation types, browse the full range of DC-DC converters. If your system runs at 24V instead, step-up options are listed in our 24V to 48V DC-DC converters.
Compatibility Notes
System voltage: The Orion-Tr 12/48-8A is designed for 12V nominal battery systems, including lithium and lead-acid house banks. It is a voltage converter, not a battery charger. To charge a 48V battery bank, choose a dedicated charging solution instead.
Sizing: Check the continuous current draw of your 48V load and keep it within the 8A output rating. Stepping up from 12V to 48V draws roughly four times the output current from the 12V side, plus conversion losses. Size your input cabling and fusing for that higher 12V current, not the 48V current.
Installation: Mount the converter in a dry, ventilated location close to the 12V battery to keep input cable runs short. Fit appropriate overcurrent protection on the input side.
Choose an isolated converter if you need a stable, interference-free 48V supply from your 12V system. The Victron Orion-Tr 12/48-8A gives you that capability without the cost and weight of a separate 48V battery bank. Add it to your cart today, and contact our team if you would like help confirming your load and cable sizing before you order.
