Exotronic Cables

High-Performance Exotronic Cables & Electrical Accessories

Wiring a robust off-grid power system requires dependable connections at every stage. From battery terminals and main distribution points to roof-mounted solar arrays, the Exotronic component range provides everything required to build a highly efficient and safe 12V, 24V, or 48V electrical network. Designed specifically for demanding mobile applications, these products are perfect for caravans, motorhomes, 4WD canopies, marine vessels, and remote tiny homes. Whether you are outfitting a heavy-duty truck, a commercial vehicle, or a boat, these components deliver current safely and consistently.

A Complete Range of Wiring Solutions

The Exotronic collection extends far beyond standard networking wire, offering heavy-duty hardware that ensures minimal voltage drop and secure electrical distribution. Whether you are upgrading an existing camper trailer or wiring a comprehensive off-grid battery bank, this range covers all essential connectivity needs:

• Cable Lugs: Flared bellmouth copper lugs ranging from 6mm² up to 95mm², providing secure, low-resistance terminations for heavy gauge battery runs.

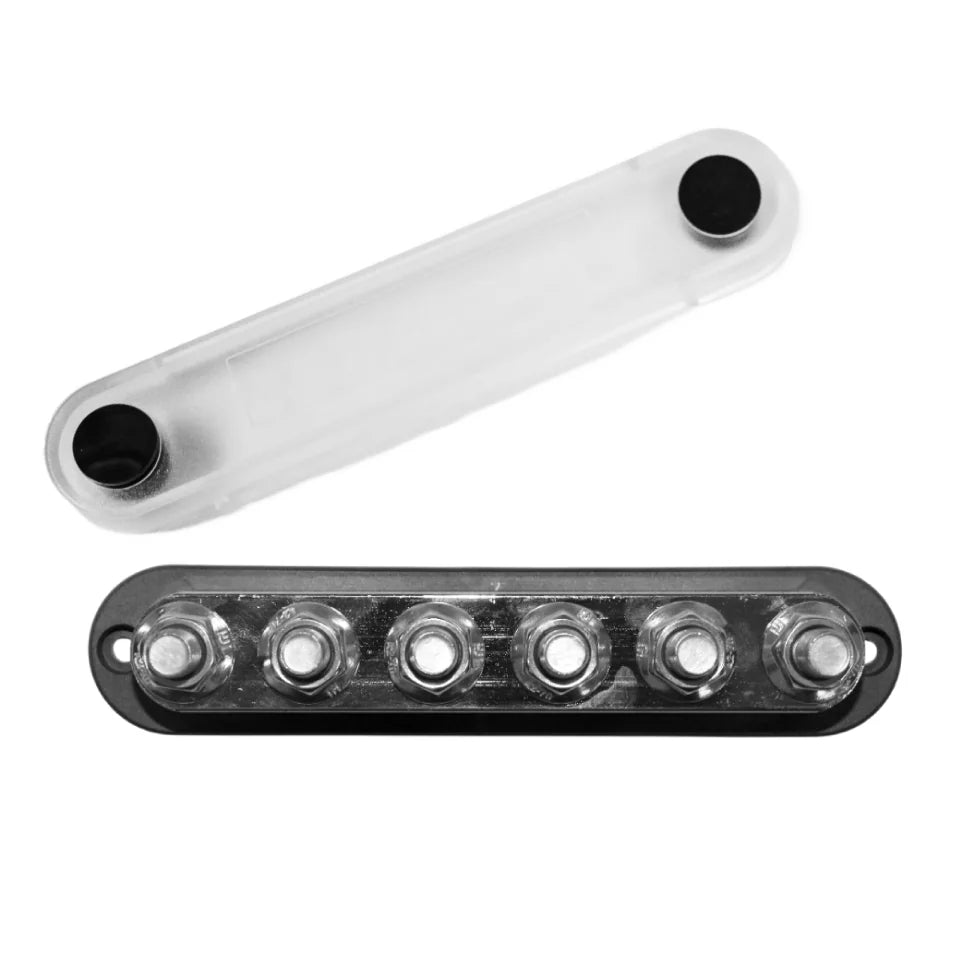

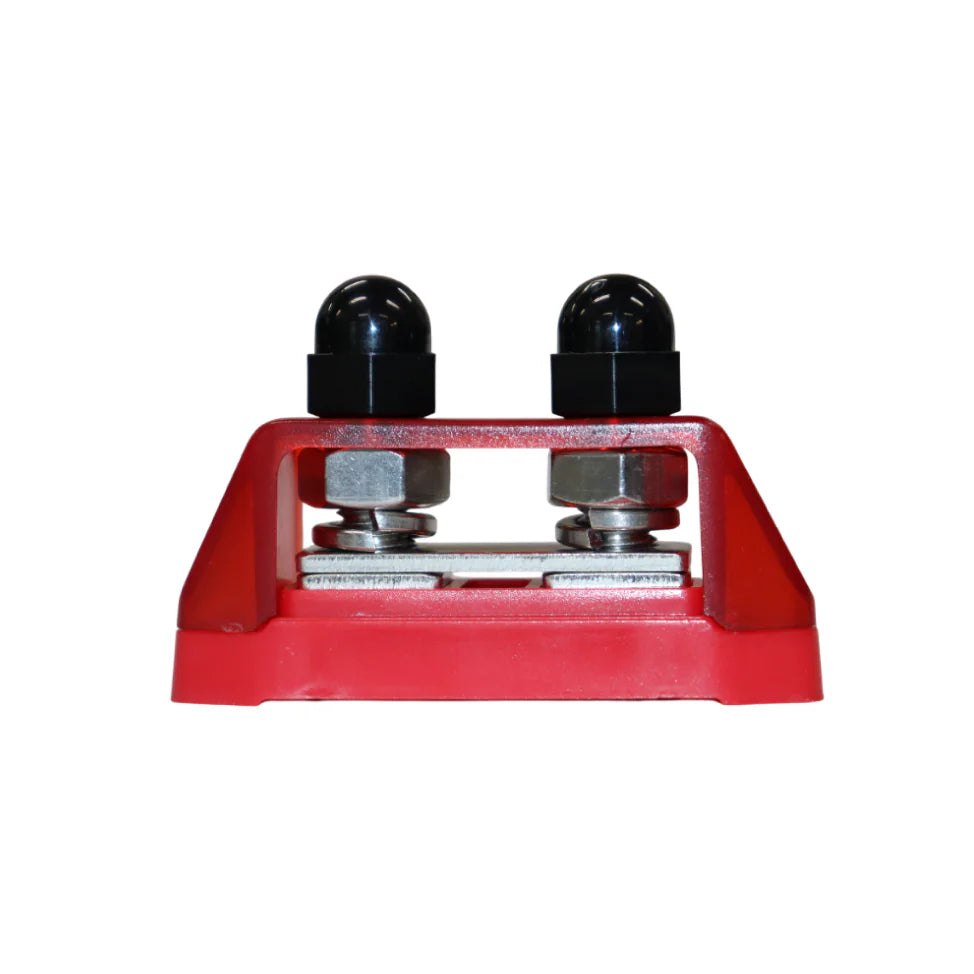

• Bus Bars and Studs: High-capacity distribution blocks, available in ratings from 150A to 600A, to keep your positive and negative wiring organised and ultra durable.
• Solar Extension Leads: Twin-core 4mm² and 6mm² pre-terminated cables designed to seamlessly connect roof panels to your solar charge controller.

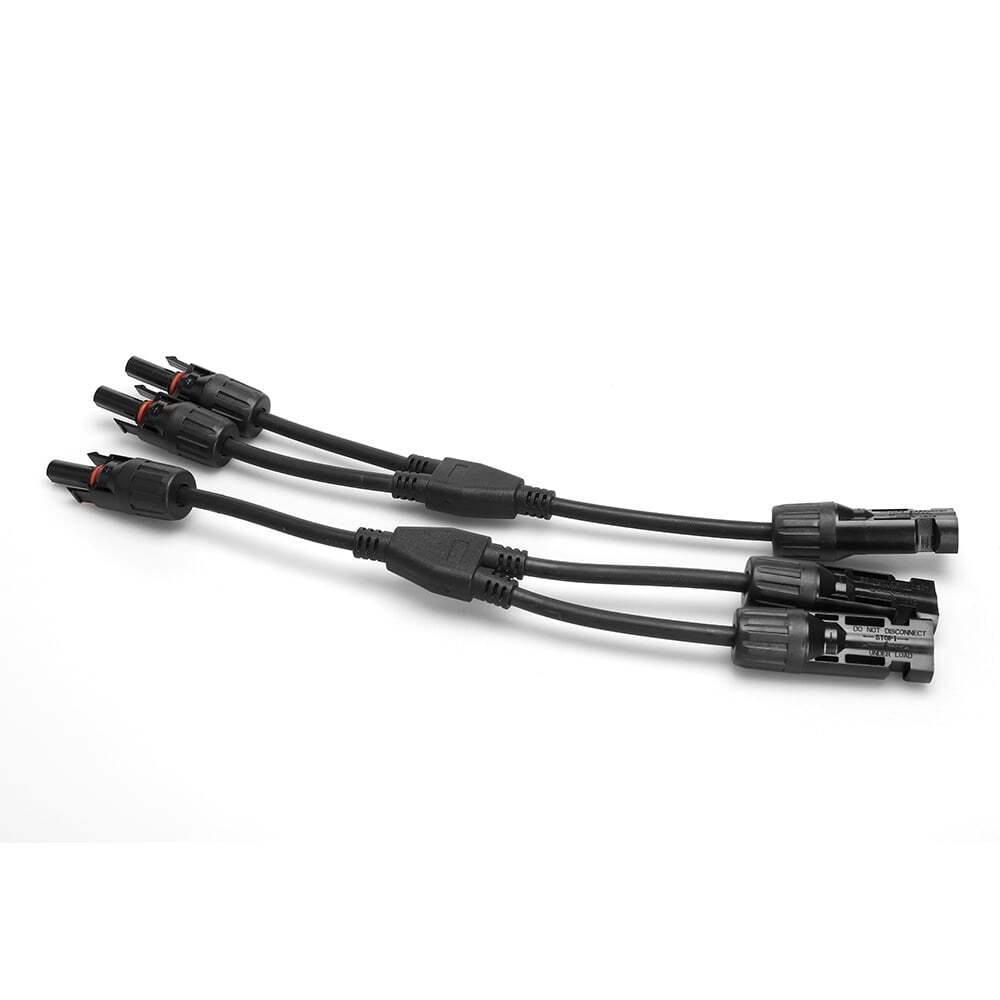

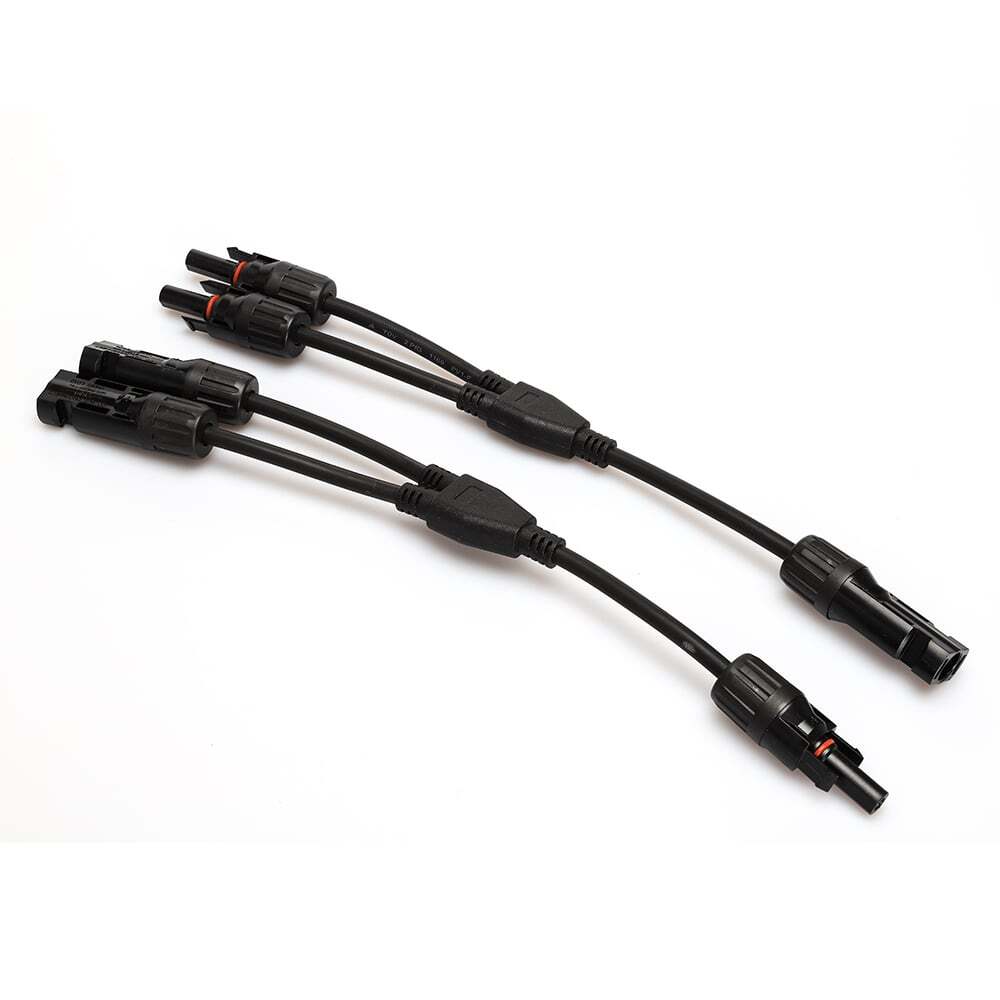

• Anderson Plugs & MC4 Connectors: Weather-resistant branch connectors, in-line diodes, and MC4-style pairs to safely parallel your solar arrays.
• Anderson Extension Leads: Pre-made 8B&S (8AWG) leads featuring 50A Anderson-style plugs for portable fridge and secondary battery connections.
• Cable Entry Covers: UV-resistant clamshell and solar connector housings to ensure a watertight seal where wiring penetrates the vehicle roof.
• Ethernet RJ45 Cables: High-speed Cat6 UTP patch cables required for stable communication between advanced battery monitors, temperature sensors, and inverter-chargers.

Engineered for Mobile & Marine Environments

Mobile electrical systems are constantly exposed to vibration, thermal cycling, and moisture. Exotronic components are manufactured to withstand harsh Australian conditions, utilising high-quality copper and heavy-duty insulators. Using properly sized cables and securely crimped bellmouth lugs prevents dangerous hotspots, while rated busbars ensure the safe handling of high-current inverter loads. In-line blocking diodes and y-branch joiners also make expanding complex arrays straightforward and highly efficient.

Component Selection Tips

Selecting the right electrical hardware is crucial for system safety and efficiency. Follow these general selection tips when planning your setup:

Lug Sizing: Always match the copper lug to both your cable cross-section (e.g., 50mm²) and the stud size of your equipment (e.g., M8 or M10). Exotronic bellmouth lugs make inserting finely stranded flexible automotive wire significantly easier prior to crimping.

Busbar Ratings: Choose a busbar rated higher than the maximum potential current draw of your entire system. For example, if you are running a 3000W inverter (pulling approximately 250A at 12V), utilise a 300A or 600A busbar to prevent overheating.

Solar Cable Thickness: For longer cable runs between roof panels and your regulator, upgrading from 4mm² to 6mm² solar extension leads will effectively reduce voltage drop, ensuring maximum energy harvest reaches your batteries.

Fuse Integration: Incorporate in-line fuses on solar arrays to protect cables during short circuits. Exotronic offers convenient plug-and-play in-line solar connector fuses to simplify this process.

As an Australian family business with a decade of experience, we pride ourselves on providing high quality products, fast dispatch, and comprehensive before & after support. When you are ready to complete your 12V build, choose Exotronic hardware to ensure a secure, professional, and long-lasting installation. Add your required cables, lugs, and connectors to your cart today to power your next off-grid adventure.
