Battery Monitoring Systems
Bluetooth shunts and battery monitors to track state of charge, current draw and remaining runtime.
Accurate Battery Monitoring for 12V, 24V and 48V Systems
A battery voltage reading alone gives only a rough idea of the charge left in a battery. A shunt-based battery monitor measures every amp flowing in and out of your battery bank. It then calculates state of charge, consumed amp-hours and time remaining, so you can manage power with confidence. This collection covers Bluetooth battery monitors, smart shunts, display-based monitors and replacement shunts from Victron, Simarine, Enerdrive and Votronic for caravans, RVs, boats, 4WDs and off-grid systems.
Choosing the Right Battery Monitor
Start with how you want to view your data, then size the shunt to the highest continuous current your system will carry, including inverter loads.

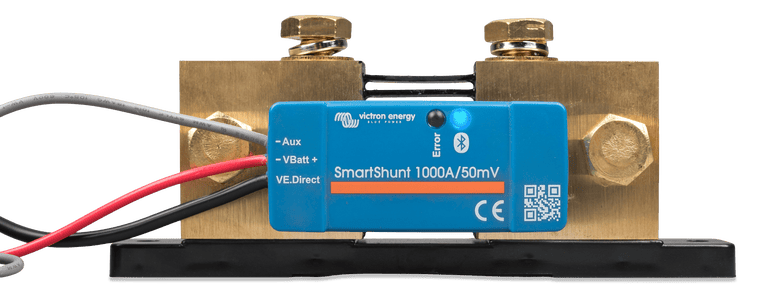

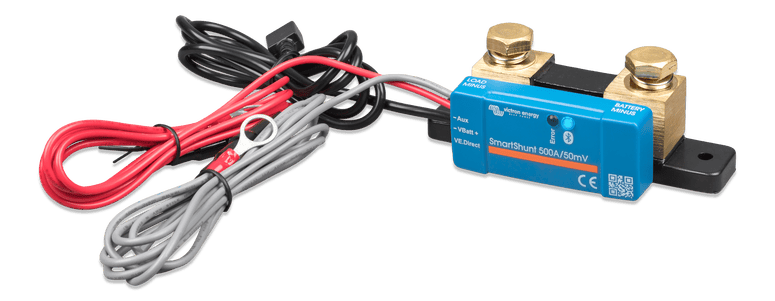

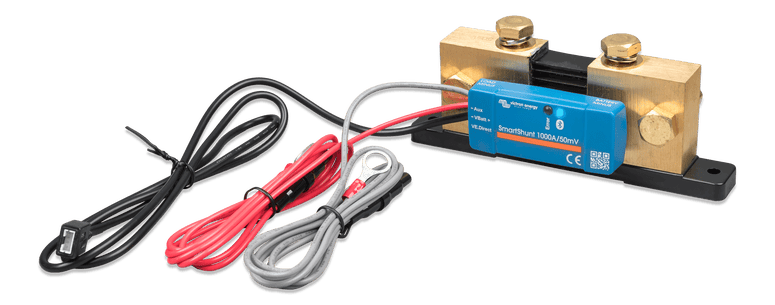

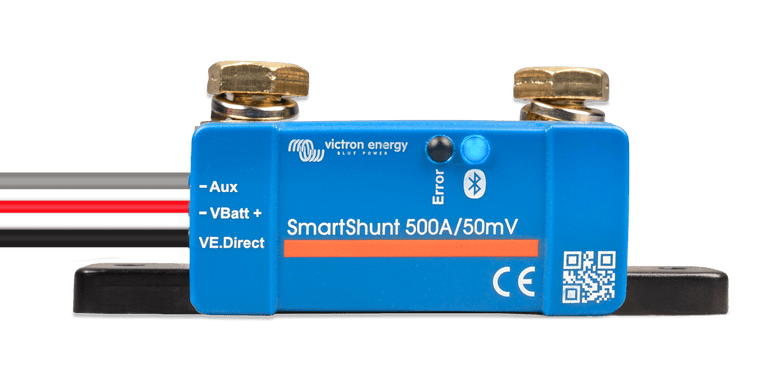

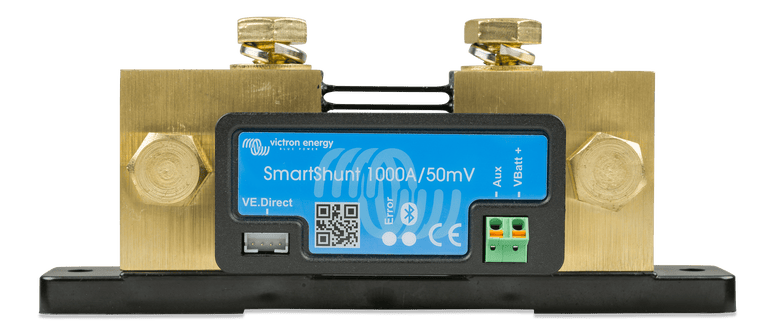

- Bluetooth smart shunts: The Victron SmartShunt is available in 300A, 500A, 1000A and 2000A ratings, with standard and IP65 versions. It reports to the VictronConnect app with no wired display required. IP65 models suit damp or exposed battery locations.

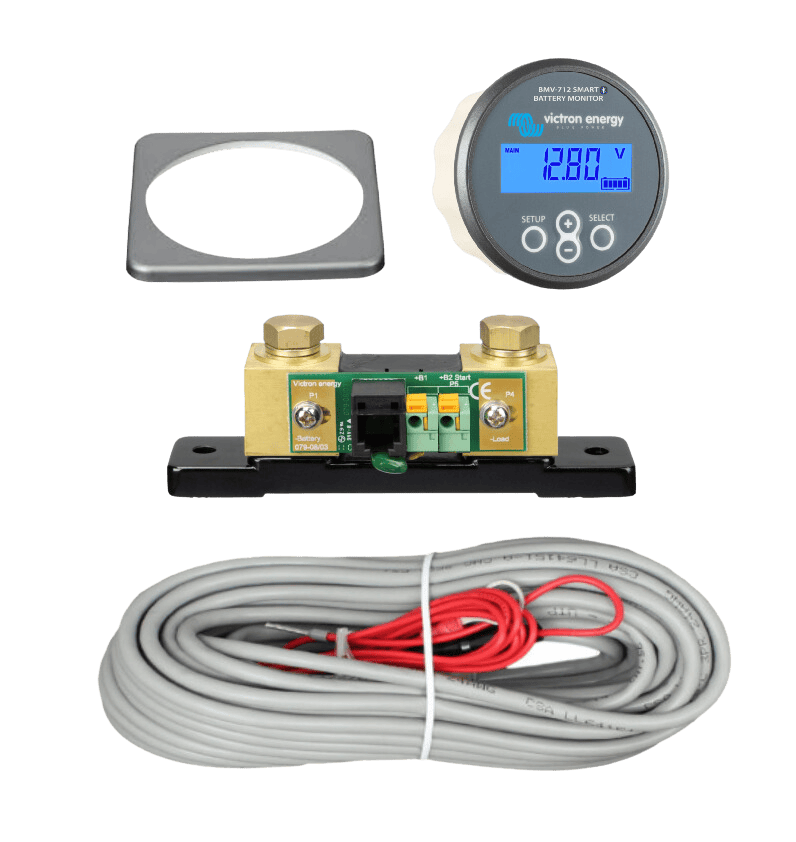

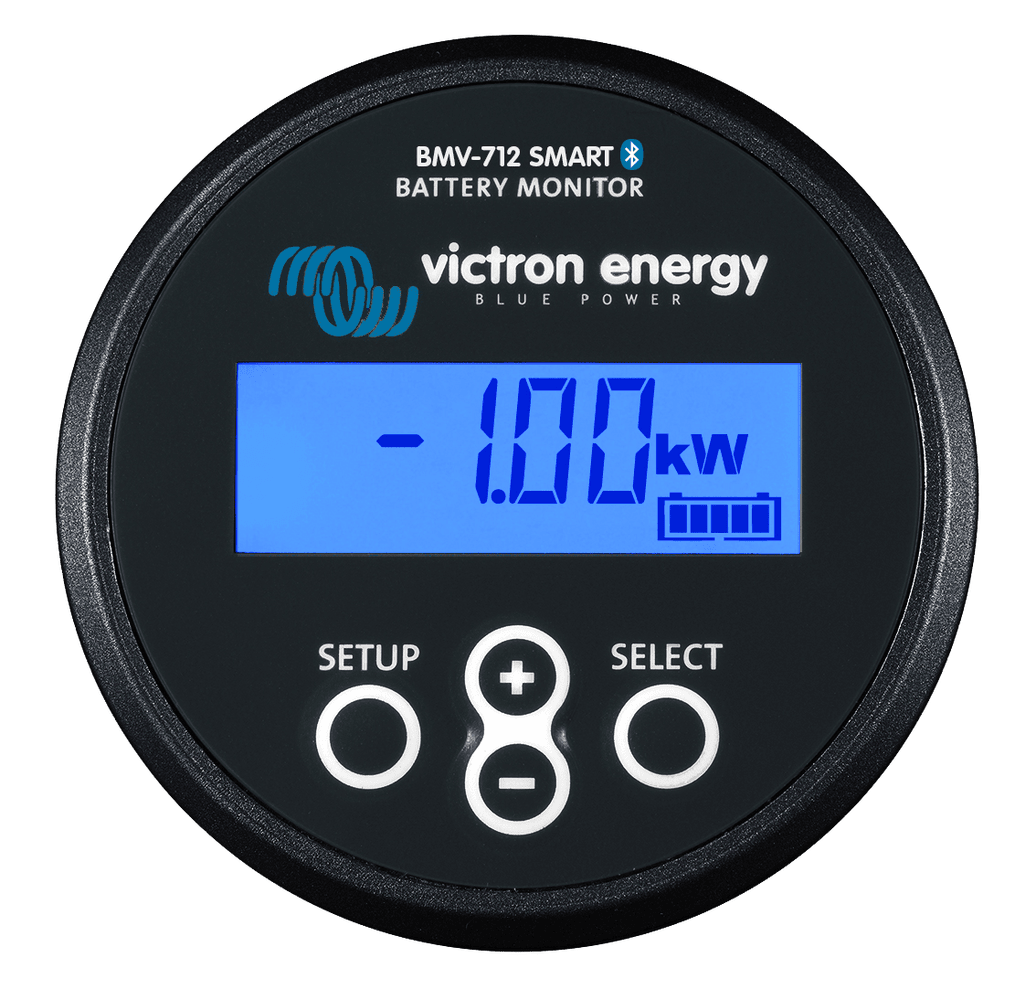

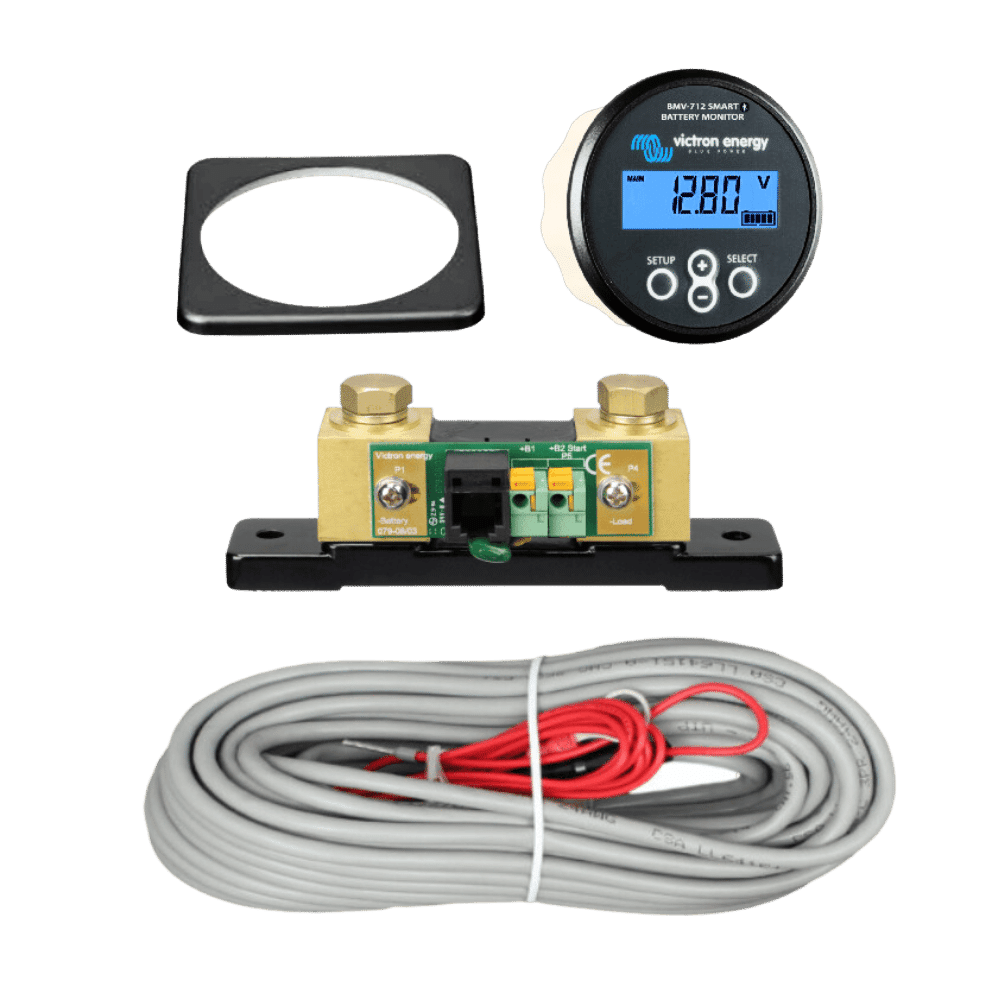

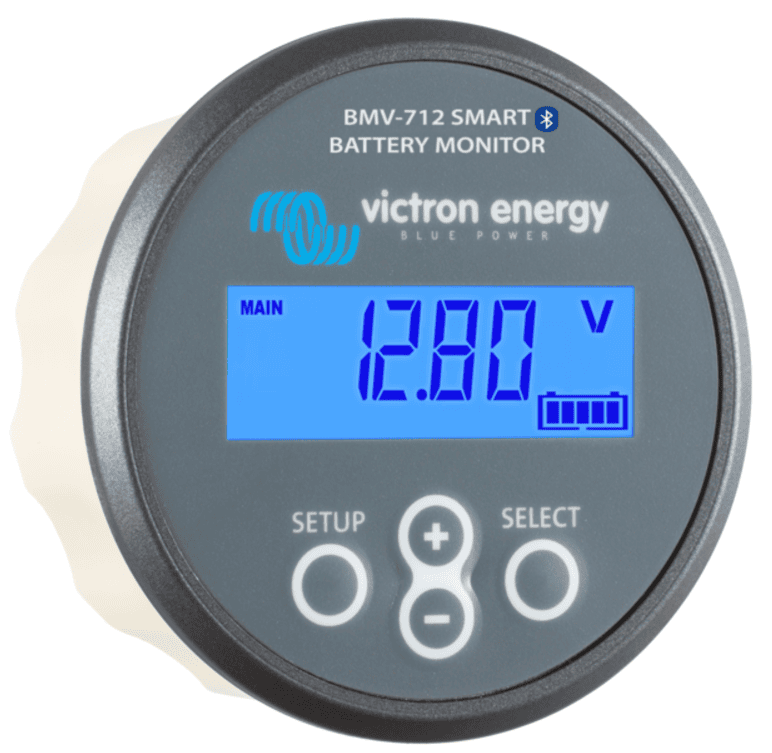

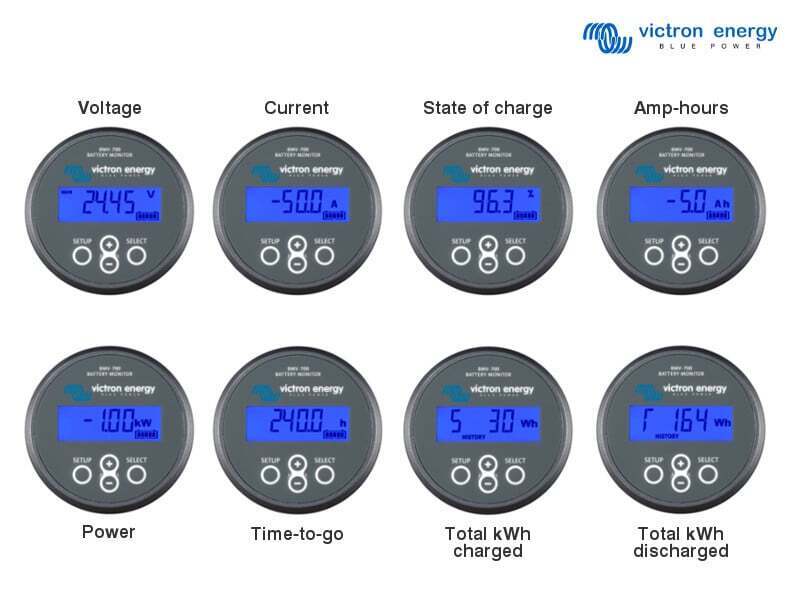

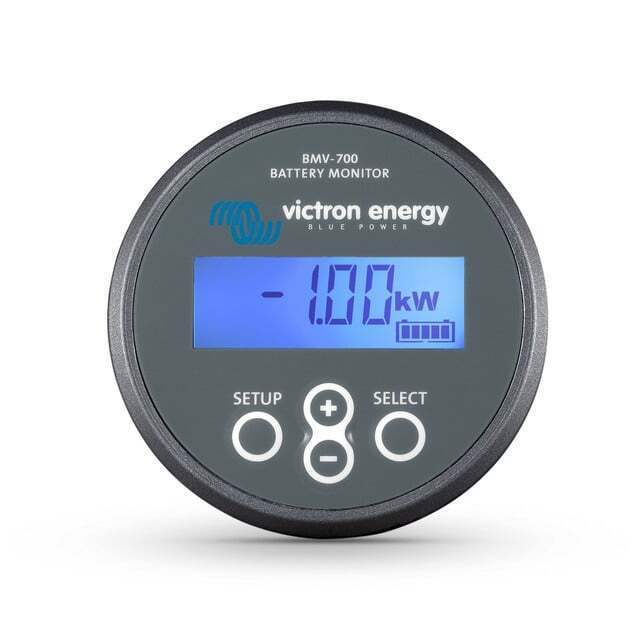

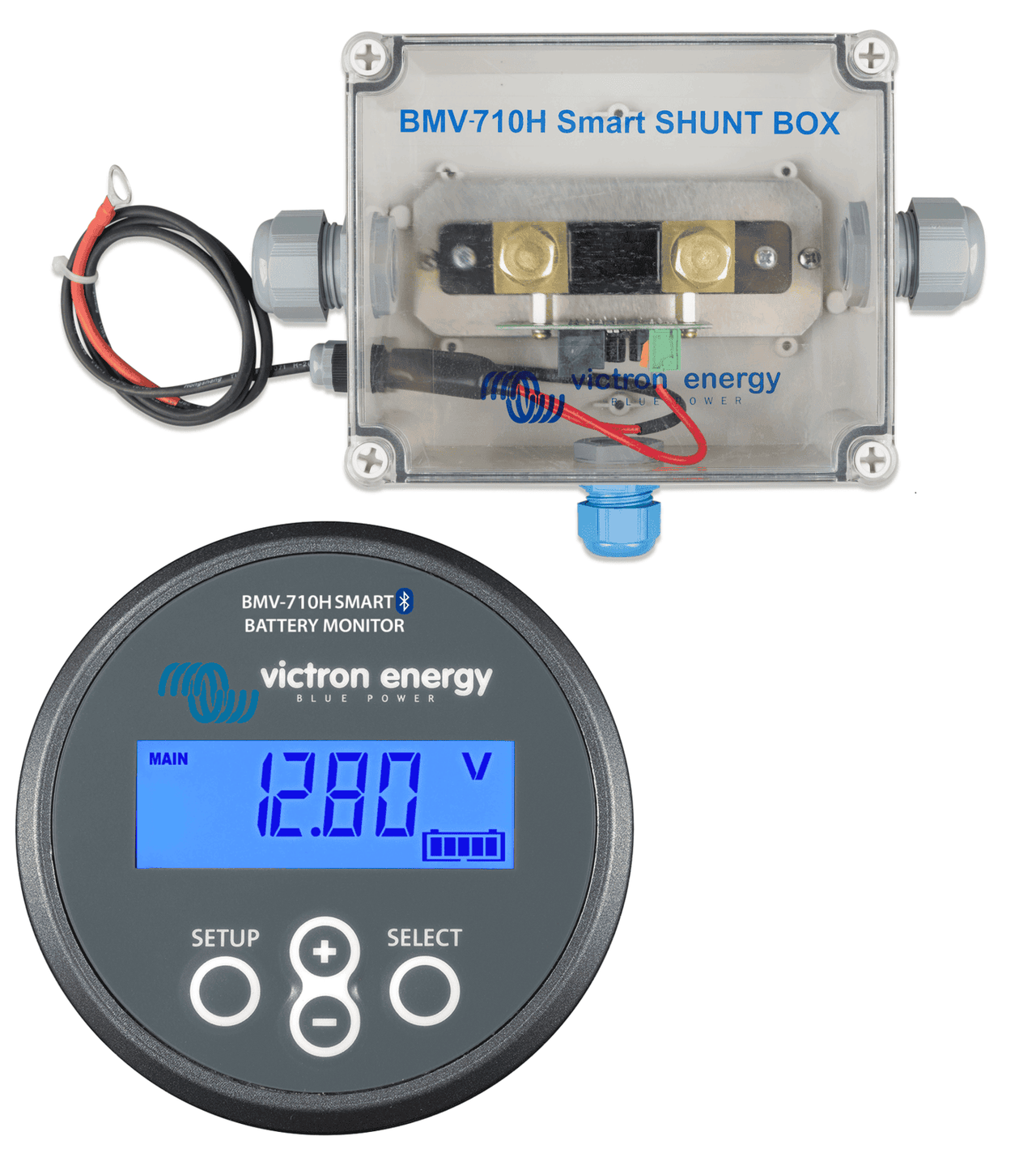

- Shunt with dedicated display: The Victron BMV-700 covers a single battery bank. The BMV-702 (non-Bluetooth) and Smart BMV-712 add an auxiliary input for starter battery, midpoint or temperature monitoring. The BMV-710H suits high voltage battery banks.
- Multi-function monitoring: Simarine Pico and Pico+ displays pair with Simarine 300A and 500A shunts. These shunts provide voltage, resistance and temperature inputs, so one display can also show tank sender and temperature data.
- Remote display monitors: The Votronic 200S and 400S and the Enerdrive ePro offer simple wall-mounted readouts for caravan and motorhome installs.
- System integration: The Victron Lynx Shunt VE.Can (M8 or M10) mounts directly into a Lynx distribution system. It reports through a GX device such as the Cerbo GX MK3.
For lithium banks, setting the correct capacity, charged voltage and Peukert values is essential for accurate readings. Our guide to programming Victron BMV and SmartShunt monitors for lithium batteries walks through each setting.
Shunts, Alarms and Replacement Parts

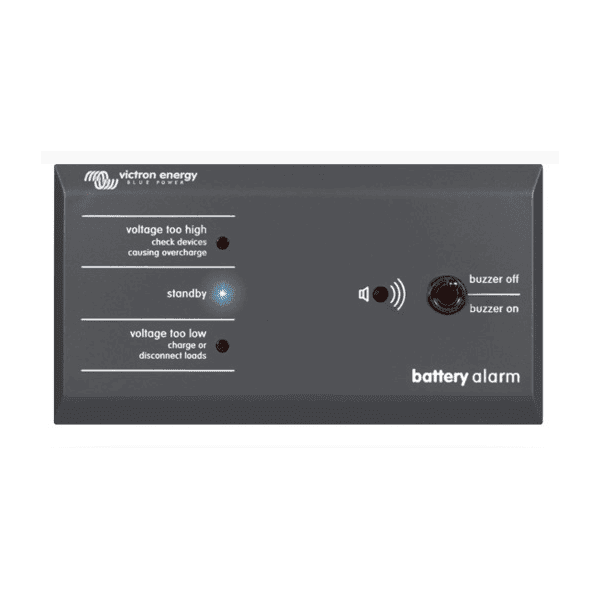

We also stock standalone 50mV shunts, including the Victron 500A, 1000A, 2000A and 6000A models, a 200A BMS current sensor shunt and the Enerdrive SC301 300A active shunt. These suit upgrades and replacements in higher current systems. The Victron 12V/24V Low Voltage Audible Battery Alarm GX adds an audible warning before your batteries reach a damaging depth of discharge.
Compatibility and Installation Notes
Install the shunt on the battery negative so that all loads and charging sources pass through it. Only the battery negative should connect to the battery side of the shunt. Choose a shunt rating with headroom above your largest continuous load, and fuse the positive supply lead. If you run Victron chargers, inverters or solar controllers, pairing a SmartShunt or Lynx Shunt with one of our Victron GX devices and displays provides whole-of-system monitoring and remote access. Cabling, interface leads and testers are available in our battery monitoring accessories range.
Monitoring your battery is the simplest way to protect your investment and avoid running flat at camp or on the water. Compare the shunts and displays above, choose the rating that suits your system, and order today to start tracking your power with precision.
