Victron 24V 5A Blue Smart IP65 24/5 AU/NZ Battery Charger
Victron 24V 5A Blue Smart IP65 24/5 AU/NZ Battery Charger

DESCRIPTION

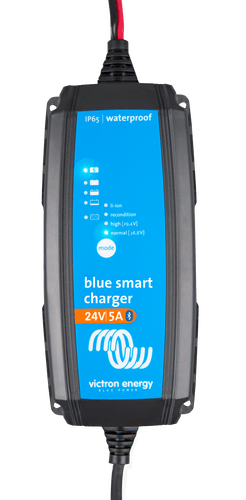

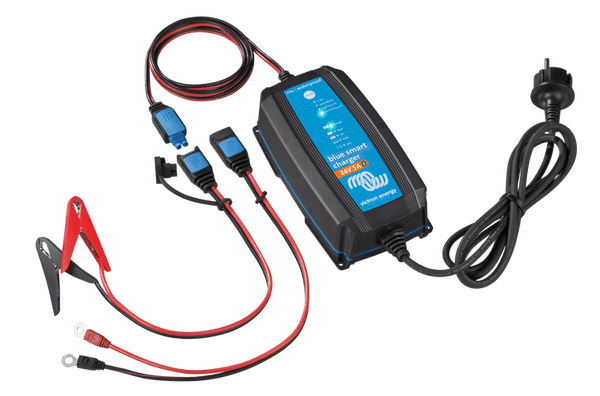

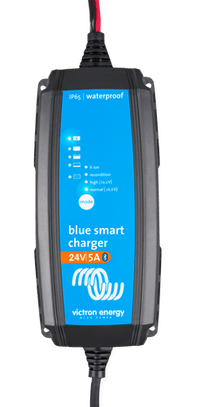

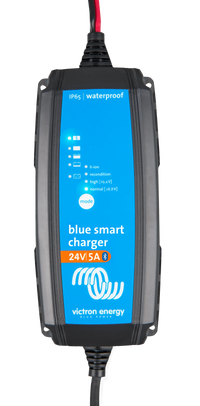

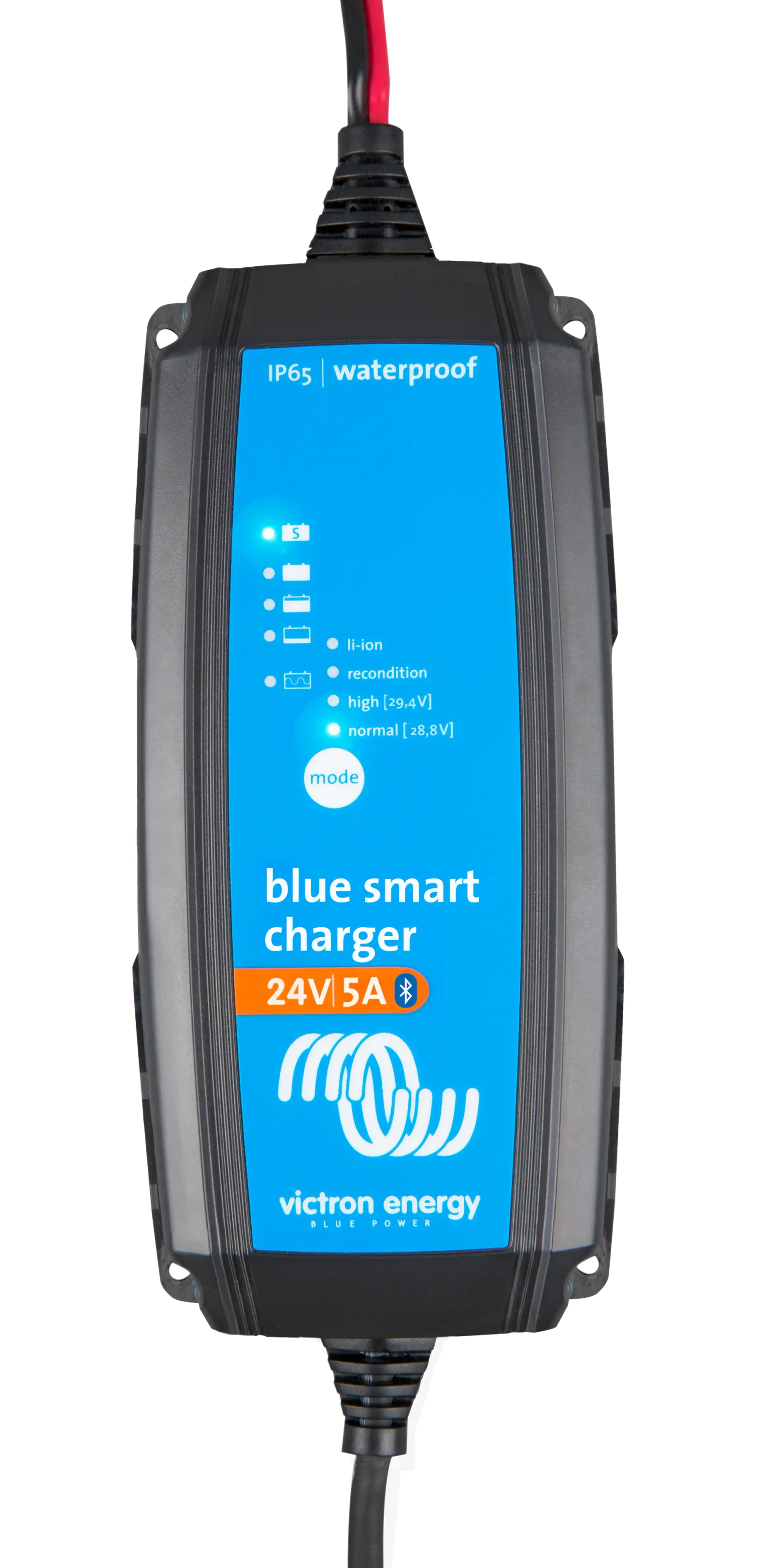

Victron 24V 5A Blue Smart IP65 24/5 AU/NZ Battery Charger
Superior Environmental Resistance
The Victron 24V 5A Blue Smart IP65 Charger is designed to withstand challenging environments, offering exceptional resistance to water, dust, and chemicals. This robust charger is built to deliver reliable performance, ensuring your batteries are protected and efficiently charged, regardless of the surrounding conditions.
Advanced Charging Technology
Intelligent Seven-Step Charging Process
- Revival of Deeply Discharged Batteries: It has a remarkable ability to recover fully discharged 'dead' batteries, ensuring no battery is too depleted to be saved.
- Automatic Power Supply Functionality: Seamlessly transitions between charging and power supply modes, providing uninterrupted power when needed.
- Temperature-Compensated Charging: Automatically adjusts charging parameters based on ambient temperature, optimizing performance in extreme cold down to -30°C.
Optimized Battery Life and Performance
- Low Power Mode for Smaller Batteries: Ensures safe charging of smaller batteries without overcharging or damaging them.
- Li-ion Battery Compatibility: Offers a specialized charging mode for lithium-ion batteries, complete with an under-voltage protection reset.
- Battery Reconditioning Feature: Tackles sulfation in lead-acid batteries, improving their health and extending their lifespan.
User-Friendly Management

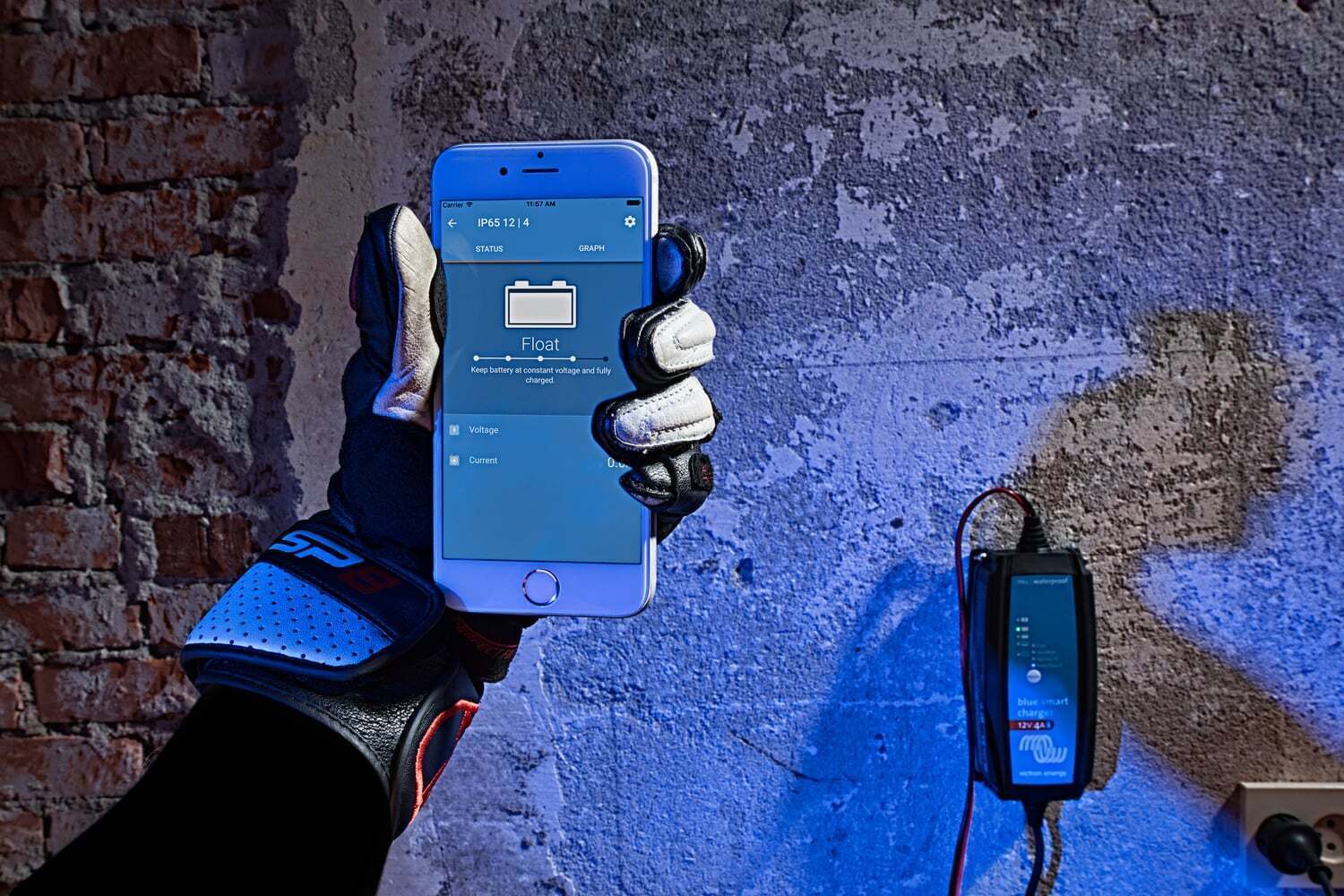

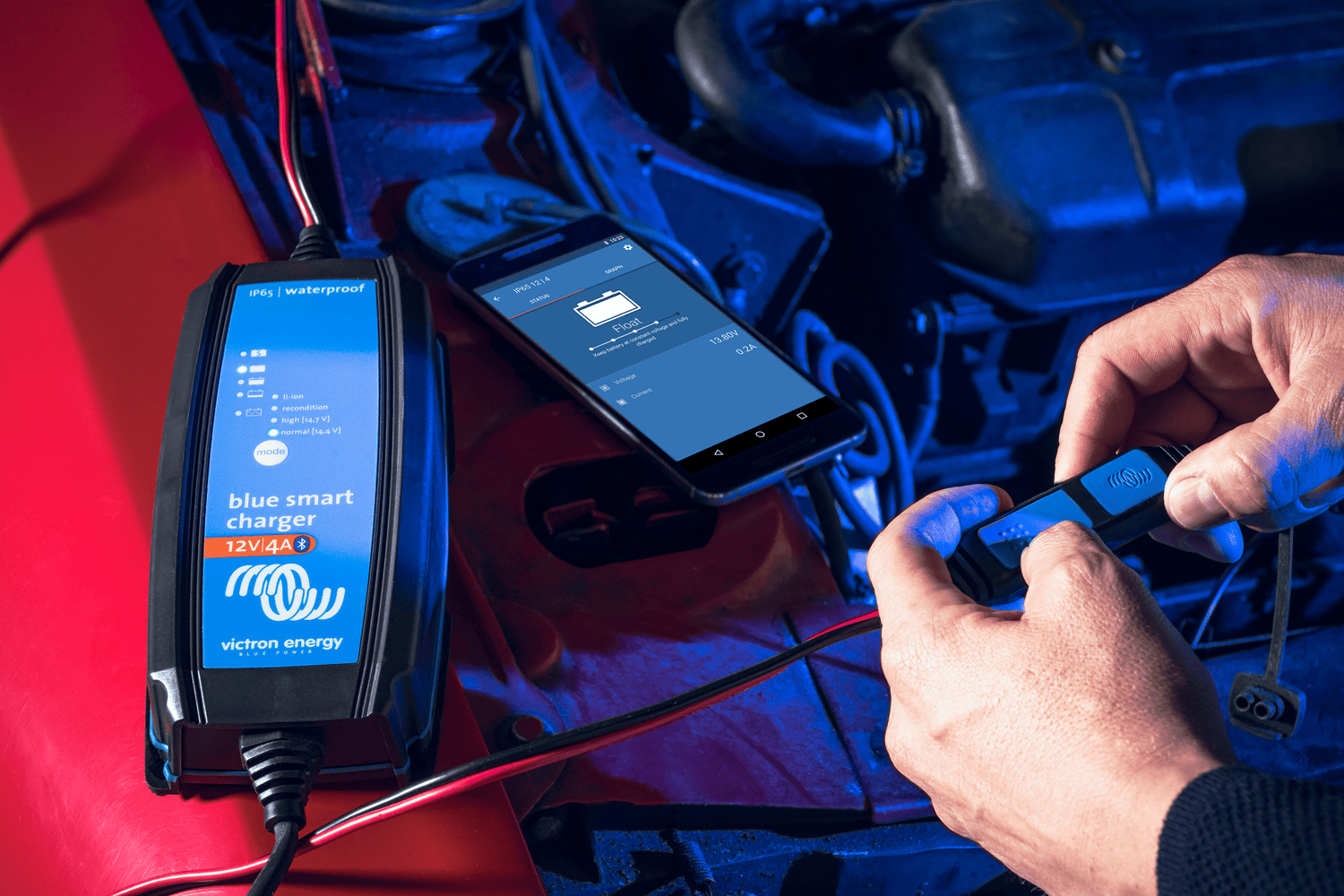

VictronConnect App Connectivity
Control and monitor your charger effortlessly with the VictronConnect app. This feature allows for easy setup, configuration, and real-time readout of voltage and current, providing a comprehensive overview of your charger and battery status directly from your smartphone.
Eco-Friendly and Efficient
Proudly standing as an ultra-high efficiency "green" battery charger, it operates with up to 95% efficiency, significantly reducing heat generation and power consumption post-charging. This efficiency means the charger is not only better for the environment but also ensures lower operational costs.
Built to Last
Safe, Silent, and Durable
- The charger's design minimizes thermal stress on components, enhancing longevity.
- Provides solid protection against overheating, reducing output current as needed while ensuring the unit remains operational.
- Operates silently without any moving parts like cooling fans, reducing wear and potential noise disturbance.
Optimized for Heavy-Duty Use
- Trucks and Buses: Perfect for maintaining the battery health of large vehicles, ensuring they are always ready for long hauls and demanding usage.
- Commercial Vehicles: Ideal for fleets and commercial operations where downtime can lead to significant operational disruptions and costs.
- Marine Applications: Suitable for boats and other marine vessels that rely on 24V systems, offering robust protection against harsh marine environments.
- Specialized Equipment: Powers and maintains batteries for a range of industrial and off-grid systems that require 24V, including solar power backups and emergency response equipment.
Upgrade your charging setup with the Victron 24V 5A Blue Smart IP65 Charger and embrace the peace of mind that comes with having a durable, efficient, and smart charging solution. Ensure your batteries are always in top condition, ready for any adventure or challenge ahead.

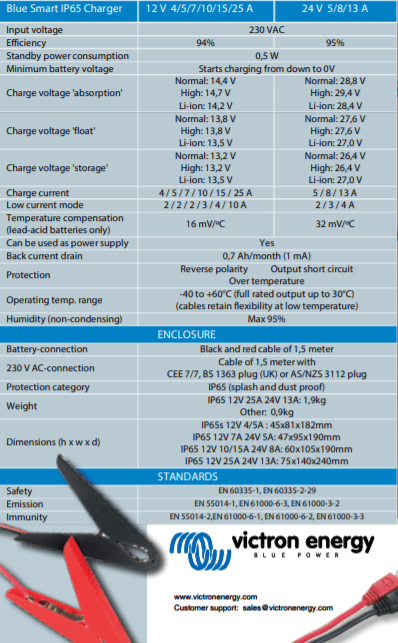

SPECIFICATIONS

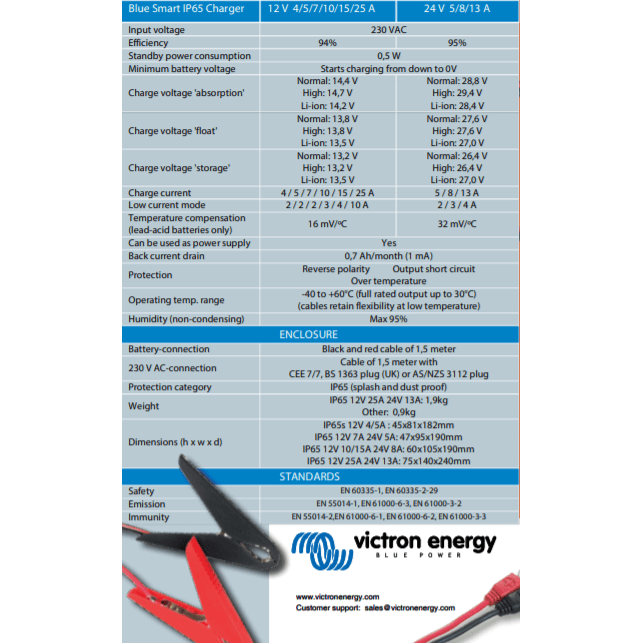

Specifications
| Model | Blue Smart IP65 Battery Charger 24V 5 A |
|---|---|
| Input Voltage and Frequency Range | 230 VAC, 50Hz |
| Efficiency | 95% |
| Standby Power Consumption | 0.5 W |
| Minimum Battery Voltage | Starts charging from down to 0V |
| Charge Voltage 'Absorption' | Normal: 28.8 High: 29.4 Li-ion: 28.4 |
| Charge Voltage 'Float' | Normal: 27.6 High: 27.7 Li-ion: 27.0 |
| Charge Voltage 'Storage' | Normal: 26.4 High: 26.6 Li-ion: 27.0 |
| Charge Current | 5 A |
| Low Current Mode | 2 A |
| Temperature Compensation (lead-acid batteries only) | 16 mV/°C |
| Power Supply Mode | Yes |
| Back Current Drain | 0.7 Ah/month (1 mA) |
| Protection | Reverse polarity, Output short circuit, Over temperature |
| Operating Temp. Range | -40 to +60°C (full rated output up to 30°C) |
| Humidity (Non-Condensing) | Max 95% |
| Charge Algorithm | 7-stage adaptive |
| Bluetooth | -48dBm, 2402 - 2480 MHz |
| Enclosure | |

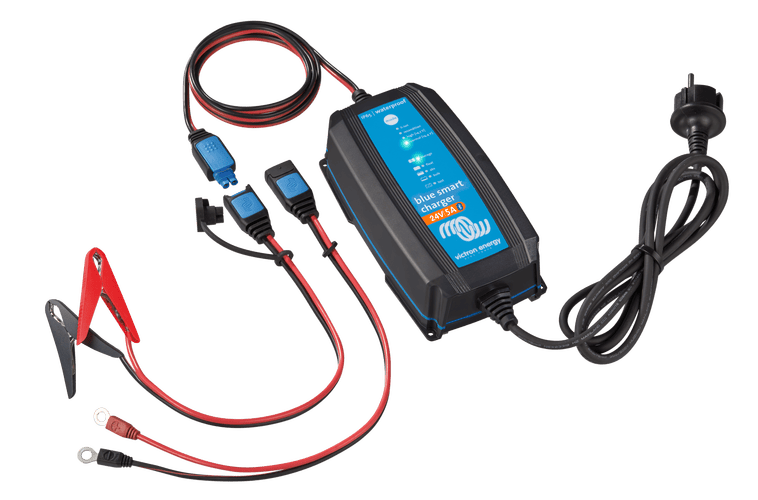

| Battery-Connection | Black and red cable of 1.5 meter |
| 230V AC-Connection | 1.5m cable with AS/NZS 3112 plug |
| Protection Category | IP65 (splash and dust proof) |
| Weight | 0.9 kg |

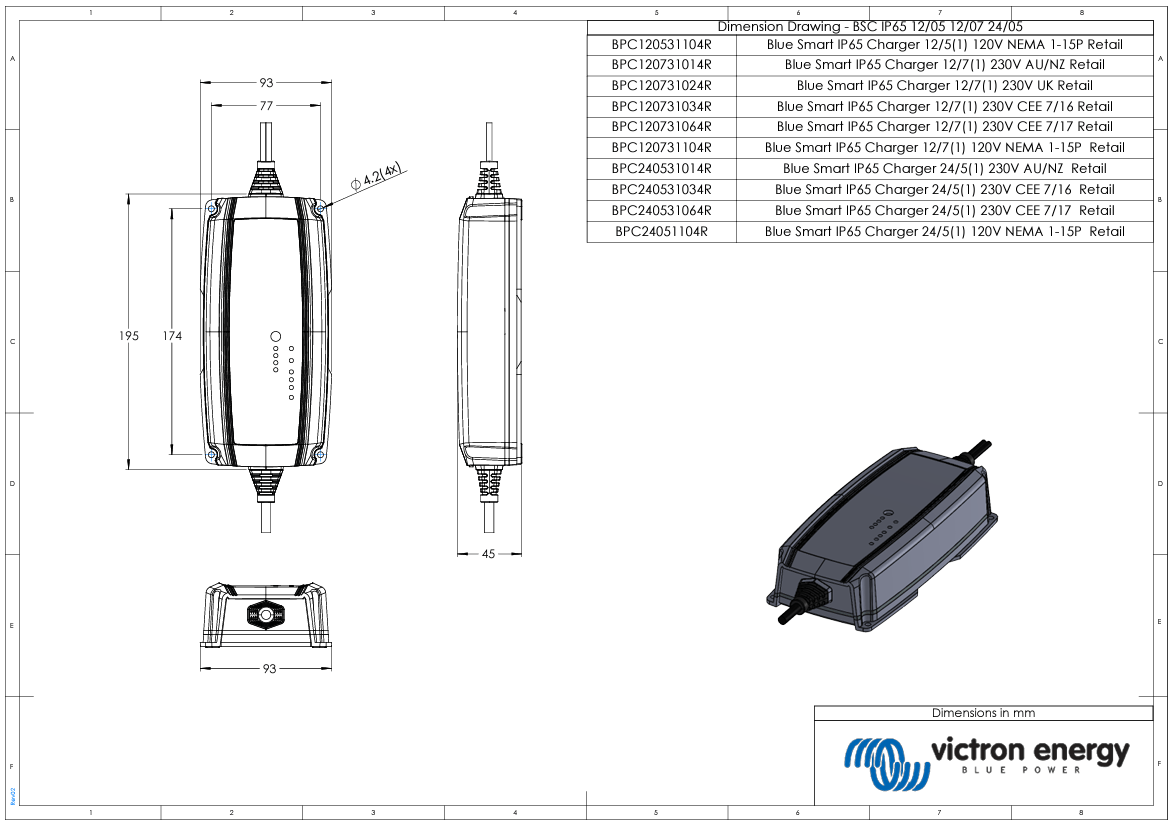

| Dimensions (h x w x d) | 47 x 95 x 190 mm |
| Standards | |
| Safety | EN 60335-1, EN 60335-2-29 |
| Emission | EN 55014-1, EN 61000-6-3, EN 61000-3-2 |
| Immunity | EN 55014-2, EN 61000-6-1, EN 61000-6-2, EN 61000-3-3 |
| SKU: | VIC-BPC240531014R |
| Barcode: | 8719076018049 |
| Model #: | BPC240531014R |
| MPN: | BPC240531014R |
WARRANTY
Victron Energy Limited Warranty Policy
Direct Customers
Victron Energy provides the following warranty to any direct customer (OEM, distributor or dealer) in relation to any products that Victron Energy has directly sold to the direct customer. This warranty is not an end-user warranty between Victron Energy and an end-user, and end-users shall not have any rights or remedies under this limited warranty towards Victron Energy directly. The direct customer shall, in turn, ensure that the end-user is provided with a warranty identical to this warranty, subject to applicable local mandatory law.
End-Users
Victron Energy may also provide a warranty directly to end-users, in which case the below warranty conditions equally apply to such warranty. In that case, end-users shall claim their warranty at their place of purchase or through the original direct customer of Victron, which can be found through the support section on Victron’s website https://www.victronenergy.com/support. Hence, the direct customer shall on behalf of Victron Energy deal with any warranty claims made under any warranty that Victron Energy may provide directly to end-users. This support section on Victron’s website https://www.victronenergy.com/support will provide further guidance on the procedure for end-users to make a claim under this limited warranty.
If the end-user is a consumer – a natural person who is acting for purposes which are outside that person's trade, business, craft or profession – the following applies. The rights and remedies granted to the consumer under this limited warranty are without prejudice to the consumer’s statutory rights. Furthermore, the consumer is entitled by law to remedies from the seller free of charge in the event of a lack of conformity of the goods (such as repair, replacement, price reduction or rescission), which remedies are not affected by this limited warranty.
Warranty
Victron Energy warrants its products to be free from defects in workmanship and materials for a period of 5 years from the date of purchase by the original end-user, with a maximum of 66 months from the Victron Energy invoice date. Exceptions on this are: lead-acid batteries: 2 years from date of purchase by the original end-user, with a maximum of 30 months from the Victron Energy invoice date, Lithium batteries: 3 years from date of purchase by the original end-user, with a maximum of 42 months from the Victron Energy invoice date. In addition to this, proof of correct battery usage is required when making a battery warranty claim.
For a 10% surcharge on the current net price for products that came with a 5-year warranty, an additional 5 years of warranty can be purchased by Victron’s direct customers, bringing the total warranty to 10 years. Warranty extensions need to be applied for ultimately one year before the expiration of the original term. Victron may ask proof that the product was still functional at the time of purchase of the extended warranty.
During the warranty period, Victron Energy will, at its discretion, repair, replace or (partly) credit the defective product free of charge. The warranty does not include performing or reimbursing de‐installation, transportation, and re‐installation.
This warranty will be considered void if the unit has suffered any physical damage or alteration, either internally or externally, and does not cover damages arising from improper use like:
- Reversed battery polarity.
- Inadequate connection.
- Mechanical shock or deformation.
- Contact with liquid or oxidation by condensation.
- Use in an inappropriate environment (dust, corrosive vapour, humidity, high temperature, biological infestation, etc.).
- Breakage or damage due to lightning.
- Connection terminals and screws destroyed or other damages, like overheating, due to insufficient tightening.
- For any electronic breakage except due to lightning (reverse polarity, over‐voltage due to external cause), the state of the internal control diode and/or the input/output X and Y capacitors determine the warranty.
This warranty will not apply where the product has been misused, neglected, improperly installed, or repaired by anyone other than Victron Energy or one of its authorized Repair Centres. In order to qualify for the warranty, the product must not be disassembled or modified.
This warranty and our warranty obligations thereunder (repair, replacement or credit) are the direct customer’s and, if applicable, the end-user’s sole rights and remedies and our sole obligations with respect to any defective and/or non-conforming product or breach of warranty and is subject to and without prejudice to the limitations of liability in this warranty.
Victron Energy shall not be liable for damages, whether direct, incidental, special, or consequential, even caused by negligence or fault.
As a product requires service, it must be brought back to the place of purchase. In case no contact can be made with the merchant, or if he is either unable or not allowed to provide service, direct contact should be made with Victron Energy through the support section on Victron’s website.
In case Victron Energy replaces a product, it will own the replaced product. Victron Energy owns all parts removed from repaired products. Victron Energy uses new or reconditioned parts made by various manufacturers when performing warranty repairs or building replacement products.
If Victron Energy repairs or replaces a part of a product, its warranty term is not extended: the warranty will apply for the remaining term of the original warranty term. For example, if Victron Energy replaces a product with a 5-year warranty after 3 years, the warranty of this product will apply for another 2 years, with a minimum of 6 months.
All remedies and the measure for damages are limited to the above. Victron Energy shall in no event be liable for consequential, incidental, contingent or special damages, even if having been advised of the probability of such damages.
The foregoing limited warranty provided by Victron Energy is in lieu of any other warranties, express or implied arising by law, course of dealing, course of performance, usage of trade or otherwise, of any kind whatsoever including, without limitation, warranties of merchantability or fitness for a particular purpose, with respect to any product. The above is without prejudice to the arrangement for consumers detailed above.
Life Support Policy
As a general policy, Victron Energy does not recommend the use of any of its products in life support applications where failure or malfunction of Victron Energy's product can be reasonably expected to cause the failure of the life support device or to significantly affect its safety or effectiveness. Victron Energy does not recommend the use of any of its products in direct patient care. Victron Energy will not knowingly sell its products for use in such applications unless it receives in writing assurances satisfactory to Victron Energy that the risks of injury or damage have been minimized, the customer assumes all such risks, and the liability of Victron Energy is adequately protected under the circumstances.
Warranty on repairs for products outside their warranty period
The warranty period on products that are outside their warranty period and have been repaired by Victron Energy or one of the Victron Energy Repair centres is six (6) months from delivery. The same applies to spare parts and circuit boards that have been supplied or repaired by Victron Energy.
Transport
It is the responsibility of the sender to sufficiently package these products. The transport must be organized in a way to avoid any damage, especially when a single unit or heavy unit is sent.
Severability
If a part of the terms and conditions of this warranty is held invalid, void or unenforceable due to any particular national or international legislation, it shall not affect other parts of the terms and conditions of this warranty.
Applicable law
This warranty is exclusively governed by the laws of the Netherlands, to the exclusion of the UN Convention on Contracts for the International Sale of Goods.
Contact details
Victron Energy B.V. | De Paal 35, 1351 JG Almere, The Netherlands | https://www.victronenergy.com/support
