Genasun 8A MPPT 48V Voltage Boost (Lead-Acid) - Waterproof Solar Charge Controller
Genasun 8A MPPT 48V Voltage Boost (Lead-Acid) - Waterproof Solar Charge Controller
96-99% Efficient True MPPT | Waterproof Potted Design | 48V Lead-Acid
Highlights:Status LED: Multicolor LED indicator for system status (Standby, Charging, Full),Wiring Guide: Connection guide for Battery and Panel inputs,Mounting Flange: Side flange with pre-drilled holes for mounting,Specifications: Label indicating 48V Lead-Acid compatibility and 8A panel limit.
Schematic showing connections from a PV panel to the MPPT controller, then to a 48V battery bank with a 10A in-line fuse on the positive battery line.
Key features: Low minimum input voltage (>5 V) for earlier start-up, Fanless design for silent, reliable operation, Waterproof construction for harsh environments, Ultra-low self-consumption (0.2-0.3 W), Trickle charge capability for battery maintenance.
Illustration of a golf cart application where a roof-mounted solar panel charges a 48V series battery bank via the Genasun boost controller.
DESCRIPTION

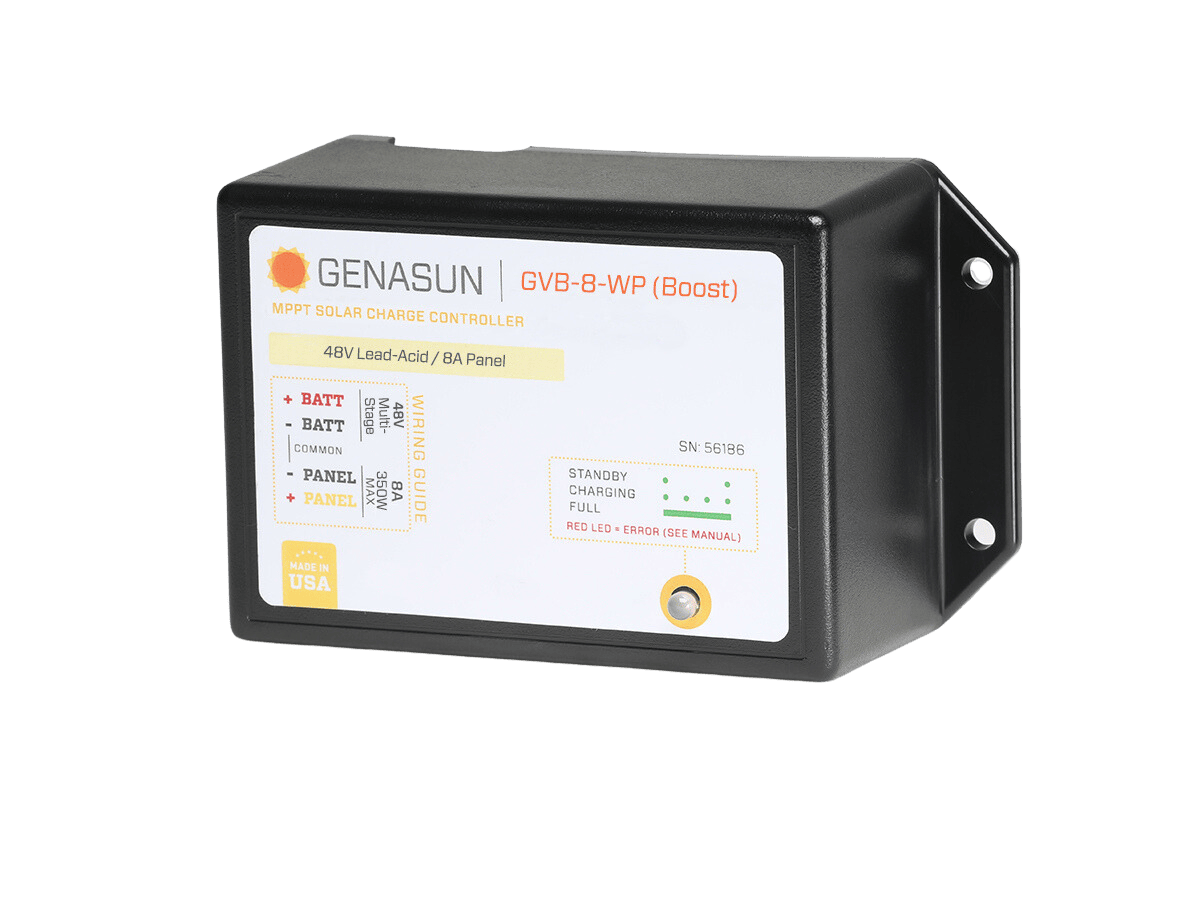

Genasun GVB-8-WP: Advanced MPPT Boost Controller for 48V Lead-Acid Systems
Efficient Voltage Boosting for Off-Grid and Mobile Applications
The Genasun GVB-8-WP is a specialised MPPT solar charge controller engineered to charge 48V lead-acid battery banks from lower-voltage solar panels. Unlike conventional controllers that require panel voltage to exceed battery voltage, this boost controller steps up input from panels as low as 5V, enabling flexible system design. With 96-99% typical electrical efficiency and ultra-fast 15Hz MPPT tracking, it maximises energy harvest even under variable light conditions.
Designed for demanding environments, the fully potted, waterproof construction protects internal electronics from moisture, dust, and vibration. This makes it an ideal choice for marine solar charging, RV power systems, golf cart solar kits, industrial off-grid setups, and military applications. The controller operates silently with no cooling fan, reducing points of failure and ensuring long-term reliability.
True MPPT vs. Nominal MPPT
Many controllers claim MPPT functionality but only approximate the maximum power point. The Genasun GVB-8-WP employs true Maximum Power Point Tracking, continuously adjusting to the panel's optimal operating voltage at 15 times per second. This results in superior low-light performance and faster energy recovery after shading, directly translating to more amp-hours stored in your battery each day.
Key Features
- Voltage boost capability – charges 48V batteries from panels with Vmp as low as 5V, supporting 12V, 24V, or 36V nominal solar arrays
- 96-99% peak efficiency – minimises conversion losses for maximum power delivery
- Waterproof and potted design – withstands immersion, salt spray, and high humidity; ideal for marine and coastal installations
- Multi-stage charging with temperature compensation – automatically adjusts bulk, absorption, and float voltages based on battery temperature for optimal lead-acid health
- Integrated in-line fuse protection – safeguards against overcurrent events without external components
- Wide operating temperature range – functions reliably from -40°C to 85°C, with full power output up to 70°C ambient
- Low self-consumption – draws only 5mA in standby, preserving battery charge during idle periods
- Pre-wired flying leads – 16 AWG tinned wire with pre-stripped ends for straightforward installation
Built for Harsh Environments
The GVB-8-WP's electronics are encapsulated in a proprietary potting compound, creating a fully waterproof and vibration-resistant assembly. This eliminates corrosion risks and thermal stress common in unsealed controllers. Whether mounted in a bilge, exposed to road spray, or operating in desert heat, the controller maintains consistent performance without derating. The compact aluminium housing (5.5" x 3.2" x 2.2" / 14cm x 8.1cm x 5.5cm) and lightweight design (10.3oz / 290g) simplify integration into space-constrained installations.
Application Flexibility
This controller excels in scenarios where panel voltage is lower than the battery bank voltage, a common challenge in mobile and off-grid systems. Typical use cases include:
- Golf carts – roof-mounted 12V or 24V panels charging 48V battery packs
- Marine vessels – maintaining 48V house banks from compact solar arrays
- RVs and campervans – boosting voltage from portable panels to high-voltage battery systems
- Remote monitoring stations – reliable power for 48V equipment with limited solar real estate
- Street lighting – efficient charging of 48V battery backups from small solar modules
The controller automatically adapts to the connected panel and battery, requiring no user configuration. Simply wire the panel input and battery output, and the GVB-8-WP handles the rest, including multi-stage charging and temperature-compensated voltage regulation.
Optimise Your Off-Grid Power System
Upgrade your solar charging setup with the Genasun GVB-8-WP 48V boost controller and experience the difference that true MPPT and rugged waterproof design can make. Whether you're powering a golf cart, sailboat, or remote industrial equipment, this controller delivers dependable energy conversion in a compact, maintenance-free package.
SPECIFICATIONS
Product Specifications
| Specifications | GVB-8-Pb-12V-WP | GVB-8-Pb-24V-WP | GVB-8-Pb-36V-WP | GVB-8-Pb-48V-WP |
|---|---|---|---|---|
| Battery Type | 12V Lead-Acid | 24V Lead-Acid | 36V Lead-Acid | 48V Lead-Acid |
| Maximum Recommended Panel Power | 105W | 210W | 325W | 350W |
| Rated Panel (Input) Current | 8A | 8A | 8A | 8A |
| Max Recommended Panel Vmp | 13V | 26V | 41V | 43V |
| Max Input (Panel) Voltage | 60V | 60V | 60V | 60V |
| Recommended Max Panel Voc at STC | 50V | 50V | 50V | 50V |
| Input Voltage Range | 0-60V | 0-60V | 0-60V | 0-60V |
| Minimum Input (Panel) Voltage for Charging | 5V | 5V | 5V | 5V |
| Maximum Input Short Circuit Current | 8A | 8A | 8A | 8A |
| Maximum Input Current | 15A | 15A | 15A | 15A |
| Nominal Battery Voltage | 12V | 24V | 36V | 48V |
| Minimum Battery Voltage for Operation | 9.5V | 9.5V | 9.5V | 9.5V |
| Operating Temperature | -40°C – 85°C | -40°C – 85°C | -40°C – 85°C | -40°C – 85°C |
| Max Full Power Operating Ambient | 70°C | 70°C | 70°C | 70°C |
| Charge Profile | Multi-Stage with Temperature Compensation | Multi-Stage with Temperature Compensation | Multi-Stage with Temperature Compensation | Multi-Stage with Temperature Compensation |
| Bulk Voltage | 14.4V | 28.8V | 43.2V | 57.6V |
| Absorption Voltage | 14.2V | 28.4V | 42.6V | 56.8V |
| Absorption Time | 2 Hours | 2 Hours | 2 Hours | 2 Hours |
| Float Voltage | 13.8V | 27.6V | 41.4V | 55.2V |
| Re-Absorb (Re-Bulk) | 12.5V | 25V | 37.5V | 50V |
| Battery Temperature Compensation (referred to 25°C) | -28mV/°C | -56mV/°C | -84mV/°C | -112mV/°C |
| Electrical Efficiency | 95%-97% typical | 96%-98% typical | 96%-98% typical | 96%-99% typical |
| Standby Consumption | 7mA | 6mA | 6mA | 5mA |
| MPPT Tracking Speed | 15Hz | 15Hz | 15Hz | 15Hz |
| Connection | Flying Leads, 16 AWG tinned wire, pre-stripped | Flying Leads, 16 AWG tinned wire, pre-stripped | Flying Leads, 16 AWG tinned wire, pre-stripped | Flying Leads, 16 AWG tinned wire, pre-stripped |
| Weight | 10.3oz (290g) | 10.3oz (290g) | 10.3oz (290g) | 10.3oz (290g) |
| Dimensions | 5.5" x 3.2" x 2.2" (14cm x 8.1cm x 5.5cm) | 5.5" x 3.2" x 2.2" (14cm x 8.1cm x 5.5cm) | 5.5" x 3.2" x 2.2" (14cm x 8.1cm x 5.5cm) | 5.5" x 3.2" x 2.2" (14cm x 8.1cm x 5.5cm) |
| SKU: | GVB-8-Pb-48V-WP |
| Model #: | GVB-8-Pb-48V-WP |
| MPN: | GVB-8-Pb-48V-WP |
WARRANTY
Genasun Warranty Policy
This warranty policy applies to Genasun solar charge controllers supplied by us in Australia. As the Australian supplier or importer of these products, we support warranty claims for Genasun products supplied by us in accordance with the applicable manufacturer warranty and Australian Consumer Law.
Genasun solar charge controllers supplied by us are covered against defects in materials and workmanship for the warranty period applicable to the relevant product model range, subject to the product being selected, installed, operated, stored and maintained correctly and in accordance with the manufacturer's instructions.
This warranty applies to the original end-user purchaser of the product, as evidenced by a valid proof of purchase. The benefits given by this warranty are in addition to other rights and remedies available under law.
Warranty Coverage and Periods
This warranty covers Genasun solar charge controllers supplied by us. The warranty periods for each product model range are set out below.
| Genasun Product Model Range | Warranty Length | Application / Notes |
|---|---|---|
| Genasun GV-5 Solar Charge Controllers | 120 months | Applies to all Genasun GV-5 charge controller models, including lead-acid and lithium variants, where installed and operated in accordance with the manufacturer's instructions. |
| Genasun GV-5-MOD Solar Charge Controller Modules | 120 months | Applies to all Genasun GV-5-MOD charge controller module models, including lead-acid and lithium variants, where installed and operated in accordance with the manufacturer's instructions. |
| Genasun GV-4 Solar Charge Controllers | 60 months | Applies to all Genasun GV-4 charge controller models, including lead-acid and lithium variants, where used within the product's rated specifications. |
| Genasun GV-10 Solar Charge Controllers | 60 months | Applies to all Genasun GV-10 charge controller models, including lead-acid and lithium variants, where used within the product's rated specifications. |
| Genasun GVB-8 Boost Solar Charge Controllers | 60 months | Applies to all Genasun GVB-8 boost charge controller models, including lead-acid and lithium variants, where correctly selected for the solar panel and battery voltage being used. |
| Genasun GVB-8-WP Waterproof Boost Solar Charge Controllers | 60 months | Applies to all Genasun GVB-8-WP waterproof boost charge controller models, including lead-acid and lithium variants, where installed and operated within the product's rated specifications. |
The warranty period begins on the date the product is sold to the original consumer purchaser, as shown on the valid proof of purchase. A valid proof of purchase identifying the purchaser and date of purchase is required for all warranty claims.
Installer Responsibilities and System Design
Genasun solar charge controllers are installed into broader solar charging, battery charging, vehicle, marine, RV, off-grid or industrial electrical systems. Once installed, the product forms only one component of a larger system.
We do not provide installation services unless expressly stated in writing, and we do not supervise or control installation practices carried out by dealers, installers, contractors or end-users. The installer, system designer, integrator, dealer or end-user is responsible for ensuring that the product is suitable for the intended application and is installed correctly.
Issues or damage arising from incorrect installation, poor system design, incorrect configuration, incompatible equipment, inadequate protection, unsuitable mounting, unsuitable environmental conditions or failure to follow the manufacturer's instructions are not product defects and are not covered by this warranty.
Appropriate Installation
All Genasun solar charge controllers must be installed in accordance with the product manual, the manufacturer's installation instructions, applicable Australian Standards, relevant electrical, automotive, marine, solar or industry standards, and recognised industry best practice.
The installer must ensure that the product is used in an appropriate environment and within its specified ratings. Improper, unsafe, unlicensed, sub-standard or non-compliant installation may void or limit warranty coverage.
System Compatibility
The installer or integrator is responsible for selecting and using compatible components. This includes ensuring compatibility with solar panels, batteries, battery chemistry, battery voltage, charge profiles, loads, wiring, fuses, circuit breakers, connectors, mounting hardware and any other connected equipment.
Damage or underperformance caused by incompatible, incorrectly configured, undersized, oversized, unsuitable or improperly installed equipment is not covered by this warranty.
System-Wide Performance
Overall system performance depends on design, installation, configuration, solar panel selection, battery condition, usage, maintenance and environmental factors beyond the Genasun product itself. This warranty covers the quality of the individual Genasun solar charge controller supplied by us only. It does not guarantee the performance of the broader solar or electrical system into which the product is installed or integrated.
Issues such as insufficient charging, poor solar performance, incorrect battery charging, battery damage, voltage drop, nuisance faults, overheating, intermittent operation or operational shortfalls caused by system design, installation, configuration or connected equipment are outside the scope of this warranty.
Installation Location and Environmental Suitability
The installer must ensure that Genasun solar charge controllers are mounted, located, supported, ventilated and protected in a manner suitable for the installation environment.
Where relevant, the installer must allow for heat dissipation, ventilation, moisture exposure, dust, vibration, corrosion risk, electrical clearance, mechanical loading, access for inspection and service, and protection from unsuitable environmental conditions.
Damage caused by unsuitable mounting, inadequate ventilation, moisture, water ingress, dust, corrosion, excessive heat, vibration, insufficient clearance, unsuitable substrate selection or other installation environment issues is not a manufacturing defect and is not covered by this warranty.
System Protection and Fault Isolation
The installer must incorporate suitable protective devices and design measures appropriate to the product and installation type. This may include correctly rated fuses, circuit breakers, isolators, over-current protection, over-voltage protection, reverse-polarity protection, surge protection, correct cable sizing and other protective devices required by standards or best practice.
The installer is responsible for ensuring that a fault or failure in one component does not cause cascading damage to other components. Damage to Genasun products caused by inadequate system protection, poor fault isolation, incorrect protection settings or missing safety devices is not covered by this warranty.
Service Accessibility Requirement
Products must be installed in a manner that allows reasonable access for inspection, testing, servicing, removal and replacement. We are not responsible for additional labour, structural modification, access equipment, removal of fixtures, cabinetry, panels, flooring, trim, sealants, adhesives or other costs arising from installation methods that restrict reasonable access to the product.
Installation Documentation
We may require documentation of the installation when assessing a warranty claim. This may include photos of the product in its installed location, wiring diagrams, system layout, solar panel details, battery details, serial numbers, details of connected equipment, installer details, commissioning records, service history, fault logs, operating settings and maintenance records.
Failure to provide reasonable installation evidence may limit our ability to assess the claim.
Independence of Dealers and Installers
Dealers, resellers, installers and contractors act independently and are not agents, employees or representatives of Genasun, Sunforge or us unless expressly agreed in writing. We are not responsible for the acts, omissions, workmanship, advice, representations, installation practices or system design decisions of independent dealers, resellers, installers, contractors or third parties.
What This Warranty Does Not Cover
This warranty covers manufacturing defects or failures of the product arising from normal use in accordance with the manufacturer's instructions. It does not cover any failure, damage, performance issue, deterioration or loss caused wholly or partly by external factors, misuse, incorrect installation or circumstances outside the manufacturer's control.
- Incorrect installation, wiring, connection or configuration
- Incorrect product selection or application
- Use outside the product's intended purpose
- Operation outside the product's rated technical specifications
- Incorrect solar panel voltage, battery voltage, battery chemistry or charge profile
- Failure to follow the manufacturer's storage, usage, installation, operation or maintenance instructions
- Alteration, modification, disassembly or tampering
- Repair or service not carried out by a manufacturer-authorised repair facility
- Application of foreign substances or contamination
- Improper operation, misuse, abuse or neglect
- Physical impact, accidental damage or mechanical damage
- Corrosion or environmental damage outside the product's rated specifications
- Lightning, surge damage or other acts of God
- Use with incompatible, incorrectly rated or improperly configured third-party components
- Damage caused by inadequate fusing, circuit protection, isolation or system protection
- Damage caused by moisture, water ingress, dust, corrosion or unsuitable installation environments
- Damage caused by excessive heat, inadequate ventilation or installation in an unsuitable location
- Damage caused by vibration, movement, poor mounting or inadequate support
- Normal wear and tear, cosmetic ageing, cosmetic deterioration or surface marks that do not affect product function
- Failure to carry out reasonable inspection, cleaning, maintenance or servicing where required
- Products with removed, altered, damaged or illegible serial numbers, rating labels or identification markings
- Products purchased second-hand, from unauthorised channels, auction sites, liquidation sales or grey-market sources
- Labour costs for removal, replacement, reinstallation or diagnosis
- Freight, travel, call-out costs or access costs unless otherwise required by law
- Products not returned for assessment when reasonably required
- Consequential or incidental loss, including damage to other equipment, downtime, loss of use, loss of revenue or economic loss, to the extent permitted by law
Warranty Assessment and Remedy
If a Genasun solar charge controller supplied by us is found to be defective within the applicable warranty period, we will, at our discretion and subject to the requirements of Australian Consumer Law, arrange a repair, replacement, store credit, refund or another appropriate remedy.
Products may need to be returned for assessment before a warranty claim can be approved. Where required, the product must be returned with dated proof of purchase, product details, serial number if available, installation information and a clear description of the fault.
If the product is required to be returned to Genasun, Sunforge or another nominated assessment location for inspection or repair, a return authorisation process may be required before the product is sent. Products sent without the required return authorisation or documentation may not be processed.
If a product is assessed and found not to be defective, or the issue is found to be caused by an excluded factor, the claim may be rejected. In that case, assessment fees, freight, insurance and return costs may be payable by the customer to the extent permitted by law.
Labour costs for removing, replacing, reinstalling or diagnosing a product are not covered by this express warranty unless otherwise required under Australian Consumer Law.
Making a Warranty Claim
If you suspect a fault with a Genasun product supplied by us, do not immediately remove or uninstall the product unless it is unsafe to leave it in place or unless authorised as part of the warranty process. Premature removal may cause further damage or make it difficult to determine the original cause of the issue.
- Contact us: Contact us with your dated proof of purchase, product model, serial number if available, and a description of the fault.
- Provide product and installation information: We may request installation photos, wiring details, solar panel details, battery details, connected equipment details, operating settings, measurements or service history to assist with assessment.
- Assessment and troubleshooting: We may ask for safe checks, photos, voltage readings, current readings, testing information or other details to determine whether the issue appears to be a product fault or is caused by installation, configuration, connected equipment, environment or misuse.
- Return for inspection if required: If the fault cannot be confirmed remotely, the product may need to be returned for inspection, testing, repair or replacement assessment. Return instructions will be provided where required.
- Outcome: If the product is confirmed to be faulty and covered by this warranty, we will advise the available remedy. If the product is found not to be faulty, or the issue is caused by an excluded factor, the claim may be rejected.
Remedies Under Warranty
If a defect covered by this warranty is confirmed, we may provide one or more of the following remedies, subject to the circumstances of the claim and the requirements of Australian Consumer Law:
- repair of the product;
- replacement of the product;
- store credit;
- refund;
- supply of replacement parts; or
- another appropriate remedy required by law.
Repair or replacement under this warranty does not restart or extend the original warranty period. The warranty continues from the original purchase date.
Manufacturer Support
Genasun products may be assessed, repaired or replaced through Sunforge, Genasun or another nominated service process. Where available, we may assist customers in arranging assessment, but any manufacturer service is subject to the manufacturer's own process, requirements and continued availability.
Where a manufacturer return authorisation is required, the product must not be sent until the required authorisation has been issued and the return instructions have been provided.
Australian Consumer Law
This warranty is in addition to other rights and remedies available at law. Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.
