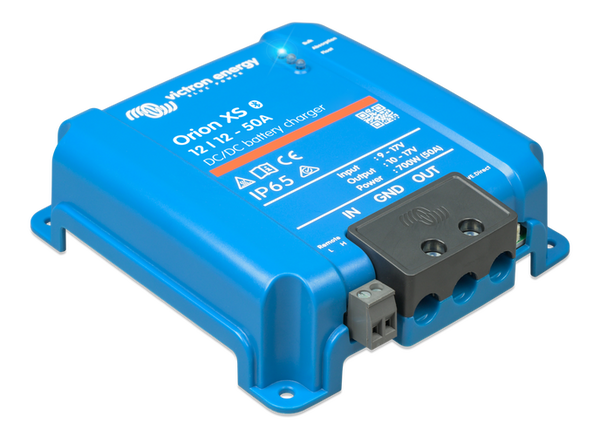

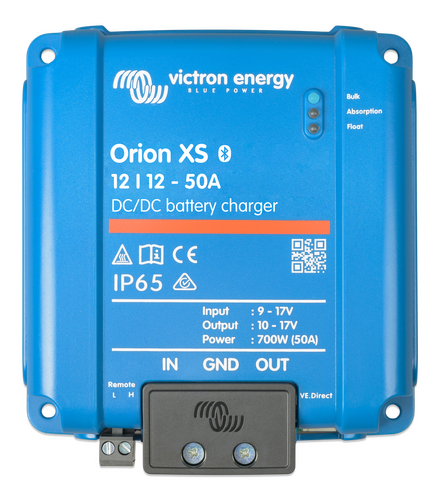

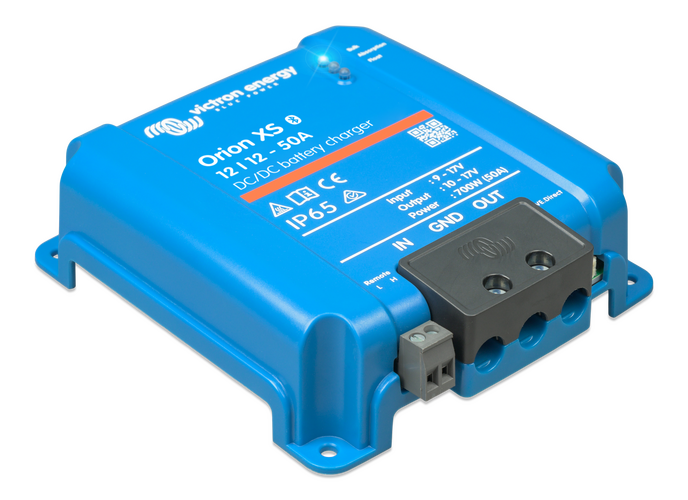

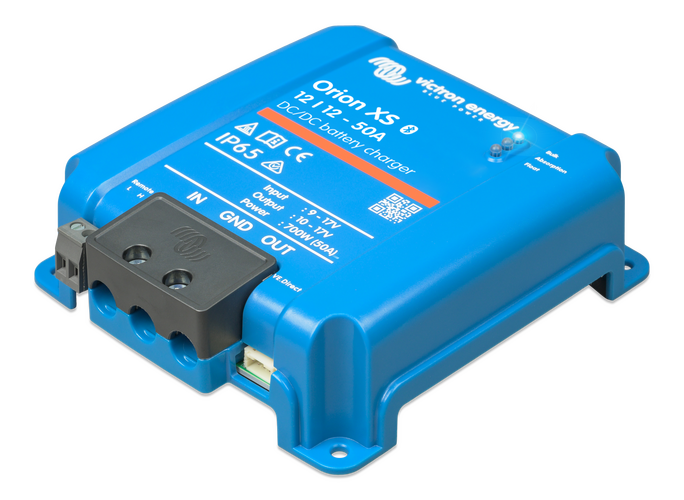

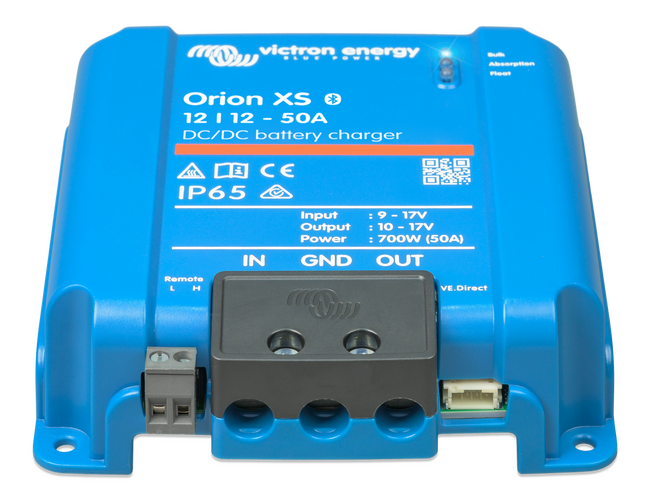

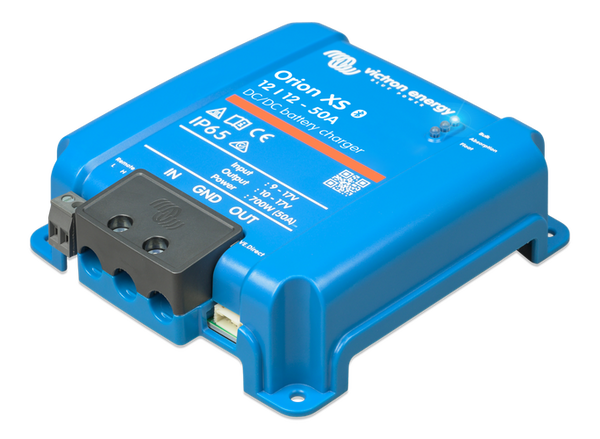

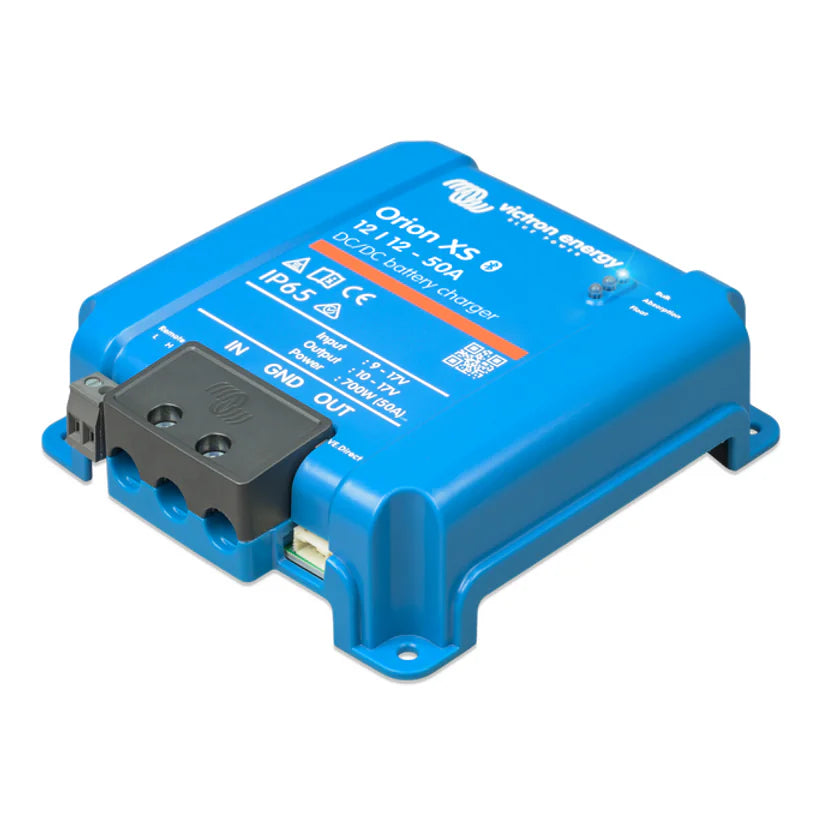

Victron 12V to 12V Orion XS 12/12-50A DC-DC Smart Battery Charger - EMC Improved Version

12V In, 12V Out

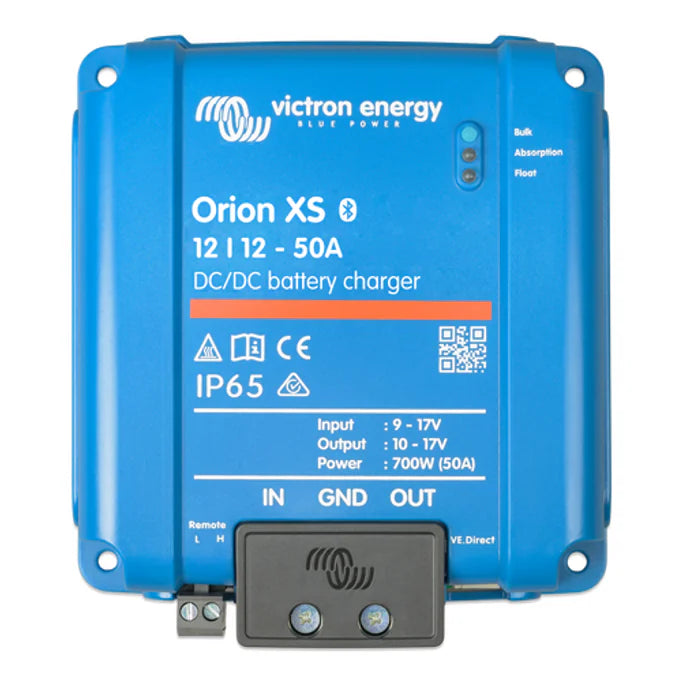

Victron 12V to 12V Orion XS 12/12-50A DC-DC Smart Battery Charger - EMC Improved Version Main Image
Victron 12V to 12V Orion XS 12/12-50A DC-DC Smart Battery Charger - EMC Improved Version 1Victron 12V to 12V Orion XS 12/12-50A DC-DC Smart Battery Charger - EMC Improved Version 2Victron 12V to 12V Orion XS 12/12-50A DC-DC Smart Battery Charger - EMC Improved Version 3Victron 12V to 12V Orion XS 12/12-50A DC-DC Smart Battery Charger - EMC Improved Version 4Victron 12V to 12V Orion XS 12/12-50A DC-DC Smart Battery Charger - EMC Improved Version 5Victron 12V to 12V Orion XS 12/12-50A DC-DC Smart Battery Charger - EMC Improved Version 6Victron 12V to 12V Orion XS 12/12-50A DC-DC Smart Battery Charger - EMC Improved Version 7Victron 12V to 12V Orion XS 12/12-50A DC-DC Smart Battery Charger - EMC Improved Version 8
Victron 12V to 12V Orion XS 12/12-50A DC-DC Smart Battery Charger - EMC Improved Version Main Image
Victron 12V to 12V Orion XS 12/12-50A DC-DC Smart Battery Charger - EMC Improved Version
Victron 12V to 12V Orion XS 12/12-50A DC-DC Smart Battery Charger - EMC Improved Version 1
Victron 12V to 12V Orion XS 12/12-50A DC-DC Smart Battery Charger - EMC Improved Version 2
Victron 12V to 12V Orion XS 12/12-50A DC-DC Smart Battery Charger - EMC Improved Version 3
Victron 12V to 12V Orion XS 12/12-50A DC-DC Smart Battery Charger - EMC Improved Version 4
Victron 12V to 12V Orion XS 12/12-50A DC-DC Smart Battery Charger - EMC Improved Version 5
Victron 12V to 12V Orion XS 12/12-50A DC-DC Smart Battery Charger - EMC Improved Version 6
Victron 12V to 12V Orion XS 12/12-50A DC-DC Smart Battery Charger - EMC Improved Version 7
Victron 12V to 12V Orion XS 12/12-50A DC-DC Smart Battery Charger - EMC Improved Version 8
Regular price $472.94
$587.40
/
Availability: In Stock
View all products from Victron

Notify me when available

You have already submited form for Default Title

Thanks for contacting us. We'll get back to you as soon as product / variant is back in stock.
Guaranteed Safe and Secure Checkout
American Express Apple Pay Google Pay MastercardPayPalShop Pay Union PayVisa

14
Victron 12V to 12V Orion XS 12/12-50A DC-DC Smart Battery Charger - EMC Improved Version Main Image

Victron 12V to 12V Orion XS 12/12-50A DC-DC Smart Battery Charger - EMC Improved Version

DESCRIPTION

Optimize Your Onboard Power System with the Orion XS 12/12-50A DC-DC Marine Battery Charger – EMC Enhanced

High-Efficiency, Smart Charging for Demanding Applications

The Orion XS 12/12-50A DC-DC Battery Charger with EMC Improvements is the ultimate solution for powering dual-battery systems in marine environments and beyond. Designed with advanced electromagnetic compatibility (EMC) to minimize interference with VHF radios, this next-generation charger is perfect for marine vessels, caravans, RVs, off-grid setups, and industrial use. Harnessing adaptive three-step charging technology and precision input/output current control, the Orion XS ensures optimal performance and extended battery life in every application. Whether you rely on a smart alternator or need robust power regulation, this compact charger delivers with an efficiency rate of 98%, thanks to its advanced aluminium circuit board cooling – no fans required.

Key Performance Features for Reliable Power Control

  • Wide Current Adjustment: Set both input and output currents anywhere from 1 to 50A in 0.1A increments via VictronConnect for tailored performance.
  • Advanced Safety Protection: Short circuit protection, temperature control, and overload safeguards ensure your system remains secure and stable.
  • Smart Charging Algorithm: Adaptive 4-stage charging for lead-acid batteries with power supply mode for non-battery applications.
  • Connectivity Options: Bluetooth-enabled for remote monitoring and configuration with VictronConnect; includes VE.Direct port for additional control.

Designed for Tough Environments

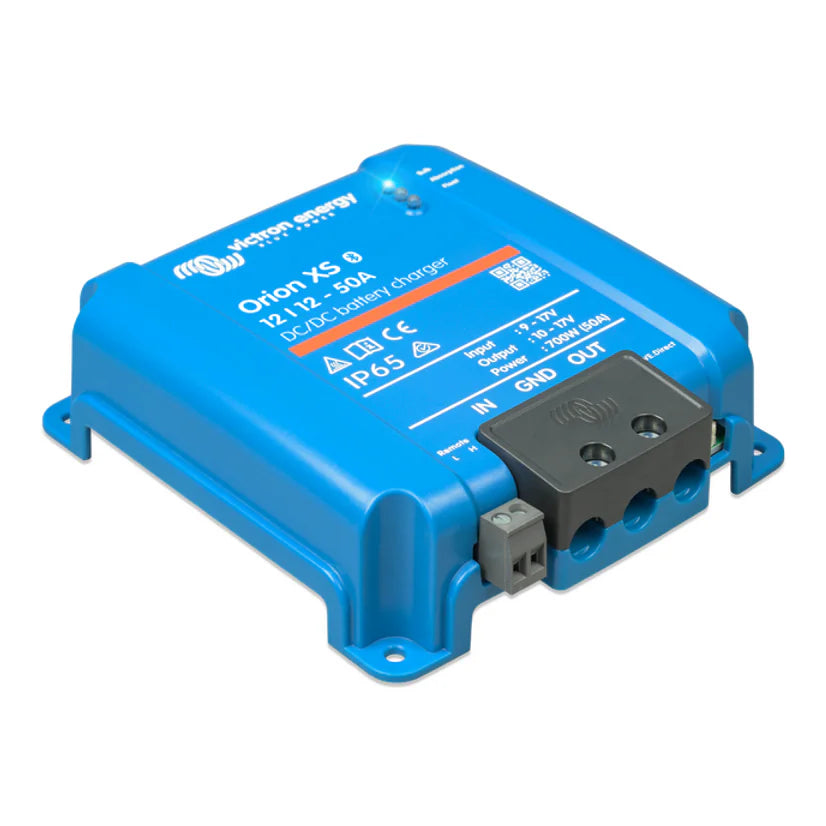

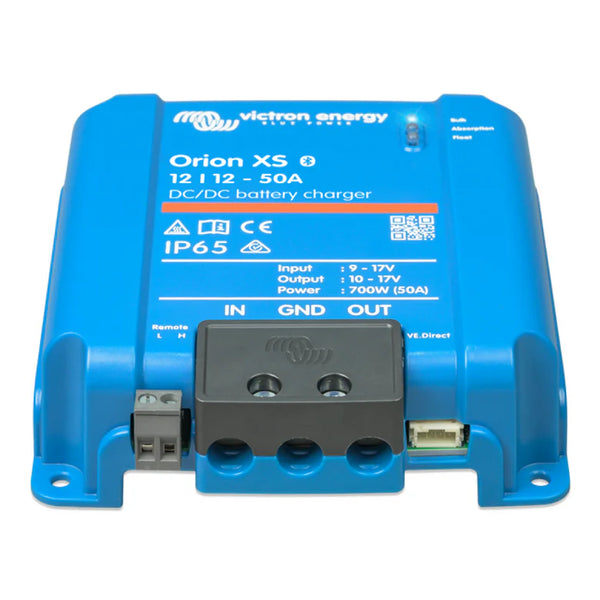

The IP65-rated casing defends against dust and water spray, making the Orion XS a reliable power partner in harsh conditions. Its protective terminal cover further enhances safety by shielding from accidental contact and debris. Whether installed in a marine cabin or under the hood of your 4WD, it’s built to last.

Application Versatility

Marine vessels using VHF radios Caravans and camper vans RVs with smart alternator systems Off-grid and solar-powered cabins Industrial battery management Tiny homes requiring space-efficient power systems

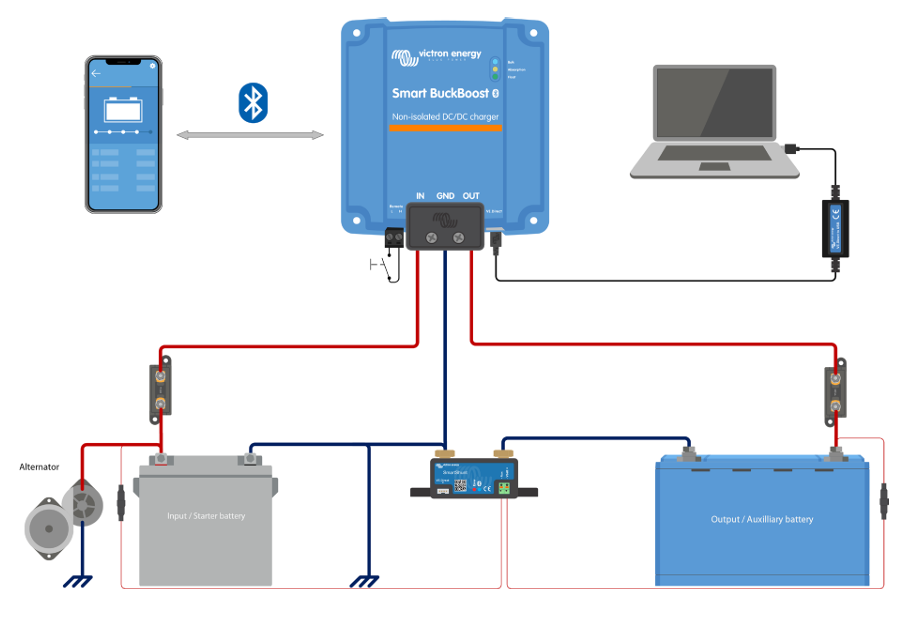

Installation Guidelines

Fusing: 70A on the starter side, 60A on the house battery Cabling: Use 6 B&S wire for standard lengths; 4 B&S for extended runs Operation Range: Full performance at ambient temperatures up to 40°C

Why Choose the Orion XS 50A?

This EMC-improved version is tailored for environments where radio frequency interference is a concern, such as boats with VHF communication systems. With intuitive setup and intelligent power management, the Orion XS 50A ensures you're always in control of your energy. Upgrade your vehicle, marine vessel, or off-grid setup now with the Orion XS 12/12-50A – and power your journey with precision, safety, and confidence.

SPECIFICATIONS

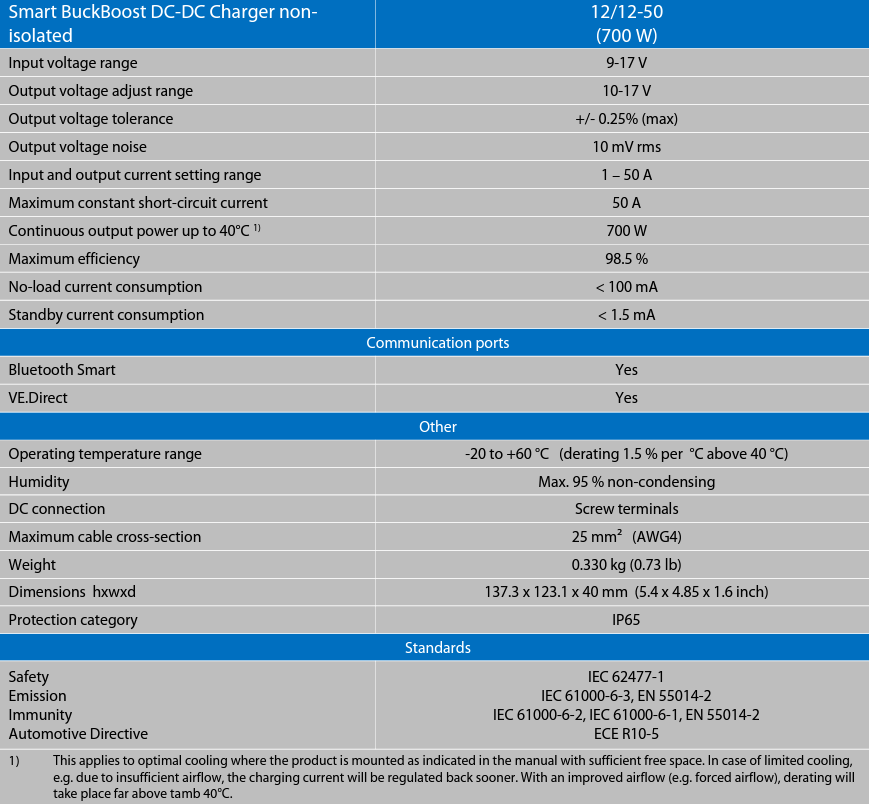

Specifications

Orion XS 12/12-50A DC-DC Battery Charger 12/12-50 (700 W)
Input voltage range 9-17 V
Output voltage adjust range 10-17 V
Output voltage tolerance +/- 0.25% (max)
Output voltage noise 10 mV rms
Input and output current setting range 1 – 50 A
Maximum constant short-circuit current 50 A
Continuous output power up to 40°C¹ 700 W
Maximum efficiency 98.5 %
No-load current consumption < 100 mA
Standby current consumption < 1.5 mA
Communication ports
Bluetooth Smart Yes
VE.Direct Yes
Other
Operating temperature range -20 to +60 °C (derating 1.5 % per °C above 40°C)
Humidity Max. 95 % non-condensing

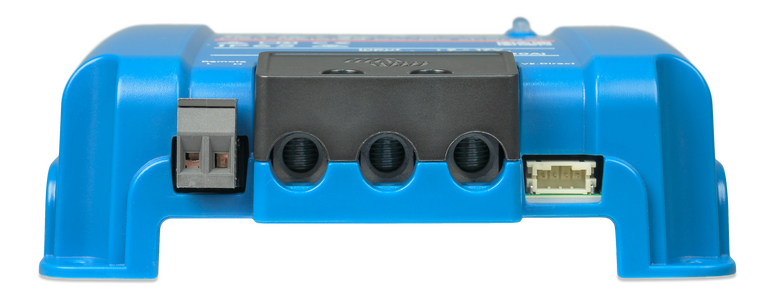

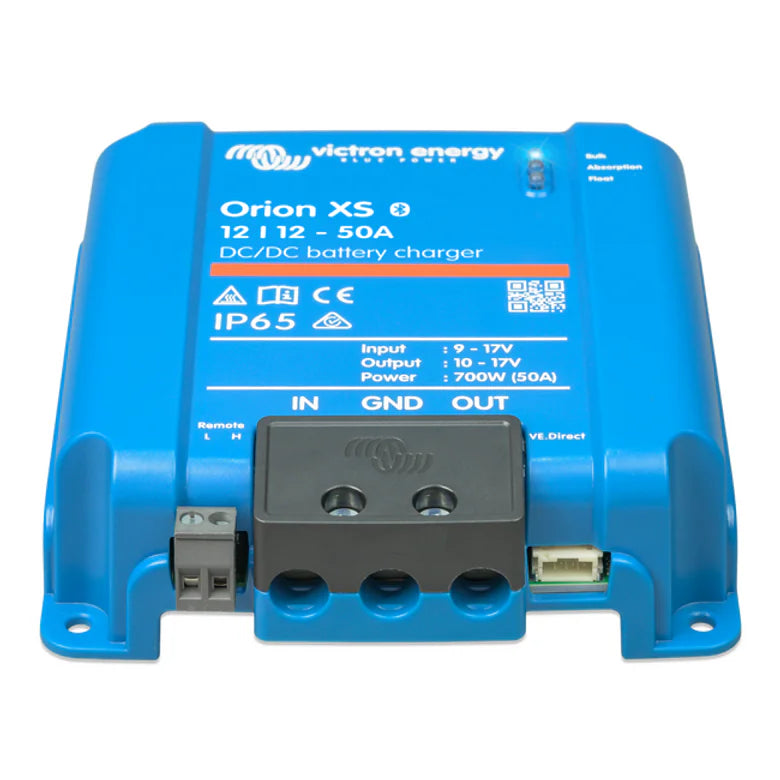

DC connection Screw terminals
Maximum cable cross-section 25 mm² (AWG4)
Weight 0.330 kg (0.73 lb)

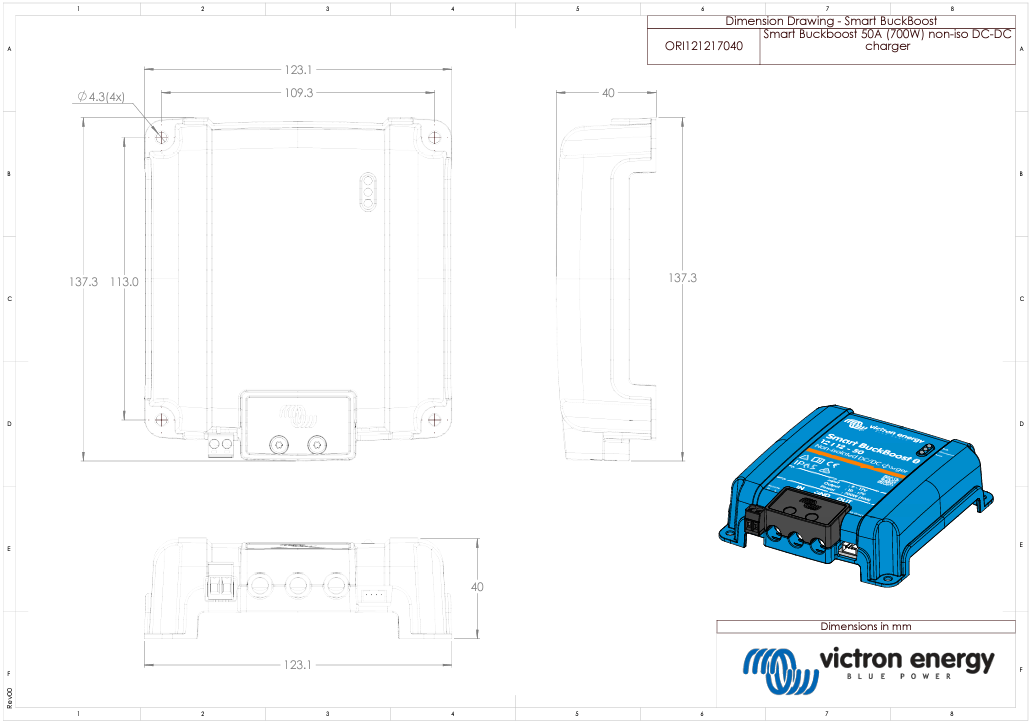

Dimensions hxwxd 137.3 x 123.1 x 40 mm (5.4 x 4.85 x 1.6 inch)
Protection category IP65
Standards
Safety IEC 62477-1
Emission IEC 61000-6-3, EN 55014-2
Immunity IEC 61000-6-2, IEC 61000-6-1, EN 55014-2
Automotive Directive ECE R10-5
¹ This applies to optimal cooling where the product is mounted as indicated in the manual with sufficient free space. In case of limited cooling, e.g. due to insufficient airflow, the charging current will be regulated back sooner. With an improved airflow (e.g. forced airflow), derating will take place far above tamb 40°C.

SKU: VIC-ORI121217050
Barcode: 8719076068501
Model #: ORI121217050
MPN: ORI121217050

WARRANTY

Victron Energy Limited Warranty Policy

Direct Customers

Victron Energy provides the following warranty to any direct customer (OEM, distributor or dealer) in relation to any products that Victron Energy has directly sold to the direct customer. This warranty is not an end-user warranty between Victron Energy and an end-user, and end-users shall not have any rights or remedies under this limited warranty towards Victron Energy directly. The direct customer shall, in turn, ensure that the end-user is provided with a warranty identical to this warranty, subject to applicable local mandatory law.

End-Users

Victron Energy may also provide a warranty directly to end-users, in which case the below warranty conditions equally apply to such warranty. In that case, end-users shall claim their warranty at their place of purchase or through the original direct customer of Victron, which can be found through the support section on Victron’s website https://www.victronenergy.com/support. Hence, the direct customer shall on behalf of Victron Energy deal with any warranty claims made under any warranty that Victron Energy may provide directly to end-users. This support section on Victron’s website https://www.victronenergy.com/support will provide further guidance on the procedure for end-users to make a claim under this limited warranty.

If the end-user is a consumer – a natural person who is acting for purposes which are outside that person's trade, business, craft or profession – the following applies. The rights and remedies granted to the consumer under this limited warranty are without prejudice to the consumer’s statutory rights. Furthermore, the consumer is entitled by law to remedies from the seller free of charge in the event of a lack of conformity of the goods (such as repair, replacement, price reduction or rescission), which remedies are not affected by this limited warranty.

Warranty

Victron Energy warrants its products to be free from defects in workmanship and materials for a period of 5 years from the date of purchase by the original end-user, with a maximum of 66 months from the Victron Energy invoice date. Exceptions on this are: lead-acid batteries: 2 years from date of purchase by the original end-user, with a maximum of 30 months from the Victron Energy invoice date, Lithium batteries: 3 years from date of purchase by the original end-user, with a maximum of 42 months from the Victron Energy invoice date. In addition to this, proof of correct battery usage is required when making a battery warranty claim.

For a 10% surcharge on the current net price for products that came with a 5-year warranty, an additional 5 years of warranty can be purchased by Victron’s direct customers, bringing the total warranty to 10 years. Warranty extensions need to be applied for ultimately one year before the expiration of the original term. Victron may ask proof that the product was still functional at the time of purchase of the extended warranty.

During the warranty period, Victron Energy will, at its discretion, repair, replace or (partly) credit the defective product free of charge. The warranty does not include performing or reimbursing de‐installation, transportation, and re‐installation.

This warranty will be considered void if the unit has suffered any physical damage or alteration, either internally or externally, and does not cover damages arising from improper use like:

  • Reversed battery polarity.
  • Inadequate connection.
  • Mechanical shock or deformation.
  • Contact with liquid or oxidation by condensation.
  • Use in an inappropriate environment (dust, corrosive vapour, humidity, high temperature, biological infestation, etc.).
  • Breakage or damage due to lightning.
  • Connection terminals and screws destroyed or other damages, like overheating, due to insufficient tightening.
  • For any electronic breakage except due to lightning (reverse polarity, over‐voltage due to external cause), the state of the internal control diode and/or the input/output X and Y capacitors determine the warranty.

This warranty will not apply where the product has been misused, neglected, improperly installed, or repaired by anyone other than Victron Energy or one of its authorized Repair Centres. In order to qualify for the warranty, the product must not be disassembled or modified.

This warranty and our warranty obligations thereunder (repair, replacement or credit) are the direct customer’s and, if applicable, the end-user’s sole rights and remedies and our sole obligations with respect to any defective and/or non-conforming product or breach of warranty and is subject to and without prejudice to the limitations of liability in this warranty.

Victron Energy shall not be liable for damages, whether direct, incidental, special, or consequential, even caused by negligence or fault.

As a product requires service, it must be brought back to the place of purchase. In case no contact can be made with the merchant, or if he is either unable or not allowed to provide service, direct contact should be made with Victron Energy through the support section on Victron’s website.

In case Victron Energy replaces a product, it will own the replaced product. Victron Energy owns all parts removed from repaired products. Victron Energy uses new or reconditioned parts made by various manufacturers when performing warranty repairs or building replacement products.

If Victron Energy repairs or replaces a part of a product, its warranty term is not extended: the warranty will apply for the remaining term of the original warranty term. For example, if Victron Energy replaces a product with a 5-year warranty after 3 years, the warranty of this product will apply for another 2 years, with a minimum of 6 months.

All remedies and the measure for damages are limited to the above. Victron Energy shall in no event be liable for consequential, incidental, contingent or special damages, even if having been advised of the probability of such damages.

The foregoing limited warranty provided by Victron Energy is in lieu of any other warranties, express or implied arising by law, course of dealing, course of performance, usage of trade or otherwise, of any kind whatsoever including, without limitation, warranties of merchantability or fitness for a particular purpose, with respect to any product. The above is without prejudice to the arrangement for consumers detailed above.

Life Support Policy

As a general policy, Victron Energy does not recommend the use of any of its products in life support applications where failure or malfunction of Victron Energy's product can be reasonably expected to cause the failure of the life support device or to significantly affect its safety or effectiveness. Victron Energy does not recommend the use of any of its products in direct patient care. Victron Energy will not knowingly sell its products for use in such applications unless it receives in writing assurances satisfactory to Victron Energy that the risks of injury or damage have been minimized, the customer assumes all such risks, and the liability of Victron Energy is adequately protected under the circumstances.

Warranty on repairs for products outside their warranty period

The warranty period on products that are outside their warranty period and have been repaired by Victron Energy or one of the Victron Energy Repair centres is six (6) months from delivery. The same applies to spare parts and circuit boards that have been supplied or repaired by Victron Energy.

Transport

It is the responsibility of the sender to sufficiently package these products. The transport must be organized in a way to avoid any damage, especially when a single unit or heavy unit is sent.

Severability

If a part of the terms and conditions of this warranty is held invalid, void or unenforceable due to any particular national or international legislation, it shall not affect other parts of the terms and conditions of this warranty.

Applicable law

This warranty is exclusively governed by the laws of the Netherlands, to the exclusion of the UN Convention on Contracts for the International Sale of Goods.

Contact details

Victron Energy B.V. | De Paal 35, 1351 JG Almere, The Netherlands | https://www.victronenergy.com/support
