A flexible RV solar kit with compatible mounting, cabling, protection and charging components selected for your installation.
Save 5% when buying as a bundle
Configure the Noosa 50 Plus board, then add a matched battery bank, starter-battery feed and inverter if required.

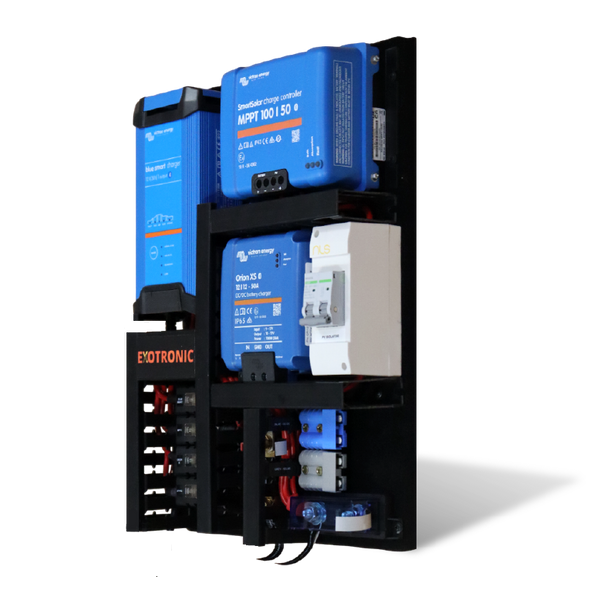

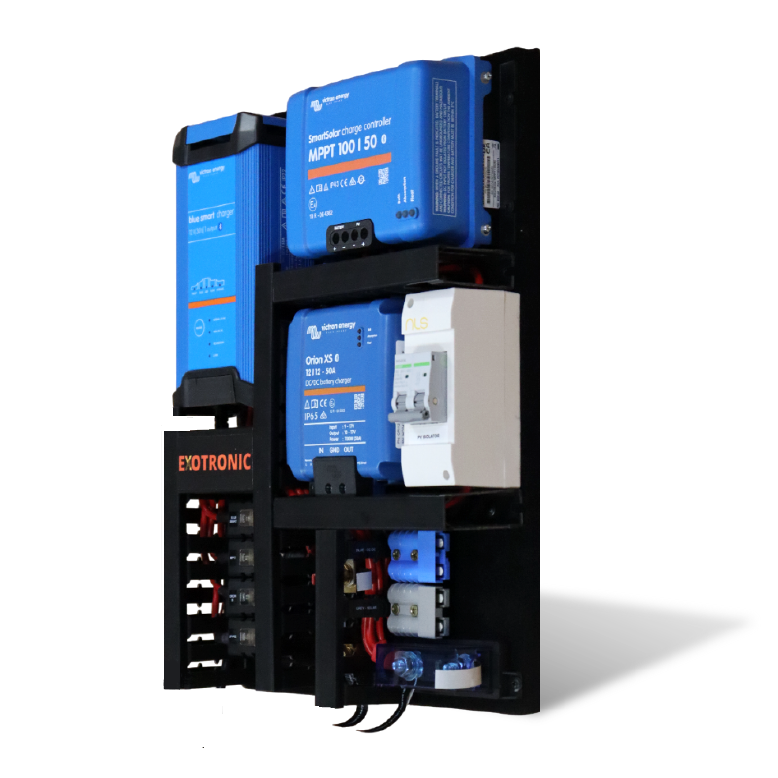

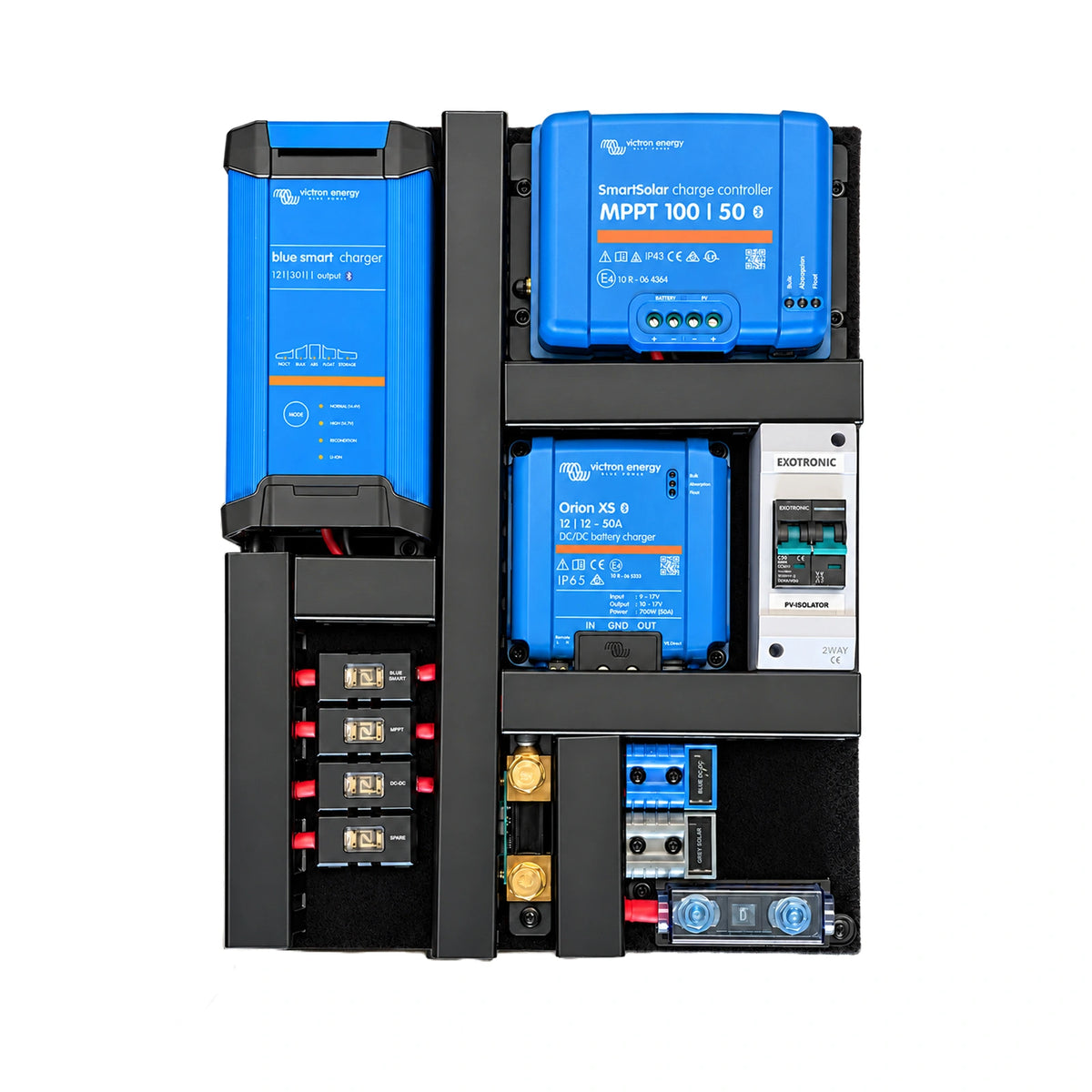

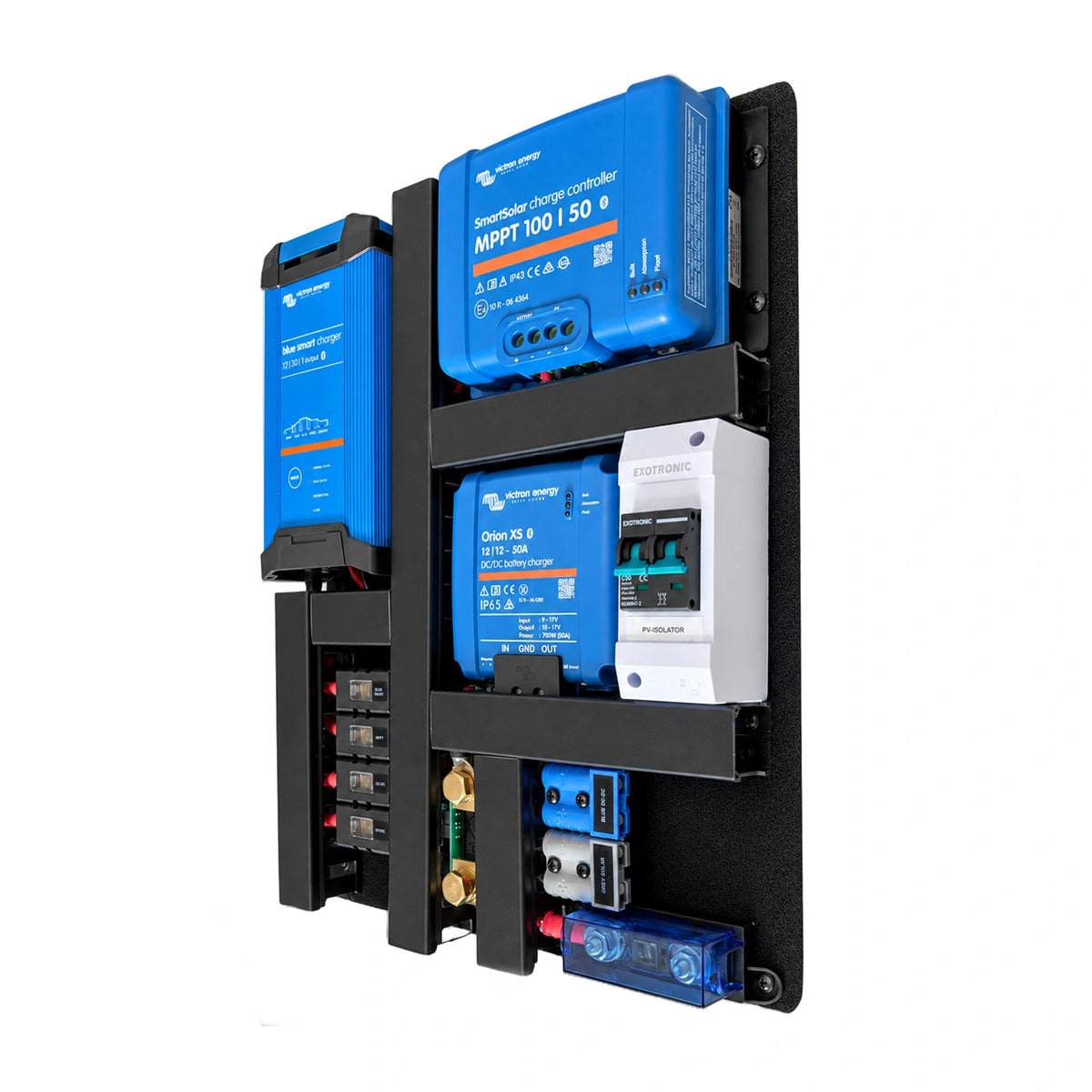

The Exotronic Noosa 50 Plus Series Pre-Wired Victron Board delivers a fully integrated, high-performance energy management solution engineered for modern lithium battery systems. By combining three independent charging sources—DC-DC, solar MPPT, and AC mains—into a single, compact assembly, this board eliminates the complexity and risk of DIY wiring while maximising charging efficiency and system reliability. Whether you are upgrading a caravan, building a van conversion, or outfitting a marine vessel, the Noosa 50 Plus provides a professional-grade power hub that reduces installation time and enhances long-term dependability.
Unlike generic power boards that require extensive custom wiring and often lack proper protection, this pre-wired solution arrives ready to install with genuine Victron components, integrated safety features, and a detailed wiring diagram. It addresses common pain points such as incorrect cable sizing, poor connections, and inadequate fusing—issues that can lead to voltage drop, overheating, or system failure. With the Noosa 50 Plus, you gain a streamlined, space-saving design that fits neatly under seats or beds, making it ideal for mobile and space-constrained applications.

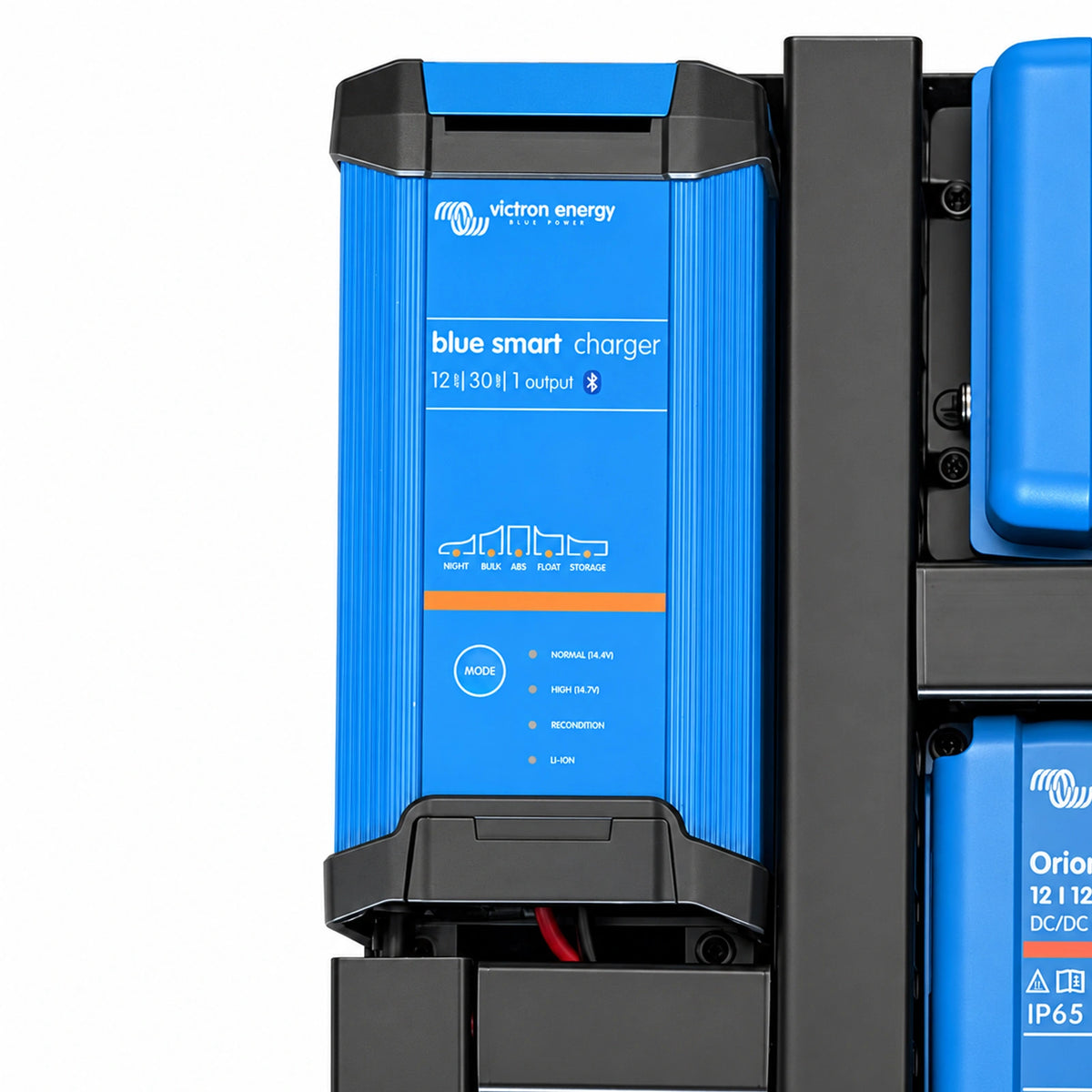

Lithium batteries demand precise charging profiles to achieve their full lifespan and performance. The Noosa 50 Plus Series is purpose-built for this task, with all three Victron chargers configured to deliver the correct absorption and float voltages for LiFePO4 and other lithium chemistries. The system’s 100A continuous current rating and support for simultaneous solar and DC-DC or solar and mains charging ensure your batteries recharge quickly, even under heavy loads. The SmartShunt monitor provides critical insights into consumption and remaining capacity, helping you avoid deep discharges that can damage batteries over time.
Safety is paramount in mobile and off-grid electrical systems. This board incorporates robust overcurrent protection through MIDI fuses, a dedicated PV isolator for solar input, and secure M8 bolt terminals for battery connections. The fully pre-wired layout minimises the risk of loose connections or short circuits, a common issue with field-wired alternatives. By using high-quality, tinned copper cabling and professional crimping, the board maintains low resistance and high durability in vibration-prone environments such as vehicles and boats.

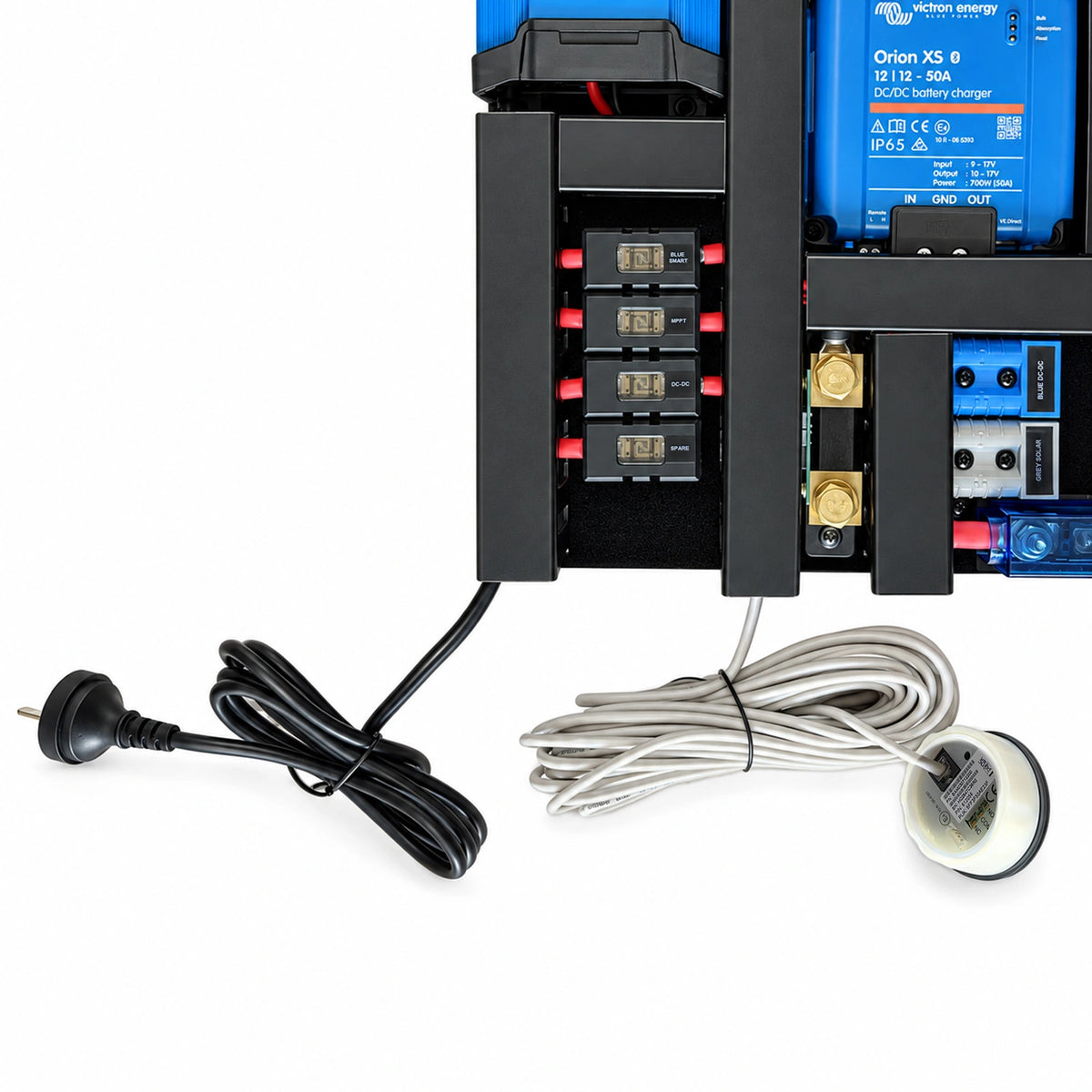

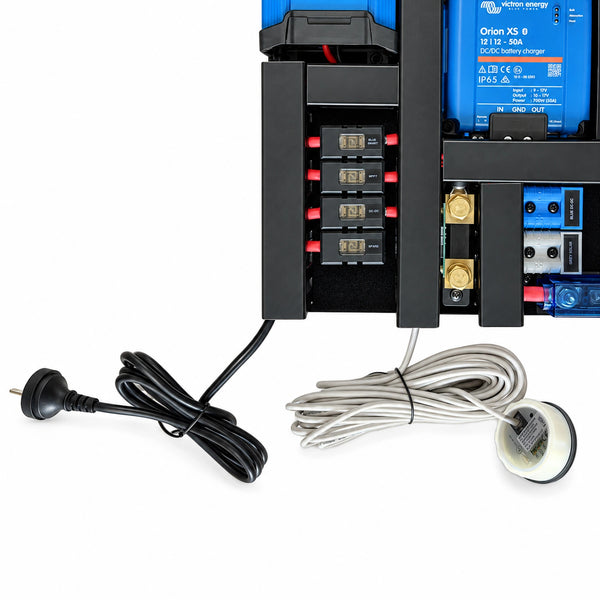

Installing a multi-source charging system can be daunting, but the Noosa 50 Plus removes the guesswork. The board arrives with all components mounted, wired, and clearly labelled. Connections are straightforward: the 50A Blue Anderson plug links to your starter battery, the 50A Grey Anderson accepts solar input, and the 230V AC plug connects to shore power. The included wiring diagram provides additional clarity, making the board accessible even for those with moderate DIY skills. This plug-and-play approach significantly reduces installation time compared to sourcing and wiring individual components.
This power board is ideally suited for a range of applications, including van conversions, RVs, caravans, and marine vessels. Its compact dimensions (440 x 315 x 95mm) and 6.6kg weight allow flexible mounting in tight spaces. For off-grid cabins or tiny homes, it serves as a reliable energy centre that can manage solar, generator, and grid inputs. The spare fuse holder and inverter-ready MEGA fuse position make future expansion simple, whether you add more circuits or integrate an inverter for 230V appliances.
Selecting a pre-wired board from Exotronic means investing in a system that has been designed and tested as a cohesive unit. Each component is matched for optimal performance, and the wiring is executed to professional standards. This reduces the risk of compatibility issues, electromagnetic interference, and inefficient charging that can occur with mixed-brand setups. Additionally, the use of genuine Victron components ensures access to firmware updates, warranty support, and a vast ecosystem of compatible accessories.
For those upgrading from lead-acid to lithium, this board provides a seamless transition. The chargers automatically detect and adapt to battery type, and the SmartShunt can be configured for various chemistries. The result is a future-proof power system that can evolve with your energy needs.
Equip your caravan, RV, or boat with the Exotronic Noosa 50 Plus Series Pre-Wired Victron Board and experience the confidence of a professionally engineered energy management solution. Order today to streamline your installation and enjoy reliable, efficient power wherever your journey leads.
| Board DC Input Voltage | 10 – 17V |
| Acceptable Battery Type | Lithium and Lead Acid Batteries |
| Minimum Battery Capacity and Current | 100Ah 100A Continuous Current |
| Permitted Simultaneous Power Sources | Solar + Mains OR Solar + DC-DC |
| System Zero Load Power | 3W |
| Mains Charger AC Input Voltage Range | 187 – 265VAC 45- 65Hz |
| Maximum Charge Current - Mains | 30A |
| Maximum Charge Current - Solar | 50A |
| Maximum Charge Current - DC-DC | 50A |
| Maximum Total Charge Current | 100A |
| Output Absorption Voltage | 14.2V - Adjustable |
| Output Float Voltage | 13.5V - Adjustable |
| Solar Maximum Voltage | 100V |
| Solar Array Size | 0 – 1200W (600-800W recommended) |
| Solar Maximum Short Circuit Current | 60A |
| Board Temperature Rating | 5C – 50C (0C – 65C storage) |
| Board Portrait Dimensions | 440 x 315 x 95mm |
| Board Weight | 6.6kg |
| SKU: | PWB-Vic-C50-Nsa-P-01 |
| Barcode: | 9361784000244 |
| Model #: | PWB-Vic-C50-Nsa-P-01 |
| MPN: | PWB-Vic-C50-Nsa-P-01 |
| HS code: | 853710 |
| Country of origin: | AU |
| Package weight: | 9.0 kg |
| Package length: | 0.4 m |
| Package width: | 0.2 m |
| Package height: | 0.6 m |
This warranty policy applies to Exotronic products sold in Australia through authorised dealers and resellers. It applies to the original end-user purchaser of the product, as evidenced by the authorised dealer’s invoice, and is not transferable without Exotronic’s consent. Exotronic warrants that its products are free from defects in materials and workmanship under normal use and service, subject to the terms and conditions below. The benefits given by this warranty are in addition to other rights and remedies under law. Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.
Covered Products: This warranty covers Exotronic glass solar panels, lithium iron phosphate (LiFePO4) batteries, pre-wired boards that may include several components such as inverters and chargers, and related accessories (such as electronics, cables, fuses, mounting hardware, and other ancillary items). The warranty periods for these products are as follows:
Commencement of Warranty: The warranty periods above begin on the date of purchase by the original end-user as shown on the authorised dealer’s invoice. In all cases, a valid proof of purchase from an authorised Exotronic dealer is required to claim warranty service.
Exotronic does not provide installation services and does not supervise or control installation practices. The purchaser and installer are solely responsible for installation design, location, and access provisions.
Exotronic products must be installed, integrated, and operated correctly to perform as intended. When installed into a broader electrical system, vehicle, vessel, or building, the product forms a component of that overall system. The installer, which may be the authorised dealer or a third-party professional, is solely responsible for ensuring proper installation and overall system design. Any issues or damage arising from incorrect installation, integration, or system design are not product defects and are not covered by this warranty. Exotronic will not be liable for inadequate performance or failures that result from the installer’s or designer’s actions or omissions. Key responsibilities of the installer/integrator include, but are not limited to:
Service Accessibility Requirement: Products must be installed in a manner that allows reasonable access for inspection, testing, servicing, and replacement. Exotronic is not responsible for additional labour, structural modification, access equipment, or other costs arising from installation methods that restrict reasonable service access to the product.
By installing the product, the installer acknowledges these responsibilities. Exotronic may require documentation of the installation such as wiring diagrams, photos, and details of connected equipment when assessing warranty claims to verify that the product was integrated properly. Installations not carried out by competent persons or not in accordance with Exotronic guidelines may void or limit the warranty coverage. Any advice provided by Exotronic in relation to system design is general in nature; ultimate responsibility for design and installation rests with the installer/integrator.
Independence of Dealers and Installers: Authorised dealers, resellers, and installers act independently and are not agents, employees, or representatives of Exotronic unless expressly agreed in writing. Exotronic is not responsible for the acts, omissions, or workmanship of independent dealers or installers.
This warranty covers manufacturing defects or failures of the product arising from normal use in compliance with Exotronic’s instructions. It does not cover any failure, damage, or performance issue caused wholly or partly by any external factors or by misuse of the product.
Warranty Exclusions Include:
Important: If you suspect a fault with an Exotronic product, do not immediately remove or uninstall the product until authorisation is given by Exotronic or an authorised dealer unless unsafe to leave it in place. First, follow the steps below. Premature removal can risk further damage and make it impossible to determine the original problem, and may result in denial of the claim.
Throughout the claim process, Exotronic and its dealers strive to keep you informed and work towards a fair resolution. We understand that downtime can be inconvenient, and we will make efforts to expedite warranty claims.
If a defect covered by this warranty is confirmed following assessment in accordance with the warranty claim process, Exotronic will, at its discretion, repair or replace the affected Exotronic product, or provide an appropriate remedy such as a refund or credit of the purchase price of that product. Exotronic reserves the right to determine the appropriate method of repair or replacement and to require return of the product for inspection prior to final determination of the claim. Where replacement is provided, Exotronic may supply a replacement unit prior to return of the original product, subject to confirmation of the defect and compliance with the warranty process. Our goal is to restore the functionality of your product in a timely manner with minimal inconvenience.
Repair: If the defect can be resolved by repair, Exotronic may repair the product or relevant components to a fully functional condition. Repairs will be performed by Exotronic or an authorised service provider at no cost to the customer for parts or labour. Any replaced components will become the property of Exotronic. The repair will aim to restore the product's specifications and reliability.
Replacement: If the product or a major component is not repairable, Exotronic may choose to provide a replacement product. The replacement will be either the same model or, if that model is no longer available, a model with similar specifications. Replacement units may be new or factory-reconditioned units that are functionally equivalent to new. The product may have minor cosmetic differences. When a replacement is provided, the faulty product becomes the property of Exotronic.
Refund/Credit: In certain cases, Exotronic may offer a refund of the purchase price or a credit note. Refunds will typically be handled by the original place of purchase – for instance, the authorised dealer may refund you and then coordinate with Exotronic. The refund amount will not exceed the original purchase price paid.
No Charge for Approved Claims: For valid warranty claims, the repair, replacement, or refund is provided at no cost to the customer. There is no service fee for repairs covered under warranty. Furthermore, if Exotronic specifically requests that an item be returned for assessment, and the item is subsequently found to be not faulty, Exotronic will not charge the customer an assessment fee.
No Extension of Original Warranty: When a product is repaired or replaced under this warranty, the original warranty period is not extended or restarted. The warranty term continues from the original date of purchase. For example, if a battery with a 5-year warranty is replaced in its third year, the replacement is warrantied only for the remaining balance of the original 5-year period.
Ancillary Parts for Approved Warranty Repairs: If a warranty claim is approved and Exotronic determines that new mounting brackets, adhesives, connectors, or similar ancillary items are reasonably required to restore the product to normal operation following repair or replacement, Exotronic will supply those items at no cost. This does not include labour for installation, removal or reinstallation, or any costs associated with access equipment or structural modification.
Limit of Liability of this Warranty: Exotronic’s liability under this warranty is limited to the repair, replacement, or refund of the defective Exotronic product supplied, and Exotronic will not be responsible for any special, indirect, incidental, or consequential damages resulting from any breach of warranty or condition, nor is Exotronic liable to pay for third-party installation charges, travel costs, lost solar generation, or other economic losses that might result from a product fault to the extent permitted by law.
For any further information or clarification about this warranty, please contact Exotronic or your authorised Exotronic dealer. We value your business and are here to support you in getting the most from your solar investment. Thank you for choosing Exotronic’s products. Enjoy reliable, high-quality solar power backed by a warranty you can trust.
