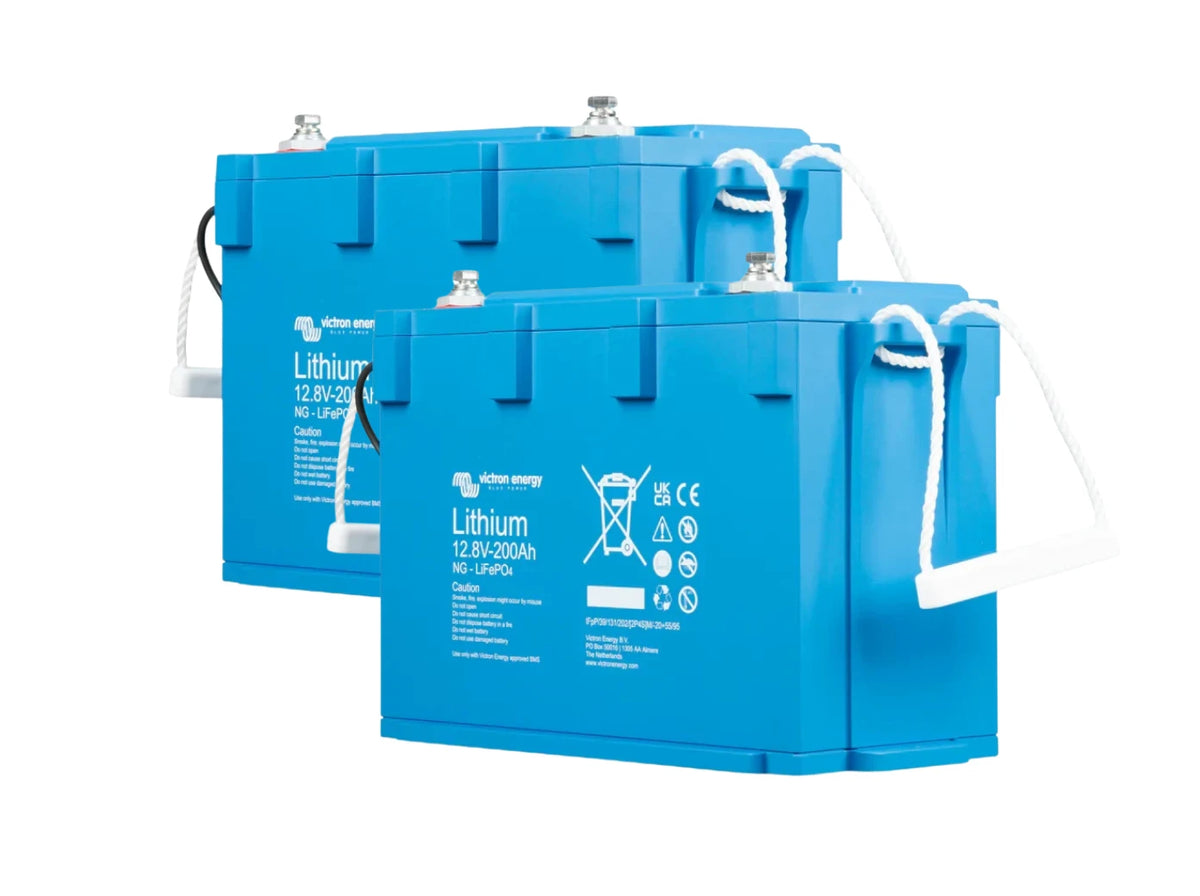

Customisable Victron 12V 200Ah Lithium NG Battery Bundle

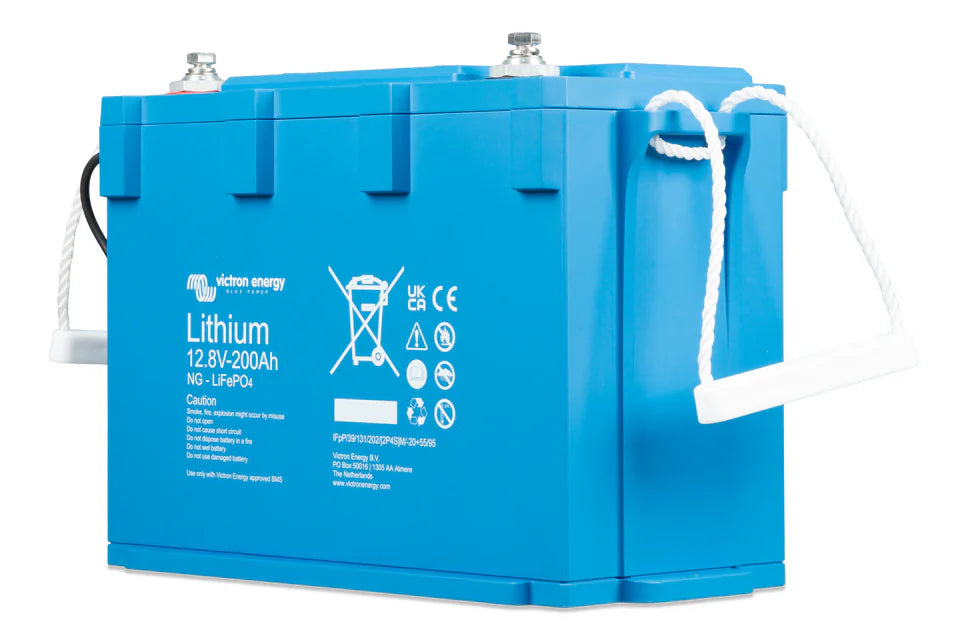

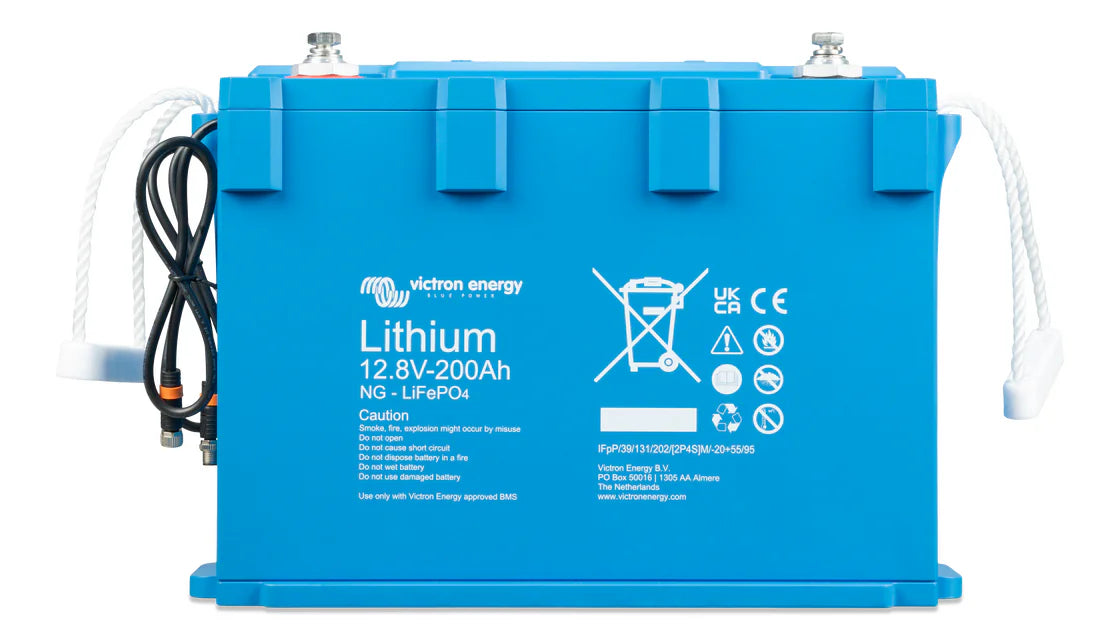

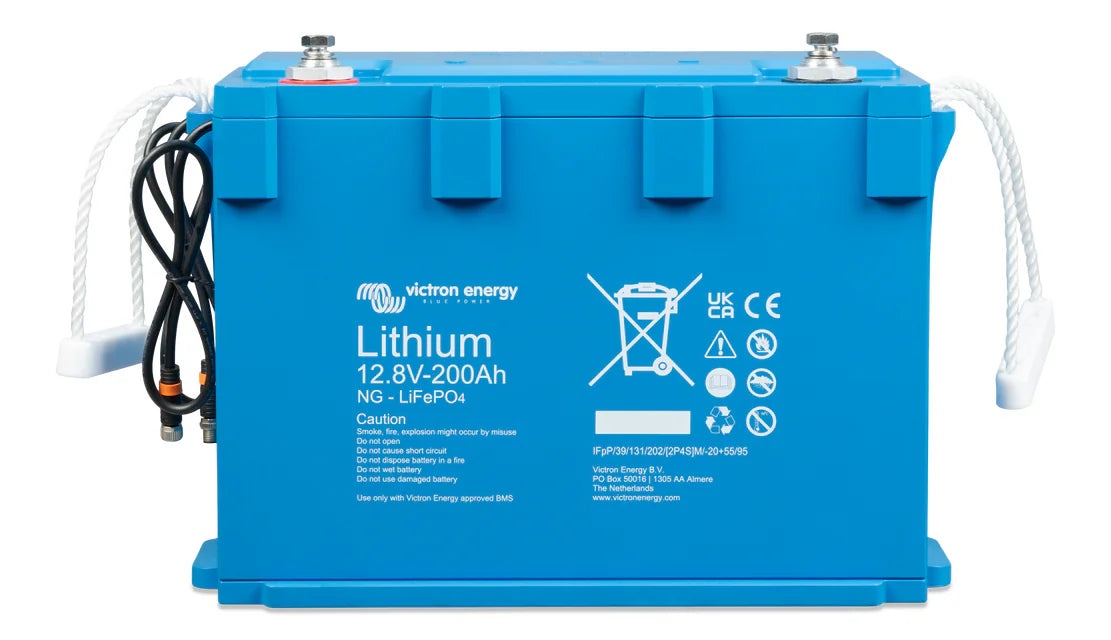

Victron 12V (12.8V) 200Ah Smart NG (NextGen) LiFePO4 Lithium Battery

Important Note - Requires one of these BMS':

• smallBMS NG – recommended for use in small systems without intending on using a Victron Inverter/charger.
• Lynx Smart BMS 500A NG M10 or Lynx Smart BMS 1000A NG M10 – recommended for all other systems.

The Victron 12V (12.8V) 200Ah Smart NG LiFePO4 Lithium Battery is the latest innovation in energy storage technology, designed to meet the demands of high-performance energy systems. Featuring advanced Lithium Iron Phosphate (LiFePO4 or LFP) chemistry, this battery delivers exceptional efficiency, reliability, and durability. Perfect for solar setups, off-grid living, RVs, caravans, marine use, and industrial applications, it’s a versatile choice for those seeking powerful, long-lasting energy solutions.

Key Features:

1. Integrated Shunt for Smart Monitoring

Equipped with an integrated shunt, this battery transmits critical data, such as voltage, current, and temperature, directly to the Lynx Smart BMS. These metrics are used to calculate the state of charge, providing real-time insights via the VictronConnect app or a GX communication center.

2. Advanced Connectivity and Control

• Bluetooth & VictronConnect App: Monitor and control all battery parameters via the VictronConnect app or the VRM Portal.

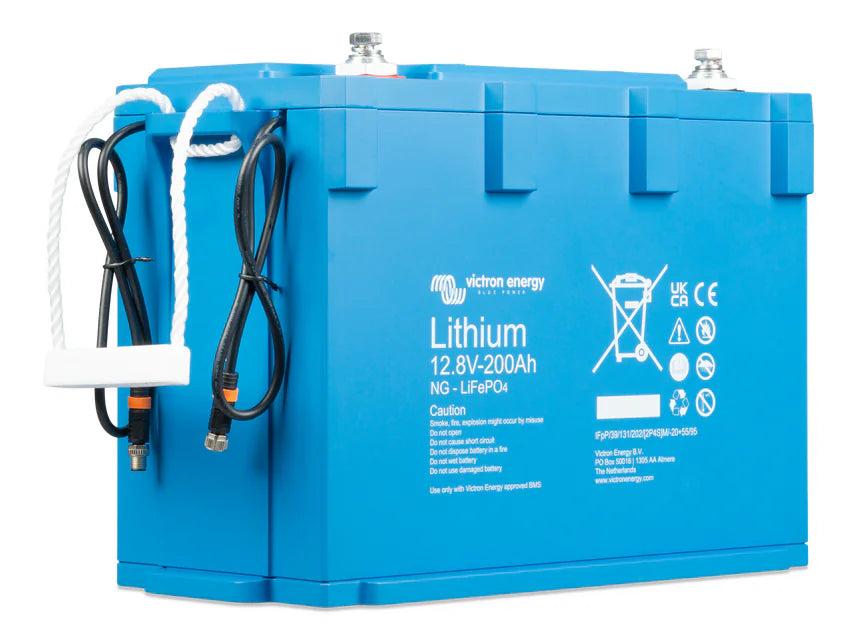

• GX Communication Center: For enhanced system monitoring, link the battery to a GX device such as a Cerbo GX or Ekrano GX to access parameters such as cell voltage, battery current, and temperature in real-time.
• Automatic Firmware Updates: Firmware is automatically updated via the BMS, ensuring your battery operates with the latest advancements in technology.

3. Flexible System Configurations

This battery supports series, parallel, and series/parallel connections, allowing you to scale your system voltage up to 48V. The maximum number of batteries in one system is 50.

4. Built for Durability and Harsh Conditions

• IP-Rated for Dust and Water Resistance: Designed to withstand harsh environments, the battery’s increased ingress protection ensures durability against dust and low-pressure water jets.
• Low Self-Discharge Rate: The battery boasts an incredibly low self-discharge rate of just 2% per month, contributing to its longevity and reliability.

5. Optional Redundancy with Parallel Lynx Smart BMS

Maximize safety and efficiency with the optional parallel redundancy feature. Multiple Lynx Smart BMS units can be connected in a single installation, offering increased capacity, higher discharge currents, and additional system redundancy.

Applications:

• Off-grid solar energy systems
• RV, caravan, and tiny home setups
• Marine and industrial power systems
• Backup energy solutions for residential or commercial buildings

Easy Installation and Maintenance

The Victron Lithium NG battery features mounting brackets for secure and easy installation, ensuring stability even in mobile or challenging environments.

Upgrade to Unmatched Energy Efficiency

Don’t compromise on power or reliability. Upgrade to the Victron 12V (12.8V) 200Ah Smart NG LiFePO4 Lithium Battery today and experience cutting-edge energy storage for your RV, marine, off-grid, or industrial system.

Victron smallBMS NG: Advanced Battery Management for Victron Smart LiFePO₄ Systems

Compact, Reliable Protection for 12V, 24V, and 48V Lithium Setups

The Victron smallBMS NG is a next-generation battery management system engineered to safeguard Victron Smart LiFePO₄ batteries with M8 circular connectors. This compact unit delivers essential cell-level monitoring and control, preventing damage from over-voltage, under-voltage, and temperature extremes. Unlike generic BMS solutions, the smallBMS NG integrates directly with Victron’s ecosystem, ensuring precise communication and reliable operation in mobile, marine, and off-grid applications.

Designed for 12V, 24V, and 48V systems, it operates across a wide 8–70V DC range, making it suitable for diverse installations. The unit draws minimal current—as low as 1.2 mA in remote-off or low-cell-voltage states—reducing parasitic drain on your battery bank.

Key Features

• Load Disconnect Output: Normally high (Vbat – 0.1V), sources up to 1A to drive external relays or contactors, protecting against deep discharge.
• Pre-Alarm Warning: Provides a 30-second early alert before load disconnect, allowing time for graceful system shutdown or generator start.
• Charge Disconnect Output: Normally high, sources up to 500mA to control compatible chargers or Cyrix-Li relays, preventing over-charge and over-temperature conditions.
• Remote On/Off Control: Flexible input via Remote L/H terminals for external switching, enabling integration with system-level controls.
• LED Status Indicators: Blue 'Load ON' and red 'Temp or OVP' LEDs provide at-a-glance system status without additional monitoring tools.
• Compact, Durable Enclosure: ABS matt black housing (106 x 42 x 23 mm, 0.1 kg) with IP20 rating, suitable for protected indoor installations.

Why Choose the smallBMS NG?

This BMS is purpose-built for Victron Smart LiFePO₄ batteries, eliminating compatibility risks associated with generic battery management systems. It ensures your lithium investment is protected by precise, factory-matched thresholds. The pre-alarm feature reduces the risk of unexpected system shutdowns, while the charge disconnect output prevents charger-induced damage. With its low power consumption and robust signal outputs, the smallBMS NG is ideal for caravans, marine vessels, and remote off-grid systems where reliability is critical.

Note: This unit does not include a VE.Bus interface and is not intended for direct control of VE.Bus inverter/chargers such as MultiPlus or Quattro. For those applications, consider the Victron VE.Bus BMS.

Ready to Protect Your Lithium Battery Bank?

Integrate the Victron smallBMS NG into your energy system today for dependable, automated battery protection. Whether you're upgrading an existing setup or building a new off-grid solution, this BMS provides the essential safeguards to maximise battery lifespan and performance.

Victron VE.Bus BMS NG: Precision Battery Management for Lithium NG Systems

Engineered for Victron Lithium NG Batteries

The Victron VE.Bus BMS NG is a dedicated Battery Management System designed exclusively for Victron Lithium NG batteries. It communicates directly with Victron inverters and inverter/chargers via the VE.Bus protocol, ensuring coordinated protection and optimal performance. This unit is not compatible with Victron Lithium Battery Smart batteries.

Intelligent Monitoring and Control

This advanced BMS continuously monitors individual cell voltages and temperatures, safeguarding against over-voltage, under-voltage, and thermal extremes. Integrated Bluetooth Smart connectivity provides direct access to all Lithium NG batteries, enabling real-time monitoring of State of Charge (SoC) and current via the VictronConnect app. This eliminates the need for additional components like a SmartShunt, simplifying installation and reducing system complexity.

Scalable Architecture for Demanding Applications

The VE.Bus BMS NG supports large-scale energy storage configurations, making it suitable for a wide range of installations:

• Up to 50 batteries in 12V or 24V banks (maximum 192 kWh and 384 kWh respectively)
• Up to 25 batteries in 48V banks (maximum 128 kWh)

This scalability is ideal for caravan, RV, marine, off-grid, industrial, and tiny home energy systems. For even larger setups, multiple Lynx Smart BMS units can be paralleled for increased capacity and redundancy.

Comprehensive Protection Outputs

The BMS features multiple control outputs to manage system safety:

• Load Disconnect Output: Prevents deep discharge by controlling inverters, BatteryProtect units, and other loads.
• Charge Disconnect Output: Stops charging equipment to avoid over-voltage conditions.
• Pre-Alarm Output: Provides early warning of low voltage before load disconnection occurs.
• Remote On/Off: Allows external switching of both load and charge disconnects for flexible system control.
• LED Indicators: Display Bluetooth status and system warnings at a glance.

Built for Reliability in Harsh Environments

Housed in a compact, matte black ABS enclosure (23.2 mm x 95.0 mm x 105.8 mm), the VE.Bus BMS NG is rated IP20 and operates reliably in temperatures from -20°C to +50°C. Its low power consumption—just 10 mA during regular operation—minimises energy drain on the battery bank. The dual RJ45 VE.Bus ports enable seamless integration with Victron MultiPlus and Quattro inverter/chargers, while the 6-way terminal block simplifies wiring for battery, GX-power, and alarm outputs.

Streamlined Installation and Firmware Updates

With plug-and-play configuration and firmware update capability via the VictronConnect app, the VE.Bus BMS NG reduces setup time and ensures your system stays current with the latest features. Its direct battery communication eliminates the need for additional shunts or sensors, lowering overall system cost and complexity.

Take Control of Your Lithium NG Battery Bank

Equip your Victron Lithium NG system with the VE.Bus BMS NG for precise, reliable battery management. Whether you're powering a remote off-grid cabin, a marine vessel, or a mobile workshop, this BMS delivers the protection and intelligence needed to maximise battery life and performance. Order today and experience seamless integration with your Victron energy system.

Optimize Your Energy Storage with Victron Lynx Smart BMS 500 NG (NextGen) M10 for Victron Lithium Batteries

Take control of your energy storage with the Victron Lynx Smart BMS 500 NG (NextGen), designed to work seamlessly with Victron Lithium Battery Smart series. This advanced Battery Management System (BMS) offers a reliable and feature-rich solution for maximizing the performance, safety, and longevity of your Lithium Iron Phosphate (LiFePO4) battery systems in a wide range of applications.

High-Capacity Battery Management for Versatile Energy Systems

The Victron Lynx Smart BMS 500 NG allows you to configure your lithium batteries in series, parallel, or series/parallel combinations, perfect for building robust 12V, 24V, or 48V battery banks. Whether you’re looking to power a caravan, RV, marine vessel, off-grid home, or industrial system, the Lynx Smart BMS provides the flexibility to meet any energy need.

• Scalable Energy Storage: Build a battery bank with up to 20 batteries, reaching energy capacities of up to 192 kWh for 12V systems and 384 kWh for 24V and 48V systems.
• Series and Parallel Configuration: Create versatile systems designed for long-lasting energy supply and minimal balancing time for optimal performance.

Industry-Leading Features and Safety

The Victron Lynx Smart BMS 500 NG integrates advanced safety measures, ensuring your energy system remains protected in any scenario. With built-in monitoring and intelligent controls, this BMS offers a full range of essential features:

• Built-in Contactor: Acts as a secondary safety mechanism while providing remote-control capabilities for switching your system on and off.
• Pre-Charge Circuit: Prevents harmful inrush currents, eliminating the need for external pre-charging components.
• Bluetooth Monitoring: Real-time data on battery voltage, charge state, and system health via the VictronConnect App or GX devices like the Cerbo GX.

Intelligent System Integration and Control

The Lynx Smart BMS 500 NG effortlessly integrates into your larger energy system. By connecting with Victron inverters, solar chargers, and other components, the BMS provides streamlined control and efficient energy management:

• Compatible with Victron inverter/chargers: Automatically controls power systems via connected GX devices, ensuring maximum system performance.
• VE.Can and NMEA 2000 Communication: Seamlessly integrates into marine networks for comprehensive data monitoring.

Enhanced Performance with Parallel Redundancy

The Lynx Smart BMS NG series introduces parallel redundancy, allowing for the installation of multiple BMS units to create a more robust and scalable battery system:

• Redundancy for Increased Capacity: Multiple Lynx BMS units can be installed, adding redundancy and boosting total system capacity.
• Continuous Operation: Even in the event of a network issue, your system will continue to function safely until reconnection is possible.

Ideal for a Range of Applications

Whether you are powering a fully-electric yacht, hybrid generator, or off-grid energy system, the Victron Lynx Smart BMS 500 NG is designed to deliver robust performance in demanding environments. With firmware upgrades and ongoing support, this BMS represents the cutting-edge in energy storage management.

Key Features:

• Scalable battery bank configurations for 12V, 24V, and 48V systems.
• Bluetooth-enabled monitoring via VictronConnect App or GX devices.
• Built-in safety mechanisms like the contactor and pre-charge circuit.
• VE.Can and NMEA 2000 compatibility for seamless data communication.
• Parallel redundancy to increase system capacity and reliability.

Don’t miss the chance to optimize your energy storage. Upgrade your system today with the Victron Lynx Smart BMS 500 NG for superior performance in marine, off-grid, or industrial environments!

Next-Generation Battery Management for High-Capacity Lithium Systems

The Victron Lynx Smart BMS 1000 NG (NextGen) stands as the ultimate command centre for your energy storage, specifically engineered to integrate seamlessly with Victron Lithium Battery Smart models. Designed for complex power setups in marine vessels, off-grid properties, and high-demand industrial applications, this advanced Battery Management System ensures your 12V, 24V, or 48V lithium iron phosphate (LiFePO4) battery banks operate safely and efficiently.

Unlike standard controllers, the Lynx Smart BMS goes beyond simple cell balancing. It actively protects your power system from deep discharges, overcharging, and extreme temperatures, prolonging the lifespan of your heavy-duty battery arrays. With a robust 1000A continuous current rating and surge capabilities up to 1200A for five minutes, it easily handles the high loads of demanding inverter networks and parallel configurations.

Integrated Pre-Charge Circuit and Primary Safety Contactor

One of the most critical challenges when powering up high-capacity inverter systems is managing the initial rush of electrical current. The integrated pre-charge circuit resolves this completely. By safely charging the internal capacitors of connected inverters before the main contactor engages, it prevents damaging inrush currents that can degrade components over time. This eliminates the need for manual pre-charging steps or external resistors, reducing installation complexity and lowering the risk of hardware faults.

Additionally, the built-in safety contactor acts as a dependable secondary safety mechanism. It provides an immediate physical disconnect in the event of a critical system fault, isolating your batteries to prevent severe damage. This contactor can also be controlled remotely, giving users the ability to manually shut down the system during maintenance or long-term storage.

Parallel Redundancy for Mission-Critical Power

The "NG" NextGen series introduces a highly requested feature for complex electrical architectures: parallel redundancy. By installing multiple Lynx Smart BMS units in parallel, system builders can drastically increase overall storage capacity while establishing a failsafe network. In the event of an isolated communication or hardware issue, the redundant architecture allows your system to maintain safe, continuous operation. This ensures your off-grid home or commercial marine vessel never experiences an unexpected total power loss.

Comprehensive Monitoring and System Integration

Full visibility into your power usage is crucial for long-term reliability. Equipped with built-in Bluetooth, this Victron BMS allows installers and end-users to monitor real-time battery voltage, temperature data, and system health directly from a smartphone or tablet using the VictronConnect app.

For more advanced setups, the included VE.Can port allows direct communication with Victron GX devices, such as the Cerbo GX. This enables global remote monitoring via the VRM portal. Furthermore, native NMEA 2000 compatibility ensures the system integrates flawlessly into modern marine networks, displaying crucial energy metrics right on your glass bridge or multi-function display.

Key Features

• High Current Capacity: 1000A continuous current rating via heavy-duty M10 tinned copper busbars.
• Built-in Pre-Charge: Protects inverter capacitors by safely managing inrush currents during startup.
• Integrated Safety Contactor: Reliable hardware disconnect for critical faults and remote system isolation.
• Parallel Redundancy: Connect multiple NextGen BMS units for scalable capacity and fault-tolerant continuous operation.
• Advanced Diagnostics: Built-in Bluetooth and VE.Can connectivity for local and remote VictronConnect monitoring.
• Multi-Voltage Support: Fully compatible with 12V, 24V, and 48V Victron Lithium Smart battery configurations.

Secure the core of your energy infrastructure with robust protection and intelligent control. Upgrade your off-grid or marine electrical architecture with the Victron Lynx Smart BMS 1000 NG and maintain complete visibility over your power reserves today.
