24V to 12V DC-DC Converters

Premium 24V to 12V Step Down Converters for Off-Grid Power

Running a standard 12-volt fridge, radio, or lighting system from a 24-volt battery bank requires a reliable 24V to 12V DC-DC converter. Commonly used in trucks, buses, large marine vessels, and heavy-duty 4WDs, a 24V to 12V step down converter ensures your sensitive 12V appliances receive a stable, safe voltage without draining only half of your 24V battery bank. We stock a comprehensive range of high-efficiency Victron Orion step-down converters designed for harsh Australian conditions.

Isolated vs. Non-Isolated 24V to 12V Converters

When selecting a 24 to 12 volt converter, one of the first decisions is choosing between isolated and non-isolated models.

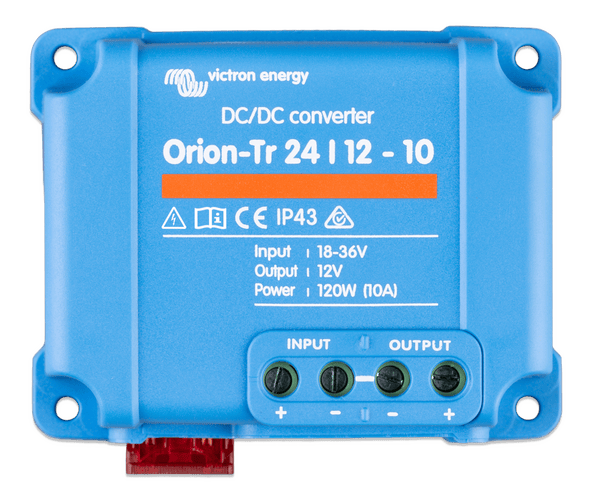

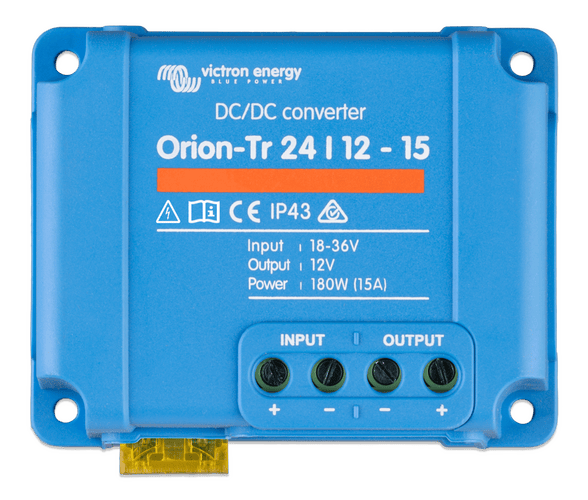

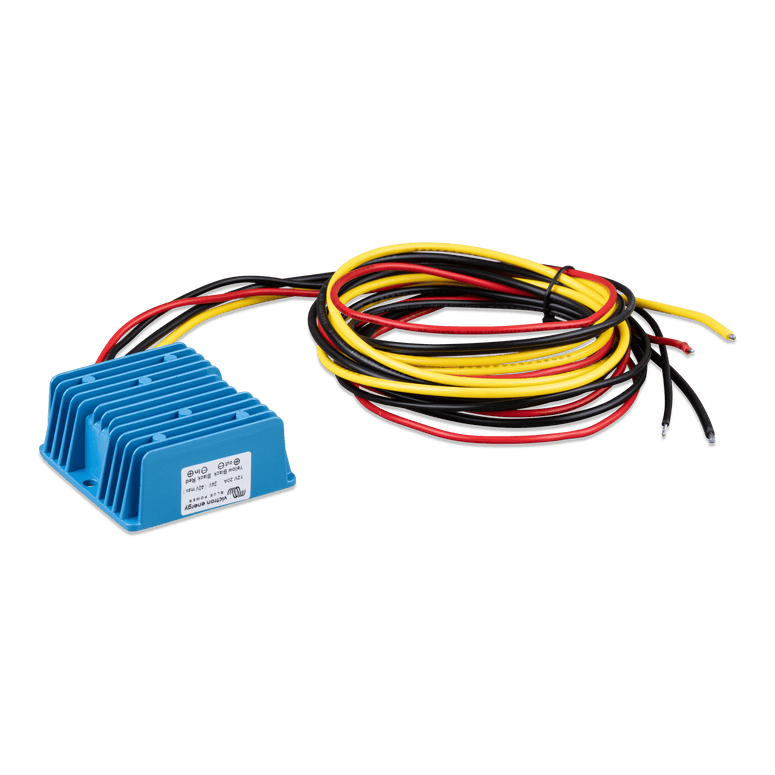

• Non-Isolated DC-DC Converters: These units share a common negative connection between the input and output. They are highly efficient, compact, and ideal for standard setups in trucks, RVs, and off-grid cabins where ground loops are not a concern.

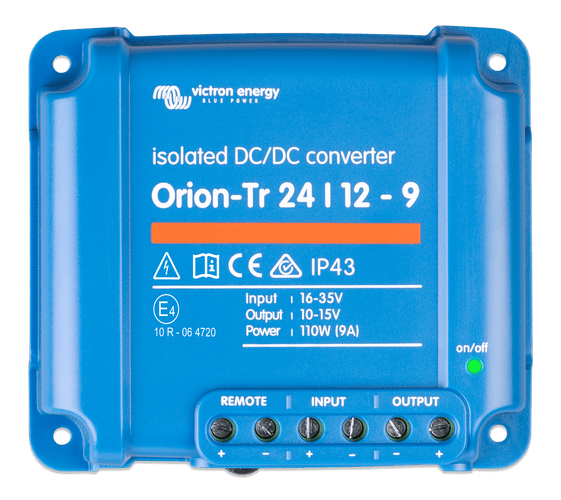

• Isolated DC-DC Converters: Featuring complete electrical separation between the input and output circuits, these converters are crucial for marine applications or when powering sensitive communication equipment. They prevent galvanic corrosion and eliminate ground loop interference.

Environmental Protection for Every Application

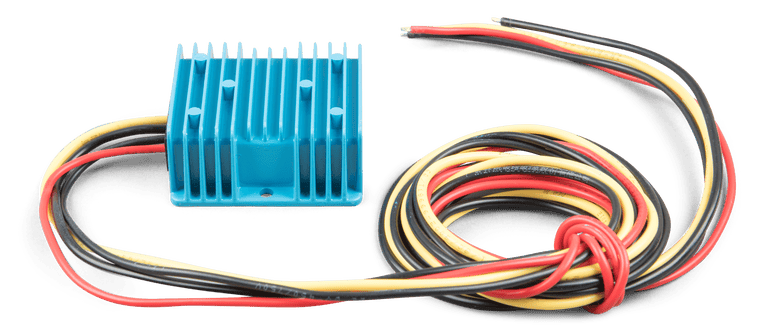

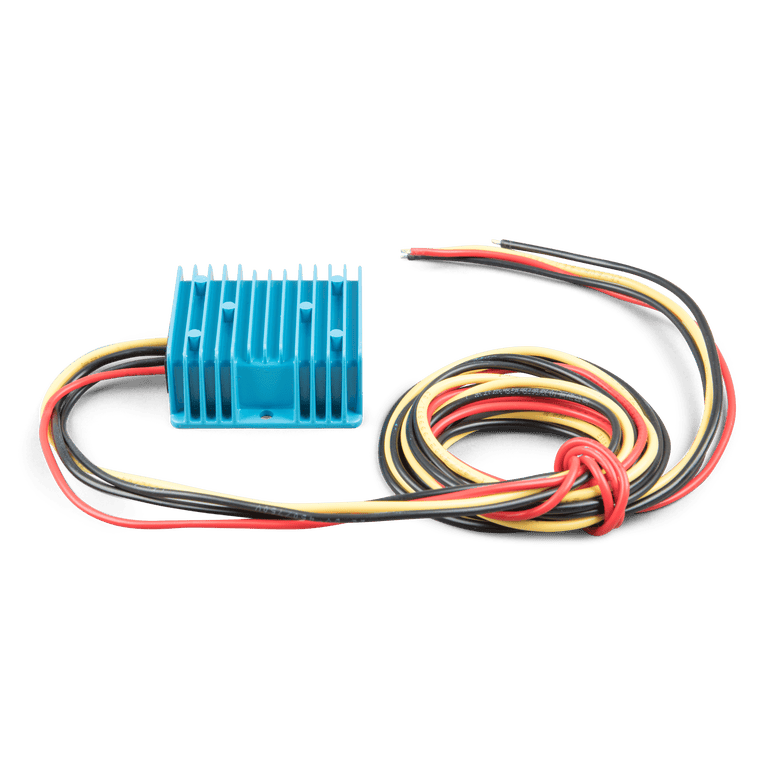

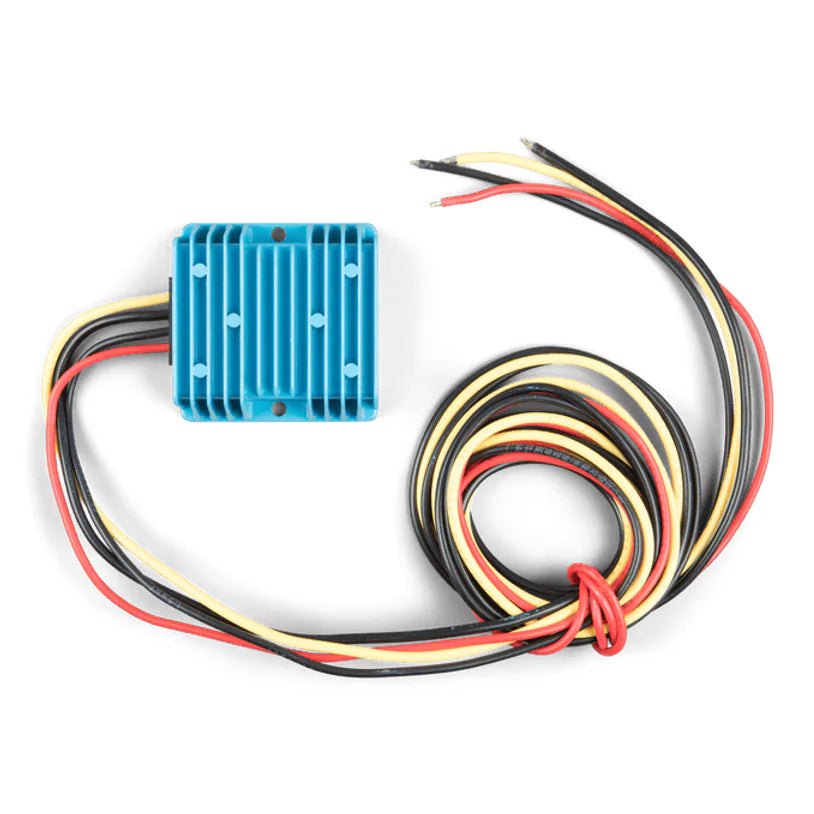

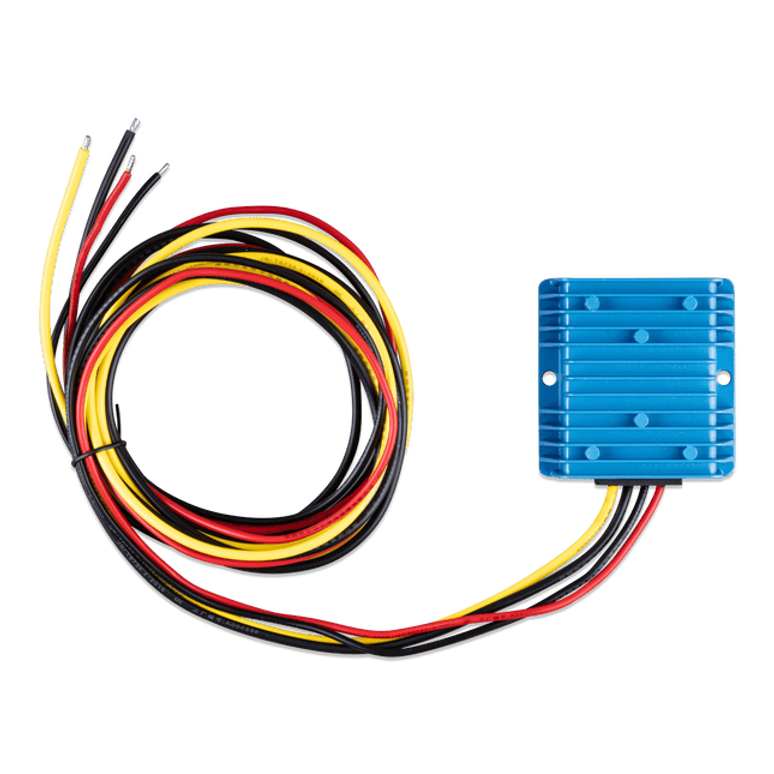

Your installation location dictates the environmental protection you need. For dry, interior cabin installations, standard IP20 models provide excellent cooling and performance. If you are mounting your 24v to 12v converter on a truck chassis, engine bay, or in a damp marine locker, opt for a waterproof DC-DC converter (like the Victron Orion IP67 range). These fully encapsulated models resist dust, water, and severe vibration.

Sizing and Selection Tips for 24V to 12V Converters

Choosing the correct 24v to 12v dc dc converter size prevents voltage drop, equipment shutdowns, and premature component wear. Follow these steps to match the right product to your setup:

• Calculate Your Total 12V Load: Identify all the 12V appliances you plan to run simultaneously. Check their compliance plates to find their maximum current draw (in Amps) or wattage (Watts divided by 12 gives Amps).
• Add a Safety Margin: Always add at least 20% to 30% overhead to your total calculated load. If your combined load is 15A, choosing a 20A Victron Orion model ensures the unit operates comfortably below its maximum limit, reducing heat generation.

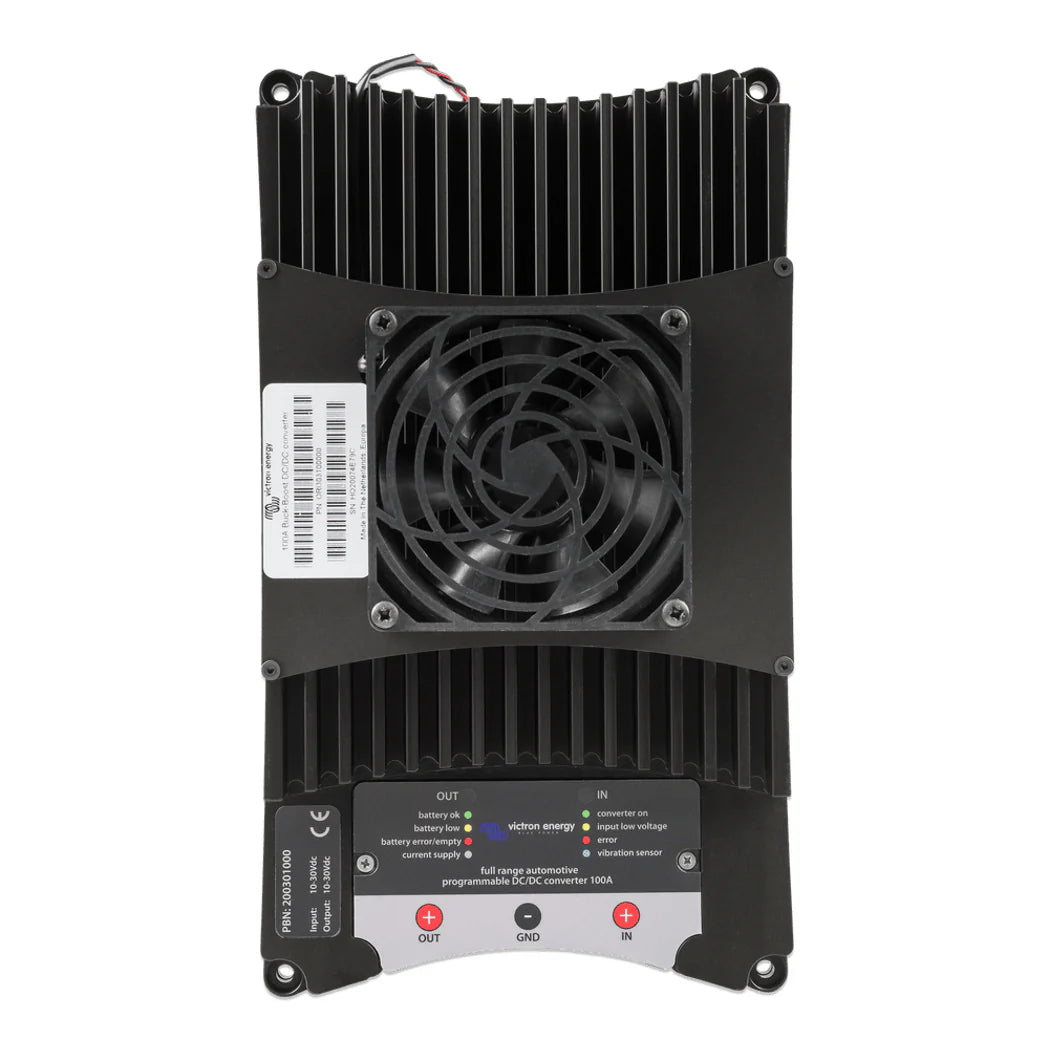

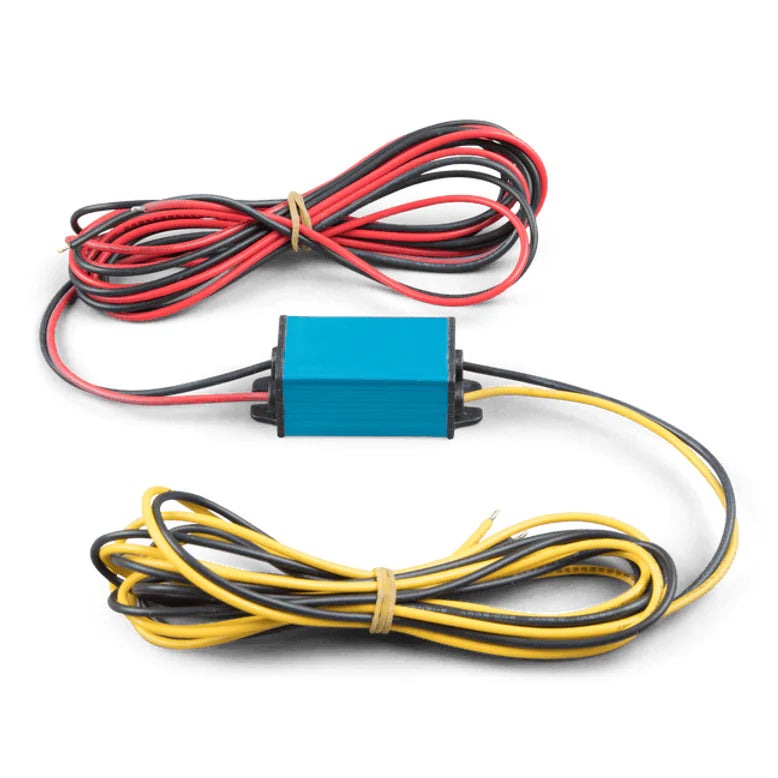

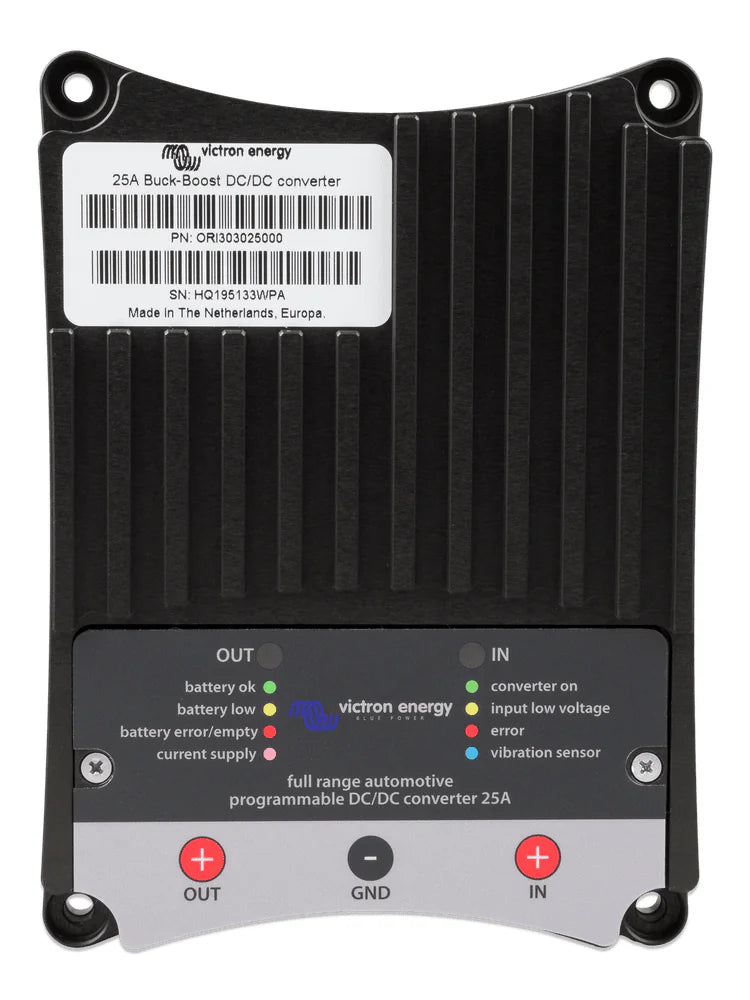

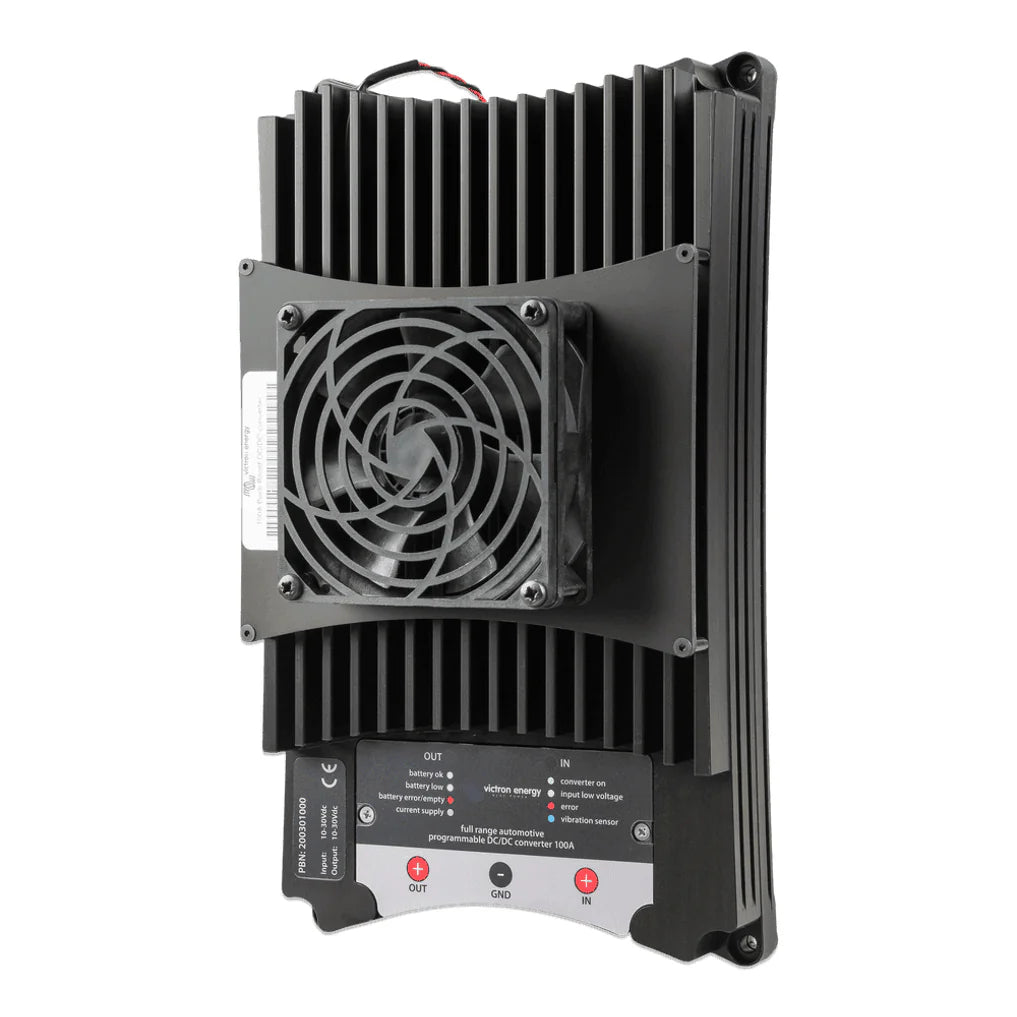

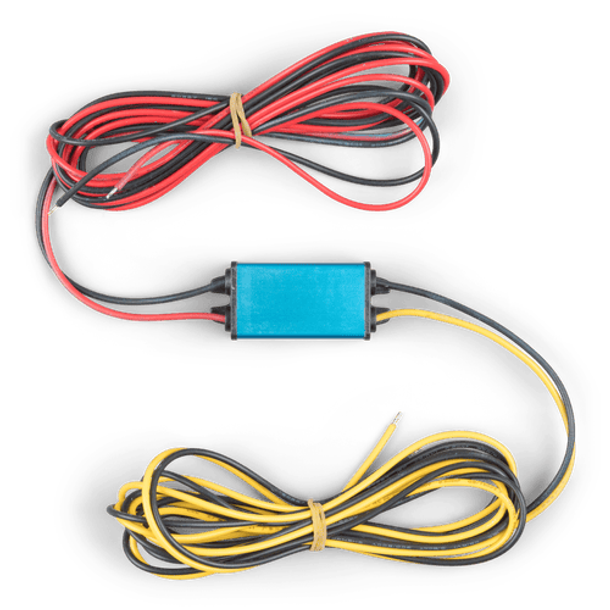

• Select the Output Rating: We offer solutions ranging from compact 5A units for running a basic diesel heater controller or radio, right up to massive 100A Buck-Boost models capable of managing heavy electrical loads and variable alternators in modern vehicles.
• Plan Your Circuit Protection: A converter is only as safe as its wiring. Always install appropriately sized fuses and fuse holders on both the 24V input side and the 12V output side to protect your cables from short circuits.

Experience the Difference with Expert Support

As a proudly Australian Family Business with over a decade of experience in mobile and off-grid electrical systems, we are dedicated to providing high quality products tailored to your exact needs. We understand that designing a reliable truck, bus, or RV electrical system can be complex. That is why we provide exceptional before & after support, helping you specify the correct components and troubleshoot any installation hurdles. Combined with our commitment to fast dispatch, you can get your project back on the road or water without delay.

Upgrade your vehicle or off-grid power setup today. Browse our robust selection of 24V to 12V step down converters below and secure the stable, clean voltage your sensitive 12V appliances demand.
