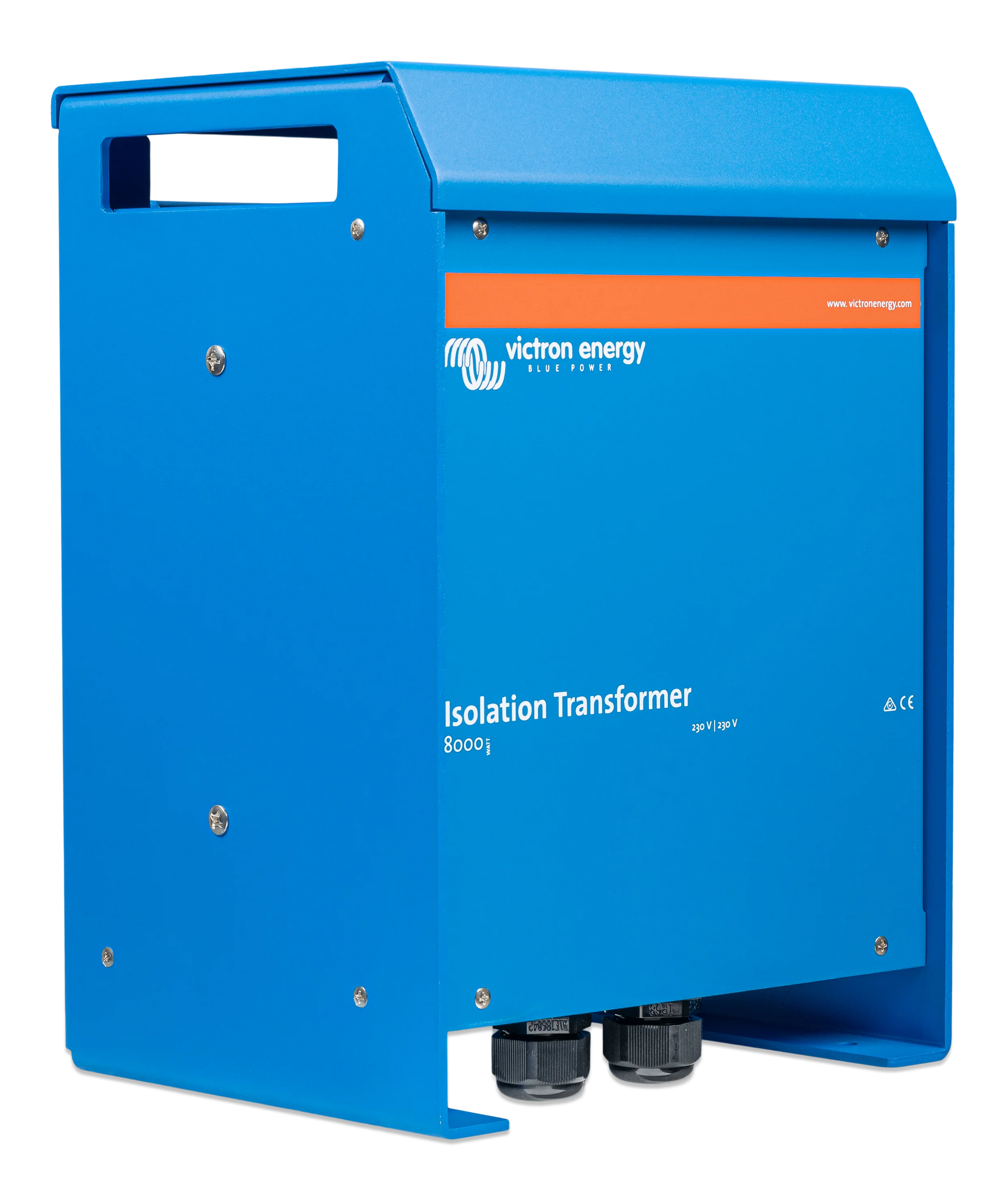

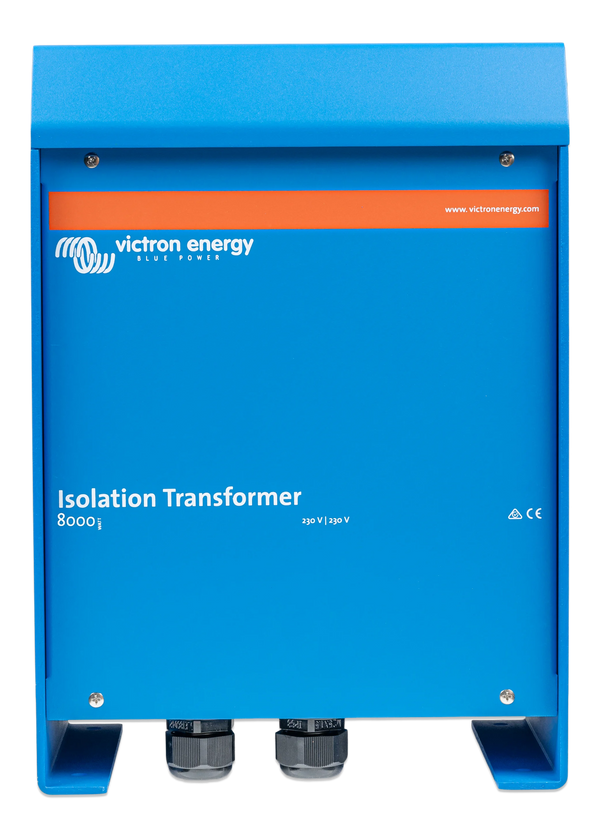

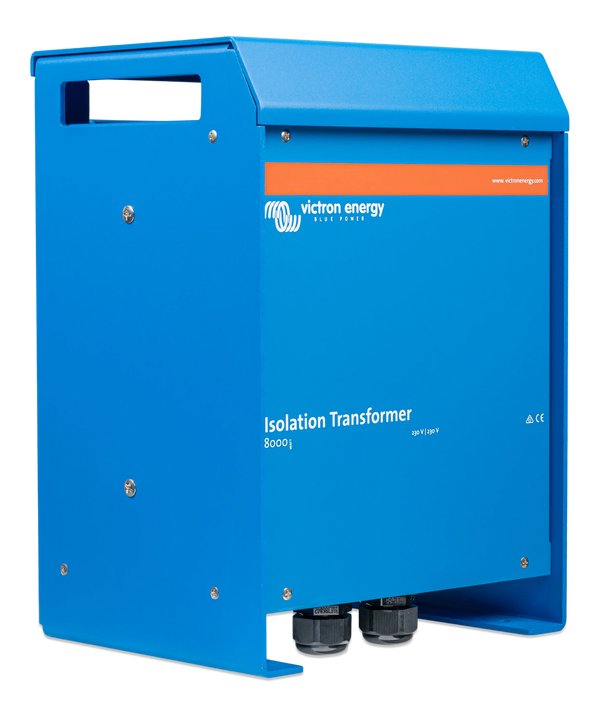

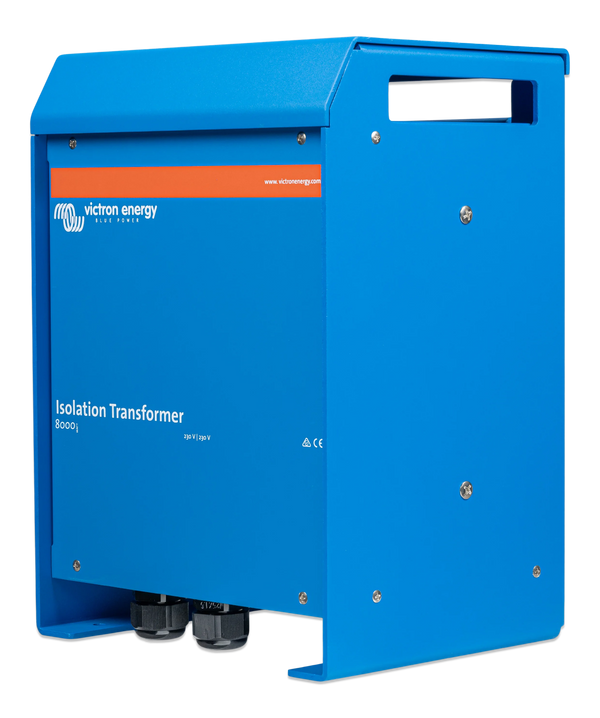

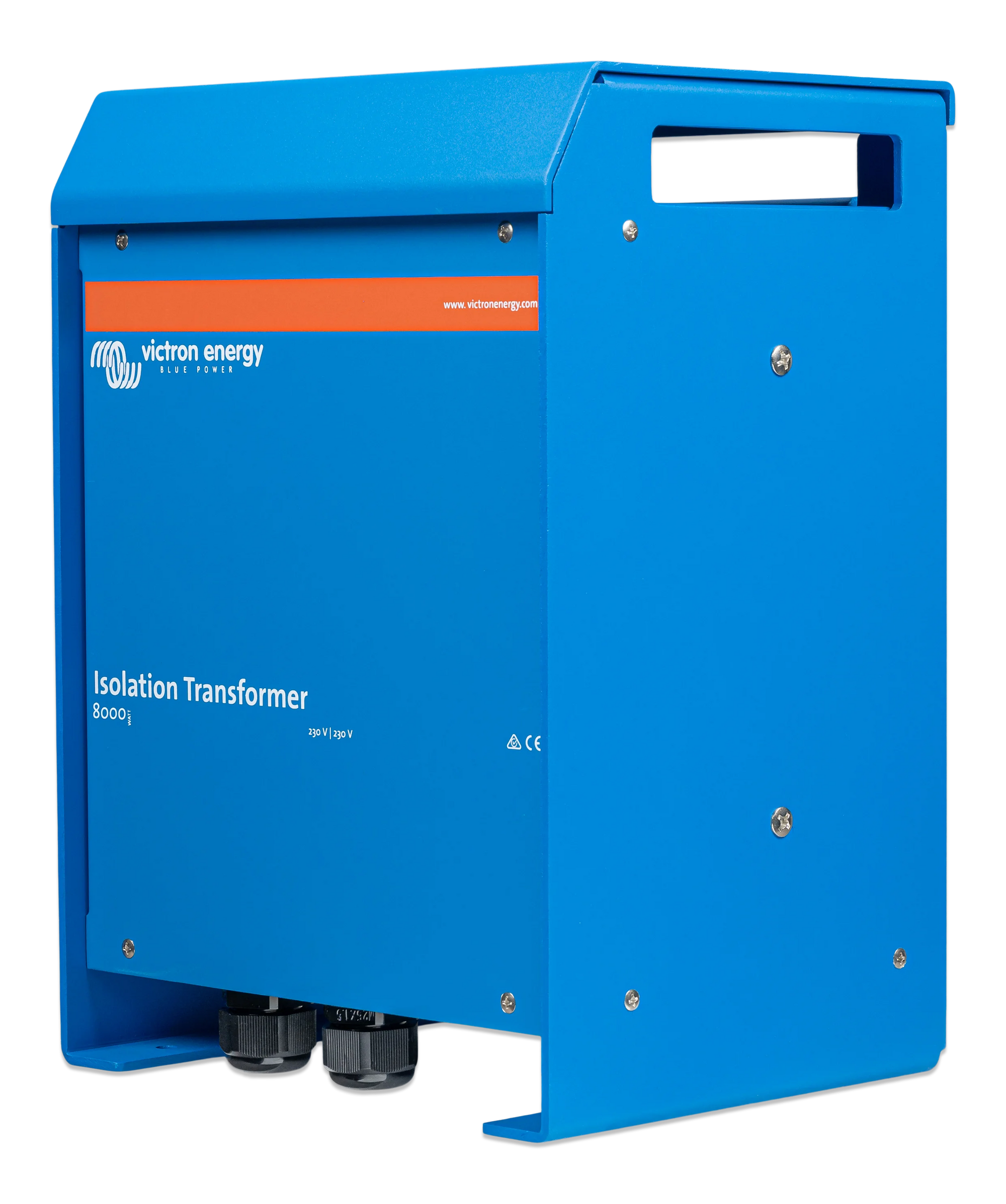

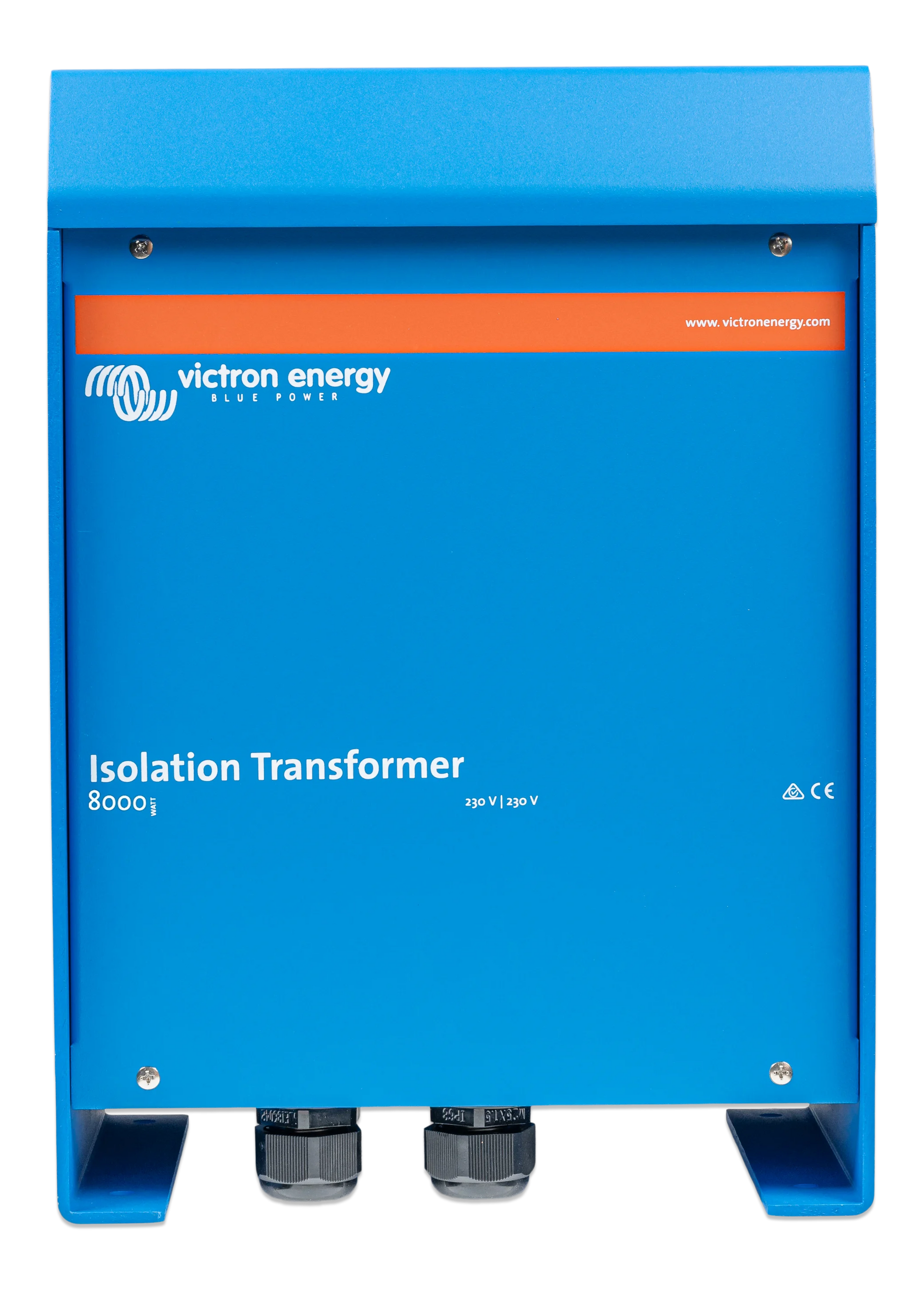

Victron Energy 8000W 230V Isolation Transformer

Professional Protection for Marine Electrical Systems

When connecting your vessel to shore power, ensuring a safe and reliable electrical connection is paramount. The Victron Energy 8000W 230V Isolation Transformer is an indispensable component for professional marine energy systems. By physically isolating your boat's electrical system from the shore power grid, it serves as a critical safety device while simultaneously eliminating the risk of destructive electrolytic corrosion.

Prevent Electrolytic Corrosion

Electrolytic corrosion (often referred to as galvanic corrosion) occurs when two dissimilar metals are submerged in a conductive fluid like seawater and electrically connected. When a vessel connects to a standard shore power supply, the earth wire creates a circuit between your boat's underwater metals and other vessels or marina infrastructure. This can rapidly degrade anodes, propellers, shafts, and hulls. The Victron Isolation Transformer eliminates this risk by completely isolating the vessel's earth from the shore earth, ensuring your valuable marine hardware is protected.

Advanced Toroidal Technology

Designed for optimal performance in demanding marine environments, this transformer utilises toroidal wound technology. Unlike traditional laminated transformers, toroidal transformers offer significantly higher efficiency, a smaller footprint, and reduced weight. Crucially for liveaboard vessels and recreational boats, toroidal winding results in extremely quiet operation without the irritating low-frequency hum often associated with high-capacity electrical transformers.

Key Features & Specifications

• High Capacity Output: Delivers up to 8000W of power with a 35A output current rating, well suited to larger vessels with significant power demands.
• Complete Galvanic Isolation: Breaks the earth connection between shore and vessel to halt electrolytic corrosion.
• Voltage Compensation: Features a 1:1.05 conversion ratio (230V input to 240V output) to compensate for minor voltage drops along shore power cables.
• Integrated Soft Start: Prevents shore power circuit breakers from tripping during initial connection.
• Robust Construction: Housed in a durable aluminium enclosure (IP21) designed to withstand the marine environment.
• Silent Operation: Toroidal wound internals guarantee low noise and high electrical efficiency.

Built-in Soft Start Circuitry

A common issue when plugging large transformers into a marina pedestal is the massive inrush current, which can instantly trip sensitive shore power circuit breakers. The Victron 8000W Isolation Transformer is equipped with intelligent soft start circuitry as standard. This gently ramps up the current draw upon connection, ensuring a smooth and uninterrupted transition to shore power without nuisance tripping.

Ensure the structural integrity of your vessel's underwater metals and the safety of your onboard AC electrical system. Incorporating the Victron 8000W 230V Isolation Transformer is a fundamental step in designing a proper, professional marine electrical installation.
