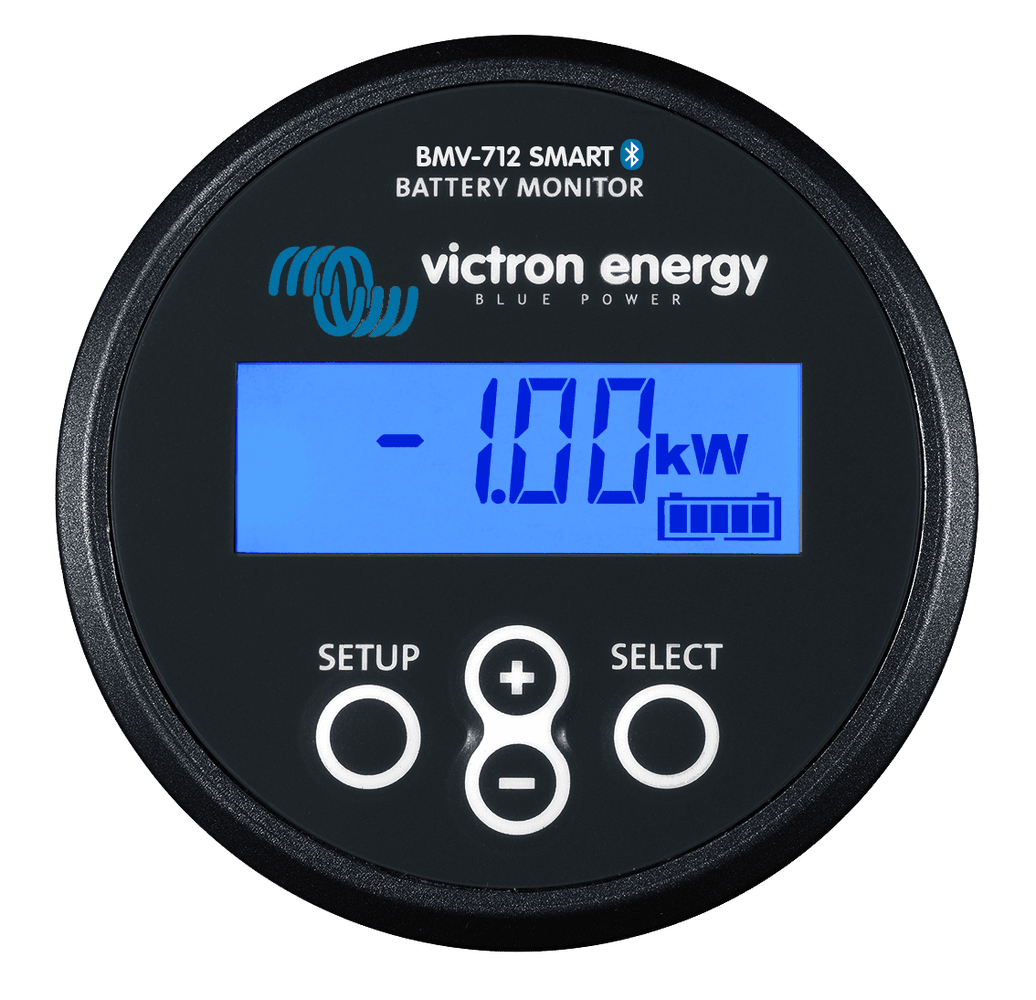

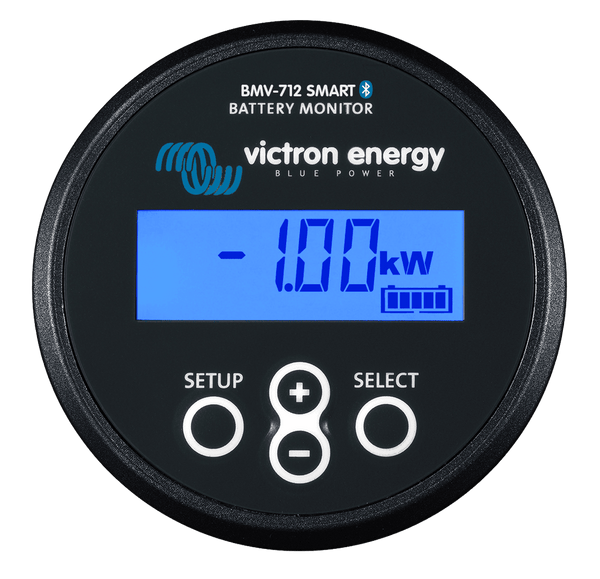

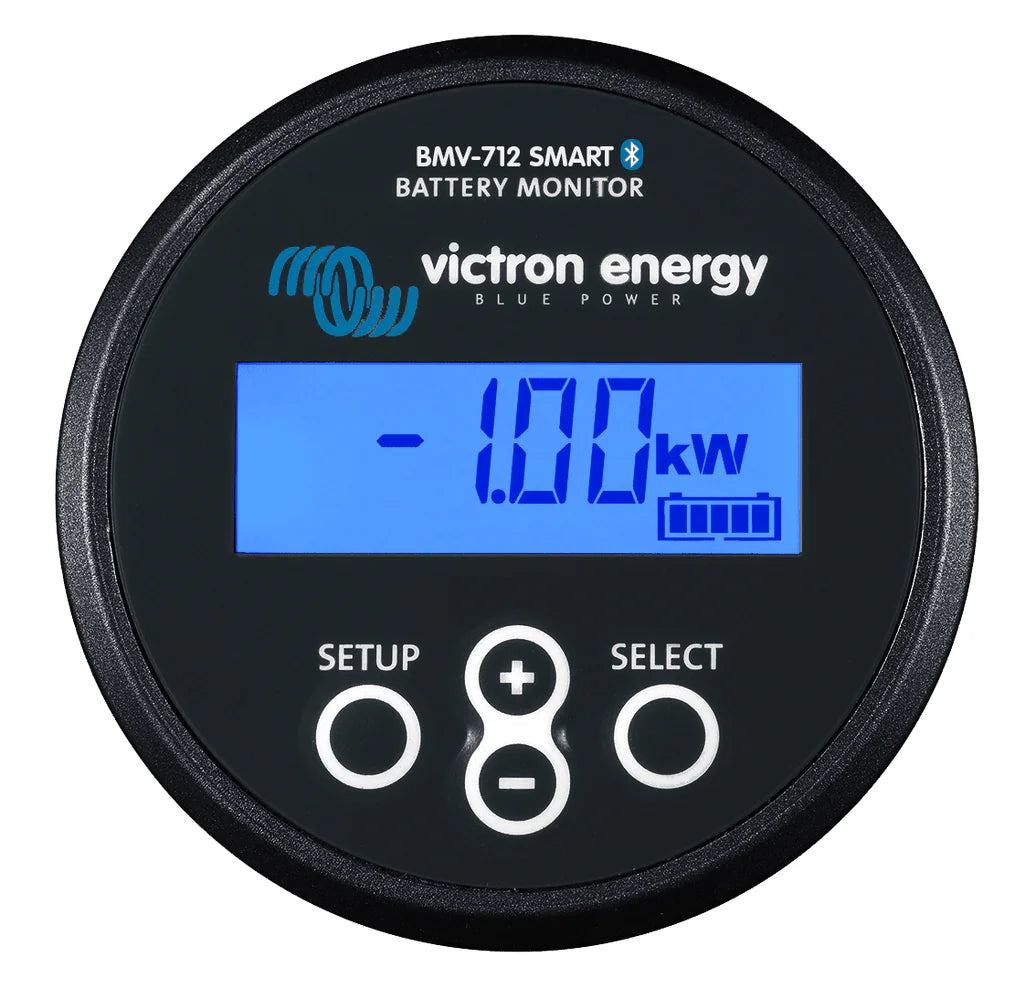

Victron Black Smart BMV-712 Battery Monitor

Bluetooth built-in


Victron Black Smart BMV-712 Battery Monitor Main Image
Victron Black Smart BMV-712 Battery Monitor 1Victron Black Smart BMV-712 Battery Monitor 2Victron Black Smart BMV-712 Battery Monitor 3Victron Black Smart BMV-712 Battery Monitor 4Victron Black Smart BMV-712 Battery Monitor 5Victron Black Smart BMV-712 Battery Monitor 6Victron Black Smart BMV-712 Battery Monitor 7Victron Black Smart BMV-712 Battery Monitor 8Victron Black Smart BMV-712 Battery Monitor 9
Victron Black Smart BMV-712 Battery Monitor Main Image
Victron Black Smart BMV-712 Battery Monitor
Victron Black Smart BMV-712 Battery Monitor 1
Victron Black Smart BMV-712 Battery Monitor 2
Victron Black Smart BMV-712 Battery Monitor 3
Victron Black Smart BMV-712 Battery Monitor 4
Victron Black Smart BMV-712 Battery Monitor 5
Victron Black Smart BMV-712 Battery Monitor 6
Victron Black Smart BMV-712 Battery Monitor 7
Victron Black Smart BMV-712 Battery Monitor 8
Victron Black Smart BMV-712 Battery Monitor 9
Regular price $216.27
$269.50
/
Availability: In Stock
View all products from Victron

Notify me when available

You have already submited form for Default Title

Thanks for contacting us. We'll get back to you as soon as product / variant is back in stock.
Guaranteed Safe and Secure Checkout
American Express Apple Pay Google Pay MastercardPayPalShop Pay Union PayVisa

32
Victron Black Smart BMV-712 Battery Monitor Main Image

Victron Black Smart BMV-712 Battery Monitor

DESCRIPTION

Victron Black Smart BMV-712 Battery Monitor: Advanced Battery Management for Your RV or Off-Grid Setup

Highly Accurate Battery ‘Fuel Gauge’, Time-to-Go Indicator, and More

With the BMV-712, you can rely on precise tracking of your battery's remaining capacity. This advanced battery monitor considers variables like ampere-hours consumed, discharge current, temperature, and battery age. Its software algorithms work out these complexities to provide detailed information not just on voltage, current, and ampere-hours consumed, but also on state of charge, time-to-go, and power consumption in Watts. Moreover, the BMV-712 adds an extra input to measure a second battery's voltage, temperature, or midpoint voltage.

Simple Installation Process

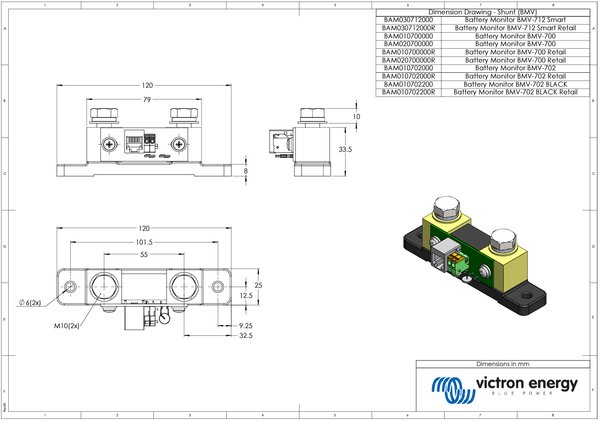

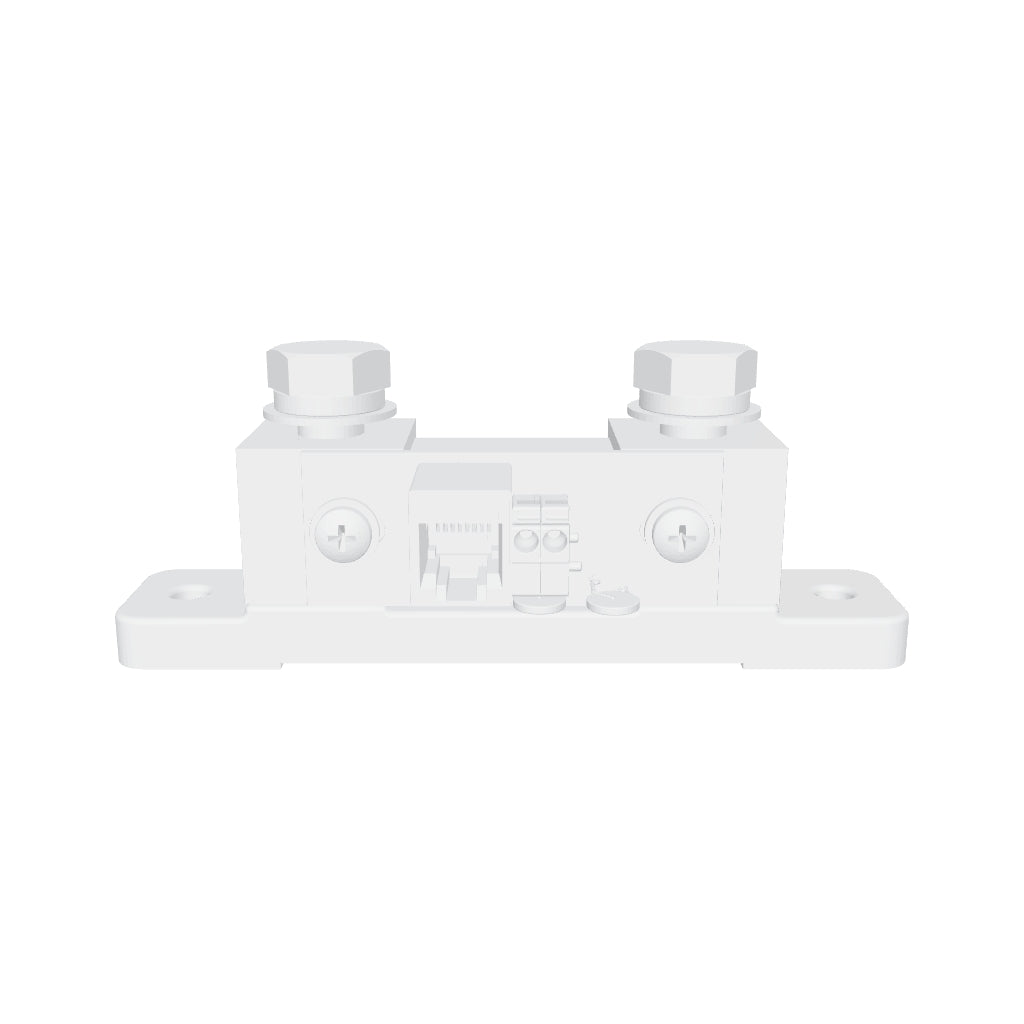

Installing the BMV-712 is as simple as it gets. All electrical connections link to the quick connect PCB on the current shunt, which connects to the monitor with a standard RJ12 telephone cable. The package includes a 10m RJ 12 cable and a 2m battery cable with fuse. No additional components needed! The package also comes with a separate front bezel for a square or round display, a rear mounting securing ring, and screws for front mounting.

Effortless Programming with Your Smartphone

Setting up the BMV-712 is a breeze, thanks to its quick install menu and detailed setup menu with scrolling texts. For an even simpler solution, you can download our smartphone app and manage settings from there.

Midpoint Voltage Monitoring – Exclusive to BMV-702 and BMV-712

Previously a feature of large, industrial battery banks, midpoint voltage monitoring is now accessible and affordable with the BMV-712. This feature is essential for monitoring any battery bank as it alerts you to any deviations that can point to a problem with your battery. Following an alarm for midpoint voltage deviation can save your expensive battery from severe damage. Consult the BMV manual for more detailed information.

Key Features of the BMV-712 Battery Monitor

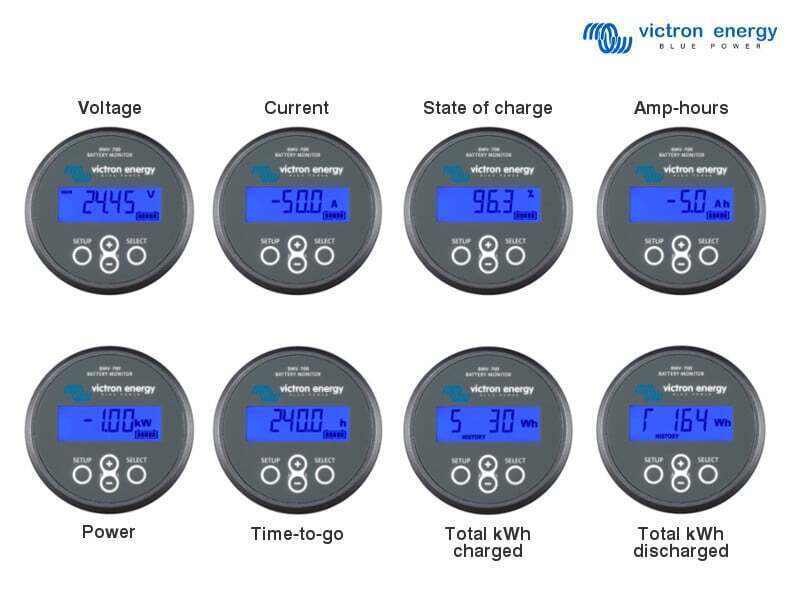

  • Real-time data on battery voltage, current, power, ampere-hours consumed, and state of charge
  • Displays remaining time at the current rate of discharge
  • Programmable visual and audible alarm
  • Programmable relay to manage non-critical loads or to run a generator when needed
  • 500 Amp quick connect shunt and connection kit with shunt selection up to 10,000 Amps
  • VE.Direct communication port
  • Records a wide range of historical events to assess usage patterns and battery health
  • Wide input voltage range: 6.5 – 95V
  • High current measurement resolution: 10 mA (0.01A)
  • Low current consumption: 2.9Ah per month (4mA) at 12V and 2.2Ah per month (3mA) at 24V

Additional Features Exclusive to BMV-712

The BMV-712 offers extra input to measure voltage (of a second battery), temperature, or midpoint voltage, and corresponding alarm and relay settings.

About Midpoint Voltage

When batteries are connected in series, one bad cell or battery can wreak havoc on your large, expensive battery bank. Timely warnings can be generated by measuring the midpoint voltage. For more information, consult section 5.2 of the BMV manual. To maximize the service life of series-connected batteries, we recommend our Battery Balancer (BMS012201000).

Bluetooth Connectivity Inside (Exclusive to BMV-712)

With built-in Bluetooth, the BMV-712 is ready for the Internet of Things (IoT) era. As Bluetooth is implemented in most other Victron Energy products, wireless communication between products will simplify your system installation and enhance performance. Plus, the bi-stable alarm relay prevents increased current draw in case of an alarm.

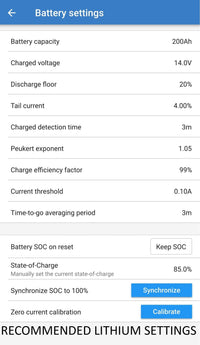

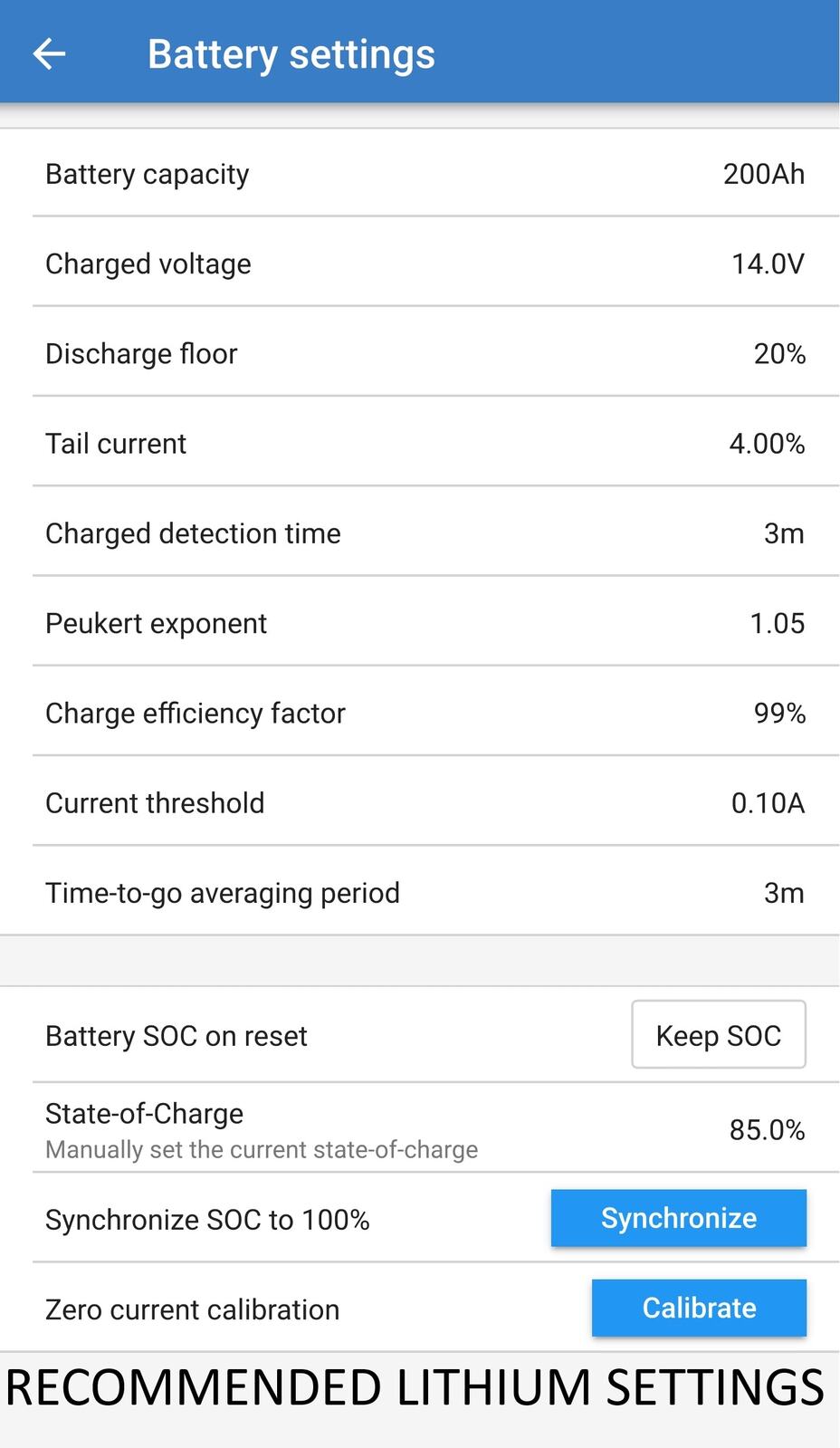

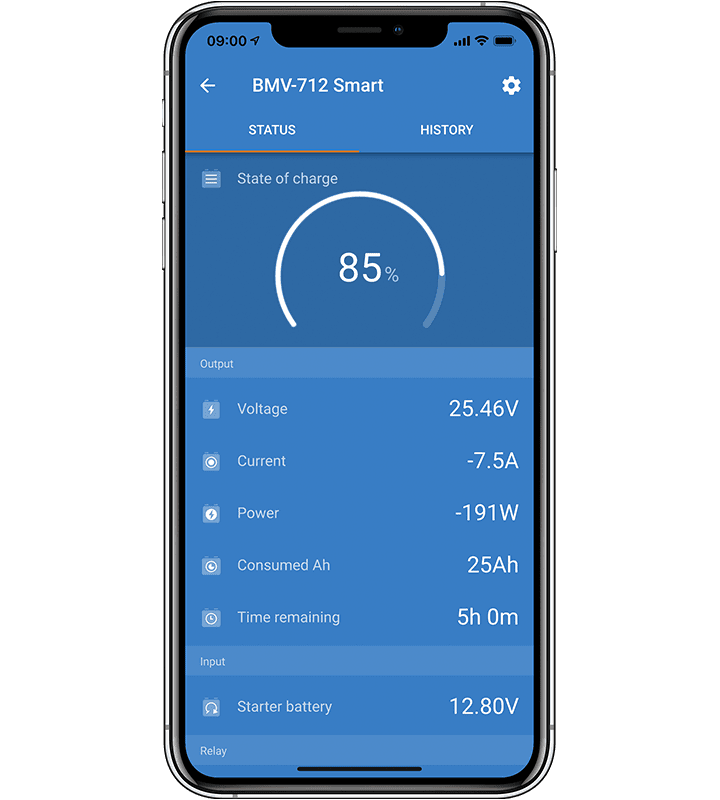

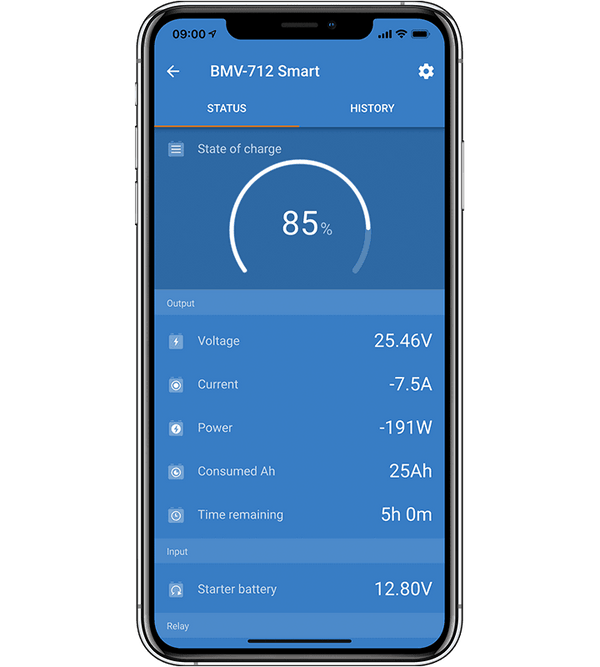

Download the Victron Bluetooth App

Take advantage of your smartphone or another Bluetooth enabled device to:

  • Customize settings
  • Monitor all important data on a single screen
  • View historical data
  • Update the software when new features become available

Product Uses

The BMV-712 is designed to offer comprehensive monitoring of your battery bank in various scenarios, such as:

  • RVs: Track your battery usage and avoid unexpected power shortages during your road trips. The Bluetooth connectivity enables you to monitor your battery status without needing to leave the driver's seat.
  • Off-Grid Solar Systems: The BMV-712 helps you monitor and manage your power consumption effectively, making your off-grid living more reliable and sustainable.
  • Marine Applications: Use it in your yacht or boat to keep track of your marine battery bank, ensuring a smooth and worry-free sea journey.

Frequently Asked Questions (FAQs)

  1. What are the main differences between the BMV-712 and the BMV-700?

    The BMV-712 has all the features of the BMV-700, but it also includes an extra input to measure a second battery's voltage, temperature, or midpoint voltage. Additionally, the BMV-712 has built-in Bluetooth for easy wireless setup and monitoring.

  2. How does the BMV-712 compare to the SmartShunt?

    The SmartShunt is essentially a BMV with Bluetooth and without a display. The BMV-712, on the other hand, has a physical display and also includes Bluetooth. The decision between the two depends on your preference for a physical display and the specific monitoring needs of your system.

  3. What is midpoint voltage monitoring?

    Midpoint voltage monitoring is a feature that monitors the voltage halfway along a string of batteries. If there's a significant or increasing deviation from the expected midpoint voltage, it indicates a potential problem with one of the batteries in the string. This feature can help prevent severe damage to an expensive battery bank.

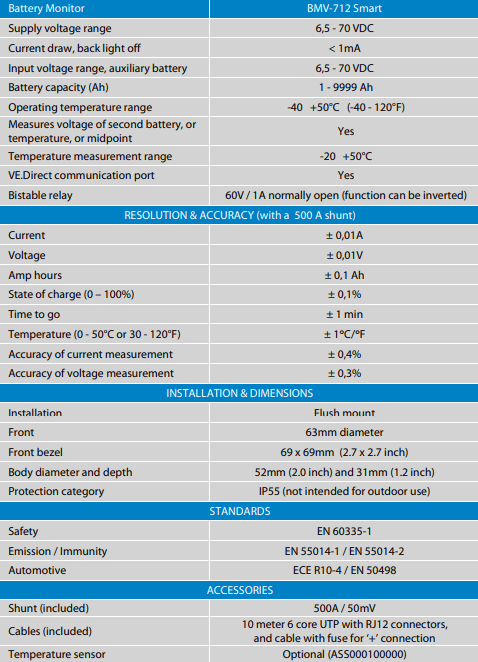

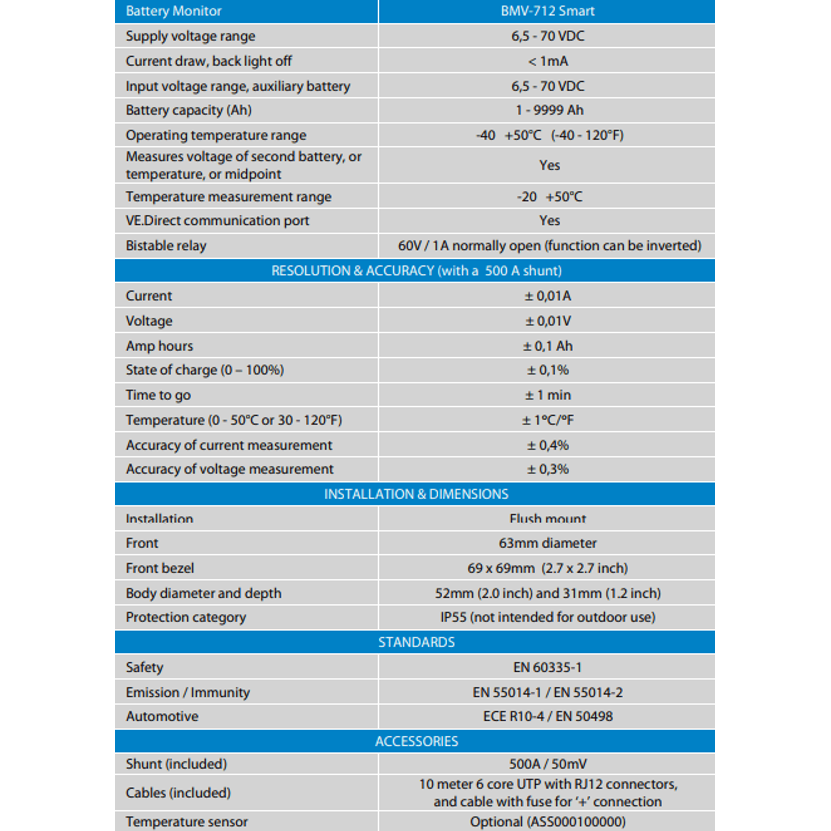

SPECIFICATIONS

Specifications

Battery Monitor BMV-712 Smart
Supply voltage range 6.5 - 70 VDC
Current draw, back light off < 1mA
Input voltage range, auxiliary battery 6.5 - 70 VDC
Battery capacity (Ah) 1 - 999 Ah
Operating temperature range -40 +50°C (-40 - 120°F)
Measures voltage of second battery, or temperature, or midpoint Yes
Temperature measurement range -20 +50°C
VE.Direct communication port Yes

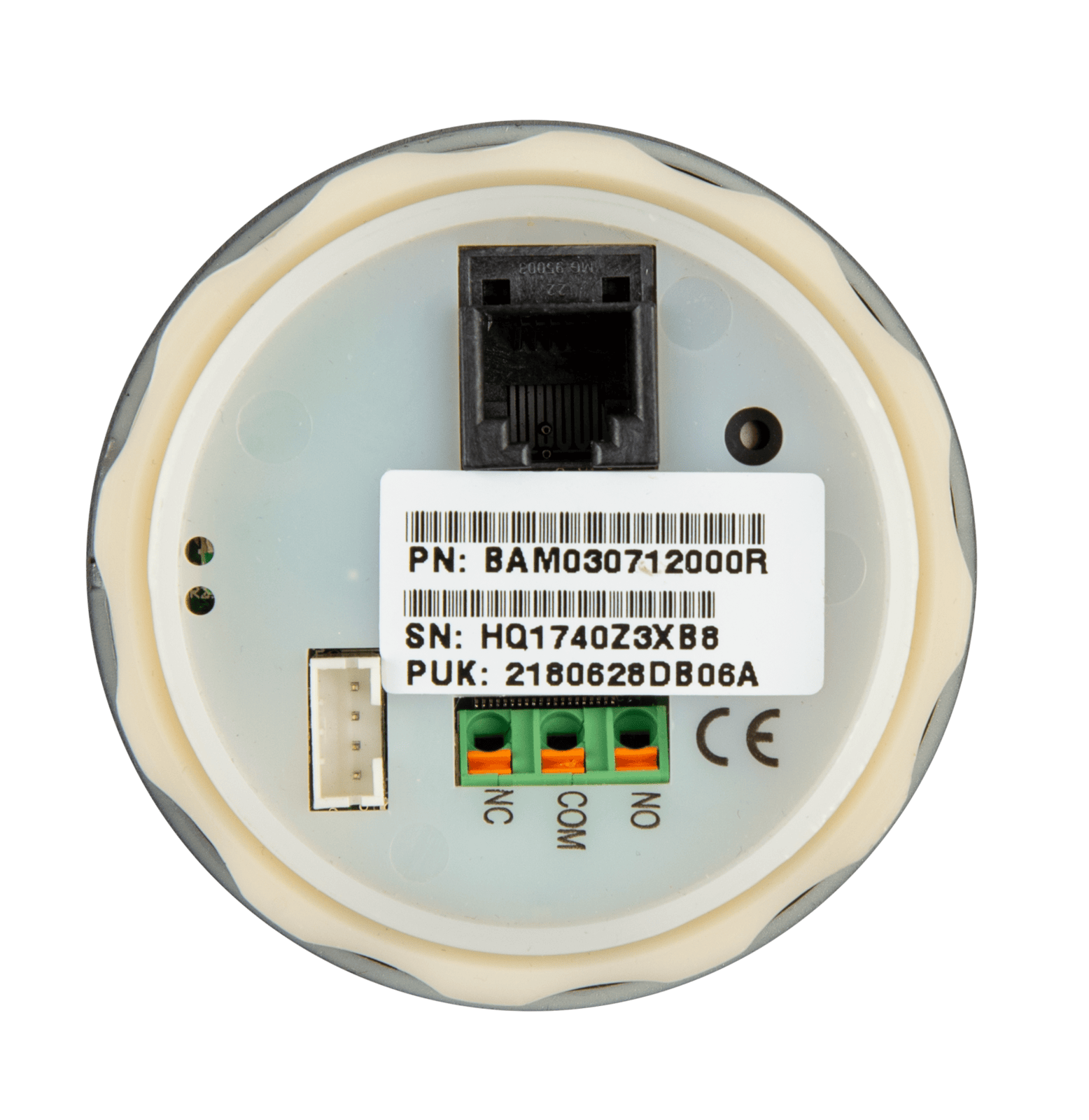

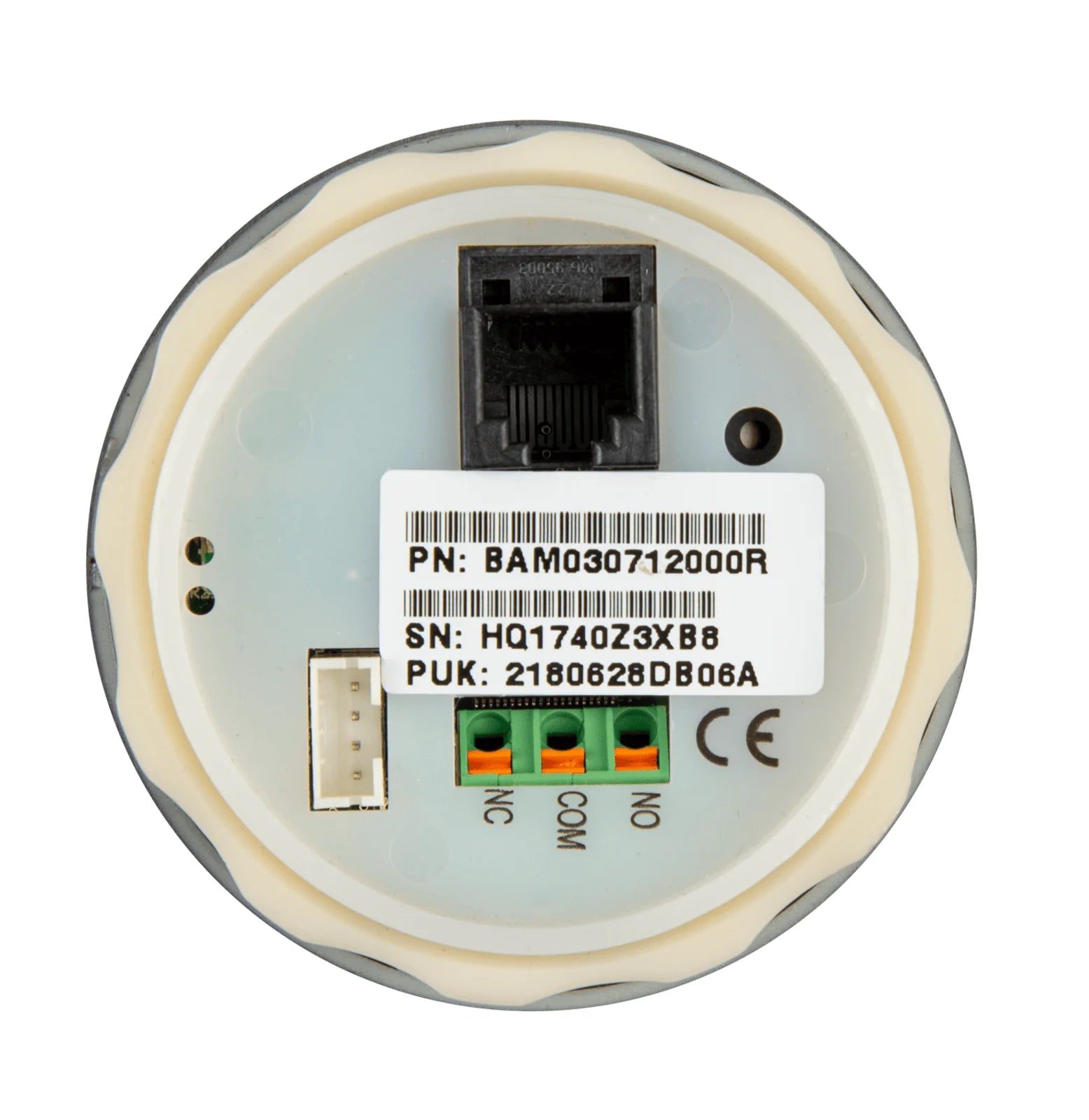

Bistable relay 60V / 1A normally open (function can be inverted)
Resolution & Accuracy (with a 500 A shunt)
Current ±0,01A
Voltage ±0,01V
Amp hours ±0,1 Ah
State of charge (0 – 100%) ±0,1%
Time to go ±1 min
Temperature (0 - 50°C or 30 - 120°F) ±1°C/°F
Accuracy of current measurement ±0,4%
Accuracy of voltage measurement ±0,3%

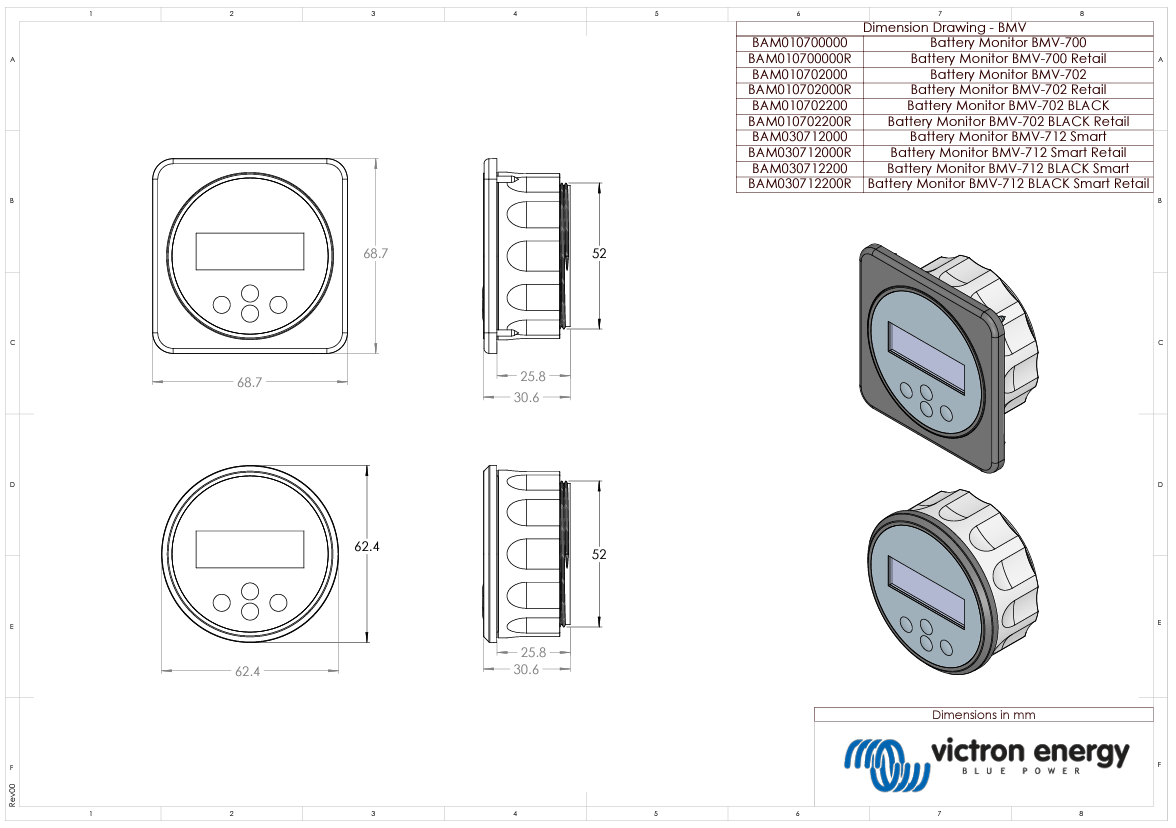

Installation & Dimensions
Installation Flush mount
Front 63mm diameter
Front bezel 69 x 69mm (2.7 x 2.7 inch)
Body diameter and depth 52mm (2.0 inch) and 31mm (1.2 inch)
Protection category IP55 (not intended for outdoor use)
Standards
Safety EN 60335-1
Emission / Immunity EN 55014-1 / EN 55014-2
Automotive ECE R10-4 / EN 50498
Accessories

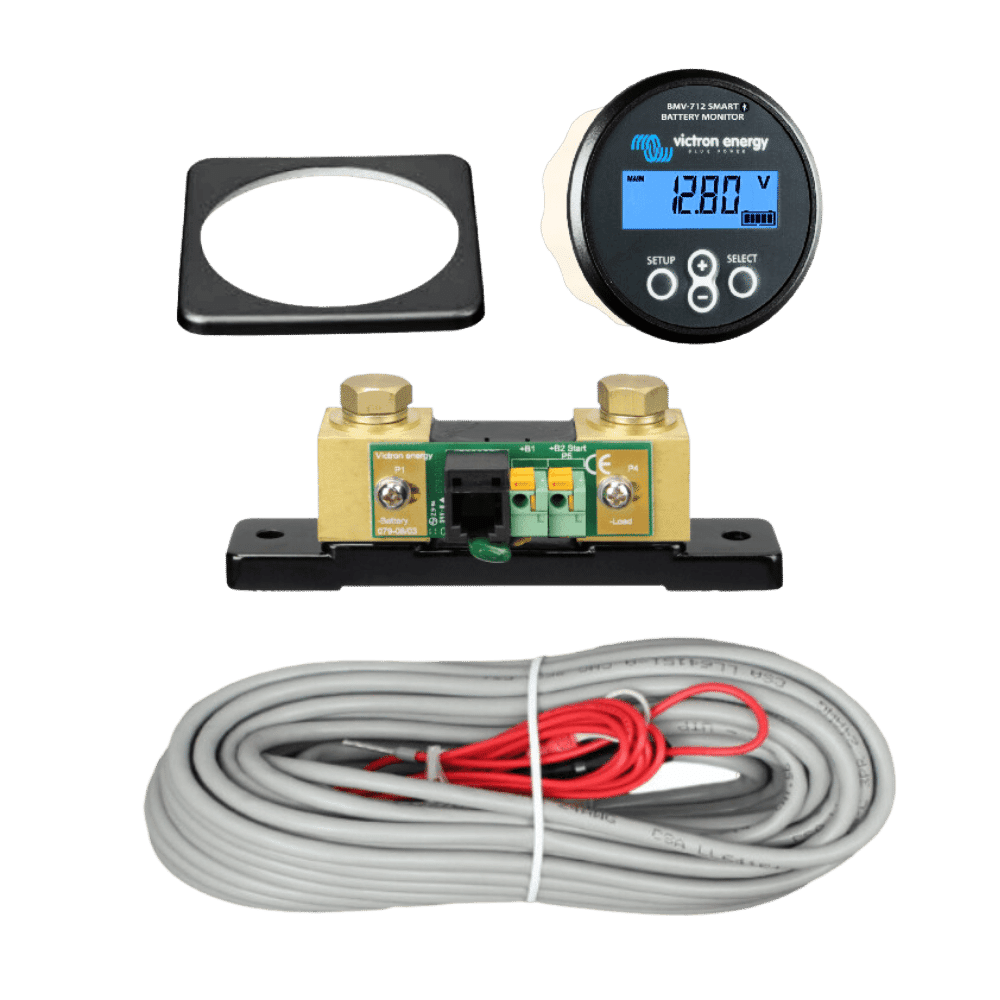

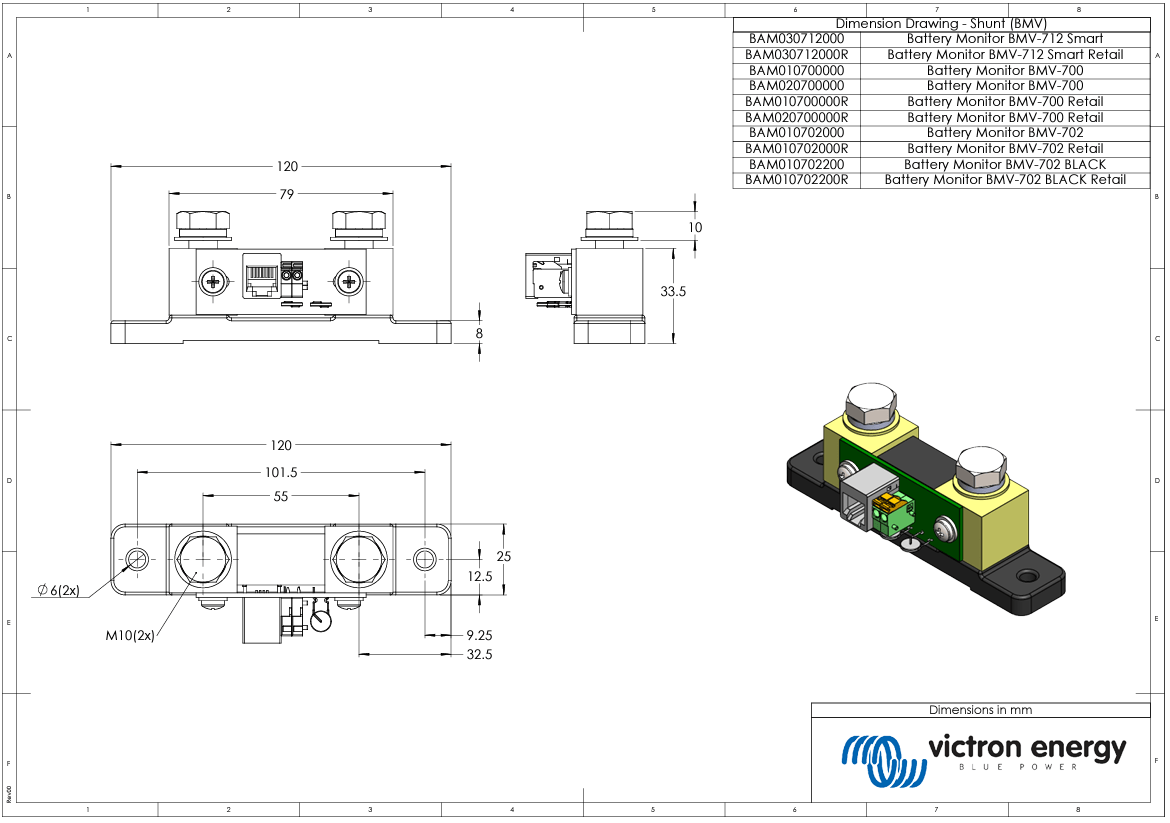

Shunt (included) 500A / 50mV
Cables (included) 10 meter 6 core UTP with RJ12 connectors, and cable with fuse for ‘+’ connection
Temperature sensor Optional (ASS000100000)

SKU: VIC-BAM030712200
Barcode: 8719076049517
Model #: BAM030712200
MPN: BAM030712200
