Victron Temperature Sensor (Smart Shunt/BMV-712)

M10 Ring Terminal, VE.Smart Networking, -20 to +50°C Range


Regular price $45.20
$59.40
/
Availability: In Stock
View all products from Victron
Guaranteed Safe and Secure Checkout
Apple Pay Google Pay MastercardPayPalShop Pay Visa

8

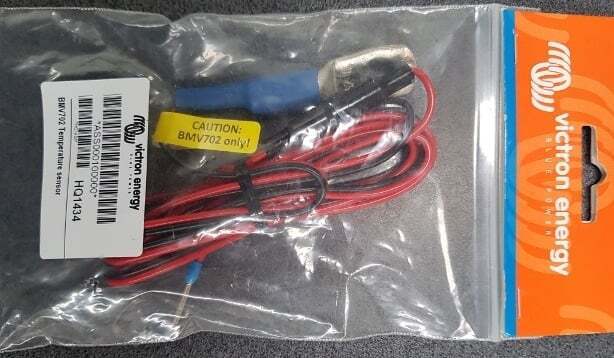

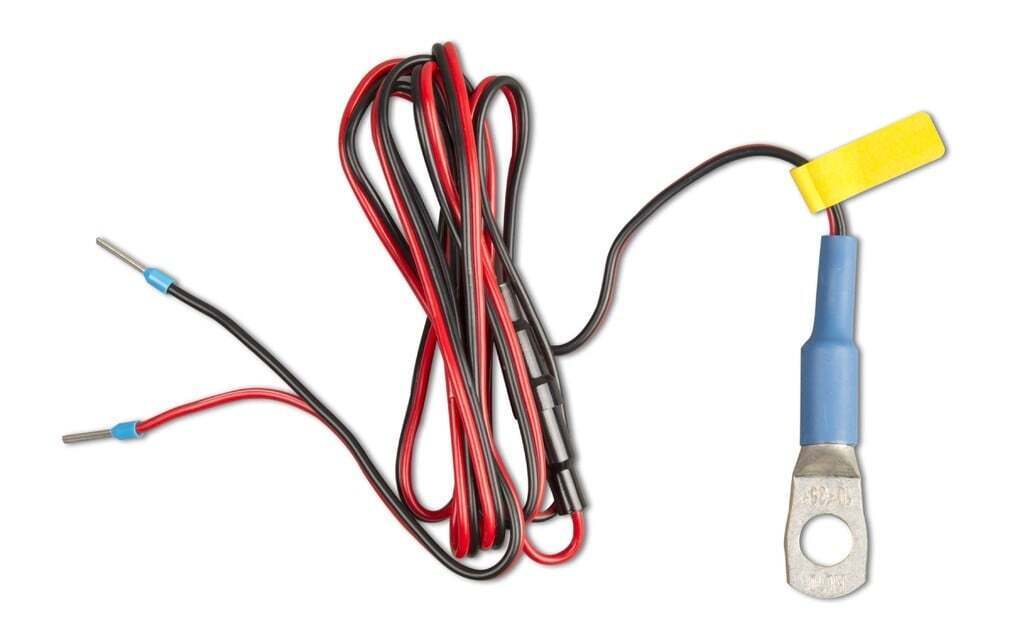

Victron temperature sensor featuring an integrated ring terminal and pre-crimped wire ferrules

Victron Temperature Sensor (Smart Shunt/BMV-712)

DESCRIPTION

Victron Temperature Sensor for BMV-712, BMV-702, and SmartShunt Battery Monitors

Precision Battery Temperature Monitoring for Enhanced Charging Accuracy

The Victron Temperature Sensor (ASS000100000) is an essential accessory for your Victron BMV-712 Smart, BMV-702, or SmartShunt battery monitor. By measuring the main battery temperature, it enables your monitoring system to apply temperature-compensated charging, which adjusts charge voltages based on actual battery conditions. This helps prevent overcharging in high temperatures and undercharging in cold conditions, extending battery life and improving system reliability.

Designed specifically for Victron battery monitors with temperature support, this sensor integrates seamlessly via VE.Smart Networking (BMV-712 and SmartShunt) or direct connection (BMV-702 with VE.Smart Dongle). The sensor probe is embedded in a robust M10 (3/8"-16) ring terminal that attaches directly to the positive battery terminal, ensuring accurate and responsive temperature readings.

Key Features

  • Measures main battery temperature for precise charge voltage adjustment
  • Compatible with BMV-712 Smart, BMV-702, and SmartShunt battery monitors
  • Integrated M10 (3/8"-16) ring terminal for direct battery terminal mounting
  • Pre-crimped wire ferrules for quick, secure connection to the monitor
  • Supports VE.Smart Networking for wireless data sharing with compatible chargers
  • Enables high and low temperature alarms to protect your battery
  • Temperature range: -20 to +50 °C with ±1 °C accuracy

Why Temperature Monitoring Matters

Lead-acid and lithium batteries are sensitive to temperature fluctuations. Without temperature compensation, a charger may apply incorrect voltages, leading to reduced capacity, accelerated aging, or even permanent damage. The Victron Temperature Sensor provides real-time data to your battery monitor, allowing connected chargers (via VE.Smart Networking) to dynamically adjust charge parameters. This is particularly valuable in Australian conditions, where battery compartments can experience extreme heat or cold.

Simple Installation

Installation is straightforward: attach the M10 ring terminal to the positive battery post, then connect the red and black wires to the designated terminals on your battery monitor. For the BMV-712 Smart and BMV-702, the black wire goes to the +B2 terminal and the red wire to +B1. For the SmartShunt, connect black to the Aux terminal and red to Vbatt+. Once connected, the monitor automatically detects the sensor and begins displaying temperature data.

Compatibility Note

This sensor is designed exclusively for the BMV-712 Smart, BMV-702, and SmartShunt. It is not compatible with other Victron products such as the BMV-700, BMV-710, or MultiPlus inverter/chargers, which use a different temperature sensor. Please verify your device model before ordering.

Enhance Your Energy System Today

Add the Victron Temperature Sensor to your battery monitor and gain the insights needed to protect your investment. Whether you're managing a caravan, marine, or off-grid solar setup, accurate temperature data helps ensure your batteries perform at their best for years to come.


SKU: Vic-ASS000100000

SPECIFICATIONS

Specifications

Product NameTemperature Sensor For BMV-712 Smart And BMV-702
TypeOptional Temperature Sensor
Victron Part NumberASS000100000
MeasuresMain Battery Temperature
Designed ForBMV-712 And BMV-702 Battery Monitors
Products SupportedBattery Monitors With Temp Support - Eg BMV-702 & 712, SmartShunt & VE.Bus Smart Dongle
Temperature On VRMYes
VE.Smart NetworkingYes With BMV-712; Yes With Dongle For BMV-702
Temperature Measurement Range-20 to +50 °C (-4 to 120 °F)
Temperature Accuracy (0 - 50 °C Or 30 - 120 °F)± 1 °C/°F
Temperature AlarmsHigh And Low Temperature Alarms
Connection - BMV-712 Smart / BMV-702Black Temperature Sensor Wire To +B2 Terminal; Red Wire Cable To +B1 Terminal; M10 Cable Lug To Positive Battery Terminal.
Connection - SmartShuntBlack Temperature Sensor Wire To Aux Terminal; Red Wire Cable To Vbatt + Terminal; M10 Cable Lug To Positive Battery Terminal.

SKU: Vic-ASS000100000
Barcode: 8719076019183
Model #: ASS000100000
MPN: ASS000100000

WARRANTY

Victron Energy Limited Warranty Policy

Direct Customers

Victron Energy provides the following warranty to any direct customer (OEM, distributor or dealer) in relation to any products that Victron Energy has directly sold to the direct customer. This warranty is not an end-user warranty between Victron Energy and an end-user, and end-users shall not have any rights or remedies under this limited warranty towards Victron Energy directly. The direct customer shall, in turn, ensure that the end-user is provided with a warranty identical to this warranty, subject to applicable local mandatory law.

End-Users

Victron Energy may also provide a warranty directly to end-users, in which case the below warranty conditions equally apply to such warranty. In that case, end-users shall claim their warranty at their place of purchase or through the original direct customer of Victron, which can be found through the support section on Victron’s website. Hence, the direct customer shall on behalf of Victron Energy deal with any warranty claims made under any warranty that Victron Energy may provide directly to end-users. This support section on Victron’s website will provide further guidance on the procedure for end-users to make a claim under this limited warranty.

If the end-user is a consumer – a natural person who is acting for purposes which are outside that person's trade, business, craft or profession – the following applies. The rights and remedies granted to the consumer under this limited warranty are without prejudice to the consumer’s statutory rights. Furthermore, the consumer is entitled by law to remedies from the seller free of charge in the event of a lack of conformity of the goods (such as repair, replacement, price reduction or rescission), which remedies are not affected by this limited warranty.

Warranty

Victron Energy warrants its products to be free from defects in workmanship and materials for a period of 5 years from the date of purchase by the original end-user, with a maximum of 66 months from the Victron Energy invoice date. Exceptions on this are: lead-acid batteries: 2 years from date of purchase by the original end-user, with a maximum of 30 months from the Victron Energy invoice date, Lithium batteries: 3 years from date of purchase by the original end-user, with a maximum of 42 months from the Victron Energy invoice date. In addition to this, proof of correct battery usage is required when making a battery warranty claim.

For a 10% surcharge on the current net price for products that came with a 5-year warranty, an additional 5 years of warranty can be purchased by Victron’s direct customers, bringing the total warranty to 10 years. Warranty extensions need to be applied for ultimately one year before the expiration of the original term. Victron may ask proof that the product was still functional at the time of purchase of the extended warranty.

During the warranty period, Victron Energy will, at its discretion, repair, replace or (partly) credit the defective product free of charge. The warranty does not include performing or reimbursing de‐installation, transportation, and re‐installation.

This warranty will be considered void if the unit has suffered any physical damage or alteration, either internally or externally, and does not cover damages arising from improper use like:

  • Reversed battery polarity.
  • Inadequate connection.
  • Mechanical shock or deformation.
  • Contact with liquid or oxidation by condensation.
  • Use in an inappropriate environment (dust, corrosive vapour, humidity, high temperature, biological infestation, etc.).
  • Breakage or damage due to lightning.
  • Connection terminals and screws destroyed or other damages, like overheating, due to insufficient tightening.
  • For any electronic breakage except due to lightning (reverse polarity, over‐voltage due to external cause), the state of the internal control diode and/or the input/output X and Y capacitors determine the warranty.

This warranty will not apply where the product has been misused, neglected, improperly installed, or repaired by anyone other than Victron Energy or one of its authorized Repair Centres. In order to qualify for the warranty, the product must not be disassembled or modified.

This warranty and our warranty obligations thereunder (repair, replacement or credit) are the direct customer’s and, if applicable, the end-user’s sole rights and remedies and our sole obligations with respect to any defective and/or non-conforming product or breach of warranty and is subject to and without prejudice to the limitations of liability in this warranty.

Victron Energy shall not be liable for damages, whether direct, incidental, special, or consequential, even caused by negligence or fault.

As a product requires service, it must be brought back to the place of purchase. In case no contact can be made with the merchant, or if he is either unable or not allowed to provide service, direct contact should be made with Victron Energy through the support section on Victron’s website.

In case Victron Energy replaces a product, it will own the replaced product. Victron Energy owns all parts removed from repaired products. Victron Energy uses new or reconditioned parts made by various manufacturers when performing warranty repairs or building replacement products.

If Victron Energy repairs or replaces a part of a product, its warranty term is not extended: the warranty will apply for the remaining term of the original warranty term. For example, if Victron Energy replaces a product with a 5-year warranty after 3 years, the warranty of this product will apply for another 2 years, with a minimum of 6 months.

All remedies and the measure for damages are limited to the above. Victron Energy shall in no event be liable for consequential, incidental, contingent or special damages, even if having been advised of the probability of such damages.

The foregoing limited warranty provided by Victron Energy is in lieu of any other warranties, express or implied arising by law, course of dealing, course of performance, usage of trade or otherwise, of any kind whatsoever including, without limitation, warranties of merchantability or fitness for a particular purpose, with respect to any product. The above is without prejudice to the arrangement for consumers detailed above.

Life Support Policy

As a general policy, Victron Energy does not recommend the use of any of its products in life support applications where failure or malfunction of Victron Energy's product can be reasonably expected to cause the failure of the life support device or to significantly affect its safety or effectiveness. Victron Energy does not recommend the use of any of its products in direct patient care. Victron Energy will not knowingly sell its products for use in such applications unless it receives in writing assurances satisfactory to Victron Energy that the risks of injury or damage have been minimized, the customer assumes all such risks, and the liability of Victron Energy is adequately protected under the circumstances.

Warranty on repairs for products outside their warranty period

The warranty period on products that are outside their warranty period and have been repaired by Victron Energy or one of the Victron Energy Repair centres is six (6) months from delivery. The same applies to spare parts and circuit boards that have been supplied or repaired by Victron Energy.

Transport

It is the responsibility of the sender to sufficiently package these products. The transport must be organized in a way to avoid any damage, especially when a single unit or heavy unit is sent.

Severability

If a part of the terms and conditions of this warranty is held invalid, void or unenforceable due to any particular national or international legislation, it shall not affect other parts of the terms and conditions of this warranty.

Applicable law

This warranty is exclusively governed by the laws of the Netherlands, to the exclusion of the UN Convention on Contracts for the International Sale of Goods.
