Advanced alternator regulation
Alternator regulators for controlled high-output charging
Explore Wakespeed regulators, harnesses, sensors and communication accessories.

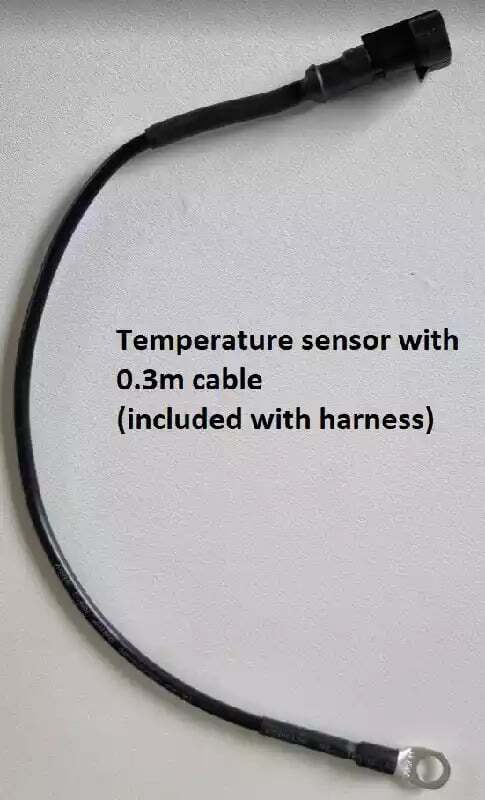

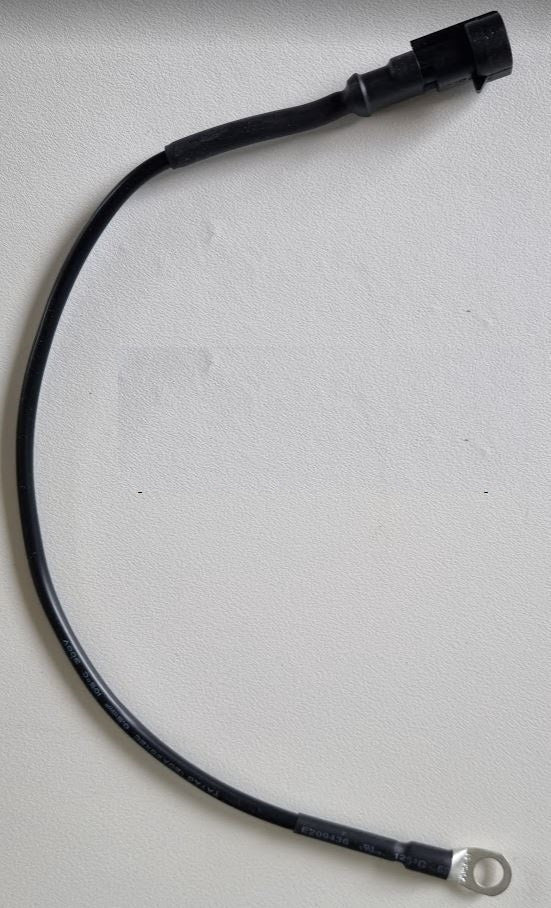

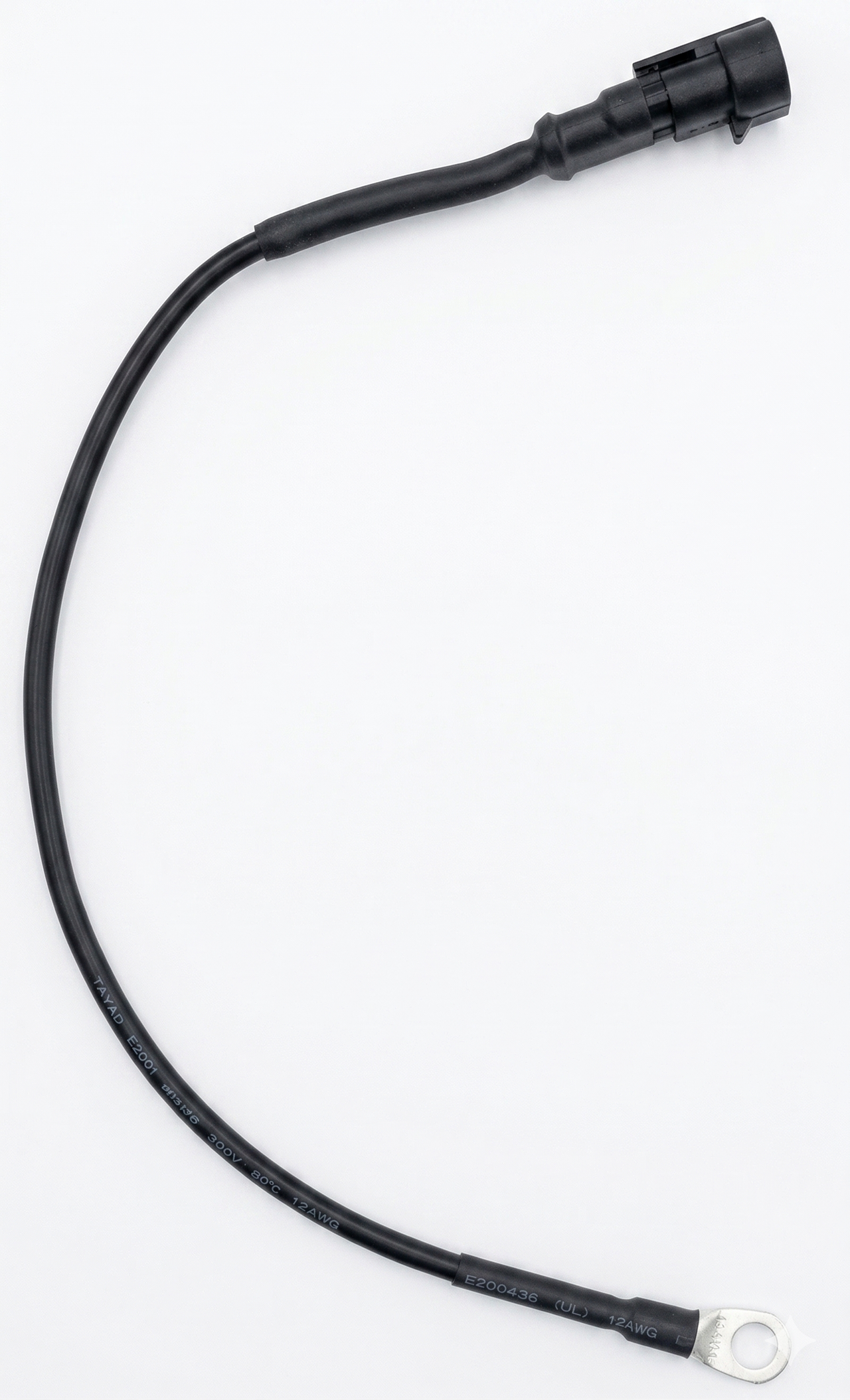

Optimise high-output alternators with Wakespeed WS500 regulators, wiring harnesses, and precision temperature sensors.
Quick alternator charge check
Enter the Ah to replace, the regulated charge current, bank voltage and battery chemistry. The estimate also shows the continuous output the alternator must sustain.
80A into a 12V bank charging at 14.4V is about 1.2 kW of continuous alternator output. Set the regulator's current limit within the alternator's hot rating and the battery and BMS maximum charge current.
Estimate only: Ah ÷ (regulated charge current × chemistry efficiency). Output uses a typical charging voltage of 1.2 × nominal bank voltage (14.4V on a 12V bank) × charge current. Real charging varies with engine speed, alternator temperature and derating, belt and pulley limits, battery acceptance and connected loads. Set the regulator within the alternator, battery and BMS maximum ratings.
Customer stories
Absolutely stellar service from Cameron at Solar 4 RVs. Initially had him quote up a solar system for my campervan back in June 2024 and then when I was ready to purchase in November 2024 he was able to give me the best prices for every product and so I went ahead with the order.
Also gave me some tips to commission the system once I installed the products. Stoked on the Victron gear. Thanks guys!
Purchased a 12v/15a battery charger in 2023. Had issues with it today (2025). Called their info number and explained. Instantly agreed to accept it as a warranty issue and dispatched a replacement without any problems. Extremely quick service and item dispatched express courier that same day. Outstanding customer service. Thank you.
Purchased a literal boat load of electronics from them for our vessel. It all works great and they did an amazing job setting up the panel. We have had the gear a few years now and still reach out when we need help. Great customer service!
Not sure which Wakespeed product suits your system? Send our technical team the model you are considering and your system details, and we will check the surrounding parts.
Ask our technical teamFrom the Solar 4 RVs library
Guides on battery limits, alternator control, sensors and cable for planning the charging system.
Solar 4 RVs guide
When it comes to power conversion, choosing between isolated and non-isolated converters or DC-DC chargers can be a challenging task. Both have their unique...
Read guide →
Solar 4 RVs guide
Topics include current, selecting cable, cable resistance, voltage drop, battery bank wiring, fuses and circuit breakers, fuses, shunts, earth wiring, solar panels, voltage sensing...
Read guide →
Solar 4 RVs guide
Discover the key differences between Lithium and Lead-Acid batteries. Understand their performance, durability, cost, and environmental impact to make an informed decision for your...
Read guide →
Solar 4 RVs guide
Upgrading to a lithium iron phosphate (LiFePO4) battery often raises a critical question: can you retain your existing lead-acid charger? While it is technically...
Read guide →
Solar 4 RVs guide
This interactive calculator will help you understand your RV's full power system, including the inverter, battery charger, DC-DC Charger, battery, solar panels, MPPT, and...
Read guide →
Solar 4 RVs guide
In power systems, ignoring continuous ratings isn't just a minor oversight—it's risking safety, efficiency, and longevity. Installers and buyers often focus on impressive peak...
Read guide →About this range

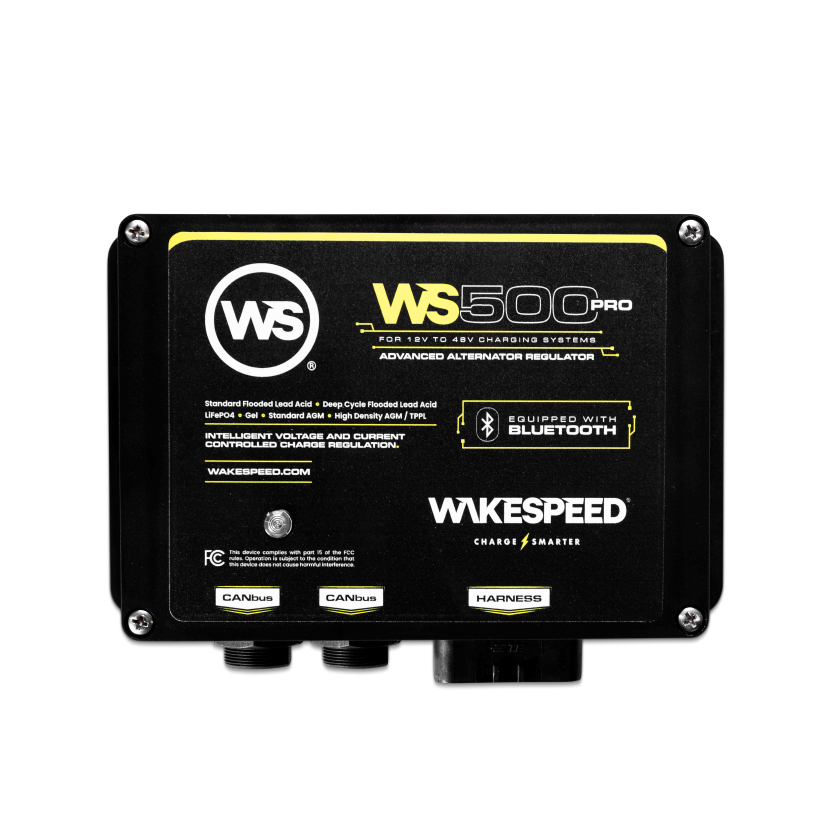

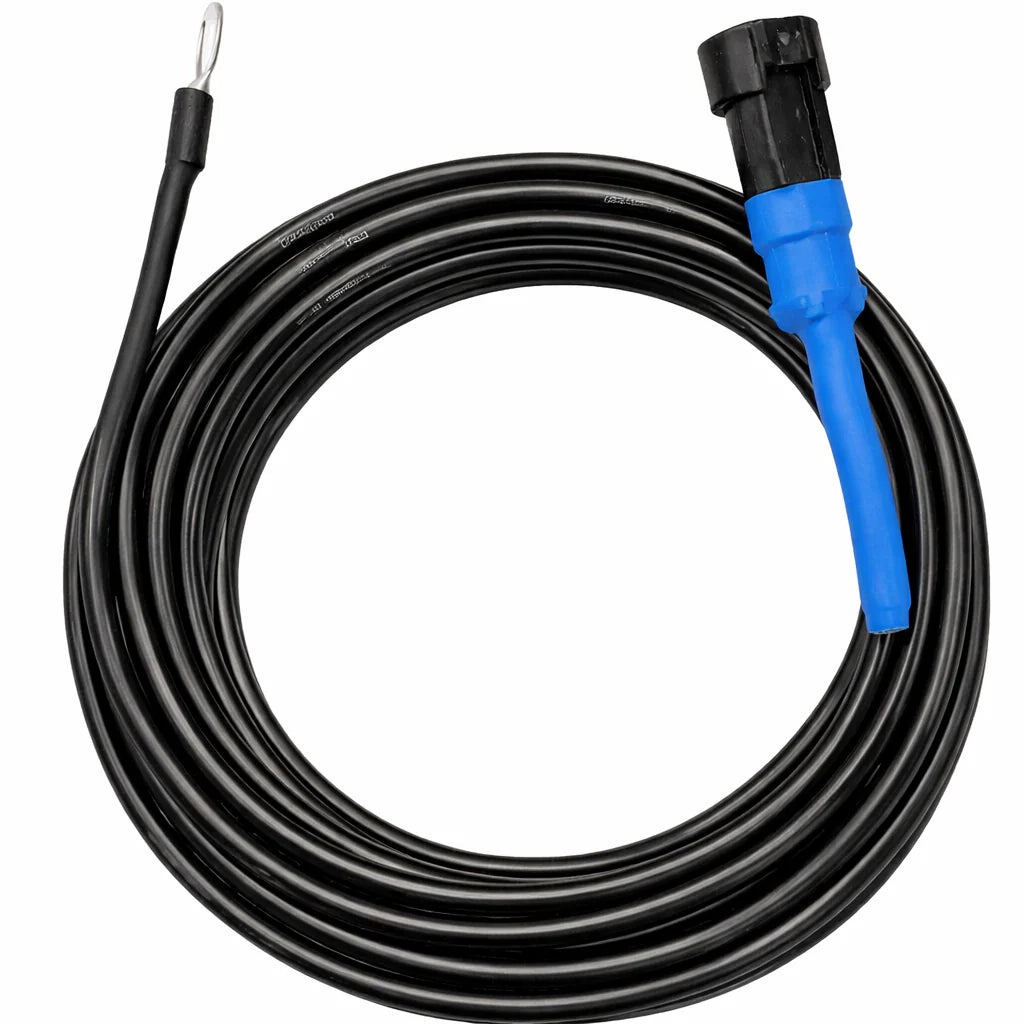

Maximise the charging efficiency of your marine, RV, or off-grid 4WD power system with our comprehensive range of Wakespeed components. The Wakespeed WS500 is recognised as one of the most advanced alternator regulators on the market, specifically designed to protect your high-output alternator while delivering optimal charge profiles for modern battery chemistries, including lithium (LiFePO4). By actively monitoring battery voltage, current, and temperature, Wakespeed systems ensure your off-grid electrical setup operates safely and efficiently.
Upgrading to a high-capacity lithium battery bank often reveals the limitations of standard factory alternators. Without intelligent regulation, alternators can quickly overheat and fail when tasked with delivering continuous high currents to a deeply discharged lithium bank. The lithium compatible alternator regulators from Wakespeed solve this problem by continuously monitoring alternator temperature and modulating output to prevent thermal damage.
With built-in CANBus connectivity, the WS500 communicates directly with your Battery Management System (BMS) and other network devices, such as Victron Energy systems, ensuring charge rates are perfectly synchronised with your battery’s exact requirements.
Whether you are outfitting a new boat, upgrading a 4WD canopy, or refining your caravan power system, we carry the essential components required for a complete, professional installation:
For additional mounting and wiring components, explore our wider selection of alternator regulator accessories to complete your setup.

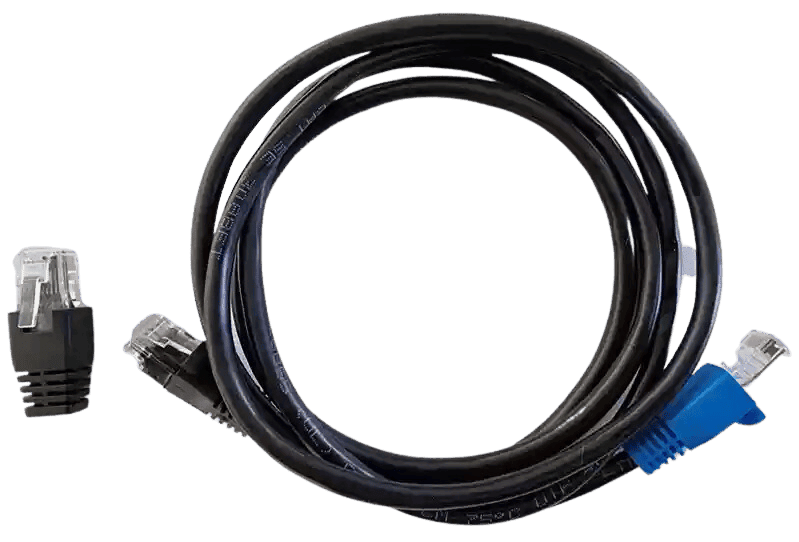

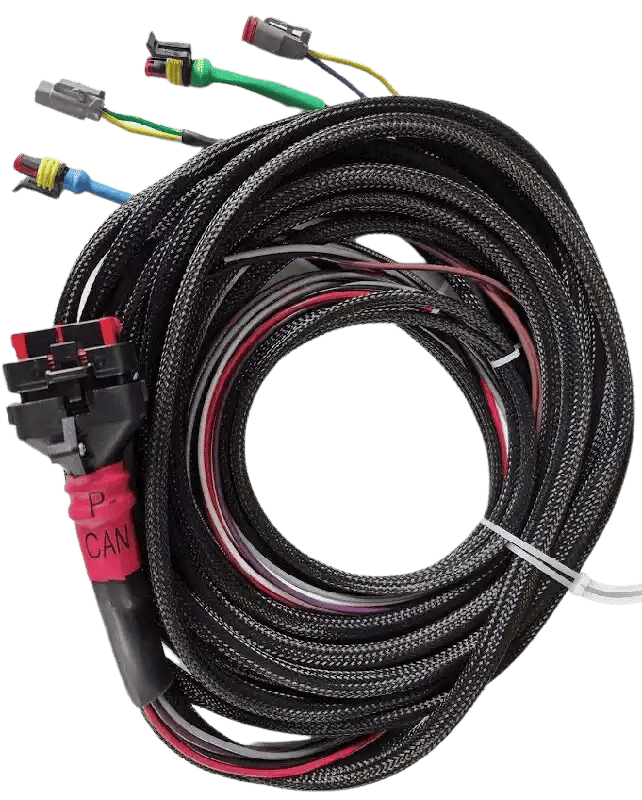

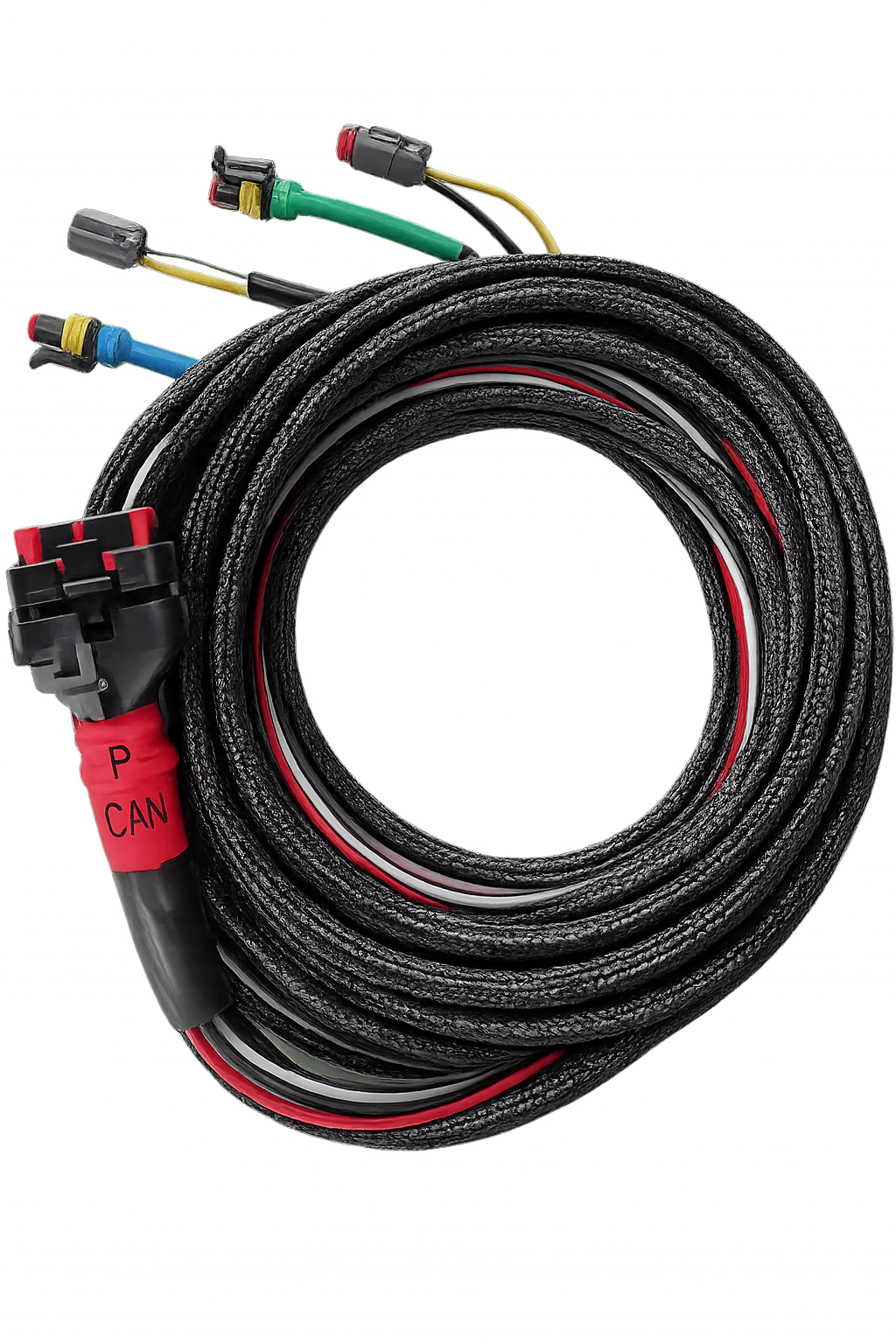

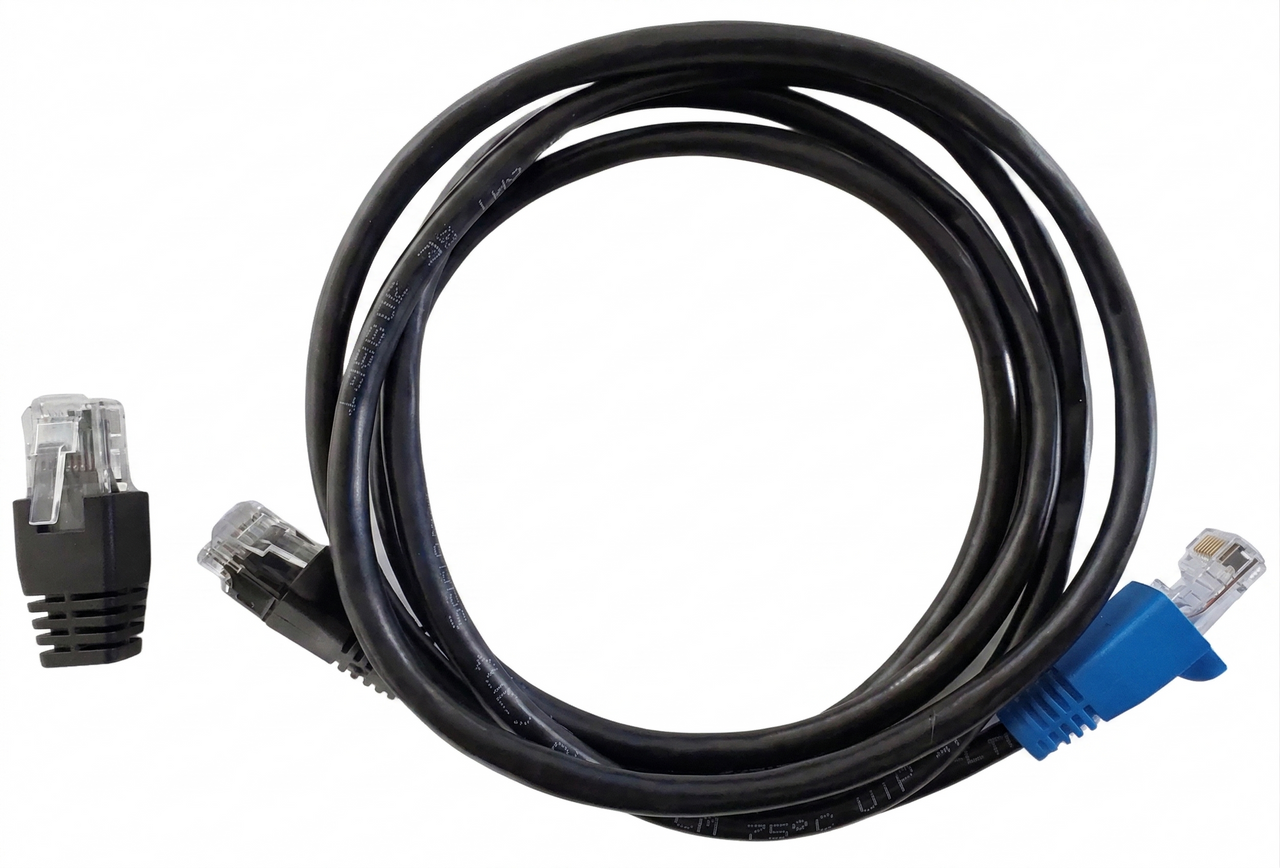

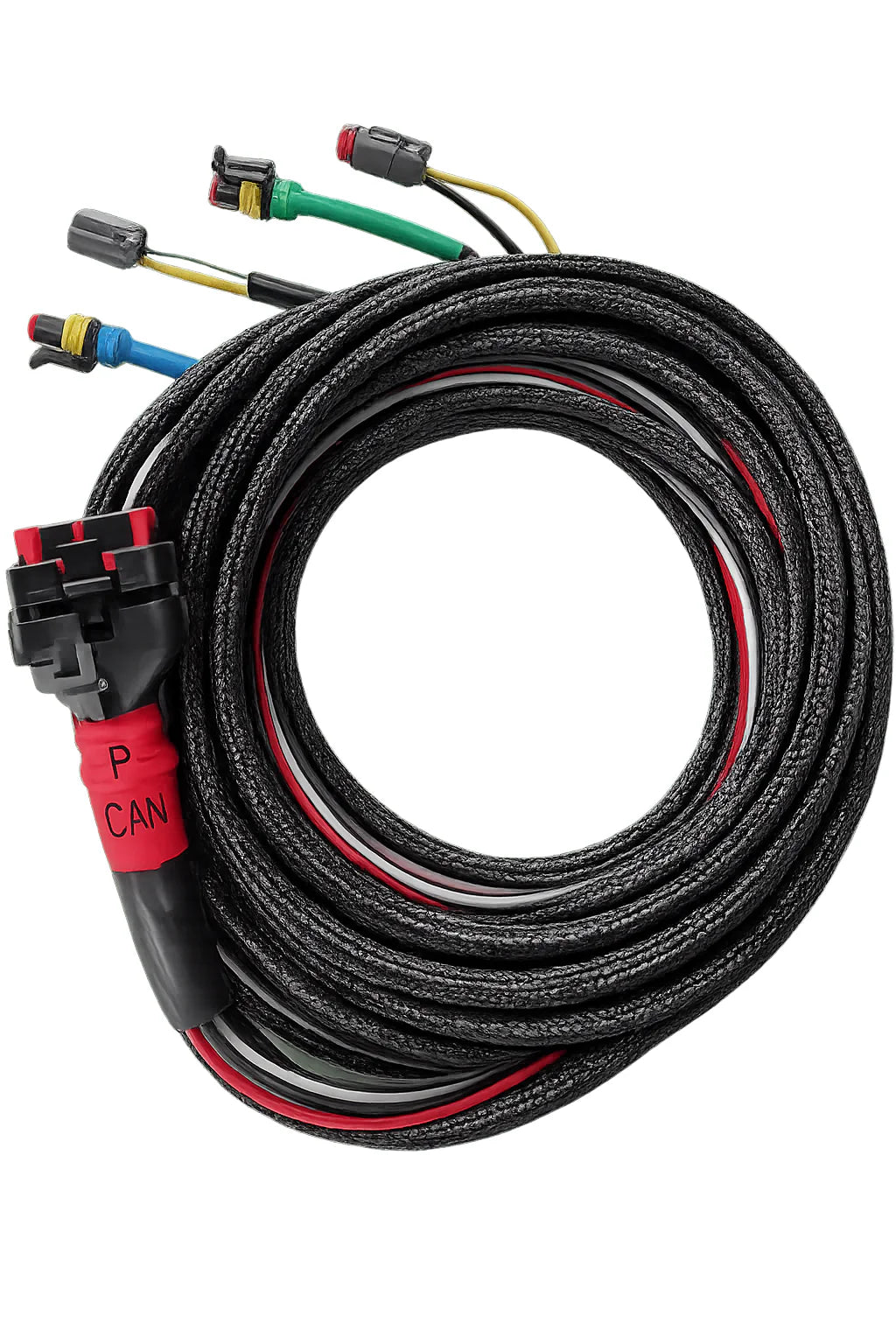

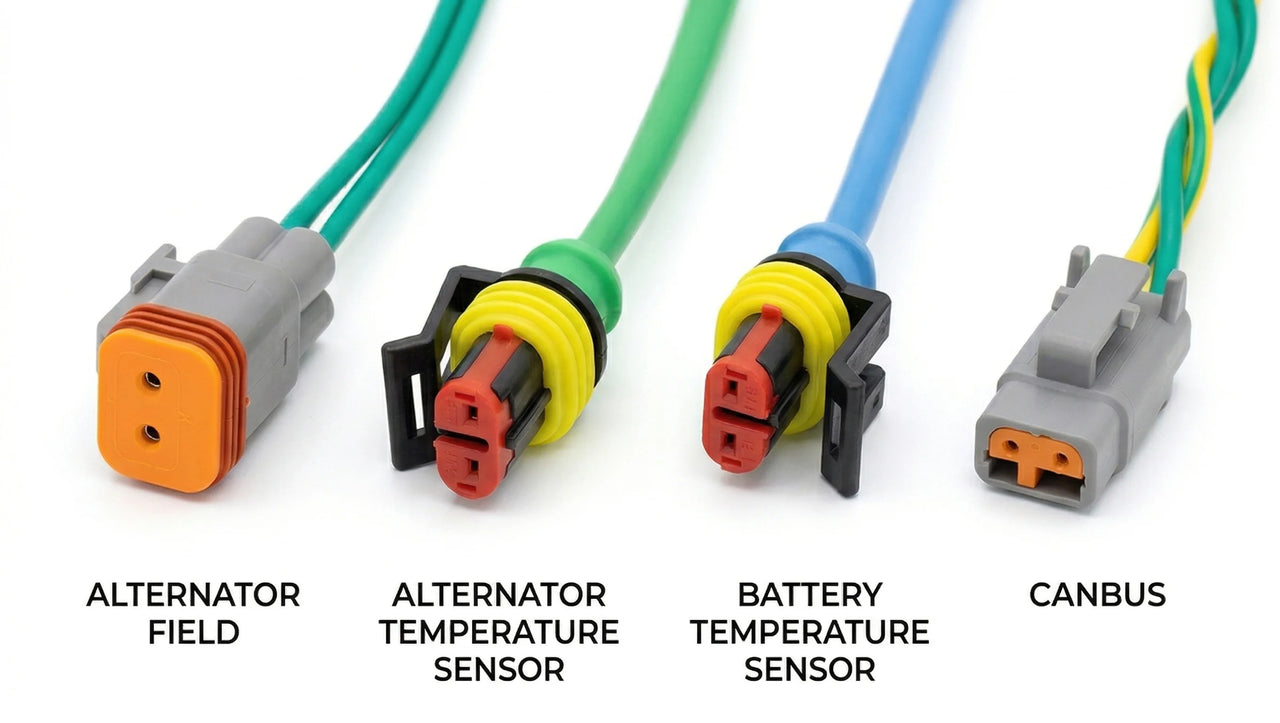

Correctly configuring your Wakespeed WS500 requires matching the regulator and harness to your specific alternator and battery system. The WS500 is compatible with 12V, 24V, and 48V systems, automatically scaling its charge profiles based on your configuration. When selecting a wiring harness, you must confirm whether your alternator is P-type (positive switching) or N-type (negative switching) to ensure proper field control. For advanced setups communicating with a Victron Cerbo GX or BMS, ensure you select a harness equipped with CANBus leads and the appropriate crossover cables.
If you are troubleshooting an existing installation, you can refer to our guide on Wakespeed WS500 Error Codes or read through the Wakespeed WS500 buyer's guide for further technical insights on alternator regulators.
As an Australian Family Business with a decade of experience in off-grid and mobile power, we are committed to providing high quality products tailored to your exact needs. We offer comprehensive before & after support to ensure your alternator upgrade is a success, backed by fast dispatch across the country. Browse our selection of Wakespeed regulators and harnesses below to upgrade your charging system and travel with complete confidence.
