Victron Energy Power Systems for Mobile and Off-Grid Use

Victron Energy equipment suits 12V, 24V and 48V systems in caravans, RVs, boats, 4WDs, trucks, tiny homes, and commercial and off-grid installations. This collection covers the Victron ecosystem, from SmartSolar MPPT solar charge controllers and SmartShunt battery monitors to MultiPlus-II inverter/chargers, Orion DC-DC chargers and Smart NG LiFePO4 lithium batteries. Most components communicate over VE.Direct, VE.Bus or VE.Can, so a GX device can monitor and control the whole system from one screen.

Key Victron Product Ranges

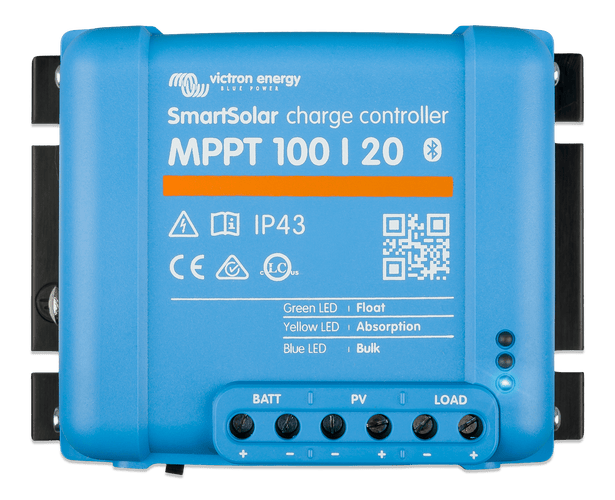

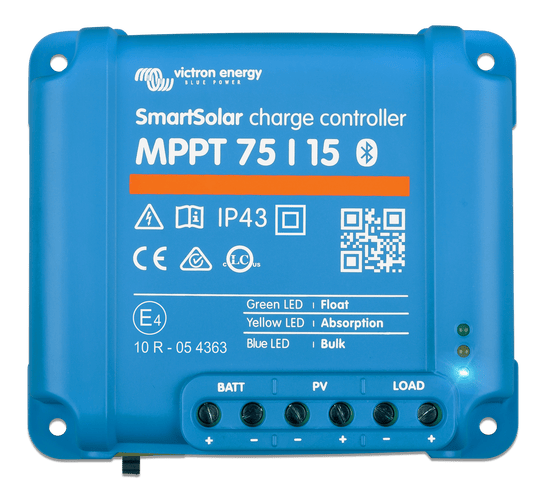

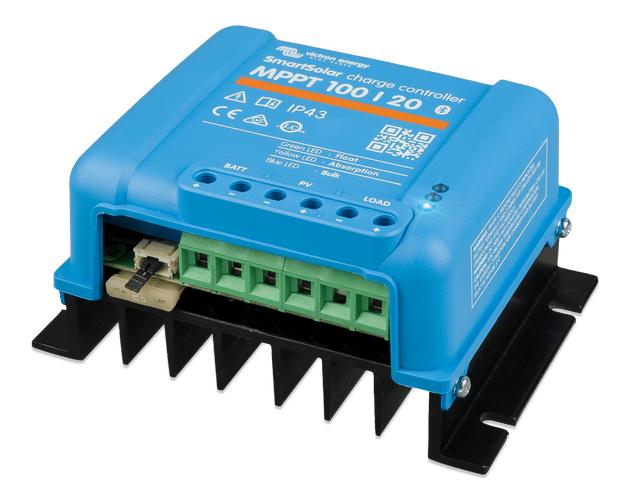

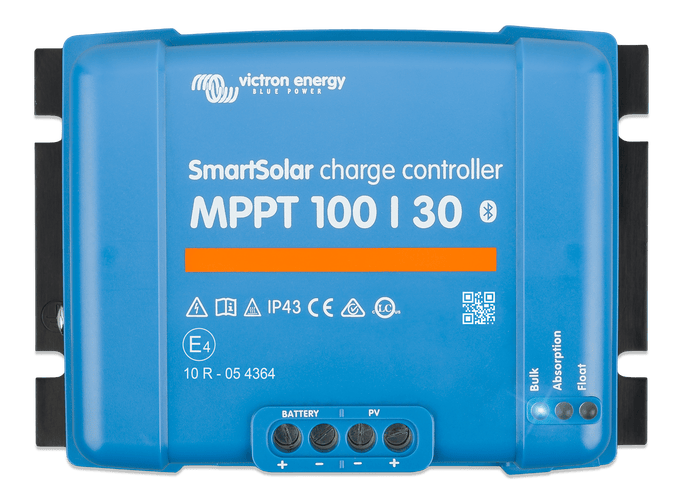

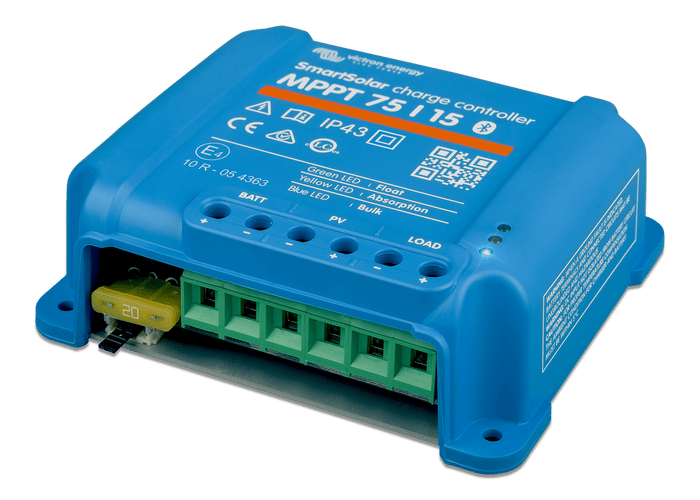

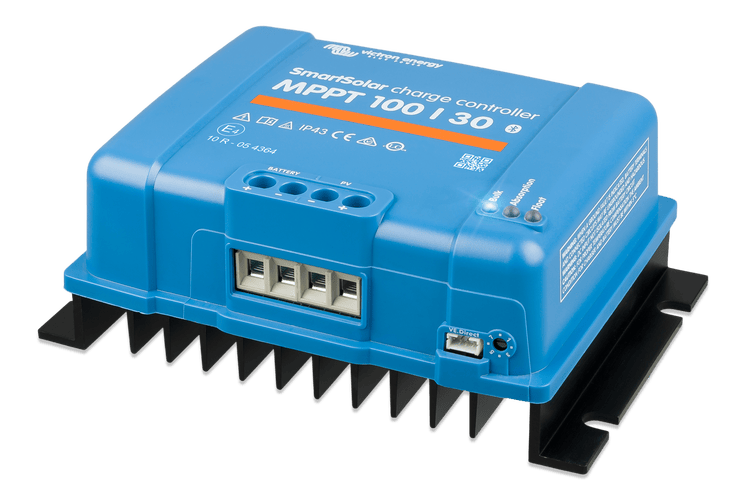

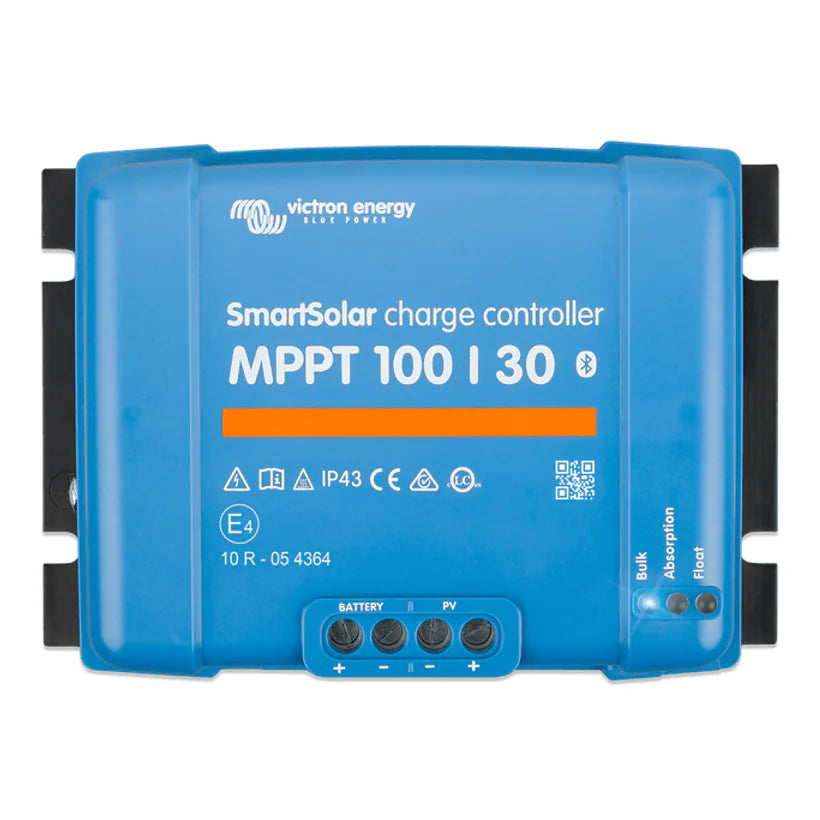

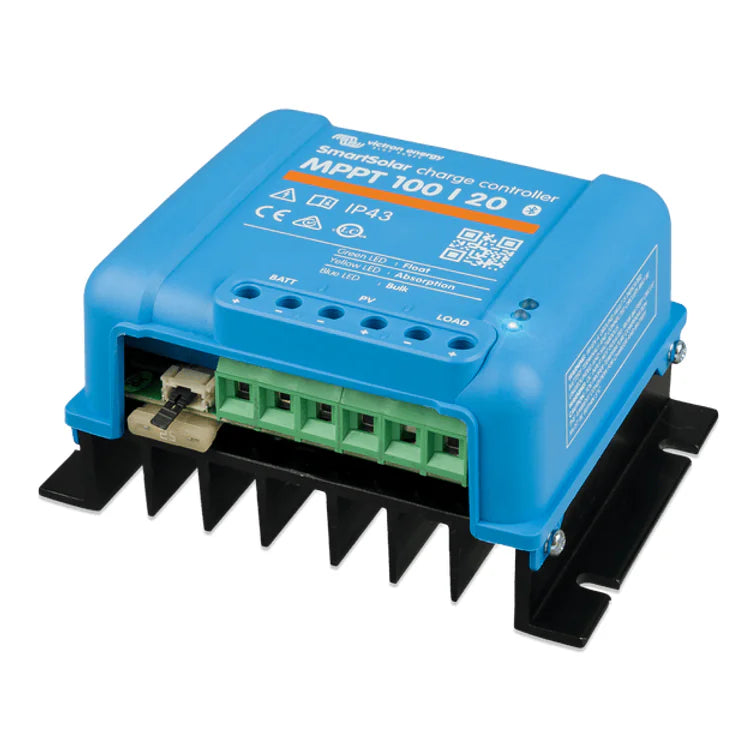

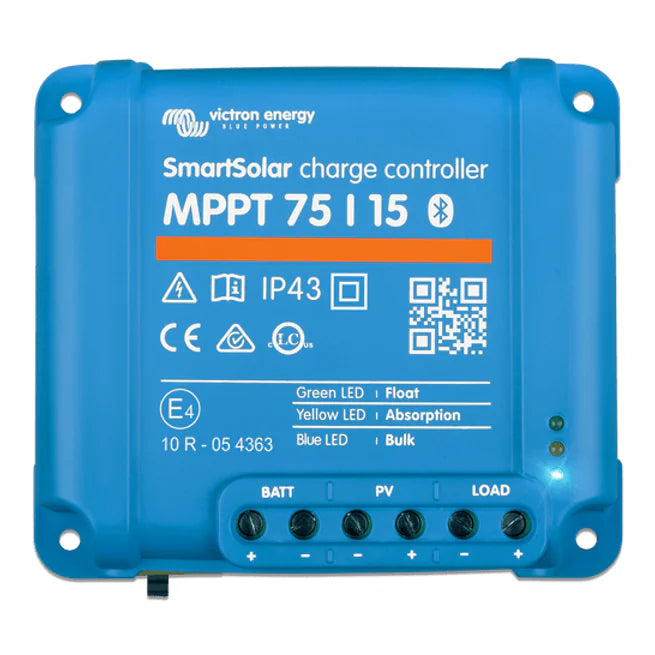

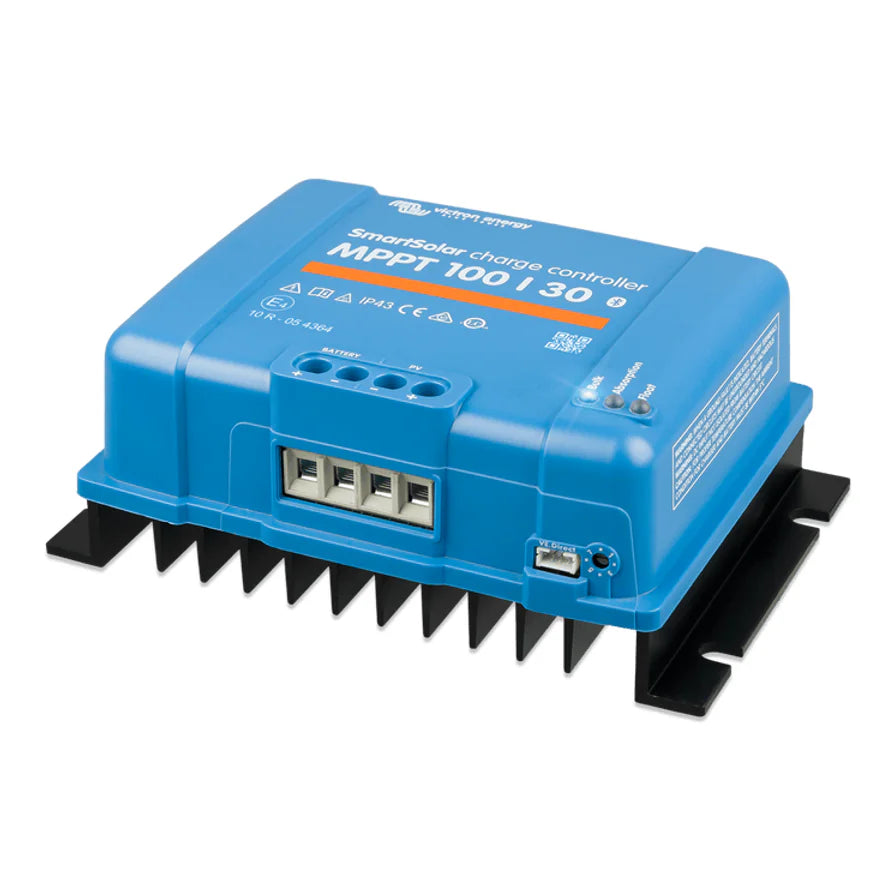

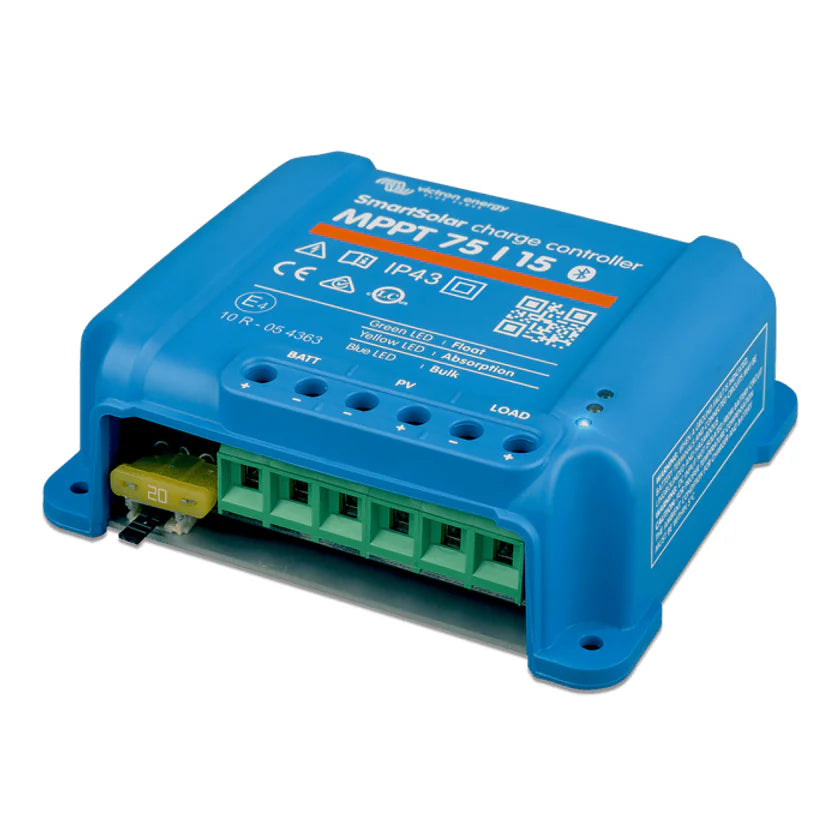

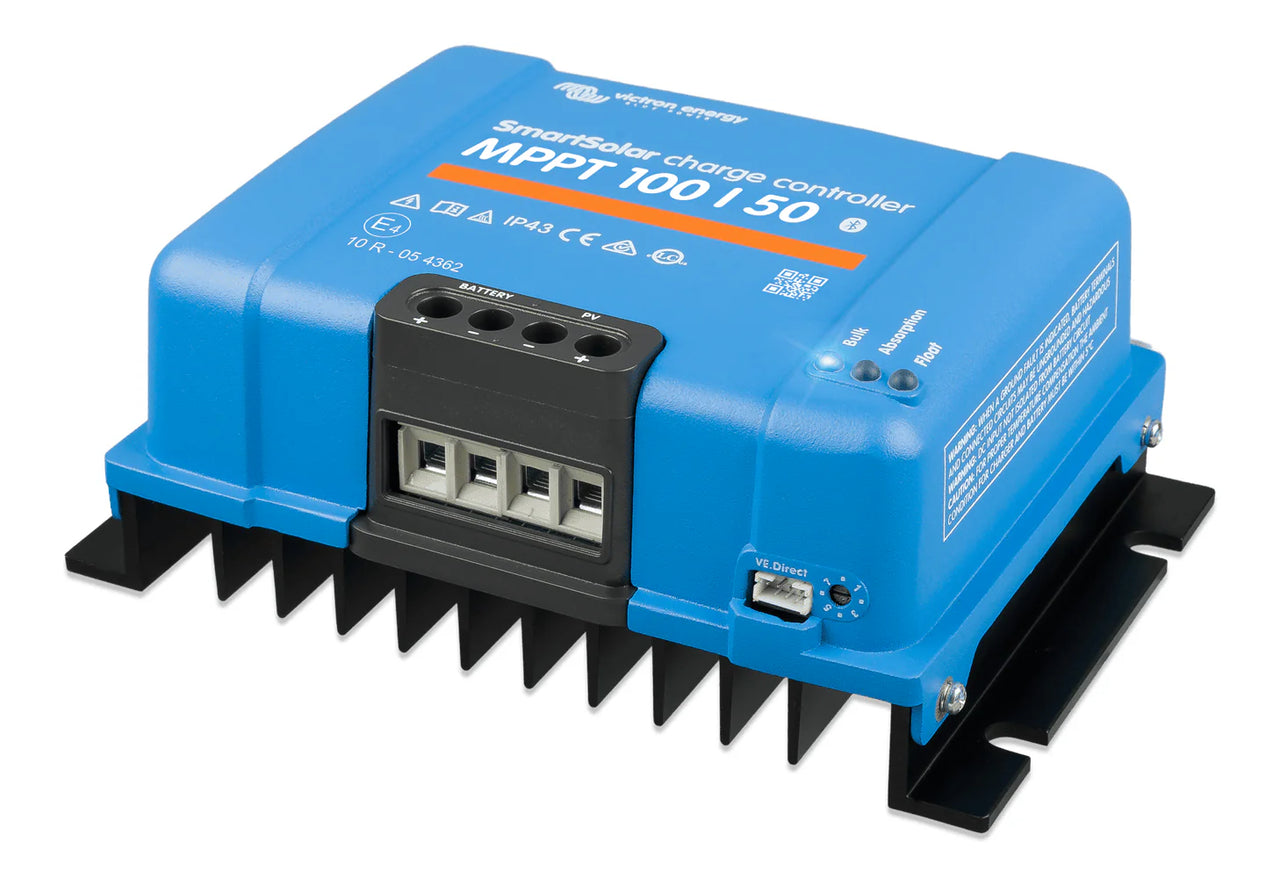

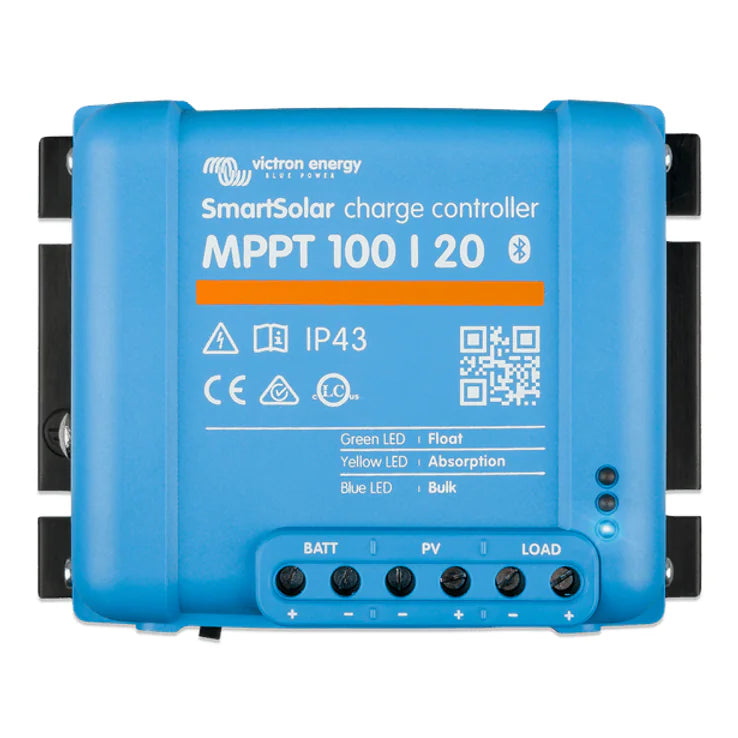

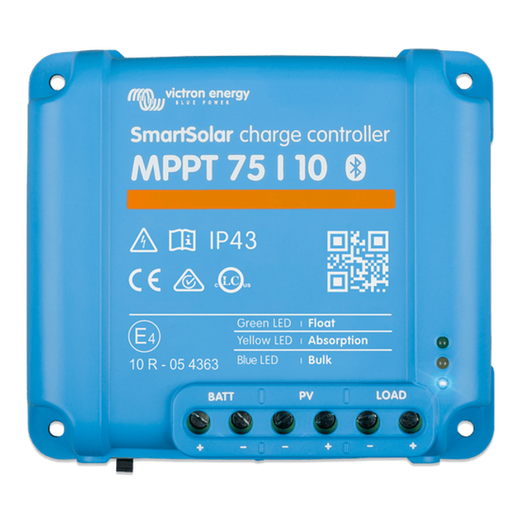

• Solar charge controllers: SmartSolar MPPT models with built-in Bluetooth, from the compact 75/10 and 100/20 through the popular 100/30 and 100/50 to the 250/100 and the high voltage MPPT RS 450/200. BlueSolar MPPT and PWM controllers are also available.

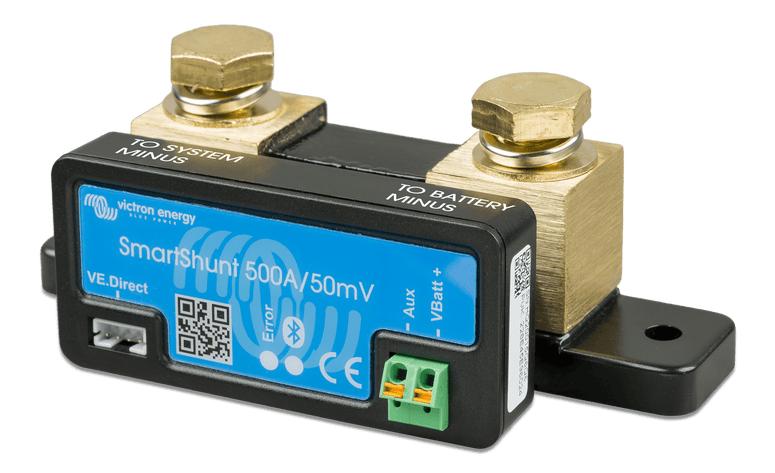

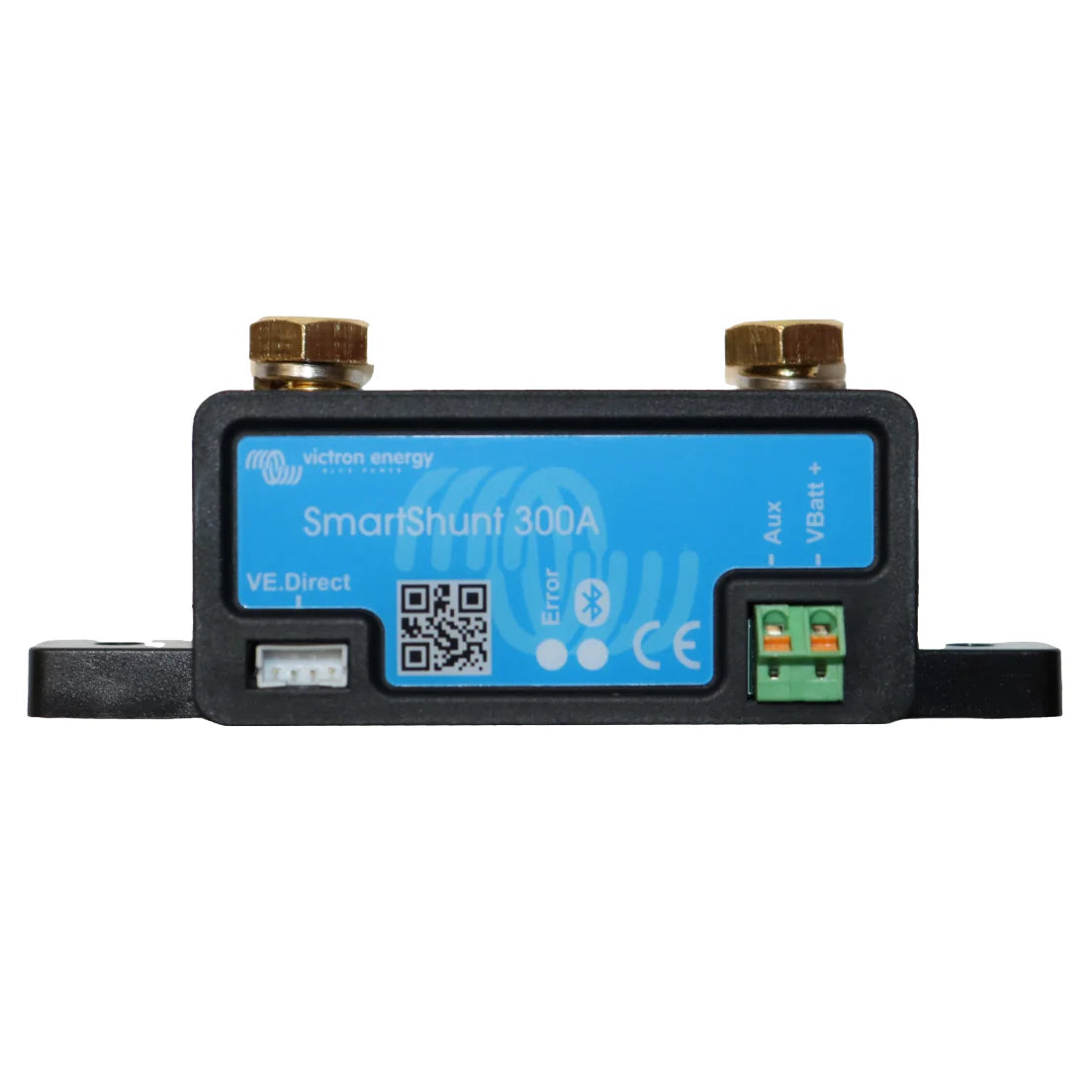

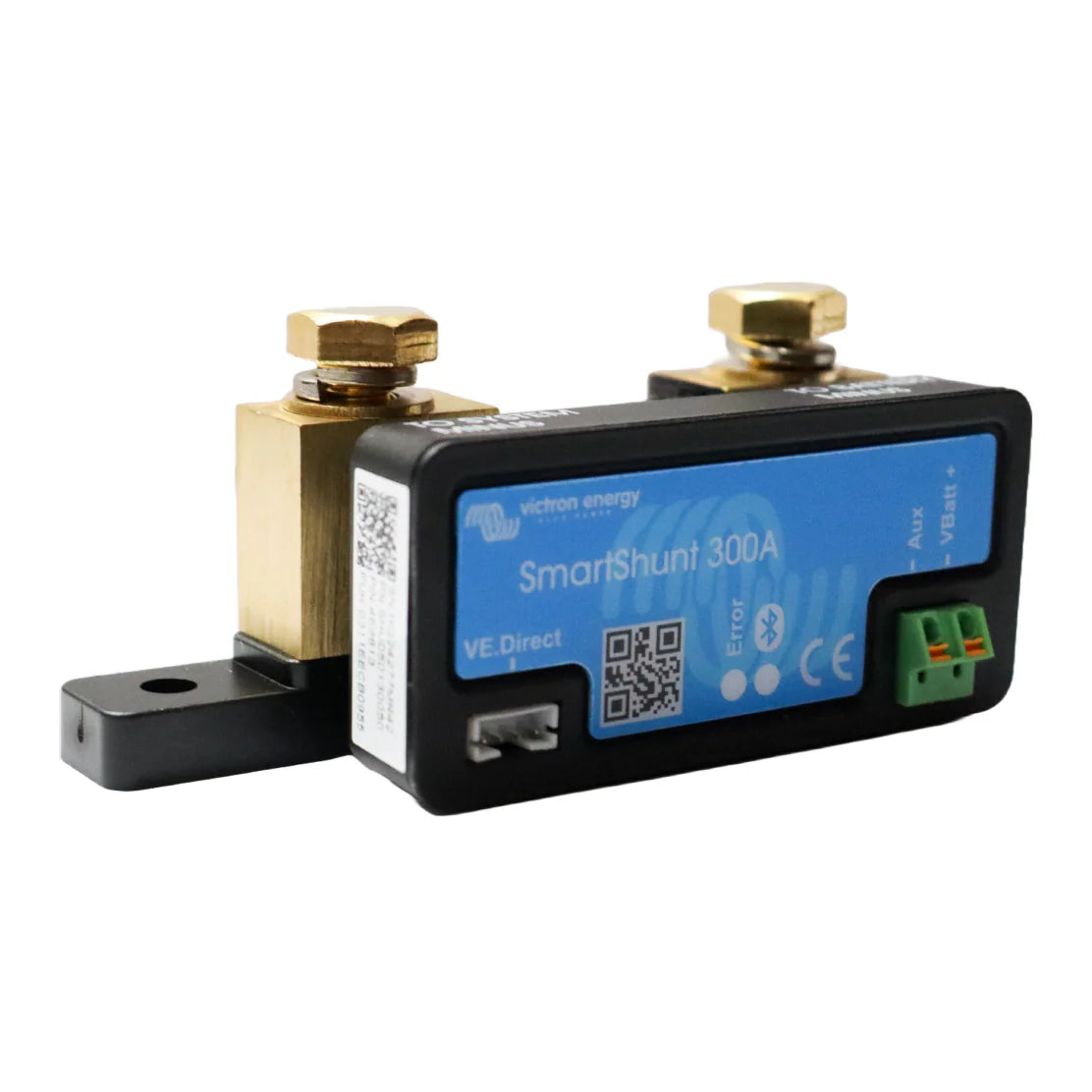

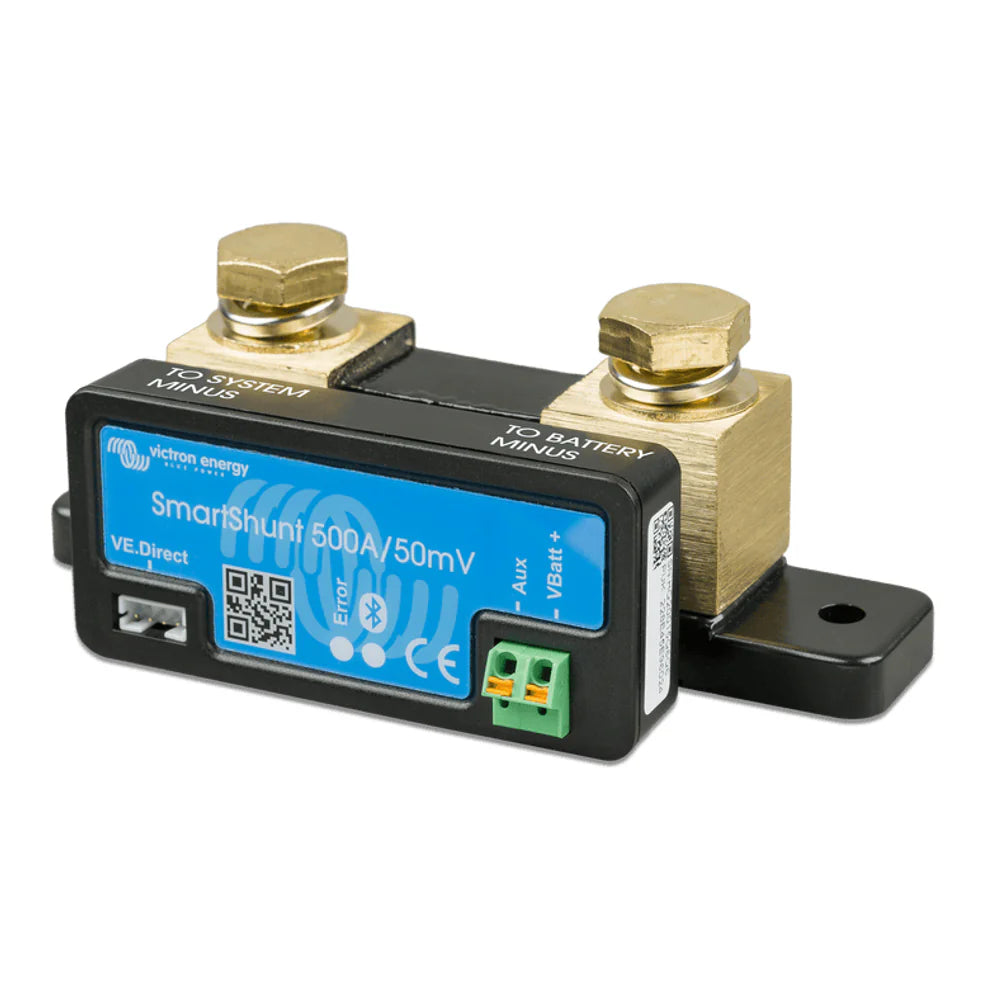

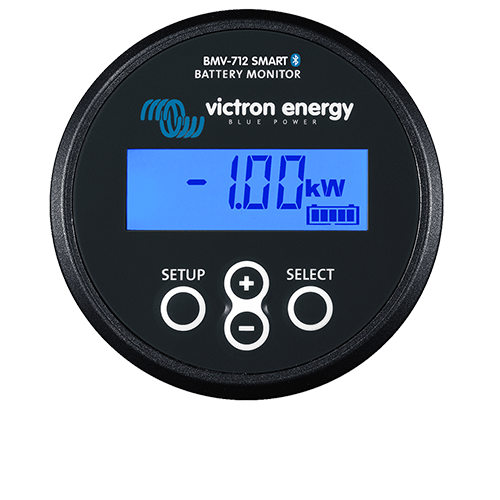

• Battery monitors: SmartShunt from 300A to 2000A in standard and IP65 versions, BMV-712 Smart, BMV-700 and the Lynx Shunt VE.Can.

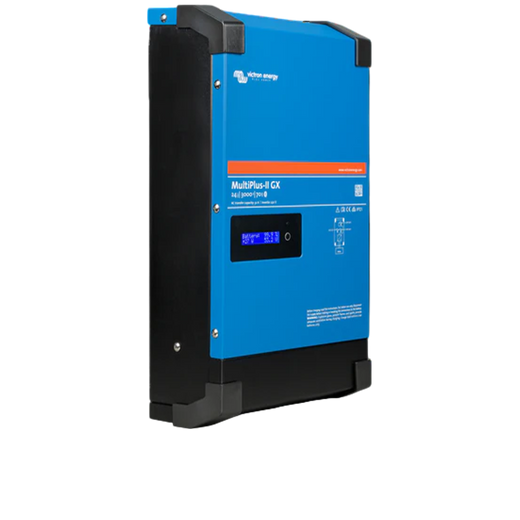

• Inverters and inverter/chargers: Phoenix VE.Direct and Phoenix Smart inverters, plus MultiPlus, MultiPlus-II, Quattro, EasySolar-II and Multi RS units, including 48V models for larger installations.

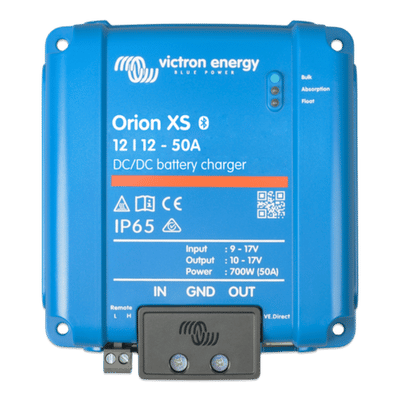

• DC-DC chargers and converters: Orion XS 12/12-50A, Orion XS 1400, Orion-Tr Smart isolated and non-isolated chargers, Orion-Tr converters and Buck-Boost units.

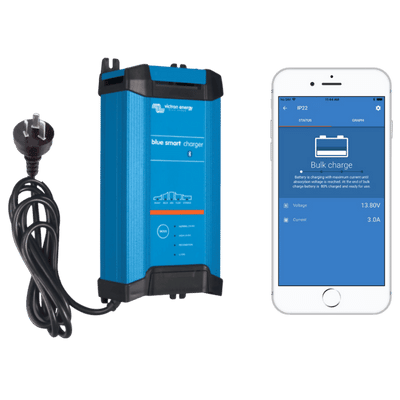

• Mains battery chargers: Blue Smart IP22, IP65 and IP67, Phoenix Smart IP43, Centaur, Skylla-TG and Skylla-i.

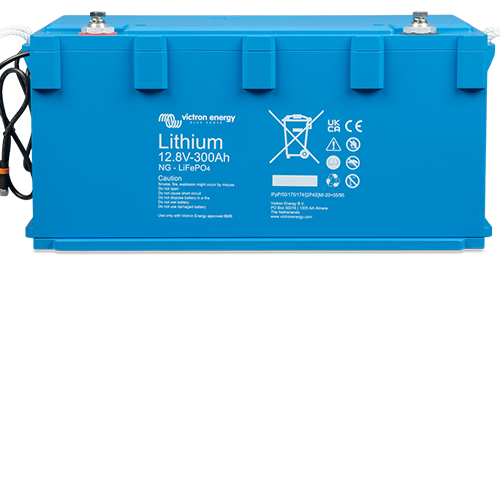

• Batteries: Smart NG and Smart LiFePO4 lithium, SuperPack and SuperPack NG, plus AGM, AGM Super Cycle and Gel deep cycle batteries.

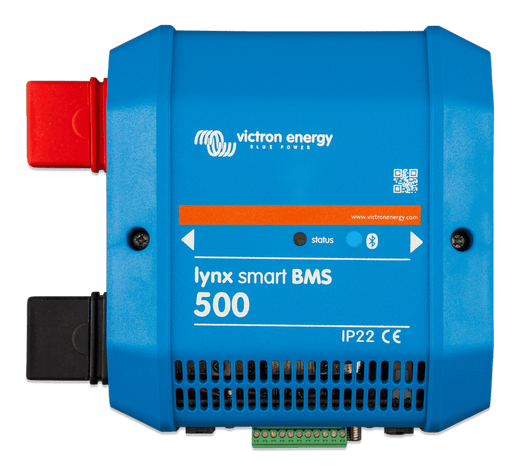

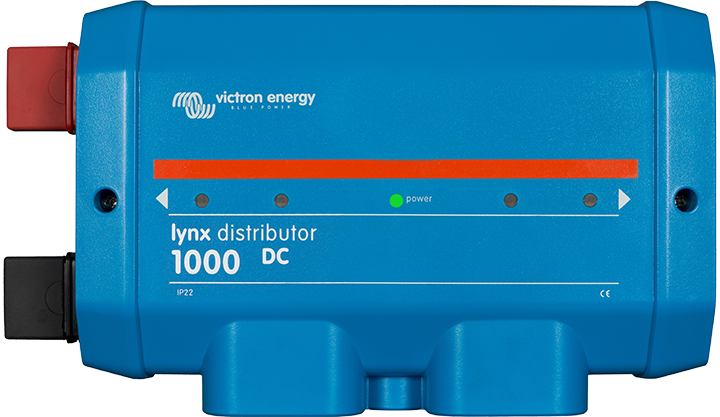

• Monitoring and distribution: Cerbo GX MK2 and MK3, Ekrano GX, GX Touch 50 and 70 displays, GlobalLink 520, Lynx busbars and Lynx Smart BMS, BatteryProtect, Cyrix relays, MIDI, Mega and ANL fuses, and VE.Direct cables.

Specialist Victron Support

As an authorised Victron distributor and self repair centre, we hold popular lines in bulk for prompt dispatch. We can also supply the wider Victron range to order. Our team offers pre-sales and after-sales technical support, pre-programmed units, and a system design service at no cost when the Victron equipment is purchased through us.

How to Choose the Right Victron Components

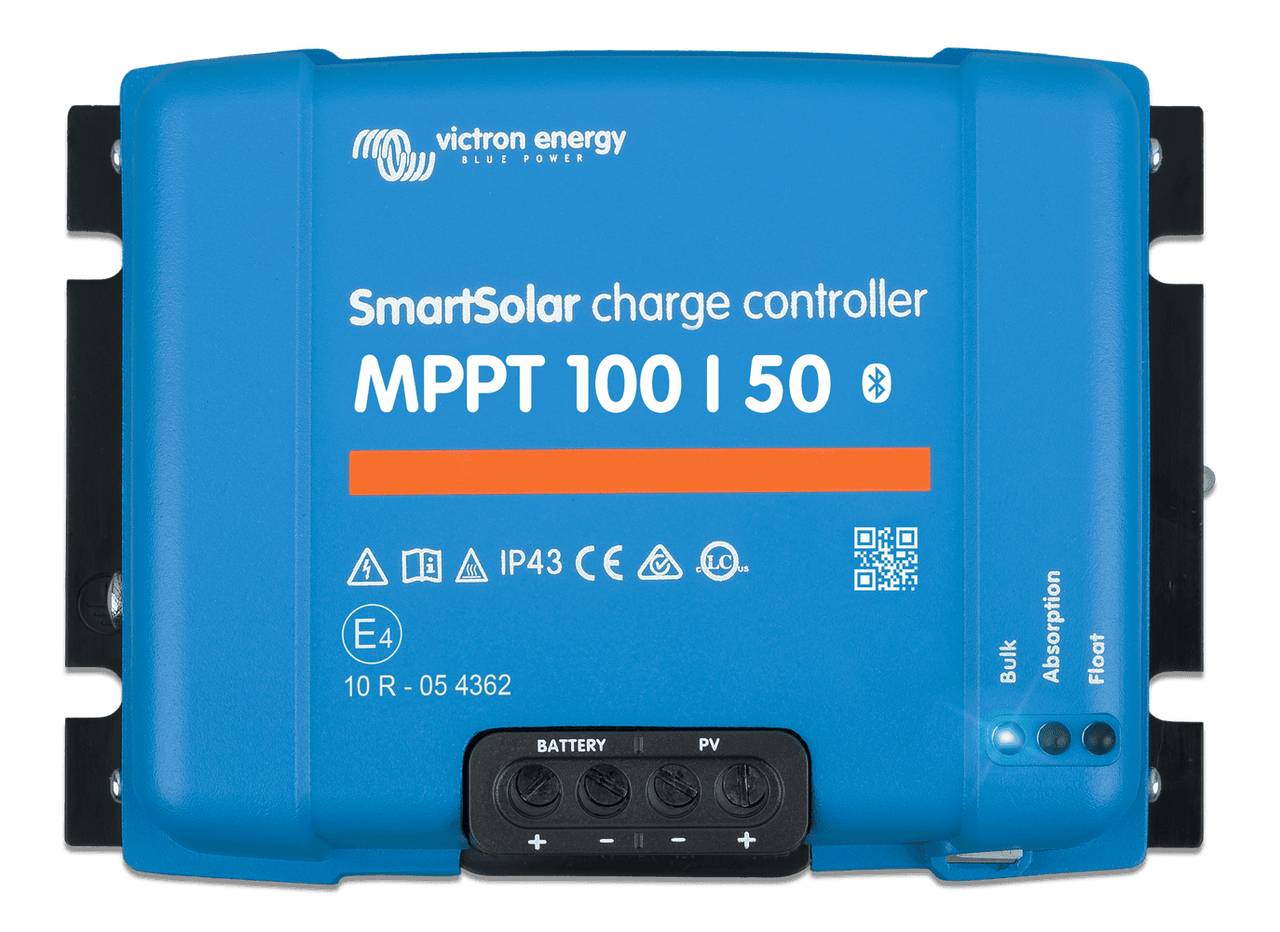

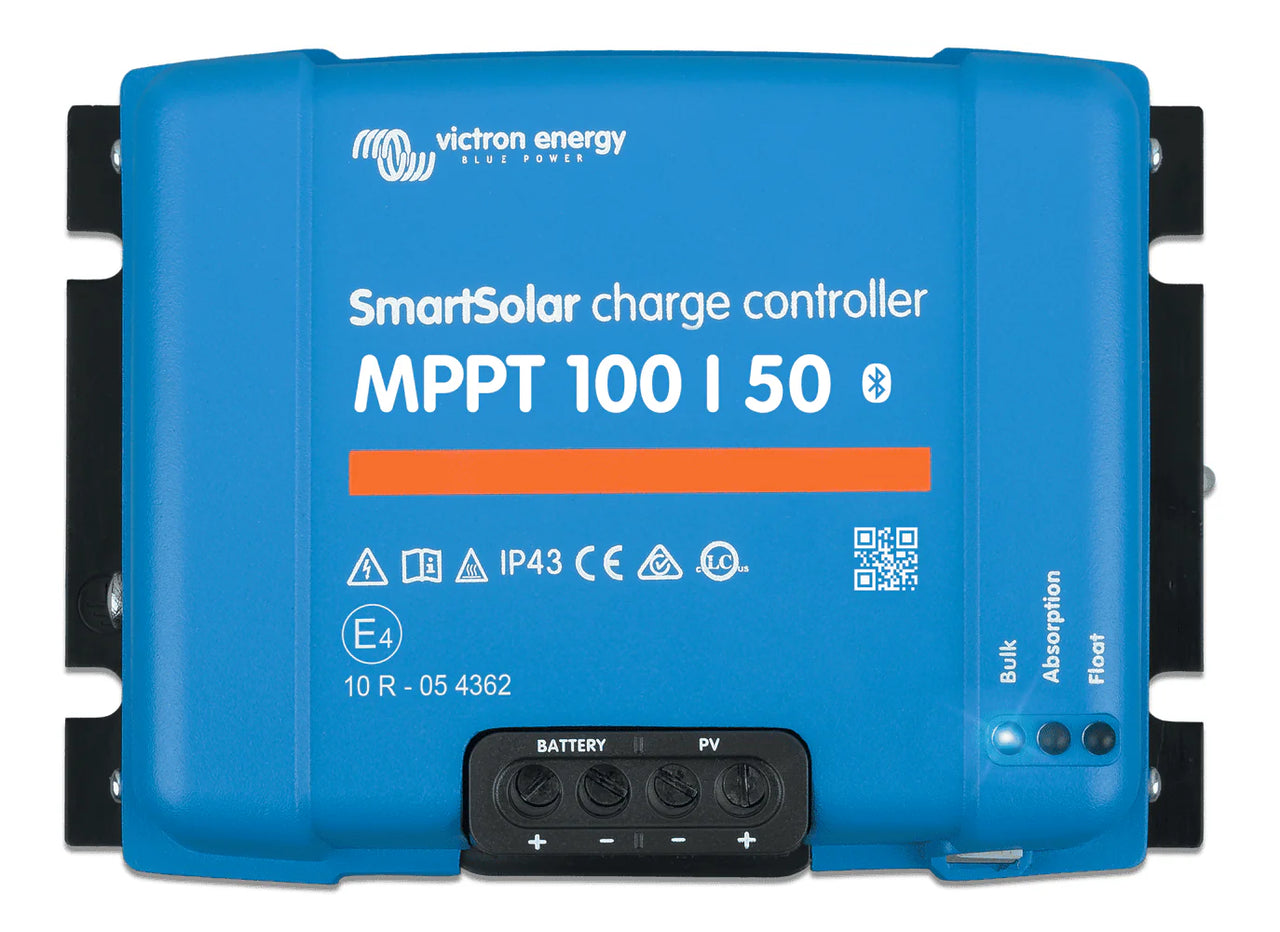

Solar charge controllers: In the model name, the first number is the maximum PV input voltage and the second is the charge current. An MPPT 100/50 accepts up to 100V from the array and delivers up to 50A to the battery. Keep the array's cold-weather Voc below the voltage limit, and size the current to suit the array wattage divided by the battery voltage. SmartSolar models include Bluetooth. BlueSolar models need a VE.Direct Bluetooth Smart dongle or a GX device for app access.

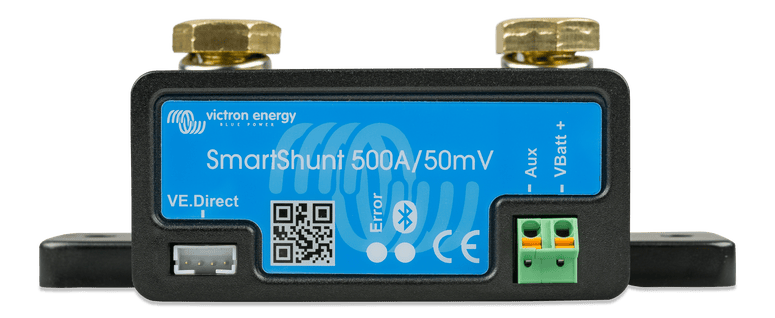

Battery monitoring: The SmartShunt reports state of charge through the VictronConnect app or a GX device. The BMV-712 adds a panel-mounted display. Choose a shunt rating above your highest continuous current. Our guide to programming the Victron BMV-712 and SmartShunt for lithium batteries covers the key settings.

Inverters and DC-DC charging: Size an inverter to your continuous AC load, with headroom for motor start-up surges. Choose a MultiPlus or MultiPlus-II if you also need shore power charging and automatic transfer. For vehicle charging, Orion XS and Orion-Tr Smart chargers suit dual battery setups. Isolated Orion-Tr models separate the input and output negatives.

Lithium systems: Smart NG batteries operate with a compatible Victron BMS, such as the VE.Bus BMS NG, Lynx Smart BMS NG or miniBMS NG. Factor the BMS into your budget from the start.

Build your Victron system with confidence. Select the components that match your voltage and loads, or contact our team for a free design review and pre-programmed equipment that is ready to install.
