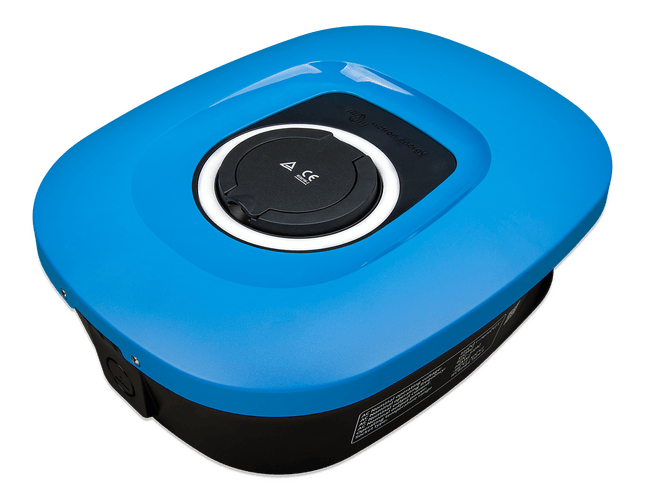

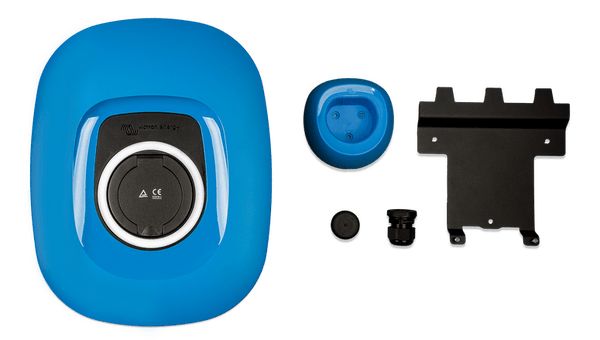

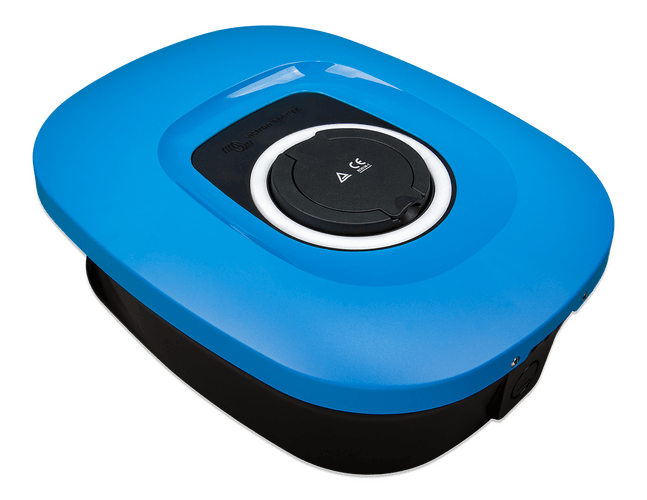

Victron EV (Electric Vehicle Charger) Charging Station NS


Victron EV (Electric Vehicle) Charging Station NS Main ImageVictron EV (Electric Vehicle) Charging Station NS 1Victron EV (Electric Vehicle) Charging Station NS 2Victron EV (Electric Vehicle) Charging Station NS 3Victron EV (Electric Vehicle) Charging Station NS 4Victron EV (Electric Vehicle) Charging Station NS 5Victron EV (Electric Vehicle) Charging Station NS 6Victron EV (Electric Vehicle) Charging Station NS 8

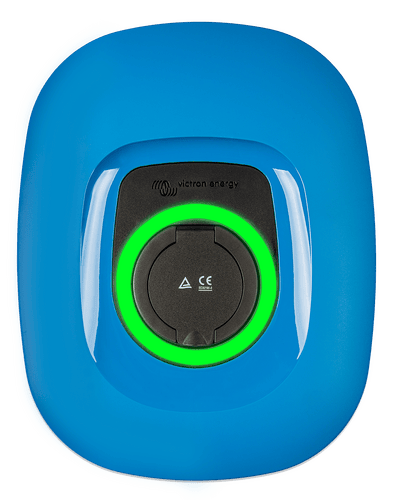

Victron EV (Electric Vehicle) Charging Station NS Main Image
Victron EV (Electric Vehicle) Charging Station NS 1
Victron EV (Electric Vehicle) Charging Station NS 2
Victron EV (Electric Vehicle) Charging Station NS 3

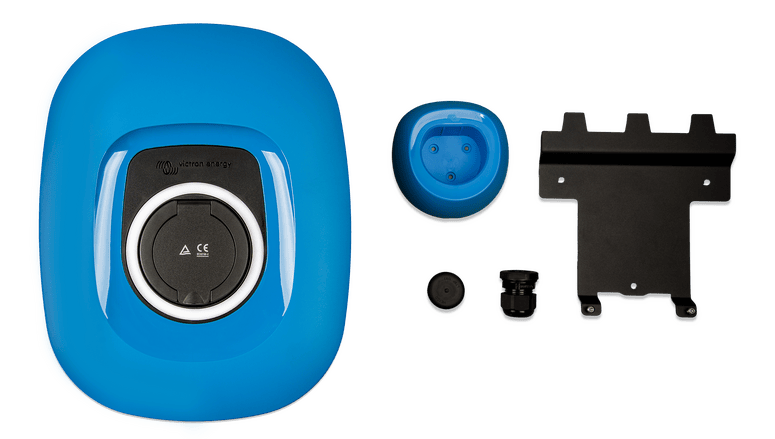

Victron EV (Electric Vehicle) Charging Station NS 4
Victron EV (Electric Vehicle) Charging Station NS 5
Victron EV (Electric Vehicle) Charging Station NS 6
Victron EV (Electric Vehicle) Charging Station NS 8
Regular price $829.40
$957.00
/
Availability: In Stock
View all products from Victron

Notify me when available

You have already submited form for Default Title

Thanks for contacting us. We'll get back to you as soon as product / variant is back in stock.
Guaranteed Safe and Secure Checkout
American Express Apple Pay Google Pay MastercardPayPalShop Pay Union PayVisa

5
Victron EV (Electric Vehicle) Charging Station NS Main Image

Victron EV (Electric Vehicle Charger) Charging Station NS

DESCRIPTION

EV Charging Station NS – 22 kW High-Power EV Charging Station

The EV Charging Station NS is a versatile, high-efficiency solution for electric vehicle owners, offering both three-phase and single-phase charging capabilities. It delivers a robust maximum of 22 kW AC when operating in three-phase mode and 7.3 kW in single-phase mode. This makes it an ideal charging station for those looking to minimise charging time while maximizing efficiency. The station comes standard with a stylish blue front, with additional black or white fronts available for purchase to customise your setup.

Key Features

WiFi Communication and Monitoring

  • The built-in WiFi module (802.11 b/g/n) ensures seamless communication for configuration, monitoring, and control.
  • The Access Point or Station mode allows easy setup and ongoing monitoring, providing the flexibility needed for hassle-free operation.

Bluetooth Control via VictronConnect App

Control your charging station effortlessly using the VictronConnect App. Monitor session statistics, adjust settings, and manage parameters all from your mobile device, giving you complete control over your charging experience.

Programmable RGB Light Ring

A fully customisable RGB Light Ring around the charging port offers instant feedback on the charging station’s status. Program it to display different colors and effects depending on the state (disconnected, charging, charged), ensuring a quick and clear visual reference.

Flexible Charging Modes

  1. Manual Mode – Customise Output Current Adjust the charging output between 6-32 A using the integrated web interface, a GX device, or via VictronConnect. Manual mode allows for precise control, enabling you to start or stop charging at your convenience.

  2. Automatic Mode – Maximise PV System Efficiency Detect and utilise excess power from your solar PV system, ensuring your vehicle charges only when additional energy is available, making it a smart choice for off-grid and solar-powered setups.

  3. Scheduled Mode – Optimise Charging Times A fully programmable scheduler lets you charge during specific time intervals, such as off-peak hours when electricity rates are lower, helping reduce costs over time.

Full Integration with GX Devices and VRM Portal

Stay connected and informed with full integration into GX devices and the Victron VRM Portal. From the portal, you can monitor real-time charging stats, generate custom reports, and control your EV charging station remotely, making it a powerful tool for both home and commercial users.

Applications:

  • Ideal for residential use in homes or garages with EVs.
  • Perfect for solar-powered systems, off-grid locations, or industrial applications where control and efficiency are paramount.
  • Suitable for tiny homes, RVs, caravans, and marine use, providing a versatile, high-performance charging option.

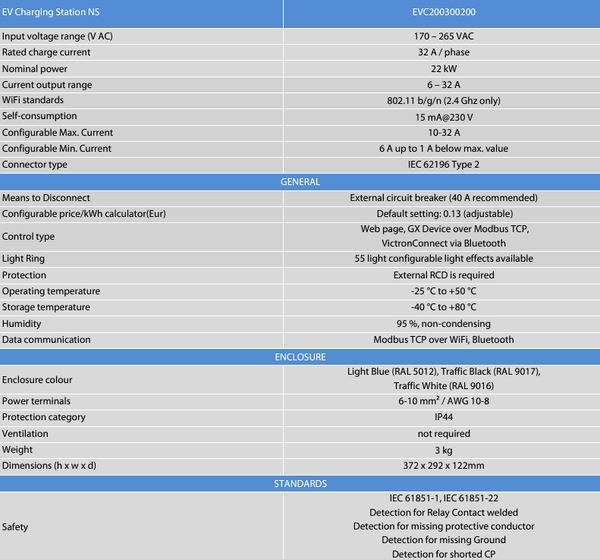

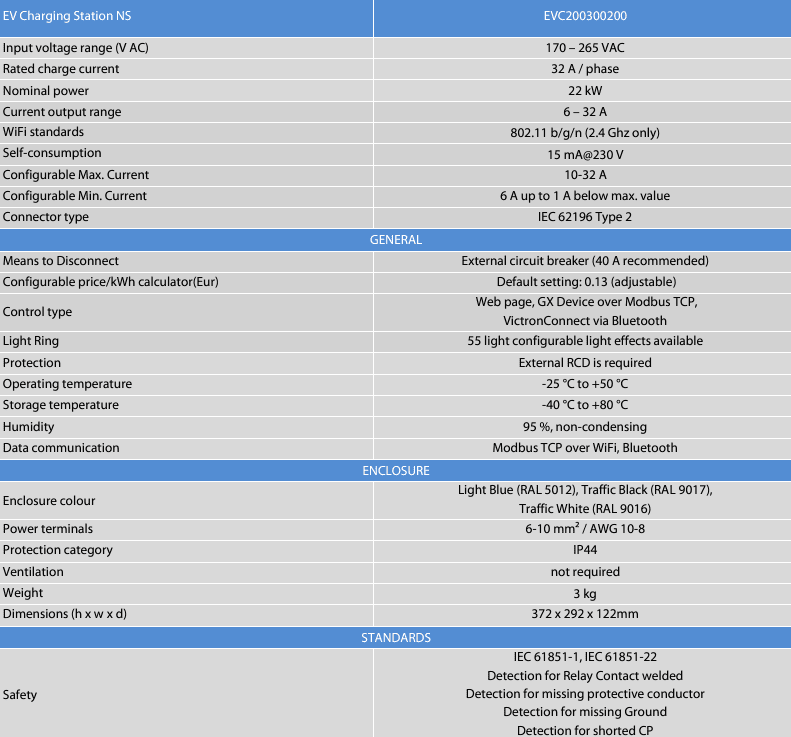

SPECIFICATIONS

Specifications

Specification Details
Input voltage range (V AC) 170 – 265 VAC
Rated charge current 32 A / phase
Nominal power 22 kW
Current output range 6 – 32 A
WiFi standards 802.11 b/g/n (2.4 GHz only)
Self-consumption 15 mA@230 V
Configurable Max. Current 10-32 A
Configurable Min. Current 6 A up to 1 A below max. value

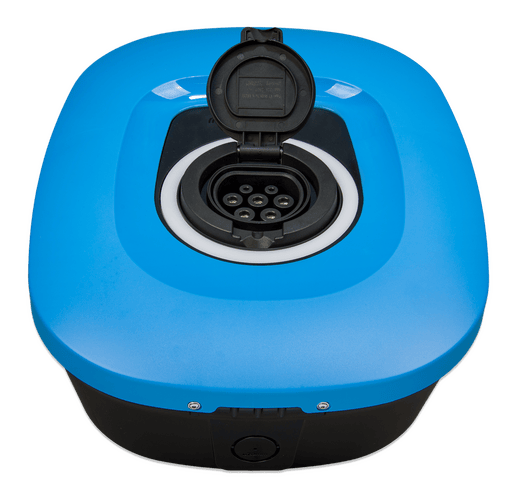

Connector type IEC 62196 Type 2
GENERAL
Means to Disconnect External circuit breaker (40 A recommended)
Configurable price/kWh calculator (EUR) Default setting: 0.13 (adjustable)
Control type Web page, GX Device over Modbus TCP, VictronConnect via Bluetooth
Light Ring 55 light configurable light effects available
Protection External RCD is required
Operating temperature -25 °C to +50 °C
Storage temperature -40 °C to +80 °C
Humidity 95 %, non-condensing
Data communication Modbus TCP over WiFi, Bluetooth
ENCLOSURE
Enclosure colour Light Blue (RAL 5012), Traffic Black (RAL 9017), Traffic White (RAL 9016)
Power terminals 6-10 mm² / AWG 10-8
Protection category IP44
Ventilation Not required
Weight 3 kg

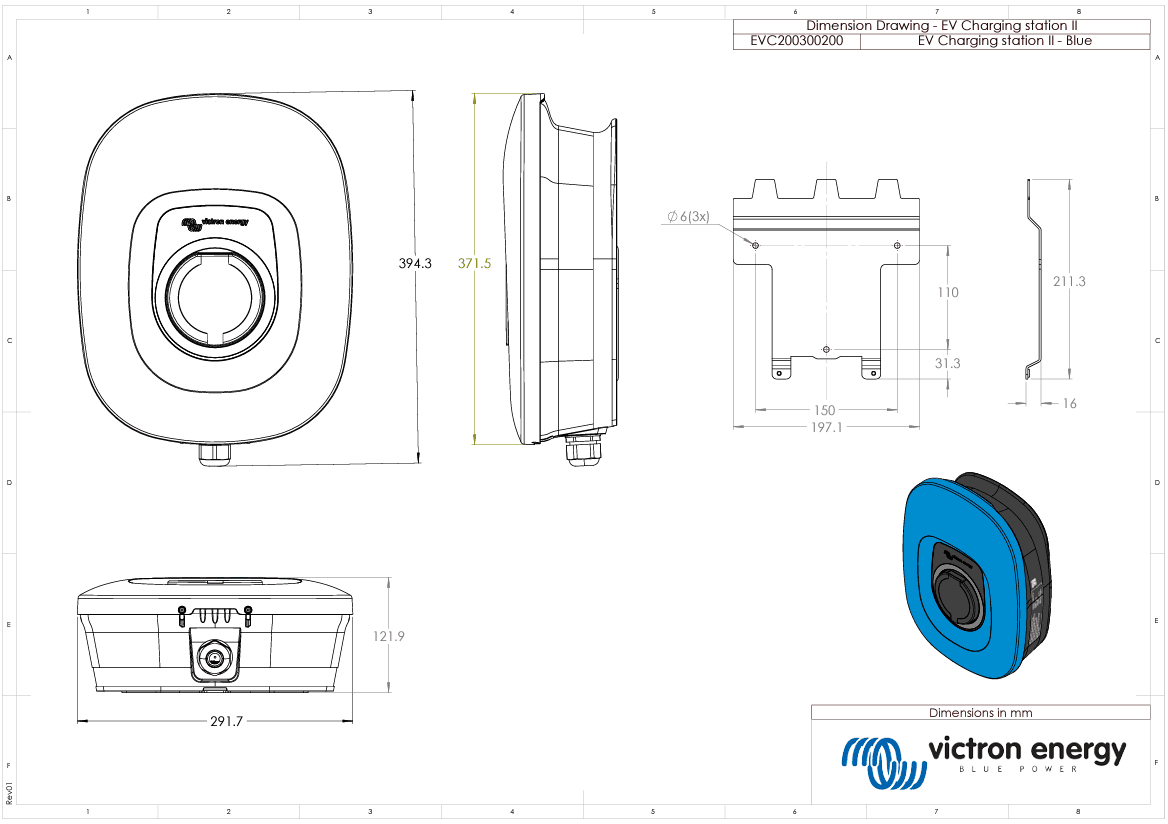

Dimensions (h x w x d) 372 x 292 x 122 mm
STANDARDS
Safety IEC 61851-1, IEC 61851-22
Detection for Relay Contact welded
Detection for missing protective conductor Yes
Detection for missing Ground Yes
Detection for shorted CP Yes

SKU: VIC-EVC200300200
Barcode: 8719076058274
Model #: EVC200300200
MPN: EVC200300200

WARRANTY

Victron Energy Limited Warranty Policy

Direct Customers

Victron Energy provides the following warranty to any direct customer (OEM, distributor or dealer) in relation to any products that Victron Energy has directly sold to the direct customer. This warranty is not an end-user warranty between Victron Energy and an end-user, and end-users shall not have any rights or remedies under this limited warranty towards Victron Energy directly. The direct customer shall, in turn, ensure that the end-user is provided with a warranty identical to this warranty, subject to applicable local mandatory law.

End-Users

Victron Energy may also provide a warranty directly to end-users, in which case the below warranty conditions equally apply to such warranty. In that case, end-users shall claim their warranty at their place of purchase or through the original direct customer of Victron, which can be found through the support section on Victron’s website https://www.victronenergy.com/support. Hence, the direct customer shall on behalf of Victron Energy deal with any warranty claims made under any warranty that Victron Energy may provide directly to end-users. This support section on Victron’s website https://www.victronenergy.com/support will provide further guidance on the procedure for end-users to make a claim under this limited warranty.

If the end-user is a consumer – a natural person who is acting for purposes which are outside that person's trade, business, craft or profession – the following applies. The rights and remedies granted to the consumer under this limited warranty are without prejudice to the consumer’s statutory rights. Furthermore, the consumer is entitled by law to remedies from the seller free of charge in the event of a lack of conformity of the goods (such as repair, replacement, price reduction or rescission), which remedies are not affected by this limited warranty.

Warranty

Victron Energy warrants its products to be free from defects in workmanship and materials for a period of 5 years from the date of purchase by the original end-user, with a maximum of 66 months from the Victron Energy invoice date. Exceptions on this are: lead-acid batteries: 2 years from date of purchase by the original end-user, with a maximum of 30 months from the Victron Energy invoice date, Lithium batteries: 3 years from date of purchase by the original end-user, with a maximum of 42 months from the Victron Energy invoice date. In addition to this, proof of correct battery usage is required when making a battery warranty claim.

For a 10% surcharge on the current net price for products that came with a 5-year warranty, an additional 5 years of warranty can be purchased by Victron’s direct customers, bringing the total warranty to 10 years. Warranty extensions need to be applied for ultimately one year before the expiration of the original term. Victron may ask proof that the product was still functional at the time of purchase of the extended warranty.

During the warranty period, Victron Energy will, at its discretion, repair, replace or (partly) credit the defective product free of charge. The warranty does not include performing or reimbursing de‐installation, transportation, and re‐installation.

This warranty will be considered void if the unit has suffered any physical damage or alteration, either internally or externally, and does not cover damages arising from improper use like:

  • Reversed battery polarity.
  • Inadequate connection.
  • Mechanical shock or deformation.
  • Contact with liquid or oxidation by condensation.
  • Use in an inappropriate environment (dust, corrosive vapour, humidity, high temperature, biological infestation, etc.).
  • Breakage or damage due to lightning.
  • Connection terminals and screws destroyed or other damages, like overheating, due to insufficient tightening.
  • For any electronic breakage except due to lightning (reverse polarity, over‐voltage due to external cause), the state of the internal control diode and/or the input/output X and Y capacitors determine the warranty.

This warranty will not apply where the product has been misused, neglected, improperly installed, or repaired by anyone other than Victron Energy or one of its authorized Repair Centres. In order to qualify for the warranty, the product must not be disassembled or modified.

This warranty and our warranty obligations thereunder (repair, replacement or credit) are the direct customer’s and, if applicable, the end-user’s sole rights and remedies and our sole obligations with respect to any defective and/or non-conforming product or breach of warranty and is subject to and without prejudice to the limitations of liability in this warranty.

Victron Energy shall not be liable for damages, whether direct, incidental, special, or consequential, even caused by negligence or fault.

As a product requires service, it must be brought back to the place of purchase. In case no contact can be made with the merchant, or if he is either unable or not allowed to provide service, direct contact should be made with Victron Energy through the support section on Victron’s website.

In case Victron Energy replaces a product, it will own the replaced product. Victron Energy owns all parts removed from repaired products. Victron Energy uses new or reconditioned parts made by various manufacturers when performing warranty repairs or building replacement products.

If Victron Energy repairs or replaces a part of a product, its warranty term is not extended: the warranty will apply for the remaining term of the original warranty term. For example, if Victron Energy replaces a product with a 5-year warranty after 3 years, the warranty of this product will apply for another 2 years, with a minimum of 6 months.

All remedies and the measure for damages are limited to the above. Victron Energy shall in no event be liable for consequential, incidental, contingent or special damages, even if having been advised of the probability of such damages.

The foregoing limited warranty provided by Victron Energy is in lieu of any other warranties, express or implied arising by law, course of dealing, course of performance, usage of trade or otherwise, of any kind whatsoever including, without limitation, warranties of merchantability or fitness for a particular purpose, with respect to any product. The above is without prejudice to the arrangement for consumers detailed above.

Life Support Policy

As a general policy, Victron Energy does not recommend the use of any of its products in life support applications where failure or malfunction of Victron Energy's product can be reasonably expected to cause the failure of the life support device or to significantly affect its safety or effectiveness. Victron Energy does not recommend the use of any of its products in direct patient care. Victron Energy will not knowingly sell its products for use in such applications unless it receives in writing assurances satisfactory to Victron Energy that the risks of injury or damage have been minimized, the customer assumes all such risks, and the liability of Victron Energy is adequately protected under the circumstances.

Warranty on repairs for products outside their warranty period

The warranty period on products that are outside their warranty period and have been repaired by Victron Energy or one of the Victron Energy Repair centres is six (6) months from delivery. The same applies to spare parts and circuit boards that have been supplied or repaired by Victron Energy.

Transport

It is the responsibility of the sender to sufficiently package these products. The transport must be organized in a way to avoid any damage, especially when a single unit or heavy unit is sent.

Severability

If a part of the terms and conditions of this warranty is held invalid, void or unenforceable due to any particular national or international legislation, it shall not affect other parts of the terms and conditions of this warranty.

Applicable law

This warranty is exclusively governed by the laws of the Netherlands, to the exclusion of the UN Convention on Contracts for the International Sale of Goods.

Contact details

Victron Energy B.V. | De Paal 35, 1351 JG Almere, The Netherlands | https://www.victronenergy.com/support
