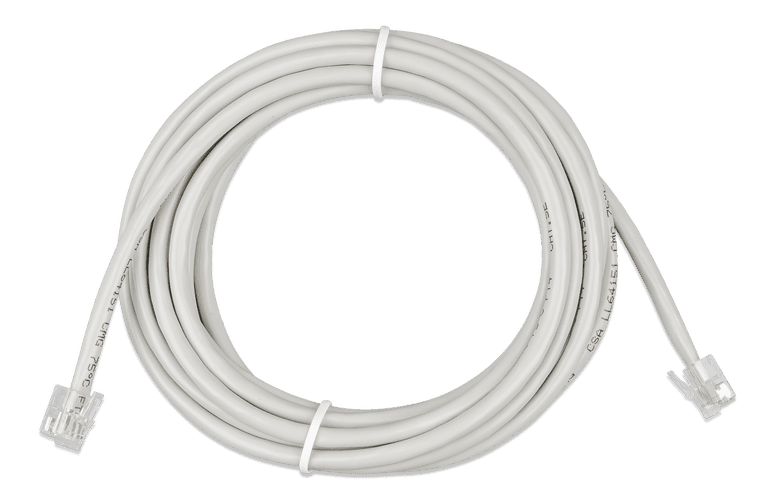

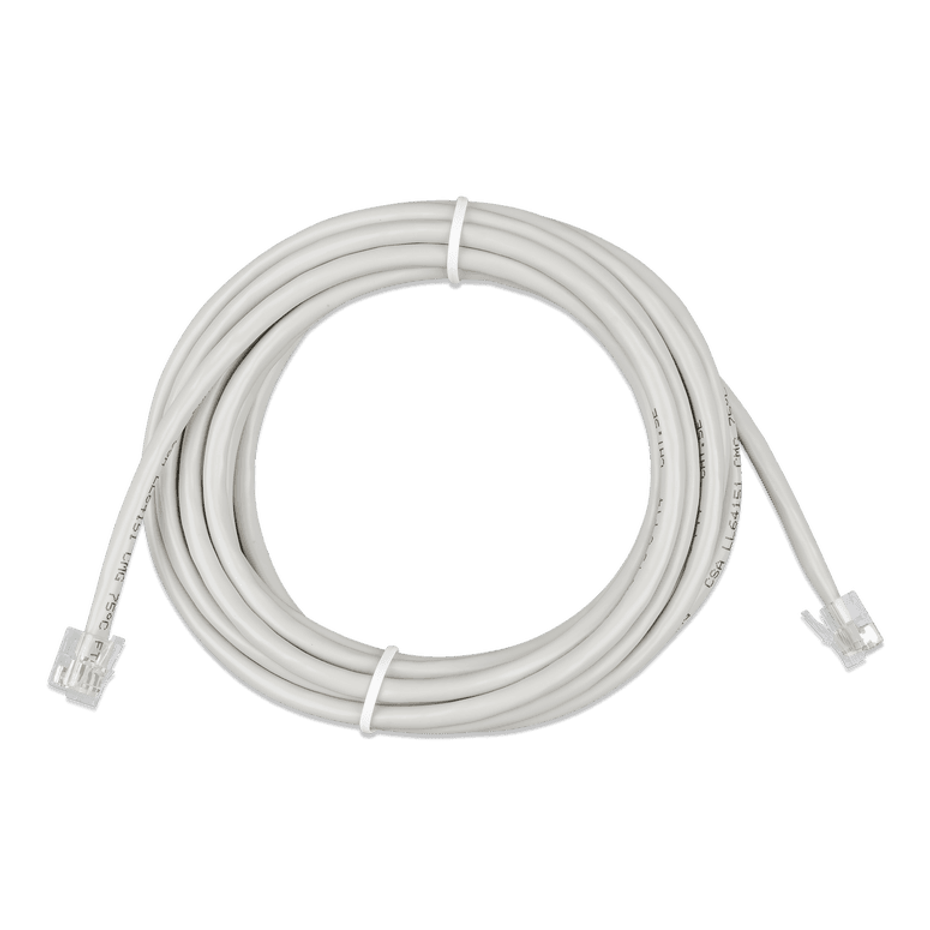

Victron 10m RJ12 UTP Cable
Victron 10m RJ12 UTP Cable
Securely transmit vital analogue data between your Victron BMV shunt and head unit with this purpose-built 10m unshielded twisted pair communication cable

DESCRIPTION
Victron 10m RJ12 UTP Cable: Reliable Data Transmission for Victron BMV Systems
The Victron 10m RJ12 UTP Cable is a dedicated communication link designed specifically for Victron Energy BMV battery monitoring systems. Serving as the critical bridge between your BMV shunt and the display head unit, this high-quality unshielded twisted pair (UTP) cable supports the accurate, uninterrupted transfer of vital analogue data. Whether you are installing a new battery monitor in your caravan, upgrading a marine power system, or managing an off-grid solar setup, maintaining a secure connection is essential for precise state-of-charge readings and overall system health monitoring.
Optimised for Precision Battery Monitoring
A Victron BMV shunt works by measuring the exact current flowing in and out of your battery bank. This information is transmitted as a highly sensitive analogue signal via the RJ12 cable to the microprocessor inside the head unit. Because this signal is so delicate, utilising the correct specification of UTP cable is vital. Standard off-the-shelf telephone lines might physically fit the ports, but they often lack the appropriate twisted pair configuration and conductor quality necessary for heavy-duty environments. This can lead to signal noise or voltage drop, which ultimately skews your battery readings. By choosing this authentic Victron UTP cable, you ensure your system operates exactly as the engineers intended, delivering highly accurate data to protect your expensive deep-cycle battery banks.
Customise Your Wiring Installation
The standard data cable provided with a BMV battery monitor may not always suit custom or complex installations. Excess cable can clutter your wiring compartment, while a cable that is too short severely restricts your mounting options. By integrating a precisely sized 10m cable into your setup, you can achieve a clean, professional installation. This eliminates the need to tightly coil excess wire, which reduces the risk of electromagnetic interference and physical snagging in tight spaces alongside heavy DC cables.
Key Features
- Purpose-built compatibility: Manufactured to seamlessly connect a Victron BMV shunt to the BMV head unit.
- Optimised for analogue data: The six-conductor unshielded twisted pair design maintains signal integrity over the entire 10m run.

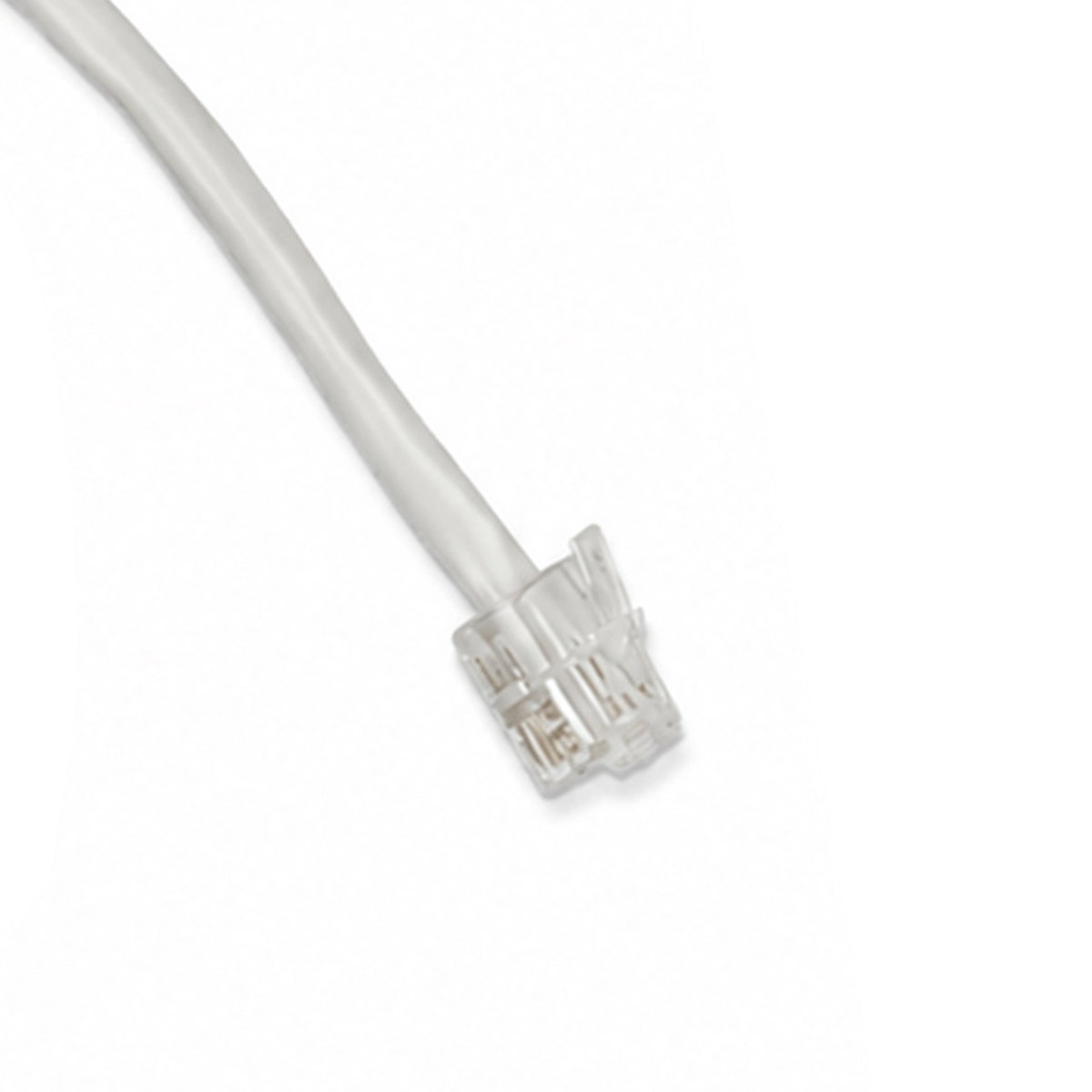

- Secure connectivity: Fitted with durable transparent RJ12 (6P6C) modular plugs featuring positive locking tabs to withstand heavy vibration.
- Flexible routing: The pliable grey outer jacket is designed for easy routing through bulkheads, conduit, and tight caravan or marine wiring cavities.
- Professional finish: Replaces standard cables to provide the exact length required, eliminating clutter and improving overall system organisation.
Built for Demanding Australian Conditions
Constructed with six internal conductors, this RJ12 UTP cable is engineered to meet the strict tolerances required by Victron equipment. The robust plug-and-play design helps prevent accidental disconnections caused by vibration, which is particularly important in mobile applications like camper trailers, 4x4 vehicles, and boats navigating rough Australian terrain. Furthermore, the durable outer jacket protects the internal wiring from abrasion during installation and regular travel.
Complete your Victron power management system with the reliable connection it deserves. Integrate the Victron 10m RJ12 UTP Cable into your wiring setup today to support accurate, trouble-free battery monitoring for your next off-grid adventure.
SPECIFICATIONS
Specifications
| Type | RJ12 UTP Cable |
|---|---|
| Article Number | ASS030066100 |
| Length | 10 m |
| Cable Colour | Grey |
| Application | To Connect the BMV Shunt to the BMV Head Unit |
| Number Of Conductors | 6 |
| SKU: | VIC-ASS030066101 |
| Barcode: | 8719076071570 |
| Model #: | ASS030066101 |
| MPN: | ASS030066101 |
WARRANTY
Victron Energy Limited Warranty Policy
Direct Customers
Victron Energy provides the following warranty to any direct customer (OEM, distributor or dealer) in relation to any products that Victron Energy has directly sold to the direct customer. This warranty is not an end-user warranty between Victron Energy and an end-user, and end-users shall not have any rights or remedies under this limited warranty towards Victron Energy directly. The direct customer shall, in turn, ensure that the end-user is provided with a warranty identical to this warranty, subject to applicable local mandatory law.
End-Users
Victron Energy may also provide a warranty directly to end-users, in which case the below warranty conditions equally apply to such warranty. In that case, end-users shall claim their warranty at their place of purchase or through the original direct customer of Victron, which can be found through the support section on Victron’s website https://www.victronenergy.com/support. Hence, the direct customer shall on behalf of Victron Energy deal with any warranty claims made under any warranty that Victron Energy may provide directly to end-users. This support section on Victron’s website https://www.victronenergy.com/support will provide further guidance on the procedure for end-users to make a claim under this limited warranty.
If the end-user is a consumer – a natural person who is acting for purposes which are outside that person's trade, business, craft or profession – the following applies. The rights and remedies granted to the consumer under this limited warranty are without prejudice to the consumer’s statutory rights. Furthermore, the consumer is entitled by law to remedies from the seller free of charge in the event of a lack of conformity of the goods (such as repair, replacement, price reduction or rescission), which remedies are not affected by this limited warranty.
Warranty
Victron Energy warrants its products to be free from defects in workmanship and materials for a period of 5 years from the date of purchase by the original end-user, with a maximum of 66 months from the Victron Energy invoice date. Exceptions on this are: lead-acid batteries: 2 years from date of purchase by the original end-user, with a maximum of 30 months from the Victron Energy invoice date, Lithium batteries: 3 years from date of purchase by the original end-user, with a maximum of 42 months from the Victron Energy invoice date. In addition to this, proof of correct battery usage is required when making a battery warranty claim.
For a 10% surcharge on the current net price for products that came with a 5-year warranty, an additional 5 years of warranty can be purchased by Victron’s direct customers, bringing the total warranty to 10 years. Warranty extensions need to be applied for ultimately one year before the expiration of the original term. Victron may ask proof that the product was still functional at the time of purchase of the extended warranty.
During the warranty period, Victron Energy will, at its discretion, repair, replace or (partly) credit the defective product free of charge. The warranty does not include performing or reimbursing de‐installation, transportation, and re‐installation.
This warranty will be considered void if the unit has suffered any physical damage or alteration, either internally or externally, and does not cover damages arising from improper use like:
- Reversed battery polarity.
- Inadequate connection.
- Mechanical shock or deformation.
- Contact with liquid or oxidation by condensation.
- Use in an inappropriate environment (dust, corrosive vapour, humidity, high temperature, biological infestation, etc.).
- Breakage or damage due to lightning.
- Connection terminals and screws destroyed or other damages, like overheating, due to insufficient tightening.
- For any electronic breakage except due to lightning (reverse polarity, over‐voltage due to external cause), the state of the internal control diode and/or the input/output X and Y capacitors determine the warranty.
This warranty will not apply where the product has been misused, neglected, improperly installed, or repaired by anyone other than Victron Energy or one of its authorized Repair Centres. In order to qualify for the warranty, the product must not be disassembled or modified.
This warranty and our warranty obligations thereunder (repair, replacement or credit) are the direct customer’s and, if applicable, the end-user’s sole rights and remedies and our sole obligations with respect to any defective and/or non-conforming product or breach of warranty and is subject to and without prejudice to the limitations of liability in this warranty.
Victron Energy shall not be liable for damages, whether direct, incidental, special, or consequential, even caused by negligence or fault.
As a product requires service, it must be brought back to the place of purchase. In case no contact can be made with the merchant, or if he is either unable or not allowed to provide service, direct contact should be made with Victron Energy through the support section on Victron’s website.
In case Victron Energy replaces a product, it will own the replaced product. Victron Energy owns all parts removed from repaired products. Victron Energy uses new or reconditioned parts made by various manufacturers when performing warranty repairs or building replacement products.
If Victron Energy repairs or replaces a part of a product, its warranty term is not extended: the warranty will apply for the remaining term of the original warranty term. For example, if Victron Energy replaces a product with a 5-year warranty after 3 years, the warranty of this product will apply for another 2 years, with a minimum of 6 months.
All remedies and the measure for damages are limited to the above. Victron Energy shall in no event be liable for consequential, incidental, contingent or special damages, even if having been advised of the probability of such damages.
The foregoing limited warranty provided by Victron Energy is in lieu of any other warranties, express or implied arising by law, course of dealing, course of performance, usage of trade or otherwise, of any kind whatsoever including, without limitation, warranties of merchantability or fitness for a particular purpose, with respect to any product. The above is without prejudice to the arrangement for consumers detailed above.
Life Support Policy
As a general policy, Victron Energy does not recommend the use of any of its products in life support applications where failure or malfunction of Victron Energy's product can be reasonably expected to cause the failure of the life support device or to significantly affect its safety or effectiveness. Victron Energy does not recommend the use of any of its products in direct patient care. Victron Energy will not knowingly sell its products for use in such applications unless it receives in writing assurances satisfactory to Victron Energy that the risks of injury or damage have been minimized, the customer assumes all such risks, and the liability of Victron Energy is adequately protected under the circumstances.
Warranty on repairs for products outside their warranty period
The warranty period on products that are outside their warranty period and have been repaired by Victron Energy or one of the Victron Energy Repair centres is six (6) months from delivery. The same applies to spare parts and circuit boards that have been supplied or repaired by Victron Energy.
Transport
It is the responsibility of the sender to sufficiently package these products. The transport must be organized in a way to avoid any damage, especially when a single unit or heavy unit is sent.
Severability
If a part of the terms and conditions of this warranty is held invalid, void or unenforceable due to any particular national or international legislation, it shall not affect other parts of the terms and conditions of this warranty.
Applicable law
This warranty is exclusively governed by the laws of the Netherlands, to the exclusion of the UN Convention on Contracts for the International Sale of Goods.
Contact details
Victron Energy B.V. | De Paal 35, 1351 JG Almere, The Netherlands | https://www.victronenergy.com/support
