Victron VE.Bus BMS NG

Suits Victron Smart NG Lithium Batteries


Top view of Victron VE.Bus BMS NG with terminal labels and status LEDsHighlights:Bluetooth Status: Indicator LED for Bluetooth connection status,Error LED: System error status indicator,VE.Bus Status: Communication status for VE.Bus network,Remote L and H: Removable terminal block for remote on/off control,BMS Connections: Circular connectors for battery management system links,Output Terminals: 6-way terminal for battery, GX-power, and disconnect signals.Low-profile matte black enclosure of the VE.Bus BMS NG with mounting tabsKey features: Compact ABS plastic enclosure, Integrated mounting tabs for secure installation, Low-profile design with 23.2mm height, Clear interface labelling for wiring.Victron VE.Bus BMS NG showing two RJ45 communication ports and terminal blockDual RJ45 sockets for VE.Bus communication with Victron MultiPlus or Quattro units and a 6-way terminal block for system integration.Side view of the BMS unit highlighting the circular BMS connectorsSide view of BMS showing circular BMS ports and Remote terminal blockDedicated M8 circular BMS connection ports on an orange identification panel alongside the remote L/H screw terminal.Side view showing dual RJ45 VE.Bus ports and a 6-way green screw terminal blockCommunication and output side featuring two VE.Bus RJ45 ports and a terminal for battery plus, GX-power, and alarm outputs.Technical specifications table for the VE.Bus BMS NG detailing voltage and currentTechnical dimensional drawing of the VE.Bus BMS NG showing measurements in millimetres

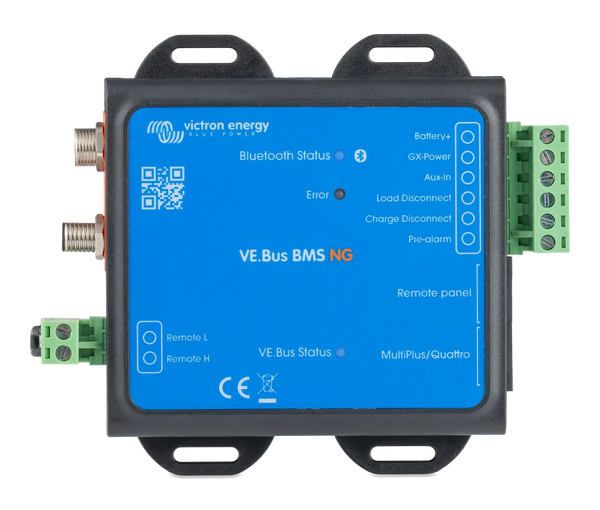

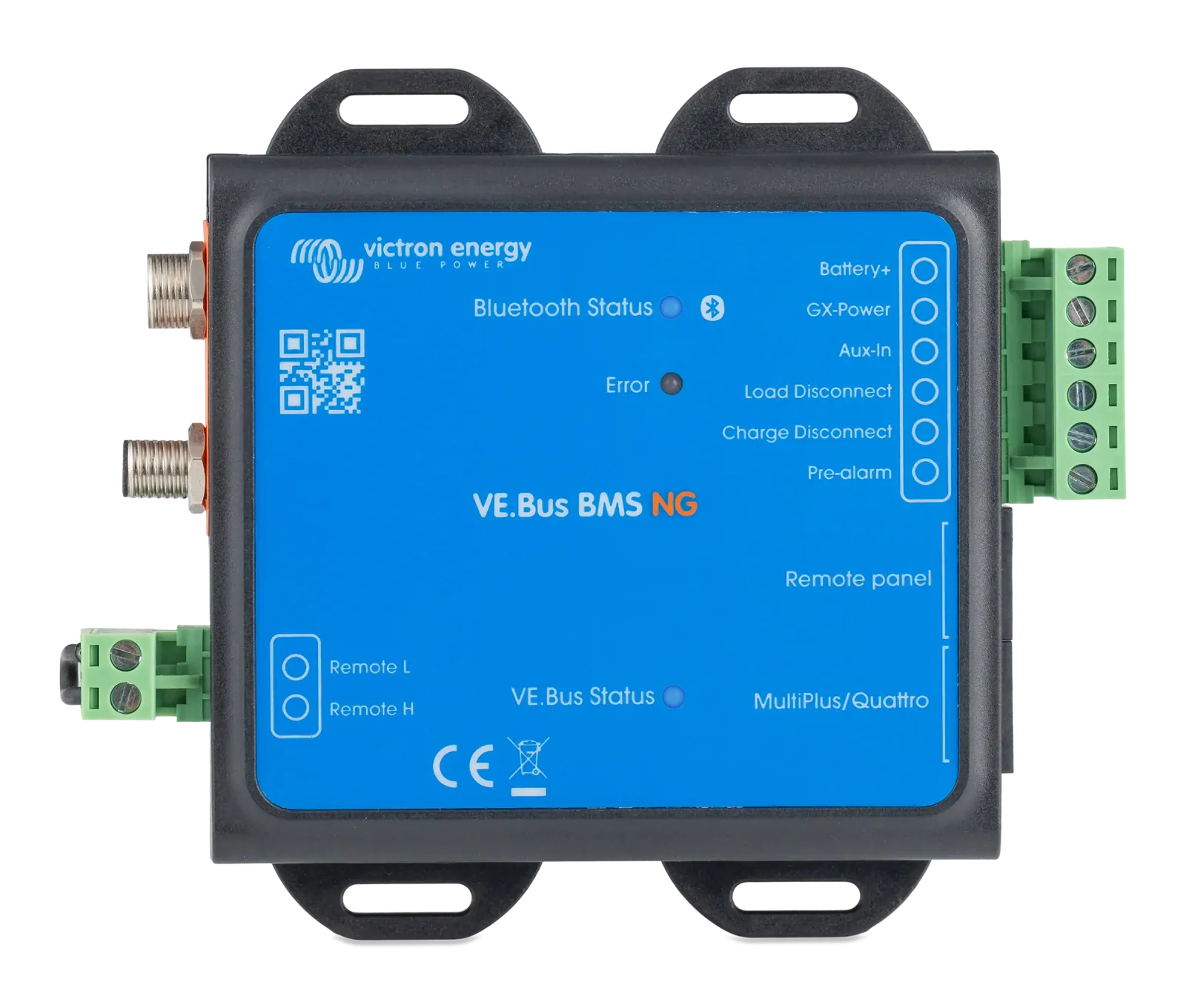

Top view of Victron VE.Bus BMS NG with terminal labels and status LEDs

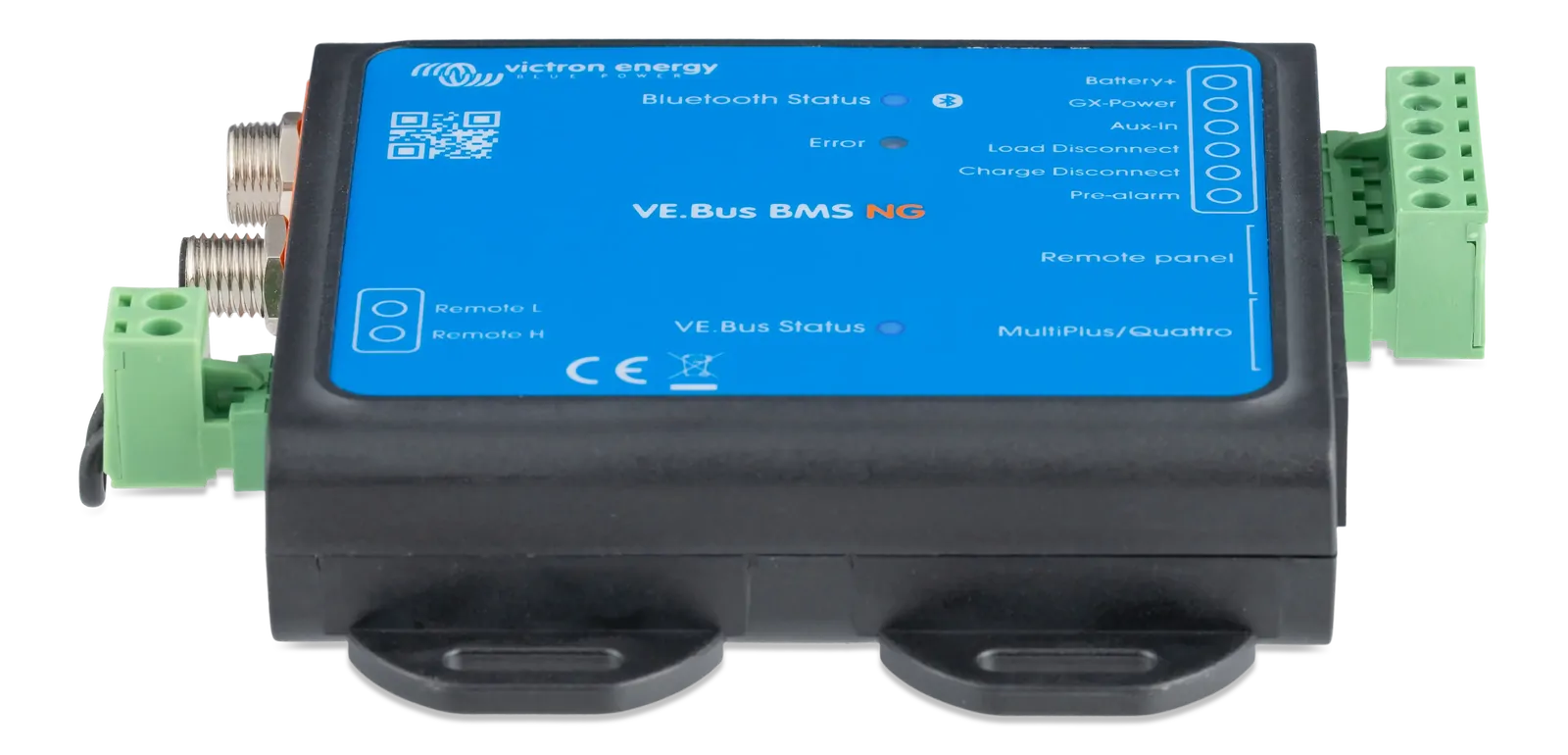

Low-profile matte black enclosure of the VE.Bus BMS NG with mounting tabs

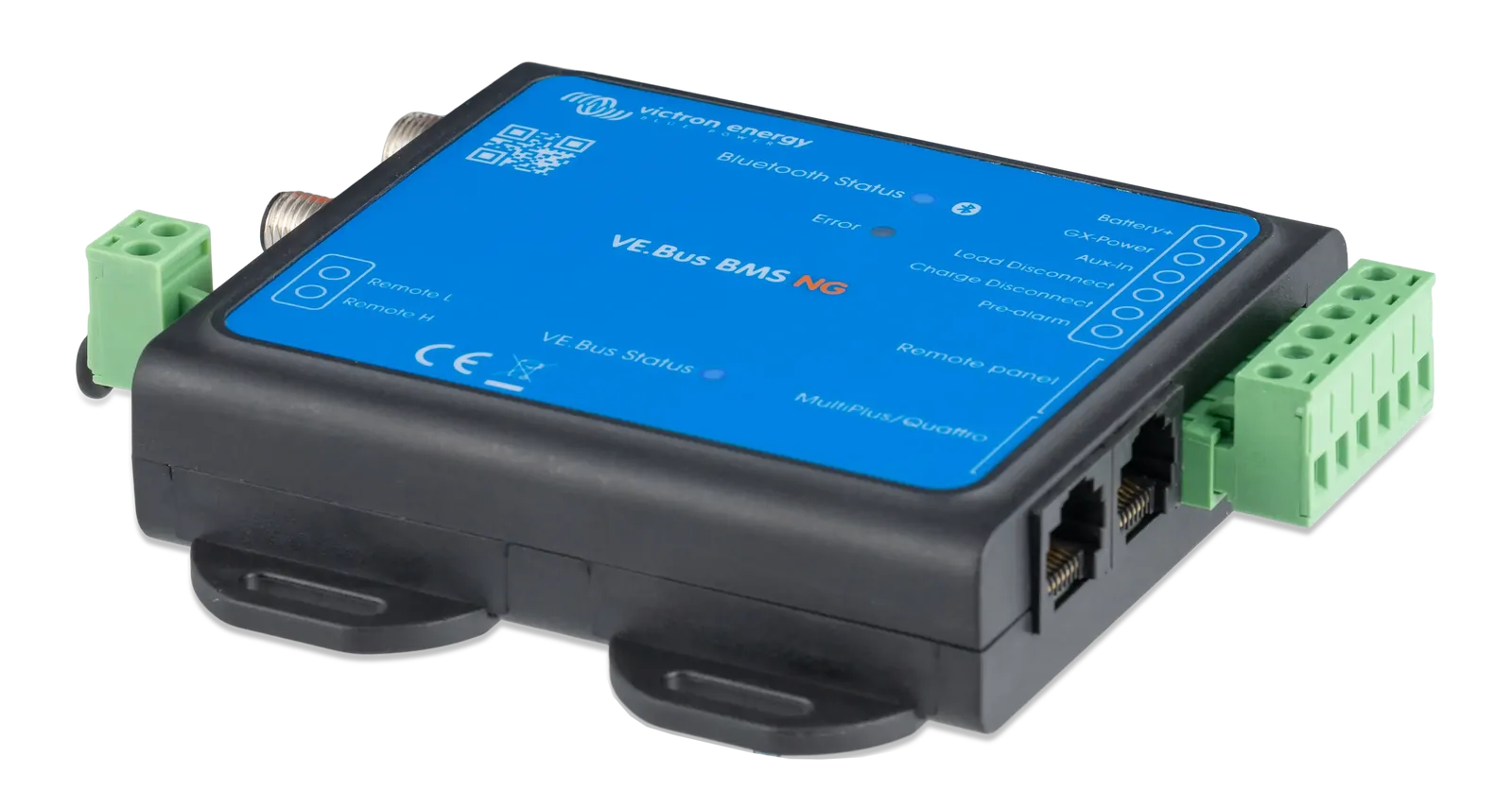

Victron VE.Bus BMS NG showing two RJ45 communication ports and terminal block

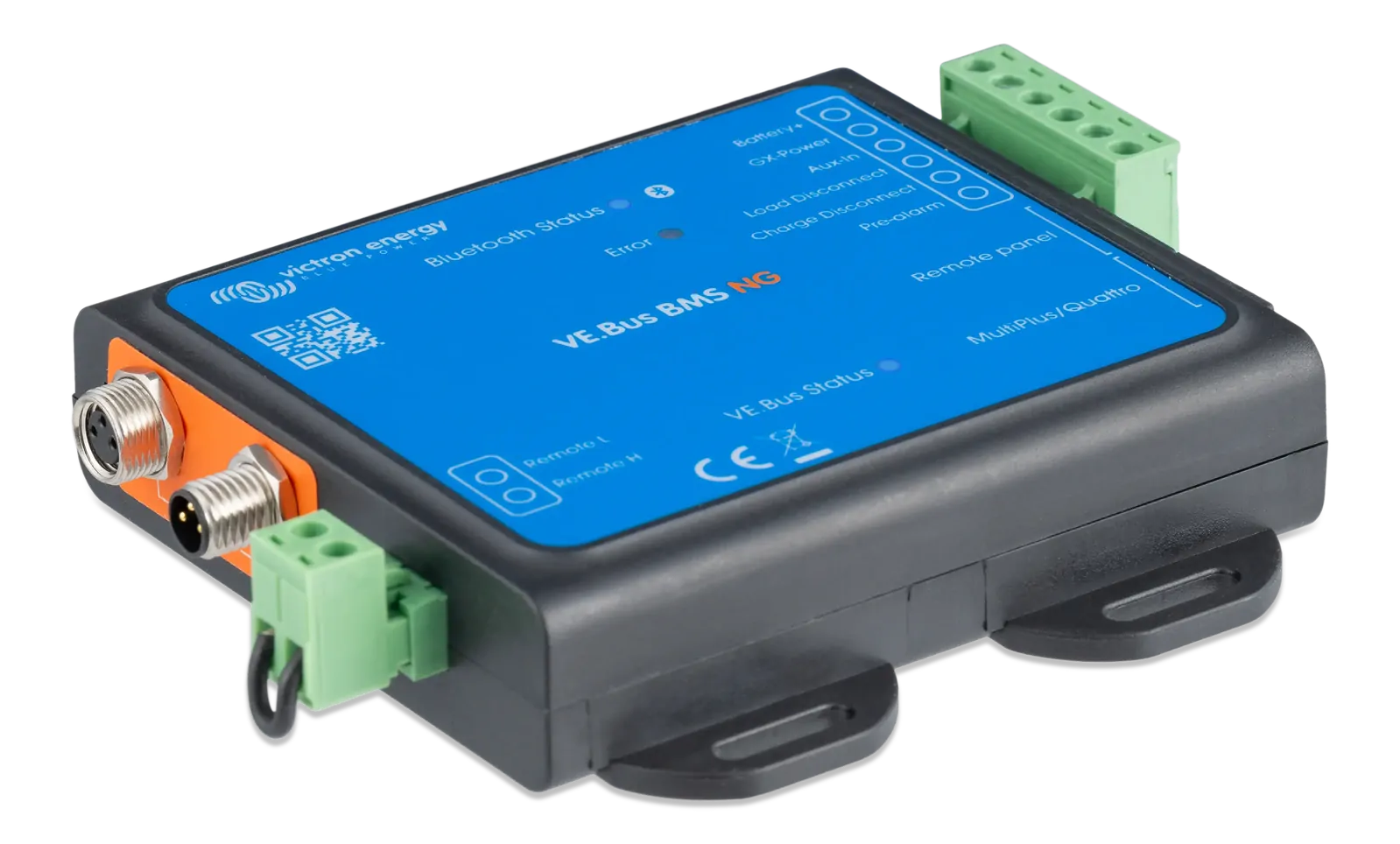

Side view of the BMS unit highlighting the circular BMS connectors

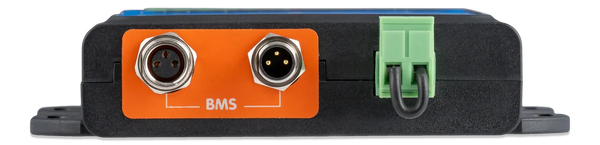

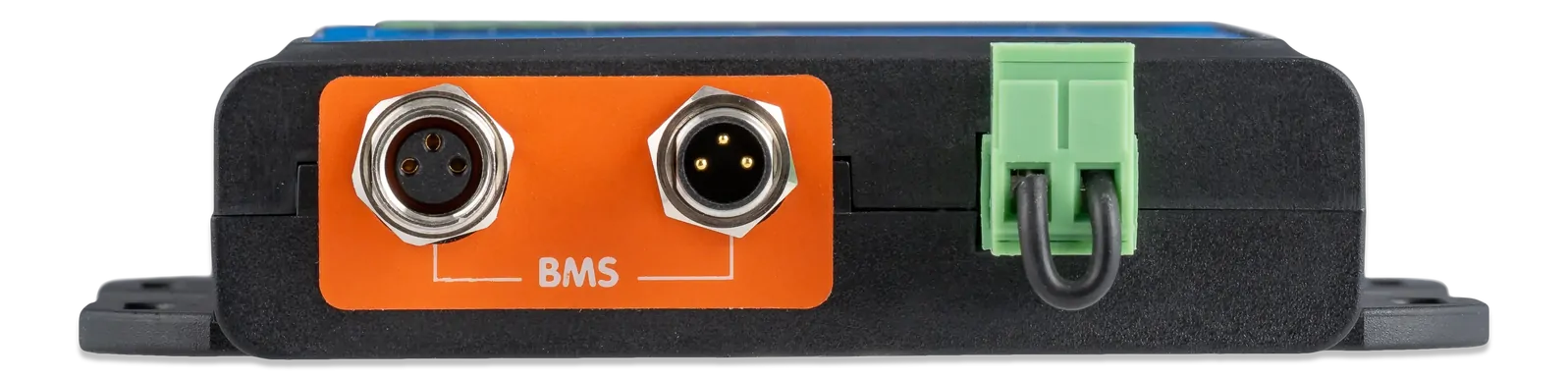

Side view of BMS showing circular BMS ports and Remote terminal block

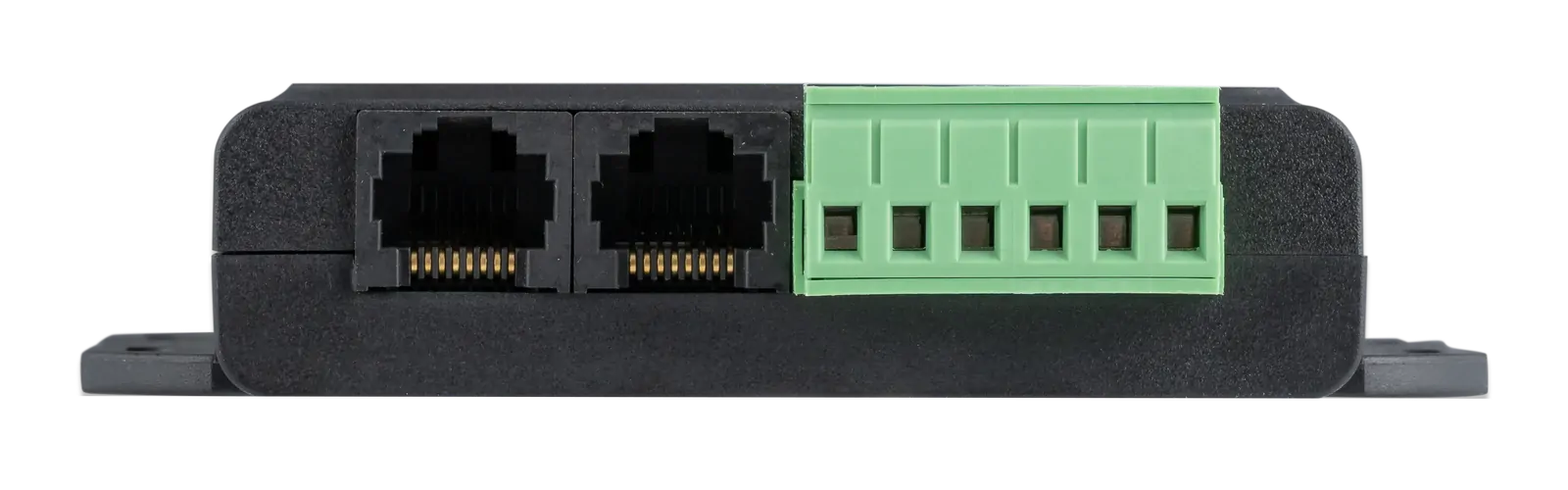

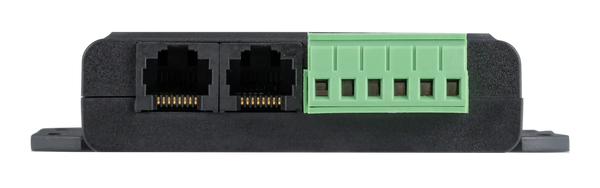

Side view showing dual RJ45 VE.Bus ports and a 6-way green screw terminal block

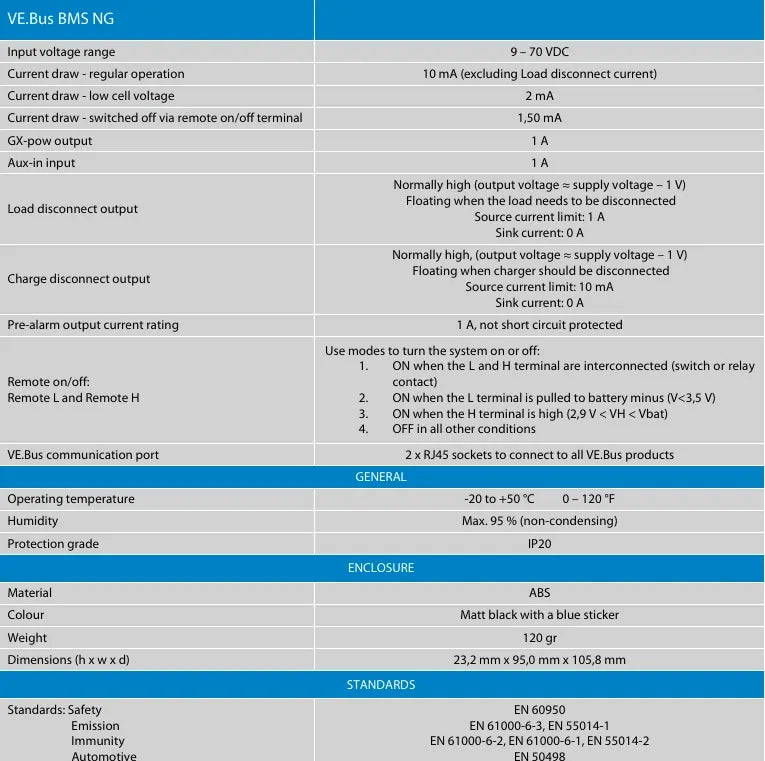

Technical specifications table for the VE.Bus BMS NG detailing voltage and current

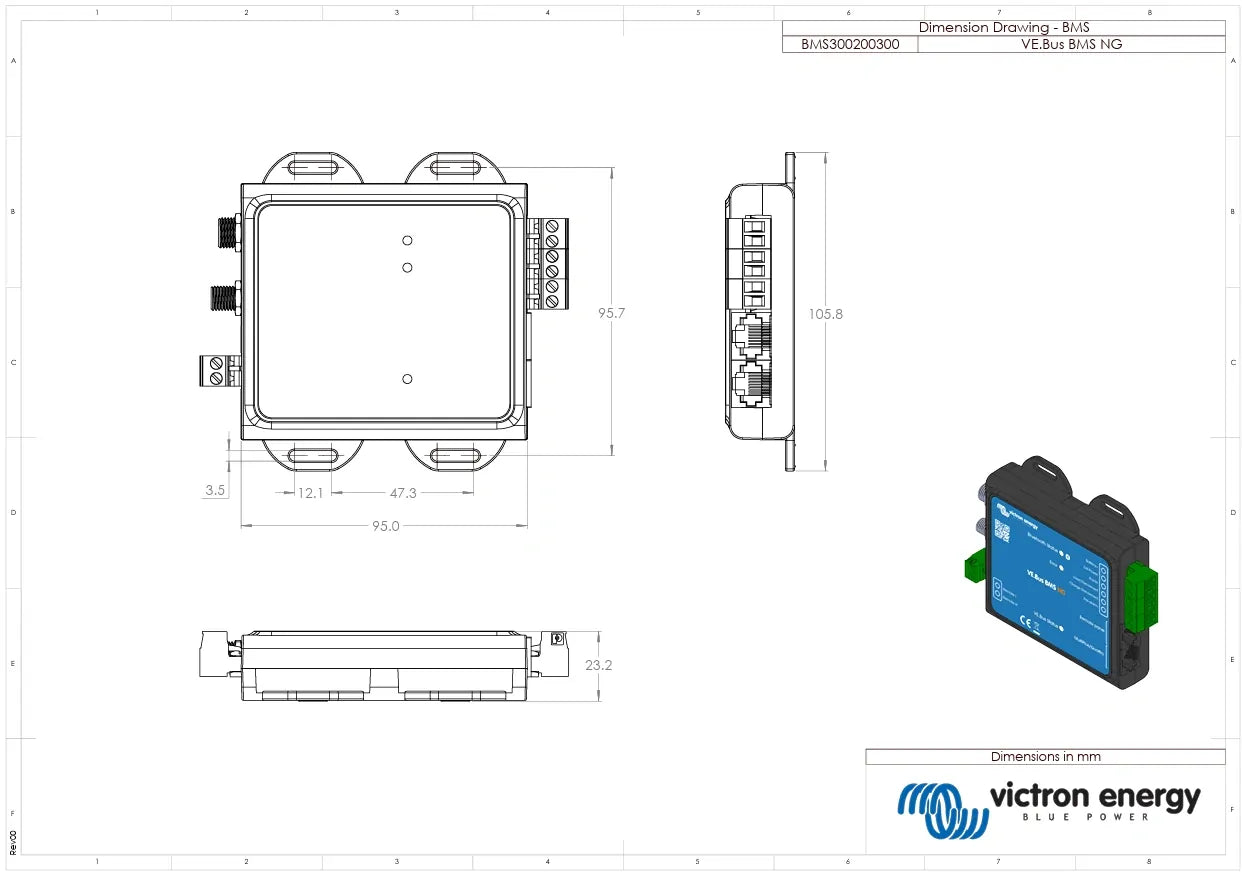

Technical dimensional drawing of the VE.Bus BMS NG showing measurements in millimetres
Regular price $264.35
$279.40
/
Availability: In Stock
View all products from Victron
Guaranteed Safe and Secure Checkout
American Express Apple Pay Google Pay MastercardPayPalShop Pay Union PayVisa

3
Top view of Victron VE.Bus BMS NG with terminal labels and status LEDs

Victron VE.Bus BMS NG

DESCRIPTION

Victron VE.Bus BMS NG – Advanced Battery Management for Lithium NG Battery Systems

Purpose-Built for Victron Lithium NG Battery Systems

The VE.Bus BMS NG is a state-of-the-art Battery Management System engineered exclusively for Victron Lithium NG batteries. Designed to integrate with Victron inverters and inverter/chargers via VE.Bus communication, it ensures system-wide protection and efficiency. Please note, this unit is not compatible with Victron Lithium Battery Smart batteries.

Comprehensive Protection and Real-Time Monitoring

This intelligent BMS monitors each battery cell for over-voltage, under-voltage, and temperature extremes. It features integrated Bluetooth Smart technology, providing direct connection to all Lithium NG batteries for streamlined monitoring through the VictronConnect app. With real-time State of Charge (SoC) and current data directly from the batteries, there's no need for additional components like a SmartShunt.

Scalable Power for Any Environment

Perfect for expanding energy systems, the VE.Bus BMS NG supports large-scale configurations:

  • Up to 50 batteries in 12V or 24V banks (max 192 kWh and 384 kWh respectively)
  • Up to 25 batteries in 48V banks (max 128 kWh)

This high-capacity scalability makes it ideal for caravan, RV, marine, off-grid, industrial, and tiny home applications. For even larger installations, multiple Lynx Smart BMS units can be used in parallel to enhance capacity and provide redundancy.

Robust Outputs for System Control

The VE.Bus BMS NG is equipped with several control and safety features:

  • Load Disconnect Output: Prevents deep discharge by managing inverters, BatteryProtect units, and other loads
  • Charge Disconnect Output: Stops charging equipment to avoid over-voltage scenarios
  • Pre-Alarm Output: Signals low voltage conditions before initiating load disconnection
  • Remote On/Off: External control of both load and charge disconnects
  • LED Indicators: Bluetooth status and system warnings at a glance

Reliability Meets Smart Functionality

The VE.Bus BMS NG combines safety, smart integration, and scalability into a single compact device. It’s designed for demanding environments and supports advanced lithium battery monitoring and protection with zero hassle. Its instant readout, firmware update functionality, and plug-and-play configuration streamline system setup and long-term operation.

Upgrade Your Energy System with Confidence

Ensure your Victron Lithium NG battery bank is secure, efficient, and future-ready with the VE.Bus BMS NG. Upgrade your vehicle now to be smarter, safer, and more resilient—ideal for caravan, RV, marine, off-grid, industrial, and tiny home energy systems.

SPECIFICATIONS

Specifications

VE.Bus BMS NG
Input voltage range 9 – 70 VDC
Current draw - regular operation 10 mA (excluding Load disconnect current)
Current draw - low cell voltage 2 mA
Current draw - switched off via remote on/off terminal 1,50 mA
GX-pow output 1 A
Aux-in input 1 A
Load disconnect output Normally high (output voltage ≈ supply voltage – 1 V) Floating when the load needs to be disconnected Source current limit: 1 A Sink current: 0 A
Charge disconnect output Normally high, (output voltage ≈ supply voltage – 1 V) Floating when charger should be disconnected Source current limit: 10 mA Sink current: 0 A
Pre-alarm output current rating 1 A, not short circuit protected
Remote on/off: Remote L and Remote H Use modes to turn the system on or off: 1. ON when the L and H terminal are interconnected (switch or relay contact) 2. ON when the L terminal is pulled to battery minus (V<3,5 V) 3. ON when the H terminal is high (2,9 V < VH < Vbat) 4. OFF in all other conditions
VE.Bus communication port 2 x RJ45 sockets to connect to all VE.Bus products
GENERAL
Operating temperature -20 to +50 °C / 0 – 120 °F
Humidity Max. 95 % (non-condensing)
Protection grade IP20
ENCLOSURE
Material ABS
Colour Matt black with a blue sticker
Weight 120 grams
Dimensions (h x w x d) 23.2 mm x 95.0 mm x 105.8 mm
STANDARDS
Standards: Safety EN 60950
Emission EN 61000-6-3, EN 55014-1
Immunity EN 61000-6-2, EN 61000-6-1, EN 55014-2
Automotive EN 50498

SKU: VIC-BMS300200300
Barcode: 8719076063520
Model #: BMS300200300
MPN: BMS300200300

WARRANTY

Victron Energy Limited Warranty Policy

Direct Customers

Victron Energy provides the following warranty to any direct customer (OEM, distributor or dealer) in relation to any products that Victron Energy has directly sold to the direct customer. This warranty is not an end-user warranty between Victron Energy and an end-user, and end-users shall not have any rights or remedies under this limited warranty towards Victron Energy directly. The direct customer shall, in turn, ensure that the end-user is provided with a warranty identical to this warranty, subject to applicable local mandatory law.

End-Users

Victron Energy may also provide a warranty directly to end-users, in which case the below warranty conditions equally apply to such warranty. In that case, end-users shall claim their warranty at their place of purchase or through the original direct customer of Victron, which can be found through the support section on Victron’s website https://www.victronenergy.com/support. Hence, the direct customer shall on behalf of Victron Energy deal with any warranty claims made under any warranty that Victron Energy may provide directly to end-users. This support section on Victron’s website https://www.victronenergy.com/support will provide further guidance on the procedure for end-users to make a claim under this limited warranty.

If the end-user is a consumer – a natural person who is acting for purposes which are outside that person's trade, business, craft or profession – the following applies. The rights and remedies granted to the consumer under this limited warranty are without prejudice to the consumer’s statutory rights. Furthermore, the consumer is entitled by law to remedies from the seller free of charge in the event of a lack of conformity of the goods (such as repair, replacement, price reduction or rescission), which remedies are not affected by this limited warranty.

Warranty

Victron Energy warrants its products to be free from defects in workmanship and materials for a period of 5 years from the date of purchase by the original end-user, with a maximum of 66 months from the Victron Energy invoice date. Exceptions on this are: lead-acid batteries: 2 years from date of purchase by the original end-user, with a maximum of 30 months from the Victron Energy invoice date, Lithium batteries: 3 years from date of purchase by the original end-user, with a maximum of 42 months from the Victron Energy invoice date. In addition to this, proof of correct battery usage is required when making a battery warranty claim.

For a 10% surcharge on the current net price for products that came with a 5-year warranty, an additional 5 years of warranty can be purchased by Victron’s direct customers, bringing the total warranty to 10 years. Warranty extensions need to be applied for ultimately one year before the expiration of the original term. Victron may ask proof that the product was still functional at the time of purchase of the extended warranty.

During the warranty period, Victron Energy will, at its discretion, repair, replace or (partly) credit the defective product free of charge. The warranty does not include performing or reimbursing de‐installation, transportation, and re‐installation.

This warranty will be considered void if the unit has suffered any physical damage or alteration, either internally or externally, and does not cover damages arising from improper use like:

  • Reversed battery polarity.
  • Inadequate connection.
  • Mechanical shock or deformation.
  • Contact with liquid or oxidation by condensation.
  • Use in an inappropriate environment (dust, corrosive vapour, humidity, high temperature, biological infestation, etc.).
  • Breakage or damage due to lightning.
  • Connection terminals and screws destroyed or other damages, like overheating, due to insufficient tightening.
  • For any electronic breakage except due to lightning (reverse polarity, over‐voltage due to external cause), the state of the internal control diode and/or the input/output X and Y capacitors determine the warranty.

This warranty will not apply where the product has been misused, neglected, improperly installed, or repaired by anyone other than Victron Energy or one of its authorized Repair Centres. In order to qualify for the warranty, the product must not be disassembled or modified.

This warranty and our warranty obligations thereunder (repair, replacement or credit) are the direct customer’s and, if applicable, the end-user’s sole rights and remedies and our sole obligations with respect to any defective and/or non-conforming product or breach of warranty and is subject to and without prejudice to the limitations of liability in this warranty.

Victron Energy shall not be liable for damages, whether direct, incidental, special, or consequential, even caused by negligence or fault.

As a product requires service, it must be brought back to the place of purchase. In case no contact can be made with the merchant, or if he is either unable or not allowed to provide service, direct contact should be made with Victron Energy through the support section on Victron’s website.

In case Victron Energy replaces a product, it will own the replaced product. Victron Energy owns all parts removed from repaired products. Victron Energy uses new or reconditioned parts made by various manufacturers when performing warranty repairs or building replacement products.

If Victron Energy repairs or replaces a part of a product, its warranty term is not extended: the warranty will apply for the remaining term of the original warranty term. For example, if Victron Energy replaces a product with a 5-year warranty after 3 years, the warranty of this product will apply for another 2 years, with a minimum of 6 months.

All remedies and the measure for damages are limited to the above. Victron Energy shall in no event be liable for consequential, incidental, contingent or special damages, even if having been advised of the probability of such damages.

The foregoing limited warranty provided by Victron Energy is in lieu of any other warranties, express or implied arising by law, course of dealing, course of performance, usage of trade or otherwise, of any kind whatsoever including, without limitation, warranties of merchantability or fitness for a particular purpose, with respect to any product. The above is without prejudice to the arrangement for consumers detailed above.

Life Support Policy

As a general policy, Victron Energy does not recommend the use of any of its products in life support applications where failure or malfunction of Victron Energy's product can be reasonably expected to cause the failure of the life support device or to significantly affect its safety or effectiveness. Victron Energy does not recommend the use of any of its products in direct patient care. Victron Energy will not knowingly sell its products for use in such applications unless it receives in writing assurances satisfactory to Victron Energy that the risks of injury or damage have been minimized, the customer assumes all such risks, and the liability of Victron Energy is adequately protected under the circumstances.

Warranty on repairs for products outside their warranty period

The warranty period on products that are outside their warranty period and have been repaired by Victron Energy or one of the Victron Energy Repair centres is six (6) months from delivery. The same applies to spare parts and circuit boards that have been supplied or repaired by Victron Energy.

Transport

It is the responsibility of the sender to sufficiently package these products. The transport must be organized in a way to avoid any damage, especially when a single unit or heavy unit is sent.

Severability

If a part of the terms and conditions of this warranty is held invalid, void or unenforceable due to any particular national or international legislation, it shall not affect other parts of the terms and conditions of this warranty.

Applicable law

This warranty is exclusively governed by the laws of the Netherlands, to the exclusion of the UN Convention on Contracts for the International Sale of Goods.

Contact details

Victron Energy B.V. | De Paal 35, 1351 JG Almere, The Netherlands | https://www.victronenergy.com/support
