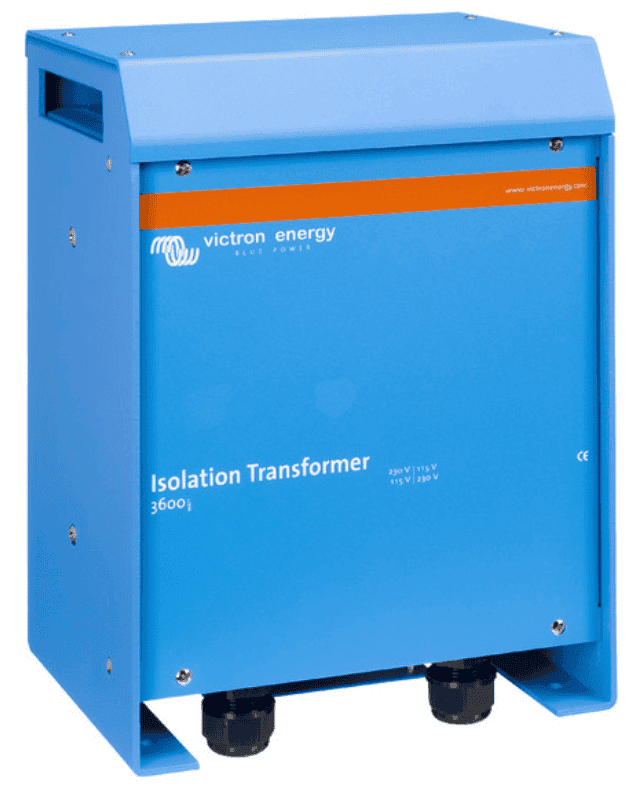

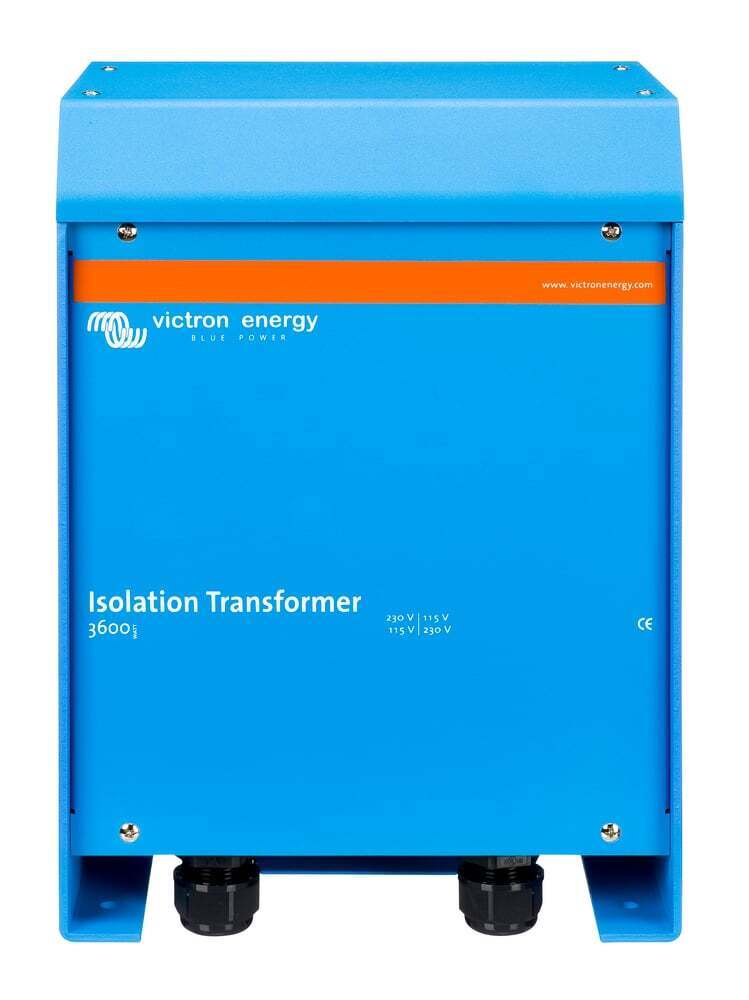

Victron Isolation Tr. 3600W Auto 115/230V
Victron Isolation Tr. 3600W Auto 115/230V
Auto-Sensing 115/230V, Soft Start, Toroidal, 21.7kg

DESCRIPTION
Victron 3600W Isolation Transformer: Marine-Grade Galvanic Corrosion Prevention with Auto-Sensing Voltage
Engineered Safety for Onboard AC Systems
The Victron 3600W Isolation Transformer provides a critical safety barrier between shore power and your vessel's electrical system. By completely isolating the boat from the shore ground, it eliminates the risk of galvanic corrosion that can silently destroy propellers, shafts, and through-hull fittings. This is not just a convenience; it is a fundamental protection for any boat connected to AC shore power.
Unlike galvanic isolators that only partially block low-voltage DC currents, a full isolation transformer breaks the electrical continuity entirely. This ensures that your sacrificial anodes are not rapidly consumed and that your underwater metals remain intact, even in marinas with poor shore-power grounding.
Auto-Sensing 115/230V Input for Global Cruising
This model automatically detects the incoming shore voltage and configures itself accordingly. When connected to a supply between 88V and 130V, it switches to 115V mode; for supplies between 185V and 250V, it engages 230V mode. This auto-sensing capability makes it ideal for vessels that travel between regions with different shore power standards, eliminating manual switching and reducing the risk of equipment damage.
The transformer also provides a slight voltage boost with its 1:1.05 ratio, compensating for voltage drop in long shore-power cables and ensuring your onboard appliances receive a stable supply.
Soft Start Technology Protects Shore Power Breakers
Large transformers can draw a significant inrush current when first energised, often tripping marina breakers. The integrated soft start circuit in this Victron unit limits that initial surge, allowing a smooth connection every time. This feature is especially valuable in older marinas with sensitive breakers, preventing frustrating power interruptions.
Built for the Marine Environment

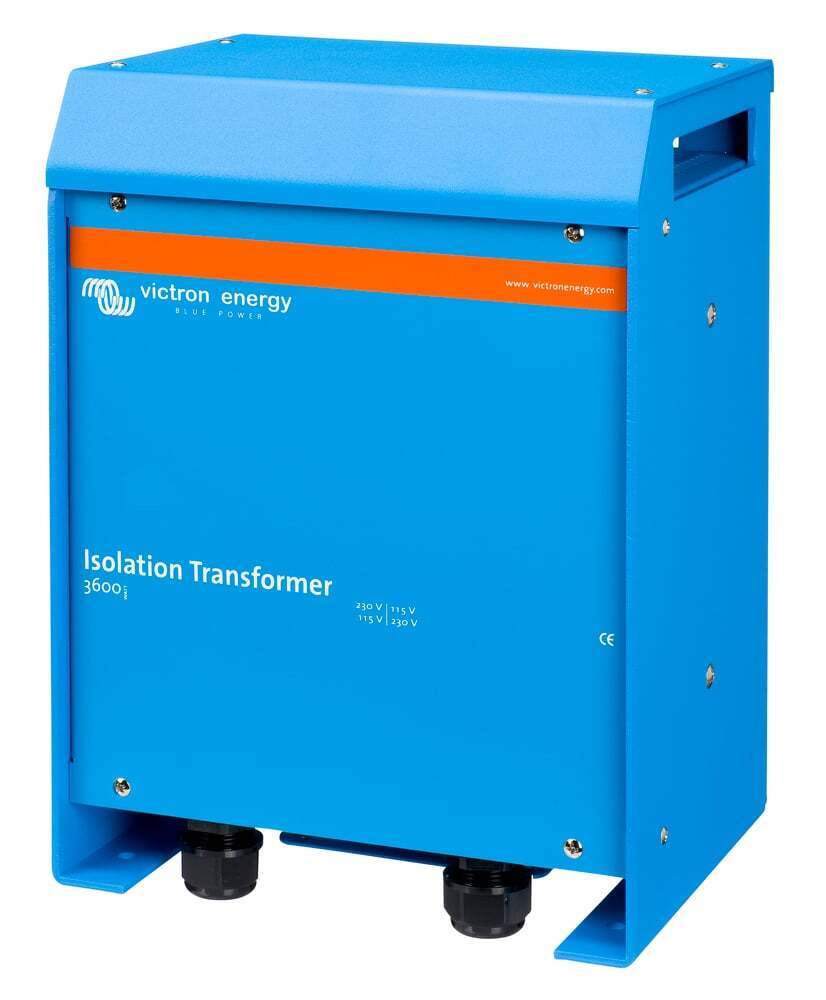

Housed in a robust aluminium enclosure with a corrosion-resistant blue finish (RAL 5012), this transformer is rated IP21 for protection against dripping water. The toroidal core design minimises audible hum and reduces weight compared to traditional laminated transformers, making installation easier in tight engine rooms or lazarettes. Recessed handles on the sides allow for safe lifting and positioning of the 21.7 kg unit.
Bottom-entry compression glands provide secure, strain-relieved cable connections, maintaining the integrity of the wiring even in high-vibration marine environments.
Key Features
- Complete galvanic isolation eliminates shore-power ground connection, preventing corrosion
- Automatic 115/230V input detection for worldwide compatibility
- Soft start circuit prevents nuisance tripping of shore breakers
- Toroidal transformer design for low noise and reduced weight
- 1:1.05 voltage ratio compensates for cable voltage drop
- Robust IP21 aluminium enclosure with recessed handles
- 32A output at 115V, 16A at 230V for versatile load handling
Applications Beyond Basic Isolation
While primarily designed for marine use, this transformer is also suitable for industrial and mobile applications where galvanic isolation is required. It can be configured as a step-up or step-down transformer: 115V to 120V, 230V to 240V, 115V to 240V, or 230V to 120V. This flexibility makes it a valuable component in custom power systems for workshops, remote sites, or specialised equipment.
For optimal safety, it is recommended to connect the secondary neutral to ground when the vessel is out of the water, ensuring full GFCI functionality during maintenance.
Protect Your Investment with Proven Victron Engineering
Galvanic corrosion is a silent threat that can lead to costly repairs. Installing a Victron isolation transformer is a proactive measure that safeguards your vessel's underwater metals and enhances onboard electrical safety. With its automatic voltage sensing, soft start, and rugged construction, this unit is a reliable choice for serious cruisers and marine professionals.
Equip your boat with the isolation it needs. Order the Victron 3600W Isolation Transformer today and sail with confidence, knowing your electrical system is fully protected.
SKU: VIC-ITR050362041
SPECIFICATIONS
Specifications
| Power Rating | 3600 W |
|---|---|
| AC Input Voltage | 115 or 230 V, automatic detection |
| AC Output Voltage | 120 or 240 V |
| Frequency | 50/60 Hz |
| Output Current Rating | 32 A (115 V); 16 A (230 V) |
| Can Be Used As | 115 V to 120 V isolation transformer; 230 V to 240 V isolation transformer; 115 V to 240 V isolation transformer; 230 V to 120 V isolation transformer |
| Soft Start | Yes |
| Operating Temperature Range | -20 °C to 40 °C |
| Humidity | Max 95%, non-condensing |
| Transformer Type | Toroidal (low noise, low weight), 1:1.05 ratio |
| Enclosure | Aluminium (blue RAL 5012) |
| Protection Category | IP21 |
| Safety | EN 60076 |
| Weight | 21.7 kg |
| Dimensions (H x W x D) | 362 x 258 x 221 mm |
| SKU: | VIC-ITR050362041 |
| Barcode: | 8719076022565 |
| Model #: | ITR050362041 |
| MPN: | ITR050362041 |
