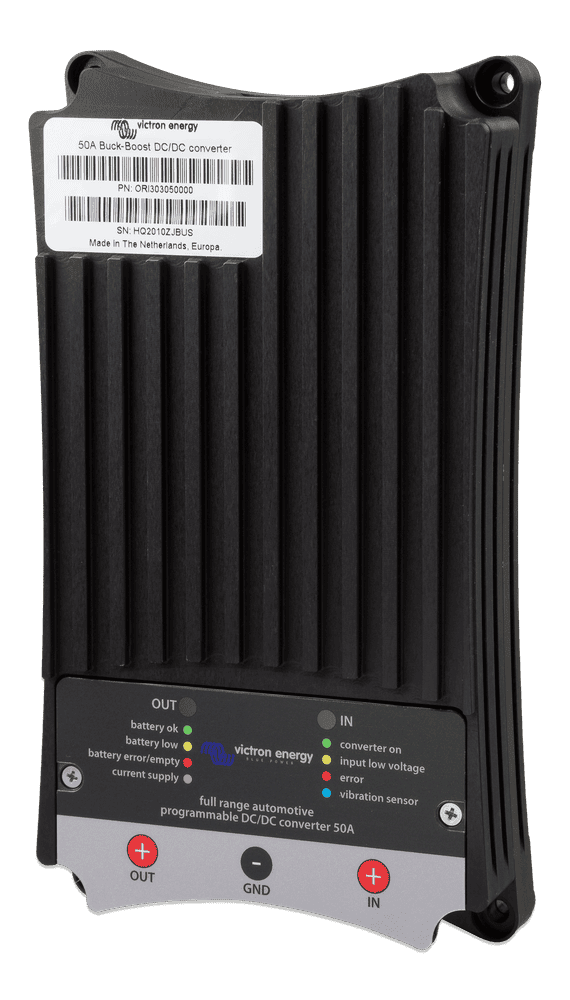

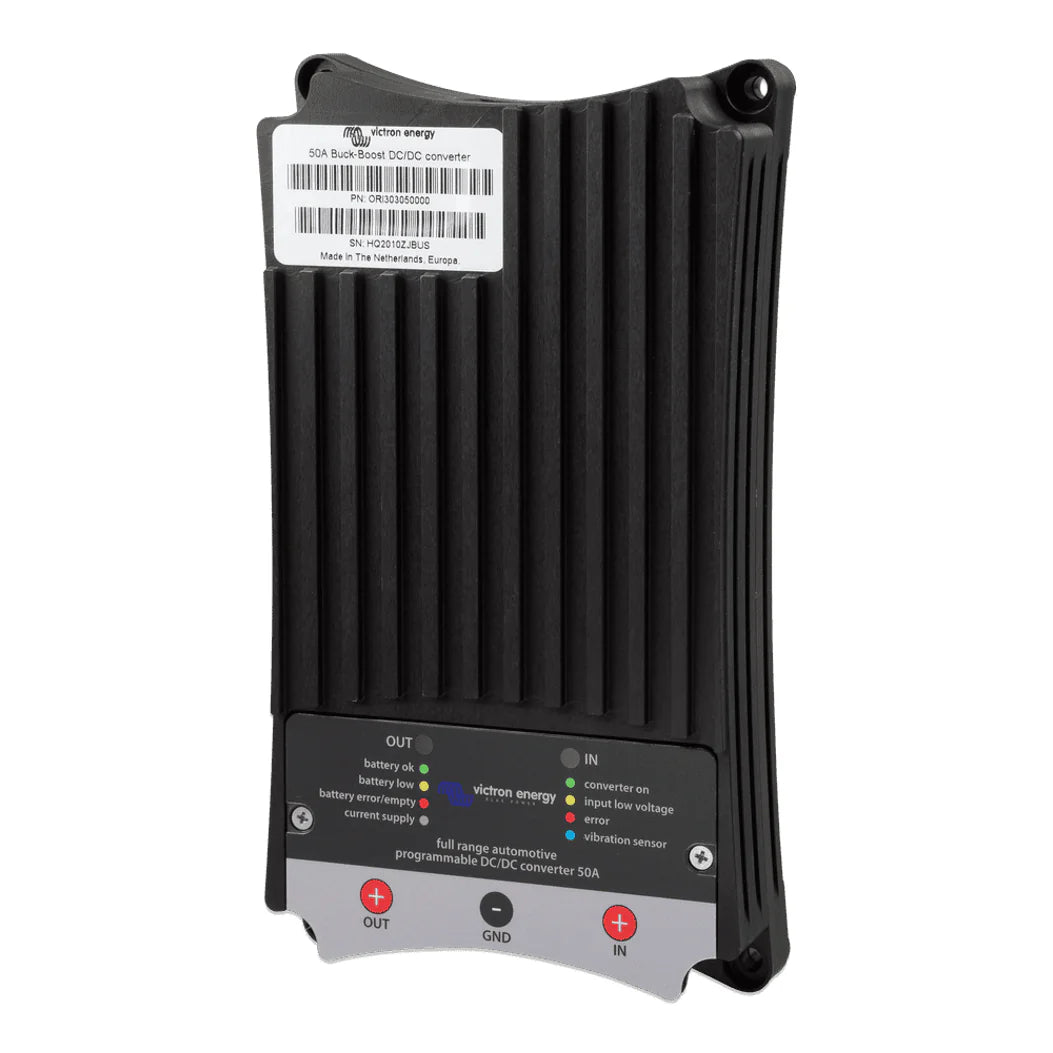

Victron 12/24V 50A Buck-Boost DC-DC Converter
Victron 12/24V 50A Buck-Boost DC-DC Converter
Highly Programmable

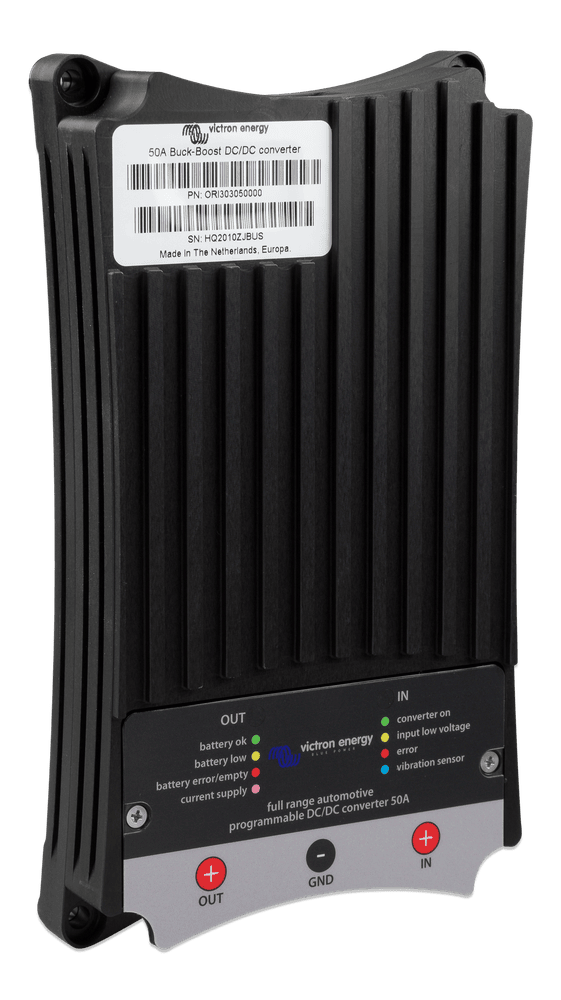

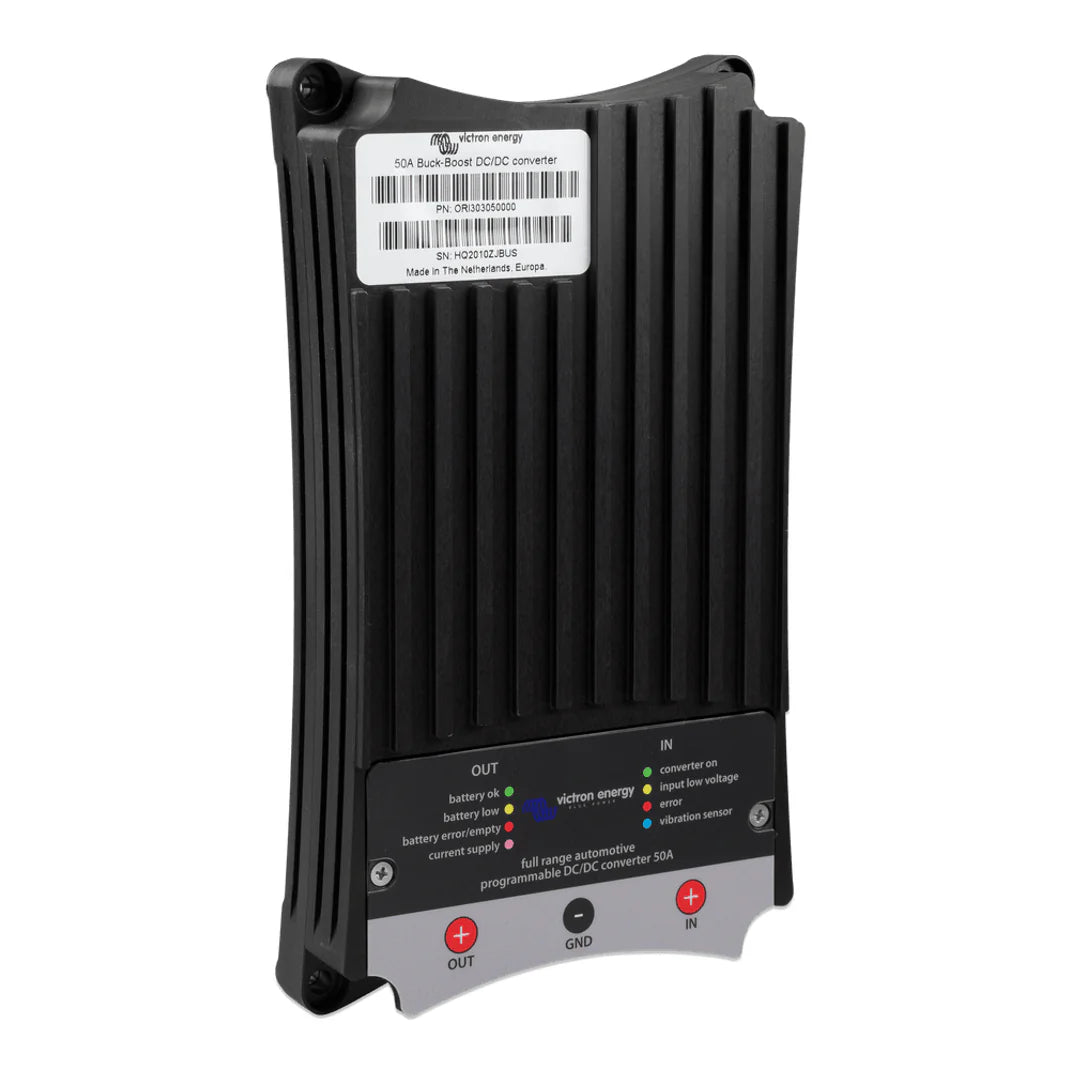

Key features: Finned aluminium heatsink for efficient thermal management, Configurable status LEDs for input and output circuits, 50A maximum charge current for fast battery charging, Compact 213x120x30mm enclosure for easy installation, Programmable via USB for custom voltage thresholds, Integrated vibration sensor for smart engine-on detection.
Highlights:Output Status LEDs: Indicators for battery condition, errors, and current supply status,Input Status LEDs: Indicators for converter operation, low voltage, and vibration sensor active,Output Terminal: Positive connection for the 12V or 24V battery being charged,Ground Terminal: Common negative return path for input and output circuits,Input Terminal: Positive connection for the power source, such as an alternator.

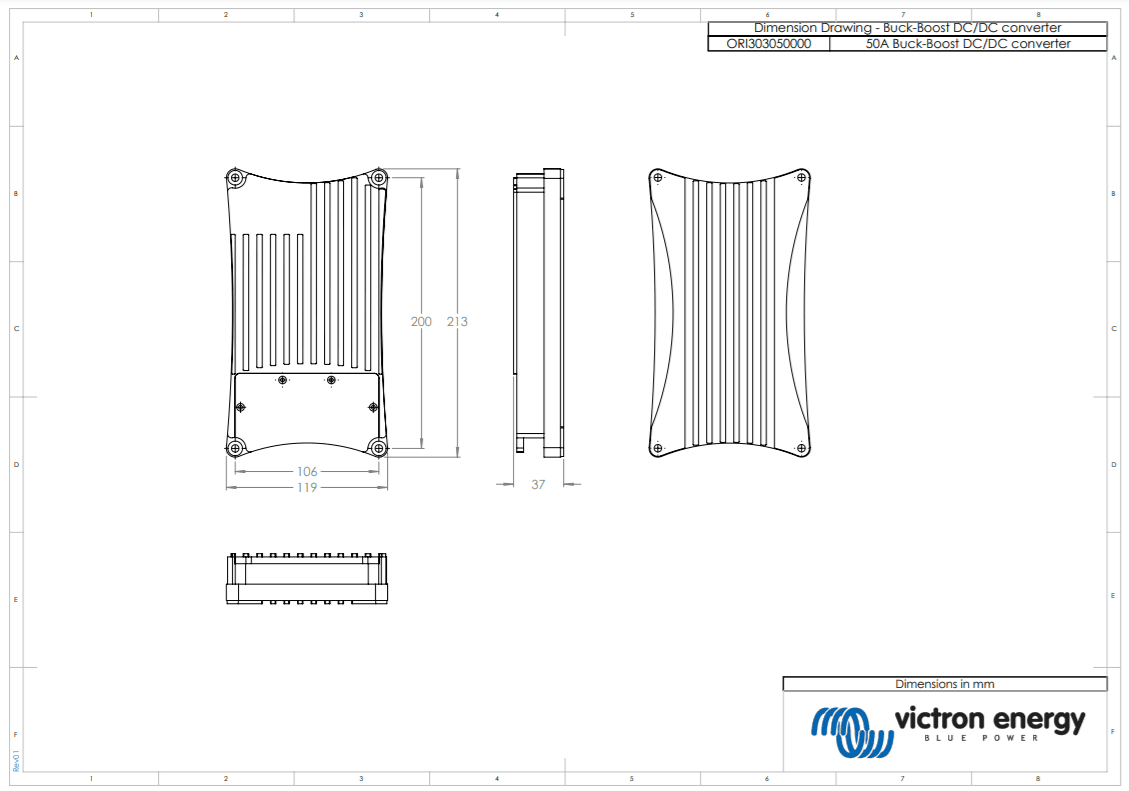

Detailed engineering drawing showing dimensions of 213mm length, 120mm width, and 30mm depth for installation planning and mounting hole placement.

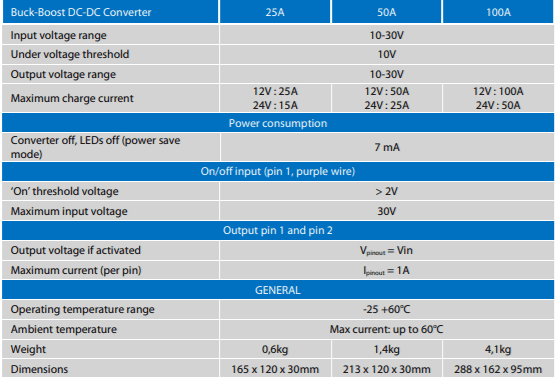

Comparison table displaying key electrical specifications across the range, including input voltage ranges and charge current for 12V and 24V systems.

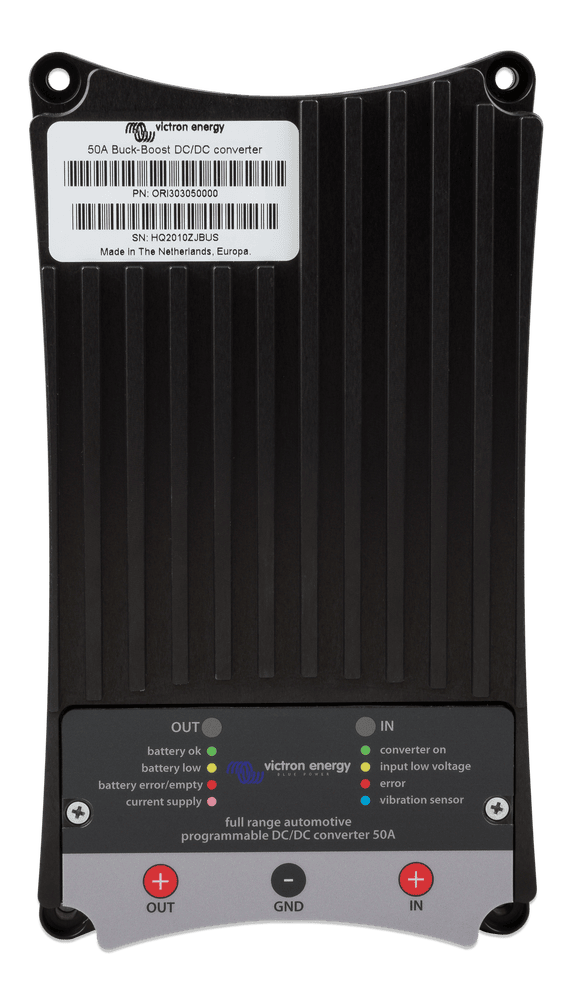

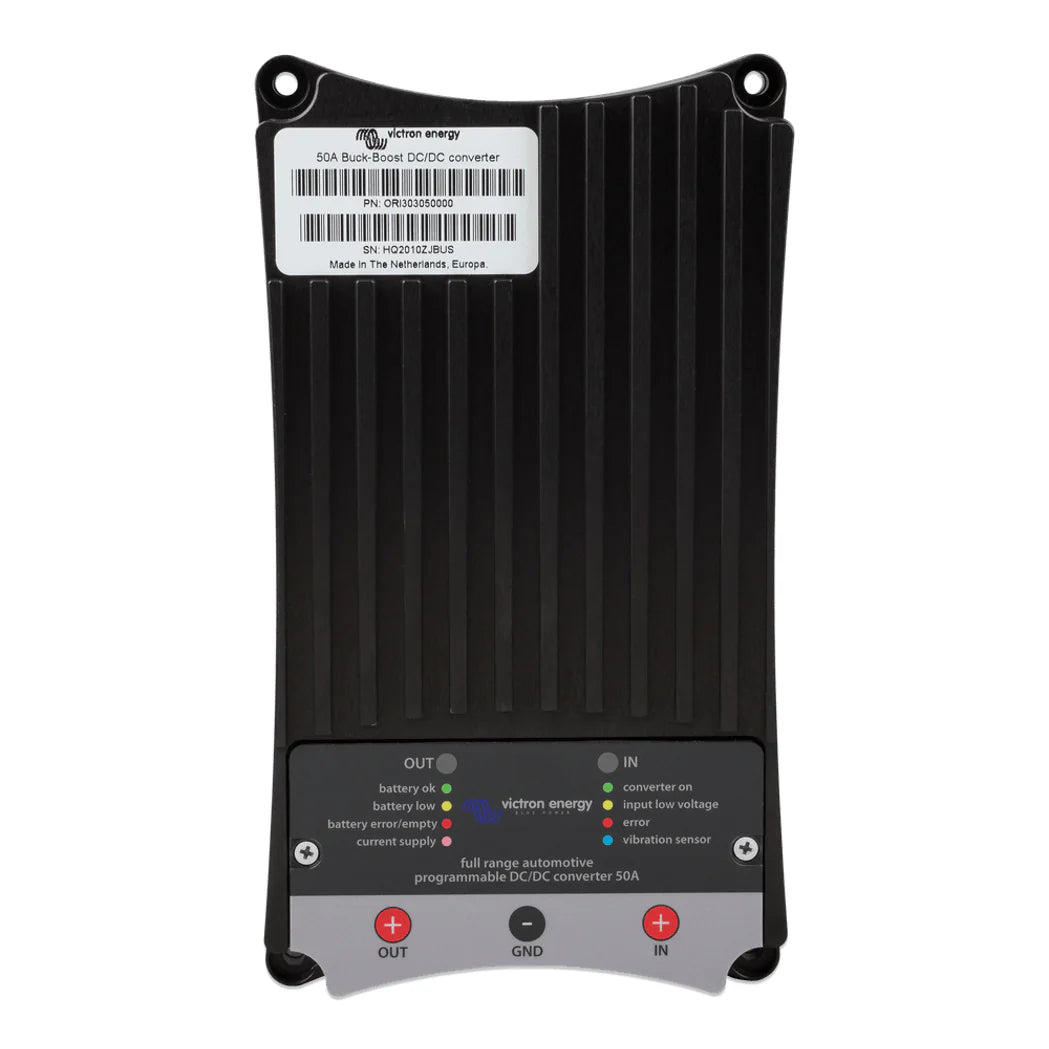

Clear labelling and colour-coded LED indicators provide real-time status updates on battery health, input voltage, and potential error states.
The integrated USB port allows for precise programming and configuration of the converter through Victron software on a PC.
DESCRIPTION
Victron 12/24V 50A Buck-Boost DC-DC Converter
Efficient Charging for Service Batteries in Vehicles with Smart Alternators
The Victron 12/24V 50A Buck-Boost DC-DC Converter is designed to provide efficient charging for a 12V or 24V service battery in vehicles equipped with smart alternators, including those with Euro 5 and Euro 6 engines featuring regenerative braking. This advanced converter ensures your auxiliary battery receives a consistent charge by managing both high and low voltage scenarios, eliminating potential issues common in smart alternators.
Key Features
Versatile Compatibility
- Supports Multiple Systems: The converter is suitable for 12V, 24V, and 12/24V systems, allowing you to charge a 12V or 24V auxiliary battery from a 12V or 24V alternator and starter battery.
- Pre-set Charge Voltage: Ensures stable charging by regulating high voltages (e.g., Mercedes: 15.4V) and low voltages.
Intelligent Design
- Engine Running Detection: This built-in system prevents deep discharge of the vehicle's starting battery by detecting when the engine is running. Alternatively, the converter can be activated via programmable inputs (D+, CAN bus, or (+)15 connection).
- Fully Programmable: Easily program the converter using a simple and user-friendly PC application (USB type A male to USB type B male cable required).
Performance and Safety
- Charge Current and Input Current Limiter: The output current is regulated by the maximum charge current setting, input current setting, and the converter's maximum operating temperature limit.
- Status Indication LEDs: Clear visual indicators for input and output status ensure optimal operation and troubleshooting.
Applications
Ideal for various applications including:
- Trucks, Buses, and RVs: Maintain your service batteries efficiently while traveling.
- Marine: Reliable power management for boats with smart alternators.
- Off-Grid and Industrial: Perfect for remote power systems and industrial equipment.
Upgrade Your Power System
Ensure your vehicle's auxiliary battery is always charged and ready with the Victron 12/24V 50A Buck-Boost DC-DC Converter. Optimize your power management and prevent battery issues with this versatile and intelligent converter.
Order yours today and experience seamless battery charging in your vehicle!
SKU: Vic-ORI303050000
Visit Victron's Official Victron 12/24V 50A Buck-Boost DC-DC Converter Webpage Here
SPECIFICATIONS
Specifications
| Model | 50A |
| Input voltage range | 10-30V |
| Under voltage threshold | 10V |
| Output voltage range | 10-30V |
| Maximum charge current | 12V: 50A 24V: 25A |
| Power consumption | |
| Converter off, LEDs off (power save mode) | 7 mA |
| On/off input (pin 1, purple wire) | |
| 'On' threshold voltage | > 2V |
| Maximum input voltage | 30V |
| Output pin 1 and pin 2 | |
| Output voltage if activated | Vinput = Vin |
| Maximum current (per pin) | Iinput = 1A |
| General | |
| Operating temperature range | -25 to +60°C |
| Ambient temperature | Max current: up to 60°C |
| Weight | 1.4kg |
| Dimensions | 213 x 120 x 30mm |
| SKU: | Vic-ORI303050000 |
| Barcode: | 8719076023128 |
| Model #: | ORI303050000 |
| MPN: | ORI303050000 |
