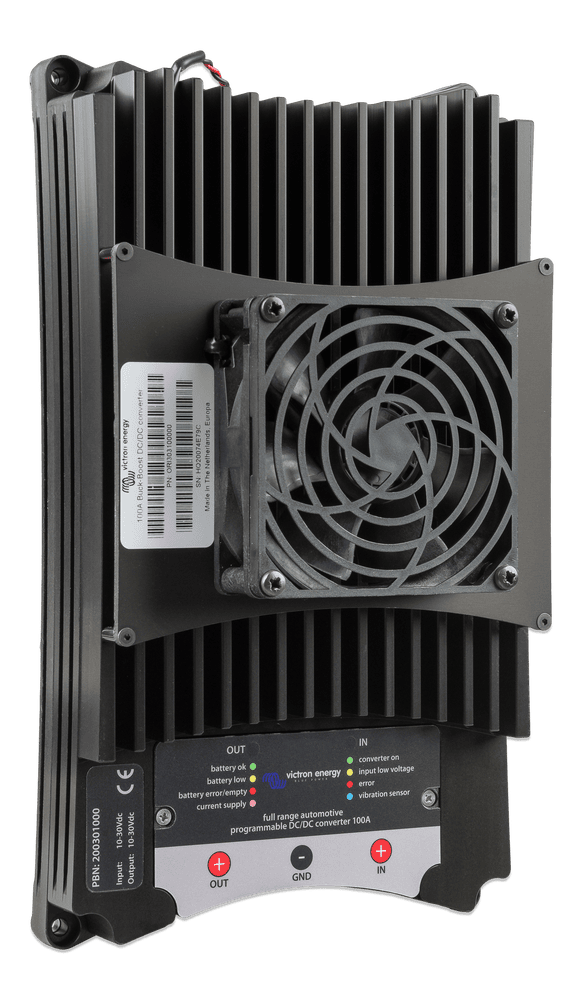

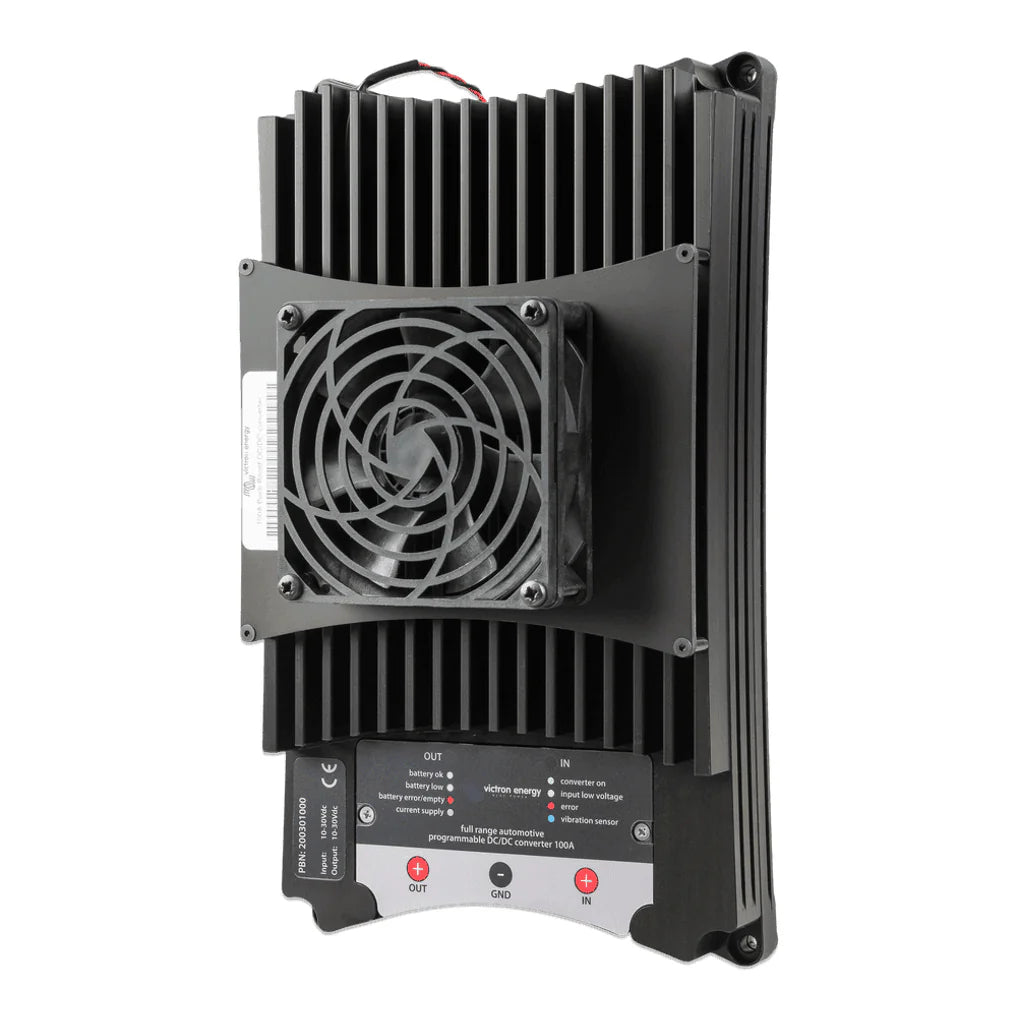

Angled view of black 100A buck-boost DC-DC converter with central cooling fan and status LEDs

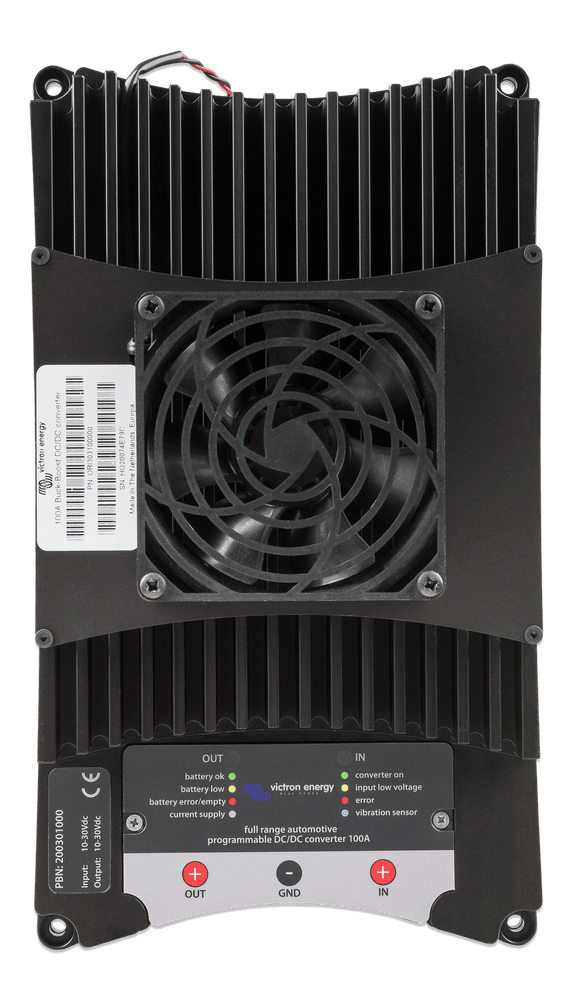

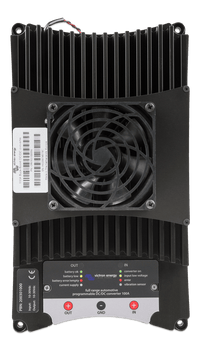

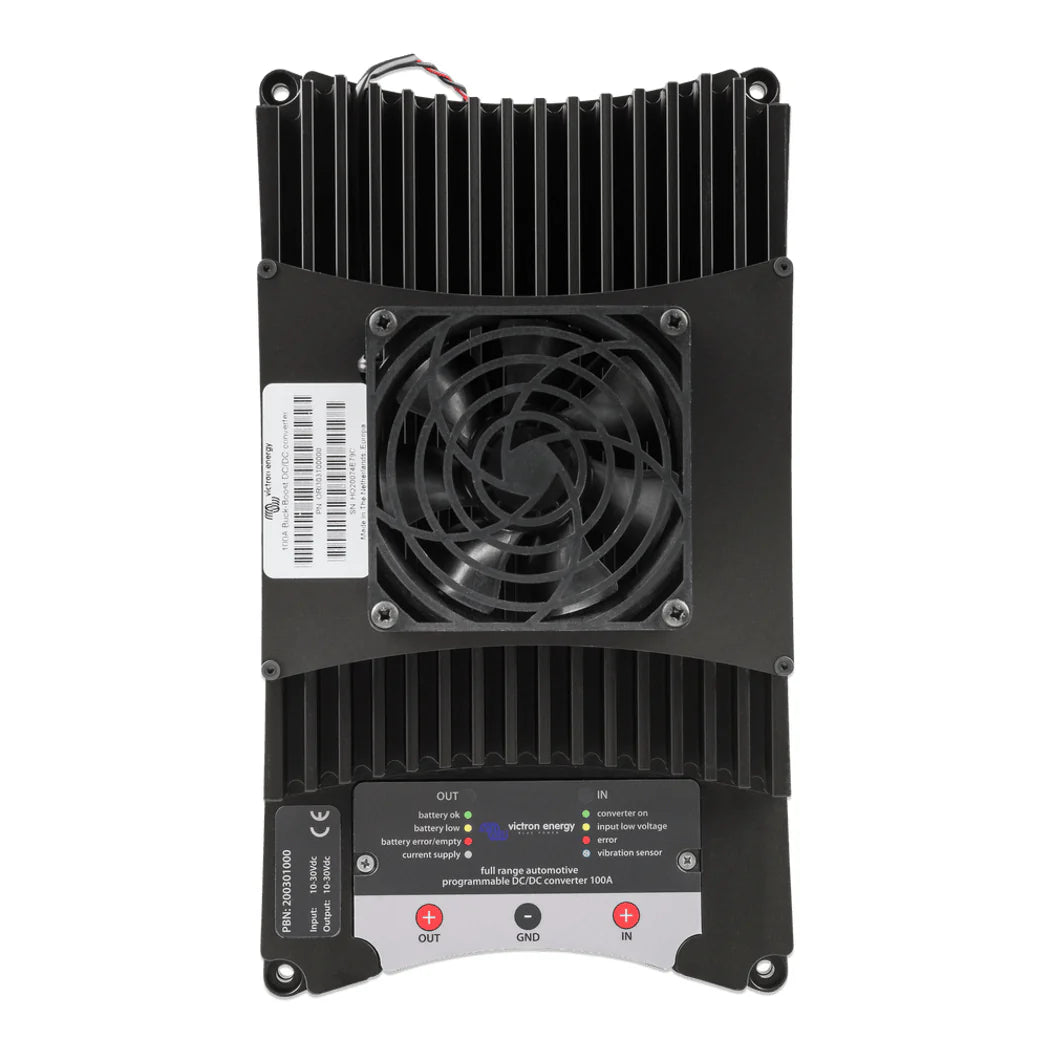

Front view of 100A DC-DC converter showing integrated cooling fan, heatsink fins and status indicators

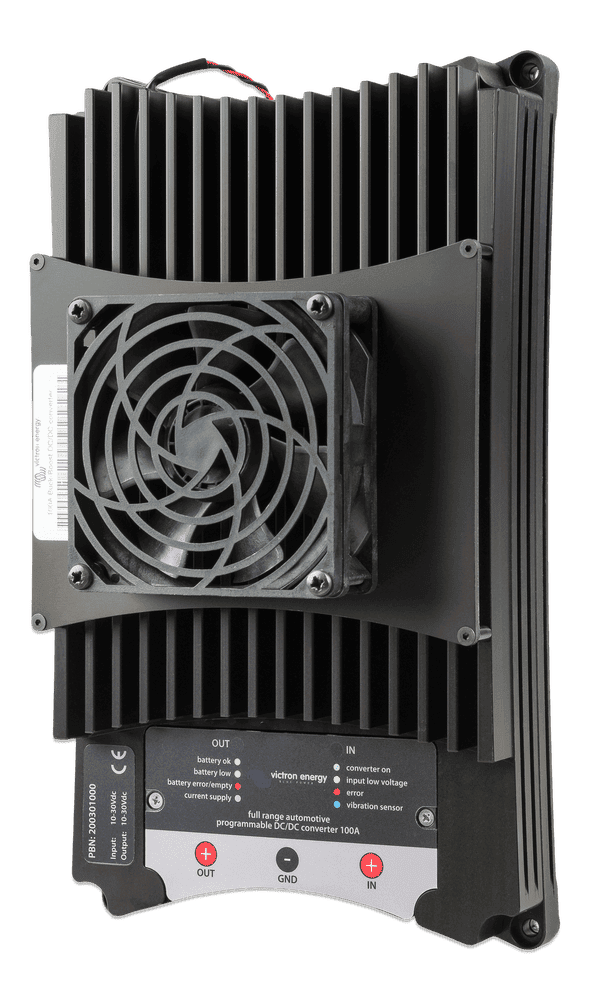

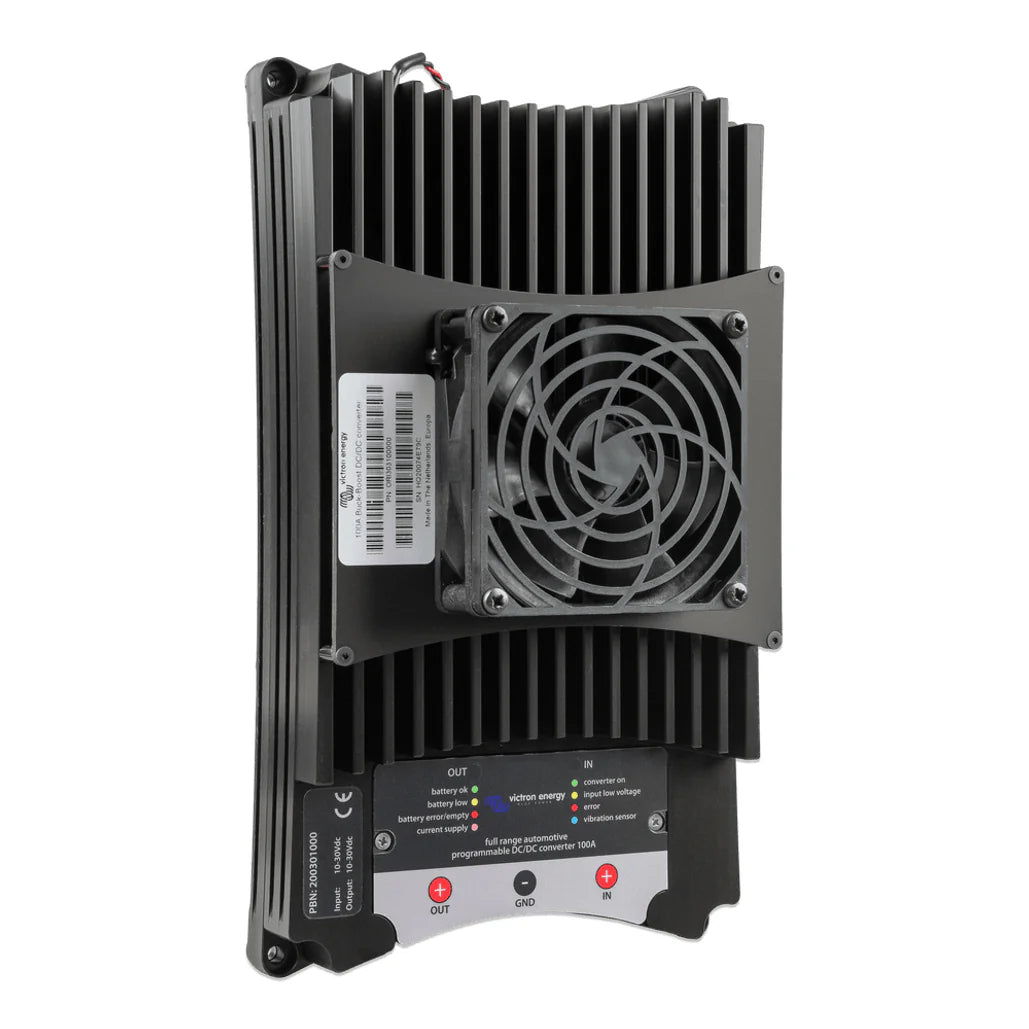

Side angled view of a black 100A converter showing robust metal construction and side cooling fins

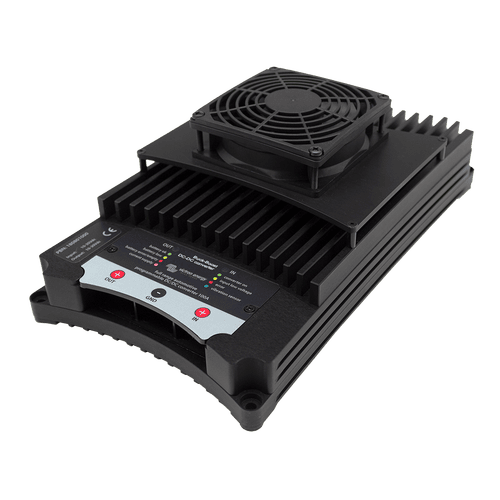

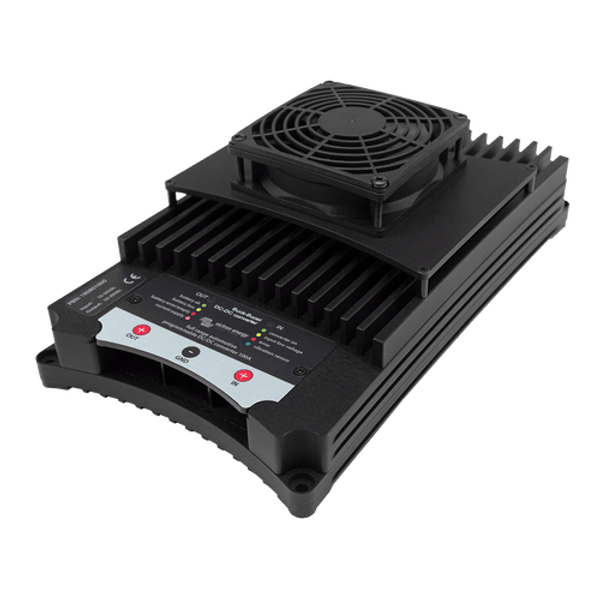

Isometric view of a 100A buck-boost converter showcasing the depth and fan assembly

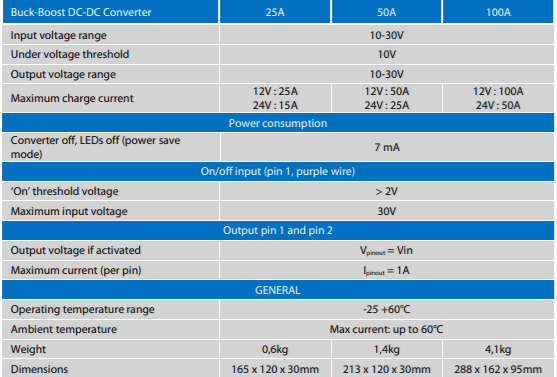

Specification table for 25A 50A and 100A Victron buck-boost DC-DC converter models

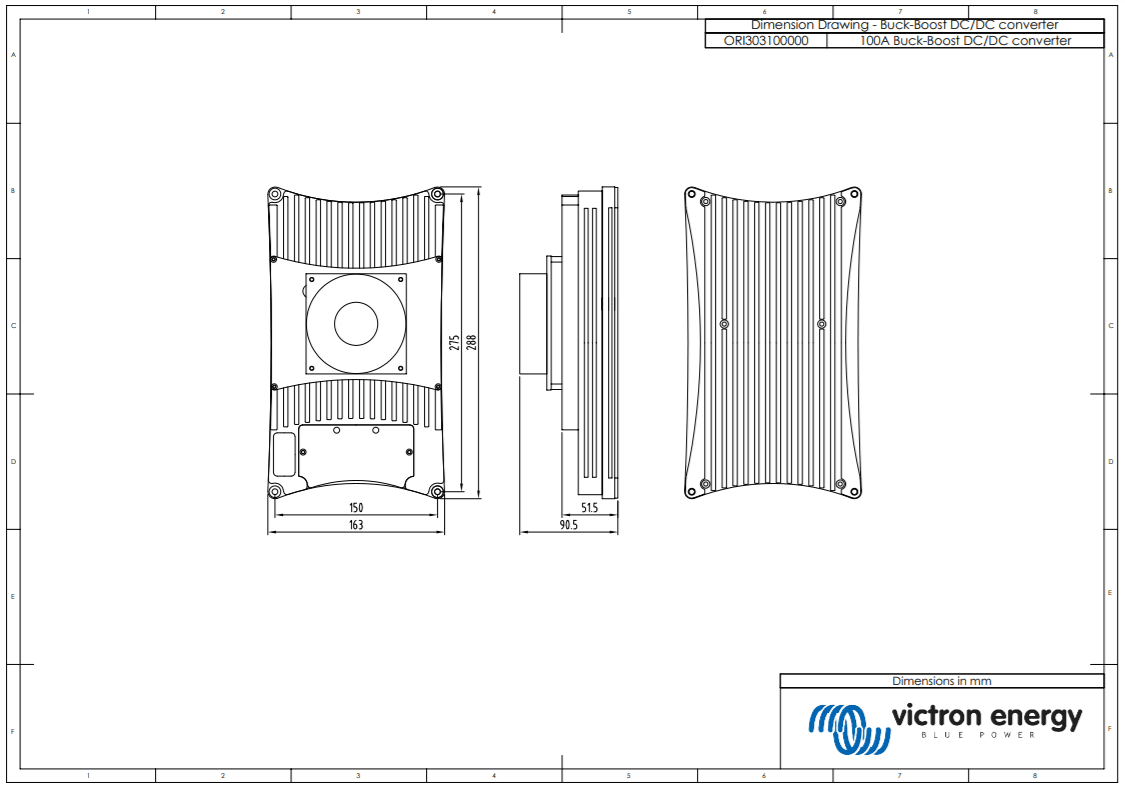

Dimensional drawing with front and side views of the 100A buck-boost DC-DC converter
Close-up of high-current terminal studs and Pin 1 control wiring on a DC-DC converter
Detail of the LED indicator panel for status monitoring on the converter housing
Macro view of the USB Type-B programming port on the side of the converter case
Regular price $1,924.00
$2,219.80
/
Availability: In Stock at Victron Warehouse Allow up to 5 days before dispatch
View all products from Victron
Guaranteed Safe and Secure Checkout
American Express Apple Pay Google Pay MastercardPayPalShop Pay Union PayVisa

0
Angled view of black 100A buck-boost DC-DC converter with central cooling fan and status LEDs

Victron 12/24V 100A Buck-Boost DC-DC Converter

DESCRIPTION

Victron 12/24V 100A Buck-Boost DC-DC Converter

High-Performance Charging for Service Batteries in Vehicles with Smart Alternators

The Victron 12/24V 100A Buck-Boost DC-DC Converter delivers high-performance charging for 12V or 24V service batteries in vehicles equipped with smart alternators, including those with Euro 5 and Euro 6 engines featuring regenerative braking. This sophisticated converter ensures your auxiliary battery receives a consistent and reliable charge by effectively managing both high and low voltage conditions, eliminating common issues associated with smart alternators.

Key Features

Versatile Compatibility

  • Supports Multiple Systems: This converter is compatible with 12V, 24V, and 12/24V systems, allowing you to charge a 12V or 24V auxiliary battery from either a 12V or 24V alternator and starter battery.
  • Pre-set Charge Voltage: Guarantees stable charging by regulating high voltages (e.g., Mercedes: 15.4V) and low voltages.

Intelligent Design

  • Engine Running Detection: Prevents deep discharge of the vehicle's starting battery by detecting when the engine is running. Alternatively, the converter can be activated via programmable inputs (D+, CAN bus, or (+)15 connection).
  • Fully Programmable: Easily program the converter using a simple and user-friendly PC application (USB type A male to USB type B male cable required).

Performance and Safety

  • Charge Current and Input Current Limiter: The output current is regulated by the maximum charge current setting, input current setting, and the converter's maximum operating temperature limit.
  • Status Indication LEDs: Clear visual indicators for input and output status to ensure optimal operation and troubleshooting.

Applications

Ideal for various applications including:

  • Trucks, Buses, and RVs: Maintain your service batteries efficiently while traveling.
  • Marine: Reliable power management for boats with smart alternators.
  • Off-Grid and Industrial: Perfect for remote power systems and industrial equipment.

Upgrade Your Power System

Ensure your vehicle's auxiliary battery is always charged and ready with the Victron 12/24V 100A Buck-Boost DC-DC Converter. Optimize your power management and prevent battery issues with this versatile and powerful converter.

Order yours today and experience seamless battery charging in your vehicle!

SPECIFICATIONS

Specifications

Model 100A
Input voltage range 10-30V
Under voltage threshold 10V
Output voltage range 10-30V
Maximum charge current 12V: 100A 24V: 50A
Power consumption
Converter off, LEDs off (power save mode) 7 mA
On/off input (pin 1, purple wire)
'On' threshold voltage > 2V
Maximum input voltage 30V
Output pin 1 and pin 2
Output voltage if activated Vinput = Vin
Maximum current (per pin) Iinput = 1A
General
Operating temperature range -25 to +60°C
Ambient temperature Max current: up to 60°C
Weight 4.1kg
Dimensions 288 x 162 x 95mm

SKU: VIC-ORI303100000
Barcode: 8719076046837
Model #: ORI303100000
MPN: ORI303100000
