2B&S (32mm²) Red Single Core Marine Cable (Tinned) per Metre

172A Rated (AS/NZS 3008, free air 40°C) 2B&S (32mm²) Red Tinned Copper Marine Cable per Metre


Regular price $19.00
/
Availability: In Stock
View all products from Tyree
Guaranteed Safe and Secure Checkout
Apple Pay Google Pay Mastercard PayPalShop Pay Visa
99328

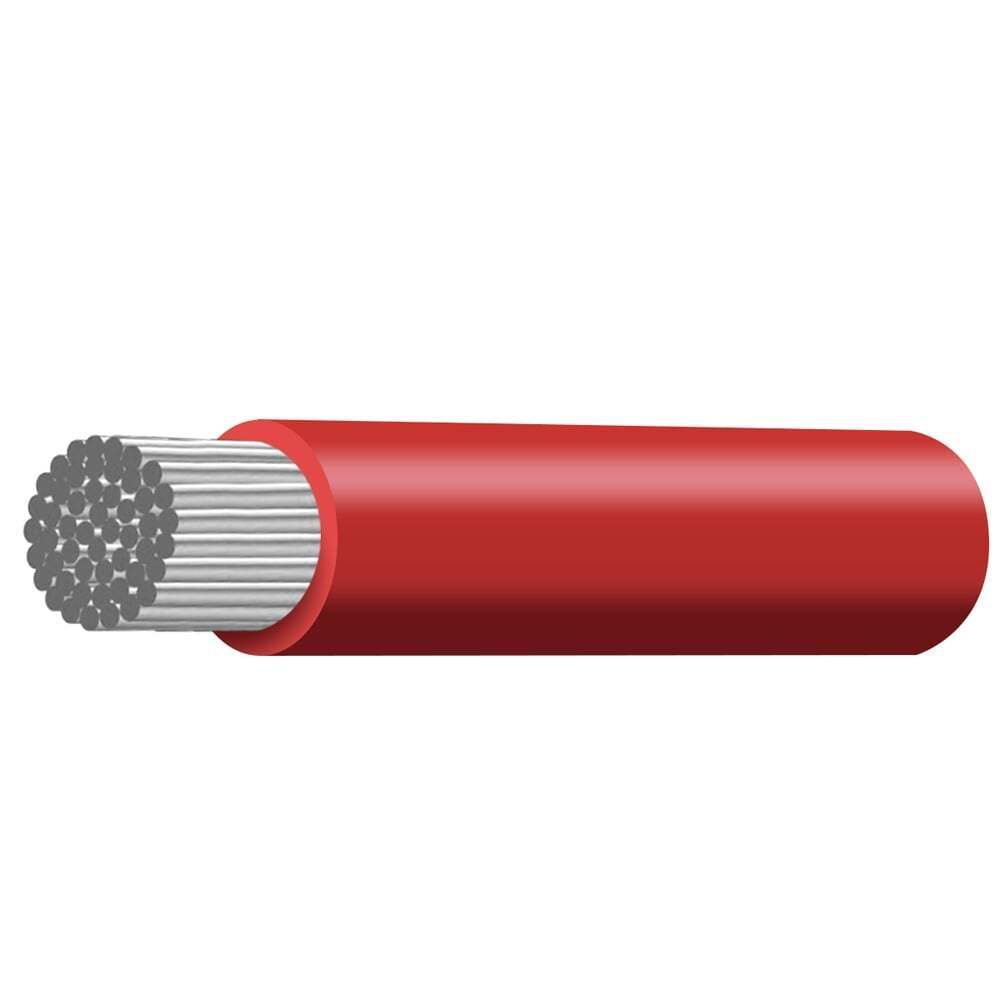

Cutaway view of 2 B&S red marine cable showing stranded tinned copper conductor

2B&S (32mm²) Red Single Core Marine Cable (Tinned) per Metre

DESCRIPTION

High-Performance 2B&S (32mm²) Tinned Copper Cabling for Marine and Automotive Systems

The 2B&S (32mm²) Red Single Core Marine Cable (Tinned) per Metre delivers consistent, low-resistance power where moisture and salt are a concern. Designed for marine vessels, 4WD dual battery setups and off-grid power systems, it pairs a 399/0.32mm tinned copper conductor to AS/NZS 1125 with V90 PVC insulation to AS/NZS 3808. Australian made.

Unlike plain copper cabling, which corrodes when exposed to salt air and moisture, this premium 2B&S (32mm²) Red Single Core Marine Cable (Tinned) features tinned conductors. The tin coating resists oxidation and "black wire" corrosion, helping maintain low resistance and consistent voltage delivery to critical components like inverters, winches and start batteries.

Superior Current Handling and Heat Resistance

With a substantial 32mm² cross-sectional area (2 B&S), this cable handles high current loads and helps minimise voltage drop over long runs. Rated 172A to AS/NZS 3008.1.1 (two single-core cables spaced in free air at 40°C ambient), it suits heavy-duty battery, inverter and winch circuits. The conductor is encased in V90 PVC insulation rated up to 90°C, with a nominal outer diameter of 10.3mm and a conductor resistance of 0.62 ohm/km at 20°C.

*Derating factors apply for bundled cables, enclosure and higher ambient temperatures. Use our cable sizing calculator for your installation.

Versatile Application: 12V, 24V, and 48V Systems

While frequently sought after for 12V automotive cable and marine applications, this cabling is rated for a maximum of 60V DC. This makes it suitable for 24V truck systems and 48V off-grid battery banks. Whether you are wiring a bow thruster, a DC-DC charger or a solar regulator, this cable offers the flexibility required for professional installations.

Key Features

  • 399/0.32mm Stranding: Flexible tinned copper conductor to AS/NZS 1125, resistance 0.62 ohm/km at 20°C.
  • Tinned Conductor: Provides superior corrosion resistance essential for marine and coastal environments.
  • V90 PVC Insulation: Rated up to 90°C (AS/NZS 3808), nominal outer diameter 10.3mm.
  • 172A Current Rating: In free air at 40°C (AS/NZS 3008.1.1) for high-draw appliances and charging systems; derate when bundled or enclosed.
  • Multi-Voltage Suitability: Suits 12V, 24V and 48V DC applications (rated to 60V DC).

Reliable Connection for Your Setup

Upgrade your power infrastructure with the 2B&S (32mm²) Red Single Core Marine Cable (Tinned) per Metre. Whether fitting out a yacht or upgrading a camper trailer, pair it with correctly sized tinned lugs and adhesive-lined heat shrink for a reliable, sealed connection.

SPECIFICATIONS

Specifications

  • Conductor: tinned annealed copper to AS/NZS 1125, drawn from Class 110A copper to AS/NZS 1574; 2 B&S cross-section to SAE J1127
  • Insulation: coloured V90 PVC to AS/NZS 3808
  • Colour: Red
  • Voltage rating: 60V d.c. Not for mains connection.
Code Size B&S Nominal Area (mm²) Strand No. / Size **AMP Rating (free air, 40°C) Max. D.C. Resistance at 20°C (Ω/km) Nominal Insulation Thickness (mm) Nominal O.D. (mm) Voltage Rating
MBS145503 2 32 399/0.32 172 0.62 1.7 10.3 60V d.c.

** AMP rating: AS/NZS 3008.1.1 value for two single-core cables spaced in free air at 40°C ambient, with the V90 PVC insulation rated at 90°C, interpolated for this conductor size. Derating factors apply for bundled cables, enclosure and higher ambient temperatures. Use our cable sizing calculator for your installation. Construction: Tycab MBS specification (revised 23 July 2026).


SKU: Ty-MBS145503-RD
Model #: MBS2R30
MPN: MBS2R30
HS code: 8544493080
Country of origin: AU
Package weight: 0.39 kg
Package length: 0.2 m
Package width: 0.2 m
Package height: 0.01 m
