2B&S (32.09mm²) Red Single Core Automotive Cable per Metre
2B&S (32.09mm²) Red Single Core Automotive Cable per Metre
172A rated (AS/NZS 3008, free air 40°C) with flexible high-strand copper and V90HT insulation
View all products from Key

DESCRIPTION
2B&S (32.09mm²) Red Single Core Automotive Cable per Metre

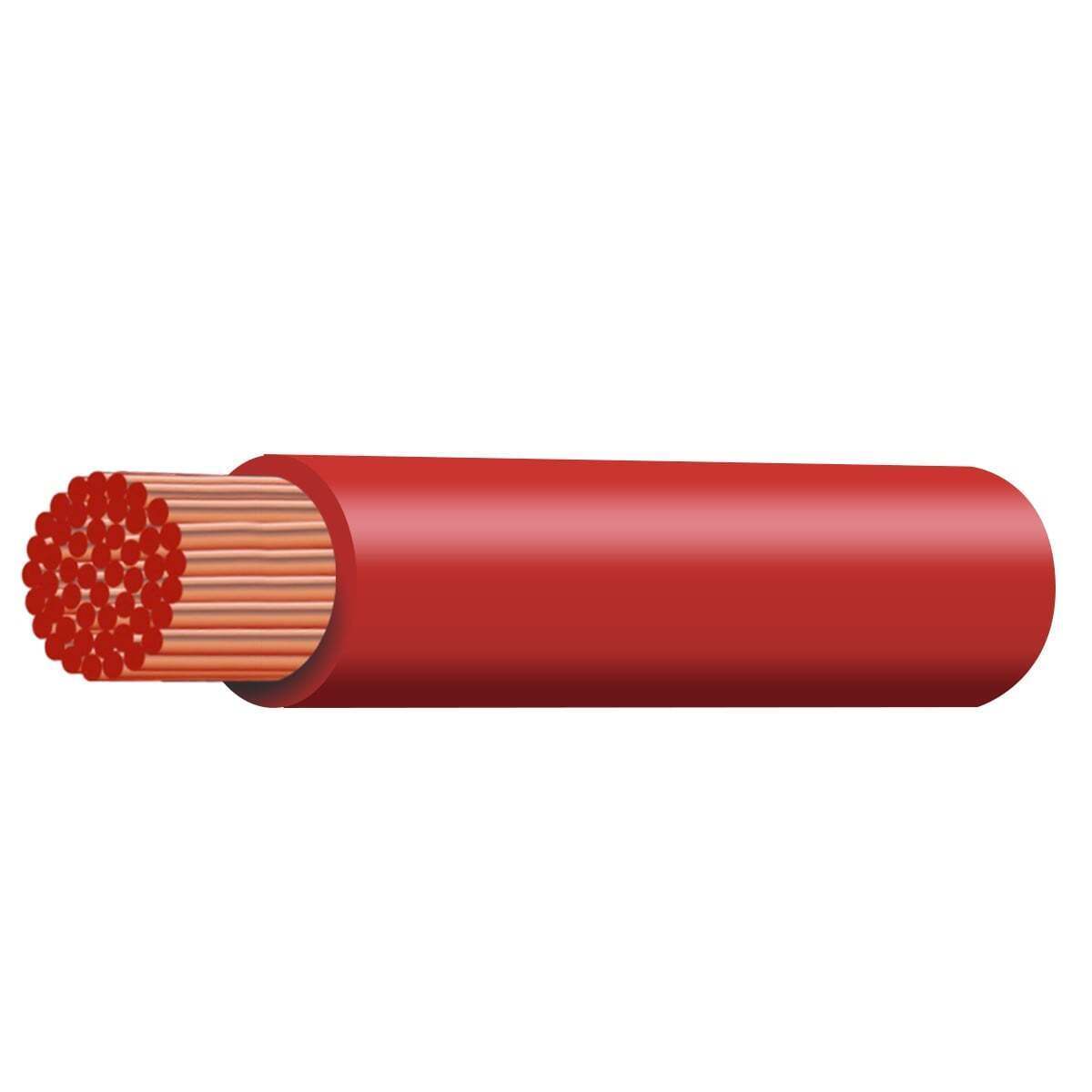

This red 2B&S automotive battery cable is sold by the metre and cut to the ordered length. Australian made by KEY (part KABC1455030), it uses a flexible 399/0.32 plain copper conductor to AS/NZS 1125 with a nominal conductor area of 32.09mm² and durable V90HT PVC insulation.
Automotive battery and starter cable
The single-core construction is intended for low-voltage battery, starter, charging and auxiliary-power wiring in automotive, caravan and similar DC systems. Its 120V DC / 50V AC rating means it is not suitable for mains connection.
- Sold per metre: order quantity is the continuous cut length in metres, subject to available reel length
- Key part: KABC1455030
- Nominal conductor area: 32.09mm² (nearest industry size: 2 B&S / 2 AWG)
- Flexible conductor: 399 strands of 0.32mm plain copper
- Sheath colour: Red
Current rating
Rated 172A to AS/NZS 3008.1.1 (two single-core cables spaced in free air at 40°C ambient), this cable suits high-current battery, starter, inverter and dual battery circuits.
Derating and cable selection: *Derating factors apply for bundled cables, enclosure and higher ambient temperatures. Use our cable sizing calculator for your installation. The complete circuit must also be designed for voltage drop, run length, termination ratings and overcurrent protection by a suitably qualified person.
Cut-length product: Please confirm the required quantity before ordering, as cable cut to length cannot normally be returned.
SKU: Key-KABC1455030RD1
SPECIFICATIONS
Specifications
Conductor: plain copper to AS/NZS 1125. Insulation / sheath: V90HT PVC. Voltage rating: 120V DC / 50V AC – not for mains connection.
This listing is the highlighted row. Source: KEY Battery Cable Spec Sheet F181a-1 (July 2026); AMP ratings per the note below.
| Part No. | Size B&S | No. of Cores | Conductor No. / Dia. (mm) | Nominal Area (mm²) | Insulation Thickness (mm) | Electrical Resistance at 20°C (ohm/km) | Nominal O.D. (mm) | **AMP Rating (free air, 40°C) |
|---|---|---|---|---|---|---|---|---|
| KABC1112030 | 8 | 1 | 96/0.32 | 7.72 | 0.9 | 2.4 | 5.5 | 69 |
| KABC1192030 | 6 | 1 | 168/0.32 | 13.51 | 1.1 | 1.4 | 7.0 | 98 |
| KABC1287030 | 4 | 1 | 252/0.32 | 20.27 | 1.1 | 0.9 | 8.7 | 127 |
| KABC1364030 | 3 | 1 | 329/0.32 | 26.46 | 1.6 | 0.7 | 10.6 | 152 |
| KABC1455030 | 2 | 1 | 399/0.32 | 32.09 | 1.7 | 0.6 | 11.7 | 172 |
| KABC1492032 | 1 | 1 | 492/0.32 | 39.57 | 1.7 | 0.5 | 12.4 | 197 |
| KABC1609032 | 0 | 1 | 608/0.32 | 48.90 | 1.7 | 0.4 | 13.7 | 227 |
| KABC1912030 | 2/0 | 1 | 798/0.32 | 64.18 | 1.7 | 0.3 | 14.9 | 274 |
| KABC11204030 | 3/0 | 1 | 1035/0.32 | 83.24 | 2.0 | 0.23 | 17 | 323 |
| KABC2T11230 | 8 | 2 | 96/0.32 | 7.72 | 0.9 | 2.4 | 7.6 x 13.1 | 64 |
| KABC2T19230 | 6 | 2 | 168/0.32 | 13.51 | 1.1 | 1.4 | 9.1 x 16.0 | 92 |
| KABC2TW28703 | 4 | 2 | 252/0.32 | 20.27 | 1.1 | 0.9 | 10.8 x 19.4 | 118 |
** AMP rating: AS/NZS 3008.1.1 value in free air at 40°C ambient (single core: two cables spaced in free air; twin core: one cable in free air), with the V90HT PVC insulation rated at 90°C, interpolated for each conductor size. Derating factors apply for bundled cables, enclosure and higher ambient temperatures. Use our cable sizing calculator for your installation.
| SKU: | Key-KABC1455030RD1 |
| Model #: | KABC145503-RD |
| MPN: | KABC145503-RD |
| HS code: | 8544493080 |
| Country of origin: | AU |
| Package weight: | 0.39 kg |
| Package length: | 0.2 m |
| Package width: | 0.2 m |
| Package height: | 0.01 m |
