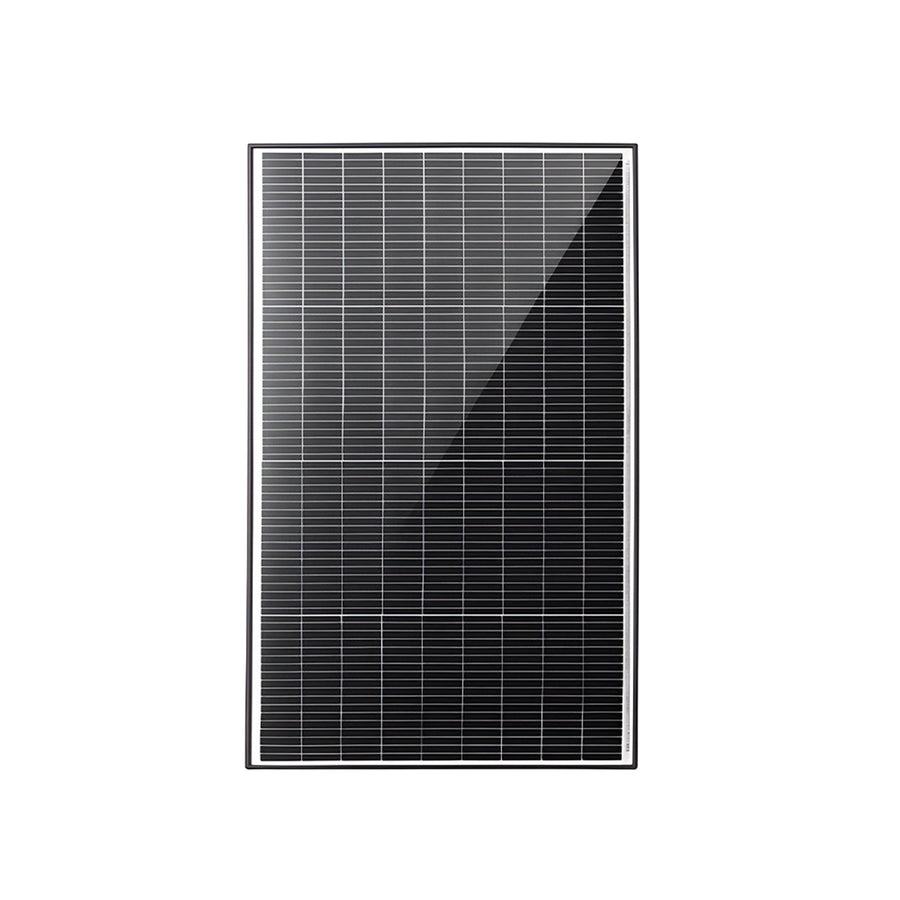

A flexible RV solar kit with compatible mounting, cabling, protection and charging components selected for your installation.
Save 5% when buying as a bundle
Configure a WS500 Pro regulated alternator, with battery sensing and optional Victron VE.Can integration.

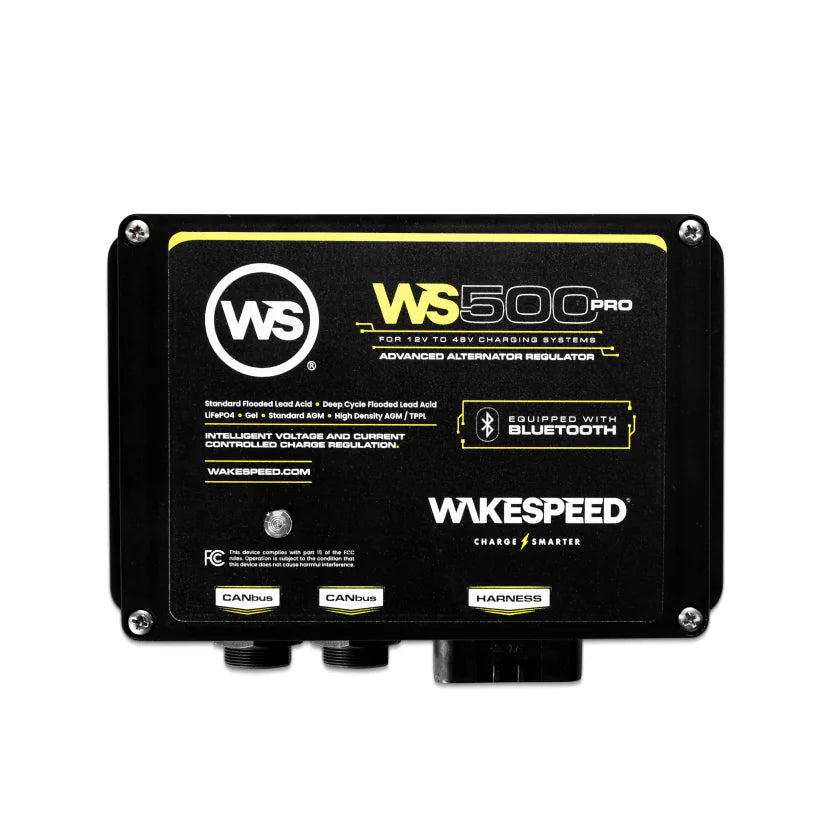

The Wakespeed WS500 Pro represents the next generation in smart alternator regulation, building upon the proven performance of the original WS500 with the addition of Bluetooth connectivity. Designed for marine, RV, and off-grid power systems, this advanced alternator controller delivers precision multi-PID engine control to safely and effectively charge 12V, 24V, and 48V battery banks. Whether you are running traditional lead-acid, AGM, or advanced LiFePO4 lithium arrays, the WS500 Pro optimises your mobile power generation.
Unlike standard voltage-only regulators, the WS500 Pro actively manages charging based on a combination of system voltage, current acceptance, and real-time temperatures. By monitoring the alternator and battery temperatures, it actively regulates output to prevent critical over-temperature conditions rather than simply reacting after a fault occurs. This ensures safe, continuous operation while maximising charging efficiency based on battery C-rates and system loads.
The built-in Bluetooth Low Energy (BLE) module transforms the setup and monitoring experience. Using the Wakespeed Configuration and Monitoring Utility App, installers and end-users can wirelessly configure charging profiles, update firmware, and monitor real-time performance directly from a smartphone. This completely removes the need for physical cable connections during initial setup or diagnostic checks in hard-to-reach engine bays.
Alternators working hard to charge large lithium battery banks can rapidly overheat. The WS500 Pro utilises active temperature sensing to incrementally reduce alternator field output, keeping the alternator within safe operating temperatures and extending its lifespan. Coupled with Zero Output Technology, the regulator intelligently limits the output to match active DC house loads once your battery bank reaches full capacity, preventing overcharging and reducing unnecessary engine drag.
Modern mobile power systems require deep integration. The WS500 Pro features robust CANbus communication capabilities, supporting industry protocols including RV-C, NMEA2000, and Victron VE.reg. This allows the regulator to communicate directly with your Battery Management System (BMS) and other network-enabled devices, enabling highly accurate, coordinated charging profiles across complex setups.
Please note that the WS500 Pro unit is supplied without a wiring harness. To create a fully functional system, you will require the following additional components:
Wakespeed Configuration Utility App:
Upgrade your marine or off-grid vehicle charging setup with the Wakespeed WS500 Pro. By actively protecting your alternator and delivering precise charge profiles to your battery bank, this regulator ensures reliable power generation on the move. Ensure you pair this unit with the correct Wakespeed wiring harness to build your comprehensive charging system today.
The Wakespeed WS500 P-type Wiring Harness provides the critical communication and power bridge between your advanced alternator regulator and your electrical system. Built for demanding P-type alternator installations, this wiring harness simplifies the installation process while significantly reducing the risk of voltage drops, sensor errors, and communication failures often associated with generic wiring solutions.
High-output alternators require precise control and accurate data to perform safely and efficiently. Constructing a custom loom from scratch introduces the potential for poor crimps, incorrect wire gauges, and moisture ingress. By utilising a pre-assembled, professional-grade harness, you ensure that vital signals regarding battery temperature, voltage sensing, and field control reach the regulator without interference. This allows your charging system to operate exactly as intended, protecting your expensive battery bank from undercharging or thermal runaway.
Modern off-grid and marine electrical systems rely heavily on data sharing between components. This harness is thoughtfully designed to support advanced system architectures, ensuring clean signal paths for both analog sensors and digital communication networks.
Engine bays and marine engine rooms expose electrical components to extreme heat, vibration, and moisture. To combat these harsh conditions, the harness features a heavy-duty braided mesh sleeving that provides exceptional mechanical protection against abrasion. Weather-sealed connectors, reinforced with robust heat shrink, prevent moisture and contaminants from compromising your connections. These industrial-grade materials work together to deliver long-lasting reliability in mobile and off-grid power systems.
Time spent troubleshooting electrical gremlins is time away from your travels. This harness features standardised, colour-coded leads that align precisely with the Wakespeed WS500 wiring diagram. With clearly defined branches for the panel, alternator, and battery, the layout takes the guesswork out of the installation. Dedicated sensor plugs and pre-terminated connections further accelerate the process, allowing for a neat, professional finish that is easy to service and maintain over the lifespan of your vehicle or vessel.
Ensure your advanced charging setup operates at peak efficiency with a wiring solution built for the task. Secure your reliable connection today and experience confident, high-performance power generation wherever your journey takes you.

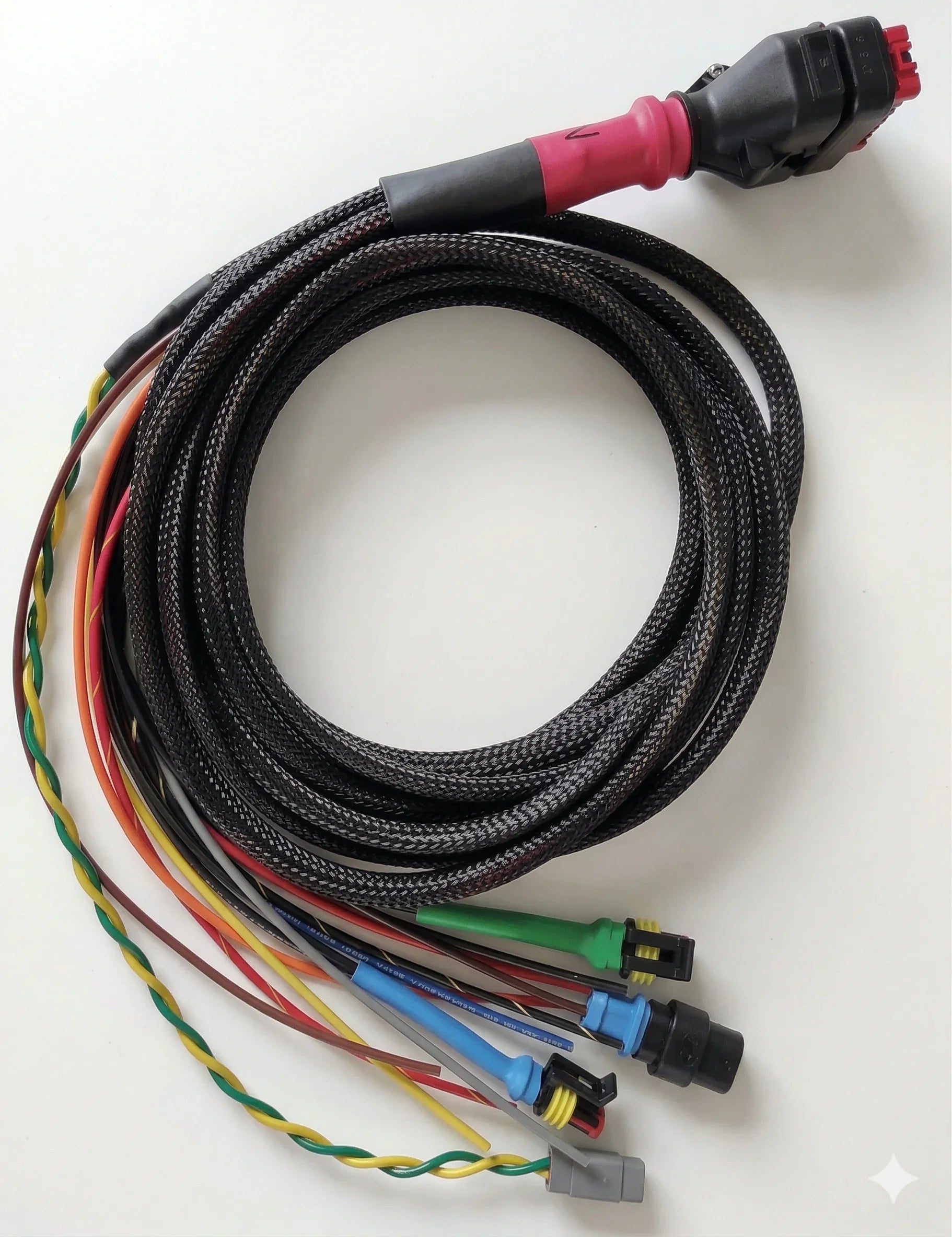

The Wakespeed WS500 P-type Wiring Harness with CANBus provides the critical communication and power bridge between your advanced alternator regulator and your electrical system. Built for demanding marine and mobile power applications, this wiring harness simplifies the installation process while significantly reducing the risk of voltage drops, sensor errors, and communication failures often associated with generic wiring solutions.
High-output alternators require precise control and accurate data to perform safely and efficiently. Constructing a custom loom from scratch introduces the potential for poor crimps, incorrect wire gauges, and moisture ingress. By utilising a pre-assembled, professional-grade harness, you ensure that vital signals regarding battery temperature, voltage sensing, and field control reach the regulator without interference. This allows your charging system to operate exactly as intended, protecting your expensive battery bank from undercharging or thermal runaway.
Modern off-grid and marine electrical systems rely heavily on data sharing between components. This harness is thoughtfully designed to support advanced system architectures, ensuring clean signal paths for both analog sensors and digital communication networks.
Engine bays and marine engine rooms expose electrical components to extreme heat, vibration, and moisture. To combat these harsh conditions, the harness features a heavy-duty braided mesh sleeving that provides exceptional mechanical protection against abrasion. Weather-sealed connectors, reinforced with robust heat shrink, prevent moisture and contaminants from compromising your connections. These industrial-grade materials work together to deliver long-lasting reliability in mobile and off-grid power systems.
Time spent troubleshooting electrical gremlins is time away from your travels. This harness features standardised, colour-coded leads that align precisely with the Wakespeed WS500 wiring diagram. With clearly defined branches for the panel, alternator, and battery, the layout takes the guesswork out of the installation. Dedicated sensor plugs and pre-terminated connections further accelerate the process, allowing for a neat, professional finish that is easy to service and maintain over the lifespan of your vehicle or vessel.
Ensure your advanced charging setup operates at peak efficiency with a wiring solution built for the task. Secure your reliable connection today and experience confident, high-performance power generation wherever your journey takes you.
The Wakespeed WS500 Extended P-type Wiring Harness w/ CANBus provides the critical communication and power bridge between your advanced alternator regulator and your electrical system. Built for demanding large RV and commercial van installations, this wiring harness simplifies the installation process while significantly reducing the risk of voltage drops, sensor errors, and communication failures often associated with generic wiring solutions.
High-output alternators require precise control and accurate data to perform safely and efficiently. Constructing a custom loom from scratch introduces the potential for poor crimps, incorrect wire gauges, and moisture ingress. By utilising a pre-assembled, professional-grade harness, you ensure that vital signals regarding battery temperature, voltage sensing, and field control reach the regulator without interference. This allows your charging system to operate exactly as intended, protecting your expensive battery bank from undercharging or thermal runaway.
Modern off-grid and marine electrical systems rely heavily on data sharing between components. This harness is thoughtfully designed to support advanced system architectures, ensuring clean signal paths for both analog sensors and digital communication networks.
Engine bays and marine engine rooms expose electrical components to extreme heat, vibration, and moisture. To combat these harsh conditions, the harness features a heavy-duty braided mesh sleeving that provides exceptional mechanical protection against abrasion. Weather-sealed connectors, reinforced with robust heat shrink, prevent moisture and contaminants from compromising your connections. These industrial-grade materials work together to deliver long-lasting reliability in mobile and off-grid power systems.
Time spent troubleshooting electrical gremlins is time away from your travels. This harness features standardised, colour-coded leads that align precisely with the Wakespeed WS500 wiring diagram. With clearly defined branches for the panel, alternator, and battery, the layout takes the guesswork out of the installation. Dedicated sensor plugs and pre-terminated connections further accelerate the process, allowing for a neat, professional finish that is easy to service and maintain over the lifespan of your vehicle or vessel.
Ensure your advanced charging setup operates at peak efficiency with a wiring solution built for the task. Secure your reliable connection today and experience confident, high-performance power generation wherever your journey takes you.

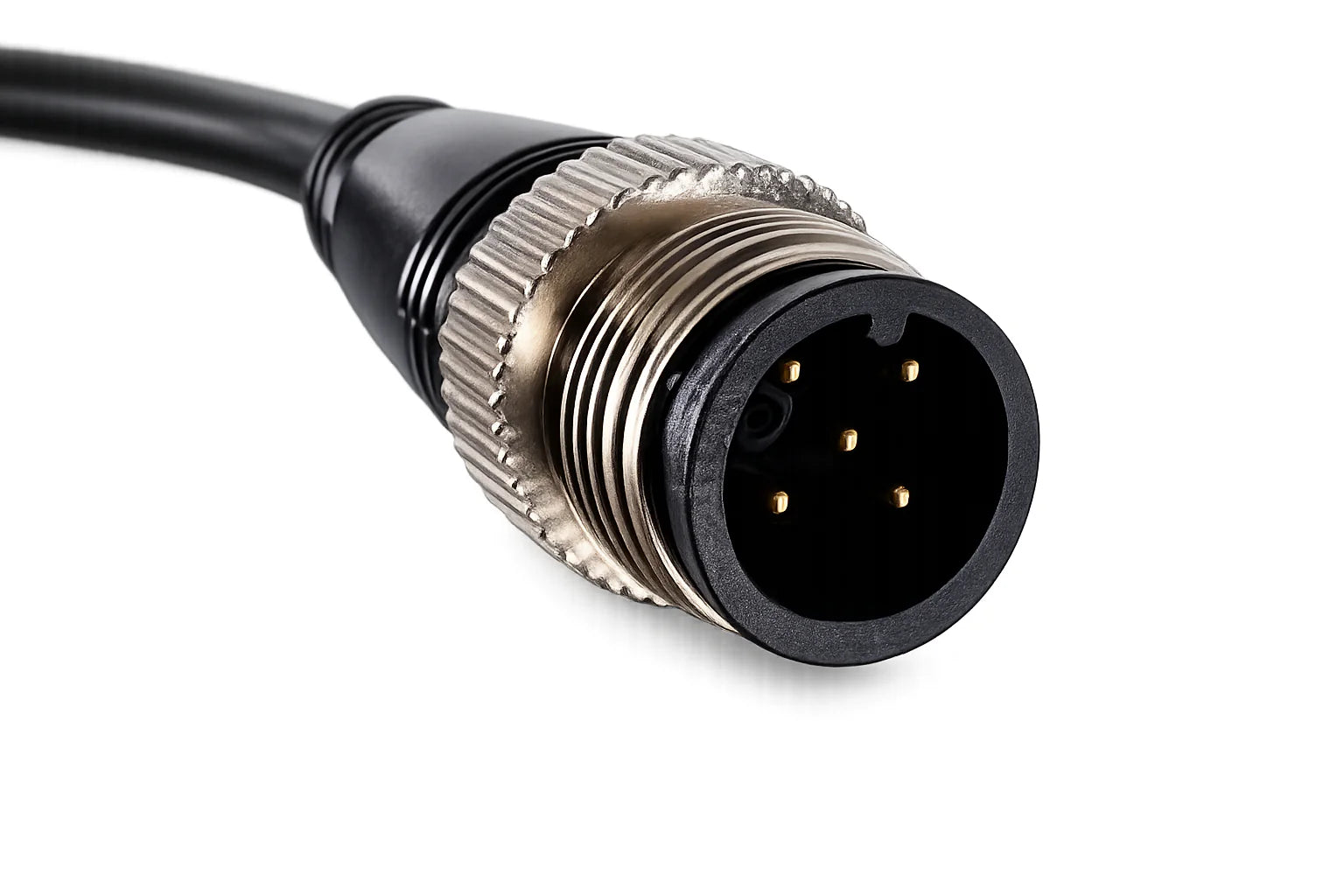

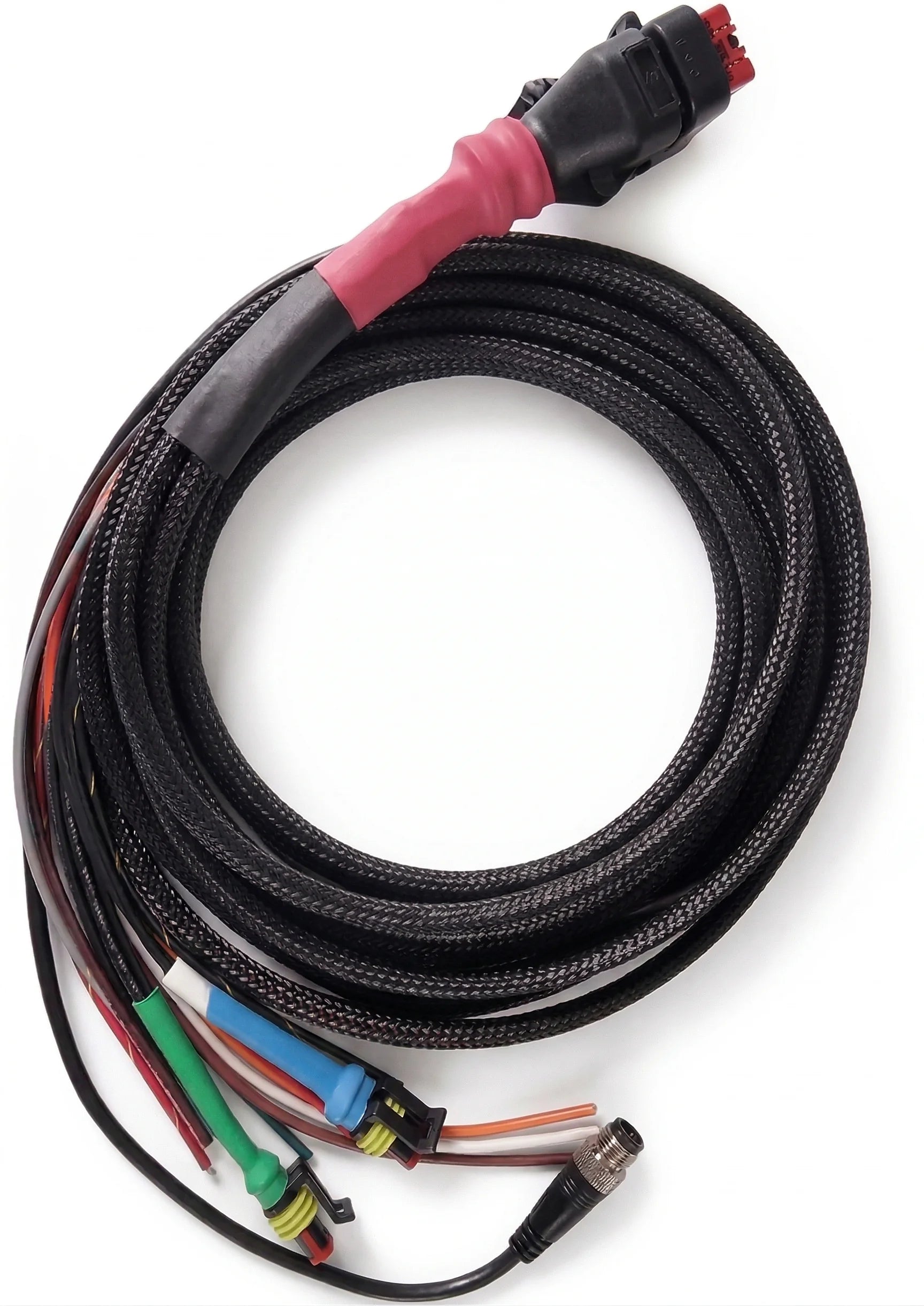

The Wakespeed WS500 P-type Wiring Harness with NMEA2000 M12 Connector provides the critical communication and power bridge between your advanced alternator regulator and your electrical system. Built for demanding marine and off-grid charging applications, this wiring harness simplifies the installation process while significantly reducing the risk of voltage drops, sensor errors, and communication failures often associated with generic wiring solutions.
High-output alternators require precise control and accurate data to perform safely and efficiently. Constructing a custom loom from scratch introduces the potential for poor crimps, incorrect wire gauges, and moisture ingress. By utilising a pre-assembled, professional-grade harness, you ensure that vital signals regarding battery temperature, voltage sensing, and field control reach the regulator without interference. This allows your charging system to operate exactly as intended, protecting your expensive battery bank from undercharging or thermal runaway.
Modern off-grid and marine electrical systems rely heavily on data sharing between components. This harness is thoughtfully designed to support advanced system architectures, ensuring clean signal paths for both analog sensors and digital communication networks.
Engine bays and marine engine rooms expose electrical components to extreme heat, vibration, and moisture. To combat these harsh conditions, the harness features a heavy-duty braided mesh sleeving that provides exceptional mechanical protection against abrasion. Weather-sealed connectors, reinforced with robust heat shrink, prevent moisture and contaminants from compromising your connections. These industrial-grade materials work together to deliver long-lasting reliability in mobile and off-grid power systems.
Time spent troubleshooting electrical gremlins is time away from your travels. This harness features standardised, colour-coded leads that align precisely with the Wakespeed WS500 wiring diagram. With clearly defined branches for the panel, alternator, and battery, the layout takes the guesswork out of the installation. Dedicated sensor plugs and pre-terminated connections further accelerate the process, allowing for a neat, professional finish that is easy to service and maintain over the lifespan of your vehicle or vessel.
Ensure your advanced charging setup operates at peak efficiency with a wiring solution built for the task. Secure your reliable connection today and experience confident, high-performance power generation wherever your journey takes you.
The Wakespeed 0.3m WS500 Battery/Alternator Temperature Sensor is a critical component for any advanced 12V, 24V or 48V electrical system utilising the Wakespeed WS500 Advanced Alternator Regulator. Designed to accurately monitor the temperature of either your battery bank or your alternator, this sensor ensures your charging system operates safely and at peak efficiency. By providing real-time thermal data directly to the regulator, it enables dynamic adjustments to charge profiles, protecting your valuable equipment from thermal damage while maximising energy storage.
Modern high-output alternators, particularly those paired with lithium battery banks, are subjected to immense stress. Lithium batteries are capable of accepting maximum charge current for extended periods, unlike traditional lead-acid batteries that taper their current draw as they reach a high state of charge. This continuous high-current demand generates significant heat within the alternator casing. By installing this alternator temperature sensor, the WS500 regulator can actively monitor the casing temperature and automatically derate the alternator's current output if it approaches unsafe thermal limits. This vital feature significantly reduces the risk of catastrophic alternator failure and extends the operational lifespan of your charging hardware.
Accurate battery temperature monitoring is equally critical for optimal charge control, particularly for lead-acid and non-CAN enabled LiFePO4 battery technologies. When used as a battery temperature sensor, it allows the WS500 to dynamically adjust the absorption charge voltage. For lead-acid chemistries, the regulator will lower the voltage as the ambient temperature increases, preventing overcharging and extending battery life. Furthermore, if the battery temperature exceeds or falls below pre-configured safety thresholds, the regulator will safely reduce or completely halt the charging current.
For non-CAN lithium systems, the sensor acts as a vital safeguard, entirely stopping the charge process during extreme temperature events, such as freezing conditions, where charging could cause irreversible damage to the internal cells.
While advanced CAN-enabled LiFePO4 batteries rely on their internal Battery Management System (BMS) to broadcast charge parameters and temperature warnings directly to the WS500, incorporating an external temperature sensor is highly recommended as a fail-safe measure. In the unlikely event of a CAN communication failure or BMS malfunction, the Wakespeed 0.3m WS500 Battery/Alternator Temperature Sensor allows the WS500 to fall back on accurate local temperature readings, ensuring the charging process continues safely without risking damage to the battery bank.
Engineered for durability in challenging marine and automotive environments, the sensor features a high-quality, fully insulated cable. The compact 0.3-metre cable is ideal for tight installations where the regulator is mounted directly adjacent to the alternator or battery.
One end of the harness is terminated with an 8mm eyelet ring terminal. Because there is no electrical connection between the internal thermistor and the metal lug, the terminal can be safely secured directly to positive or negative battery posts, or bolted straight onto the alternator casing. The opposite end is fitted with a weatherproof Superseal 1.5 connector, complete with a protective blue boot, ensuring a secure, moisture-resistant connection to the WS500 wiring harness.
Protect your high-value power generation and storage components with precise thermal management. Upgrade your system with the Wakespeed 0.3m WS500 Battery/Alternator Temperature Sensor today and ensure your WS500 regulator has the critical data it needs to perform flawlessly.

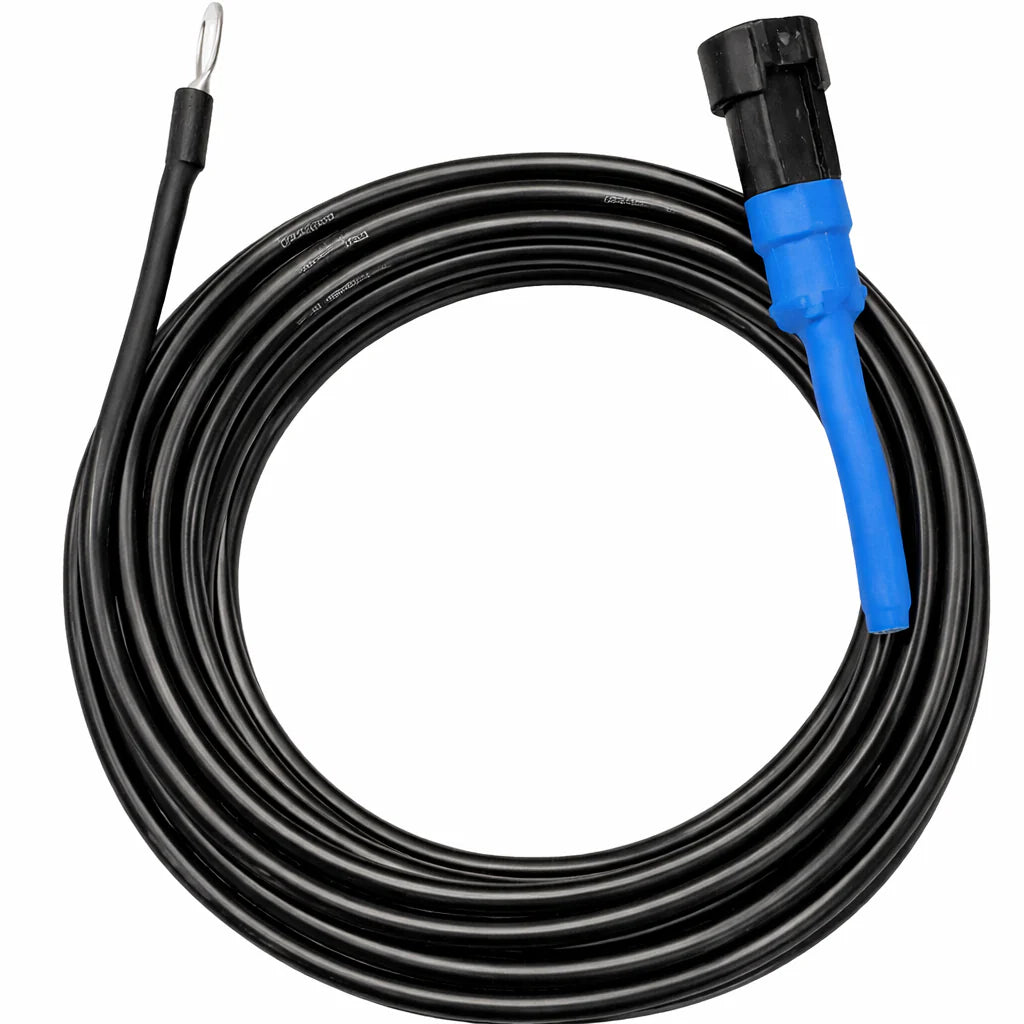

The Wakespeed 3m WS500 Battery/Alternator Temperature Sensor is a critical component for any advanced 12V, 24V or 48V electrical system utilising the Wakespeed WS500 Advanced Alternator Regulator. Designed to accurately monitor the temperature of either your battery bank or your alternator, this sensor ensures your charging system operates safely and at peak efficiency. By providing real-time thermal data directly to the regulator, it enables dynamic adjustments to charge profiles, protecting your valuable equipment from thermal damage while maximising energy storage.
Modern high-output alternators, particularly those paired with lithium battery banks, are subjected to immense stress. Lithium batteries are capable of accepting maximum charge current for extended periods, unlike traditional lead-acid batteries that taper their current draw as they reach a high state of charge. This continuous high-current demand generates significant heat within the alternator casing. By installing this alternator temperature sensor, the WS500 regulator can actively monitor the casing temperature and automatically derate the alternator's current output if it approaches unsafe thermal limits. This vital feature significantly reduces the risk of catastrophic alternator failure and extends the operational lifespan of your charging hardware.
Accurate battery temperature monitoring is equally critical for optimal charge control, particularly for lead-acid and non-CAN enabled LiFePO4 battery technologies. When used as a battery temperature sensor, it allows the WS500 to dynamically adjust the absorption charge voltage. For lead-acid chemistries, the regulator will lower the voltage as the ambient temperature increases, preventing overcharging and extending battery life. Furthermore, if the battery temperature exceeds or falls below pre-configured safety thresholds, the regulator will safely reduce or completely halt the charging current.
For non-CAN lithium systems, the sensor acts as a vital safeguard, entirely stopping the charge process during extreme temperature events, such as freezing conditions, where charging could cause irreversible damage to the internal cells.
While advanced CAN-enabled LiFePO4 batteries rely on their internal Battery Management System (BMS) to broadcast charge parameters and temperature warnings directly to the WS500, incorporating an external temperature sensor is highly recommended as a fail-safe measure. In the unlikely event of a CAN communication failure or BMS malfunction, the Wakespeed 3m WS500 Battery/Alternator Temperature Sensor allows the WS500 to fall back on accurate local temperature readings, ensuring the charging process continues safely without risking damage to the battery bank.
Engineered for durability in challenging marine and automotive environments, the sensor features a high-quality, fully insulated cable. The versatile 3-metre cable provides ample reach for typical engine bays and power compartments.
One end of the harness is terminated with an 8mm eyelet ring terminal. Because there is no electrical connection between the internal thermistor and the metal lug, the terminal can be safely secured directly to positive or negative battery posts, or bolted straight onto the alternator casing. The opposite end is fitted with a weatherproof Superseal 1.5 connector, complete with a protective blue boot, ensuring a secure, moisture-resistant connection to the WS500 wiring harness.
Protect your high-value power generation and storage components with precise thermal management. Upgrade your system with the Wakespeed 3m WS500 Battery/Alternator Temperature Sensor today and ensure your WS500 regulator has the critical data it needs to perform flawlessly.
The Wakespeed 8m WS500 Battery/Alternator Temperature Sensor is a critical component for any advanced 12V, 24V or 48V electrical system utilising the Wakespeed WS500 Advanced Alternator Regulator. Designed to accurately monitor the temperature of either your battery bank or your alternator, this sensor ensures your charging system operates safely and at peak efficiency. By providing real-time thermal data directly to the regulator, it enables dynamic adjustments to charge profiles, protecting your valuable equipment from thermal damage while maximising energy storage.
Modern high-output alternators, particularly those paired with lithium battery banks, are subjected to immense stress. Lithium batteries are capable of accepting maximum charge current for extended periods, unlike traditional lead-acid batteries that taper their current draw as they reach a high state of charge. This continuous high-current demand generates significant heat within the alternator casing. By installing this alternator temperature sensor, the WS500 regulator can actively monitor the casing temperature and automatically derate the alternator's current output if it approaches unsafe thermal limits. This vital feature significantly reduces the risk of catastrophic alternator failure and extends the operational lifespan of your charging hardware.
Accurate battery temperature monitoring is equally critical for optimal charge control, particularly for lead-acid and non-CAN enabled LiFePO4 battery technologies. When used as a battery temperature sensor, it allows the WS500 to dynamically adjust the absorption charge voltage. For lead-acid chemistries, the regulator will lower the voltage as the ambient temperature increases, preventing overcharging and extending battery life. Furthermore, if the battery temperature exceeds or falls below pre-configured safety thresholds, the regulator will safely reduce or completely halt the charging current.
For non-CAN lithium systems, the sensor acts as a vital safeguard, entirely stopping the charge process during extreme temperature events, such as freezing conditions, where charging could cause irreversible damage to the internal cells.
While advanced CAN-enabled LiFePO4 batteries rely on their internal Battery Management System (BMS) to broadcast charge parameters and temperature warnings directly to the WS500, incorporating an external temperature sensor is highly recommended as a fail-safe measure. In the unlikely event of a CAN communication failure or BMS malfunction, the Wakespeed 8m WS500 Battery/Alternator Temperature Sensor allows the WS500 to fall back on accurate local temperature readings, ensuring the charging process continues safely without risking damage to the battery bank.
Engineered for durability in challenging marine and automotive environments, the sensor features a high-quality, fully insulated cable. The extended 8-metre cable offers maximum routing flexibility for large marine vessels and complex RV layouts.
One end of the harness is terminated with an 8mm eyelet ring terminal. Because there is no electrical connection between the internal thermistor and the metal lug, the terminal can be safely secured directly to positive or negative battery posts, or bolted straight onto the alternator casing. The opposite end is fitted with a weatherproof Superseal 1.5 connector, complete with a protective blue boot, ensuring a secure, moisture-resistant connection to the WS500 wiring harness.
Protect your high-value power generation and storage components with precise thermal management. Upgrade your system with the Wakespeed 8m WS500 Battery/Alternator Temperature Sensor today and ensure your WS500 regulator has the critical data it needs to perform flawlessly.
The Victron 500A/50mV shunt is a high-precision current sensing resistor designed specifically for Victron BMV battery monitors and compatible SmartShunt devices. With a 500 A continuous rating and a 50 mV output at full scale, it provides the reliable, low-resistance measurement path essential for accurate state-of-charge tracking, energy consumption logging, and system diagnostics. This shunt is the critical interface between your battery bank and your monitoring electronics, converting high DC currents into a proportional millivolt signal that your BMV interprets to deliver real-time data.
Unlike generic shunts that may introduce measurement drift or thermal instability, this Victron shunt is built with solid brass terminal blocks and a precision manganin resistive element. The result is consistent accuracy across a wide temperature range, minimal voltage drop, and long-term reliability in demanding mobile, marine, and off-grid installations. Whether you are upgrading an existing system or replacing a worn component, this shunt ensures your Victron battery monitor performs at its best.
In any battery monitoring system, the shunt is the foundation of measurement accuracy. A poorly constructed shunt can introduce resistance variations that lead to incorrect current readings, causing your battery monitor to misreport state of charge. Over time, this can result in undercharging or over-discharging your expensive battery bank, shortening its lifespan. The Victron 500A/50mV shunt uses a manganin alloy resistive element, chosen for its extremely low temperature coefficient of resistance. This means the shunt maintains its calibrated accuracy even as ambient temperatures fluctuate, a common challenge in engine rooms, uninsulated battery boxes, and outdoor enclosures.
The solid brass blocks and M10 stud terminals (approx. 3/8"-16) are designed to accept heavy-gauge cable lugs up to 4/0 AWG (approx. 95 mm²), minimising connection resistance and heat buildup at high currents. The separate M4 sensing screws allow you to connect the voltage sense wires directly to the shunt, bypassing the high-current path. This Kelvin (4-wire) connection method eliminates the voltage drop across the main terminals from the measurement, a critical detail for accurate low-voltage monitoring in 12V, 24V, and 48V systems.
This shunt is a direct replacement for the standard shunt supplied with Victron BMV-700, BMV-702, and BMV-712 battery monitors. It is also compatible with the Victron SmartShunt series when a separate 50 mV shunt is required. Installation is straightforward: mount the shunt on a non-conductive surface using the two 6.5 mm mounting holes, connect the battery negative cable to one brass block and all loads/chargers to the other, then attach the sense wires from your BMV or SmartShunt to the M4 screws. The insulated base prevents accidental short circuits, and the compact dimensions allow placement in tight spaces.
For systems operating at higher voltages, this shunt is suitable for use in 12V, 24V, and 48V DC systems, provided the connected monitoring device supports the system voltage. The 50 mV output is standard across the Victron BMV range, ensuring plug-and-play compatibility without the need for configuration changes.
While the shunt itself is not IP65 rated (the BMV or SmartShunt enclosure provides environmental protection), its robust construction with corrosion-resistant brass terminals and a durable phenolic base makes it suitable for use in marine, automotive, and off-grid environments. The large terminal surface area and secure bolted connections resist vibration and thermal cycling, common in mobile installations.
Note: This is a passive component and does not include Bluetooth or any electronics. It must be paired with a Victron BMV head unit or SmartShunt to function as a complete battery monitor.
Ensure your Victron battery monitor delivers the precise data you need to manage your energy system effectively. Order the Victron 500A/50mV shunt today and maintain the accuracy and reliability of your power monitoring setup, whether on the water, on the road, or off the grid.
Achieve flawless communication between your advanced alternator regulator and your power management network with the Wakespeed 2m WS500 CANBus to Victron Crossover Cable. Designed specifically to bridge the communication gap between Wakespeed and Victron Energy systems, this purpose-built cable ensures your power setup operates safely and efficiently. Standard Ethernet cables do not share the correct pinout for this application, making this specific crossover lead an essential component for any integrated marine or mobile power system.
Integrating a high-output alternator into a modern lithium battery system requires precise data sharing. By connecting your Wakespeed WS500 directly to a Victron GX device, such as the Cerbo GX, this cable allows the regulator to receive real-time data from your battery management system (BMS). This closed-loop communication enables the WS500 to dynamically adjust alternator output based on accurate battery voltage, current, and temperature readings. The result is an optimised charging profile that maximises charging efficiency while protecting expensive battery banks from overcharging or thermal stress.
Setting up complex CAN networks can be challenging, but this crossover cable simplifies the process with clear, colour-coded RJ45 connectors. The black connector is pinned specifically for the WS500 alternator regulator, while the blue connector matches the pinout required for Victron VE.Can ports and compatible third-party systems. This visual guide reduces the risk of incorrect connections, saving valuable installation time and preventing potential communication faults.
Vibration, moisture, and movement are constant factors in boats, caravans, and off-grid vehicles. To combat these harsh conditions, the crossover cable features protective rubber boots over both RJ45 terminations, providing crucial strain relief and protecting the delicate pins from dust and physical damage. The two-metre cable length offers generous reach, allowing for flexible mounting options between your alternator regulator and your central communication hub without creating excess cable clutter.
A stable CAN bus network requires proper termination at both ends of the communication line to prevent signal reflection and data packet loss. To ensure your network functions flawlessly out of the box, this package includes a dedicated RJ45 connector featuring a built-in 120-ohm CAN bus termination resistor. This terminator is designed to plug directly into the open CAN port on the Wakespeed WS500, completing the network loop and ensuring robust, interference-free data transmission.
Ensure your high-output alternator and power management network are working in perfect harmony. Add the Wakespeed to Victron crossover cable to your setup today to enable intelligent, data-driven battery charging for your mobile or marine application.
This model is a small hardware improvement over the prior one. In short, use the MK2 for systems that require either (a) an isolated VE.Can port or (b) dual full function CAN-bus ports, for example in larger RV and coach systems that contain both a VE.Can network as well as a RV-C network, or (c) three fully functional USB ports, instead of two.
This all-new communication-centre allows you to always have perfect control over your system from wherever you are and maximises its performance. Simply connect through our Victron Remote Management (VRM) portal, or access directly, using the separate GX Touch 50, a MFD or our VictronConnect app thanks to its added Bluetooth capability. This latest addition to the GX-range combines all the best of connectivity, redefining smart power solutions in every way.
Instantly monitor the battery state of charge, power consumption, power harvest from PV, generator, and mains, or check tank levels and temperature measurements. Easily control the shore power input current limit, (auto)start/stop generator(s) or change any setting to optimise the system. Follow up on alerts, perform diagnostic checks and resolve challenges remotely. The Cerbo GX MK2 turns any power challenge into an effortless experience.
The Cerbo GX MK2 maximises the performance of your systems components in real-time and keeps them in perfect tune. With its Dual Core Processor and the addition of an extra CAN-bus port you can now support even bigger systems; closely follow managed (lithium) batteries while the second port can support up to 25 simultaneously connected VE.Can solar chargers. The new NMEA 2000-out support has the GX easily integrated into any boats network. Four tank- and four temperature ports as well as 3 VE.Direct ports, 3 USB ports, 4 digital inputs and 2 relays allow you to expand control to a new level. Maximising systems performance was never this easy.
The new (optional) GX Touch 50 display allows you to have an instant overview of your system and adjust settings in the blink of an eye. Its super slim 5 inch waterproof design, top-mountable setup and its simple installation bring a lot of flexibility when creating a crisp and clean dashboard.
The Cerbo GX MK2 is now optimised to more than meet the standards of installer professionals. The device is easily mountable on a DIN-Rail (with DIN35 adapter small, not included) and its separate touchscreen can now be bolted on top of a dashboard, eliminating the need to create perfect cut-outs (like with the Color Control GX) and is connected through just one cable, taking away the hassle of having to bring many wires to a dashboard. Its new Bluetooth feature enables a quick connection and configuration via our VictronConnect app.
The Cerbo GX MK2 serves endless purposes, extending perfect control to the most diverse applications. For solutions including generators, such as Marine, or Backup & Off-grid, it will auto-start/stop your generator, or delays ignition until the end of ‘quiet’ periods. For Energy Storage Systems it keeps backup batteries at 100%, kicks-in during power-cuts and diverts excess (solar) power to self-consumption, saving you money. For RV and Emergency vehicles it keeps vital systems function flawlessly. But that’s just to name a few...

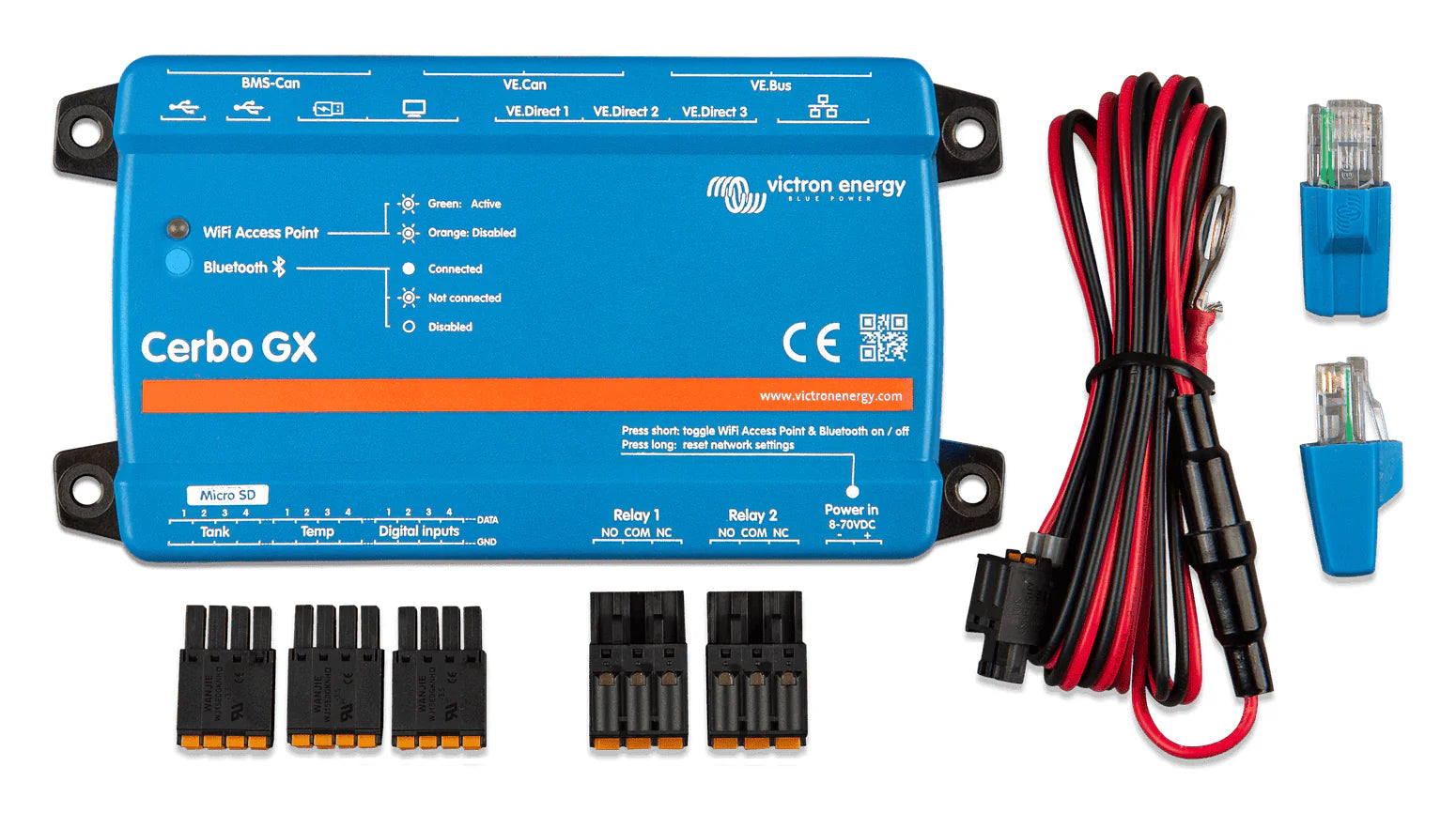

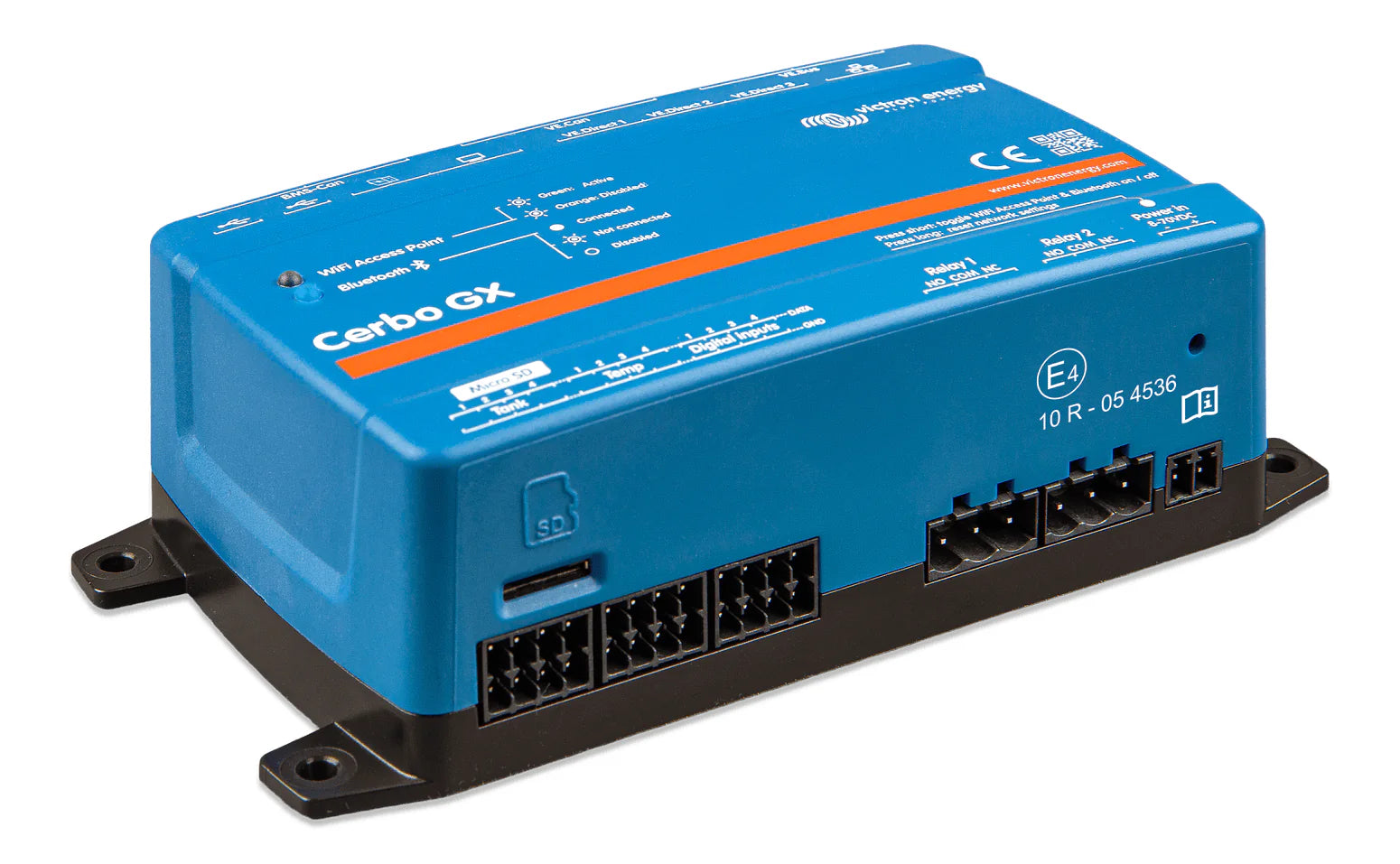

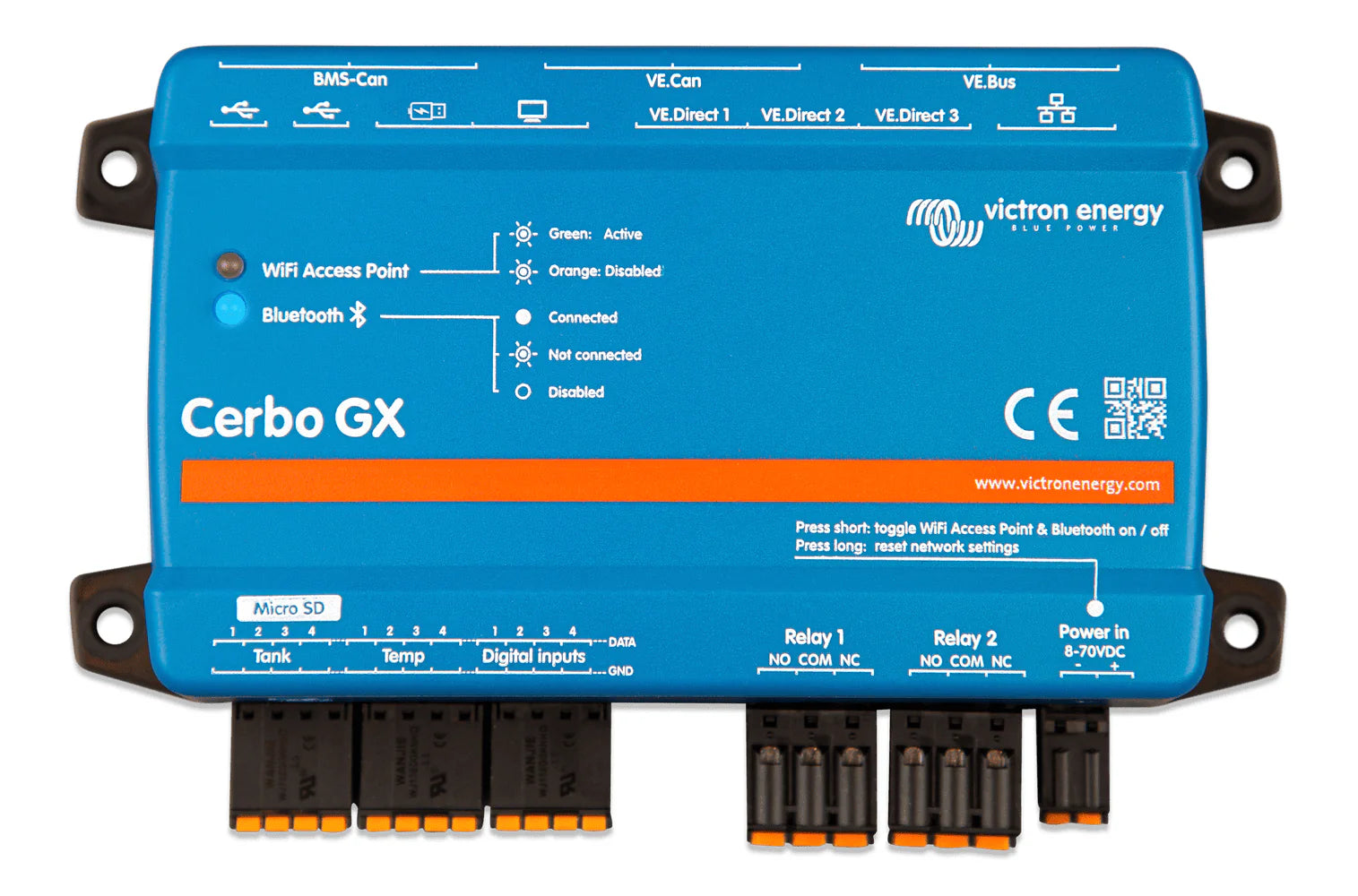

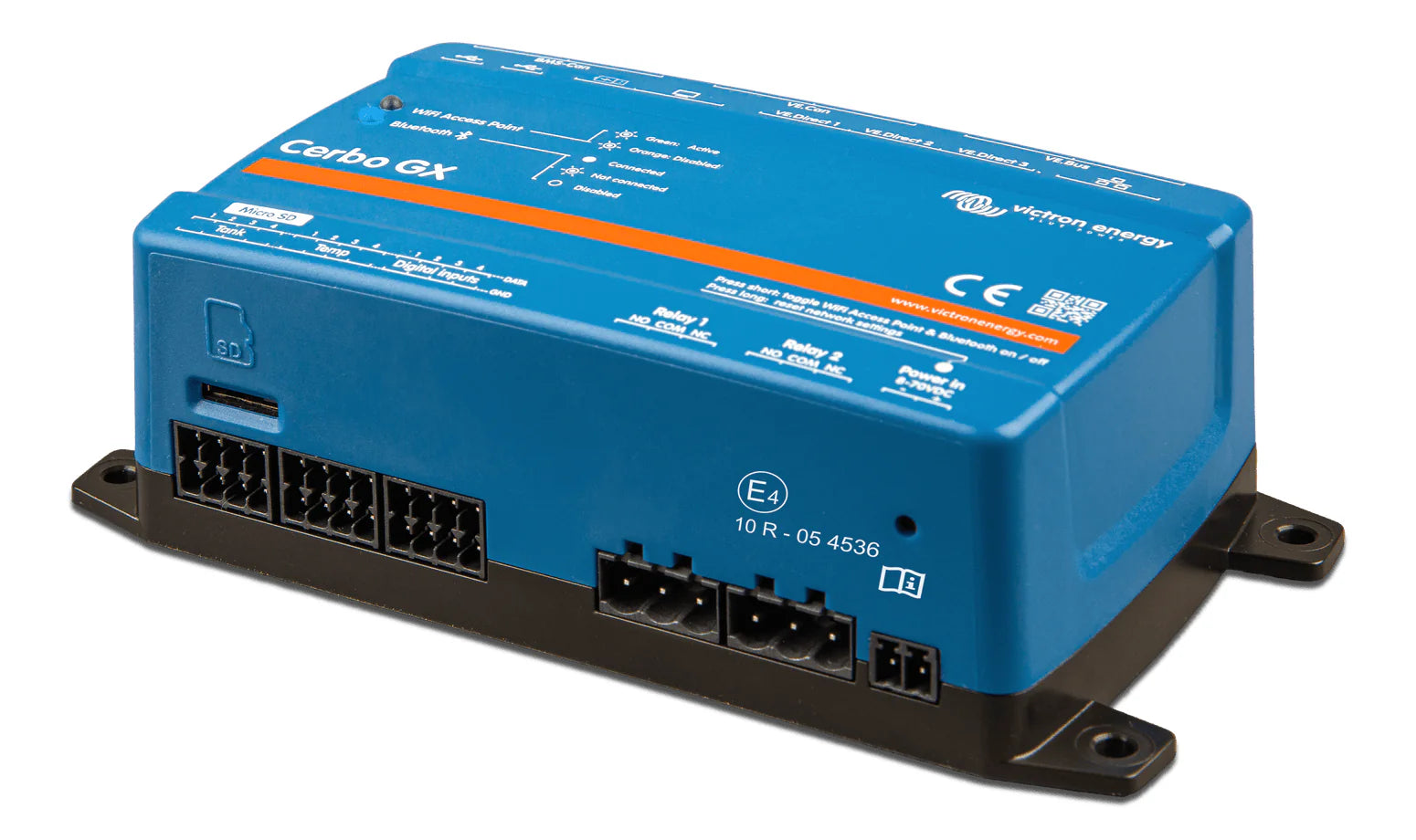

The Victron Cerbo GX MK2 serves as the intelligent core of your power system, providing seamless monitoring and control across all connected Victron devices. Paired with the GX Touch 50 display, this combo delivers a professional-grade interface that transforms how you interact with your off-grid, marine, or backup energy setup. Whether you're managing a remote solar installation or a complex vehicular system, the Cerbo GX MK2 ensures every component operates in harmony, maximising efficiency and reliability.
Designed for installers and system owners who demand precision, this communication centre consolidates data from solar chargers, inverters, batteries, and sensors into a single, intuitive platform. The result is a smarter, more responsive energy ecosystem that adapts to your needs in real time.
Unlike basic monitoring devices that offer limited connectivity and shallow data insights, the Cerbo GX MK2 is purpose-built for the Victron ecosystem. It solves the common problem of fragmented system oversight by unifying all components under one protocol. This reduces the risk of configuration errors, missed alerts, and inefficient energy use—issues that plague generic alternatives. With its dual-core processor and expanded communication ports, it handles larger, more demanding installations without lag, ensuring you never lose visibility or control.
For critical applications like marine navigation or off-grid living, where power failure is not an option, the Cerbo GX MK2 provides peace of mind through robust, isolated connections and remote access capabilities. It mitigates the risk of undetected battery drain or generator failure by enabling proactive management from anywhere.
The included GX Touch 50 display elevates your user experience with a vibrant, responsive touchscreen that puts system data at your fingertips. Its slim, waterproof design mounts directly onto a dashboard or panel with a single cable connection, eliminating the need for complex cut-outs. The display provides an instant overview of battery state of charge, solar harvest, power consumption, and more, allowing you to adjust settings like shore power limits or generator triggers with a simple tap.
The GX Touch 50 offers a compact 5-inch display, perfect for space-constrained setups without sacrificing functionality.
Stay connected to your system from anywhere via the Victron Remote Management (VRM) portal. The Cerbo GX MK2 uploads data to the cloud, enabling you to monitor performance, receive instant alerts for faults or low battery, and perform diagnostic checks remotely. This capability is invaluable for off-grid properties, marine vessels, or backup systems where on-site visits are impractical. By catching issues early, you reduce downtime and prevent costly damage to batteries or equipment.
The Cerbo GX MK2 and GX Touch 50 combo adapts to a wide range of scenarios, making it a cornerstone of modern energy management:
Installation is streamlined with options for DIN-rail mounting (using the separately available DIN35 adapter) or direct wall fixing. The Cerbo GX MK2's terminal blocks accept wires up to 2.5 mm², and the GX Touch 50 connects via a single USB-style cable, reducing wiring complexity. Bluetooth connectivity allows initial configuration through the VictronConnect app, speeding up commissioning. With an operating temperature range of -20 to +50 °C and IP20 rating, it is suited for protected indoor environments like electrical cabinets or control panels.
Upgrade your power management with the Victron Cerbo GX MK2 and GX Touch 50 display combo. Whether you're outfitting a yacht, securing a remote homestead, or optimising a commercial backup system, this duo delivers the insight and control you need to keep your energy flowing reliably. Order today and experience the confidence of a fully connected Victron ecosystem.
Visit Victron's Official Victron Cerbo GX MK2 & GX Touch 50 Display Combo Webpage Here

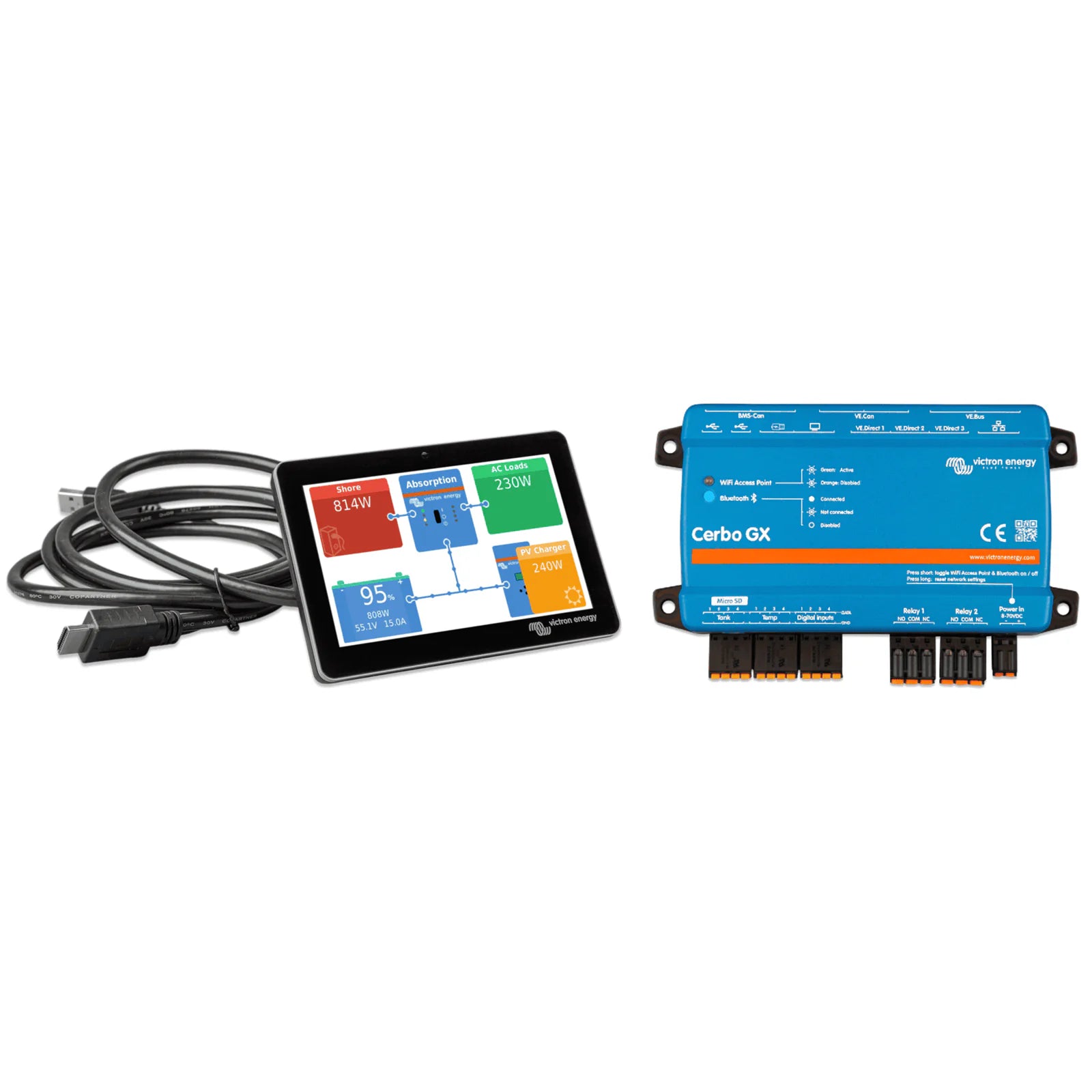

The Victron Cerbo GX MK2 serves as the intelligent core of your power system, providing seamless monitoring and control across all connected Victron devices. Paired with the GX Touch 70 display, this combo delivers a professional-grade interface that transforms how you interact with your off-grid, marine, or backup energy setup. Whether you're managing a remote solar installation or a complex vehicular system, the Cerbo GX MK2 ensures every component operates in harmony, maximising efficiency and reliability.
Designed for installers and system owners who demand precision, this communication centre consolidates data from solar chargers, inverters, batteries, and sensors into a single, intuitive platform. The result is a smarter, more responsive energy ecosystem that adapts to your needs in real time.
Unlike basic monitoring devices that offer limited connectivity and shallow data insights, the Cerbo GX MK2 is purpose-built for the Victron ecosystem. It solves the common problem of fragmented system oversight by unifying all components under one protocol. This reduces the risk of configuration errors, missed alerts, and inefficient energy use—issues that plague generic alternatives. With its dual-core processor and expanded communication ports, it handles larger, more demanding installations without lag, ensuring you never lose visibility or control.
For critical applications like marine navigation or off-grid living, where power failure is not an option, the Cerbo GX MK2 provides peace of mind through robust, isolated connections and remote access capabilities. It mitigates the risk of undetected battery drain or generator failure by enabling proactive management from anywhere.
The included GX Touch 70 display elevates your user experience with a vibrant, responsive 7-inch touchscreen that puts system data at your fingertips. Its slim, waterproof design mounts directly onto a dashboard or panel with a single cable connection, eliminating the need for complex cut-outs. The display provides an instant overview of battery state of charge, solar harvest, power consumption, and more, allowing you to adjust settings like shore power limits or generator triggers with a simple tap. The larger screen offers enhanced visibility and detailed dashboards, ideal for larger installations or when multiple data points need to be monitored simultaneously.
Stay connected to your system from anywhere via the Victron Remote Management (VRM) portal. The Cerbo GX MK2 uploads data to the cloud, enabling you to monitor performance, receive instant alerts for faults or low battery, and perform diagnostic checks remotely. This capability is invaluable for off-grid properties, marine vessels, or backup systems where on-site visits are impractical. By catching issues early, you reduce downtime and prevent costly damage to batteries or equipment.
The Cerbo GX MK2 and GX Touch 70 combo adapts to a wide range of scenarios, making it a cornerstone of modern energy management:
Installation is streamlined with options for DIN-rail mounting (using the separately available DIN35 adapter) or direct wall fixing. The Cerbo GX MK2's terminal blocks accept wires up to 2.5 mm², and the GX Touch 70 connects via a single USB-style cable, reducing wiring complexity. Bluetooth connectivity allows initial configuration through the VictronConnect app, speeding up commissioning. With an operating temperature range of -20 to +50 °C and IP20 rating, it is suited for protected indoor environments like electrical cabinets or control panels.
Upgrade your power management with the Victron Cerbo GX MK2 and GX Touch 70 display combo. Whether you're outfitting a yacht, securing a remote homestead, or optimising a commercial backup system, this duo delivers the insight and control you need to keep your energy flowing reliably. Order today and experience the confidence of a fully connected Victron ecosystem.
Visit Victron's Official Victron Cerbo GX MK2 & GX Touch 70 Display Combo Webpage Here

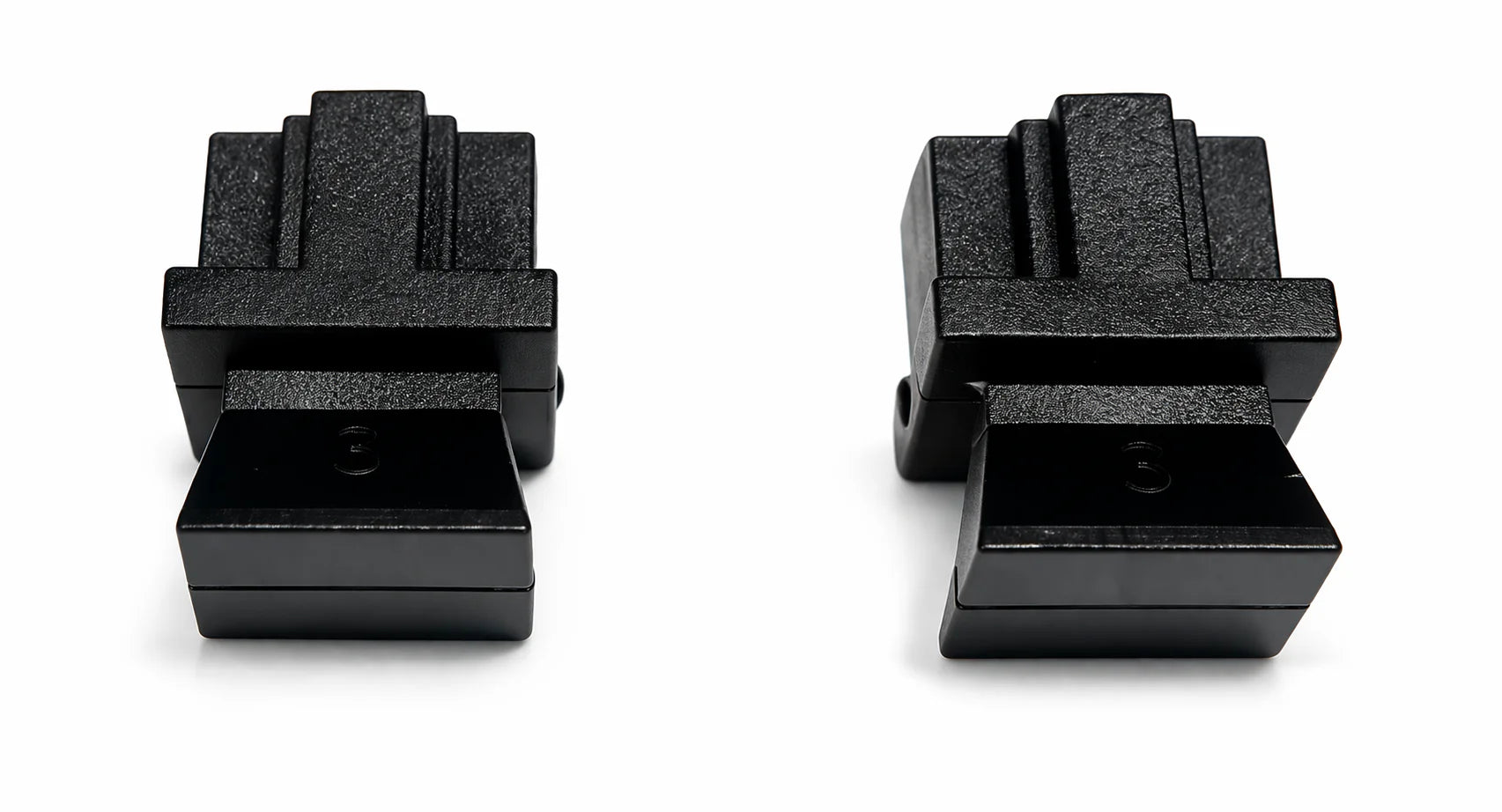

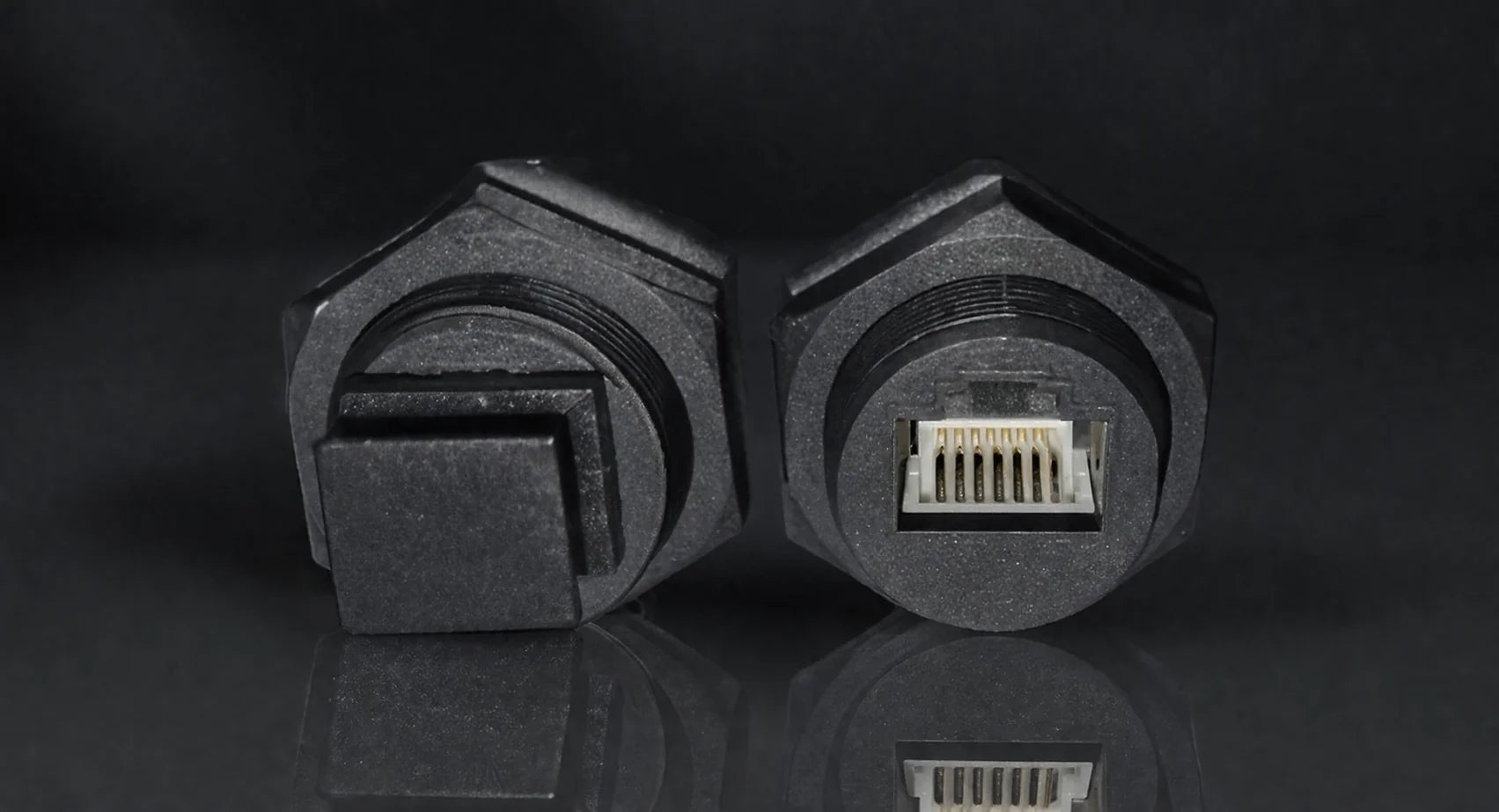

Maintaining the integrity of your communication network is critical when operating advanced electrical systems in marine, automotive, and off-grid environments. The Wakespeed CANBus Dust Cover Pair provides a simple yet highly effective solution for protecting the unused ports on your Wakespeed WS500 Advanced Alternator Regulator. By sealing off vulnerable communication interfaces, these RJ45 dust covers prevent the ingress of foreign particles, ensuring your system remains pristine and ready for future expansion or diagnostics. When deploying high-output charging systems, safeguarding every individual component contributes to the overall stability of your energy network.
Open network ports are highly susceptible to environmental contamination. In marine vessels, camper trailers, and industrial setups, airborne dust, salt spray, and ambient moisture can quickly settle into unprotected bulkhead connectors. Over time, this debris leads to corrosion, degraded pin contacts, and potential short circuits that can disrupt your entire data network. Installing a dedicated dust cover for RJ45 ports acts as a primary physical barrier. This simple upgrade significantly reduces the risk of internal contamination, preserving the electrical conductivity of your CAN Bus network connections and maintaining peak data transmission efficiency when the port is eventually needed.
Built to withstand the rigours of demanding installations, each dust cover features a robust black plastic construction that easily resists the harsh vibrations and temperature fluctuations common in engine bays and battery compartments. These caps are precision moulded to fit securely into any standard RJ45 jack, locking firmly in place to provide a tight seal against environmental hazards. Unlike rigid, flush-fitting alternatives that are difficult to extract, these protective covers incorporate a specially textured surface that greatly improves grip. This thoughtful design detail allows for exceptionally easy installation and removal, even when working in tight, awkward spaces or while wearing heavy protective work gloves.
The Wakespeed WS500 Advanced Alternator Regulator relies heavily on a stable CAN Bus network to communicate seamlessly with smart lithium batteries, battery monitors, and comprehensive system controllers. A compromised or heavily oxidised port can severely disrupt this vital data flow, leading to erratic charging behaviour, inaccurate voltage readings, or total system dropouts. By proactively capping the unused connectors with these specialised dust covers, you effectively eliminate a very common but often overlooked point of failure. Whether you are running a complex 48V off-grid power setup or a highly integrated 12V marine system, taking the time to protect your communication ports ensures long-term operational stability and uninterrupted power generation.
Do not leave your critical communication ports exposed to the elements. Protect your Wakespeed WS500 and ensure your intelligent alternator regulator operates flawlessly by sealing all unused network connectors. Add the Wakespeed CANBus Dust Cover Pair to your electrical setup and maintain a reliable, debris-free communication link for the lifetime of your power system.
Operating a high-performance charging system in marine or automotive environments requires strict attention to component protection. The Wakespeed WS500 Advanced Alternator Regulator is a vital part of your power network, frequently relying on CAN Bus communication to synchronise with battery management systems and other regulators. However, when these RJ45 communication ports are left unused, they become highly vulnerable to environmental damage. These purpose-built waterproof cover caps deliver the exact sealing required to keep your regulator functioning flawlessly in harsh conditions.
Engine bays and marine engine rooms are unforgiving spaces, frequently exposing sensitive electronics to high humidity, salt mist, and airborne contaminants. If moisture enters an unprotected RJ45 port, it can quickly cause corrosion on the delicate communication pins. Over time, this oxidation can lead to network failures or unreliable data transmission when you eventually decide to expand your system. These sealing caps feature integrated rubber gasket inserts that create a robust, weather-resistant barrier, completely blocking moisture and environmental debris from entering the connector housing.
Vibration is a constant factor in both marine vessels and off-road vehicles. Standard or generic port covers often vibrate loose, leaving connections exposed without the operator noticing. To combat this, the Wakespeed RJ45 caps are manufactured with deep internal threading that securely locks the cap onto the regulator housing. Once tightened, the cover remains firmly in place regardless of heavy engine vibration or rough sea conditions.
Installing or removing network covers in a cramped engine bay can be difficult, especially if the components are small or slick. These caps incorporate a heavily textured, ribbed exterior design. This provides a secure, non-slip grip for manual tightening and removal, ensuring you can achieve a complete environmental seal without the need for specialised tools. Whether you are performing routine maintenance or upgrading your CAN Bus network to include a new battery monitor, accessing the ports remains a straightforward process.
Many power systems operate the Wakespeed regulator as a standalone unit or at the physical end of a CAN Bus network, leaving at least one RJ45 port open. Protecting this open port is not just about keeping the device clean; it is about preserving the physical integrity of the communication bus. A corroded pin can introduce electrical resistance or shorts that disrupt the entire network. Utilising these caps significantly reduces the risk of complex electrical faults and protects your investment in high-end charging hardware.
Protecting the sensitive communication ports on your power equipment is a small but critical step in building a reliable electrical system. Equip your regulator with the appropriate physical defences to ensure consistent, uninterrupted performance. Order your pair of waterproof CAN Bus covers today and safeguard your charging network against the elements.
| Physical Data | Wiring Harness: Color coded tinned wire. Expandable sheathing. Terminal Connectors: Ampseal 23-pin waterproof Ruggedized RJ45 (CAN) USB Connector: USB Type B Warranty: 2-Year Limited Warranty |
| System Voltage | 12-VOLT: Auto Detected 24-VOLT: Auto Detected 48-VOLT: Auto Detected Other fully customizable from 12 to 48/52v, no hardware changes necessary. |
| Field Polarity | A-Type (N) / B-Type (P): Select compatible P- or N-type wiring harness to match alternator polarity. |
| Regulation Capability | Charge controller is uniquely capable of driving alternator output based on a combination of three primary criteria: voltage, current, and temperature goals / limits – making it possible to configure charging to specific battery manufacturer recommendations. Voltage: Yes – Via sense wires included in wiring harness. Current: Yes – Via amp shunt. Can be calibrated to support most shunts. 500A / 50mV is default. Temperature: Yes – Via alternator and battery temperature sensors. Real-time variable charging output based on ambient alternator and battery temperature. Battery Temperature and/or current may optionally be supplied via CAN when used with suitable BMS. |
| Configuration | VIA BUILT-IN SWITCH: Basic Charge profile by battery type: Battery capacity, Alternator output range, Battery ID VIA WAKESPEED APPLICATION: Fully customized / optimized configuration for battery, alternator, and system via Bluetooth and easy to use Wakespeed Mobile App. |
| Battery Charge Profiles | EIGHT PRESET PROGRAMS (Selectable via Dip Switch for Battery Type) Default (Safe & AGM #1) Standard FLA Deep Cycle FLA HD AGM Gel Battle Born LiFePO4 Custom #1 Custom #2 (Preconfigured with LiFePO4 profile) |
| Charge Phase Criteria | Flexible charging protocol integrating: system voltage, battery acceptance current, battery temperature, alternator temperature, and / or time duration. |
| Extended Battery Temperature Range Support | Charge controller can be configured to provide safe charging of batteries outside of nominal temperature ranges by dynamically limiting charge current. |
| Advanced Configuration | Via USB PORT: 100+ advanced adjustments accessible via Wakespeed Mobile App in Expert Mode. Via Mobile App: Access to monitoring, programming and diagnostic functions via Bluetooth and Wakespeed Mobile App. Wakespeed Mobile App provides basic and advanced configuration capabilities. |
| Communication | CAN (CONTROL AREA NETWORK): J1939-based CAN provides access for system integration and monitoring. Several industry standard CAN cabling systems are supported, including RJ45/CAT5, M12-5 (NMEA, Device-Net), RV-C cabling systems. Enhanced CAN protocol support include: RV-C, NMEA2000, Victron VEreg, SMA, LUX, as well as several proprietary CAN communications protocols with selected BMS manufacturers. |
| Field Output Control | Default Values: Large Alternator Mode (10%) Small Alternator Mode (75%) Halt Power Mode (50%) Advanced Configurable: Maximum field bandwidth adjustable from 0% to 100% in one percent increments. |
| Firmware Updates | Charge controller firmware updatable via built-in USB connector or wirelessly through Bluetooth connectivity and the Wakespeed Mobile App. |
| Regulator Display | Onboard LED: Operational and troubleshooting/ fault data via built-in USB connector. Remote Display: via CAN to remote displays using commonly-accepted marine and RV protocols. |
| Adaptive Idle Technology | Allows charge controller to dynamically reduce alternator output to prevent stalling, sluggish performance and match engine power curves at lower RPMs. |
| White Space | Customizable alternator loading vs. RPMs to match available engine power, optimizing alternator output while preventing engine overloading |
| Zero Output Technology | Enables charge controller to use current monitoring capability to limit output to match house loads only when batteries are fully charged. |
| Advanced Configuration | Multi-Engine Applications: Allows multiple charge controllers to communicate via the CAN to ensure balanced output and charging efficiency when supporting a single, large battery bank. Device hierarchy establishes master / support relationship between charge sources. Dual Alternator on Single Engine: Field output can be split from single charge controller to drive dual alternators charging common ban. |
| BMS Compatibility | Compatible with multiple BMS brands using RV-C and OSEnergy protocols, as well as a select list of Proprietary BMS protocols. Configurable to many available systems. |
| Temperature Sensing | Alternator Temperature Sensing: Sensor included in wiring harness. Active regulation based on ambient alternator temperature, ensures optimal output and alternator safety, versus simple capping typical of most voltage dependent regulator models. Battery Temperature Sensing: Battery temperature monitoring protects the battery from over / under temperature situations, as well as adjust voltage targets based on temperature. Temperature sensor enables the regulator to adjust charging voltage to compensate for changes in battery temperature. |
| Internal Temperature Sensing | Protects charge controller’s internal circuitry from damage due to out-of-range values. |
| SKU: | WS-WS500PRO |
| HS code: | 903289 |
| Country of origin: | US |
| Package weight: | 0.52 kg |
| Package length: | 0.21 m |
| Package width: | 0.16 m |
| Package height: | 0.1 m |
| Wakespeed Designation | WS500/PH-CAN |
|---|---|
| Application | Wiring Harness for WS500 Alternator Regulator |
| Alternator Excitation | Configured for P-Type Alternator Excitation |
| Standard Harness Length | 60 in. (approx. 1.52 m) |
| Branches | Alternator, Panel, Battery, and CAN |
| Construction | Three Wiring Legs Sheathed in Expandable Braid Covering |
| Connector System | High-Quality, Industrial-Grade Ampseal Connector System; Sealed RJ45 Connectors for CAN Bus System Connection |
| Alternator Leg Conductors | Alternator Positive (Power), Alternator Negative (Ground), Field, Stator (AC/Tach Output), Alternator Temperature Sensor Cable Connection |
| Battery Leg Conductors | Positive and Negative Voltage Sense Wires, High and Low Current Sense Wires, and a 2-Wire Cable with Superseal-Type Connector for Optional Battery Temperature Sensor (WS500/BT-K) |
| Panel Leg Conductors | Ignition, Lamp, Function-In |
| Main Wire Gauge | 16-Gauge |
| SKU: | WS-WS500-PH |
| Model #: | WS-WS500-PH |
| MPN: | WS-WS500-PH |
| HS code: | 854430 |
| Country of origin: | US |
| Package weight: | 0.5 kg |
| Package length: | 0.13 m |
| Package width: | 0.15 m |
| Package height: | 0.06 m |
| Model | WS500/PH-CAN |
|---|---|
| Application | Wiring Harness for WS500 Alternator Regulator |
| Alternator Excitation | P-Type |
| Harness Length | 5 ft (60 in., approx. 1.52 m) |
| Harness Branches | Alternator, Panel, Battery, and CAN |
| Harness Construction | Three Wiring Legs Sheathed in Expandable Braid Covering |
| Regulator Connector System | High-Quality, Industrial-Grade Ampseal Connector Systems |
| CAN Bus Connection | Yes; Sealed RJ45 Connectors |
| Panel Leg Conductors | Brown Ignition, Orange Lamp, White Function In; 16-gauge |
| Alternator Leg Conductors | Black Alternator Negative, Red Alternator Positive, Blue Field, Yellow Stator; 16-gauge |
| Battery Leg Conductors | Black/Yellow Negative Battery Sense, Red/Yellow Positive Battery Sense, Purple Current Sense High, Grey Current Sense Low; 16-gauge |
| Default Current Shunt Rating | 500 A / 50 mV |
| Alternator Temperature Sensor Connector | Cable Connected to Green Heat Shrink Superseal Connector |
| Battery Temperature Sensor Connector | Grey Two-Conductor Cable Terminated with a Superseal-Type Connector for WS500/BT-K |
| SKU: | WS-WS500-PH-CAN |
| Model #: | WS-WS500-PH-CAN |
| MPN: | WS-WS500-PH-CAN |
| HS code: | 854430 |
| Country of origin: | US |
| Package weight: | 0.62 kg |
| Package length: | 0.3 m |
| Package width: | 0.25 m |
| Package height: | 0.05 m |
| Official Harness Designation | WS500-PH/VAN |
|---|---|
| Excitation Type | P-Type |
| Typical Installation | RV Or Trucking Applications |
| Extended Leg | Intended To Reach The Alternator |
| Recommend Battery Use | All |
| Length | 27 ft (approx. 8.23 m) |
| Black/Yellow (Battery Neg) | No |
| Red/Yellow (Battery Pos) | No |
| Purple (Current Sensing Pos) | Yes |
| Grey (Current Sensing Neg) | Yes |
| Battery Temp Sensor | Yes |
| Black (Alternator Neg) | Yes |
| Red (Alternator Pos) | Yes |
| Blue (Field) | Yes |
| Yellow (Stator) | Yes |
| Brown (Ignition) | Yes |
| Orange (Lamp) | No |
| White (Feature In) | Yes |
| Alternator Temp Sensor | Yes |
| CAN Bus Connection | Yes |
| Battery And Alternator Connections | Joined Into One Set Of Red And Black Wires |
| SKU: | WS-WS500-PH-CAN-VAN |
| Model #: | WS-WS500-PH-CAN-VAN |
| MPN: | WS-WS500-PH-CAN-VAN |
| HS code: | 854430 |
| Country of origin: | US |
| Package weight: | 1.2 kg |
| Package length: | 0.29 m |
| Package width: | 0.25 m |
| Package height: | 0.06 m |
| Model | WS500/PH-M12 |
|---|---|
| Accessory Type | Wiring Harness |
| Compatible With | WS500 Alternator Regulator |
| Kit Includes Branches For | Alternator, Panel, Battery, and M12 Style CAN Connector |
| Alternator Excitation | Configured for P-Type Alternator Excitation |
| Harness Included | 1 – WS500/PHCAN Wiring Harness |
| SKU: | WS-WS500-PH-M12 |
| Model #: | WS-WS500-PH-M12 |
| MPN: | WS-WS500-PH-M12 |
| HS code: | 854430 |
| Country of origin: | US |
| Package weight: | 0.65 kg |
| Package length: | 0.13 m |
| Package width: | 0.15 m |
| Package height: | 0.06 m |
| Part Number | WS500-AT-K |
|---|---|
| Description | Replacement Alternator Temperature Sensor kit. Can also be used as short length ATS. |
| Cable Length | 0.3 m (18 in.) |
| Connector | Green heat shrink Superseal connector |
| Mounting Position | Rear case bolt or one of the alternator's ground terminal bolts |
| Electrical Isolation | This sensor is not connected electrically to the alternator |
| Interchangeability | All temperature sensors used on Wakespeed products are the same and fully interchangeable |
| Resistance At Room Temperature | Around 10K ohms |
| Included Items | 1 - 0.3 m (18 in.) temperature sensor cable |
| SKU: | WS-0-3M-THERM |
| Model #: | WS-0-3M-THERM |
| MPN: | WS-0-3M-THERM |
| HS code: | 902519 |
| Country of origin: | US |
| Package weight: | 0.1 kg |
| Package length: | 0.1 m |
| Package width: | 0.1 m |
| Package height: | 0.02 m |
| Model | WS500-BT-K |
|---|---|
| Product Type | Battery Temperature Sensor Kit |
| Cable Length | 3 m (10 ft.) |
| Connector Type | 2-wire waterproof connector |
| Mating Connector | Superseal-type connector |
| Sensor Lug | Tinned temperature-sensor lug |
| Compatible Regulators | WS500 and WS500 Pro |
| Includes | 1 - 3 m (10 ft.) temperature sensor cable |
| SKU: | WS-3M-THERM |
| HS code: | 902519 |
| Country of origin: | US |
| Package weight: | 0.15 kg |
| Package length: | 0.12 m |
| Package width: | 0.13 m |
| Package height: | 0.03 m |
| Model | WS500-LT-K |
|---|---|
| Product Type | Long Length (8 m) Temperature Sensor Kit |
| Use | May Be Used for Either Alternator or Battery Temperature Sensor |
| Cable Length | 8 m (25 ft.) |
| Included | 1 x 8 m (25 ft.) Temperature Sensor Cable |
| SKU: | WS-8M-THERM |
| Model #: | WS-8M-THERM |
| MPN: | WS-8M-THERM |
| Package weight: | 0.32 kg |
| Package length: | 0.18 m |
| Package width: | 0.18 m |
| Package height: | 0.05 m |
| Part Number | SHU500050100 |
|---|---|
| Shunt Rating | 500 A / 50 mV |
| Overall Length | 121 ±1 mm |
| Overall Width | 25.6 ±0.5 mm |
| Overall Height | 35 ±1 mm |
| Mounting Hole Diameter | Ø 6.5 mm (2x) |
| Mounting Hole Centres | 101.8 mm |
| Terminal Studs | M10 x 15 (2x) |
| Side Screws | M4 x 6 (2x) |
| SKU: | VIC-SHU500050100 |
| Barcode: | 8719076026211 |
| Model #: | SHU500050100 |
| MPN: | SHU500050100 |
| HS code: | 85332900 |
| Country of origin: | MY |
| Package weight: | 0.35 kg |
| Package length: | 0.05 m |
| Package width: | 0.1 m |
| Package height: | 0.05 m |
| SKU | WS-WS500-WS-VE-2M |
|---|---|
| Type | VE.Can Integration Cable |
| Cable Configuration | WS500 to Victron Energy Pinout Crossover Cable |
| Length | 2 m |
| Connectors | RJ45 to RJ45 |
| WS500 End | Black RJ45 Connector |
| Victron End | Blue RJ45 Connector |
| Included Terminator | RJ45 Connector With 120-Ohm CAN Bus Termination Resistor (for WS500) |
| For Use With | Wakespeed WS500 Advanced Alternator Regulator |
| Victron Port | VE.Can Port of the GX Device |
| CAN Pin Mapping | WS500 Pin 1 to VE.Can Pin 7; WS500 Pin 2 to VE.Can Pin 8 |
| Protective Boots | Rubber Boots Over Both RJ45 Terminations |
| SKU: | WS-WS500-WS-VE-2M |
| HS code: | 854442 |
| Country of origin: | US |
| Package weight: | 0.5 kg |
| Package length: | 0.13 m |
| Package width: | 0.15 m |
| Package height: | 0.06 m |
| Cerbo GX MK2 | |
|---|---|
| Supply voltage | 8 – 70 VDC |
| Power draw without GX Touch | 2.8 W @ 12 V |
| Power draw with GX Touch | Backlight off: 3.8 W @ 12 V |
| Backlight at max: 4.8 W @ 12 V | |
| Mounting | Wall or DIN rail (35 mm) |
| Communication ports | |
| VE.Direct ports (always isolated) | 3 (max. possible VE.Direct devices: 15) |
| VE.Bus (always isolated) | 2 paralleled RJ45 sockets |
| VE.Can | yes |
| BMS-Can port | Yes |
| Bluetooth | Yes (4) |
| IO | |
| Resistive tank level inputs | 4 |
| Temperature sense inputs | 4 |
| Digital Inputs | 4 |
| Relays | 2 x NO/NC 30VDC:6A or 70VDC: 1A or 125VAC: 6A |
| Other | |
| Outer dimensions (h x w x d) | 78 x 154 x 48 mm |
| Operating temperature range | -20 to +50 °C |
| IP Rating | IP20 |
| Standards | |
| Safety | IEC 62368-1 |
| EMC | EN 301489-1, EN 301489-17 |
| Automotive | ECE R10-6 |
Notes:
| SKU: | VIC-BPP900450110 |
| Barcode: | 8719076057833 |
| Model #: | BPP900451100 |
| MPN: | BPP900451100 |
| HS code: | 85176100 |
| Country of origin: | MY |
| Package weight: | 0.45 kg |
| Package length: | 0.12 m |
| Package width: | 0.22 m |
| Package height: | 0.06 m |
| Cerbo GX | |
|---|---|
| Supply voltage | 8 – 70 VDC |
| Power draw without GX Touch | 2.8 W @ 12 V |
| Power draw with GX Touch | Backlight off: 3.8 W @ 12 V |
| Backlight at max: 4.8 W @ 12 V | |
| Mounting | Wall or DIN rail (35 mm) |
| Communication ports | |
| VE.Direct ports (always isolated) | 3 (max. possible VE.Direct devices: 15) |
| VE.Bus (always isolated) | 2 paralleled RJ45 sockets |
| VE.Can | yes - non isolated |
| BMS-Can port | Yes |
| Bluetooth | Yes (4) |
| IO | |
| Resistive tank level inputs | 4 |
| Temperature sense inputs | 4 |
| Digital Inputs | 4 |
| Relays | 2 x NO/NC 30VDC:6A or 70VDC: 1A or 125VAC: 6A |
| Other | |
| Outer dimensions (h x w x d) | 78 x 154 x 48 mm |
| Operating temperature range | -20 to +50 °C |
| IP Rating | IP20 |
| Standards | |
| Safety | IEC 62368-1 |
| EMC | EN 301489-1, EN 301489-17 |
| Automotive | ECE R10-6 |
Notes:
| SKU: | VIC-Cerbo-MK2-Touch_50-01 |
| Package weight: | 0.45 kg |
| Cerbo GX | |
|---|---|
| Supply voltage | 8 – 70 VDC |
| Power draw without GX Touch | 2.8 W @ 12 V |
| Power draw with GX Touch | Backlight off: 3.8 W @ 12 V |
| Backlight at max: 4.8 W @ 12 V | |
| Mounting | Wall or DIN rail (35 mm) |
| Communication ports | |
| VE.Direct ports (always isolated) | 3 (max. possible VE.Direct devices: 15) |
| VE.Bus (always isolated) | 2 paralleled RJ45 sockets |
| VE.Can | yes - non isolated |
| BMS-Can port | Yes |
| Bluetooth | Yes (4) |
| IO | |
| Resistive tank level inputs | 4 |
| Temperature sense inputs | 4 |
| Digital Inputs | 4 |
| Relays | 2 x NO/NC 30VDC:6A or 70VDC: 1A or 125VAC: 6A |
| Other | |
| Outer dimensions (h x w x d) | 78 x 154 x 48 mm |
| Operating temperature range | -20 to +50 °C |
| IP Rating | IP20 |
| Standards | |
| Safety | IEC 62368-1 |
| EMC | EN 301489-1, EN 301489-17 |
| Automotive | ECE R10-6 |
Notes:
| SKU: | VIC-Cerbo-MK2-Touch_70-01 |
| Package weight: | 0.45 kg |
| Product | RJ45 Cover Caps |
|---|---|
| Category | Accessories |
| For Use With | WS500 RJ45 external jacks |
| Pack Quantity | Sold in pairs |
| Includes | 2 – Field-installable RJ45 connector plugs with screw-on connector |
| SKU: | RJ45-DUST-CAP |
| Model #: | RJ45-DUST-CAP |
| MPN: | RJ45-DUST-CAP |
| HS code: | 392690 |
| Country of origin: | US |
| Package weight: | 0.1 kg |
| Package length: | 0.03 m |
| Package width: | 0.03 m |
| Package height: | 0.02 m |
| Product | RJ45 Cover Caps |
|---|---|
| Compatibility | WS500 RJ45 External Jacks |
| Sold In Pairs | Sold in pairs |
| Includes | 2 – Field-installable RJ45 Connector Plugs with Screw-on Connector |
| Compatible Port Type | Ruggedized RJ45 (CAN) |
| SKU: | WS-WS500-RJCAP |
| Model #: | WS-WS500-RJCAP |
| MPN: | WS-WS500-RJCAP |
| HS code: | 392690 |
| Country of origin: | US |
| Package weight: | 0.1 kg |
| Package length: | 0.1 m |
| Package width: | 0.1 m |
| Package height: | 0.02 m |
This warranty policy applies to Wakespeed products supplied by us in Australia through authorised dealers, resellers, distributors, or approved sales channels. It applies to the original end-user purchaser of the product, as evidenced by the authorised dealer’s, reseller’s, or distributor’s invoice, and is not transferable without written consent.
Wakespeed products supplied by us are covered against defects in materials and workmanship under normal use and service, subject to the terms and conditions below. The benefits given by this warranty are in addition to any other rights and remedies available under law.
Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.
This warranty covers Wakespeed alternator regulators, charge-control products, wiring harnesses, temperature sensors, CAN cables, communication cables, and related Wakespeed accessories supplied by us. The warranty periods for each product model range are as follows:
Commencement of Warranty: The warranty period begins on the date of purchase by the original end-user, as shown on the authorised dealer’s, reseller’s, or distributor’s invoice. A valid proof of purchase from an authorised sales channel is required for all warranty claims.
Wakespeed products are intended to be installed, connected, programmed, configured, and integrated into a broader alternator charging system, vehicle, vessel, electrical system, battery system, or power-management installation. Once installed, the product may form only one component of a larger system.
The installer, system designer, integrator, dealer, or end-user is responsible for ensuring that the product is suitable for the intended application and is installed, configured, protected, and operated correctly. Issues or damage arising from incorrect installation, poor system design, incorrect configuration, incompatible equipment, inadequate protection, unsuitable mounting, or failure to follow instructions are not product defects and are not covered by this warranty.
Service Accessibility Requirement: Products must be installed in a manner that allows reasonable access for inspection, testing, servicing, removal, and replacement. We are not responsible for additional labour, structural modification, access equipment, removal of fixtures, cabinetry, panels, flooring, trim, sealants, adhesives, or other costs arising from installation methods that restrict reasonable access to the product.
Installation Documentation: We may require documentation of the installation when assessing a warranty claim. This may include photos of the product in its installed location, wiring diagrams, system layout, serial numbers, details of connected equipment, installer details, commissioning records, service history, fault logs, operating settings, firmware details, and maintenance records. Failure to provide reasonable installation evidence may limit our ability to assess the claim.
Independence of Dealers and Installers: Authorised dealers, resellers, distributors, installers, and contractors act independently and are not agents, employees, or representatives of Wakespeed or us unless expressly agreed in writing. We are not responsible for the acts, omissions, workmanship, advice, representations, installation practices, or system design decisions of independent dealers, resellers, installers, contractors, or third parties.
This warranty covers manufacturing defects or failures of the product arising from normal use in accordance with Wakespeed instructions. It does not cover any failure, damage, performance issue, deterioration, or loss caused wholly or partly by external factors, misuse, incorrect installation, incorrect configuration, or circumstances outside the control of the product supplier or manufacturer.
Important: If you suspect a fault with a Wakespeed product supplied by us, do not immediately remove or uninstall the product unless it is unsafe to leave it in place or unless authorised by us, Wakespeed, or an authorised dealer. Premature removal can cause further damage, prevent proper assessment, and may make it impossible to determine the original cause of the issue.
If a defect covered by this warranty is confirmed, one or more of the following remedies may be provided at the discretion of the assessing party and subject to applicable law:
Repair: If the defect can be resolved by repair, the product or relevant components may be repaired by Wakespeed, an authorised service provider, or another approved party. Any replaced components become the property of the repairing or replacing party unless otherwise agreed.
Replacement: If the product or major component is not reasonably repairable, a replacement may be provided. The replacement may be the same model, a superseded equivalent, a product with similar specifications, a new unit, or a refurbished or factory-reconditioned unit where permitted by law. Where a replacement is provided, the faulty product becomes the property of the replacing party unless otherwise agreed.
Refund or Credit: In some cases, a refund or credit may be provided. Refunds will usually be handled by the original place of purchase. The refund amount will not exceed the original purchase price paid for the affected product unless otherwise required by law.
No Charge for Approved Claims: For approved warranty claims, the repair, replacement, refund, or approved remedy will be provided at no charge to the customer. If a product is specifically requested to be returned for assessment and the product is found to have a covered defect, reasonable return freight or supply of the repaired or replacement item back to the customer, dealer, or reseller will be covered where required by law or agreed in writing.
No Extension of Original Warranty: Repair or replacement under this warranty does not restart or extend the original warranty period. The warranty continues from the original purchase date. For example, if a product with a 24-month warranty is replaced in its second year, the replacement product is covered only for the remaining balance of the original 24-month warranty period.
Ancillary Parts for Approved Warranty Repairs: If a warranty claim is approved and it is determined that replacement connectors, wiring, harnesses, mounting hardware, fasteners, or similar ancillary items are reasonably required to restore the product to normal operation, those items may be supplied at no cost. This does not include labour, removal, reinstallation, access equipment, structural modification, or costs associated with restricted access unless expressly required by law or agreed in writing.
To the extent permitted by law, liability under this warranty is limited to the repair, replacement, refund, credit, or approved remedy relating to the defective Wakespeed product supplied. Neither Wakespeed nor we are responsible for special, indirect, incidental, or consequential loss arising from product failure, installation issues, misuse, system design, or breach of warranty.
This includes, to the extent permitted by law, third-party labour, removal or reinstallation costs, travel costs, freight not approved in advance, access equipment, structural modification, loss of revenue, loss of profit, downtime, loss of use, damage to other equipment, property damage, personal injury, loss of data, or economic loss.
Nothing in this warranty excludes, restricts, or modifies any rights or remedies that cannot be excluded under Australian Consumer Law.
For warranty support, contact the authorised dealer, reseller, distributor, or place of purchase from which the Wakespeed product was supplied.
This warranty policy applies to Wakespeed products supplied by us in Australia through authorised dealers, resellers, distributors, or approved sales channels. It applies to the original end-user purchaser of the product, as evidenced by the authorised dealer’s, reseller’s, or distributor’s invoice, and is not transferable without written consent.
Wakespeed products supplied by us are covered against defects in materials and workmanship under normal use and service, subject to the terms and conditions below. The benefits given by this warranty are in addition to any other rights and remedies available under law.
Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.
This warranty covers Wakespeed alternator regulators, charge-control products, wiring harnesses, temperature sensors, CAN cables, communication cables, and related Wakespeed accessories supplied by us. The warranty periods for each product model range are as follows:
Commencement of Warranty: The warranty period begins on the date of purchase by the original end-user, as shown on the authorised dealer’s, reseller’s, or distributor’s invoice. A valid proof of purchase from an authorised sales channel is required for all warranty claims.
Wakespeed products are intended to be installed, connected, programmed, configured, and integrated into a broader alternator charging system, vehicle, vessel, electrical system, battery system, or power-management installation. Once installed, the product may form only one component of a larger system.
The installer, system designer, integrator, dealer, or end-user is responsible for ensuring that the product is suitable for the intended application and is installed, configured, protected, and operated correctly. Issues or damage arising from incorrect installation, poor system design, incorrect configuration, incompatible equipment, inadequate protection, unsuitable mounting, or failure to follow instructions are not product defects and are not covered by this warranty.
Service Accessibility Requirement: Products must be installed in a manner that allows reasonable access for inspection, testing, servicing, removal, and replacement. We are not responsible for additional labour, structural modification, access equipment, removal of fixtures, cabinetry, panels, flooring, trim, sealants, adhesives, or other costs arising from installation methods that restrict reasonable access to the product.
Installation Documentation: We may require documentation of the installation when assessing a warranty claim. This may include photos of the product in its installed location, wiring diagrams, system layout, serial numbers, details of connected equipment, installer details, commissioning records, service history, fault logs, operating settings, firmware details, and maintenance records. Failure to provide reasonable installation evidence may limit our ability to assess the claim.
Independence of Dealers and Installers: Authorised dealers, resellers, distributors, installers, and contractors act independently and are not agents, employees, or representatives of Wakespeed or us unless expressly agreed in writing. We are not responsible for the acts, omissions, workmanship, advice, representations, installation practices, or system design decisions of independent dealers, resellers, installers, contractors, or third parties.
This warranty covers manufacturing defects or failures of the product arising from normal use in accordance with Wakespeed instructions. It does not cover any failure, damage, performance issue, deterioration, or loss caused wholly or partly by external factors, misuse, incorrect installation, incorrect configuration, or circumstances outside the control of the product supplier or manufacturer.
Important: If you suspect a fault with a Wakespeed product supplied by us, do not immediately remove or uninstall the product unless it is unsafe to leave it in place or unless authorised by us, Wakespeed, or an authorised dealer. Premature removal can cause further damage, prevent proper assessment, and may make it impossible to determine the original cause of the issue.
If a defect covered by this warranty is confirmed, one or more of the following remedies may be provided at the discretion of the assessing party and subject to applicable law:
Repair: If the defect can be resolved by repair, the product or relevant components may be repaired by Wakespeed, an authorised service provider, or another approved party. Any replaced components become the property of the repairing or replacing party unless otherwise agreed.
Replacement: If the product or major component is not reasonably repairable, a replacement may be provided. The replacement may be the same model, a superseded equivalent, a product with similar specifications, a new unit, or a refurbished or factory-reconditioned unit where permitted by law. Where a replacement is provided, the faulty product becomes the property of the replacing party unless otherwise agreed.
Refund or Credit: In some cases, a refund or credit may be provided. Refunds will usually be handled by the original place of purchase. The refund amount will not exceed the original purchase price paid for the affected product unless otherwise required by law.
No Charge for Approved Claims: For approved warranty claims, the repair, replacement, refund, or approved remedy will be provided at no charge to the customer. If a product is specifically requested to be returned for assessment and the product is found to have a covered defect, reasonable return freight or supply of the repaired or replacement item back to the customer, dealer, or reseller will be covered where required by law or agreed in writing.
No Extension of Original Warranty: Repair or replacement under this warranty does not restart or extend the original warranty period. The warranty continues from the original purchase date. For example, if a product with a 24-month warranty is replaced in its second year, the replacement product is covered only for the remaining balance of the original 24-month warranty period.
Ancillary Parts for Approved Warranty Repairs: If a warranty claim is approved and it is determined that replacement connectors, wiring, harnesses, mounting hardware, fasteners, or similar ancillary items are reasonably required to restore the product to normal operation, those items may be supplied at no cost. This does not include labour, removal, reinstallation, access equipment, structural modification, or costs associated with restricted access unless expressly required by law or agreed in writing.
To the extent permitted by law, liability under this warranty is limited to the repair, replacement, refund, credit, or approved remedy relating to the defective Wakespeed product supplied. Neither Wakespeed nor we are responsible for special, indirect, incidental, or consequential loss arising from product failure, installation issues, misuse, system design, or breach of warranty.
This includes, to the extent permitted by law, third-party labour, removal or reinstallation costs, travel costs, freight not approved in advance, access equipment, structural modification, loss of revenue, loss of profit, downtime, loss of use, damage to other equipment, property damage, personal injury, loss of data, or economic loss.
Nothing in this warranty excludes, restricts, or modifies any rights or remedies that cannot be excluded under Australian Consumer Law.
For warranty support, contact the authorised dealer, reseller, distributor, or place of purchase from which the Wakespeed product was supplied.
This warranty policy applies to Wakespeed products supplied by us in Australia through authorised dealers, resellers, distributors, or approved sales channels. It applies to the original end-user purchaser of the product, as evidenced by the authorised dealer’s, reseller’s, or distributor’s invoice, and is not transferable without written consent.
Wakespeed products supplied by us are covered against defects in materials and workmanship under normal use and service, subject to the terms and conditions below. The benefits given by this warranty are in addition to any other rights and remedies available under law.
Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.
This warranty covers Wakespeed alternator regulators, charge-control products, wiring harnesses, temperature sensors, CAN cables, communication cables, and related Wakespeed accessories supplied by us. The warranty periods for each product model range are as follows:
Commencement of Warranty: The warranty period begins on the date of purchase by the original end-user, as shown on the authorised dealer’s, reseller’s, or distributor’s invoice. A valid proof of purchase from an authorised sales channel is required for all warranty claims.
Wakespeed products are intended to be installed, connected, programmed, configured, and integrated into a broader alternator charging system, vehicle, vessel, electrical system, battery system, or power-management installation. Once installed, the product may form only one component of a larger system.
The installer, system designer, integrator, dealer, or end-user is responsible for ensuring that the product is suitable for the intended application and is installed, configured, protected, and operated correctly. Issues or damage arising from incorrect installation, poor system design, incorrect configuration, incompatible equipment, inadequate protection, unsuitable mounting, or failure to follow instructions are not product defects and are not covered by this warranty.
Service Accessibility Requirement: Products must be installed in a manner that allows reasonable access for inspection, testing, servicing, removal, and replacement. We are not responsible for additional labour, structural modification, access equipment, removal of fixtures, cabinetry, panels, flooring, trim, sealants, adhesives, or other costs arising from installation methods that restrict reasonable access to the product.
Installation Documentation: We may require documentation of the installation when assessing a warranty claim. This may include photos of the product in its installed location, wiring diagrams, system layout, serial numbers, details of connected equipment, installer details, commissioning records, service history, fault logs, operating settings, firmware details, and maintenance records. Failure to provide reasonable installation evidence may limit our ability to assess the claim.
Independence of Dealers and Installers: Authorised dealers, resellers, distributors, installers, and contractors act independently and are not agents, employees, or representatives of Wakespeed or us unless expressly agreed in writing. We are not responsible for the acts, omissions, workmanship, advice, representations, installation practices, or system design decisions of independent dealers, resellers, installers, contractors, or third parties.
This warranty covers manufacturing defects or failures of the product arising from normal use in accordance with Wakespeed instructions. It does not cover any failure, damage, performance issue, deterioration, or loss caused wholly or partly by external factors, misuse, incorrect installation, incorrect configuration, or circumstances outside the control of the product supplier or manufacturer.
Important: If you suspect a fault with a Wakespeed product supplied by us, do not immediately remove or uninstall the product unless it is unsafe to leave it in place or unless authorised by us, Wakespeed, or an authorised dealer. Premature removal can cause further damage, prevent proper assessment, and may make it impossible to determine the original cause of the issue.
If a defect covered by this warranty is confirmed, one or more of the following remedies may be provided at the discretion of the assessing party and subject to applicable law:
Repair: If the defect can be resolved by repair, the product or relevant components may be repaired by Wakespeed, an authorised service provider, or another approved party. Any replaced components become the property of the repairing or replacing party unless otherwise agreed.
Replacement: If the product or major component is not reasonably repairable, a replacement may be provided. The replacement may be the same model, a superseded equivalent, a product with similar specifications, a new unit, or a refurbished or factory-reconditioned unit where permitted by law. Where a replacement is provided, the faulty product becomes the property of the replacing party unless otherwise agreed.
Refund or Credit: In some cases, a refund or credit may be provided. Refunds will usually be handled by the original place of purchase. The refund amount will not exceed the original purchase price paid for the affected product unless otherwise required by law.
No Charge for Approved Claims: For approved warranty claims, the repair, replacement, refund, or approved remedy will be provided at no charge to the customer. If a product is specifically requested to be returned for assessment and the product is found to have a covered defect, reasonable return freight or supply of the repaired or replacement item back to the customer, dealer, or reseller will be covered where required by law or agreed in writing.
No Extension of Original Warranty: Repair or replacement under this warranty does not restart or extend the original warranty period. The warranty continues from the original purchase date. For example, if a product with a 24-month warranty is replaced in its second year, the replacement product is covered only for the remaining balance of the original 24-month warranty period.
Ancillary Parts for Approved Warranty Repairs: If a warranty claim is approved and it is determined that replacement connectors, wiring, harnesses, mounting hardware, fasteners, or similar ancillary items are reasonably required to restore the product to normal operation, those items may be supplied at no cost. This does not include labour, removal, reinstallation, access equipment, structural modification, or costs associated with restricted access unless expressly required by law or agreed in writing.
To the extent permitted by law, liability under this warranty is limited to the repair, replacement, refund, credit, or approved remedy relating to the defective Wakespeed product supplied. Neither Wakespeed nor we are responsible for special, indirect, incidental, or consequential loss arising from product failure, installation issues, misuse, system design, or breach of warranty.
This includes, to the extent permitted by law, third-party labour, removal or reinstallation costs, travel costs, freight not approved in advance, access equipment, structural modification, loss of revenue, loss of profit, downtime, loss of use, damage to other equipment, property damage, personal injury, loss of data, or economic loss.
Nothing in this warranty excludes, restricts, or modifies any rights or remedies that cannot be excluded under Australian Consumer Law.
For warranty support, contact the authorised dealer, reseller, distributor, or place of purchase from which the Wakespeed product was supplied.
This warranty policy applies to Wakespeed products supplied by us in Australia through authorised dealers, resellers, distributors, or approved sales channels. It applies to the original end-user purchaser of the product, as evidenced by the authorised dealer’s, reseller’s, or distributor’s invoice, and is not transferable without written consent.
Wakespeed products supplied by us are covered against defects in materials and workmanship under normal use and service, subject to the terms and conditions below. The benefits given by this warranty are in addition to any other rights and remedies available under law.
Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.
This warranty covers Wakespeed alternator regulators, charge-control products, wiring harnesses, temperature sensors, CAN cables, communication cables, and related Wakespeed accessories supplied by us. The warranty periods for each product model range are as follows:
Commencement of Warranty: The warranty period begins on the date of purchase by the original end-user, as shown on the authorised dealer’s, reseller’s, or distributor’s invoice. A valid proof of purchase from an authorised sales channel is required for all warranty claims.
Wakespeed products are intended to be installed, connected, programmed, configured, and integrated into a broader alternator charging system, vehicle, vessel, electrical system, battery system, or power-management installation. Once installed, the product may form only one component of a larger system.
The installer, system designer, integrator, dealer, or end-user is responsible for ensuring that the product is suitable for the intended application and is installed, configured, protected, and operated correctly. Issues or damage arising from incorrect installation, poor system design, incorrect configuration, incompatible equipment, inadequate protection, unsuitable mounting, or failure to follow instructions are not product defects and are not covered by this warranty.
Service Accessibility Requirement: Products must be installed in a manner that allows reasonable access for inspection, testing, servicing, removal, and replacement. We are not responsible for additional labour, structural modification, access equipment, removal of fixtures, cabinetry, panels, flooring, trim, sealants, adhesives, or other costs arising from installation methods that restrict reasonable access to the product.
Installation Documentation: We may require documentation of the installation when assessing a warranty claim. This may include photos of the product in its installed location, wiring diagrams, system layout, serial numbers, details of connected equipment, installer details, commissioning records, service history, fault logs, operating settings, firmware details, and maintenance records. Failure to provide reasonable installation evidence may limit our ability to assess the claim.
Independence of Dealers and Installers: Authorised dealers, resellers, distributors, installers, and contractors act independently and are not agents, employees, or representatives of Wakespeed or us unless expressly agreed in writing. We are not responsible for the acts, omissions, workmanship, advice, representations, installation practices, or system design decisions of independent dealers, resellers, installers, contractors, or third parties.
This warranty covers manufacturing defects or failures of the product arising from normal use in accordance with Wakespeed instructions. It does not cover any failure, damage, performance issue, deterioration, or loss caused wholly or partly by external factors, misuse, incorrect installation, incorrect configuration, or circumstances outside the control of the product supplier or manufacturer.
Important: If you suspect a fault with a Wakespeed product supplied by us, do not immediately remove or uninstall the product unless it is unsafe to leave it in place or unless authorised by us, Wakespeed, or an authorised dealer. Premature removal can cause further damage, prevent proper assessment, and may make it impossible to determine the original cause of the issue.
If a defect covered by this warranty is confirmed, one or more of the following remedies may be provided at the discretion of the assessing party and subject to applicable law:
Repair: If the defect can be resolved by repair, the product or relevant components may be repaired by Wakespeed, an authorised service provider, or another approved party. Any replaced components become the property of the repairing or replacing party unless otherwise agreed.
Replacement: If the product or major component is not reasonably repairable, a replacement may be provided. The replacement may be the same model, a superseded equivalent, a product with similar specifications, a new unit, or a refurbished or factory-reconditioned unit where permitted by law. Where a replacement is provided, the faulty product becomes the property of the replacing party unless otherwise agreed.
Refund or Credit: In some cases, a refund or credit may be provided. Refunds will usually be handled by the original place of purchase. The refund amount will not exceed the original purchase price paid for the affected product unless otherwise required by law.
No Charge for Approved Claims: For approved warranty claims, the repair, replacement, refund, or approved remedy will be provided at no charge to the customer. If a product is specifically requested to be returned for assessment and the product is found to have a covered defect, reasonable return freight or supply of the repaired or replacement item back to the customer, dealer, or reseller will be covered where required by law or agreed in writing.
No Extension of Original Warranty: Repair or replacement under this warranty does not restart or extend the original warranty period. The warranty continues from the original purchase date. For example, if a product with a 24-month warranty is replaced in its second year, the replacement product is covered only for the remaining balance of the original 24-month warranty period.
Ancillary Parts for Approved Warranty Repairs: If a warranty claim is approved and it is determined that replacement connectors, wiring, harnesses, mounting hardware, fasteners, or similar ancillary items are reasonably required to restore the product to normal operation, those items may be supplied at no cost. This does not include labour, removal, reinstallation, access equipment, structural modification, or costs associated with restricted access unless expressly required by law or agreed in writing.
To the extent permitted by law, liability under this warranty is limited to the repair, replacement, refund, credit, or approved remedy relating to the defective Wakespeed product supplied. Neither Wakespeed nor we are responsible for special, indirect, incidental, or consequential loss arising from product failure, installation issues, misuse, system design, or breach of warranty.
This includes, to the extent permitted by law, third-party labour, removal or reinstallation costs, travel costs, freight not approved in advance, access equipment, structural modification, loss of revenue, loss of profit, downtime, loss of use, damage to other equipment, property damage, personal injury, loss of data, or economic loss.
Nothing in this warranty excludes, restricts, or modifies any rights or remedies that cannot be excluded under Australian Consumer Law.
For warranty support, contact the authorised dealer, reseller, distributor, or place of purchase from which the Wakespeed product was supplied.
This warranty policy applies to Wakespeed products supplied by us in Australia through authorised dealers, resellers, distributors, or approved sales channels. It applies to the original end-user purchaser of the product, as evidenced by the authorised dealer’s, reseller’s, or distributor’s invoice, and is not transferable without written consent.
Wakespeed products supplied by us are covered against defects in materials and workmanship under normal use and service, subject to the terms and conditions below. The benefits given by this warranty are in addition to any other rights and remedies available under law.
Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.
This warranty covers Wakespeed alternator regulators, charge-control products, wiring harnesses, temperature sensors, CAN cables, communication cables, and related Wakespeed accessories supplied by us. The warranty periods for each product model range are as follows:
Commencement of Warranty: The warranty period begins on the date of purchase by the original end-user, as shown on the authorised dealer’s, reseller’s, or distributor’s invoice. A valid proof of purchase from an authorised sales channel is required for all warranty claims.
Wakespeed products are intended to be installed, connected, programmed, configured, and integrated into a broader alternator charging system, vehicle, vessel, electrical system, battery system, or power-management installation. Once installed, the product may form only one component of a larger system.
The installer, system designer, integrator, dealer, or end-user is responsible for ensuring that the product is suitable for the intended application and is installed, configured, protected, and operated correctly. Issues or damage arising from incorrect installation, poor system design, incorrect configuration, incompatible equipment, inadequate protection, unsuitable mounting, or failure to follow instructions are not product defects and are not covered by this warranty.
Service Accessibility Requirement: Products must be installed in a manner that allows reasonable access for inspection, testing, servicing, removal, and replacement. We are not responsible for additional labour, structural modification, access equipment, removal of fixtures, cabinetry, panels, flooring, trim, sealants, adhesives, or other costs arising from installation methods that restrict reasonable access to the product.
Installation Documentation: We may require documentation of the installation when assessing a warranty claim. This may include photos of the product in its installed location, wiring diagrams, system layout, serial numbers, details of connected equipment, installer details, commissioning records, service history, fault logs, operating settings, firmware details, and maintenance records. Failure to provide reasonable installation evidence may limit our ability to assess the claim.
Independence of Dealers and Installers: Authorised dealers, resellers, distributors, installers, and contractors act independently and are not agents, employees, or representatives of Wakespeed or us unless expressly agreed in writing. We are not responsible for the acts, omissions, workmanship, advice, representations, installation practices, or system design decisions of independent dealers, resellers, installers, contractors, or third parties.
This warranty covers manufacturing defects or failures of the product arising from normal use in accordance with Wakespeed instructions. It does not cover any failure, damage, performance issue, deterioration, or loss caused wholly or partly by external factors, misuse, incorrect installation, incorrect configuration, or circumstances outside the control of the product supplier or manufacturer.
Important: If you suspect a fault with a Wakespeed product supplied by us, do not immediately remove or uninstall the product unless it is unsafe to leave it in place or unless authorised by us, Wakespeed, or an authorised dealer. Premature removal can cause further damage, prevent proper assessment, and may make it impossible to determine the original cause of the issue.
If a defect covered by this warranty is confirmed, one or more of the following remedies may be provided at the discretion of the assessing party and subject to applicable law:
Repair: If the defect can be resolved by repair, the product or relevant components may be repaired by Wakespeed, an authorised service provider, or another approved party. Any replaced components become the property of the repairing or replacing party unless otherwise agreed.
Replacement: If the product or major component is not reasonably repairable, a replacement may be provided. The replacement may be the same model, a superseded equivalent, a product with similar specifications, a new unit, or a refurbished or factory-reconditioned unit where permitted by law. Where a replacement is provided, the faulty product becomes the property of the replacing party unless otherwise agreed.
Refund or Credit: In some cases, a refund or credit may be provided. Refunds will usually be handled by the original place of purchase. The refund amount will not exceed the original purchase price paid for the affected product unless otherwise required by law.
No Charge for Approved Claims: For approved warranty claims, the repair, replacement, refund, or approved remedy will be provided at no charge to the customer. If a product is specifically requested to be returned for assessment and the product is found to have a covered defect, reasonable return freight or supply of the repaired or replacement item back to the customer, dealer, or reseller will be covered where required by law or agreed in writing.
No Extension of Original Warranty: Repair or replacement under this warranty does not restart or extend the original warranty period. The warranty continues from the original purchase date. For example, if a product with a 24-month warranty is replaced in its second year, the replacement product is covered only for the remaining balance of the original 24-month warranty period.
Ancillary Parts for Approved Warranty Repairs: If a warranty claim is approved and it is determined that replacement connectors, wiring, harnesses, mounting hardware, fasteners, or similar ancillary items are reasonably required to restore the product to normal operation, those items may be supplied at no cost. This does not include labour, removal, reinstallation, access equipment, structural modification, or costs associated with restricted access unless expressly required by law or agreed in writing.
To the extent permitted by law, liability under this warranty is limited to the repair, replacement, refund, credit, or approved remedy relating to the defective Wakespeed product supplied. Neither Wakespeed nor we are responsible for special, indirect, incidental, or consequential loss arising from product failure, installation issues, misuse, system design, or breach of warranty.
This includes, to the extent permitted by law, third-party labour, removal or reinstallation costs, travel costs, freight not approved in advance, access equipment, structural modification, loss of revenue, loss of profit, downtime, loss of use, damage to other equipment, property damage, personal injury, loss of data, or economic loss.
Nothing in this warranty excludes, restricts, or modifies any rights or remedies that cannot be excluded under Australian Consumer Law.
For warranty support, contact the authorised dealer, reseller, distributor, or place of purchase from which the Wakespeed product was supplied.
This warranty policy applies to Wakespeed products supplied by us in Australia through authorised dealers, resellers, distributors, or approved sales channels. It applies to the original end-user purchaser of the product, as evidenced by the authorised dealer’s, reseller’s, or distributor’s invoice, and is not transferable without written consent.
Wakespeed products supplied by us are covered against defects in materials and workmanship under normal use and service, subject to the terms and conditions below. The benefits given by this warranty are in addition to any other rights and remedies available under law.
Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.
This warranty covers Wakespeed alternator regulators, charge-control products, wiring harnesses, temperature sensors, CAN cables, communication cables, and related Wakespeed accessories supplied by us. The warranty periods for each product model range are as follows:
Commencement of Warranty: The warranty period begins on the date of purchase by the original end-user, as shown on the authorised dealer’s, reseller’s, or distributor’s invoice. A valid proof of purchase from an authorised sales channel is required for all warranty claims.
Wakespeed products are intended to be installed, connected, programmed, configured, and integrated into a broader alternator charging system, vehicle, vessel, electrical system, battery system, or power-management installation. Once installed, the product may form only one component of a larger system.
The installer, system designer, integrator, dealer, or end-user is responsible for ensuring that the product is suitable for the intended application and is installed, configured, protected, and operated correctly. Issues or damage arising from incorrect installation, poor system design, incorrect configuration, incompatible equipment, inadequate protection, unsuitable mounting, or failure to follow instructions are not product defects and are not covered by this warranty.
Service Accessibility Requirement: Products must be installed in a manner that allows reasonable access for inspection, testing, servicing, removal, and replacement. We are not responsible for additional labour, structural modification, access equipment, removal of fixtures, cabinetry, panels, flooring, trim, sealants, adhesives, or other costs arising from installation methods that restrict reasonable access to the product.
Installation Documentation: We may require documentation of the installation when assessing a warranty claim. This may include photos of the product in its installed location, wiring diagrams, system layout, serial numbers, details of connected equipment, installer details, commissioning records, service history, fault logs, operating settings, firmware details, and maintenance records. Failure to provide reasonable installation evidence may limit our ability to assess the claim.
Independence of Dealers and Installers: Authorised dealers, resellers, distributors, installers, and contractors act independently and are not agents, employees, or representatives of Wakespeed or us unless expressly agreed in writing. We are not responsible for the acts, omissions, workmanship, advice, representations, installation practices, or system design decisions of independent dealers, resellers, installers, contractors, or third parties.
This warranty covers manufacturing defects or failures of the product arising from normal use in accordance with Wakespeed instructions. It does not cover any failure, damage, performance issue, deterioration, or loss caused wholly or partly by external factors, misuse, incorrect installation, incorrect configuration, or circumstances outside the control of the product supplier or manufacturer.
Important: If you suspect a fault with a Wakespeed product supplied by us, do not immediately remove or uninstall the product unless it is unsafe to leave it in place or unless authorised by us, Wakespeed, or an authorised dealer. Premature removal can cause further damage, prevent proper assessment, and may make it impossible to determine the original cause of the issue.
If a defect covered by this warranty is confirmed, one or more of the following remedies may be provided at the discretion of the assessing party and subject to applicable law:
Repair: If the defect can be resolved by repair, the product or relevant components may be repaired by Wakespeed, an authorised service provider, or another approved party. Any replaced components become the property of the repairing or replacing party unless otherwise agreed.
Replacement: If the product or major component is not reasonably repairable, a replacement may be provided. The replacement may be the same model, a superseded equivalent, a product with similar specifications, a new unit, or a refurbished or factory-reconditioned unit where permitted by law. Where a replacement is provided, the faulty product becomes the property of the replacing party unless otherwise agreed.
Refund or Credit: In some cases, a refund or credit may be provided. Refunds will usually be handled by the original place of purchase. The refund amount will not exceed the original purchase price paid for the affected product unless otherwise required by law.
No Charge for Approved Claims: For approved warranty claims, the repair, replacement, refund, or approved remedy will be provided at no charge to the customer. If a product is specifically requested to be returned for assessment and the product is found to have a covered defect, reasonable return freight or supply of the repaired or replacement item back to the customer, dealer, or reseller will be covered where required by law or agreed in writing.
No Extension of Original Warranty: Repair or replacement under this warranty does not restart or extend the original warranty period. The warranty continues from the original purchase date. For example, if a product with a 24-month warranty is replaced in its second year, the replacement product is covered only for the remaining balance of the original 24-month warranty period.
Ancillary Parts for Approved Warranty Repairs: If a warranty claim is approved and it is determined that replacement connectors, wiring, harnesses, mounting hardware, fasteners, or similar ancillary items are reasonably required to restore the product to normal operation, those items may be supplied at no cost. This does not include labour, removal, reinstallation, access equipment, structural modification, or costs associated with restricted access unless expressly required by law or agreed in writing.
To the extent permitted by law, liability under this warranty is limited to the repair, replacement, refund, credit, or approved remedy relating to the defective Wakespeed product supplied. Neither Wakespeed nor we are responsible for special, indirect, incidental, or consequential loss arising from product failure, installation issues, misuse, system design, or breach of warranty.
This includes, to the extent permitted by law, third-party labour, removal or reinstallation costs, travel costs, freight not approved in advance, access equipment, structural modification, loss of revenue, loss of profit, downtime, loss of use, damage to other equipment, property damage, personal injury, loss of data, or economic loss.
Nothing in this warranty excludes, restricts, or modifies any rights or remedies that cannot be excluded under Australian Consumer Law.
For warranty support, contact the authorised dealer, reseller, distributor, or place of purchase from which the Wakespeed product was supplied.
This warranty policy applies to Wakespeed products supplied by us in Australia through authorised dealers, resellers, distributors, or approved sales channels. It applies to the original end-user purchaser of the product, as evidenced by the authorised dealer’s, reseller’s, or distributor’s invoice, and is not transferable without written consent.
Wakespeed products supplied by us are covered against defects in materials and workmanship under normal use and service, subject to the terms and conditions below. The benefits given by this warranty are in addition to any other rights and remedies available under law.
Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.
This warranty covers Wakespeed alternator regulators, charge-control products, wiring harnesses, temperature sensors, CAN cables, communication cables, and related Wakespeed accessories supplied by us. The warranty periods for each product model range are as follows:
Commencement of Warranty: The warranty period begins on the date of purchase by the original end-user, as shown on the authorised dealer’s, reseller’s, or distributor’s invoice. A valid proof of purchase from an authorised sales channel is required for all warranty claims.
Wakespeed products are intended to be installed, connected, programmed, configured, and integrated into a broader alternator charging system, vehicle, vessel, electrical system, battery system, or power-management installation. Once installed, the product may form only one component of a larger system.
The installer, system designer, integrator, dealer, or end-user is responsible for ensuring that the product is suitable for the intended application and is installed, configured, protected, and operated correctly. Issues or damage arising from incorrect installation, poor system design, incorrect configuration, incompatible equipment, inadequate protection, unsuitable mounting, or failure to follow instructions are not product defects and are not covered by this warranty.
Service Accessibility Requirement: Products must be installed in a manner that allows reasonable access for inspection, testing, servicing, removal, and replacement. We are not responsible for additional labour, structural modification, access equipment, removal of fixtures, cabinetry, panels, flooring, trim, sealants, adhesives, or other costs arising from installation methods that restrict reasonable access to the product.
Installation Documentation: We may require documentation of the installation when assessing a warranty claim. This may include photos of the product in its installed location, wiring diagrams, system layout, serial numbers, details of connected equipment, installer details, commissioning records, service history, fault logs, operating settings, firmware details, and maintenance records. Failure to provide reasonable installation evidence may limit our ability to assess the claim.
Independence of Dealers and Installers: Authorised dealers, resellers, distributors, installers, and contractors act independently and are not agents, employees, or representatives of Wakespeed or us unless expressly agreed in writing. We are not responsible for the acts, omissions, workmanship, advice, representations, installation practices, or system design decisions of independent dealers, resellers, installers, contractors, or third parties.
This warranty covers manufacturing defects or failures of the product arising from normal use in accordance with Wakespeed instructions. It does not cover any failure, damage, performance issue, deterioration, or loss caused wholly or partly by external factors, misuse, incorrect installation, incorrect configuration, or circumstances outside the control of the product supplier or manufacturer.
Important: If you suspect a fault with a Wakespeed product supplied by us, do not immediately remove or uninstall the product unless it is unsafe to leave it in place or unless authorised by us, Wakespeed, or an authorised dealer. Premature removal can cause further damage, prevent proper assessment, and may make it impossible to determine the original cause of the issue.
If a defect covered by this warranty is confirmed, one or more of the following remedies may be provided at the discretion of the assessing party and subject to applicable law:
Repair: If the defect can be resolved by repair, the product or relevant components may be repaired by Wakespeed, an authorised service provider, or another approved party. Any replaced components become the property of the repairing or replacing party unless otherwise agreed.
Replacement: If the product or major component is not reasonably repairable, a replacement may be provided. The replacement may be the same model, a superseded equivalent, a product with similar specifications, a new unit, or a refurbished or factory-reconditioned unit where permitted by law. Where a replacement is provided, the faulty product becomes the property of the replacing party unless otherwise agreed.
Refund or Credit: In some cases, a refund or credit may be provided. Refunds will usually be handled by the original place of purchase. The refund amount will not exceed the original purchase price paid for the affected product unless otherwise required by law.
No Charge for Approved Claims: For approved warranty claims, the repair, replacement, refund, or approved remedy will be provided at no charge to the customer. If a product is specifically requested to be returned for assessment and the product is found to have a covered defect, reasonable return freight or supply of the repaired or replacement item back to the customer, dealer, or reseller will be covered where required by law or agreed in writing.
No Extension of Original Warranty: Repair or replacement under this warranty does not restart or extend the original warranty period. The warranty continues from the original purchase date. For example, if a product with a 24-month warranty is replaced in its second year, the replacement product is covered only for the remaining balance of the original 24-month warranty period.
Ancillary Parts for Approved Warranty Repairs: If a warranty claim is approved and it is determined that replacement connectors, wiring, harnesses, mounting hardware, fasteners, or similar ancillary items are reasonably required to restore the product to normal operation, those items may be supplied at no cost. This does not include labour, removal, reinstallation, access equipment, structural modification, or costs associated with restricted access unless expressly required by law or agreed in writing.
To the extent permitted by law, liability under this warranty is limited to the repair, replacement, refund, credit, or approved remedy relating to the defective Wakespeed product supplied. Neither Wakespeed nor we are responsible for special, indirect, incidental, or consequential loss arising from product failure, installation issues, misuse, system design, or breach of warranty.
This includes, to the extent permitted by law, third-party labour, removal or reinstallation costs, travel costs, freight not approved in advance, access equipment, structural modification, loss of revenue, loss of profit, downtime, loss of use, damage to other equipment, property damage, personal injury, loss of data, or economic loss.
Nothing in this warranty excludes, restricts, or modifies any rights or remedies that cannot be excluded under Australian Consumer Law.
For warranty support, contact the authorised dealer, reseller, distributor, or place of purchase from which the Wakespeed product was supplied.
This warranty policy applies to Wakespeed products supplied by us in Australia through authorised dealers, resellers, distributors, or approved sales channels. It applies to the original end-user purchaser of the product, as evidenced by the authorised dealer’s, reseller’s, or distributor’s invoice, and is not transferable without written consent.
Wakespeed products supplied by us are covered against defects in materials and workmanship under normal use and service, subject to the terms and conditions below. The benefits given by this warranty are in addition to any other rights and remedies available under law.
Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.
This warranty covers Wakespeed alternator regulators, charge-control products, wiring harnesses, temperature sensors, CAN cables, communication cables, and related Wakespeed accessories supplied by us. The warranty periods for each product model range are as follows:
Commencement of Warranty: The warranty period begins on the date of purchase by the original end-user, as shown on the authorised dealer’s, reseller’s, or distributor’s invoice. A valid proof of purchase from an authorised sales channel is required for all warranty claims.
Wakespeed products are intended to be installed, connected, programmed, configured, and integrated into a broader alternator charging system, vehicle, vessel, electrical system, battery system, or power-management installation. Once installed, the product may form only one component of a larger system.
The installer, system designer, integrator, dealer, or end-user is responsible for ensuring that the product is suitable for the intended application and is installed, configured, protected, and operated correctly. Issues or damage arising from incorrect installation, poor system design, incorrect configuration, incompatible equipment, inadequate protection, unsuitable mounting, or failure to follow instructions are not product defects and are not covered by this warranty.
Service Accessibility Requirement: Products must be installed in a manner that allows reasonable access for inspection, testing, servicing, removal, and replacement. We are not responsible for additional labour, structural modification, access equipment, removal of fixtures, cabinetry, panels, flooring, trim, sealants, adhesives, or other costs arising from installation methods that restrict reasonable access to the product.
Installation Documentation: We may require documentation of the installation when assessing a warranty claim. This may include photos of the product in its installed location, wiring diagrams, system layout, serial numbers, details of connected equipment, installer details, commissioning records, service history, fault logs, operating settings, firmware details, and maintenance records. Failure to provide reasonable installation evidence may limit our ability to assess the claim.
Independence of Dealers and Installers: Authorised dealers, resellers, distributors, installers, and contractors act independently and are not agents, employees, or representatives of Wakespeed or us unless expressly agreed in writing. We are not responsible for the acts, omissions, workmanship, advice, representations, installation practices, or system design decisions of independent dealers, resellers, installers, contractors, or third parties.
This warranty covers manufacturing defects or failures of the product arising from normal use in accordance with Wakespeed instructions. It does not cover any failure, damage, performance issue, deterioration, or loss caused wholly or partly by external factors, misuse, incorrect installation, incorrect configuration, or circumstances outside the control of the product supplier or manufacturer.
Important: If you suspect a fault with a Wakespeed product supplied by us, do not immediately remove or uninstall the product unless it is unsafe to leave it in place or unless authorised by us, Wakespeed, or an authorised dealer. Premature removal can cause further damage, prevent proper assessment, and may make it impossible to determine the original cause of the issue.
If a defect covered by this warranty is confirmed, one or more of the following remedies may be provided at the discretion of the assessing party and subject to applicable law:
Repair: If the defect can be resolved by repair, the product or relevant components may be repaired by Wakespeed, an authorised service provider, or another approved party. Any replaced components become the property of the repairing or replacing party unless otherwise agreed.
Replacement: If the product or major component is not reasonably repairable, a replacement may be provided. The replacement may be the same model, a superseded equivalent, a product with similar specifications, a new unit, or a refurbished or factory-reconditioned unit where permitted by law. Where a replacement is provided, the faulty product becomes the property of the replacing party unless otherwise agreed.
Refund or Credit: In some cases, a refund or credit may be provided. Refunds will usually be handled by the original place of purchase. The refund amount will not exceed the original purchase price paid for the affected product unless otherwise required by law.
No Charge for Approved Claims: For approved warranty claims, the repair, replacement, refund, or approved remedy will be provided at no charge to the customer. If a product is specifically requested to be returned for assessment and the product is found to have a covered defect, reasonable return freight or supply of the repaired or replacement item back to the customer, dealer, or reseller will be covered where required by law or agreed in writing.
No Extension of Original Warranty: Repair or replacement under this warranty does not restart or extend the original warranty period. The warranty continues from the original purchase date. For example, if a product with a 24-month warranty is replaced in its second year, the replacement product is covered only for the remaining balance of the original 24-month warranty period.
Ancillary Parts for Approved Warranty Repairs: If a warranty claim is approved and it is determined that replacement connectors, wiring, harnesses, mounting hardware, fasteners, or similar ancillary items are reasonably required to restore the product to normal operation, those items may be supplied at no cost. This does not include labour, removal, reinstallation, access equipment, structural modification, or costs associated with restricted access unless expressly required by law or agreed in writing.
To the extent permitted by law, liability under this warranty is limited to the repair, replacement, refund, credit, or approved remedy relating to the defective Wakespeed product supplied. Neither Wakespeed nor we are responsible for special, indirect, incidental, or consequential loss arising from product failure, installation issues, misuse, system design, or breach of warranty.
This includes, to the extent permitted by law, third-party labour, removal or reinstallation costs, travel costs, freight not approved in advance, access equipment, structural modification, loss of revenue, loss of profit, downtime, loss of use, damage to other equipment, property damage, personal injury, loss of data, or economic loss.
Nothing in this warranty excludes, restricts, or modifies any rights or remedies that cannot be excluded under Australian Consumer Law.
For warranty support, contact the authorised dealer, reseller, distributor, or place of purchase from which the Wakespeed product was supplied.
Victron Energy provides the following warranty to any direct customer (OEM, distributor or dealer) in relation to any products that Victron Energy has directly sold to the direct customer. This warranty is not an end-user warranty between Victron Energy and an end-user, and end-users shall not have any rights or remedies under this limited warranty towards Victron Energy directly. The direct customer shall, in turn, ensure that the end-user is provided with a warranty identical to this warranty, subject to applicable local mandatory law.
Victron Energy may also provide a warranty directly to end-users, in which case the below warranty conditions equally apply to such warranty. In that case, end-users shall claim their warranty at their place of purchase or through the original direct customer of Victron, which can be found through the support section on Victron’s website. Hence, the direct customer shall on behalf of Victron Energy deal with any warranty claims made under any warranty that Victron Energy may provide directly to end-users. This support section on Victron’s website will provide further guidance on the procedure for end-users to make a claim under this limited warranty.
If the end-user is a consumer – a natural person who is acting for purposes which are outside that person's trade, business, craft or profession – the following applies. The rights and remedies granted to the consumer under this limited warranty are without prejudice to the consumer’s statutory rights. Furthermore, the consumer is entitled by law to remedies from the seller free of charge in the event of a lack of conformity of the goods (such as repair, replacement, price reduction or rescission), which remedies are not affected by this limited warranty.
Victron Energy warrants its products to be free from defects in workmanship and materials for a period of 5 years from the date of purchase by the original end-user, with a maximum of 66 months from the Victron Energy invoice date. Exceptions on this are: lead-acid batteries: 2 years from date of purchase by the original end-user, with a maximum of 30 months from the Victron Energy invoice date, Lithium batteries: 3 years from date of purchase by the original end-user, with a maximum of 42 months from the Victron Energy invoice date. In addition to this, proof of correct battery usage is required when making a battery warranty claim.
For a 10% surcharge on the current net price for products that came with a 5-year warranty, an additional 5 years of warranty can be purchased by Victron’s direct customers, bringing the total warranty to 10 years. Warranty extensions need to be applied for ultimately one year before the expiration of the original term. Victron may ask proof that the product was still functional at the time of purchase of the extended warranty.
During the warranty period, Victron Energy will, at its discretion, repair, replace or (partly) credit the defective product free of charge. The warranty does not include performing or reimbursing de‐installation, transportation, and re‐installation.
This warranty will be considered void if the unit has suffered any physical damage or alteration, either internally or externally, and does not cover damages arising from improper use like:
This warranty will not apply where the product has been misused, neglected, improperly installed, or repaired by anyone other than Victron Energy or one of its authorized Repair Centres. In order to qualify for the warranty, the product must not be disassembled or modified.
This warranty and our warranty obligations thereunder (repair, replacement or credit) are the direct customer’s and, if applicable, the end-user’s sole rights and remedies and our sole obligations with respect to any defective and/or non-conforming product or breach of warranty and is subject to and without prejudice to the limitations of liability in this warranty.
Victron Energy shall not be liable for damages, whether direct, incidental, special, or consequential, even caused by negligence or fault.
As a product requires service, it must be brought back to the place of purchase. In case no contact can be made with the merchant, or if he is either unable or not allowed to provide service, direct contact should be made with Victron Energy through the support section on Victron’s website.
In case Victron Energy replaces a product, it will own the replaced product. Victron Energy owns all parts removed from repaired products. Victron Energy uses new or reconditioned parts made by various manufacturers when performing warranty repairs or building replacement products.
If Victron Energy repairs or replaces a part of a product, its warranty term is not extended: the warranty will apply for the remaining term of the original warranty term. For example, if Victron Energy replaces a product with a 5-year warranty after 3 years, the warranty of this product will apply for another 2 years, with a minimum of 6 months.
All remedies and the measure for damages are limited to the above. Victron Energy shall in no event be liable for consequential, incidental, contingent or special damages, even if having been advised of the probability of such damages.
The foregoing limited warranty provided by Victron Energy is in lieu of any other warranties, express or implied arising by law, course of dealing, course of performance, usage of trade or otherwise, of any kind whatsoever including, without limitation, warranties of merchantability or fitness for a particular purpose, with respect to any product. The above is without prejudice to the arrangement for consumers detailed above.
As a general policy, Victron Energy does not recommend the use of any of its products in life support applications where failure or malfunction of Victron Energy's product can be reasonably expected to cause the failure of the life support device or to significantly affect its safety or effectiveness. Victron Energy does not recommend the use of any of its products in direct patient care. Victron Energy will not knowingly sell its products for use in such applications unless it receives in writing assurances satisfactory to Victron Energy that the risks of injury or damage have been minimized, the customer assumes all such risks, and the liability of Victron Energy is adequately protected under the circumstances.
The warranty period on products that are outside their warranty period and have been repaired by Victron Energy or one of the Victron Energy Repair centres is six (6) months from delivery. The same applies to spare parts and circuit boards that have been supplied or repaired by Victron Energy.
It is the responsibility of the sender to sufficiently package these products. The transport must be organized in a way to avoid any damage, especially when a single unit or heavy unit is sent.
If a part of the terms and conditions of this warranty is held invalid, void or unenforceable due to any particular national or international legislation, it shall not affect other parts of the terms and conditions of this warranty.
This warranty is exclusively governed by the laws of the Netherlands, to the exclusion of the UN Convention on Contracts for the International Sale of Goods.
This warranty policy applies to Wakespeed products supplied by us in Australia through authorised dealers, resellers, distributors, or approved sales channels. It applies to the original end-user purchaser of the product, as evidenced by the authorised dealer’s, reseller’s, or distributor’s invoice, and is not transferable without written consent.
Wakespeed products supplied by us are covered against defects in materials and workmanship under normal use and service, subject to the terms and conditions below. The benefits given by this warranty are in addition to any other rights and remedies available under law.
Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.
This warranty covers Wakespeed alternator regulators, charge-control products, wiring harnesses, temperature sensors, CAN cables, communication cables, and related Wakespeed accessories supplied by us. The warranty periods for each product model range are as follows:
Commencement of Warranty: The warranty period begins on the date of purchase by the original end-user, as shown on the authorised dealer’s, reseller’s, or distributor’s invoice. A valid proof of purchase from an authorised sales channel is required for all warranty claims.
Wakespeed products are intended to be installed, connected, programmed, configured, and integrated into a broader alternator charging system, vehicle, vessel, electrical system, battery system, or power-management installation. Once installed, the product may form only one component of a larger system.
The installer, system designer, integrator, dealer, or end-user is responsible for ensuring that the product is suitable for the intended application and is installed, configured, protected, and operated correctly. Issues or damage arising from incorrect installation, poor system design, incorrect configuration, incompatible equipment, inadequate protection, unsuitable mounting, or failure to follow instructions are not product defects and are not covered by this warranty.
Service Accessibility Requirement: Products must be installed in a manner that allows reasonable access for inspection, testing, servicing, removal, and replacement. We are not responsible for additional labour, structural modification, access equipment, removal of fixtures, cabinetry, panels, flooring, trim, sealants, adhesives, or other costs arising from installation methods that restrict reasonable access to the product.
Installation Documentation: We may require documentation of the installation when assessing a warranty claim. This may include photos of the product in its installed location, wiring diagrams, system layout, serial numbers, details of connected equipment, installer details, commissioning records, service history, fault logs, operating settings, firmware details, and maintenance records. Failure to provide reasonable installation evidence may limit our ability to assess the claim.
Independence of Dealers and Installers: Authorised dealers, resellers, distributors, installers, and contractors act independently and are not agents, employees, or representatives of Wakespeed or us unless expressly agreed in writing. We are not responsible for the acts, omissions, workmanship, advice, representations, installation practices, or system design decisions of independent dealers, resellers, installers, contractors, or third parties.
This warranty covers manufacturing defects or failures of the product arising from normal use in accordance with Wakespeed instructions. It does not cover any failure, damage, performance issue, deterioration, or loss caused wholly or partly by external factors, misuse, incorrect installation, incorrect configuration, or circumstances outside the control of the product supplier or manufacturer.
Important: If you suspect a fault with a Wakespeed product supplied by us, do not immediately remove or uninstall the product unless it is unsafe to leave it in place or unless authorised by us, Wakespeed, or an authorised dealer. Premature removal can cause further damage, prevent proper assessment, and may make it impossible to determine the original cause of the issue.
If a defect covered by this warranty is confirmed, one or more of the following remedies may be provided at the discretion of the assessing party and subject to applicable law:
Repair: If the defect can be resolved by repair, the product or relevant components may be repaired by Wakespeed, an authorised service provider, or another approved party. Any replaced components become the property of the repairing or replacing party unless otherwise agreed.
Replacement: If the product or major component is not reasonably repairable, a replacement may be provided. The replacement may be the same model, a superseded equivalent, a product with similar specifications, a new unit, or a refurbished or factory-reconditioned unit where permitted by law. Where a replacement is provided, the faulty product becomes the property of the replacing party unless otherwise agreed.
Refund or Credit: In some cases, a refund or credit may be provided. Refunds will usually be handled by the original place of purchase. The refund amount will not exceed the original purchase price paid for the affected product unless otherwise required by law.
No Charge for Approved Claims: For approved warranty claims, the repair, replacement, refund, or approved remedy will be provided at no charge to the customer. If a product is specifically requested to be returned for assessment and the product is found to have a covered defect, reasonable return freight or supply of the repaired or replacement item back to the customer, dealer, or reseller will be covered where required by law or agreed in writing.
No Extension of Original Warranty: Repair or replacement under this warranty does not restart or extend the original warranty period. The warranty continues from the original purchase date. For example, if a product with a 24-month warranty is replaced in its second year, the replacement product is covered only for the remaining balance of the original 24-month warranty period.
Ancillary Parts for Approved Warranty Repairs: If a warranty claim is approved and it is determined that replacement connectors, wiring, harnesses, mounting hardware, fasteners, or similar ancillary items are reasonably required to restore the product to normal operation, those items may be supplied at no cost. This does not include labour, removal, reinstallation, access equipment, structural modification, or costs associated with restricted access unless expressly required by law or agreed in writing.
To the extent permitted by law, liability under this warranty is limited to the repair, replacement, refund, credit, or approved remedy relating to the defective Wakespeed product supplied. Neither Wakespeed nor we are responsible for special, indirect, incidental, or consequential loss arising from product failure, installation issues, misuse, system design, or breach of warranty.
This includes, to the extent permitted by law, third-party labour, removal or reinstallation costs, travel costs, freight not approved in advance, access equipment, structural modification, loss of revenue, loss of profit, downtime, loss of use, damage to other equipment, property damage, personal injury, loss of data, or economic loss.
Nothing in this warranty excludes, restricts, or modifies any rights or remedies that cannot be excluded under Australian Consumer Law.
For warranty support, contact the authorised dealer, reseller, distributor, or place of purchase from which the Wakespeed product was supplied.
Victron Energy provides the following warranty to any direct customer (OEM, distributor or dealer) in relation to any products that Victron Energy has directly sold to the direct customer. This warranty is not an end-user warranty between Victron Energy and an end-user, and end-users shall not have any rights or remedies under this limited warranty towards Victron Energy directly. The direct customer shall, in turn, ensure that the end-user is provided with a warranty identical to this warranty, subject to applicable local mandatory law.
Victron Energy may also provide a warranty directly to end-users, in which case the below warranty conditions equally apply to such warranty. In that case, end-users shall claim their warranty at their place of purchase or through the original direct customer of Victron, which can be found through the support section on Victron’s website. Hence, the direct customer shall on behalf of Victron Energy deal with any warranty claims made under any warranty that Victron Energy may provide directly to end-users. This support section on Victron’s website will provide further guidance on the procedure for end-users to make a claim under this limited warranty.
If the end-user is a consumer – a natural person who is acting for purposes which are outside that person's trade, business, craft or profession – the following applies. The rights and remedies granted to the consumer under this limited warranty are without prejudice to the consumer’s statutory rights. Furthermore, the consumer is entitled by law to remedies from the seller free of charge in the event of a lack of conformity of the goods (such as repair, replacement, price reduction or rescission), which remedies are not affected by this limited warranty.
Victron Energy warrants its products to be free from defects in workmanship and materials for a period of 5 years from the date of purchase by the original end-user, with a maximum of 66 months from the Victron Energy invoice date. Exceptions on this are: lead-acid batteries: 2 years from date of purchase by the original end-user, with a maximum of 30 months from the Victron Energy invoice date, Lithium batteries: 3 years from date of purchase by the original end-user, with a maximum of 42 months from the Victron Energy invoice date. In addition to this, proof of correct battery usage is required when making a battery warranty claim.
For a 10% surcharge on the current net price for products that came with a 5-year warranty, an additional 5 years of warranty can be purchased by Victron’s direct customers, bringing the total warranty to 10 years. Warranty extensions need to be applied for ultimately one year before the expiration of the original term. Victron may ask proof that the product was still functional at the time of purchase of the extended warranty.
During the warranty period, Victron Energy will, at its discretion, repair, replace or (partly) credit the defective product free of charge. The warranty does not include performing or reimbursing de‐installation, transportation, and re‐installation.
This warranty will be considered void if the unit has suffered any physical damage or alteration, either internally or externally, and does not cover damages arising from improper use like:
This warranty will not apply where the product has been misused, neglected, improperly installed, or repaired by anyone other than Victron Energy or one of its authorized Repair Centres. In order to qualify for the warranty, the product must not be disassembled or modified.
This warranty and our warranty obligations thereunder (repair, replacement or credit) are the direct customer’s and, if applicable, the end-user’s sole rights and remedies and our sole obligations with respect to any defective and/or non-conforming product or breach of warranty and is subject to and without prejudice to the limitations of liability in this warranty.
Victron Energy shall not be liable for damages, whether direct, incidental, special, or consequential, even caused by negligence or fault.
As a product requires service, it must be brought back to the place of purchase. In case no contact can be made with the merchant, or if he is either unable or not allowed to provide service, direct contact should be made with Victron Energy through the support section on Victron’s website.
In case Victron Energy replaces a product, it will own the replaced product. Victron Energy owns all parts removed from repaired products. Victron Energy uses new or reconditioned parts made by various manufacturers when performing warranty repairs or building replacement products.
If Victron Energy repairs or replaces a part of a product, its warranty term is not extended: the warranty will apply for the remaining term of the original warranty term. For example, if Victron Energy replaces a product with a 5-year warranty after 3 years, the warranty of this product will apply for another 2 years, with a minimum of 6 months.
All remedies and the measure for damages are limited to the above. Victron Energy shall in no event be liable for consequential, incidental, contingent or special damages, even if having been advised of the probability of such damages.
The foregoing limited warranty provided by Victron Energy is in lieu of any other warranties, express or implied arising by law, course of dealing, course of performance, usage of trade or otherwise, of any kind whatsoever including, without limitation, warranties of merchantability or fitness for a particular purpose, with respect to any product. The above is without prejudice to the arrangement for consumers detailed above.
As a general policy, Victron Energy does not recommend the use of any of its products in life support applications where failure or malfunction of Victron Energy's product can be reasonably expected to cause the failure of the life support device or to significantly affect its safety or effectiveness. Victron Energy does not recommend the use of any of its products in direct patient care. Victron Energy will not knowingly sell its products for use in such applications unless it receives in writing assurances satisfactory to Victron Energy that the risks of injury or damage have been minimized, the customer assumes all such risks, and the liability of Victron Energy is adequately protected under the circumstances.
The warranty period on products that are outside their warranty period and have been repaired by Victron Energy or one of the Victron Energy Repair centres is six (6) months from delivery. The same applies to spare parts and circuit boards that have been supplied or repaired by Victron Energy.
It is the responsibility of the sender to sufficiently package these products. The transport must be organized in a way to avoid any damage, especially when a single unit or heavy unit is sent.
If a part of the terms and conditions of this warranty is held invalid, void or unenforceable due to any particular national or international legislation, it shall not affect other parts of the terms and conditions of this warranty.
This warranty is exclusively governed by the laws of the Netherlands, to the exclusion of the UN Convention on Contracts for the International Sale of Goods.
Victron Energy provides the following warranty to any direct customer (OEM, distributor or dealer) in relation to any products that Victron Energy has directly sold to the direct customer. This warranty is not an end-user warranty between Victron Energy and an end-user, and end-users shall not have any rights or remedies under this limited warranty towards Victron Energy directly. The direct customer shall, in turn, ensure that the end-user is provided with a warranty identical to this warranty, subject to applicable local mandatory law.
Victron Energy may also provide a warranty directly to end-users, in which case the below warranty conditions equally apply to such warranty. In that case, end-users shall claim their warranty at their place of purchase or through the original direct customer of Victron, which can be found through the support section on Victron’s website. Hence, the direct customer shall on behalf of Victron Energy deal with any warranty claims made under any warranty that Victron Energy may provide directly to end-users. This support section on Victron’s website will provide further guidance on the procedure for end-users to make a claim under this limited warranty.
If the end-user is a consumer – a natural person who is acting for purposes which are outside that person's trade, business, craft or profession – the following applies. The rights and remedies granted to the consumer under this limited warranty are without prejudice to the consumer’s statutory rights. Furthermore, the consumer is entitled by law to remedies from the seller free of charge in the event of a lack of conformity of the goods (such as repair, replacement, price reduction or rescission), which remedies are not affected by this limited warranty.
Victron Energy warrants its products to be free from defects in workmanship and materials for a period of 5 years from the date of purchase by the original end-user, with a maximum of 66 months from the Victron Energy invoice date. Exceptions on this are: lead-acid batteries: 2 years from date of purchase by the original end-user, with a maximum of 30 months from the Victron Energy invoice date, Lithium batteries: 3 years from date of purchase by the original end-user, with a maximum of 42 months from the Victron Energy invoice date. In addition to this, proof of correct battery usage is required when making a battery warranty claim.
For a 10% surcharge on the current net price for products that came with a 5-year warranty, an additional 5 years of warranty can be purchased by Victron’s direct customers, bringing the total warranty to 10 years. Warranty extensions need to be applied for ultimately one year before the expiration of the original term. Victron may ask proof that the product was still functional at the time of purchase of the extended warranty.
During the warranty period, Victron Energy will, at its discretion, repair, replace or (partly) credit the defective product free of charge. The warranty does not include performing or reimbursing de‐installation, transportation, and re‐installation.
This warranty will be considered void if the unit has suffered any physical damage or alteration, either internally or externally, and does not cover damages arising from improper use like:
This warranty will not apply where the product has been misused, neglected, improperly installed, or repaired by anyone other than Victron Energy or one of its authorized Repair Centres. In order to qualify for the warranty, the product must not be disassembled or modified.
This warranty and our warranty obligations thereunder (repair, replacement or credit) are the direct customer’s and, if applicable, the end-user’s sole rights and remedies and our sole obligations with respect to any defective and/or non-conforming product or breach of warranty and is subject to and without prejudice to the limitations of liability in this warranty.
Victron Energy shall not be liable for damages, whether direct, incidental, special, or consequential, even caused by negligence or fault.
As a product requires service, it must be brought back to the place of purchase. In case no contact can be made with the merchant, or if he is either unable or not allowed to provide service, direct contact should be made with Victron Energy through the support section on Victron’s website.
In case Victron Energy replaces a product, it will own the replaced product. Victron Energy owns all parts removed from repaired products. Victron Energy uses new or reconditioned parts made by various manufacturers when performing warranty repairs or building replacement products.
If Victron Energy repairs or replaces a part of a product, its warranty term is not extended: the warranty will apply for the remaining term of the original warranty term. For example, if Victron Energy replaces a product with a 5-year warranty after 3 years, the warranty of this product will apply for another 2 years, with a minimum of 6 months.
All remedies and the measure for damages are limited to the above. Victron Energy shall in no event be liable for consequential, incidental, contingent or special damages, even if having been advised of the probability of such damages.
The foregoing limited warranty provided by Victron Energy is in lieu of any other warranties, express or implied arising by law, course of dealing, course of performance, usage of trade or otherwise, of any kind whatsoever including, without limitation, warranties of merchantability or fitness for a particular purpose, with respect to any product. The above is without prejudice to the arrangement for consumers detailed above.
As a general policy, Victron Energy does not recommend the use of any of its products in life support applications where failure or malfunction of Victron Energy's product can be reasonably expected to cause the failure of the life support device or to significantly affect its safety or effectiveness. Victron Energy does not recommend the use of any of its products in direct patient care. Victron Energy will not knowingly sell its products for use in such applications unless it receives in writing assurances satisfactory to Victron Energy that the risks of injury or damage have been minimized, the customer assumes all such risks, and the liability of Victron Energy is adequately protected under the circumstances.
The warranty period on products that are outside their warranty period and have been repaired by Victron Energy or one of the Victron Energy Repair centres is six (6) months from delivery. The same applies to spare parts and circuit boards that have been supplied or repaired by Victron Energy.
It is the responsibility of the sender to sufficiently package these products. The transport must be organized in a way to avoid any damage, especially when a single unit or heavy unit is sent.
If a part of the terms and conditions of this warranty is held invalid, void or unenforceable due to any particular national or international legislation, it shall not affect other parts of the terms and conditions of this warranty.
This warranty is exclusively governed by the laws of the Netherlands, to the exclusion of the UN Convention on Contracts for the International Sale of Goods.
Victron Energy provides the following warranty to any direct customer (OEM, distributor or dealer) in relation to any products that Victron Energy has directly sold to the direct customer. This warranty is not an end-user warranty between Victron Energy and an end-user, and end-users shall not have any rights or remedies under this limited warranty towards Victron Energy directly. The direct customer shall, in turn, ensure that the end-user is provided with a warranty identical to this warranty, subject to applicable local mandatory law.
Victron Energy may also provide a warranty directly to end-users, in which case the below warranty conditions equally apply to such warranty. In that case, end-users shall claim their warranty at their place of purchase or through the original direct customer of Victron, which can be found through the support section on Victron’s website. Hence, the direct customer shall on behalf of Victron Energy deal with any warranty claims made under any warranty that Victron Energy may provide directly to end-users. This support section on Victron’s website will provide further guidance on the procedure for end-users to make a claim under this limited warranty.
If the end-user is a consumer – a natural person who is acting for purposes which are outside that person's trade, business, craft or profession – the following applies. The rights and remedies granted to the consumer under this limited warranty are without prejudice to the consumer’s statutory rights. Furthermore, the consumer is entitled by law to remedies from the seller free of charge in the event of a lack of conformity of the goods (such as repair, replacement, price reduction or rescission), which remedies are not affected by this limited warranty.
Victron Energy warrants its products to be free from defects in workmanship and materials for a period of 5 years from the date of purchase by the original end-user, with a maximum of 66 months from the Victron Energy invoice date. Exceptions on this are: lead-acid batteries: 2 years from date of purchase by the original end-user, with a maximum of 30 months from the Victron Energy invoice date, Lithium batteries: 3 years from date of purchase by the original end-user, with a maximum of 42 months from the Victron Energy invoice date. In addition to this, proof of correct battery usage is required when making a battery warranty claim.
For a 10% surcharge on the current net price for products that came with a 5-year warranty, an additional 5 years of warranty can be purchased by Victron’s direct customers, bringing the total warranty to 10 years. Warranty extensions need to be applied for ultimately one year before the expiration of the original term. Victron may ask proof that the product was still functional at the time of purchase of the extended warranty.
During the warranty period, Victron Energy will, at its discretion, repair, replace or (partly) credit the defective product free of charge. The warranty does not include performing or reimbursing de‐installation, transportation, and re‐installation.
This warranty will be considered void if the unit has suffered any physical damage or alteration, either internally or externally, and does not cover damages arising from improper use like:
This warranty will not apply where the product has been misused, neglected, improperly installed, or repaired by anyone other than Victron Energy or one of its authorized Repair Centres. In order to qualify for the warranty, the product must not be disassembled or modified.
This warranty and our warranty obligations thereunder (repair, replacement or credit) are the direct customer’s and, if applicable, the end-user’s sole rights and remedies and our sole obligations with respect to any defective and/or non-conforming product or breach of warranty and is subject to and without prejudice to the limitations of liability in this warranty.
Victron Energy shall not be liable for damages, whether direct, incidental, special, or consequential, even caused by negligence or fault.
As a product requires service, it must be brought back to the place of purchase. In case no contact can be made with the merchant, or if he is either unable or not allowed to provide service, direct contact should be made with Victron Energy through the support section on Victron’s website.
In case Victron Energy replaces a product, it will own the replaced product. Victron Energy owns all parts removed from repaired products. Victron Energy uses new or reconditioned parts made by various manufacturers when performing warranty repairs or building replacement products.
If Victron Energy repairs or replaces a part of a product, its warranty term is not extended: the warranty will apply for the remaining term of the original warranty term. For example, if Victron Energy replaces a product with a 5-year warranty after 3 years, the warranty of this product will apply for another 2 years, with a minimum of 6 months.
All remedies and the measure for damages are limited to the above. Victron Energy shall in no event be liable for consequential, incidental, contingent or special damages, even if having been advised of the probability of such damages.
The foregoing limited warranty provided by Victron Energy is in lieu of any other warranties, express or implied arising by law, course of dealing, course of performance, usage of trade or otherwise, of any kind whatsoever including, without limitation, warranties of merchantability or fitness for a particular purpose, with respect to any product. The above is without prejudice to the arrangement for consumers detailed above.
As a general policy, Victron Energy does not recommend the use of any of its products in life support applications where failure or malfunction of Victron Energy's product can be reasonably expected to cause the failure of the life support device or to significantly affect its safety or effectiveness. Victron Energy does not recommend the use of any of its products in direct patient care. Victron Energy will not knowingly sell its products for use in such applications unless it receives in writing assurances satisfactory to Victron Energy that the risks of injury or damage have been minimized, the customer assumes all such risks, and the liability of Victron Energy is adequately protected under the circumstances.
The warranty period on products that are outside their warranty period and have been repaired by Victron Energy or one of the Victron Energy Repair centres is six (6) months from delivery. The same applies to spare parts and circuit boards that have been supplied or repaired by Victron Energy.
It is the responsibility of the sender to sufficiently package these products. The transport must be organized in a way to avoid any damage, especially when a single unit or heavy unit is sent.
If a part of the terms and conditions of this warranty is held invalid, void or unenforceable due to any particular national or international legislation, it shall not affect other parts of the terms and conditions of this warranty.
This warranty is exclusively governed by the laws of the Netherlands, to the exclusion of the UN Convention on Contracts for the International Sale of Goods.
This warranty policy applies to Wakespeed products supplied by us in Australia through authorised dealers, resellers, distributors, or approved sales channels. It applies to the original end-user purchaser of the product, as evidenced by the authorised dealer’s, reseller’s, or distributor’s invoice, and is not transferable without written consent.
Wakespeed products supplied by us are covered against defects in materials and workmanship under normal use and service, subject to the terms and conditions below. The benefits given by this warranty are in addition to any other rights and remedies available under law.
Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.
This warranty covers Wakespeed alternator regulators, charge-control products, wiring harnesses, temperature sensors, CAN cables, communication cables, and related Wakespeed accessories supplied by us. The warranty periods for each product model range are as follows:
Commencement of Warranty: The warranty period begins on the date of purchase by the original end-user, as shown on the authorised dealer’s, reseller’s, or distributor’s invoice. A valid proof of purchase from an authorised sales channel is required for all warranty claims.
Wakespeed products are intended to be installed, connected, programmed, configured, and integrated into a broader alternator charging system, vehicle, vessel, electrical system, battery system, or power-management installation. Once installed, the product may form only one component of a larger system.
The installer, system designer, integrator, dealer, or end-user is responsible for ensuring that the product is suitable for the intended application and is installed, configured, protected, and operated correctly. Issues or damage arising from incorrect installation, poor system design, incorrect configuration, incompatible equipment, inadequate protection, unsuitable mounting, or failure to follow instructions are not product defects and are not covered by this warranty.
Service Accessibility Requirement: Products must be installed in a manner that allows reasonable access for inspection, testing, servicing, removal, and replacement. We are not responsible for additional labour, structural modification, access equipment, removal of fixtures, cabinetry, panels, flooring, trim, sealants, adhesives, or other costs arising from installation methods that restrict reasonable access to the product.
Installation Documentation: We may require documentation of the installation when assessing a warranty claim. This may include photos of the product in its installed location, wiring diagrams, system layout, serial numbers, details of connected equipment, installer details, commissioning records, service history, fault logs, operating settings, firmware details, and maintenance records. Failure to provide reasonable installation evidence may limit our ability to assess the claim.
Independence of Dealers and Installers: Authorised dealers, resellers, distributors, installers, and contractors act independently and are not agents, employees, or representatives of Wakespeed or us unless expressly agreed in writing. We are not responsible for the acts, omissions, workmanship, advice, representations, installation practices, or system design decisions of independent dealers, resellers, installers, contractors, or third parties.
This warranty covers manufacturing defects or failures of the product arising from normal use in accordance with Wakespeed instructions. It does not cover any failure, damage, performance issue, deterioration, or loss caused wholly or partly by external factors, misuse, incorrect installation, incorrect configuration, or circumstances outside the control of the product supplier or manufacturer.
Important: If you suspect a fault with a Wakespeed product supplied by us, do not immediately remove or uninstall the product unless it is unsafe to leave it in place or unless authorised by us, Wakespeed, or an authorised dealer. Premature removal can cause further damage, prevent proper assessment, and may make it impossible to determine the original cause of the issue.
If a defect covered by this warranty is confirmed, one or more of the following remedies may be provided at the discretion of the assessing party and subject to applicable law:
Repair: If the defect can be resolved by repair, the product or relevant components may be repaired by Wakespeed, an authorised service provider, or another approved party. Any replaced components become the property of the repairing or replacing party unless otherwise agreed.
Replacement: If the product or major component is not reasonably repairable, a replacement may be provided. The replacement may be the same model, a superseded equivalent, a product with similar specifications, a new unit, or a refurbished or factory-reconditioned unit where permitted by law. Where a replacement is provided, the faulty product becomes the property of the replacing party unless otherwise agreed.
Refund or Credit: In some cases, a refund or credit may be provided. Refunds will usually be handled by the original place of purchase. The refund amount will not exceed the original purchase price paid for the affected product unless otherwise required by law.
No Charge for Approved Claims: For approved warranty claims, the repair, replacement, refund, or approved remedy will be provided at no charge to the customer. If a product is specifically requested to be returned for assessment and the product is found to have a covered defect, reasonable return freight or supply of the repaired or replacement item back to the customer, dealer, or reseller will be covered where required by law or agreed in writing.
No Extension of Original Warranty: Repair or replacement under this warranty does not restart or extend the original warranty period. The warranty continues from the original purchase date. For example, if a product with a 24-month warranty is replaced in its second year, the replacement product is covered only for the remaining balance of the original 24-month warranty period.
Ancillary Parts for Approved Warranty Repairs: If a warranty claim is approved and it is determined that replacement connectors, wiring, harnesses, mounting hardware, fasteners, or similar ancillary items are reasonably required to restore the product to normal operation, those items may be supplied at no cost. This does not include labour, removal, reinstallation, access equipment, structural modification, or costs associated with restricted access unless expressly required by law or agreed in writing.
To the extent permitted by law, liability under this warranty is limited to the repair, replacement, refund, credit, or approved remedy relating to the defective Wakespeed product supplied. Neither Wakespeed nor we are responsible for special, indirect, incidental, or consequential loss arising from product failure, installation issues, misuse, system design, or breach of warranty.
This includes, to the extent permitted by law, third-party labour, removal or reinstallation costs, travel costs, freight not approved in advance, access equipment, structural modification, loss of revenue, loss of profit, downtime, loss of use, damage to other equipment, property damage, personal injury, loss of data, or economic loss.
Nothing in this warranty excludes, restricts, or modifies any rights or remedies that cannot be excluded under Australian Consumer Law.
For warranty support, contact the authorised dealer, reseller, distributor, or place of purchase from which the Wakespeed product was supplied.
This warranty policy applies to Wakespeed products supplied by us in Australia through authorised dealers, resellers, distributors, or approved sales channels. It applies to the original end-user purchaser of the product, as evidenced by the authorised dealer’s, reseller’s, or distributor’s invoice, and is not transferable without written consent.
Wakespeed products supplied by us are covered against defects in materials and workmanship under normal use and service, subject to the terms and conditions below. The benefits given by this warranty are in addition to any other rights and remedies available under law.
Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.
This warranty covers Wakespeed alternator regulators, charge-control products, wiring harnesses, temperature sensors, CAN cables, communication cables, and related Wakespeed accessories supplied by us. The warranty periods for each product model range are as follows:
Commencement of Warranty: The warranty period begins on the date of purchase by the original end-user, as shown on the authorised dealer’s, reseller’s, or distributor’s invoice. A valid proof of purchase from an authorised sales channel is required for all warranty claims.
Wakespeed products are intended to be installed, connected, programmed, configured, and integrated into a broader alternator charging system, vehicle, vessel, electrical system, battery system, or power-management installation. Once installed, the product may form only one component of a larger system.
The installer, system designer, integrator, dealer, or end-user is responsible for ensuring that the product is suitable for the intended application and is installed, configured, protected, and operated correctly. Issues or damage arising from incorrect installation, poor system design, incorrect configuration, incompatible equipment, inadequate protection, unsuitable mounting, or failure to follow instructions are not product defects and are not covered by this warranty.
Service Accessibility Requirement: Products must be installed in a manner that allows reasonable access for inspection, testing, servicing, removal, and replacement. We are not responsible for additional labour, structural modification, access equipment, removal of fixtures, cabinetry, panels, flooring, trim, sealants, adhesives, or other costs arising from installation methods that restrict reasonable access to the product.
Installation Documentation: We may require documentation of the installation when assessing a warranty claim. This may include photos of the product in its installed location, wiring diagrams, system layout, serial numbers, details of connected equipment, installer details, commissioning records, service history, fault logs, operating settings, firmware details, and maintenance records. Failure to provide reasonable installation evidence may limit our ability to assess the claim.
Independence of Dealers and Installers: Authorised dealers, resellers, distributors, installers, and contractors act independently and are not agents, employees, or representatives of Wakespeed or us unless expressly agreed in writing. We are not responsible for the acts, omissions, workmanship, advice, representations, installation practices, or system design decisions of independent dealers, resellers, installers, contractors, or third parties.
This warranty covers manufacturing defects or failures of the product arising from normal use in accordance with Wakespeed instructions. It does not cover any failure, damage, performance issue, deterioration, or loss caused wholly or partly by external factors, misuse, incorrect installation, incorrect configuration, or circumstances outside the control of the product supplier or manufacturer.
Important: If you suspect a fault with a Wakespeed product supplied by us, do not immediately remove or uninstall the product unless it is unsafe to leave it in place or unless authorised by us, Wakespeed, or an authorised dealer. Premature removal can cause further damage, prevent proper assessment, and may make it impossible to determine the original cause of the issue.
If a defect covered by this warranty is confirmed, one or more of the following remedies may be provided at the discretion of the assessing party and subject to applicable law:
Repair: If the defect can be resolved by repair, the product or relevant components may be repaired by Wakespeed, an authorised service provider, or another approved party. Any replaced components become the property of the repairing or replacing party unless otherwise agreed.
Replacement: If the product or major component is not reasonably repairable, a replacement may be provided. The replacement may be the same model, a superseded equivalent, a product with similar specifications, a new unit, or a refurbished or factory-reconditioned unit where permitted by law. Where a replacement is provided, the faulty product becomes the property of the replacing party unless otherwise agreed.
Refund or Credit: In some cases, a refund or credit may be provided. Refunds will usually be handled by the original place of purchase. The refund amount will not exceed the original purchase price paid for the affected product unless otherwise required by law.
No Charge for Approved Claims: For approved warranty claims, the repair, replacement, refund, or approved remedy will be provided at no charge to the customer. If a product is specifically requested to be returned for assessment and the product is found to have a covered defect, reasonable return freight or supply of the repaired or replacement item back to the customer, dealer, or reseller will be covered where required by law or agreed in writing.
No Extension of Original Warranty: Repair or replacement under this warranty does not restart or extend the original warranty period. The warranty continues from the original purchase date. For example, if a product with a 24-month warranty is replaced in its second year, the replacement product is covered only for the remaining balance of the original 24-month warranty period.
Ancillary Parts for Approved Warranty Repairs: If a warranty claim is approved and it is determined that replacement connectors, wiring, harnesses, mounting hardware, fasteners, or similar ancillary items are reasonably required to restore the product to normal operation, those items may be supplied at no cost. This does not include labour, removal, reinstallation, access equipment, structural modification, or costs associated with restricted access unless expressly required by law or agreed in writing.
To the extent permitted by law, liability under this warranty is limited to the repair, replacement, refund, credit, or approved remedy relating to the defective Wakespeed product supplied. Neither Wakespeed nor we are responsible for special, indirect, incidental, or consequential loss arising from product failure, installation issues, misuse, system design, or breach of warranty.
This includes, to the extent permitted by law, third-party labour, removal or reinstallation costs, travel costs, freight not approved in advance, access equipment, structural modification, loss of revenue, loss of profit, downtime, loss of use, damage to other equipment, property damage, personal injury, loss of data, or economic loss.
Nothing in this warranty excludes, restricts, or modifies any rights or remedies that cannot be excluded under Australian Consumer Law.
For warranty support, contact the authorised dealer, reseller, distributor, or place of purchase from which the Wakespeed product was supplied.
A flexible RV solar kit with compatible mounting, cabling, protection and charging components selected for your installation.
Save 5% when buying as a bundle

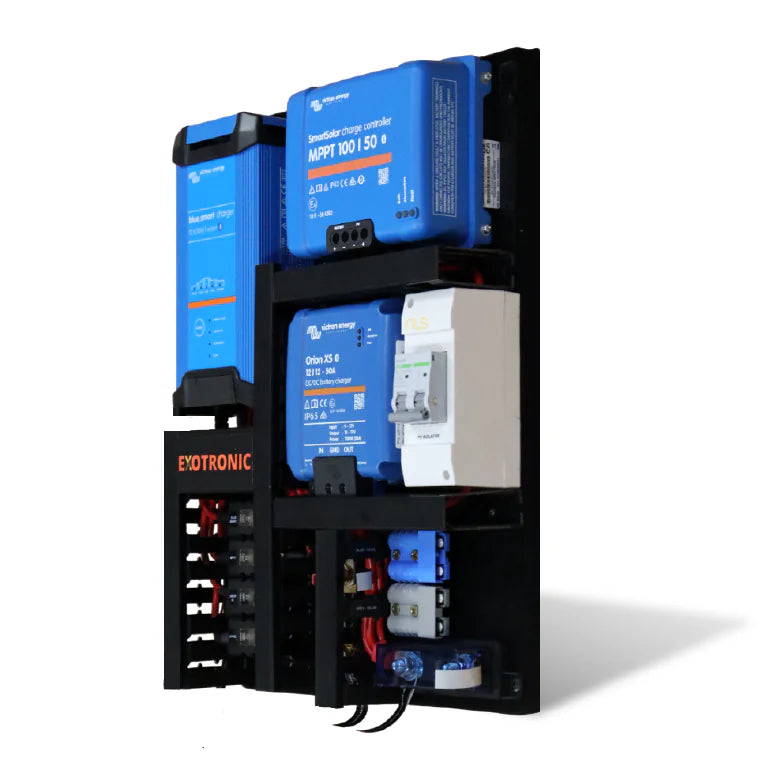

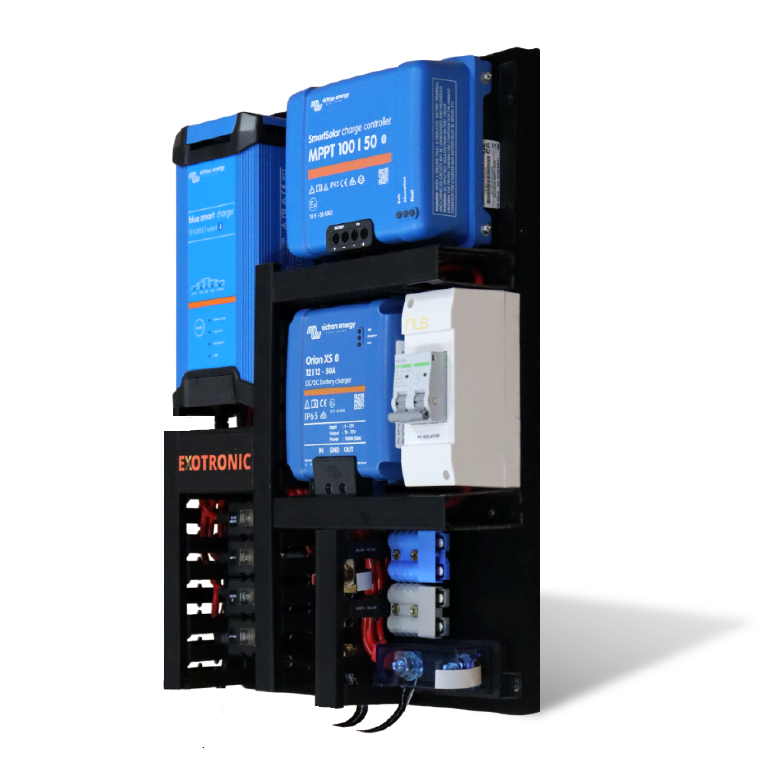

Configure the Noosa 50 Plus board, then add a matched battery bank, starter-battery feed and inverter if required.
Save up to 100% on qualifying selections
Powering Your Adventure
