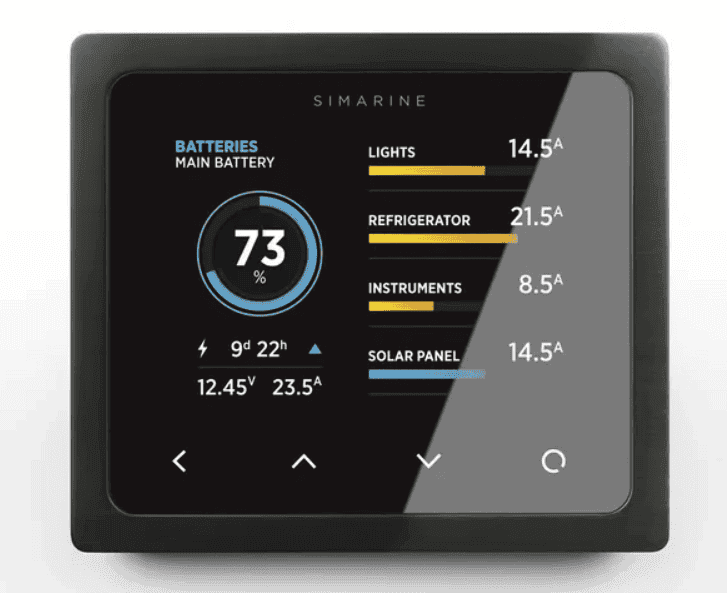

Simarine Pico Display Panel Mount Black
Simarine Pico Display Panel Mount Black
Highlights:Battery State of Charge: Circular gauge showing battery percentage and remaining time,Appliance Power Draw: Bar graphs showing current consumption for lights, fridge, and instruments,Real-time Voltage: Accurate voltage and total current consumption display,Touch Controls: Water-tolerant navigation and menu buttons,Slim Profile Casing: CNC milled anodised aluminium frame for flush mounting.
Key features: 3.5-inch IPS LCD with Anti-Reflective Gorilla Glass, Ultra-thin 10mm sleek design, Integrated smartphone app connectivity, CNC milled anodised aluminium casing, Water-tolerant touch-sensitive buttons, High-efficiency low power consumption.

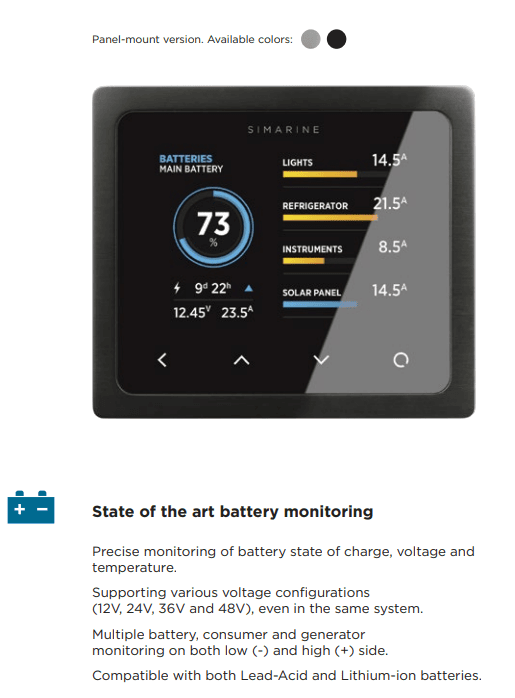

Precision battery monitor supporting 12V to 48V systems, compatible with lead-acid and lithium-ion batteries for accurate state of charge and voltage tracking.

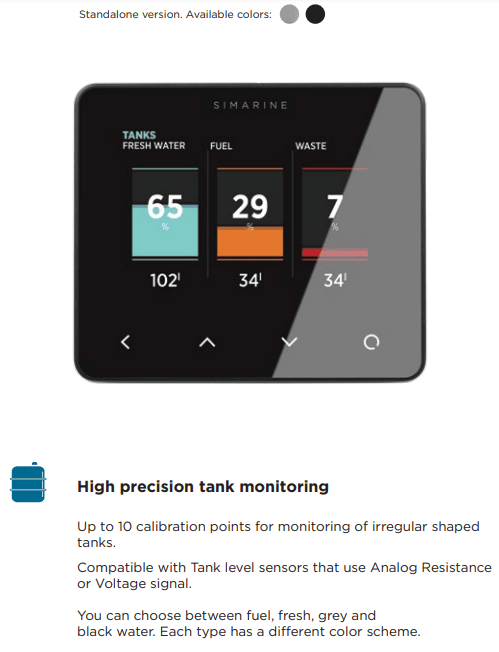

Advanced tank level monitoring with support for up to 10 calibration points, compatible with resistance and voltage sensors for fuel and water tanks.
Regular price
$499.00
Availability:
Backorder
View all products from Simarine
Guaranteed Safe and Secure Checkout
0
DESCRIPTION
Simarine Pico: The Ultimate Black Panel Mount Battery Monitor
Discover the pinnacle of battery monitoring with the Simarine Pico Display Panel Mount Black. Engineered for the utmost demanding applications, this sophisticated device is your all-in-one solution for real-time energy tracking and management. Whether you're at sea, on the road, or enjoying off-grid living, the Pico Display is designed to meet your every need with unparalleled precision and ease.
Key Features:
- Versatile Monitoring Capabilities: Effortlessly monitor up to 6 battery banks, alongside 6 additional battery voltages, ensuring you have all the critical information at your fingertips.
- Comprehensive Tracking: With the ability to track 14 tank levels and 20 different consumer or power generation readings, the Simarine Pico offers a level of detail unmatched in the market.
- Universal Compatibility: Seamlessly integrates with all Simarine shunts and modules, providing a flexible platform for your energy management system.
- Sleek Design: The black panel mount not only adds a touch of elegance to your setup but is also designed for durability and ease of installation.
Why Choose Simarine Pico Display Panel Mount Black?
The Simarine Pico Display is more than just a battery monitor; it's a comprehensive energy management tool that brings clarity and control to your energy usage. Its robust compatibility and detailed monitoring capabilities make it ideal for users who demand precision and reliability. With its sleek black design, the Pico Display blends seamlessly into any environment, enhancing both functionality and aesthetics.
Elevate Your Energy Management Today
Take the first step towards advanced energy management with the Simarine Pico Display Panel Mount Black. Perfect for marine, RV, and caravan enthusiasts, the Pico Display offers the reliability, precision, and ease of use that Simarine is known for. Experience the peace of mind that comes from having complete control over your energy resources, no matter where your adventures take you.
SPECIFICATIONS
Specifications
Operating
- Power source voltage range 6 - 35 V
- Temperature range -20 – +70 °C
- Power consumption at 12 V
- Operating, WiFi On, 100% illumination 90 mA
- Operating, WiFi Off, 70% illumination 35 mA
- Operating, WiFi Off, 0% illumination 18 mA
- Power Off, logger still active 5 mA
Resolution
- Current (A) ±0,01 A
- Voltage (V) ±0,01 A
- Amp hours (Ah) ±0,1 A
- SOC - Stat of Charge ( 0 - 100%) ±0,01 A
- Temperature ±0,1 °C / °F
- Voltage inputs
- Range 0 – 75 V
WIFI
- Radio Frequency Band 2,4 GHz
Dimensions (without connector)
- Standalone 89 x 84 x 10 mm
- Panel 108,5 x 94 x 10 mm
Connectivity Up to
- Batteries 6
- Shunts 24
- Temperature sensors 10
- Tank level sensors 14
- Inclinometer sensors 2
- Smartphone application 1
Logger Capacity
- up to 3 month
| SKU: | SI-PICO-3 |
| Barcode: | 3830067940035 |
| Model #: | SI-PICO-3 |
| MPN: | SI-PICO-3 |
