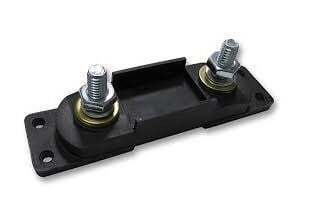

Victron M10 ANL Fuse Holder
Victron M10 ANL Fuse Holder
Heavy-Duty M10 Terminal Block for Secure High-Current Protection

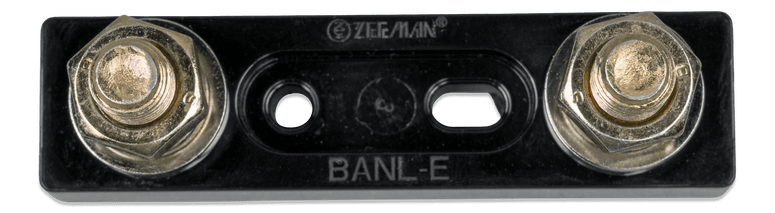

Technical top-down view of the ANL fuse holder base showing dual M10 terminal studs and central mounting apertures for fixed installation in high-current power systems.
Highlights:M10 Terminal Stud: Left-side M10 stainless steel stud for secure cable and fuse connection,M10 Terminal Stud: Right-side M10 stainless steel stud providing a robust electrical contact point,Insulating Base: Durable, heat-resistant black plastic base for safe mounting on any surface,Mounting Flange: Pre-drilled mounting holes for securing the holder to a panel or chassis,Fuse Recess: Central recessed area designed to house a standard ANL fuse. DESCRIPTION
Heavy-Duty M10 ANL Fuse Block for High-Current Protection
A reliable electrical system starts with secure, low-resistance connections. The Victron M10 ANL Fuse Holder is specifically designed to provide a robust mounting point for high-capacity ANL fuses, ensuring safe power distribution in demanding DC environments. Whether you are wiring a large inverter in a caravan, upgrading a marine battery bank, or configuring an off-grid solar system, this holder ensures your circuit protection remains securely anchored and electrically sound.
Engineered for Maximum Reliability
High-current DC circuits, particularly those running at 12V, 24V, or 48V, require meticulous attention to physical connection integrity. A loose or poorly seated fuse can lead to excessive resistance, voltage drop, and dangerous heat generation. This fuse block features a highly durable, heat-resistant black plastic base that isolates the electrical current from the mounting surface. It provides the structural rigidity necessary to withstand the vibrations commonly experienced in mobile applications like 4WDs, camper trailers, and boats.
At the core of the holder are dual M10 stainless steel terminal studs. These heavy-duty studs offer superior corrosion resistance and a vast surface area for robust electrical contact. They allow you to firmly bolt down heavy-gauge cable lugs and the fuse itself, drastically reducing the risk of arcing or localized heating under heavy electrical loads.
Key Features
- Dual M10 Stainless Steel Studs: Provides a secure, corrosion-resistant connection point for heavy-duty ring terminals and lugs.
- Heat-Resistant Insulating Base: Built from durable materials to safely isolate high currents and withstand elevated operating temperatures without deforming.
- Pre-Drilled Mounting Flange: Enables quick and rigid fixed installation onto a panel, chassis, or battery box wall.
- Central Fuse Recess: Carefully dimensioned to accommodate the fuse body, ensuring proper alignment during installation.
Application and Compatibility Notes
This holder is exclusively designed for use with M10 ANL fuses. It is critical to ensure your selected fuse matches the M10 stud size, as standard M8 or smaller fuses will not fit properly over the terminals. This strict compatibility ensures the highest level of connection security for high-amperage circuits.
The unit is highly versatile and suitable for integration into 12V, 24V, and 48V DC power systems. It is highly recommended for protecting battery banks, high-output alternators, and heavy-draw appliances such as winches, bow thrusters, and large pure sine wave inverters.
Important Note: This product includes the mounting base and hardware only. The Victron ANL Fuse Holder does not come with a protective cover. Ensure it is installed in an appropriate enclosure or location where accidental short circuits are mitigated.
Reduce Your Electrical Risks
Using inferior or undersized fuse blocks in high-capacity systems often results in melted housings or catastrophic system failures. By utilising a premium-grade holder tailored for heavy-gauge wiring and high-amperage applications, you safeguard your expensive batteries and power electronics against unexpected electrical faults.
Secure Your Circuit Today
Ensure your mobile, marine, or off-grid power setup operates safely under maximum load. Integrate this heavy-duty fuse holder into your wiring schematic to maintain peak electrical performance and protect your critical investments.
SPECIFICATIONS
Specifications
| Product | Fuse holder for ANL-fuse |
|---|---|
| Victron Part Number | CIP106100000 |
| Dimensions (H x W x D) | 44 x 25 x 87 |
| Conformity | Low Voltage Directive (2014/35/EU); EC REACH Regulation (EC 1907/2006); RoHS (2011/65/EU and 2015/863/EU) |
| Standards | EN 60947-1:2007+A1:2011+A2:2014; EN IEC 60947-3:2021; EN IEC 63000:2018 |
| SKU: | VIC-CIP106100000 |
| Barcode: | 8719076033868 |
| Model #: | CIP106100000 |
| MPN: | CIP106100000 |
