Sunman eArc 100W Narrow Flexible Solar Panel w/ Victron 20A BlueSolar PWM-LCD&USB Charge Controller
Sunman eArc 100W Narrow Flexible Solar Panel w/ Victron 20A BlueSolar PWM-LCD&USB Charge Controller
Highlights:100W Flexible Solar Panel: Ultra-lightweight 1.5kg narrow solar panel with a slim 2mm profile,Victron PWM Controller: 20A BlueSolar charge controller with integrated LCD and USB charging,LCD Status Display: Clear screen for monitoring battery voltage and system performance,Dual USB Ports: Two 5V 2A USB outputs for direct mobile device charging,IP68 Junction Boxes: Weatherproof junction boxes with pre-wired MC4 compatible connectors,Terminal Connections: Screw terminals for secure connection of solar, battery, and load wires.






DESCRIPTION

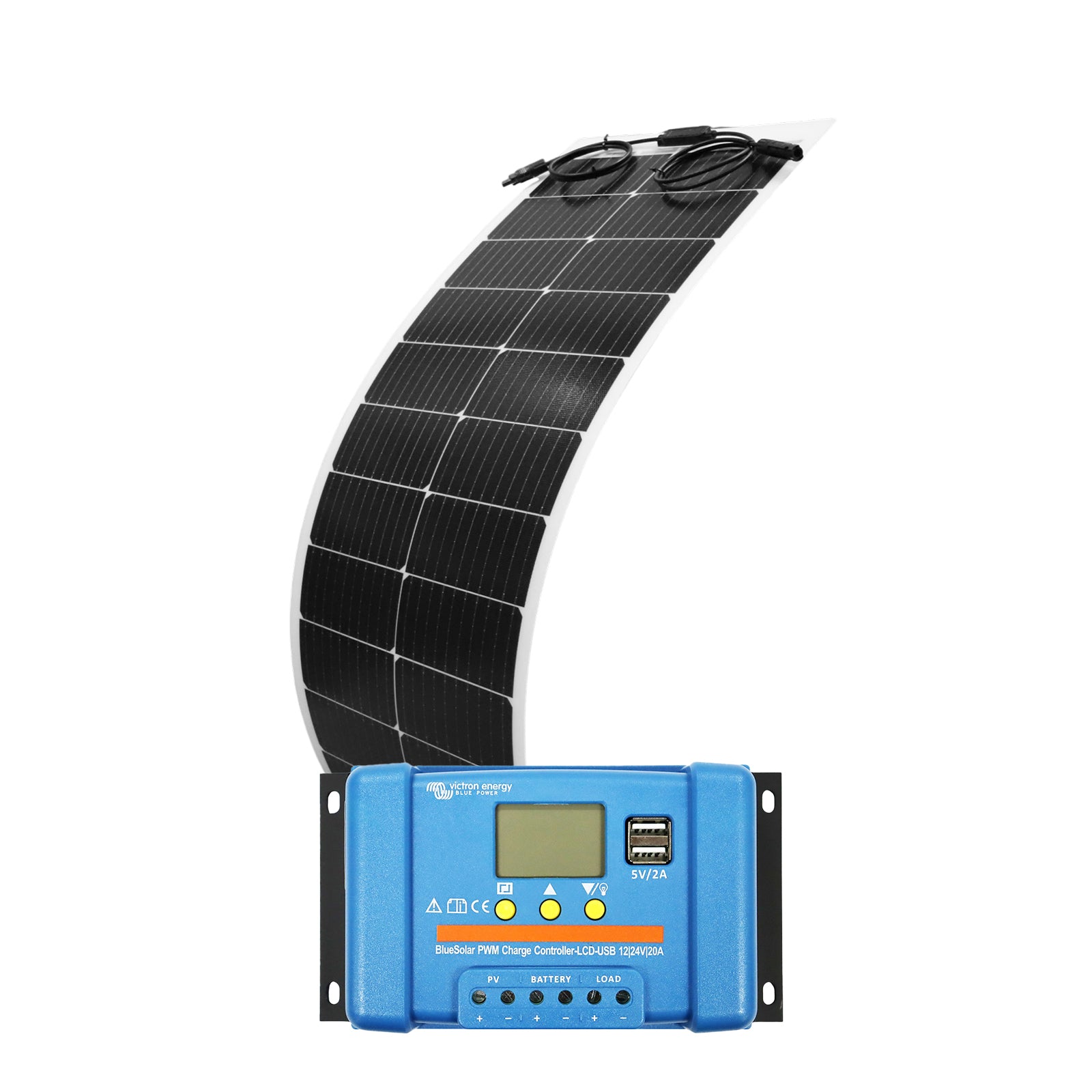

Sunman eArc 100W Narrow Flexible Solar Panel with Victron 12/24V 20A BlueSolar PWM-LCD&USB Solar Charge Controller
This bundle combines the lightweight Sunman eArc 100W Narrow Flexible Solar Panel with the Victron Energy 20A BlueSolar PWM Solar Charge Controller, providing a practical charging solution for caravans, motorhomes, camper trailers, boats and other mobile or off-grid applications.
Bundle Includes:
1 × Sunman eArc 100W Narrow Flexible Solar Panel
1 × Victron 20A BlueSolar PWM Solar Charge Controller
Lightweight Mono-PERC solar technology
Narrow profile for limited installation spaces
LCD monitoring and setup
Programmable charging profiles
Load output with day/night timing
Two integrated 5V USB outputs
MPPT Note: This panel has a relatively low operating voltage. Two panels will generally need to be connected in series when using an MPPT solar controller.

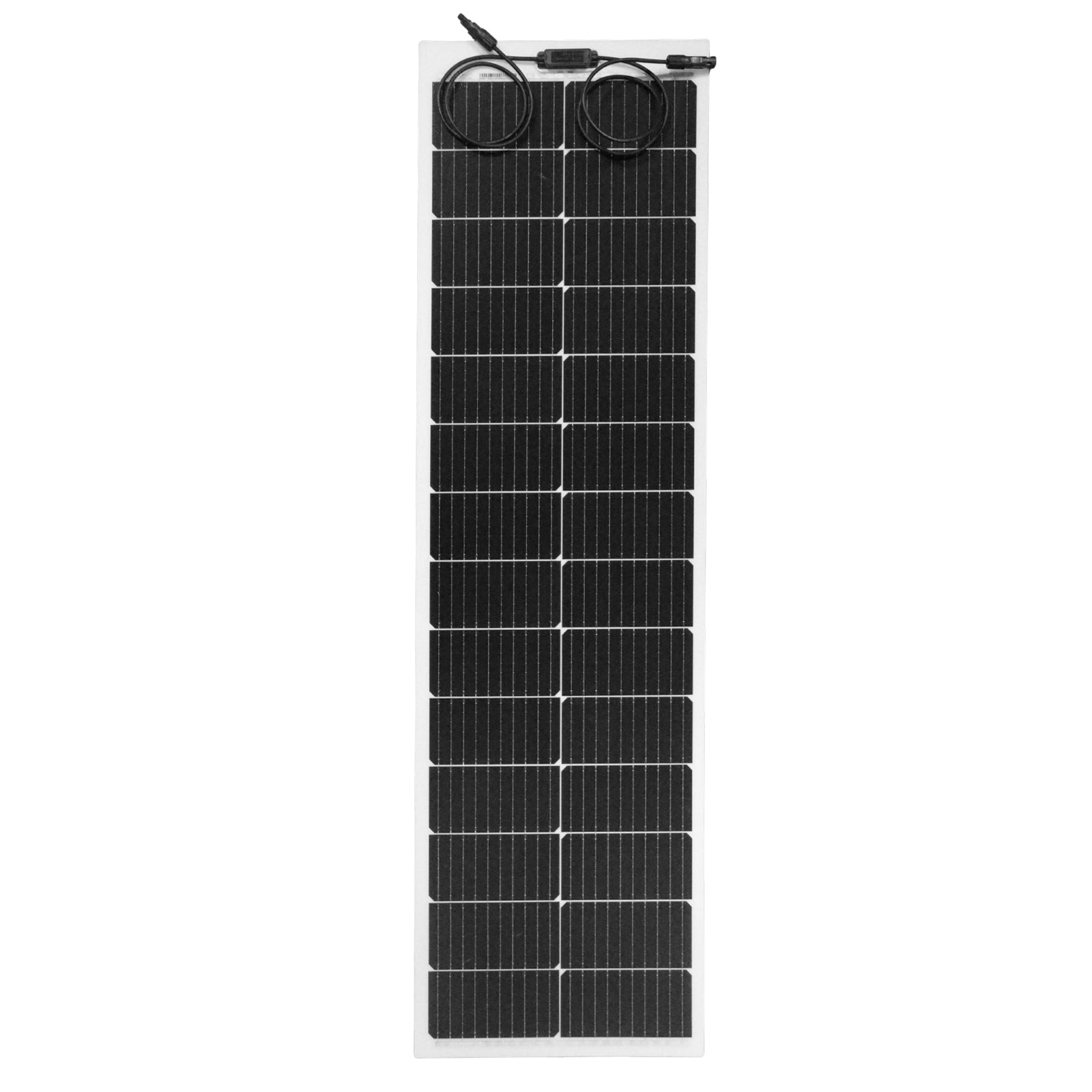

Sunman eArc 100W Narrow Flexible Solar Panel
The Sunman eArc 100W Flexible Solar Panel combines efficient monocrystalline PERC cells with a lightweight and flexible construction.
Its narrow profile makes it suitable for installations where roof space is limited or conventional framed panels may be too wide. It is ideal for caravans, RVs, motorhomes, yachts, buses, trains and selected building applications.
Sunman panels are manufactured using an advanced composite material similar to that used in aircraft windows. This provides strength and durability without requiring a heavy glass surface or aluminium frame.
Key Features
Lightweight and durable construction
High-efficiency Mono-PERC solar cells

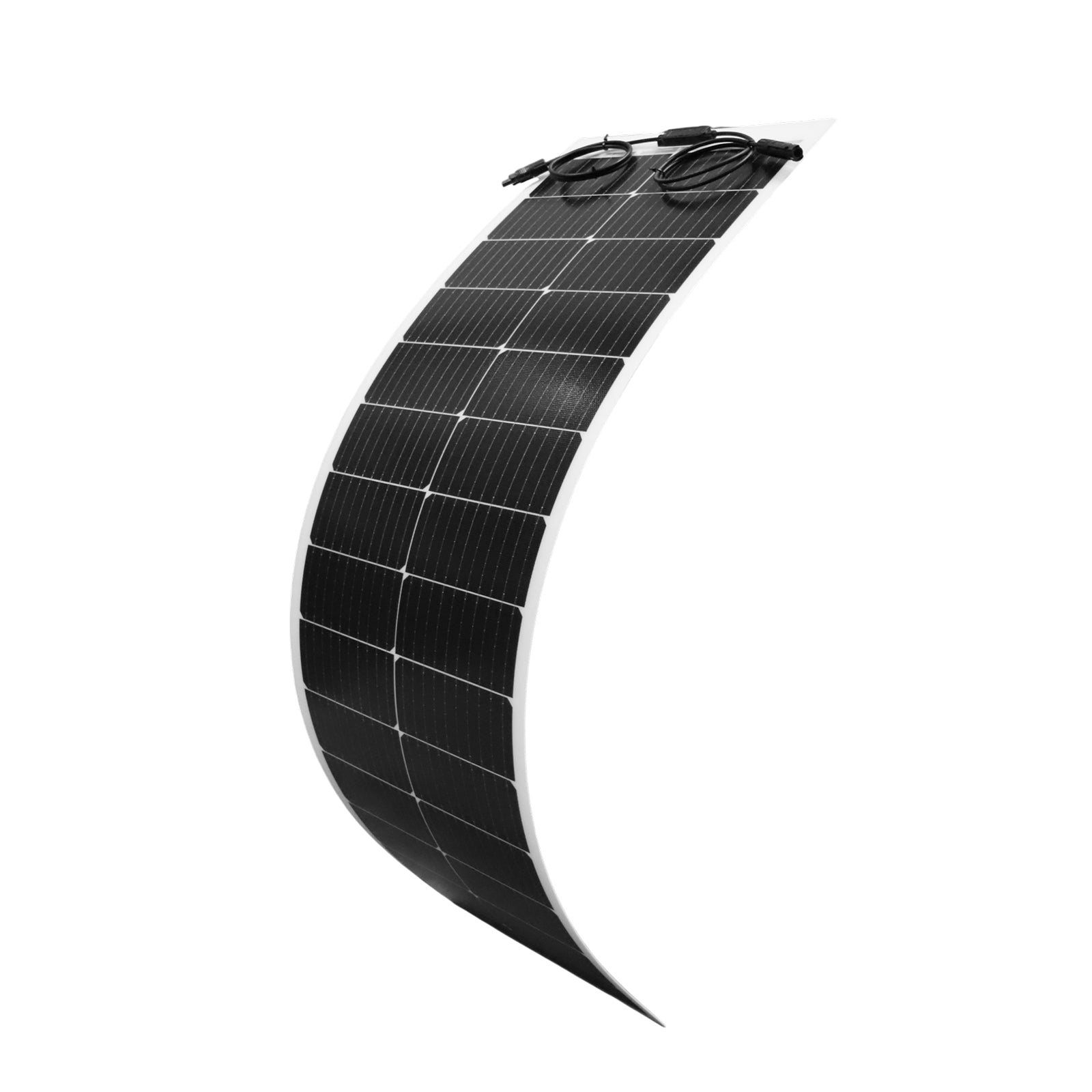

Flexible design for suitable curved surfaces
Clean Energy Council approved
Supported by the Clean Energy Finance Corporation and ARENA
10-year product warranty for building installations
5-year product warranty for mobile applications
Optional Mounting Solutions
Several mounting options are available depending on the installation surface:
High-bond double-sided adhesive tape with Fix8 structural silicone
Fix8 structural silicone
Optional eyelets for securing with suitable screws or bolts
Always read and follow the Flexible and Lightweight Solar Panel Mounting Instruction Guide before installation.
Minor specification or manufacturing changes may occur between production batches. When adding a panel to an existing solar array, check with the sales team to confirm compatibility.

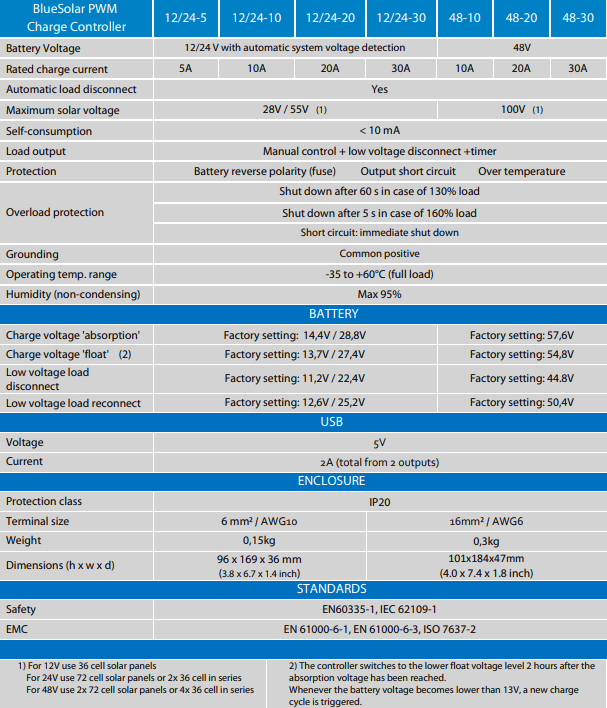

Victron 12/24V 20A BlueSolar PWM-LCD&USB Solar Charge Controller
The Victron 20A BlueSolar PWM provides dependable solar charging control with an integrated LCD display for system monitoring and setup.
Programmable Battery Charging
Pre-programmed charging profiles are available for:
AGM
GEL
Flooded lead-acid
LiFePO4 batteries with an internal BMS
The correct battery profile must be selected during installation.
If you need a compact, lightweight solar charging solution for a caravan, camper trailer, motorhome, boat or other small off-grid setup, the Sunman eArc 100W Narrow Flexible Solar Panel with Victron 20A BlueSolar PWM bundle provides a practical combination of efficient solar generation and reliable battery charging control.
Warning: Due to the panel’s low voltage, two panels must be connected in series when using an MPPT solar controller.
SKU: Sunman-100w-vic-20a-pwm
SPECIFICATIONS
Specifications
| Model | SMF100J-2X14UW |
| Weight | 1.5 kg |
| Maximum Power (Pmax) | 100 W |
| Maximum Power Voltage (Vmp) | 15.8 V |
| Current at Pmax (Imp) | 6.34 A |
| Short-Circuit Current (Isc) | 6.78 A ±5% |
| Open-Circuit Voltage (Voc) | 17.9 V ±5% |
| Operating Temperature (°C) | 41 °C |
| Maximum System Voltage | 1000 V DC (IEC) |
| Power Tolerance | 0/+5 W |

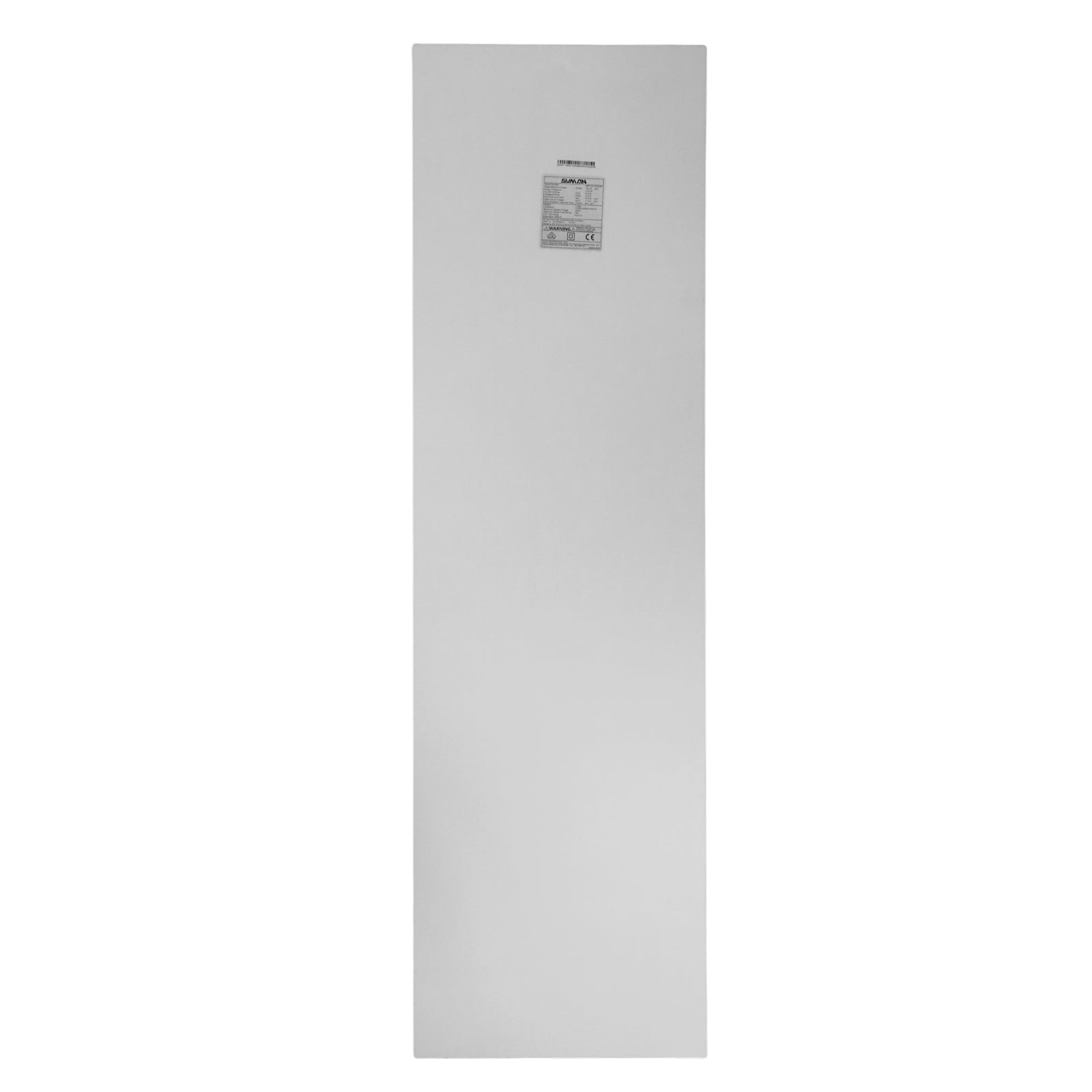

| Backsheet | White |
| Junction Box | IP68 rated (each junction box has one bypass diode) |
| Output Cables | Photovoltaic technology cable 4.0 mm², (+)150 / (-)450 mm |

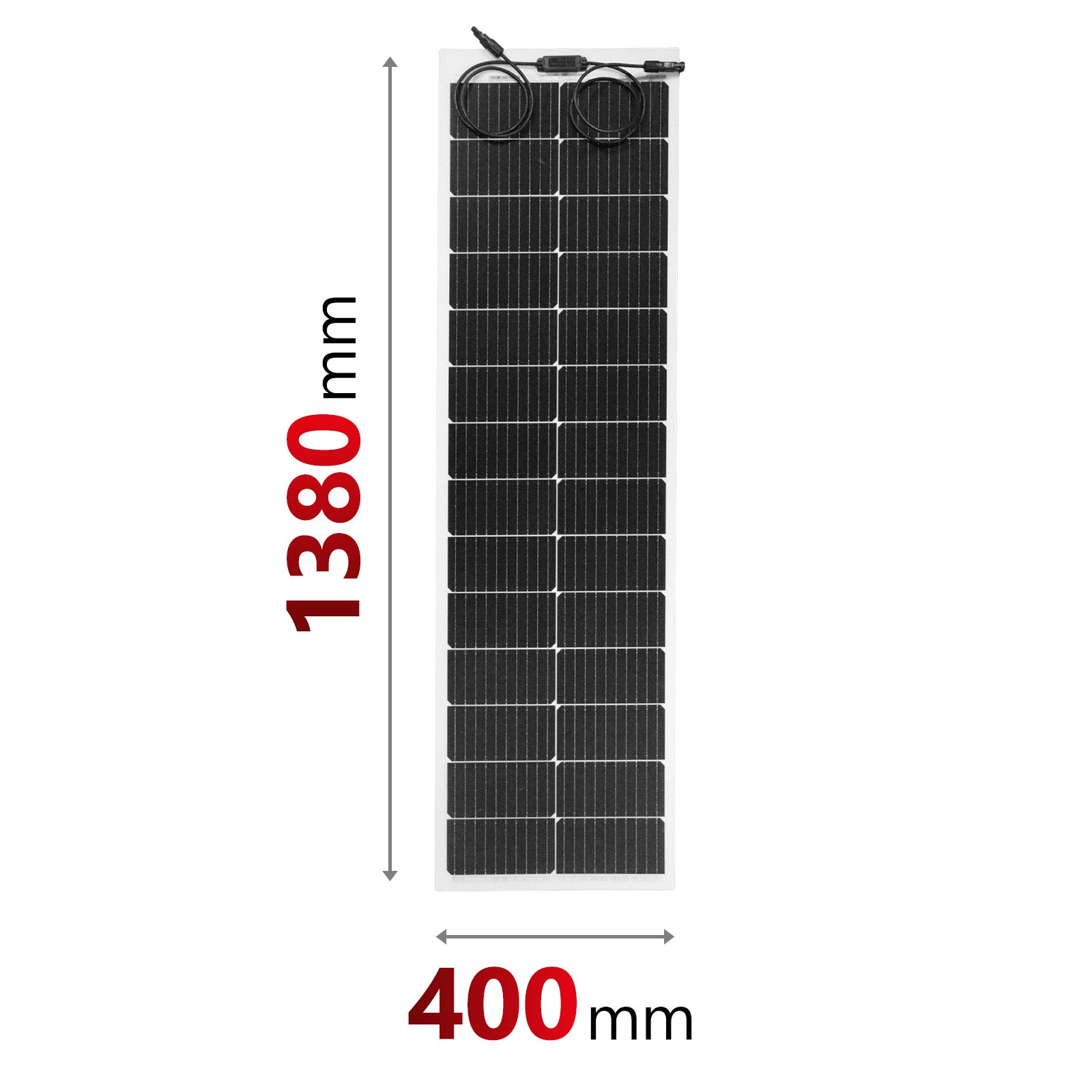

| Connector | MC4 compatible | Dimensions | 1380 x 400 x 2mm |
| SKU: | Sunman-100w-vic-20a-pwm |
| Model #: | Sunman-100w-vic-20a-pwm |
| MPN: | Sunman-100w-vic-20a-pwm |
WARRANTY
Warranty
1. Limited Product Warranty for Mobile/Marine Applications
Sunman (Zhenjiang) Company Limited (“SUNMAN”) warrants that its photovoltaic modules together with the DC connector cable assemblies are free from defects, if any, in materials and workmanship under normal application, use, installation and service conditions for a period of pending 60 months from the delivery (Incoterms 2010) of SUNMAN modules (“Modules”) to the original end customer (“Customer”), or 12 months after the date of production of the Modules as indicated in the serial number, whichever date is earlier.
If Modules become malfunction or inoperative due to defect in material or workmanship during such pending 60 months period set forth above, SUNMAN will, at its own option, either repair or replace the Modules in problem, or refund a reasonable portion of the purchase price as paid by the Customer (“Purchase Price”). The repair or replacement or refund remedy shall be the sole and exclusive remedy provided under this Limited Warranty.
2. Limited Peak Power Warranty and Limited Remedy
SUNMAN warrants the percentage of nominal power output as below:
- A solar Module’s performance warranty will typically guarantee 90% of rated power output at 5 years.
- SUNMAN warrants each Module against defects in materials and workmanship that result in the failure of the Modules to produce the warranted percentage specified above of the nominal power output for the Module set forth in SUNMAN's product datasheet.
If SUNMAN determines in its discretion that any Module is not providing the warranted percentage of the nominal power output due to Modules’ defects in material or workmanship attributed to SUNMAN, SUNMAN will, at its sole option and discretion, either:
- Make up such loss in power by providing to Customer additional Modules;
- Repair or replace the defective Modules including free shipping to the place supplied by SUNMAN; or
- Refund Customer such loss proportion arising from unqualified power output which less than the warranted percentage of the nominal power.
The remedies set forth in Section 2 are the sole and exclusive remedies provided under the limited minimum Peak Power Warranty.
3. Exclusions and Limitations
- Warranty claims, in any event, shall be filed in writing to SUNMAN or its authorized distributors within the applicable warranting period.
-
These Limited Warranties will not be applied to normal wear and tear, to the natural effects of exposure to weather conditions over time, or to the Modules which under SUNMAN's sole judgment have been subjected to:
- Misuse, abuse, neglect, vandalism or accident;
- Alteration, improper installation or application;
- Repair or modifications that do not strictly follow the manufacturer’s instructions;
- Non-observance of SUNMAN’s maintenance instructions;
- Power failure, electrical spikes or surges, lighting, flood, fire, accidental breakage or other events outside the control of SUNMAN.
- These Limited Warranties only cover the transportation costs for shipment of any repaired or replaced Modules to the place applied by SUNMAN. Any costs for returning the Modules to SUNMAN or its authorized agents and authorized distributors, or costs associated with installation, removal or reinstallation of the Modules, shall be borne by the end user Customers.
- Warranty claims will not be honoured if the type or serial number of SUNMAN Modules have been altered, removed or made illegible without written authorisation from SUNMAN.
4. Transferability
This warranty is extended to the original end-user purchaser, and is also transferable to any subsequent owner of the location or holder of the product when Module(s) remain at their original installed location upon satisfactory proof of succession or assignment.
5. Obtaining Warranty Performance
In order to obtain warranty service under the SUNMAN Limited Warranty, the end user Customer should promptly notify SUNMAN regional customer service centre.
Together with the notification, the complete serial number printed on the module label and the shipment date of its Modules shall be marked as well. If the Modules will be returned for inspection, repair or replacement by SUNMAN, SUNMAN will give the Customer a Return Merchandise Authorization (RMA). However, SUNMAN will not accept a return of any Modules without a RMA.
6. Disputes
No action, regardless of form, arising out of or in any way connected with this Limited Warranty, may be brought by the end user Customer more than one (1) year from the date when causes of action occurred.
7. Various
The repair or replacement of the Modules or the supply of additional Modules does not lead to a new commencement of warranty terms, nor shall the original terms of this Limited Warranty be extended. Any replaced Modules shall become the property of SUNMAN.
SUNMAN shall at its own options to deliver another type of PV Modules, different in size, colour, shape, or power, either a new brand or the original one, in case of that SUNMAN has discontinued producing the module in question at the time of the claim.
8. Force Majeure
SUNMAN shall not be in any way be responsible or liable to the end user Customer or any third-party arising out of any non-performance or delay in performance of any terms and conditions of sale, including this Limited Warranty, due to fire, flood, blizzard, hurricane, thunder, acts of God, changes of public policies, terrorism, war, riots, strikes, unavailability of suitable and sufficient labour or materials and other events which are out of control of SUNMAN.
Note
“Peak Power” is the power in watt peak that a PV-module generates in its maximum power point. SUNMAN measurements are as follows:
- Light spectrum of AM 1.5;
- An irradiation of 1,000W per m2; and
- A cell temperature of 25 degree Centigrade.
The measurements are carried out in accordance with IEC61215 as tested at the junction box terminals per the calibration and testing standards of SUNMAN valid at the date of manufacture of the PV-Modules. SUNMAN’s calibration standards shall be in compliance with the standards applied by international institutions accredited for this purpose.
