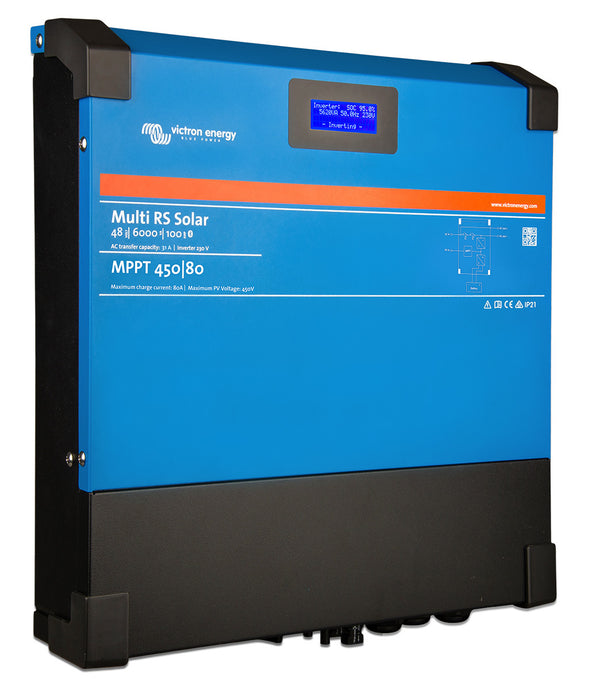

Victron 48V 6000VA Multi RS Solar 48/6000/100-450/80 Inverter/Charger/MPPT 450V/100A
Victron 48V 6000VA Multi RS Solar 48/6000/100-450/80 Inverter/Charger/MPPT 450V/100A
Plus 80A Mains Charger
Key features: 6000VA 48V continuous inverter power, Integrated 450V 100A dual tracker MPPT, Real-time LCD status monitoring screen, Built-in Bluetooth Smart connectivity, Dual AC outputs for critical and non-critical loads.
Configure and monitor your Multi RS Solar system remotely using the VictronConnect app via built-in Bluetooth Smart connectivity.

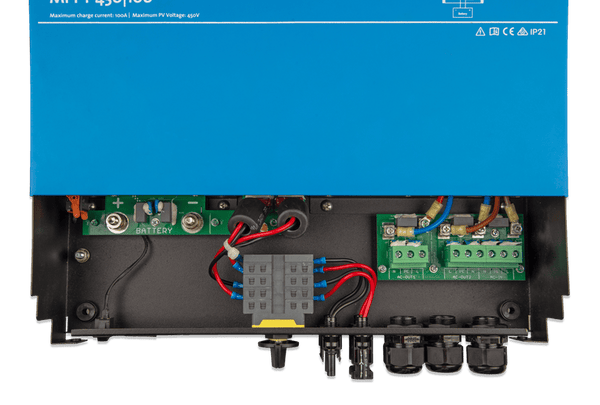

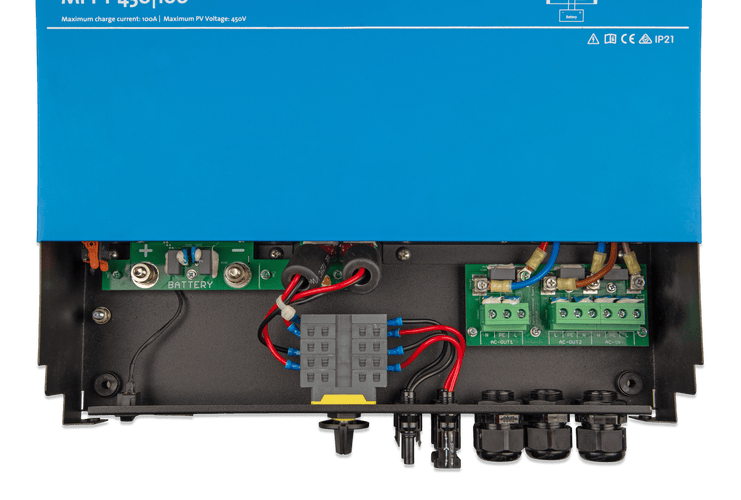

Highlights:M8 Battery Terminals: Secure high-current DC connection points with M8 bolts,AC Terminal Blocks: Screw terminals for 230V AC input and dual independent AC outputs,PV Isolation Switch: Integrated rotary switch for safely isolating the solar PV input,MC4 Solar Connectors: Standard MC4 inputs for dual high-voltage PV string connections,Communication Interface: VE.Direct, VE.Can and User I/O ports for data logging and system control.




DESCRIPTION
Victron Multi RS Solar 48/6000 Dual Tracker: A New Standard in Solar Energy Management
Elevate your energy system with the Victron Multi RS Solar 48/6000 Dual Tracker, the premier 48V 6000VA inverter/charger with a dual MPPT capable of 450V/100A. This innovative solution is designed for optimal flexibility and efficiency, ensuring your energy needs are met with precision across a variety of operating modes.
Versatile Operating Modes for Every Need
- Hybrid Mode: Harness solar power to its fullest by storing excess energy in a battery for use at night or during peak demand, with the ability to supplement power from the battery when consumption exceeds grid capacity.
- Backup Mode: Experience uninterrupted power with an automatic switch to backup during grid outages, keeping your critical systems running smoothly.
- Off-Grid Mode: Gain complete independence with the ability to operate without any grid connection, perfect for remote locations.
- Generator Mode: Optimize generator use by controlling run-hours and supplementing with battery power when demand outstrips generator capacity.
Advanced PowerControl and PowerAssist Features
Set maximum currents for your grid or generator to prevent overloads with the PowerControl function. The Multi RS Solar takes it a step further with PowerAssist, supplementing insufficient power with battery reserves during peak demand and recharging the battery when the load decreases.
Dual MPPT for Maximum Solar Harvesting
With dual MPPT, the Multi RS Solar 48/6000 ensures that you're capturing the maximum energy from your solar panels, even in varying lighting conditions. This feature allows for two independent solar arrays, optimizing energy harvest and providing redundancy.

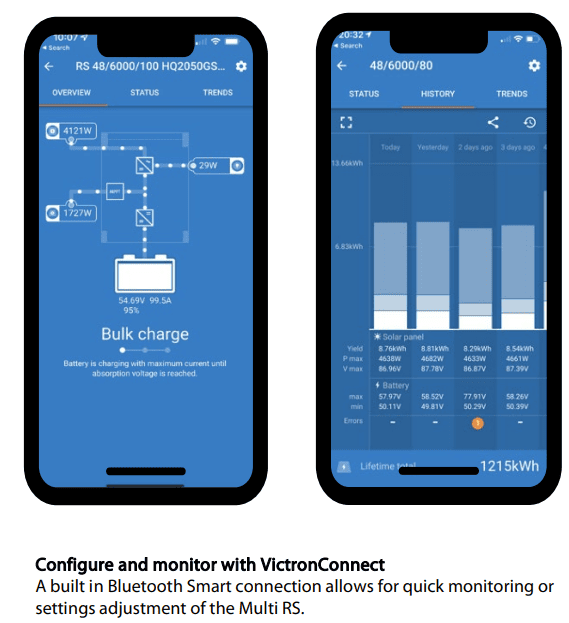

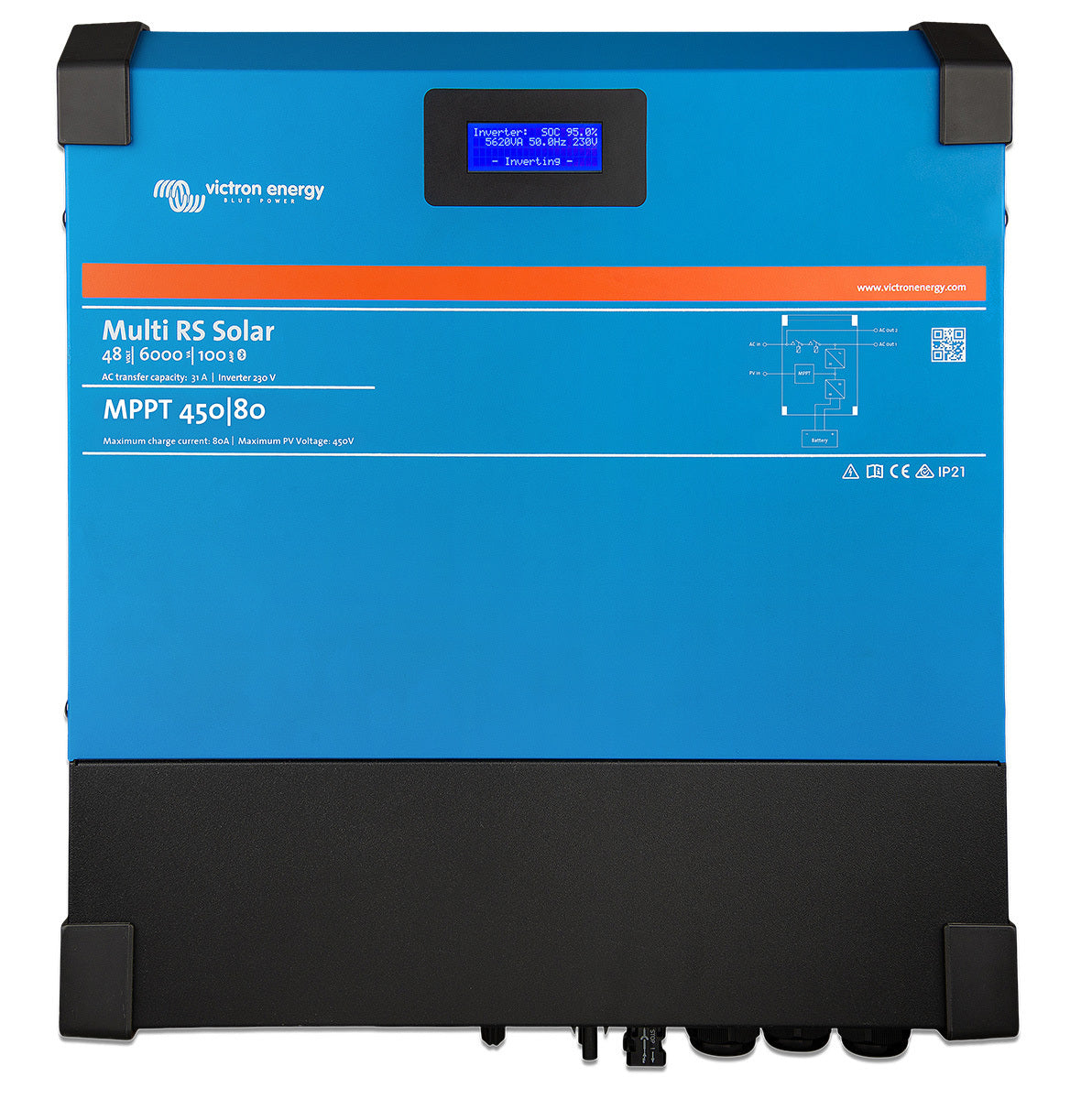

Intuitive Monitoring with Display, Bluetooth, and VictronConnect App
Keep a close eye on your system's health with the integrated display showing battery, inverter, and solar parameters. For remote monitoring and control, the VictronConnect app pairs seamlessly with your device via Bluetooth.
Scalable PV Capacity
Your solar capacity grows with you. Start with the integrated 6 kWp PV capacity and expand by adding solar chargers for AC or DC coupling. Integrate additional PV Inverters with automatic power control for a tailored energy solution.

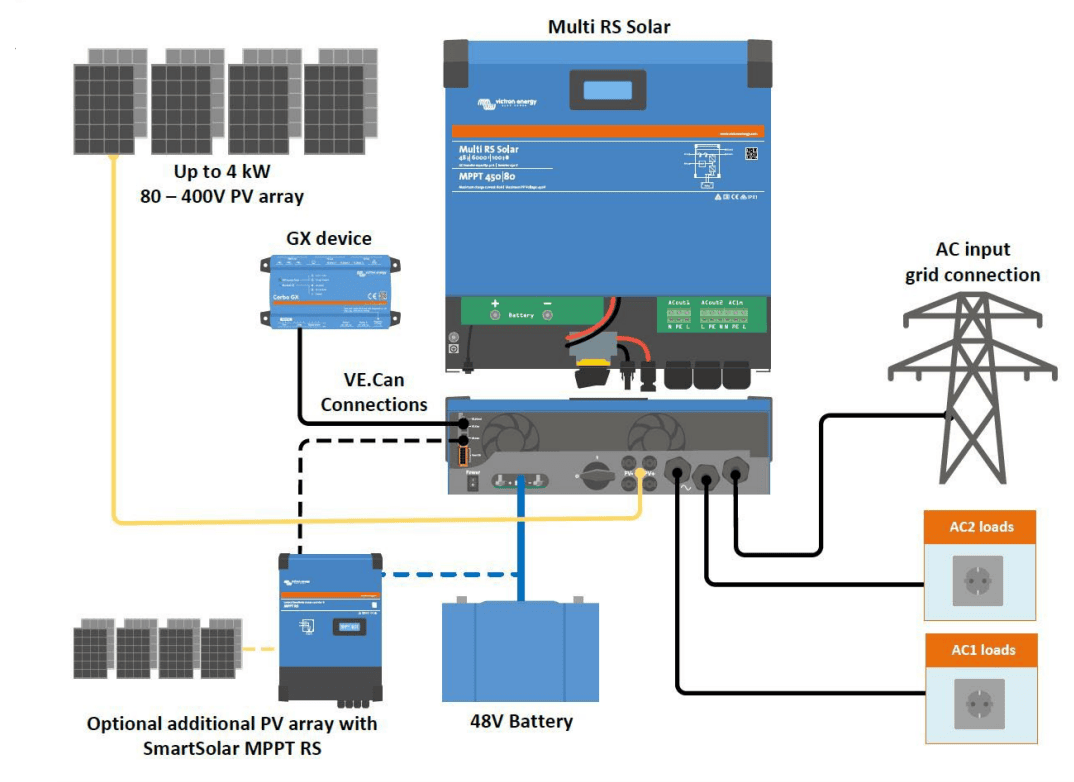

Robust Communication and Connection Options
Monitor, log data, and update firmware remotely via VE.Can connection to a GX device. For remote monitoring, connect with VE.Direct to a GlobalLink 520. Programmable relays, temperature sensors, and voltage sensors ensure a customizable and secure setup.
The Victron Multi RS Solar 48/6000 Dual Tracker is not just an inverter/charger—it's the heart of your solar energy system. It's designed to adapt to your changing power needs while providing efficiency and reliability. Step into the future of energy management and make the smart move to a system that grows with your energy demands.

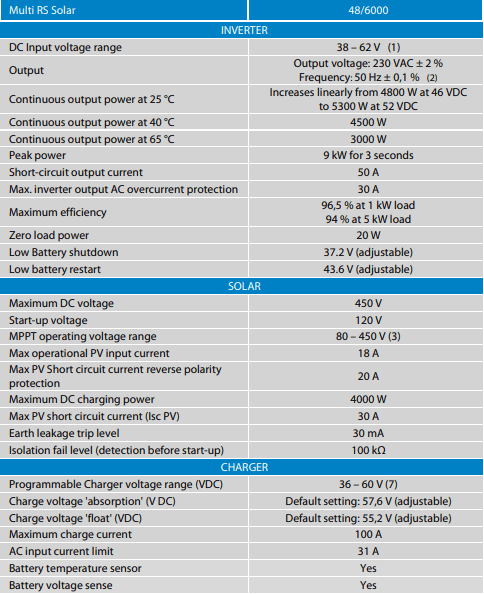

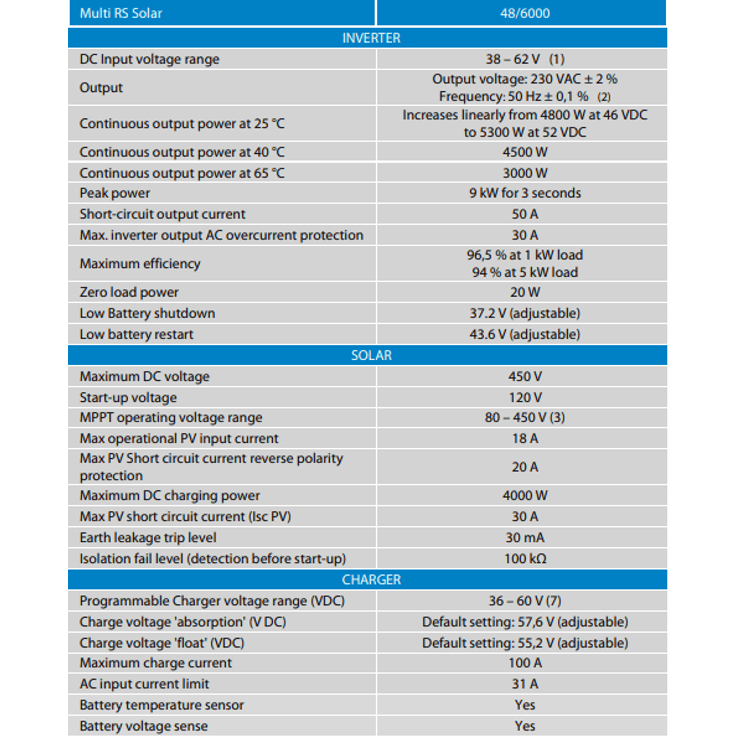

SPECIFICATIONS
Specifications
| Model | Multi RS Solar 48/6000 Dual Tracker |
| PowerControl & PowerAssist | Yes |
| Transfer switch | 50 A |
| Maximum AC input and pass-through current | 50 A |
| INVERTER | |
| DC Input voltage range (1) | 38 – 62 V |
| AC Output (2) | Output voltage: 230 VAC ± 2 % Frequency: 50 Hz ± 0,1 % Maximum continuous inverter current: 25 Aac |
| Continuous output power at 25 °C | Increases linearly from 4800 W at 46 VDC to 5300 W at 52 VDC |
| Continuous output power at 40 °C | 4500 W |
| Continuous output power at 65 °C | 3000 W |
| Peak power (3) | 9 kW for 3 seconds 7 kW for 4 minutes |
| Short-circuit output current | 45 A |
| Max. AC output overcurrent protection | 30 A |
| Efficiency | 96.5 % at 1 kW load 94 % at 5 kW load |
| Zero load power consumption | 20 W |
| Low Battery shutdown | 37.2 V (adjustable) |
| Low battery restart | 43.6 V (adjustable) |
| SOLAR | |
| Maximum open circuit PV array voltage^{(4)} | 450 V |
| Start-up voltage | 120 V |
| MPPT operating voltage range | 80 – 450 V |
| Maximum operational PV input current limit | 13 A |
| Maximum PV conversion power | 6 kW total – 3 kW per tracker |
| Maximum PV short circuit current | 16 A |
| Earth leakage trip level | 30 mA |
| Isolation fail level (detection before start-up) | 100 kΩ |
| CHARGER | |
| AC Input | Nominal Voltage: 230 VAC, Input voltage range: 187-265 VAC Nominal frequency: 50 Hz, Input frequency: 45-65 Hz AC inrush current: NA |
| Programmable charge voltage range (5) | 36 – 60 V |
| Charge voltage 'absorption' | Default setting: 57.6 V (adjustable) |
| Charge voltage 'float' | Default setting: 55.2 V (adjustable) |
| Maximum charge current from AC (6) | 88 A @ 57.6 VDC |
| Total maximum charge current (AC + PV) | 100 A DC |
| Battery temperature sensor | Included |
| Battery voltage sense | Yes |

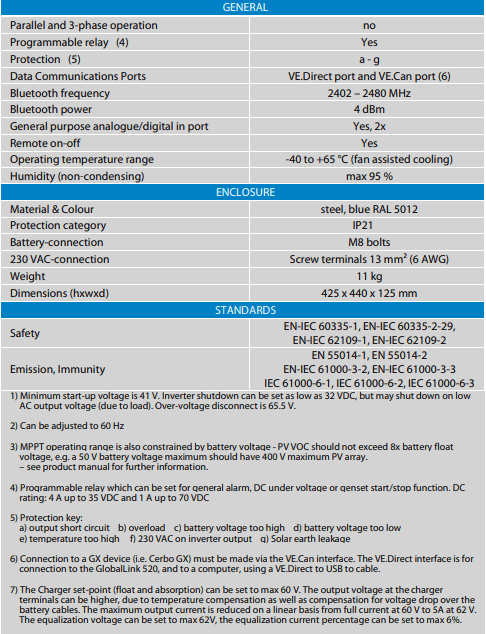

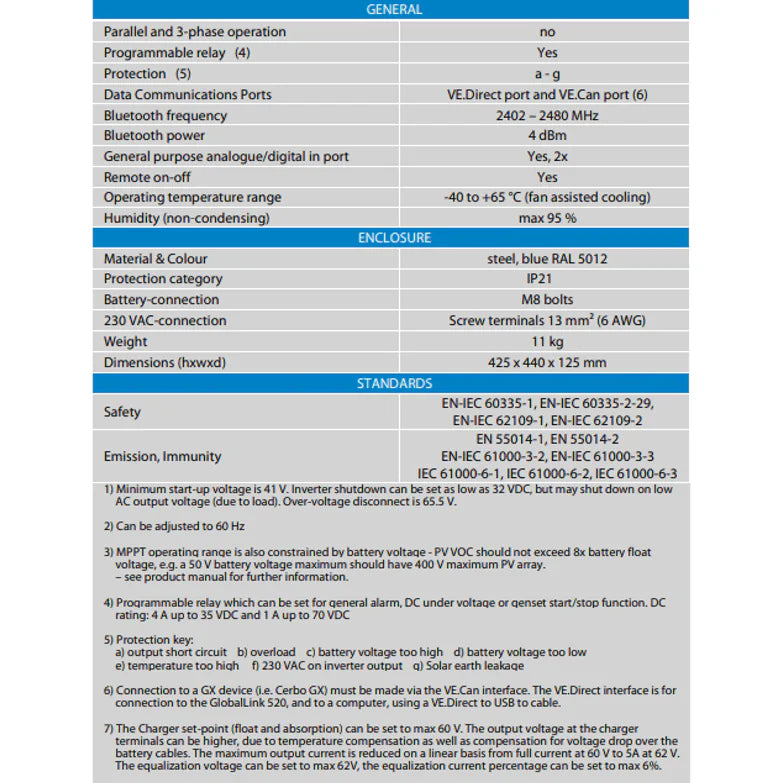

| GENERAL | |
| Auxiliary output (AC-out-2) (7) | Yes |
| 3-phase and parallel operation | 3-phase support with one unit per phase. Parallel not supported. |
| Programmable relay (8) | Yes |
| Protections (9) | a - g |
| Data communications ports (10) | VE.Direct, VE.Can & Bluetooth |
| Bluetooth frequency & power | 2402 - 2480 Mhz, 4 dBm |
| Programmable analog/digital input/output ports | Yes, 2x |
| Remote on-off | Yes |

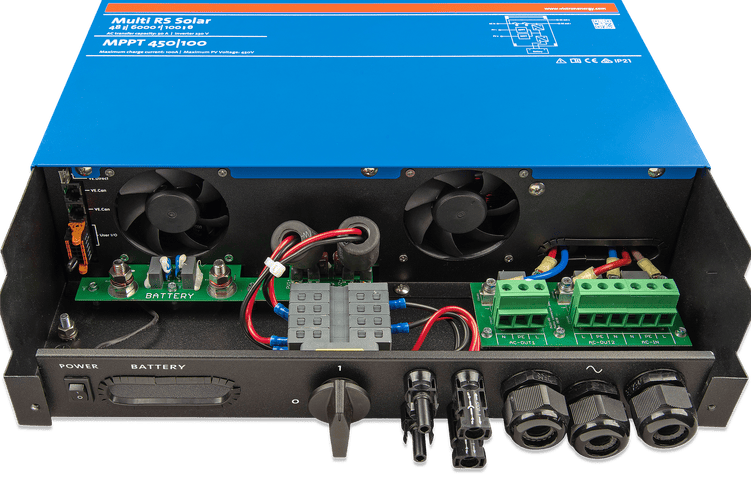

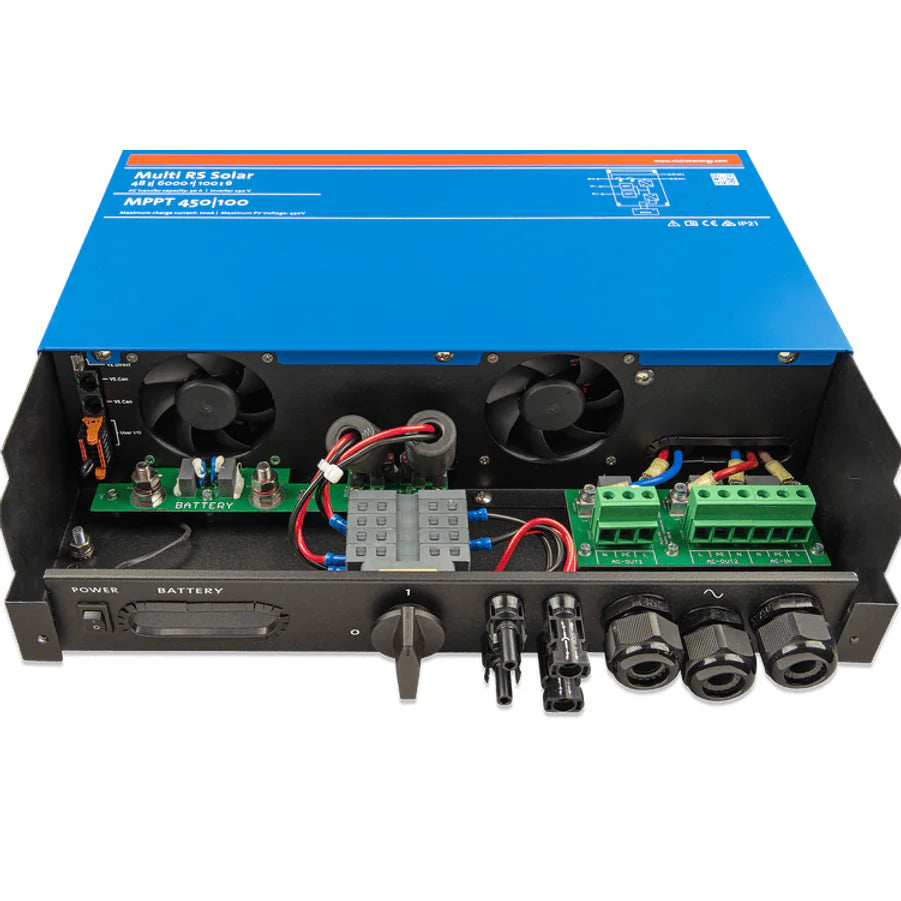

| Operating temperature range | -40 to +65 °C (fan assisted cooling) |
| Maximum altitude | 2000 m |
| Humidity (non-condensing) | max 95 % |
| ENCLOSURE | |
| Material & Colour | steel, blue RAL 5012 |
| Protection category | IP21 Protective Class: I |
| Battery-connection | M8 bolts |
| PV Connection | 2 strings, each with positive and negative MC4 |
| 230 VAC-connection | Screw terminals 10 mm² (6 AWG) |
| Weight | 12.3 kg |

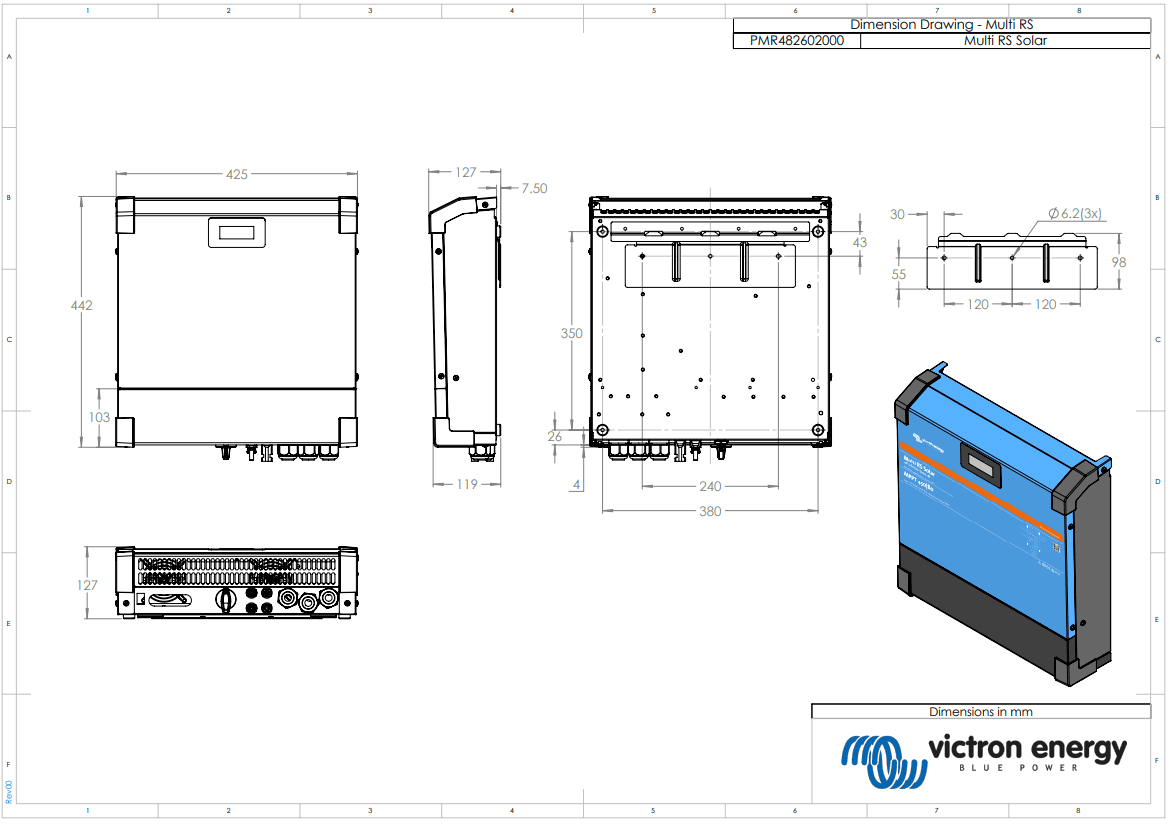

| Dimensions (hxwxd) | 425 x 460 x 125 mm |
| STANDARDS | |
| Safety | EN-IEC 60335-1, EN-IEC 60335-2-29, EN-IEC 62109-1, EN-IEC 62109-2 |
| Emission, Immunity | EN 55014-1, EN 55014-2, EN-IEC 61000-3-2, EN-IEC 61000-3-3, IEC 61000-6-1, IEC 61000-6-2, IEC 61000-6-3, Pollution Degree 2 |
| Overvoltage Category | Battery: OVC 1, PV port: OVC II, AC in / AC out: OVC III |
| 1) Minimum start-up voltage is 41 VDC. Over-voltage disconnect: 65,5 V. 2) Can be adjusted to 240 VAC and 60 Hz 3) Peak power capacity and duration depends on start temperature of heatsink. Mentioned times are with cold unit. 4) The maximum PV voltage should not exceed 8x battery float voltage. If for example the float voltage of the battery is 50 V, the maximum PV voltage should not exceed 8 x 50 = 400 V. 5) The Charger set points (float & absorption) can be set to max 60 V. The output voltage at the charger terminals can be higher due to compensation for temperature & voltage drop over the battery cables. The maximum output current is reduced on a linear basis from full current at 60 V to 5 A at 62 V. The equalization voltage can be set to max 62 V, the equalization current percentage can be set to max 6 %. 6) The maximum charge current from AC sources depends on input voltage and battery current. At 230V input and 57.6V battery voltage, and 25C ambient, the maximum charge current is 88 A. See manual, limitations section, for further details. 7) AC-out-2 is connected directly to the AC input and intended for non-critical loads. The AC-out-2 load is taken into account by PowerControl & PowerAssist. 8) Programmable relay which can be set for general alarm, DC under voltage or genset start/stop function. DC rating: 4 A up to 35 VDC and 1 A up to 70 VDC 9) Protection key: a) output short circuit b) overload c) battery voltage too high d) battery voltage too low e) temperature too high f) 230 VAC on inverter output g) solar earth leakage. 10) Not currently compatible with VE.Smart Networks. Connection to a GX device (i.e. Cerbo GX) must be made via the VE.Can interface. The VE.Direct interface is for connection to the GlobalLink 520. | |
| SKU: | VIC-PMR482602020 |
| Barcode: | 8719076056690 |
| Model #: | PMR482602020 |
| MPN: | PMR482602020 |
