Victron GX IO-Extender 150 – Input Output Expansion Module for GX Devices
Victron GX IO-Extender 150 – Input Output Expansion Module for GX Devices
8 Digital I/Os, 4 PWM, 2 Relays, 70V SSR, Node-RED Ready

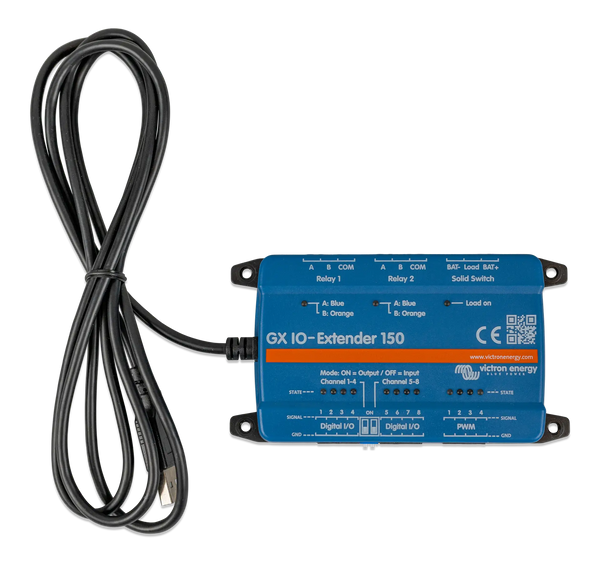

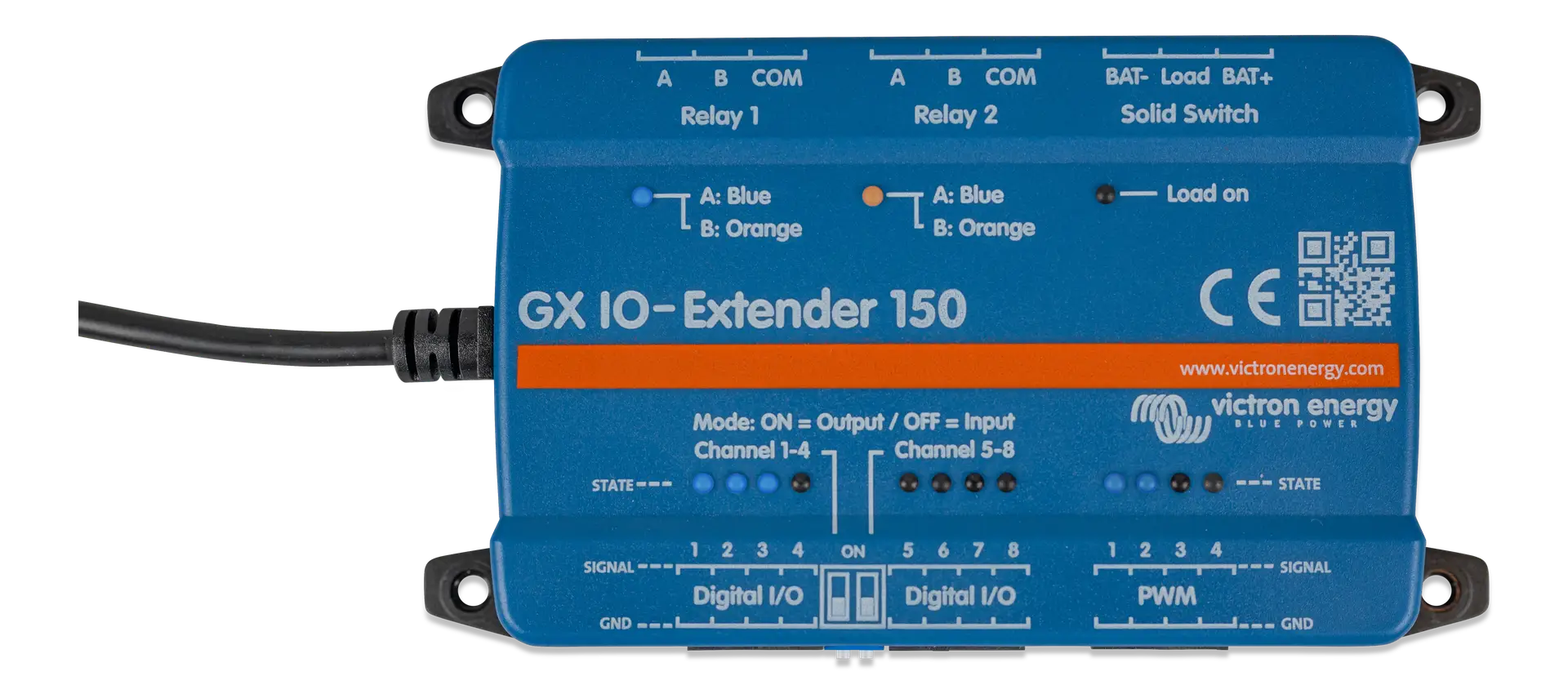

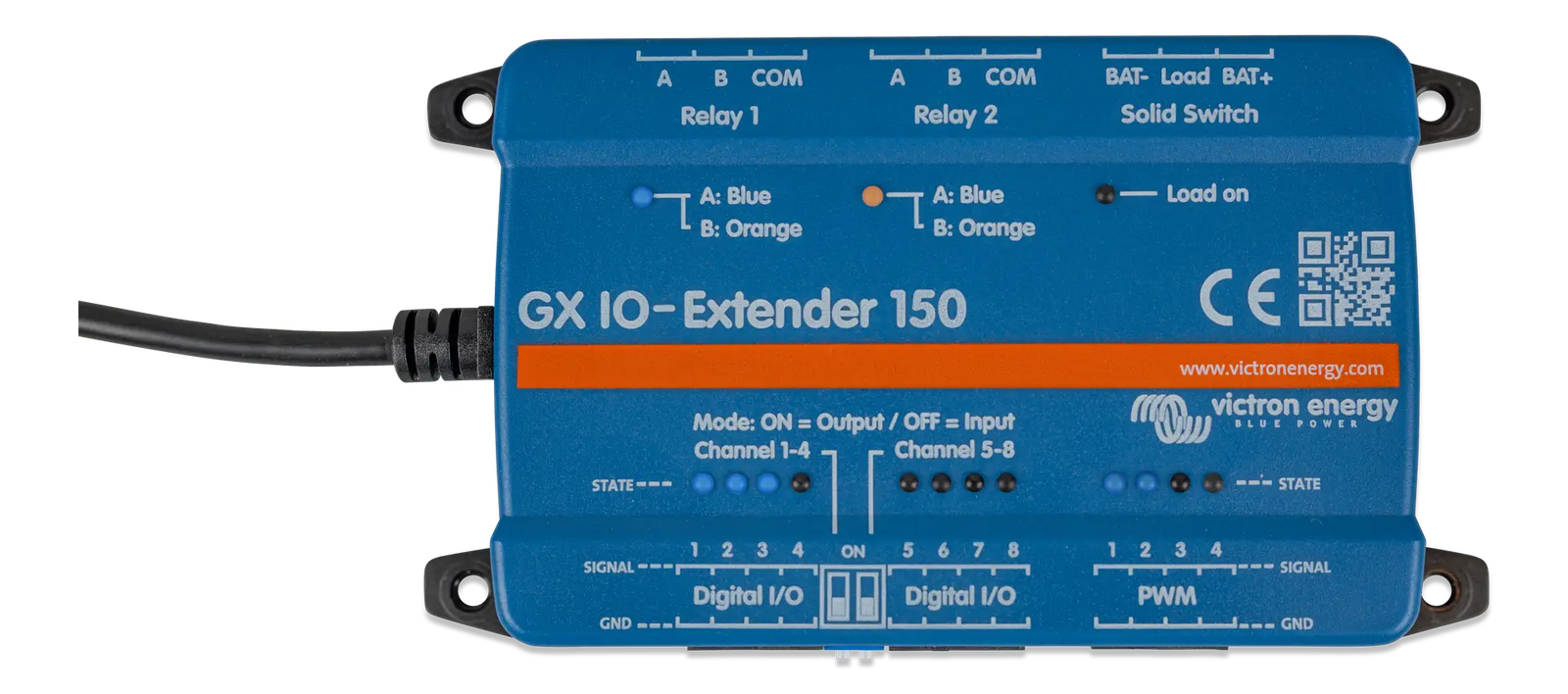

Highlights:Relay 1 Indicator: LED showing state for the first latching relay,Relay 2 Indicator: LED showing state for the second latching relay,Solid Switch Status: Indicator for the solid state relay load status,I/O Channels 1-4: Status LEDs for configurable digital inputs or outputs 1 to 4,I/O Channels 5-8: Status LEDs for configurable digital inputs or outputs 5 to 8,PWM State: Status indicators for the four PWM output channels,Mode Switches: Configuration dip switches for digital I/O mode selection.

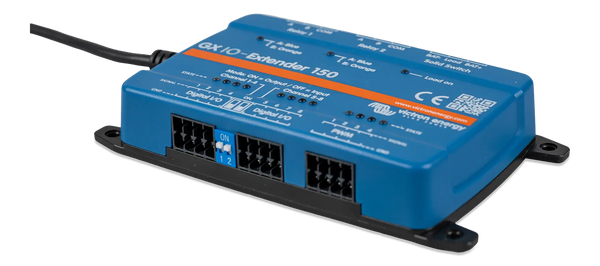

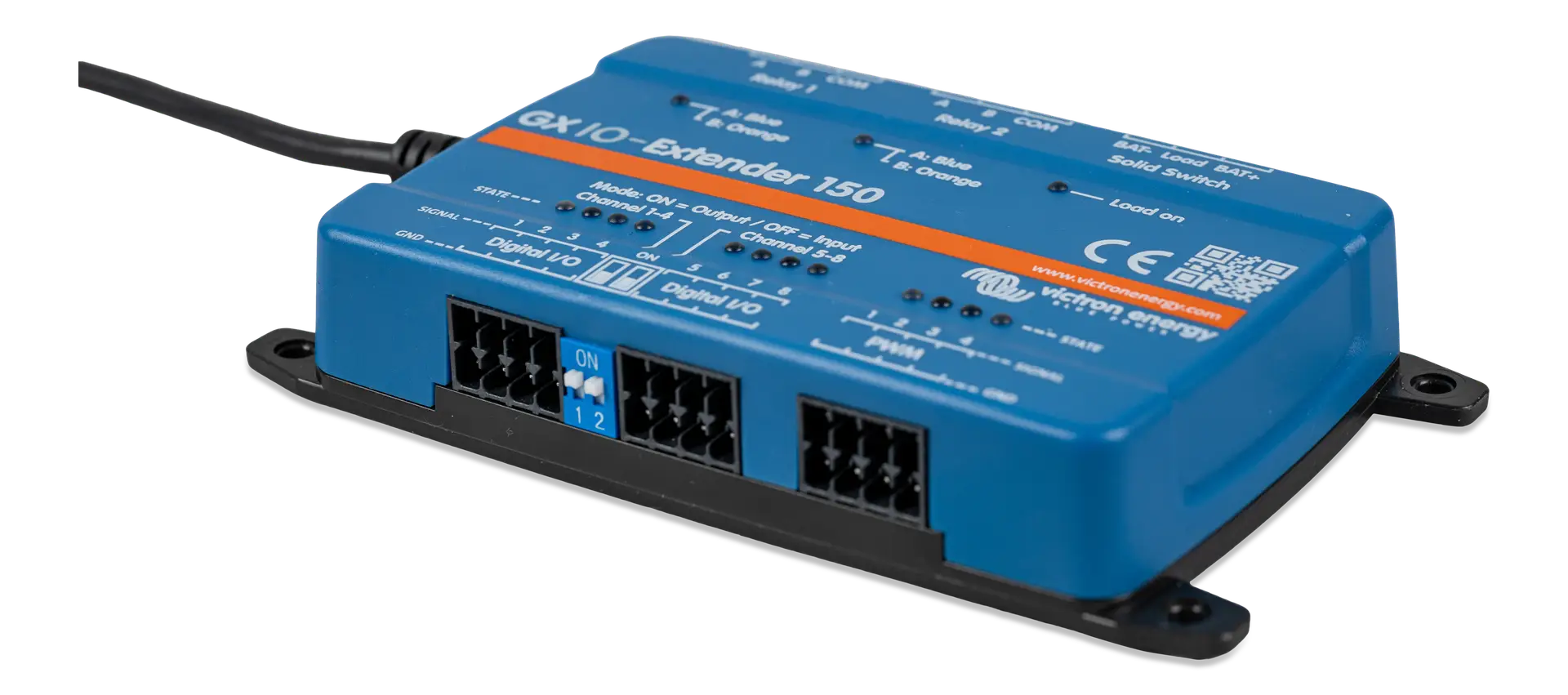

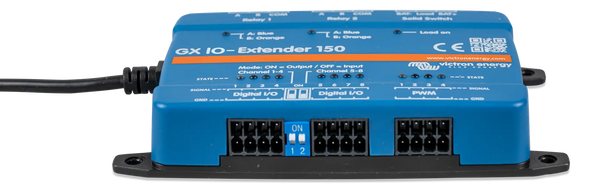

Key features: 8 configurable digital inputs or outputs, 4 PWM output channels for precise signal control, Dual mode configuration dip switches, Powered via integrated USB connection.

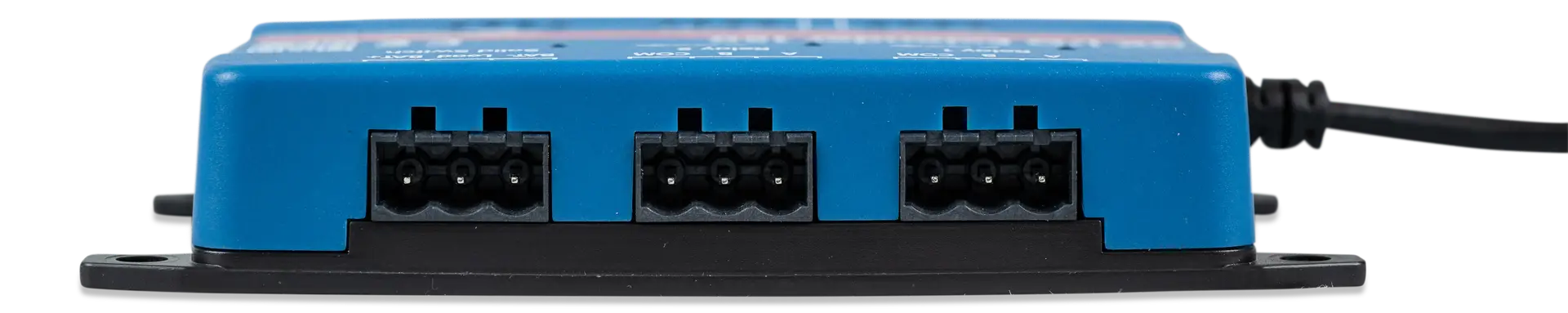

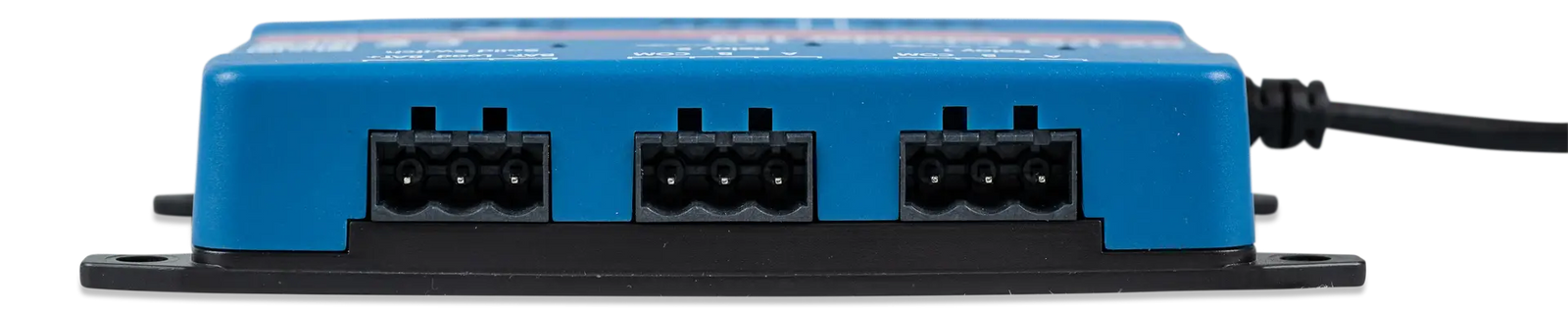

Rear interface featuring two latching relay terminals and a high-current solid state switch capable of handling up to 70V DC for battery load control.

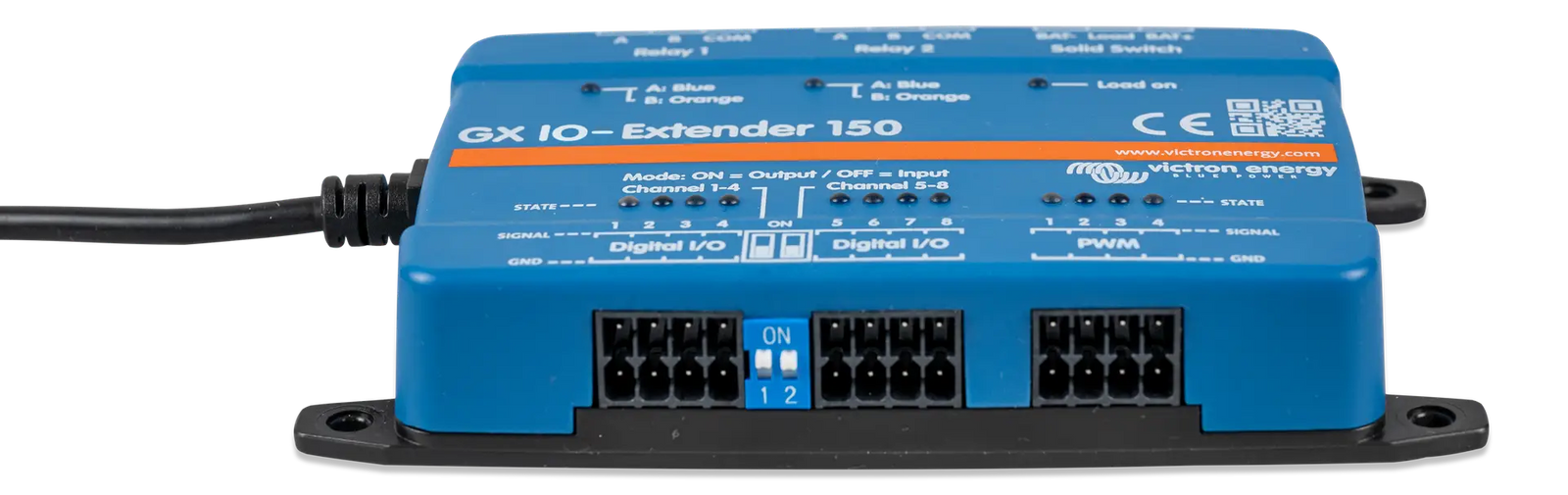

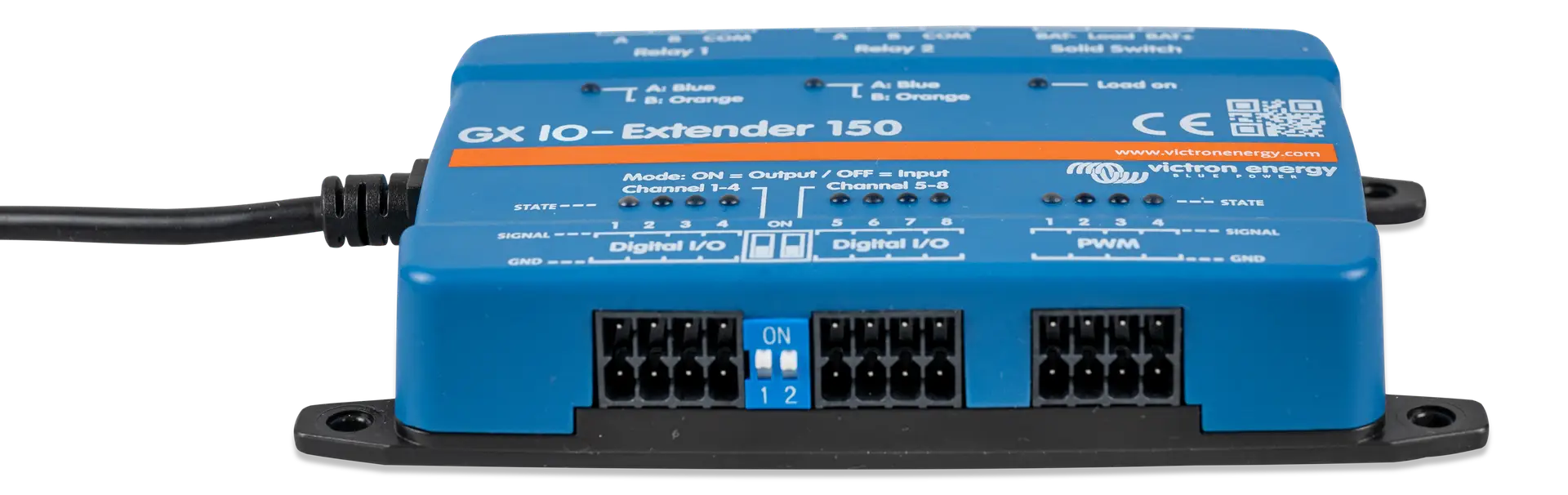

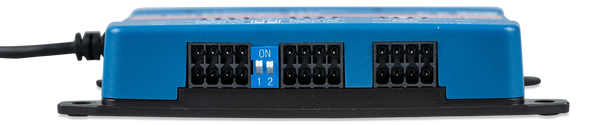

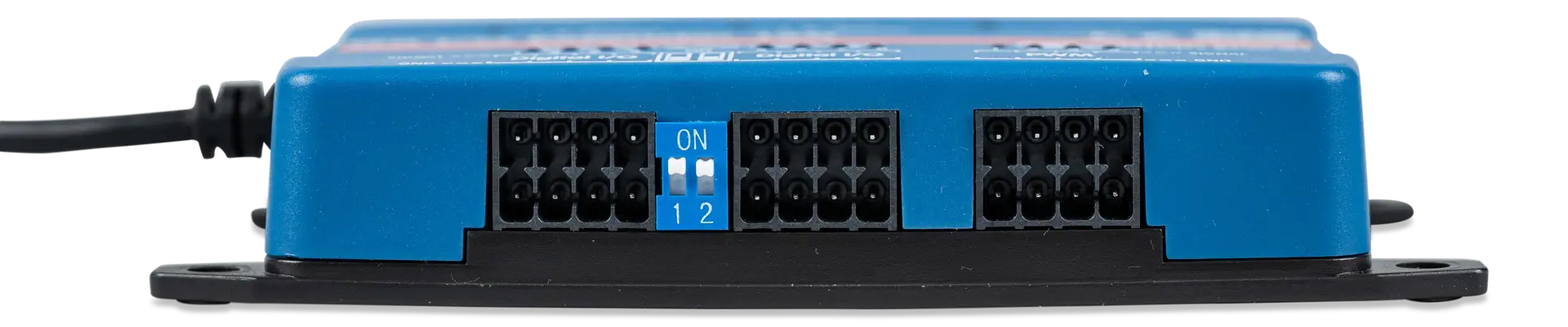

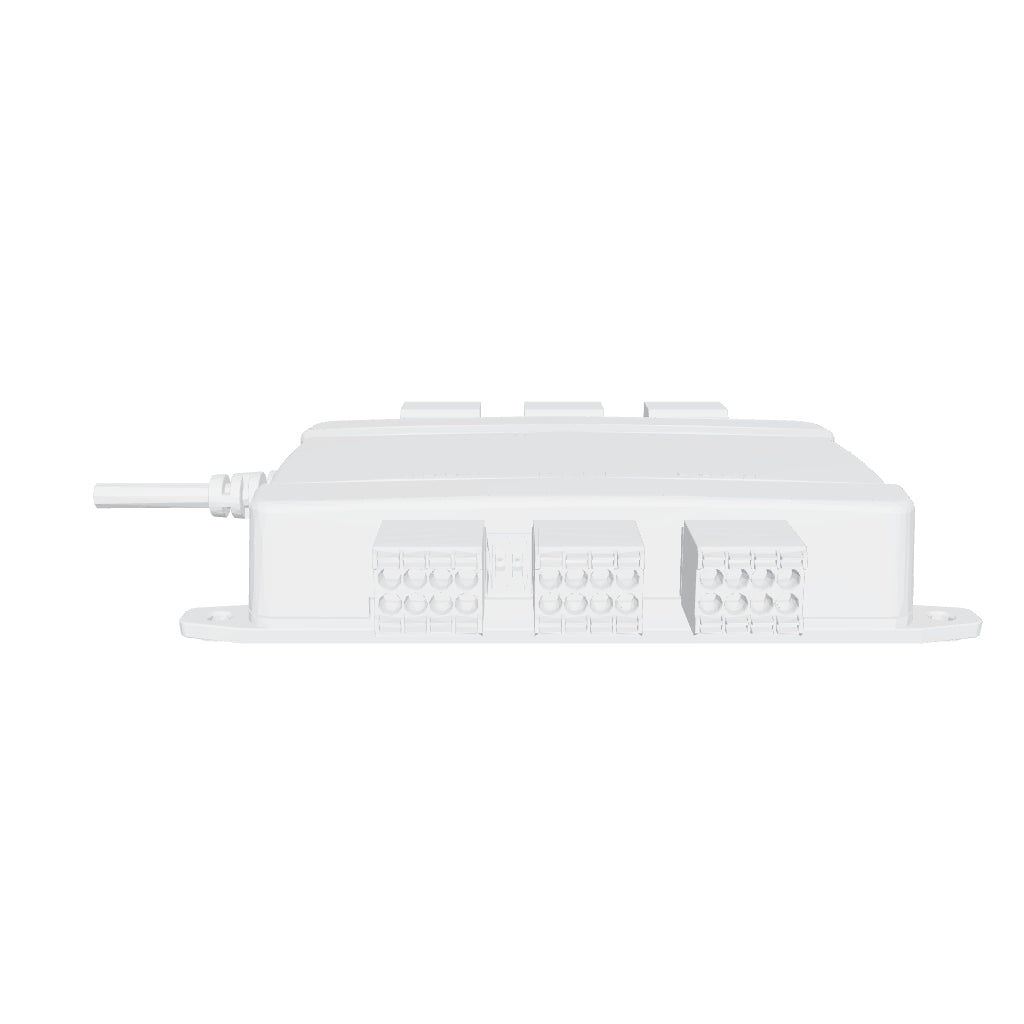

Close-up detail of the pluggable terminal blocks for digital I/O and PWM signals, positioned alongside the hardware mode selection dip switches.


DESCRIPTION
Victron GX IO-Extender 150: Advanced I/O Expansion for GX Devices
Enhance System Automation with USB-Powered Digital and Relay Control
The Victron GX IO-Extender 150 is a compact, USB-powered expansion module that significantly increases the input/output capabilities of Victron GX devices such as the Cerbo GX. It provides flexible digital I/O, PWM outputs, latching relays, and a solid-state relay, enabling precise control and monitoring in off-grid, marine, RV, and industrial energy systems. With Node-RED integration, users can create custom automation routines for smarter energy management.
Flexible Digital I/O Configuration
Eight isolated digital I/O channels can be configured as inputs, outputs, or a combination of both, with LED status indication for quick diagnostics. Inputs accept 3.8–5.5 V signals, while outputs provide 5 V at up to 4 mA, suitable for interfacing with sensors, contactors, or logic-level devices. This flexibility allows the module to adapt to diverse control requirements without additional hardware.
Precise PWM and Relay Control
Four PWM output channels deliver 5 V signals with 8-bit precision at 1.5625 kHz, ideal for dimming lights or controlling motor speed. Two bi-stable latching relays offer efficient low-power switching for DC and AC loads, with ratings up to 3 A at 30 VDC and 0.5 A at 250 VAC. A galvanically isolated solid-state relay (SSR) handles DC loads up to 70 V and 4 A, supporting inductive and capacitive loads for battery management and heavy-duty switching.
Seamless Integration and Automation
Powered directly via USB, the GX IO-Extender 150 requires no external power supply, simplifying installation. It integrates natively with Victron's GX ecosystem and supports Node-RED for advanced, user-defined automation. Monitor and control all I/O points through the GX user interface, enabling real-time adjustments and system optimisation.
Compact, Durable Design for Harsh Environments
Measuring 123 x 67 x 23 mm and weighing 0.17 kg, the module fits easily into tight spaces. It supports wall or DIN-rail mounting with secure spring terminals. The operating temperature range of -20 °C to +50 °C ensures reliable performance in challenging off-grid, marine, and industrial settings.
Key Features
- 8 configurable digital I/Os with LED indicators, isolated from USB
- 4 PWM outputs (5 V, 8-bit, 1.5625 kHz) for dimming or motor control
- 2 bi-stable latching relays for low-power switching of DC/AC loads
- Solid-state relay for DC loads up to 70 V, 4 A, with inductive/capacitive support
- USB-powered with Node-RED integration for custom automation
- Wall or DIN-rail mounting with spring terminals for secure installation
Ideal Applications
This module is suited for expanding control in Victron-based systems, including battery bank switching, generator start/stop, tank level monitoring, lighting control, and ventilation management. It is particularly valuable in caravans, RVs, marine vessels, off-grid cabins, and industrial setups where space and power efficiency are critical.
Take Control of Your Energy System
Add the Victron GX IO-Extender 150 to your GX device today and unlock advanced automation and monitoring capabilities for a more intelligent and responsive power system.
SPECIFICATIONS
Specifications
| Category | Specification |
|---|---|
| Name | GX IO-Extender 150 |
| Supply Voltage | Powered by USB |
| Power Consumption | < 100 mW when idle, max. 1 W (< 200 mA @ 5 V) |
| Mounting | Wall or DIN-rail (by using adapter accessory) |
| Digital I/Os | 8 I/Os with LEDs indicating state, configurable as: • 8 inputs • 8 outputs • 4 inputs + 4 outputs |
| Input Voltage Range | 3.8 – 5.5 V |
| Output Voltage & Current | 5 V, 4 mA max |
| I/O Isolation & Protection | Isolated from USB. The digital I/Os can handle voltages up to 5.5 V. Any overvoltage can cause permanent damage. |
| PWM Output | 4 channels with LEDs indicating the state |
| PWM Voltage & Precision | Voltage level: 5 V, Precision: 8 bits @ 1,5625 kHz |
| Relays (Potential Free) | 2x latching relays (bi-stable) with LEDs indicating the state |
| Relay Ratings (DC) | 3 A @ 30 V, 1 A @ 60 V, 0.3 A @ 220 V (90 W max) |
| Relay Ratings (AC) | 2 A @ 60 V, 1 A @ 125 V, 0.5 A @ 250 V (125 VA max) |
| Relay Switching Power | See graph on the left |
| Solid State Relay - SSR | Isolated from USB |
| Max Battery Voltage | 70 VDC |
| Max Load Current | 4 A |
| Max Capacitive Load | Vbat up to 15 V: 1000 µF15 V < Vbat < 30 V: 400 µF30 V < Vbat < 70 V: 50 µF |
| Max Inductive Load | Up to 1 A: 1000 mH1 A < I < 2 A: 100 mHMore than 2 A: 10 mH |
| Dimensions (h x w x d) | 123 x 67 x 23 mm |
| Weight | 0.170 kg |
| Operating Temperature Range | -20 °C to +50 °C |
| SKU: | VIC-BPP900800150 |
| Barcode: | 8719076062882 |
| Model #: | BPP900800150 |
| MPN: | BPP900800150 |
