Victron 48V 3000VA EasySolar-II 48/3000/35-32 Inverter/Charger/MPPT 250/70 GX

All-in-one solar power solution


Victron EasySolar-II GX 48/3000/35-32 all-in-one inverter charger with integrated MPPT and GX deviceKey features: Integrated 250/70 MPPT solar charge controller, 3000VA pure sine wave inverter and 35A battery charger, Built-in GX device for local and remote system monitoring, All-in-one pre-wired solution for simplified installation, Robust blue aluminium enclosure with IP21 protection.Angled front view of blue Victron EasySolar-II GX 48V 3000VA inverter charger showing digital displayFront-on view of Victron EasySolar-II GX 48/3000 inverter charger display and system labelsTechnical specifications table for Victron EasySolar-II GX series including inverter, charger, and MPPT dataBottom connection panel of EasySolar-II GX showing AC terminals, PV inputs, and communication portsHighlights:AC Terminals: Terminals for AC-IN, AC-OUT-1 and AC-OUT-2 with 16mm2 screw capacity,Communication Ports: Interfaces including USB, Ethernet, and VE.Direct for system monitoring,Integrated MPPT: SmartSolar MPPT 250/70 charge controller circuit for high-efficiency PV charging,Solar PV Inputs: M6 bolt connections for solar array strings,Battery Terminals: M8 bolt connections for 48V battery bank integration,Main On/Off/Charger Only Switch: Robust system power switch located at the base of the enclosure.Dimensional drawing of Victron EasySolar-II GX 48/3000/35-32 showing measurements in mmGrid in-line topology diagram for Victron EasySolar-II GX system integrationGrid parallel topology diagram for Victron EasySolar-II GX with current sensor and genset support

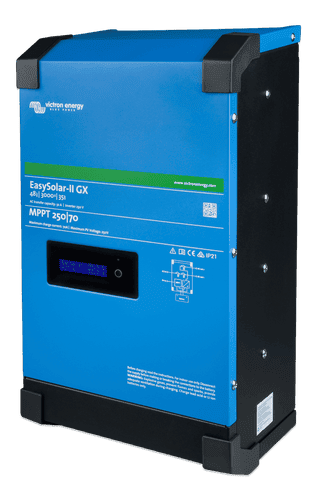

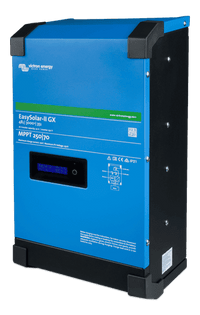

Victron EasySolar-II GX 48/3000/35-32 all-in-one inverter charger with integrated MPPT and GX device

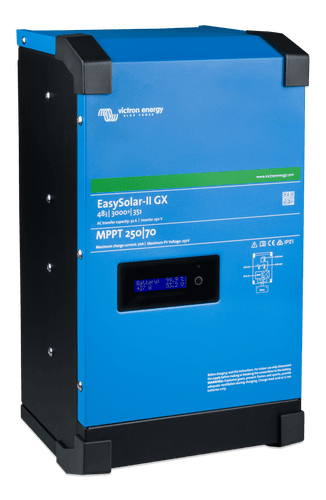

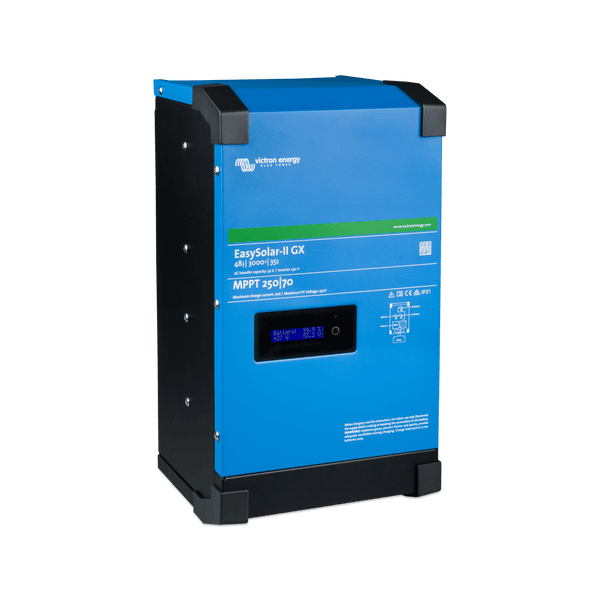

Angled front view of blue Victron EasySolar-II GX 48V 3000VA inverter charger showing digital display

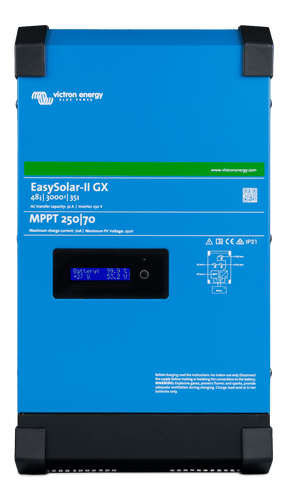

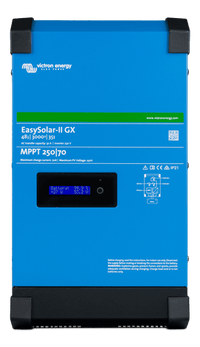

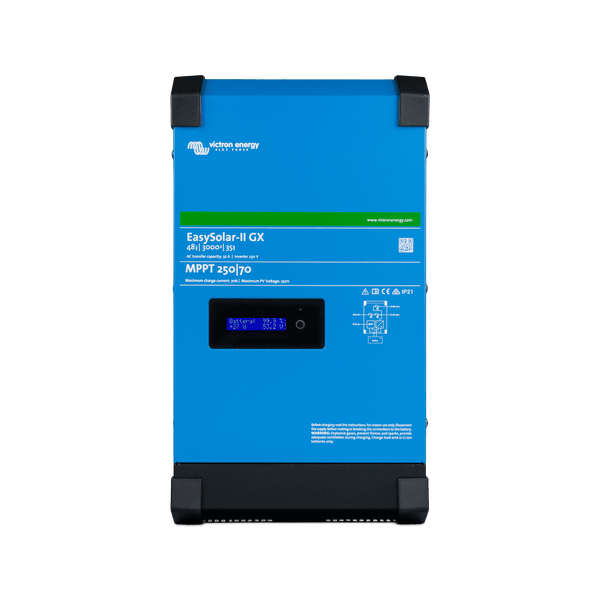

Front-on view of Victron EasySolar-II GX 48/3000 inverter charger display and system labels

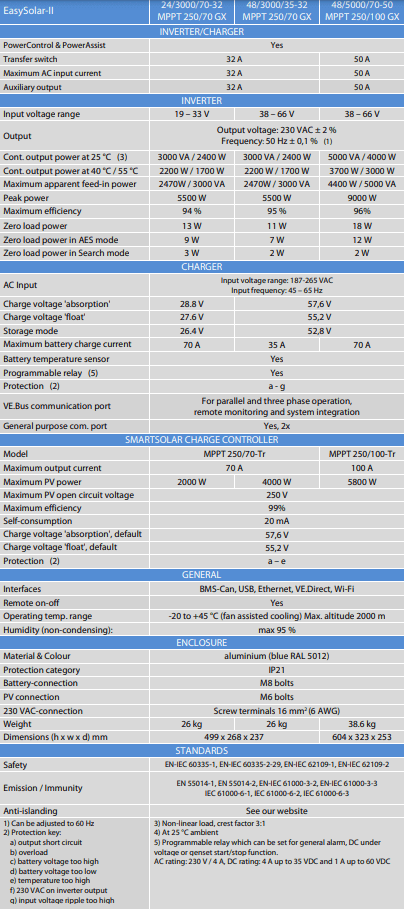

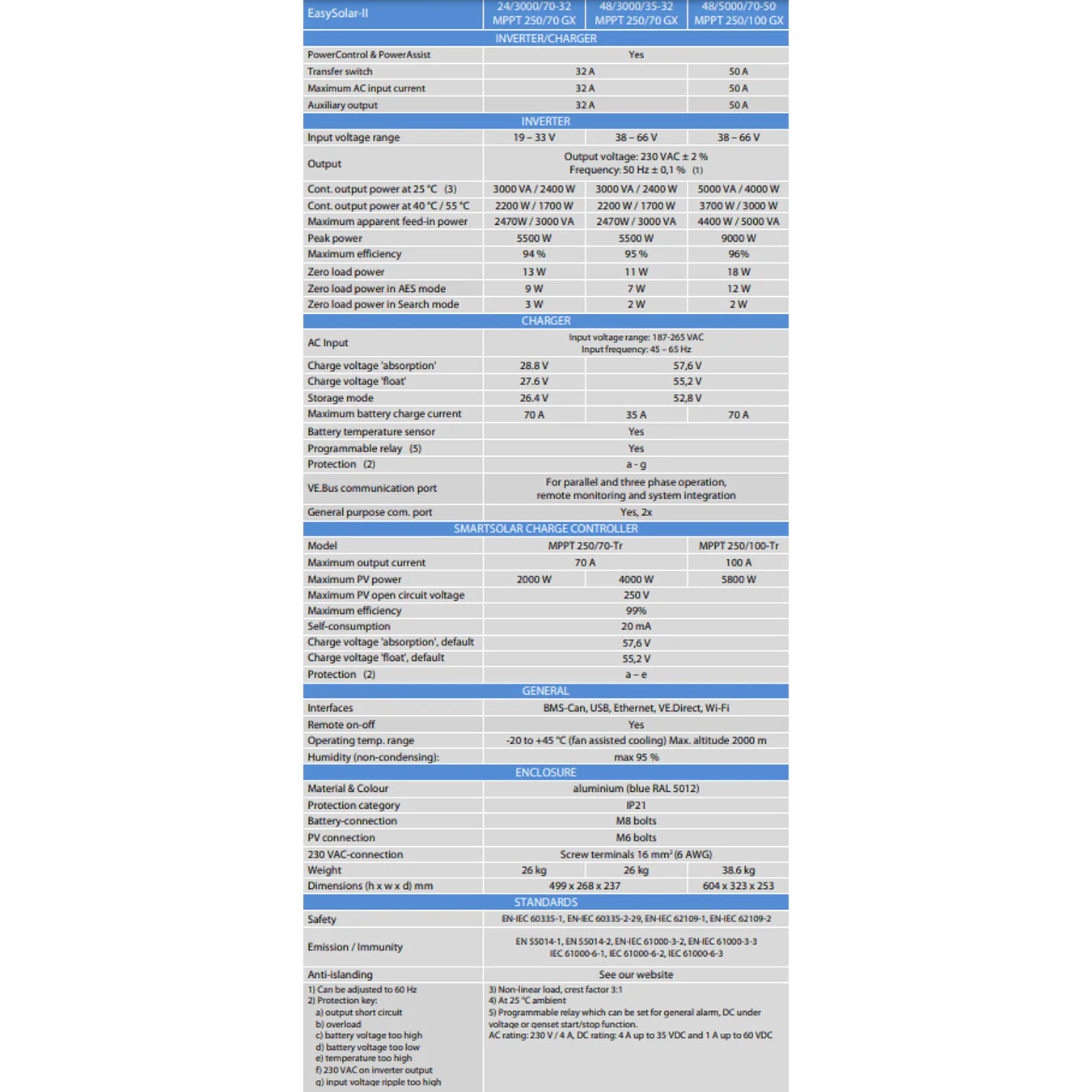

Technical specifications table for Victron EasySolar-II GX series including inverter, charger, and MPPT data

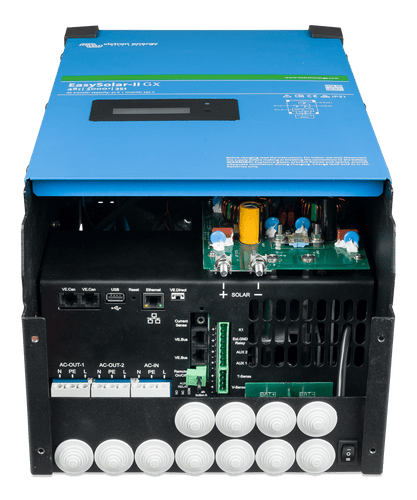

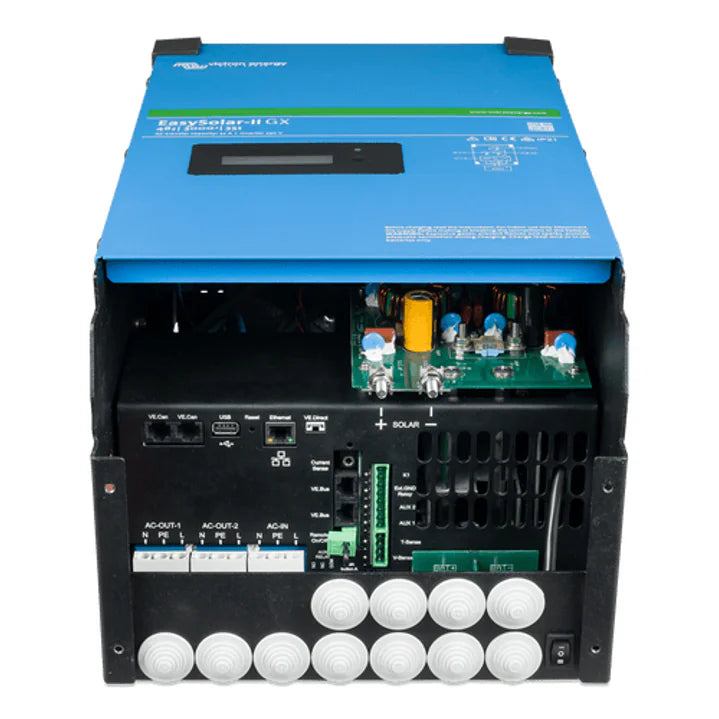

Bottom connection panel of EasySolar-II GX showing AC terminals, PV inputs, and communication ports

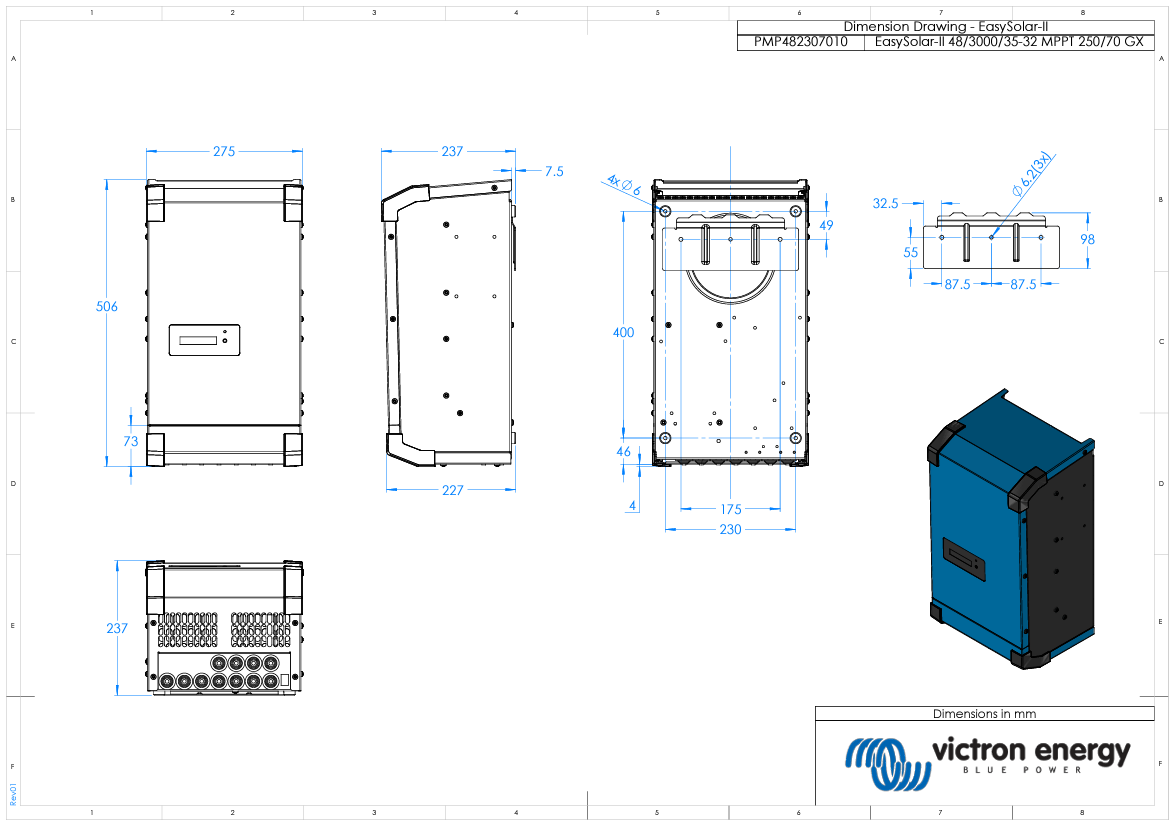

Dimensional drawing of Victron EasySolar-II GX 48/3000/35-32 showing measurements in mm

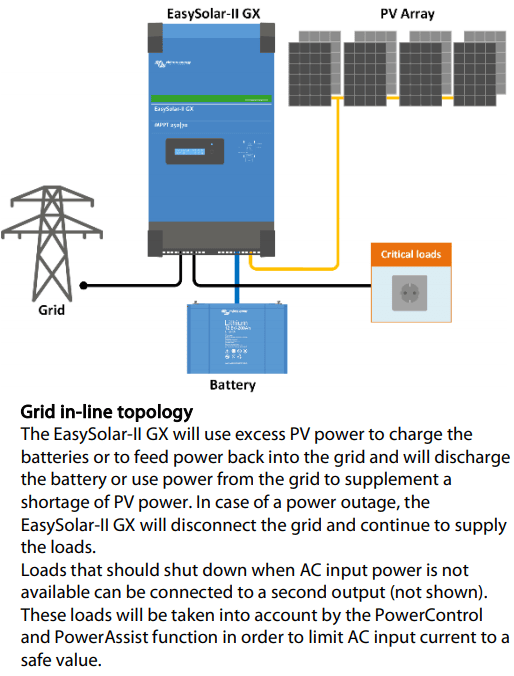

Grid in-line topology diagram for Victron EasySolar-II GX system integration

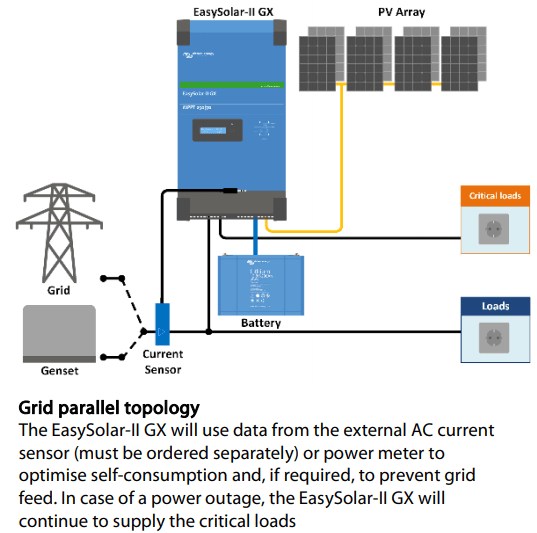

Grid parallel topology diagram for Victron EasySolar-II GX with current sensor and genset support
Regular price $2,283.00
$2,259.40
/
Availability: In Stock
View all products from Victron
Guaranteed Safe and Secure Checkout
American Express Apple Pay Google Pay MastercardPayPalShop Pay Union PayVisa

1
Victron EasySolar-II GX 48/3000/35-32 all-in-one inverter charger with integrated MPPT and GX device

Victron 48V 3000VA EasySolar-II 48/3000/35-32 Inverter/Charger/MPPT 250/70 GX

DESCRIPTION

Unveiling the Victron 48V 3000VA EasySolar-II 48/3000/35-32 Inverter/Charger/MPPT 250/70 GX: The All-In-One Solar Power Solution for Sustainable Living

Effortless Solar Power for Off-Grid and Compact Living

Embrace the future of sustainable energy with the Victron 48V 3000VA EasySolar-II 48/3000/35-32 Inverter/Charger/MPPT 250/70 GX. This sophisticated system is meticulously crafted for off-grid homes, tiny houses, and a plethora of applications where simplicity and reliability are paramount. Experience the pinnacle of solar power technology, offering you a comprehensive package that simplifies installation and maximizes efficiency.

One System, Multiple Benefits

With the Victron EasySolar-II GX, witness the seamless unification of:

  • Advanced MultiPlus-II inverter/charger technology,
  • Efficient SmartSolar MPPT solar charge controller,
  • Intelligent GX device with a detailed display.

Conveniently pre-wired in a single robust unit, our EasySolar-II GX delivers an unmatched installation experience, ensuring both time and cost savings.

Control at Your Fingertips

Monitor vital system parameters effortlessly through the interactive display or remotely using Wi-Fi connectivity. Whether you're on the go or in the comfort of your home, adjusting settings and tracking your system's performance has never been easier, thanks to our user-friendly interfaces and real-time data access.

Maximize Your Solar Input

Our SmartSolar Charge Controller works in perfect harmony with the MultiPlus-II inverter/charger, providing efficient power management and optimized battery charging by harnessing the full potential of solar energy.

Connectivity Redefined

The integrated GX device enriches your solar power system with a plethora of connectivity features:

  • Seamless VE.Can interface for Victron devices and CAN-bus Li-ion battery integration,
  • Multiple ports including USB, Ethernet, and VE.Direct for comprehensive connectivity.

This central GX component ensures a flawless operation between the inverter/charger and MPPT, enhancing your solar power experience.

Durable, Efficient, and Versatile

Designed to endure, the EasySolar-II GX stands resilient against harsh conditions, making it the ideal choice for dynamic environments like RVs and boats, as well as stationary setups in tiny homes and off-grid dwellings.

But it's not all about endurance; the EasySolar-II GX excels in efficiency too. With advanced MPPT technology, it maximizes solar capture, elevating your system's performance and sustainability, all while proving to be a cost-effective solution for your energy needs.

EasySolar FAQs

What is the difference between a MultiPlus and an EasySolar GX?

The MultiPlus combines an inverter and charger into one unit. The EasySolar GX, however, is a comprehensive solar power solution. It integrates a MultiPlus inverter/charger, a SmartSolar MPPT solar charge controller, and a GX device with a display within a compact system. This makes the EasySolar GX an excellent choice for those seeking a streamlined solar solution.

What does the GX device on the EasySolar do?

The integrated GX device offers various connectivity options and coordinates smoothly between the MultiPlus-II and the SmartSolar MPPT. Once connected to Wi-Fi, you can view your Victron power system using the Victron Remote Management (VRM) System, which is free of subscription costs.

How can I access the EasySolar system’s information remotely?

You can access the system information displayed on the GX device remotely. Simply connect the EasySolar GX to Wi-Fi and set up a Victron Remote Monitoring (VRM) account on your smartphone or laptop.

SPECIFICATIONS

Specifications

Model EasySolar-II 48/3000/35-32 MPPT 250/70 GX
Inverter/Charger
PowerControl & PowerAssist Yes
Transfer switch 50A
Maximum AC input current 50A
Auxiliary output 50A
Inverter
Input voltage range 38 – 66V
Output voltage 230 VAC ± 2%
Frequency (1) 50 Hz ± 0.1%
Cont. output power at 25°C (3) 3000 VA / 2400 W
Cont. output power at 40°C / 55°C 2200 W / 1700 W
Maximum apparent feed-in power 2470W / 3000 VA
Peak power 5500 W
Maximum efficiency 95%
Zero load power 11 W
Zero load power in AES mode 7 W
Zero load power in Search mode 2 W
Charger
AC Input voltage range 187-265 VAC
Input frequency 45 – 65 Hz
Charge voltage 'absorption' 57.6 V (adjustable)
Charge voltage 'float' 55.2 V (adjustable)
Storage mode 52.8 V (adjustable)
Maximum battery charge current 35 A
Battery temperature sensor Yes
Programmable relay (5) Yes
Protection (2) a - g
VE.Bus communication port Yes
General purpose com. port Yes, 2x
SmartSolar Charge Controller
Model MPPT 250/70-Tr
Maximum output current 70 A
Maximum PV power 4000 W
Maximum PV open circuit voltage 250 V
Maximum efficiency 99%
Self-consumption 20 mA
Charge voltage 'absorption', default 57.6 V
Charge voltage 'float', default 55.2 V
Protection a – e
General
Interfaces BMS-Can, USB, Ethernet, VE.Direct, Wi-Fi
Remote on-off Yes
Operating temp. range -20 to +45°C (fan assisted cooling)
Max. altitude 2000 m
Humidity (non-condensing) max 95%
Enclosure
Material & Colour aluminium (blue RAL 5012)
Protection category IP21
Battery-connection M8 bolts
PV connection M6 bolts
230 VAC-connection Screw terminals 16 mm² (6 AWG)
Weight 26 kg
Dimensions (h x w x d) mm 499 x 268 x 237
Standards
Safety EN-IEC 60335-1, EN-IEC 60335-2-29, EN-IEC 62109-1, EN-IEC 62109-2
Emission / Immunity EN 55014-1, EN 55014-2, EN-IEC 61000-3-2, EN-IEC 61000-3-3 IEC 61000-6-1, IEC 61000-6-2, IEC 61000-6-3
Anti-islanding See our website

1) Frequency Adjustment: Can be adjusted to 60 Hz

2) Protection Key: a) Output short circuit b) Overload c) Battery voltage too high d) Battery voltage too low e) Temperature too high f) 230 VAC on inverter output g) Input voltage ripple too high

3) Load Handling: Non-linear load, crest factor 3:1

4) Operating Conditions: At 25 °C ambient

5) Programmable Relay: Can be set for general alarm, DC under voltage or genset start/stop function. AC rating: 230 V / 4 A, DC rating: 4 A up to 35 VDC and 1 A up to 60 VDC


SKU: VIC-PMP482307010
Barcode: 8719076045786
Model #: PMP482307010
MPN: PMP482307010

WARRANTY

Victron Energy Limited Warranty Policy

Direct Customers

Victron Energy provides the following warranty to any direct customer (OEM, distributor or dealer) in relation to any products that Victron Energy has directly sold to the direct customer. This warranty is not an end-user warranty between Victron Energy and an end-user, and end-users shall not have any rights or remedies under this limited warranty towards Victron Energy directly. The direct customer shall, in turn, ensure that the end-user is provided with a warranty identical to this warranty, subject to applicable local mandatory law.

End-Users

Victron Energy may also provide a warranty directly to end-users, in which case the below warranty conditions equally apply to such warranty. In that case, end-users shall claim their warranty at their place of purchase or through the original direct customer of Victron, which can be found through the support section on Victron’s website https://www.victronenergy.com/support. Hence, the direct customer shall on behalf of Victron Energy deal with any warranty claims made under any warranty that Victron Energy may provide directly to end-users. This support section on Victron’s website https://www.victronenergy.com/support will provide further guidance on the procedure for end-users to make a claim under this limited warranty.

If the end-user is a consumer – a natural person who is acting for purposes which are outside that person's trade, business, craft or profession – the following applies. The rights and remedies granted to the consumer under this limited warranty are without prejudice to the consumer’s statutory rights. Furthermore, the consumer is entitled by law to remedies from the seller free of charge in the event of a lack of conformity of the goods (such as repair, replacement, price reduction or rescission), which remedies are not affected by this limited warranty.

Warranty

Victron Energy warrants its products to be free from defects in workmanship and materials for a period of 5 years from the date of purchase by the original end-user, with a maximum of 66 months from the Victron Energy invoice date. Exceptions on this are: lead-acid batteries: 2 years from date of purchase by the original end-user, with a maximum of 30 months from the Victron Energy invoice date, Lithium batteries: 3 years from date of purchase by the original end-user, with a maximum of 42 months from the Victron Energy invoice date. In addition to this, proof of correct battery usage is required when making a battery warranty claim.

For a 10% surcharge on the current net price for products that came with a 5-year warranty, an additional 5 years of warranty can be purchased by Victron’s direct customers, bringing the total warranty to 10 years. Warranty extensions need to be applied for ultimately one year before the expiration of the original term. Victron may ask proof that the product was still functional at the time of purchase of the extended warranty.

During the warranty period, Victron Energy will, at its discretion, repair, replace or (partly) credit the defective product free of charge. The warranty does not include performing or reimbursing de‐installation, transportation, and re‐installation.

This warranty will be considered void if the unit has suffered any physical damage or alteration, either internally or externally, and does not cover damages arising from improper use like:

  • Reversed battery polarity.
  • Inadequate connection.
  • Mechanical shock or deformation.
  • Contact with liquid or oxidation by condensation.
  • Use in an inappropriate environment (dust, corrosive vapour, humidity, high temperature, biological infestation, etc.).
  • Breakage or damage due to lightning.
  • Connection terminals and screws destroyed or other damages, like overheating, due to insufficient tightening.
  • For any electronic breakage except due to lightning (reverse polarity, over‐voltage due to external cause), the state of the internal control diode and/or the input/output X and Y capacitors determine the warranty.

This warranty will not apply where the product has been misused, neglected, improperly installed, or repaired by anyone other than Victron Energy or one of its authorized Repair Centres. In order to qualify for the warranty, the product must not be disassembled or modified.

This warranty and our warranty obligations thereunder (repair, replacement or credit) are the direct customer’s and, if applicable, the end-user’s sole rights and remedies and our sole obligations with respect to any defective and/or non-conforming product or breach of warranty and is subject to and without prejudice to the limitations of liability in this warranty.

Victron Energy shall not be liable for damages, whether direct, incidental, special, or consequential, even caused by negligence or fault.

As a product requires service, it must be brought back to the place of purchase. In case no contact can be made with the merchant, or if he is either unable or not allowed to provide service, direct contact should be made with Victron Energy through the support section on Victron’s website.

In case Victron Energy replaces a product, it will own the replaced product. Victron Energy owns all parts removed from repaired products. Victron Energy uses new or reconditioned parts made by various manufacturers when performing warranty repairs or building replacement products.

If Victron Energy repairs or replaces a part of a product, its warranty term is not extended: the warranty will apply for the remaining term of the original warranty term. For example, if Victron Energy replaces a product with a 5-year warranty after 3 years, the warranty of this product will apply for another 2 years, with a minimum of 6 months.

All remedies and the measure for damages are limited to the above. Victron Energy shall in no event be liable for consequential, incidental, contingent or special damages, even if having been advised of the probability of such damages.

The foregoing limited warranty provided by Victron Energy is in lieu of any other warranties, express or implied arising by law, course of dealing, course of performance, usage of trade or otherwise, of any kind whatsoever including, without limitation, warranties of merchantability or fitness for a particular purpose, with respect to any product. The above is without prejudice to the arrangement for consumers detailed above.

Life Support Policy

As a general policy, Victron Energy does not recommend the use of any of its products in life support applications where failure or malfunction of Victron Energy's product can be reasonably expected to cause the failure of the life support device or to significantly affect its safety or effectiveness. Victron Energy does not recommend the use of any of its products in direct patient care. Victron Energy will not knowingly sell its products for use in such applications unless it receives in writing assurances satisfactory to Victron Energy that the risks of injury or damage have been minimized, the customer assumes all such risks, and the liability of Victron Energy is adequately protected under the circumstances.

Warranty on repairs for products outside their warranty period

The warranty period on products that are outside their warranty period and have been repaired by Victron Energy or one of the Victron Energy Repair centres is six (6) months from delivery. The same applies to spare parts and circuit boards that have been supplied or repaired by Victron Energy.

Transport

It is the responsibility of the sender to sufficiently package these products. The transport must be organized in a way to avoid any damage, especially when a single unit or heavy unit is sent.

Severability

If a part of the terms and conditions of this warranty is held invalid, void or unenforceable due to any particular national or international legislation, it shall not affect other parts of the terms and conditions of this warranty.

Applicable law

This warranty is exclusively governed by the laws of the Netherlands, to the exclusion of the UN Convention on Contracts for the International Sale of Goods.

Contact details

Victron Energy B.V. | De Paal 35, 1351 JG Almere, The Netherlands | https://www.victronenergy.com/support
