Victron VE.Bus Smart Bluetooth Dongle (MultiPlus/Quattro)
Victron VE.Bus Smart Bluetooth Dongle (MultiPlus/Quattro)
Bluetooth to VE.Bus products & temperature sensor

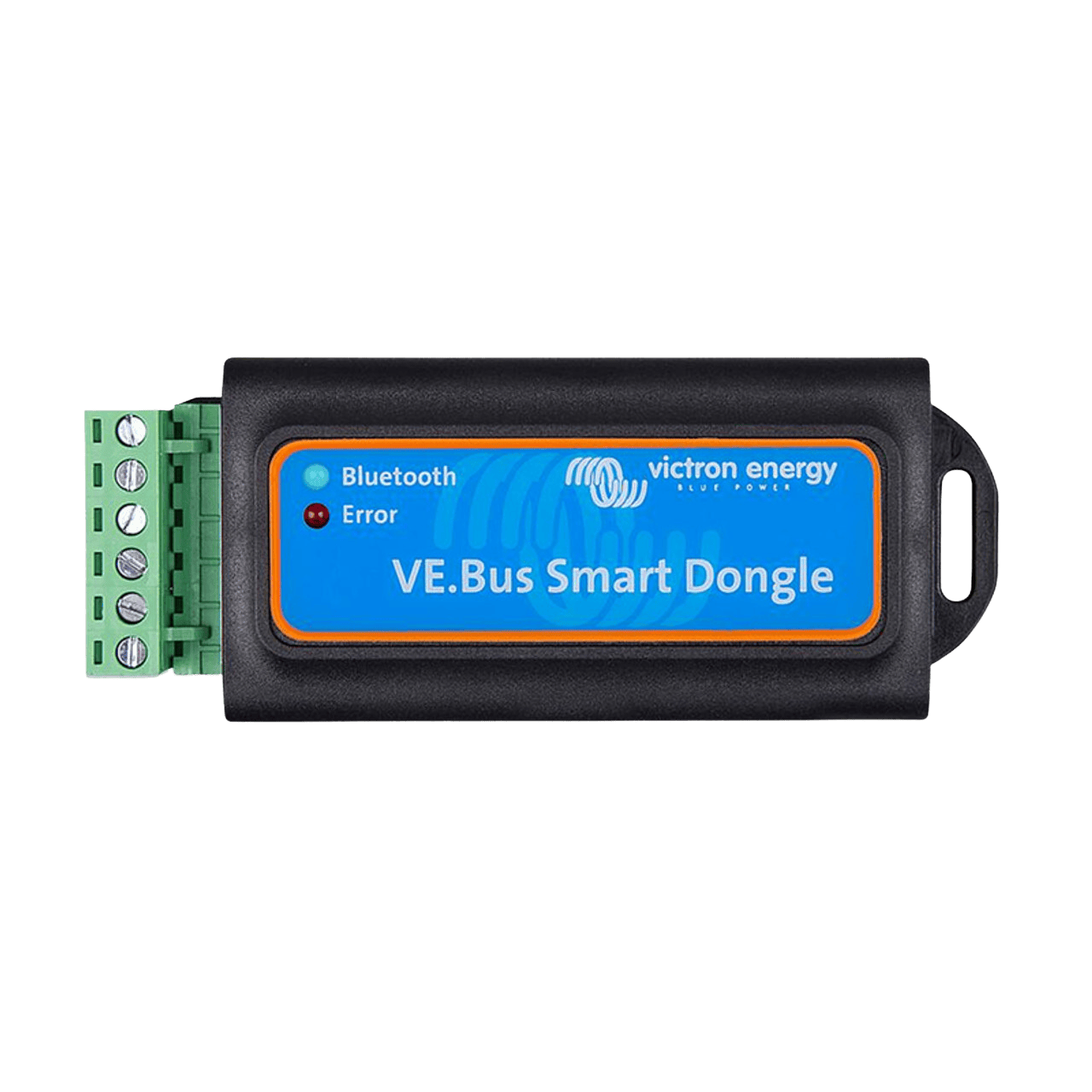

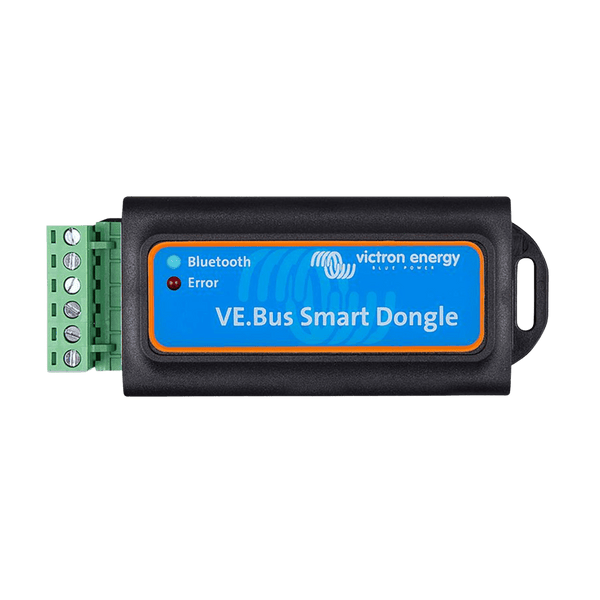

Highlights:Status LEDs: LED indicators for Bluetooth connectivity and error status,Terminal Block: Removable screw terminal for relay and battery connections,Mounting Eyelet: Integrated mounting point for secure installation,Product Interface: VE.Bus Smart Dongle interface label with branding.

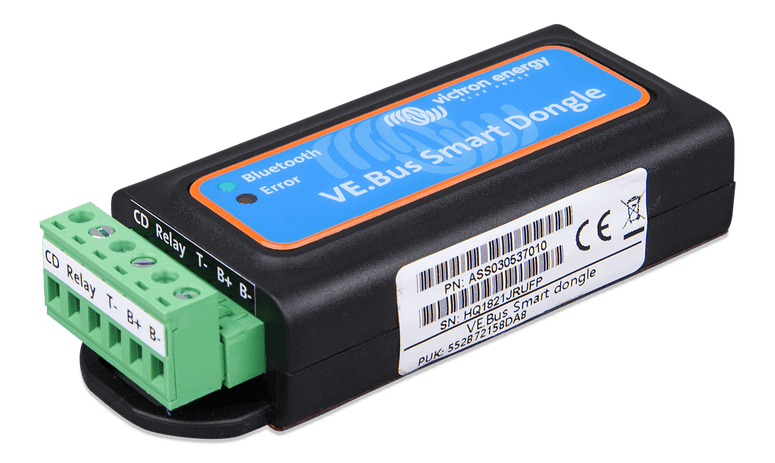

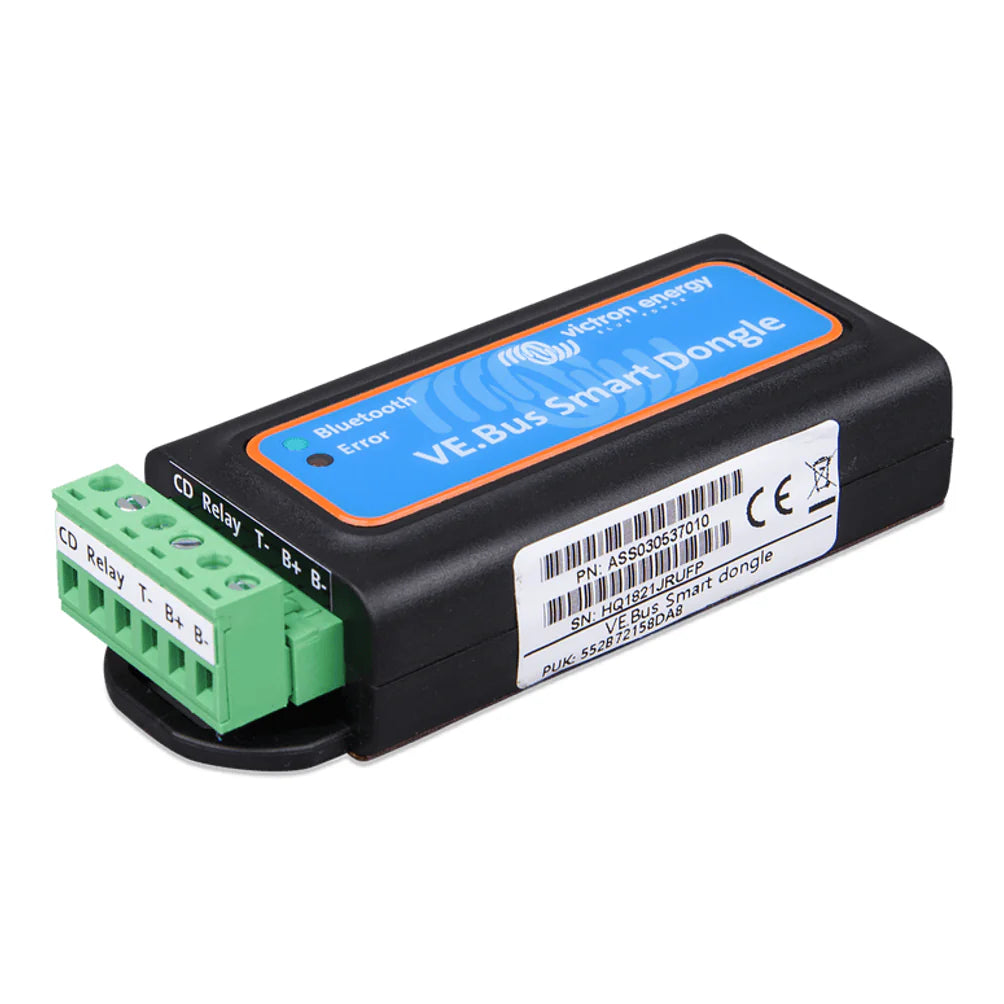

Side view of the Victron VE.Bus Smart Dongle showing the terminal block labels (CD Relay, T-, B+, B-) and product serial number sticker.
Key features: Bluetooth connectivity for VictronConnect app monitoring, Direct VE.Bus communication with MultiPlus and Quattro inverters, Monitors battery voltage and temperature, Enables relay control via mobile device.

DESCRIPTION
Enhance Your Energy Management with the Victron VE.Bus Smart Bluetooth Dongle for MultiPlus & Quattro Systems
Unlock unparalleled control and monitoring capabilities for your Victron inverter/chargers with the Victron VE.Bus Smart Bluetooth Dongle. This versatile device is designed to seamlessly integrate with a wide range of Victron products, including MultiPlus, MultiPlus-II, Quattro, Quattro-II and Phoenix Inverters equipped with a VE.Bus port. Experience the convenience of wireless connectivity, allowing you to effortlessly manage your energy systems via the intuitive VictronConnect app. Whether you're optimizing settings for efficiency, switching modes, or monitoring performance, this dongle is your gateway to smart energy management.
Dual Functionality for Comprehensive Energy Solutions
- Bluetooth Connectivity: Transform your Victron inverter/chargers into smart, connected devices. With the VE.Bus Smart Dongle, you can easily monitor operations and adjust settings such as input current limits and operational modes (Off, On, Charger-only) through your smartphone or tablet.
- Advanced Sensing Capabilities: Beyond connectivity, the dongle serves as a critical sensing device, providing on-battery voltage and temperature data. This feature is invaluable for ensuring optimal charging efficiency.
Ideal for Mobile and Compact Living Spaces
The VE.Bus Smart Dongle is the perfect addition to caravans, yachts, and motorhomes where space is at a premium and the need for a compact, powerful monitoring solution is essential. It offers a less complex, yet highly effective alternative to traditional monitoring systems like the Cerbo GX or Ekrano GX, delivering vital data directly to your fingertips.
Seamless Integration with or without GX Devices
Whether incorporated into systems with a GX device or used standalone, the dongle ensures your energy system's efficiency and reliability. It prioritizes its temperature and voltage data in the absence of a GX device, making it indispensable for accurate energy management. In conjunction with a GX device and no other data sources, the dongle's readings are utilized for voltage compensation and temperature adjustments, enhancing the overall performance of your system.
Cutting-Edge Temperature Sensing
Leverage the dongle's dual-mode temperature sensing for precise battery management. Utilize its onboard sensor for direct case mounting or enhance your setup with an optional battery-terminal mounted sensor for even more accurate temperature data. This flexibility allows for tailored energy solutions that meet your specific needs.
What's Included:
- VE.Bus Smart Dongle

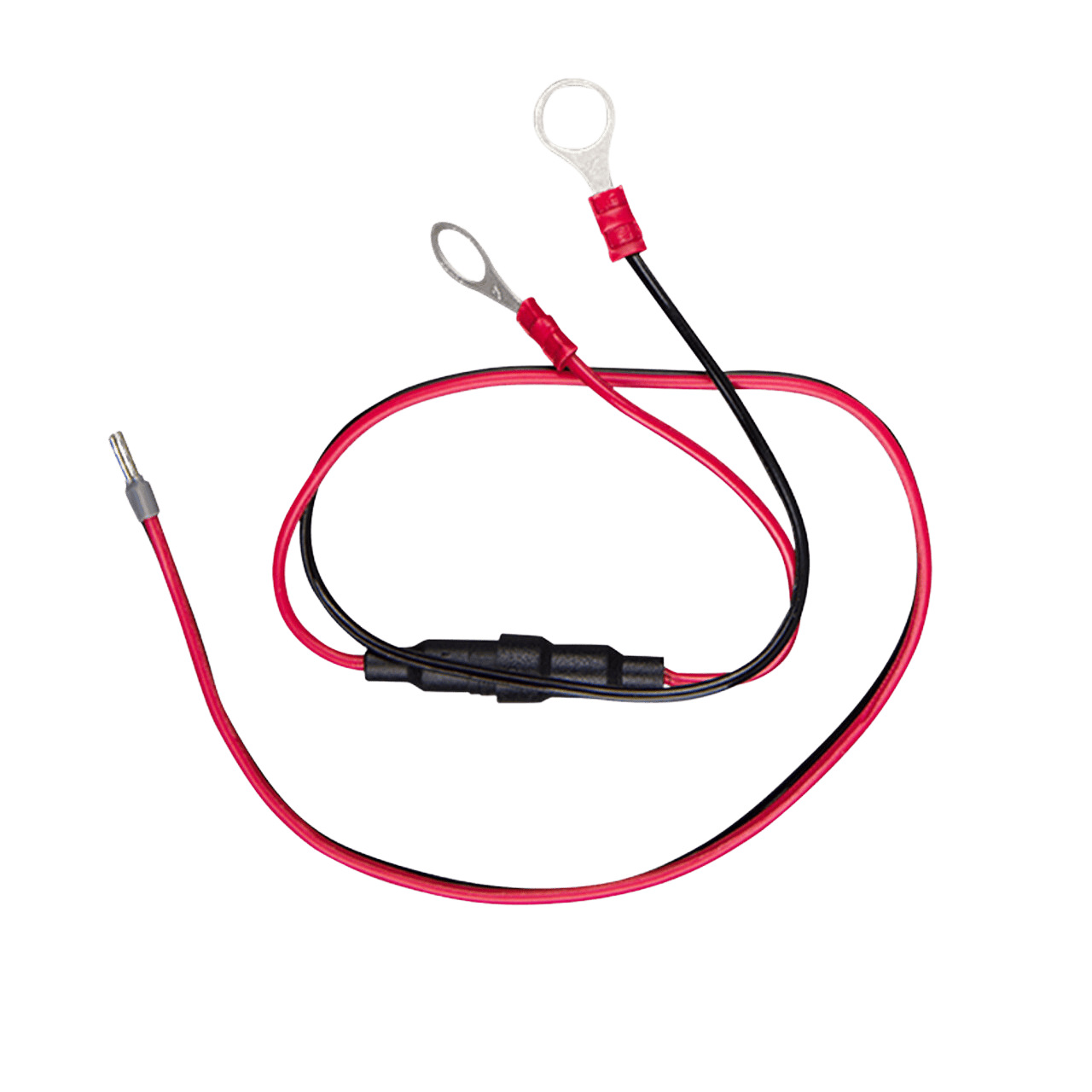

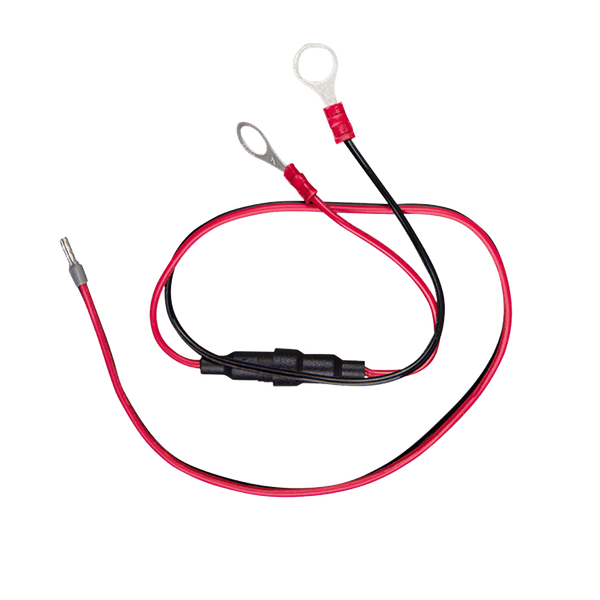

- Red (+) and Black (-) connection wires with eyelets and inline fuse
- Connector block with screw terminals
- Compatibility with optional external battery-terminal mounted temperature sensor for enhanced precision
Elevate Your Victron Energy System Today
Step into the future of energy management with the Victron VE.Bus Smart Bluetooth Dongle. Its unparalleled flexibility, ease of use, and advanced sensing capabilities make it an essential component for any Victron inverter/charger setup. Order now to experience the ultimate in energy efficiency and control.
SPECIFICATIONS
| SKU: | VIC-ASS030537010 |
| Barcode: | 8719076035558 |
| Model #: | ASS030537010 |
| MPN: | ASS030537010 |
