Victron 24V 3000VA Quattro 24/3000/70-50/50 Inverter/Charger

Two AC inputs with integrated transfer switch


Front view of the blue Victron Quattro 24/3000 inverter charger enclosure showing status LEDsHighlights:LED Status Indicators: Clear indicators for charger and inverter status, including bulk, absorption, and float modes,Operation Switch: Three-position toggle for On, Off, and Charger Only functionality,Integrated Transfer Switch Diagram: Visual representation of the dual AC input logic and internal switching,Cable Entry Glands: Heavy-duty bottom ports for secure AC and DC cabling access,Durable Aluminium Enclosure: RAL 5012 blue aluminium housing providing IP21 protection.Perspective view of the Quattro inverter charger showing its blue aluminium body and side handlesKey features: Two AC inputs with integrated high-speed transfer switch, PowerControl and PowerAssist to prevent AC source overload, Parallel and three-phase operation capability for high power demands, Lightweight aluminium RAL 5012 enclosure with IP21 rating, Dual AC outputs for prioritising critical loads.Side perspective view of the Victron Quattro inverter charger showing enclosure depthDetailed technical specification table for the Victron Quattro inverter charger rangeSystem wiring diagram for the Victron Quattro showing connections for generator, grid, and batteriesFunctional system schematic demonstrating how the Quattro manages two separate AC inputs from a generator and public grid to power critical and non-critical loads while maintaining battery banks.Technical dimensional drawing of the Quattro 3000VA model with measurements in millimetresMechanical drawing specifying the Quattro's physical dimensions, including a 364mm height, 258mm width, and 218mm depth for installation planning.

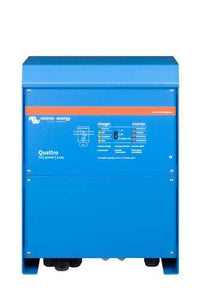

Front view of the blue Victron Quattro 24/3000 inverter charger enclosure showing status LEDs

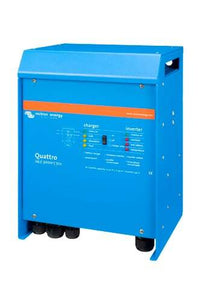

Perspective view of the Quattro inverter charger showing its blue aluminium body and side handles

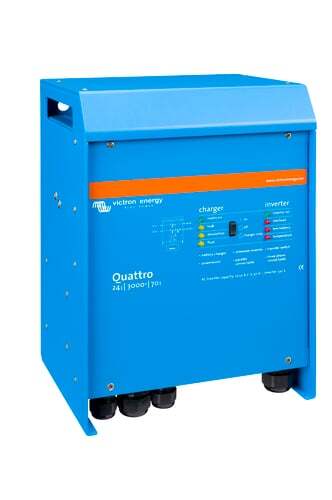

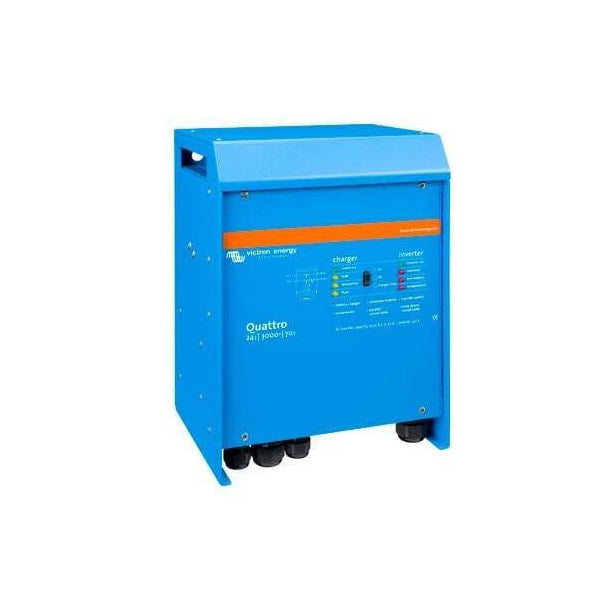

Side perspective view of the Victron Quattro inverter charger showing enclosure depth

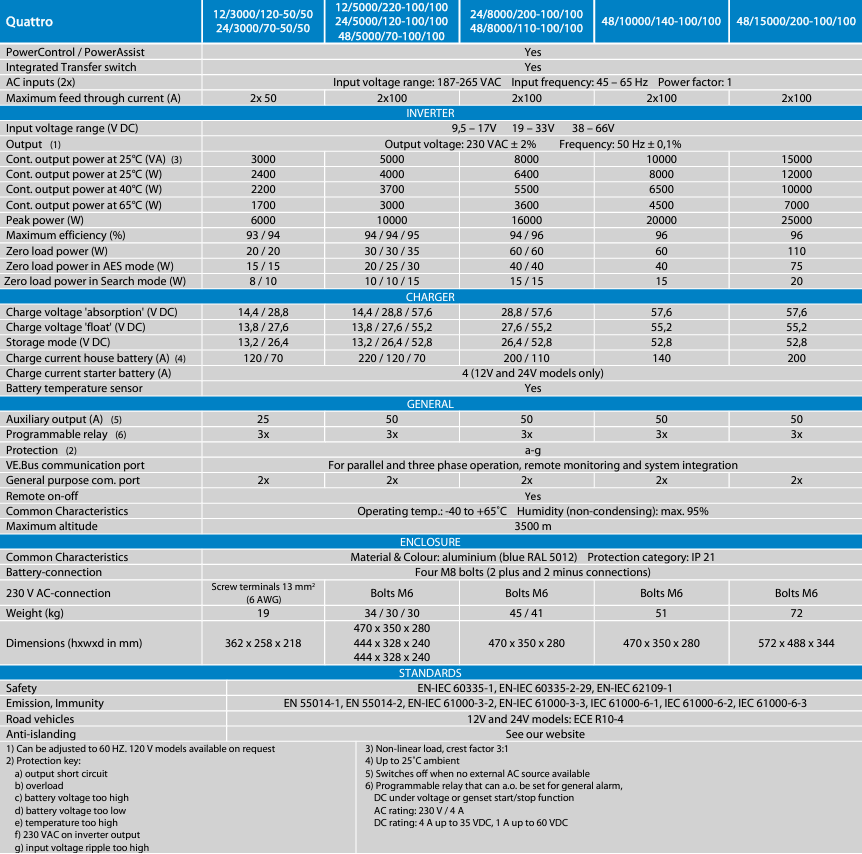

Detailed technical specification table for the Victron Quattro inverter charger range
System wiring diagram for the Victron Quattro showing connections for generator, grid, and batteries
Technical dimensional drawing of the Quattro 3000VA model with measurements in millimetres
Regular price $2,988.00
$2,948.00
/
Availability: In Stock at Victron Warehouse Allow up to 5 days before dispatch
View all products from Victron
Guaranteed Safe and Secure Checkout
American Express Apple Pay Google Pay MastercardPayPalShop Pay Union PayVisa

0
Front view of the blue Victron Quattro 24/3000 inverter charger enclosure showing status LEDs

Victron 24V 3000VA Quattro 24/3000/70-50/50 Inverter/Charger

DESCRIPTION

Power Your Adventures with the Victron 24V 3000VA Quattro VE.Bus Inverter/Charger: Essential for Trucks, Buses, Marine, and Off-Grid Industrial Projects

Explore the capabilities of the Victron 24V 3000VA Quattro Inverter/Charger, your go-to solution for reliable power in commercial vehicles, marine environments, and off-grid industrial applications. This robust inverter/charger is designed to manage dual AC inputs efficiently, ensuring seamless power transitions between the public grid, generators, or renewable energy sources, keeping critical operations uninterrupted in any setting.

Dual AC Inputs for Flexible Power Sources

The Quattro facilitates a secure connection to two independent power sources, automatically transitioning to the active source without interrupting the power supply. This feature is invaluable in marine applications, where reliability and flexibility in power sourcing are paramount for safety and operational efficiency.

50A Aux. Output for Enhanced Power Distribution

Featuring a 50A auxiliary output, the Quattro 24/3000 extends your power capabilities, supporting additional systems or devices crucial in specialized applications like marine navigation, communication equipment, or emergency systems in industrial projects.

Continuous Power with Dual AC Outputs

With no-break functionality, the primary AC output ensures that essential equipment remains operational during power source transitions. The secondary output activates with external AC power, optimizing battery usage and supporting non-critical loads, ideal for diverse environments from commercial vehicles to marine vessels.

Tailored for Marine, Commercial, and Off-Grid Use

Whether powering critical navigation systems on a vessel, ensuring uninterrupted operation in commercial vehicles, or providing reliable energy for remote industrial sites, the Victron 24V 3000VA Quattro stands out for its adaptability, robust performance, and efficient power management.

Intelligent Power Management for Optimal Efficiency

Incorporating PowerControl and PowerAssist, the Quattro offers advanced power management, adjusting power usage to prevent overloads and supplementing power during high demand, ensuring optimal battery health and system reliability, especially crucial in marine and off-grid settings.

Compatible with Solar and Renewable Energy Systems

Ideal for off-grid and marine applications seeking sustainability, the Quattro seamlessly integrates with solar PV and renewable energy systems, ensuring consistent AC power availability, even during grid outages, for energy independence and environmental stewardship.

Simplified System Configuration and Remote Monitoring

Easily customize your power system with user-friendly configuration tools. On-site and remote monitoring options provide comprehensive oversight of system performance, essential for maintaining operational efficiency in challenging environments like marine and remote industrial sites.

Versatile Applications for Every Adventure

The Victron 24V 3000VA Quattro Inverter/Charger is engineered to meet the diverse demands of marine adventures, commercial transportation, and off-grid industrial projects. Its compact design does not compromise on power or functionality, making it a top choice for ensuring reliable power supply in the most demanding conditions.

Embark on Your Next Journey with Confidence

Looking for a reliable power solution for your marine vessel, commercial vehicle, or off-grid project? The Victron 24V 3000VA Quattro Inverter/Charger provides the efficiency, flexibility, and durability needed to tackle any challenge. Talk to us about your project today, and let's set the course for success with our advanced power solutions.

SPECIFICATIONS

Specifications

Quattro 24/3000/70-50/50
PowerControl / PowerAssist Yes
Integrated transfer switch (A) Yes
AC Inputs (2x) Input voltage range: 187-265 VAC Input frequency: 45 – 65 Hz Power factor: 1
Maximum feed through current (A) 2x50
Inverter
Input voltage range (V DC) 19 – 33V
Output (1) Output voltage: 230 VAC ± 2% Frequency: 50 Hz ± 0.1%
Cont. output power at 25°C (VA) (3) 3000
Cont. output power at 25°C (W) 2400
Cont. output power at 40°C (W) 2200
Peak power (W) 6000
Maximum efficiency (%) 94
Zero load power (W) 20
Zero load power in AES mode (W) 15
Zero load power in Search mode (W) 10
Charger
Charge voltage 'absorption' (V DC) 28.8 (adjustable)
Charge voltage 'float' (V DC) 27.6 (adjustable)
Storage mode (V DC) 26.4
Charge current house battery (A) (4) 70
Charge current starter battery (A) 4
Battery temperature sensor Yes
General
Auxiliary output (A) (5) 25
Programmable relay (6) 3x
Protection (2) a-g
VE.Bus communication port For parallel and three phase operation, remote monitoring and system integration
General purpose com. port 2x
Remote on/off Yes
Common Characteristics Operating Temp.: -40C to 65C. Humidity (non-condensing): max. 95%
Maximum altitude 3500 m
Enclosure
Material & Colour: Protection category: IP 21 Aluminium (blue RAL 5012)
Battery-connection Four Bolts M8 (2x Plus & 2x Minus)
230 V AC-connection Screw terminals 13 mm² (6AWG)
Weight (kg) 19
Dimensions hxwxd in mm 362 x 258 x 218
Standards
Safety EN-IEC 60335-1, EN-IEC 60335-2-29, EN-IEC 62109-1
Emission, Immunity EN-IEC 61000-3-2, EN-IEC 61000-3-3, EN-IEC 61000-6-1, EN-IEC 61000-6-2, EN-IEC 61000-6-3
Road Vehicles ECE R10-4

1) Can be adjusted to 60 Hz.

2) Protection key:

a) output short circuit b) overload c) battery voltage too high d) battery voltage too low e) inverter over temperature f) 230 VAC on inverter output g) input voltage ripple too high

3) Non-linear load, crest factor 3:1

4) At 25°C ambient

5) Switches off when no external AC source available

6) Programmable relay that can a.o. be set to for general alarm, DC under voltage or genset start/stop function AC Rating: 230V / 4A DC Rating: 4A Up to 35VDC, 1A Up to 60VDC


SKU: Vic-QUA243020010
Barcode: 8719076024149
Model #: QUA243020010
MPN: QUA243020010
