Victron 24V 5000VA MultiPlus-II 24/5000/120-50 Inverter/Charger


Front view of Victron MultiPlus-II 24V 5000VA inverter chargerKey features: 5000VA continuous inverter power, Integrated 120A battery charger, PowerControl and PowerAssist technology, IP22 rated steel enclosure, 24V DC input voltage.Technical dimensional drawing of the MultiPlus-II 24V 5000VA enclosureEngineering dimensions for the 24V 5000VA model showing unit height of 607mm, width of 330mm, and depth of 149mm for installation planning.Specification table for MultiPlus-II 24V 48V inverter charger modelsSystem diagram showing grid parallel topology with solar and batteryA grid-parallel system diagram illustrating the integration of the MultiPlus-II with solar panels via an MPPT controller and battery storage to optimise self-consumption.Internal view of AC and DC connection terminals and communication portsHighlights:AC Output Terminals: Screw terminals for AC output to critical and non-critical loads,AC Input Terminal: Connection point for grid or generator power source,VE.Bus Ports: RJ45 ports for parallel operation and system monitoring,Remote On-Off: Terminal for connecting a remote system control switch,DC Positive Bolt: M8 bolt for positive battery cable connection,DC Negative Bolt: M8 bolt for negative battery cable connection.Side angle view of the blue steel inverter charger enclosureBottom view showing cable glands and ventilation slotsThe bottom panel features multiple cable entry ports with protective glands and ventilation slots for the internal cooling fan system.

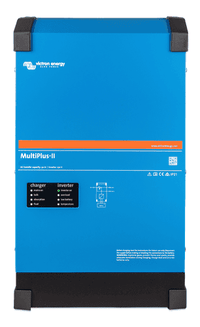

Front view of Victron MultiPlus-II 24V 5000VA inverter charger

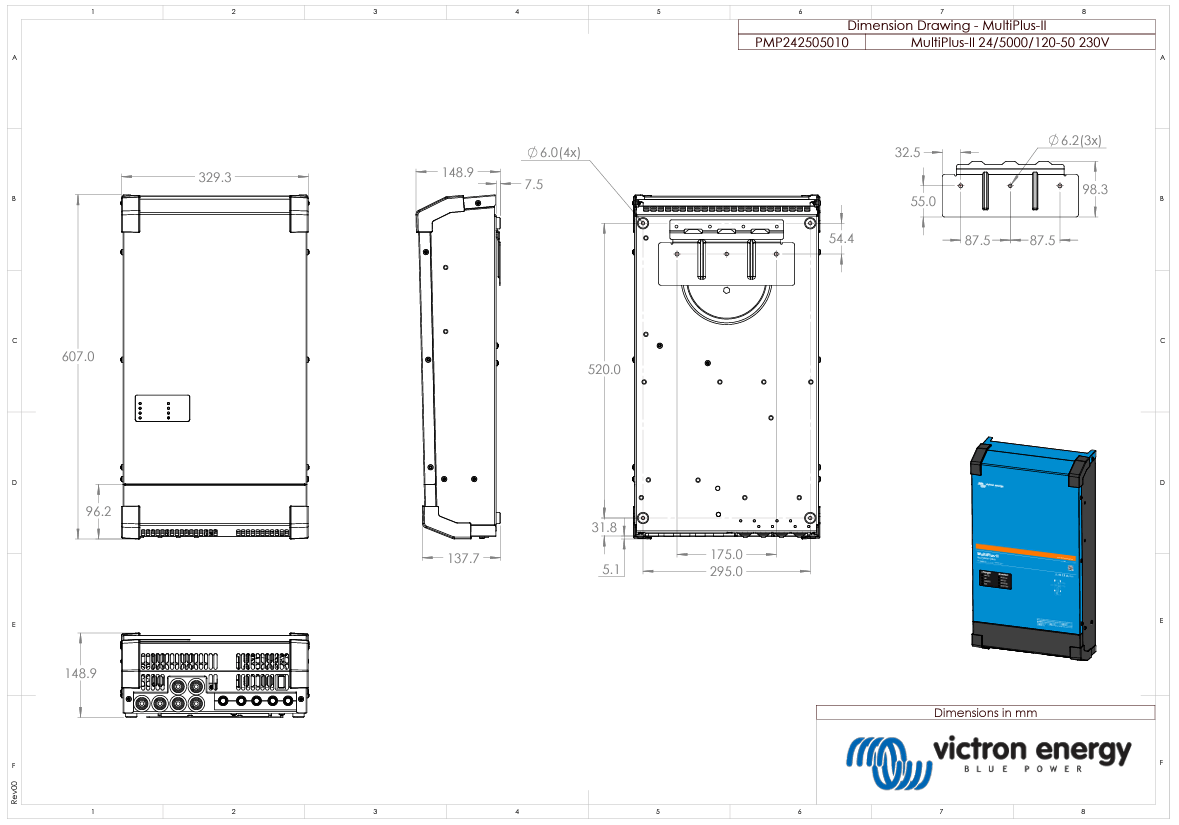

Technical dimensional drawing of the MultiPlus-II 24V 5000VA enclosure

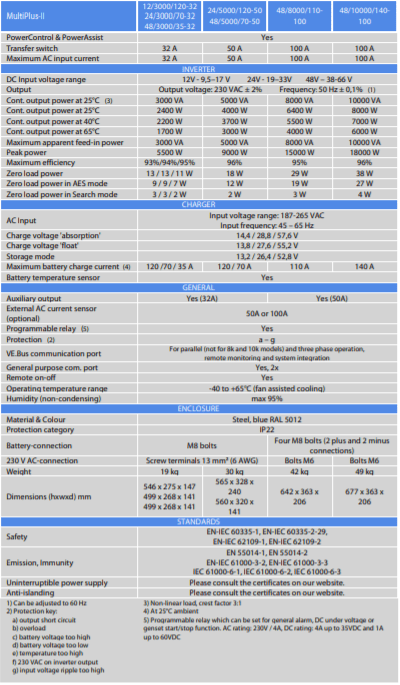

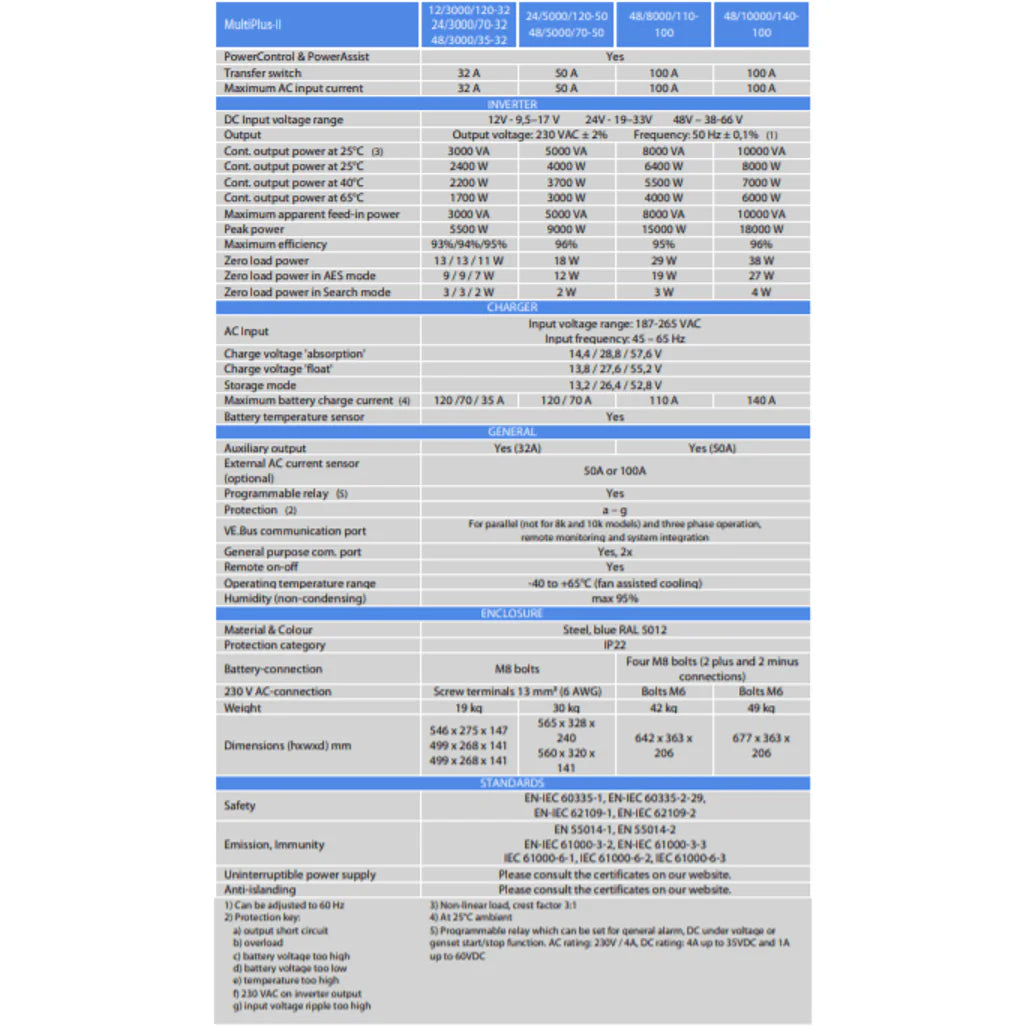

Specification table for MultiPlus-II 24V 48V inverter charger models

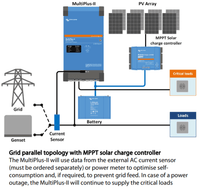

System diagram showing grid parallel topology with solar and battery

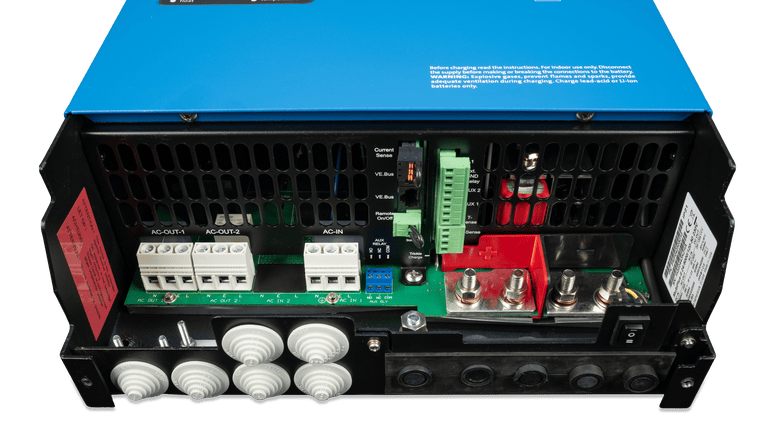

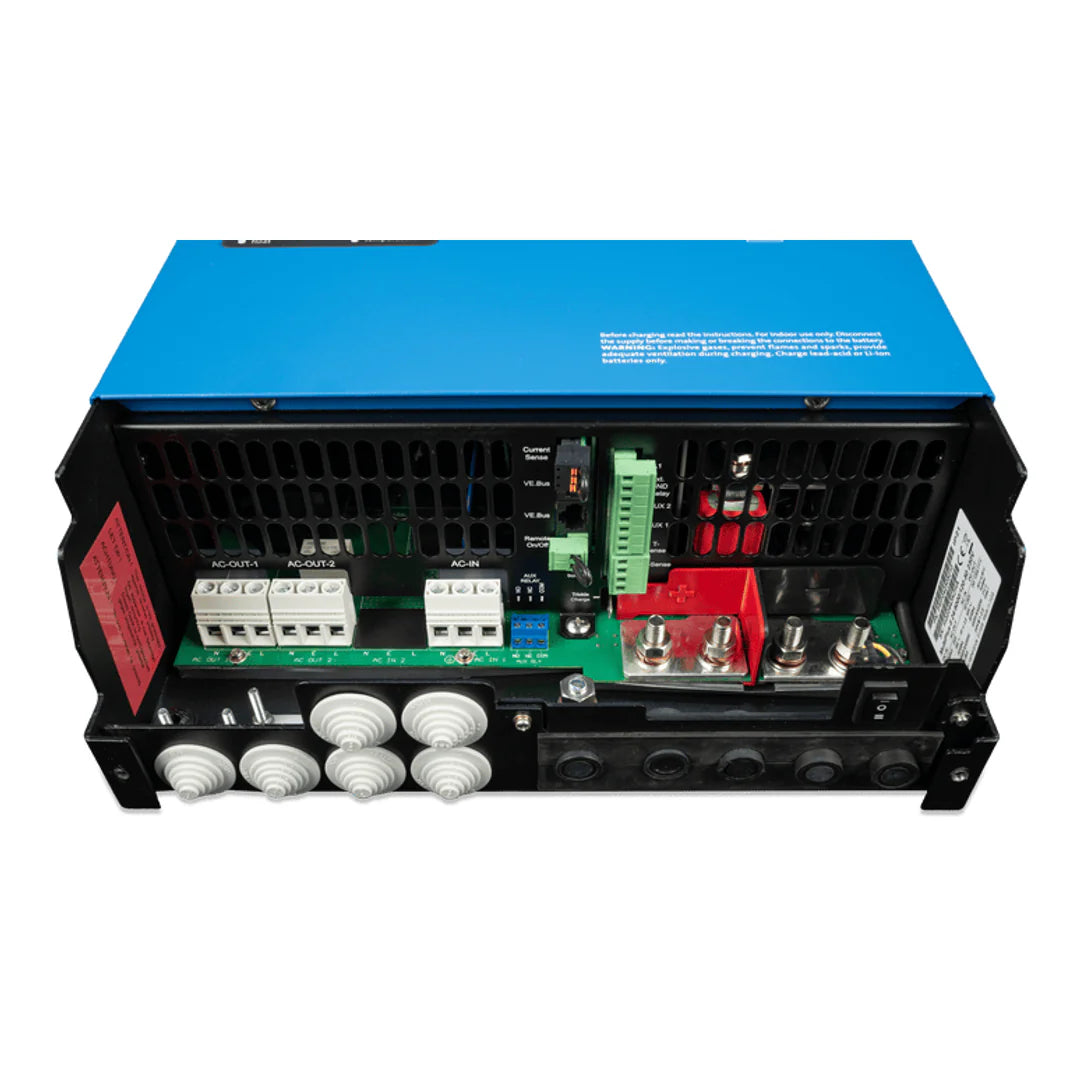

Internal view of AC and DC connection terminals and communication ports

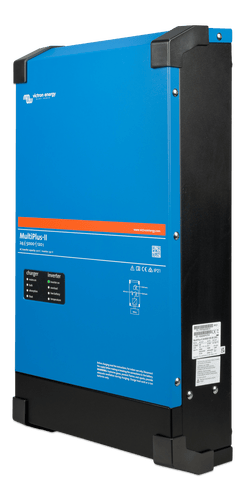

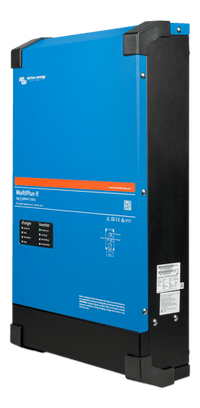

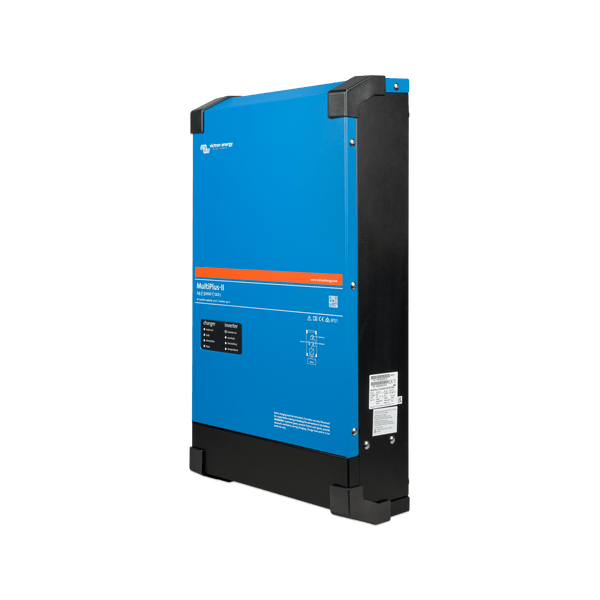

Side angle view of the blue steel inverter charger enclosure

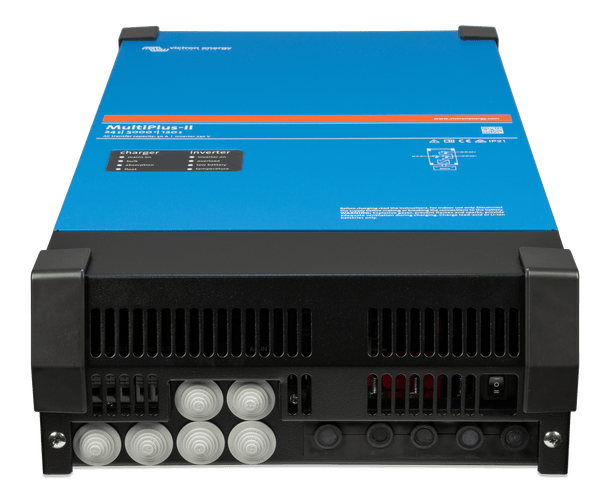

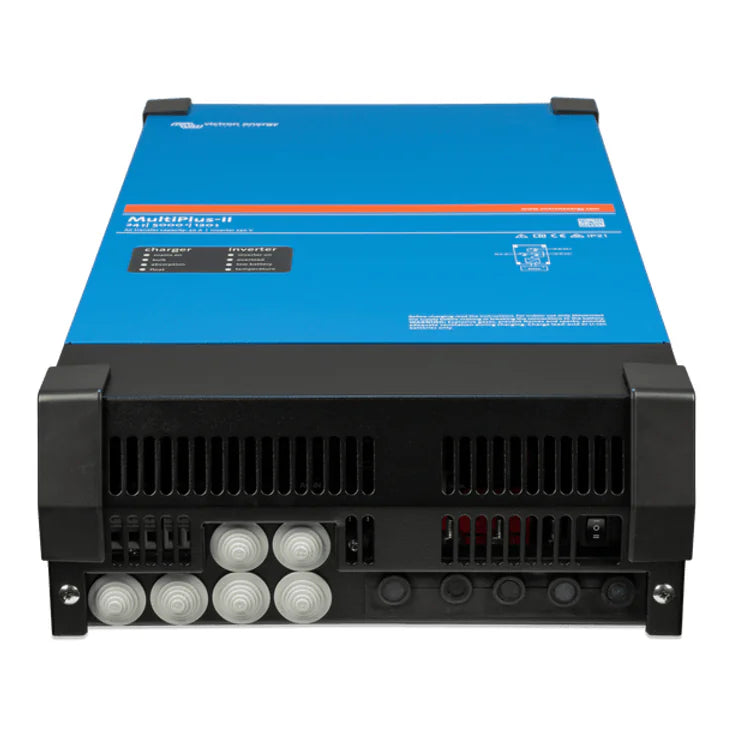

Bottom view showing cable glands and ventilation slots
Regular price $2,936.87
$3,300.00
/
Availability: In Stock
View all products from Victron
Guaranteed Safe and Secure Checkout
American Express Apple Pay Google Pay MastercardPayPalShop Pay Union PayVisa

2
Front view of Victron MultiPlus-II 24V 5000VA inverter charger

Victron 24V 5000VA MultiPlus-II 24/5000/120-50 Inverter/Charger

DESCRIPTION

Enhanced Power Solutions for RVs and Caravans

The MultiPlus-II is a versatile inverter/charger tailor-made for the unique energy demands of RV, bus, truck and caravan enthusiasts. The MultiPlus-II seamlessly manages your on-the-road power needs. Its robust design accommodates the flexible power requirements of modern caravans, providing a reliable power source for a wide array of appliances, even while traversing remote off-grid locations. This powerhouse brings unparalleled energy management with a massive 120A mains charger and a 50A AC transfer switch, providing you with continuous and reliable power.

Robust Inverter for All Your Appliances

The heart of the MultiPlus-II is its robust 5000VA / 4000W inverter, equipped with a reliable toroidal transformer capable of delivering a peak power of 9000W. This means you can run virtually any appliance that plugs into a standard 10A power point, from air conditioning units to kitchen appliances, all with the assurance that your power supply can handle the load with ease. Its substantial power output and surge capacity ensure that your travel experience is marked by convenience and reliability, letting you focus on making memories rather than managing energy.

PowerControl and PowerAssist: Optimized Power for Your Journey

Understanding the fluctuating power environment in RVs, the MultiPlus-II ensures that your vehicle's generator or grid connection is never overwhelmed. It intelligently allocates surplus power for charging, and when extra energy is needed, it supplements with battery power, guaranteeing a constant, stable supply.

Uninterrupted Comfort with Seamless Energy Management

The MultiPlus-II stands out during grid failures, maintaining an uninterrupted power supply to your RV's essential systems. With its ultra-fast switching capability, it guarantees that your comfort and convenience are never compromised, allowing you to enjoy all the luxuries of home while on the move.

Efficient Energy Utilization with Dual AC Outputs

Equipped with dual AC outputs, the MultiPlus-II dedicates power to critical systems without draining your storage batteries. Secondary systems, such as water heaters, can be powered only when external AC is available by using AC output 2, preserving battery life for when you need it most.

Expandable Power for Larger Vehicles and Off-Grid Use

For larger RVs requiring more power, the MultiPlus-II can be scaled up. Multiple units can run in parallel, delivering substantial output for all your energy needs. This scalability makes it an ideal solution for extended travel and off-grid living, where power demands can be as unpredictable as your next destination.

Remote System Management for Easy Control

Manage your power system remotely with intuitive monitoring and control solutions. Whether through a dedicated control panel or a smart device, the MultiPlus-II keeps you informed and in control, ensuring your adventures are powered safely and efficiently.

For caravanning enthusiasts who take to the open road, the MultiPlus-II offers the power and flexibility to travel with confidence, providing a reliable energy hub that stands up to the demands of both the journey and the destination.

SPECIFICATIONS

Specifications

MultiPlus-II 24/5000/120-50
PowerControl & PowerAssist Yes
Transfer switch 50 A
Maximum AC input current 50 A
Inverter
DC Input voltage range 24V: 19 – 33 V
Output 230 VAC ± 2%
Frequency 50 Hz ± 0.1%
Cont. output power at 25°C (3) 5000 VA
Cont. output power at 25°C 4000 W
Cont. output power at 40°C 3700 W
Cont. output power at 65°C 3000 W
Max apparent feed-in power 5000 VA
Peak power 9000 W
Maximum efficiency 96%
Zero load power 18 W
Zero load power in AES mode 12 W
Zero load power in Search mode 2 W
Charger
AC Input voltage range 187-265 VAC
Input frequency 45 – 65 Hz
Charge voltage 'absorption' 28.8 (adjustable)
Charge voltage 'float' 27.6 (adjustable)
Storage mode 26.4 (adjustable)
Max. battery charge current (4) 24 V: 120 A
Battery temperature sensor Yes
General
Auxiliary output Yes (32A)
External AC current sensor (optional) 50 A or 100 A
Programmable relay (5) Yes
Protection (2) a-g
VE.Bus communication port For parallel and three phase operation, remote monitoring and system integration
General purpose com. port Yes (2x)
Remote on-off Yes
Operating temperature range -40 to +65°C (fan assisted)
Humidity (non-condensing) Max 95%
Enclosure
Material & Colour Steel, blue RAL 5012
Protection category IP22
Battery-connection M8 bolts
230 V AC-connection Screw terminals 13 mm² / AWG6
Weight 30 kg
Dimensions (h x w x d) 24V: 607 x 330 x 149 mm 48V: 565 x 320 x 149 mm
Standards
Safety EN-IEC 60335-1, EN-IEC 60335-2-29, EN-IEC 62109-1, EN-IEC 62109-2
Emission, Immunity EN 55014-1, EN 55014-2, EN-IEC 61000-3-2, EN-IEC 61000-3-3, EN-IEC 61000-6-1, EN-IEC 61000-6-2, EN-IEC 61000-6-3
Uninterruptible power supply Please consult the certificates on our website.
Anti-islanding Please consult the certificates on our website.
  1. Can be adjusted to 60 Hz
  2. Protection key:
    • a) output short circuit
    • b) overload
    • c) battery voltage too high
    • d) battery voltage too low
    • e) temperature too high
    • f) 230 VAC on inverter output
    • g) input voltage ripple too high
  3. Non-linear load, crest factor 3:1
  4. Up to 25°C ambient
  5. Programmable relay which can be set for:
    • General alarm
    • DC under voltage
    • Genset start/stop function.
      • AC rating: 230V / 4A
      • DC rating: 4A up to 35VDC and 1A up to 60VDC

SKU: VIC-PMP242505010
Barcode: 8719076052913
Model #: PMP242505010
MPN: PMP242505010

WARRANTY

Victron Energy Limited Warranty Policy

Direct Customers

Victron Energy provides the following warranty to any direct customer (OEM, distributor or dealer) in relation to any products that Victron Energy has directly sold to the direct customer. This warranty is not an end-user warranty between Victron Energy and an end-user, and end-users shall not have any rights or remedies under this limited warranty towards Victron Energy directly. The direct customer shall, in turn, ensure that the end-user is provided with a warranty identical to this warranty, subject to applicable local mandatory law.

End-Users

Victron Energy may also provide a warranty directly to end-users, in which case the below warranty conditions equally apply to such warranty. In that case, end-users shall claim their warranty at their place of purchase or through the original direct customer of Victron, which can be found through the support section on Victron’s website https://www.victronenergy.com/support. Hence, the direct customer shall on behalf of Victron Energy deal with any warranty claims made under any warranty that Victron Energy may provide directly to end-users. This support section on Victron’s website https://www.victronenergy.com/support will provide further guidance on the procedure for end-users to make a claim under this limited warranty.

If the end-user is a consumer – a natural person who is acting for purposes which are outside that person's trade, business, craft or profession – the following applies. The rights and remedies granted to the consumer under this limited warranty are without prejudice to the consumer’s statutory rights. Furthermore, the consumer is entitled by law to remedies from the seller free of charge in the event of a lack of conformity of the goods (such as repair, replacement, price reduction or rescission), which remedies are not affected by this limited warranty.

Warranty

Victron Energy warrants its products to be free from defects in workmanship and materials for a period of 5 years from the date of purchase by the original end-user, with a maximum of 66 months from the Victron Energy invoice date. Exceptions on this are: lead-acid batteries: 2 years from date of purchase by the original end-user, with a maximum of 30 months from the Victron Energy invoice date, Lithium batteries: 3 years from date of purchase by the original end-user, with a maximum of 42 months from the Victron Energy invoice date. In addition to this, proof of correct battery usage is required when making a battery warranty claim.

For a 10% surcharge on the current net price for products that came with a 5-year warranty, an additional 5 years of warranty can be purchased by Victron’s direct customers, bringing the total warranty to 10 years. Warranty extensions need to be applied for ultimately one year before the expiration of the original term. Victron may ask proof that the product was still functional at the time of purchase of the extended warranty.

During the warranty period, Victron Energy will, at its discretion, repair, replace or (partly) credit the defective product free of charge. The warranty does not include performing or reimbursing de‐installation, transportation, and re‐installation.

This warranty will be considered void if the unit has suffered any physical damage or alteration, either internally or externally, and does not cover damages arising from improper use like:

  • Reversed battery polarity.
  • Inadequate connection.
  • Mechanical shock or deformation.
  • Contact with liquid or oxidation by condensation.
  • Use in an inappropriate environment (dust, corrosive vapour, humidity, high temperature, biological infestation, etc.).
  • Breakage or damage due to lightning.
  • Connection terminals and screws destroyed or other damages, like overheating, due to insufficient tightening.
  • For any electronic breakage except due to lightning (reverse polarity, over‐voltage due to external cause), the state of the internal control diode and/or the input/output X and Y capacitors determine the warranty.

This warranty will not apply where the product has been misused, neglected, improperly installed, or repaired by anyone other than Victron Energy or one of its authorized Repair Centres. In order to qualify for the warranty, the product must not be disassembled or modified.

This warranty and our warranty obligations thereunder (repair, replacement or credit) are the direct customer’s and, if applicable, the end-user’s sole rights and remedies and our sole obligations with respect to any defective and/or non-conforming product or breach of warranty and is subject to and without prejudice to the limitations of liability in this warranty.

Victron Energy shall not be liable for damages, whether direct, incidental, special, or consequential, even caused by negligence or fault.

As a product requires service, it must be brought back to the place of purchase. In case no contact can be made with the merchant, or if he is either unable or not allowed to provide service, direct contact should be made with Victron Energy through the support section on Victron’s website.

In case Victron Energy replaces a product, it will own the replaced product. Victron Energy owns all parts removed from repaired products. Victron Energy uses new or reconditioned parts made by various manufacturers when performing warranty repairs or building replacement products.

If Victron Energy repairs or replaces a part of a product, its warranty term is not extended: the warranty will apply for the remaining term of the original warranty term. For example, if Victron Energy replaces a product with a 5-year warranty after 3 years, the warranty of this product will apply for another 2 years, with a minimum of 6 months.

All remedies and the measure for damages are limited to the above. Victron Energy shall in no event be liable for consequential, incidental, contingent or special damages, even if having been advised of the probability of such damages.

The foregoing limited warranty provided by Victron Energy is in lieu of any other warranties, express or implied arising by law, course of dealing, course of performance, usage of trade or otherwise, of any kind whatsoever including, without limitation, warranties of merchantability or fitness for a particular purpose, with respect to any product. The above is without prejudice to the arrangement for consumers detailed above.

Life Support Policy

As a general policy, Victron Energy does not recommend the use of any of its products in life support applications where failure or malfunction of Victron Energy's product can be reasonably expected to cause the failure of the life support device or to significantly affect its safety or effectiveness. Victron Energy does not recommend the use of any of its products in direct patient care. Victron Energy will not knowingly sell its products for use in such applications unless it receives in writing assurances satisfactory to Victron Energy that the risks of injury or damage have been minimized, the customer assumes all such risks, and the liability of Victron Energy is adequately protected under the circumstances.

Warranty on repairs for products outside their warranty period

The warranty period on products that are outside their warranty period and have been repaired by Victron Energy or one of the Victron Energy Repair centres is six (6) months from delivery. The same applies to spare parts and circuit boards that have been supplied or repaired by Victron Energy.

Transport

It is the responsibility of the sender to sufficiently package these products. The transport must be organized in a way to avoid any damage, especially when a single unit or heavy unit is sent.

Severability

If a part of the terms and conditions of this warranty is held invalid, void or unenforceable due to any particular national or international legislation, it shall not affect other parts of the terms and conditions of this warranty.

Applicable law

This warranty is exclusively governed by the laws of the Netherlands, to the exclusion of the UN Convention on Contracts for the International Sale of Goods.

Contact details

Victron Energy B.V. | De Paal 35, 1351 JG Almere, The Netherlands | https://www.victronenergy.com/support
