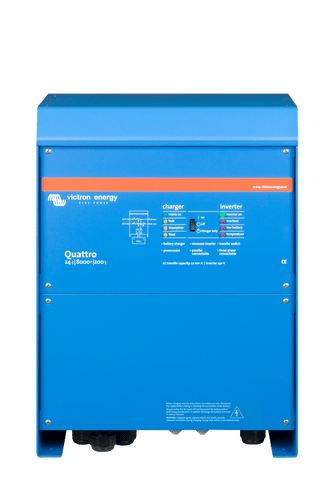

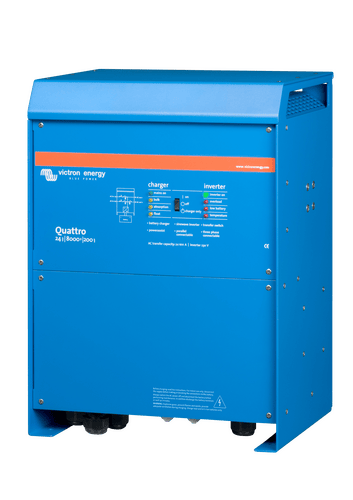

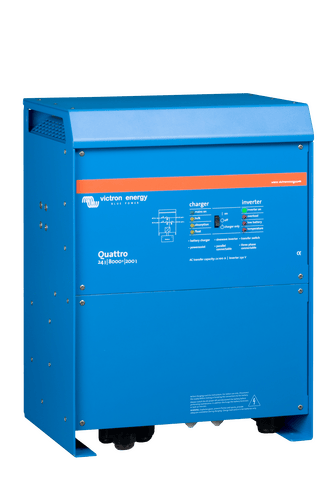

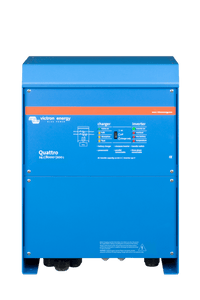

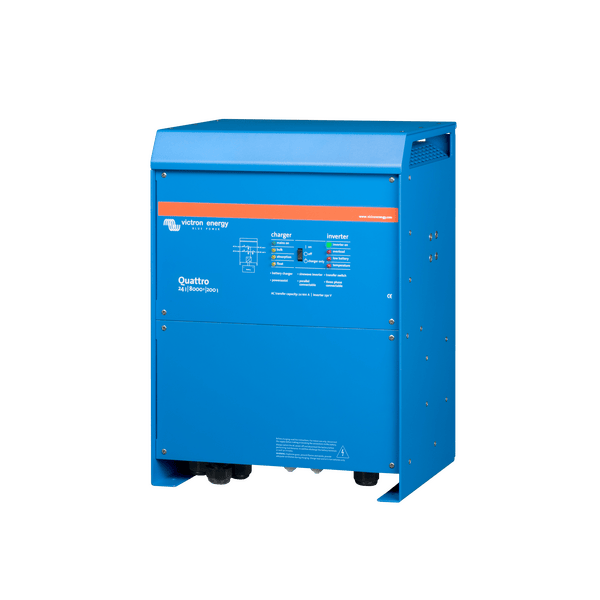

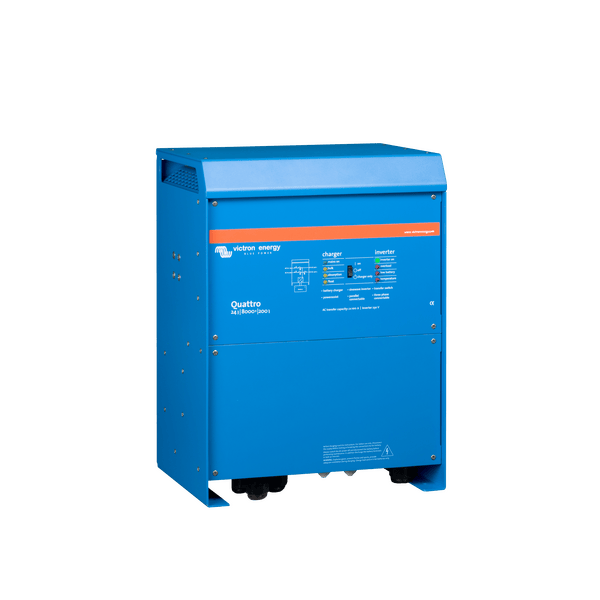

Victron 24V 8000VA Quattro 24/8000/200-100/100+50A Aux Inverter/Charger
Victron 24V 8000VA Quattro 24/8000/200-100/100+50A Aux Inverter/Charger
Two AC inputs with integrated transfer switch
Highlights:Operation Switch: Three-way toggle for On, Off, or Charger Only modes,Charger LEDs: Status lights for mains power and charging stages,Inverter LEDs: Warning and status lights for inverter operation and faults,Cable Entries: Heavy-duty glands for battery and AC wiring connections,Model Branding: Clear identification for the 24V 8000VA 200A model.

Key features: 8000VA continuous output power at 25 degrees Celsius, Dual AC inputs with integrated transfer switch, 200A house battery charge current, PowerControl and PowerAssist functionality, IP21 protection category aluminium enclosure.

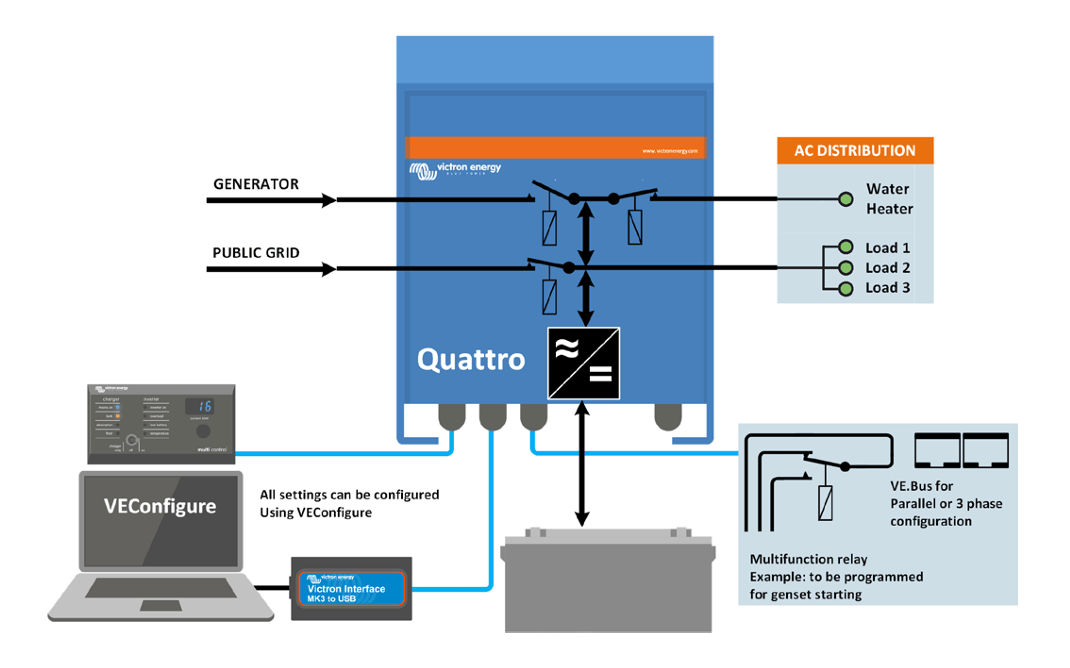

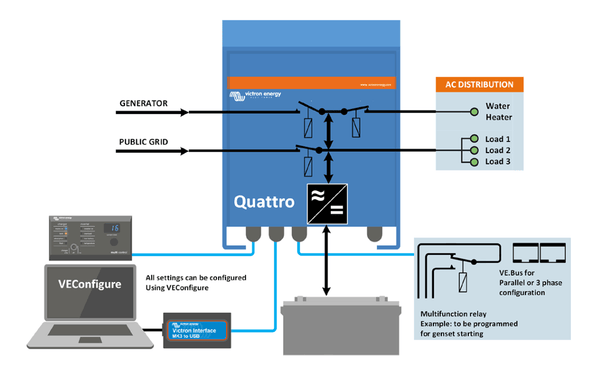

Comprehensive wiring schematic illustrating the Quattro's ability to manage multiple AC sources, battery storage, and distributed household loads.

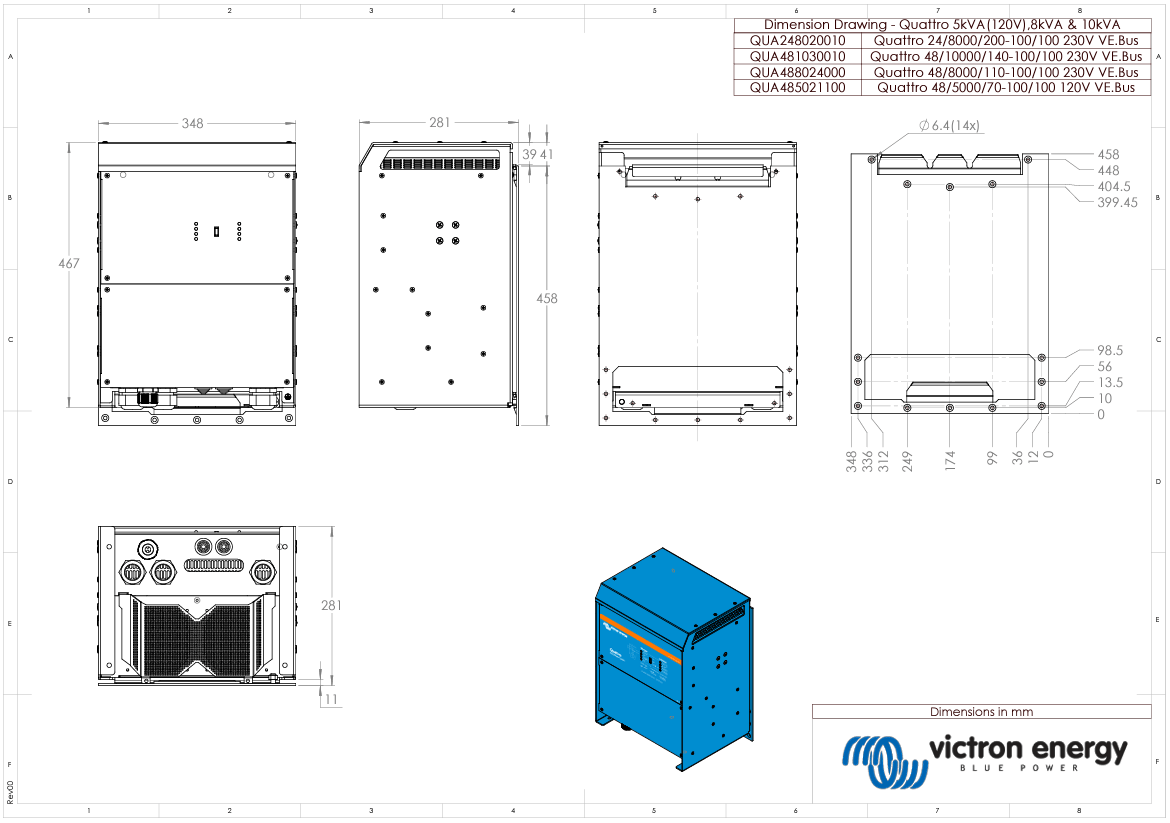

Technical blueprint displaying enclosure dimensions of 470mm height, 350mm width, and 280mm depth for installation planning.
DESCRIPTION
Victron 24V 8000VA Quattro 24/8000/200-100/100+50A Aux. VE.Bus Inverter/Charger: Powering Commercial and Industrial Off-Grid Projects
Introducing the Victron 24V 8000VA Quattro Inverter/Charger, a compact yet powerful solution specifically designed for trucks, buses, and off-grid commercial and industrial projects. This versatile inverter/charger supports dual AC inputs with an integrated transfer switch, allowing seamless power management between the public grid, generators, or alternative energy sources, ensuring your operations remain uninterrupted.
Dual AC Inputs for Versatile Power Management
The Quattro's dual AC input feature facilitates a reliable connection to two independent power sources. This capability ensures an automatic transition to the active power source, providing a continuous power supply for sensitive equipment and critical operations in commercial vehicles and off-grid setups.
Enhanced Power Supply with 50A Aux. Output
Equipped with a 50A auxiliary output, the Quattro 24/8000 enhances your power options, allowing for additional devices or systems to be powered simultaneously. This feature is particularly useful in scenarios where auxiliary equipment requires a dedicated power supply, such as in specialized vehicle applications or remote industrial projects.
Uninterrupted Power with Dual AC Outputs
The primary AC output offers no-break functionality, ensuring that essential devices and systems continue operating without interruption during power transitions. The secondary output is activated only when external AC power is available, optimizing energy usage and extending battery life in mobile and stationary applications.
Ideal for Mobile and Stationary Off-Grid Applications
With its robust design and efficient power conversion, the Victron 24V 8000VA Quattro is perfectly suited for a wide range of applications. Whether it's providing reliable power for commercial vehicles like trucks and buses or supporting critical systems in off-grid industrial projects, this inverter/charger delivers the performance and reliability needed to keep operations running smoothly.
Smart Power Management Features
The Quattro incorporates intelligent power management features such as PowerControl and PowerAssist. These technologies allow for the efficient use of available power sources, preventing overload and ensuring that additional power is provided during peak demand, all while maintaining optimal battery health.
Seamless Integration with Solar and Alternative Energy Systems
Designed for compatibility with solar PV and other renewable energy systems, the Quattro ensures that you have access to AC power even during grid failures. This makes it an ideal choice for off-grid projects aiming for sustainability and energy independence.
Easy Configuration and Monitoring
Tailor your power system to meet specific project requirements with ease, thanks to user-friendly configuration options. On-site monitoring and control are simplified with various devices, enabling real-time oversight of system performance. Remote monitoring and configuration capabilities further enhance operational efficiency, allowing for adjustments to be made from anywhere.
Applications Tailored to Your Needs
The Victron 24V 8000VA Quattro Inverter/Charger is engineered to meet the unique demands of commercial vehicles and off-grid commercial and industrial projects. Its compact size, combined with powerful output and smart management features, ensure it is a versatile choice for power supply challenges.
Let's Power Your Project
Considering an off-grid power solution for your commercial vehicle, bus, truck, or industrial project? The Victron 24V 8000VA Quattro Inverter/Charger offers the reliability, efficiency, and flexibility you need. Talk to us about your project today, and let's explore how our power solutions can drive your success.

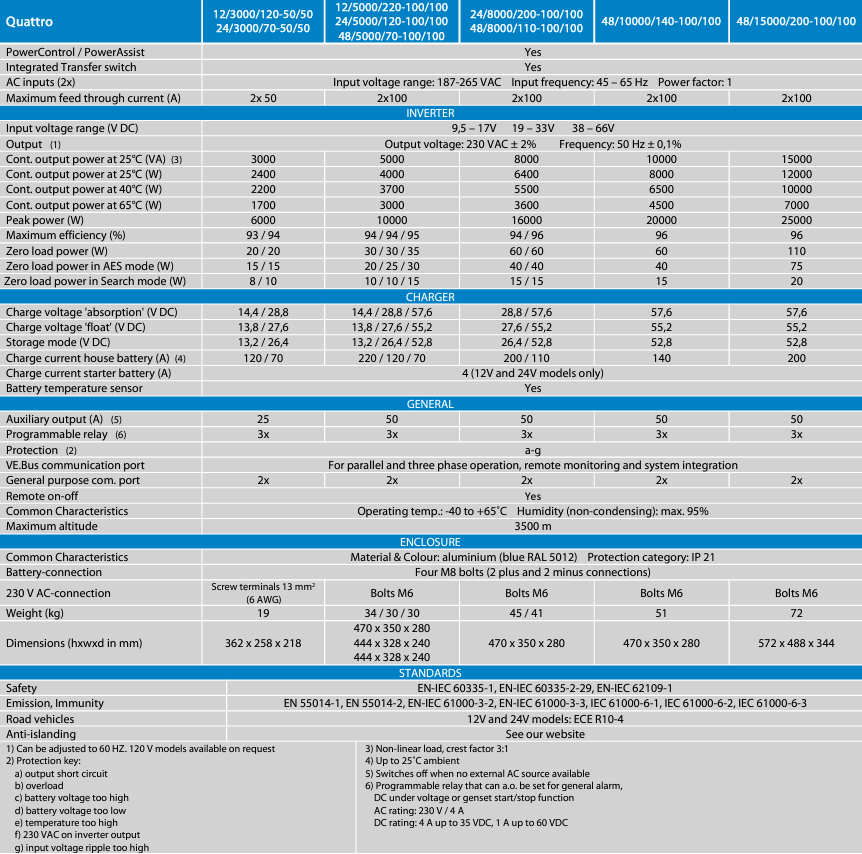

SPECIFICATIONS
Specifications
| Quattro | 24/8000/200-100/100 |
|---|---|
| PowerControl / PowerAssist | Yes |
| Integrated transfer switch (A) | Yes |
| AC Inputs (2x) | Input voltage range: 187-265 VAC Input frequency: 45 – 65 Hz Power factor: 1 |
| Maximum feed through current (A) | 2x100 |
| Inverter | |
| Input voltage range (V DC) | 19 – 33V |
| Output (1) | Output voltage: 230 VAC ± 2% Frequency: 50 Hz ± 0.1% |
| Cont. output power at 25°C (VA) (3) | 8000 |
| Cont. output power at 25°C (W) | 6400 |
| Cont. output power at 40°C (W) | 5500 |
| Peak power (W) | 16000 |
| Maximum efficiency (%) | 94 |
| Zero load power (W) | 60 |
| Zero load power in AES mode (W) | 40 |
| Zero load power in Search mode (W) | 15 |
| Charger | |
| Charge voltage 'absorption' (V DC) | 28.8 (adjustable) |
| Charge voltage 'float' (V DC) | 27.6 (adjustable) |
| Storage mode (V DC) | 26.4 |
| Charge current house battery (A) (4) | 200 |
| Charge current starter battery (A) | 4 |
| Battery temperature sensor | Yes |
| General | |
| Auxiliary output (A) (5) | 50 |
| Programmable relay (6) | 3x |
| Protection (2) | a-g |
| VE.Bus communication port | For parallel and three phase operation, remote monitoring and system integration |
| General purpose com. port | 2x |
| Remote on/off | Yes |
| Common Characteristics | Operating Temp.: -40C to 65C. Humidity (non-condensing): max. 95% |
| Maximum altitude | 3500 m |
| Enclosure | |
| Material & Colour: | Protection category: IP 21 Aluminium (blue RAL 5012) |
| Battery-connection | Four Bolts M8 (2x Plus & 2x Minus) |
| 230 V AC-connection | Bolts M6 |
| Weight (kg) | 45 |
| Dimensions hxwxd in mm | 470 x 350 x 280 |
| Standards | |
| Safety | EN-IEC 60335-1, EN-IEC 60335-2-29, EN-IEC 62109-1 |
| Emission, Immunity | Road and urban environments: ECE R10-4 |
| Road Vehicles | ECE R10-4 N/A |
1) Can be adjusted to 60 Hz.
2) Protection key:
a) output short circuit b) overload c) battery voltage too high d) battery voltage too low e) inverter over temperature f) 230 VAC on inverter output g) input voltage ripple too high
3) Non-linear load, crest factor 3:1
4) At 25°C ambient
5) Switches off when no external AC source available
6) Programmable relay that can a.o. be set to for general alarm, DC under voltage or genset start/stop function AC Rating: 230V / 4A DC Rating: 4A Up to 35VDC, 1A Up to 60VDC
| SKU: | Vic-QUA248020010 |
| Barcode: | 8719076024194 |
| Model #: | QUA248020010 |
| MPN: | QUA248020010 |
