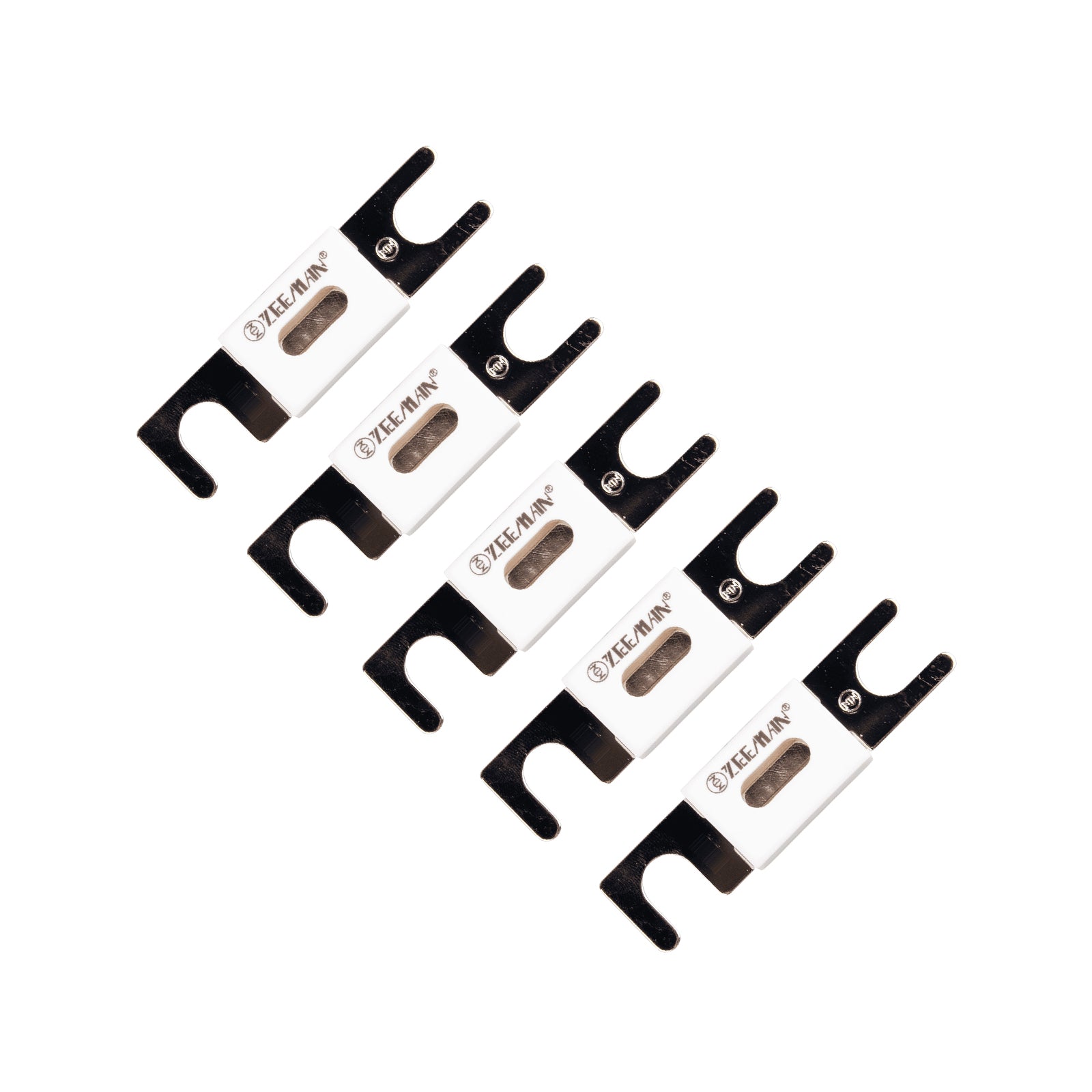

5x Victron 300A 80V ANL Fuse

Secure Your DC Distribution with Victron ANL Fuses

Ensuring the safety of high-current DC circuits is a critical component of any professional power installation. The Victron Energy 80V 300A ANL Fuse provides robust overcurrent protection for demanding setups, safely interrupting excessive current before it can damage expensive components or wiring. Supplied in a convenient package of five, these fuses are well suited to battery banks, large inverter-chargers, and heavy-duty DC distribution networks in marine, 4x4, and off-grid solar applications.

Optimised for 48V Systems

Unlike standard automotive fuses that are typically capped at 32V, these Victron ANL fuses boast a maximum voltage rating of 80V DC. This makes them the correct choice for 48V nominal systems commonly found in off-grid solar, marine, and commercial power applications, where charging voltages easily exceed the limits of standard 32V hardware. They are equally suitable for 12V and 24V setups, providing a versatile safety solution across multiple voltage platforms.

Reliable High-Current Protection

With a continuous current rating of 300A, these fuses are designed to handle the substantial loads drawn by large inverters, anchor winches, and bow thrusters. They feature an exposed element design typical of the ANL form factor, allowing for simple visual inspection of the fuse state without needing to remove it from the holder or disconnect the circuit.

Key System Benefits

• High Voltage Threshold: Rated up to 80V DC, making them perfectly suited for safely protecting 12V, 24V, and 48V systems.
• Heavy-Duty Capacity: 300A rating provides dependable circuit protection for large inverters and high-draw DC distribution networks.

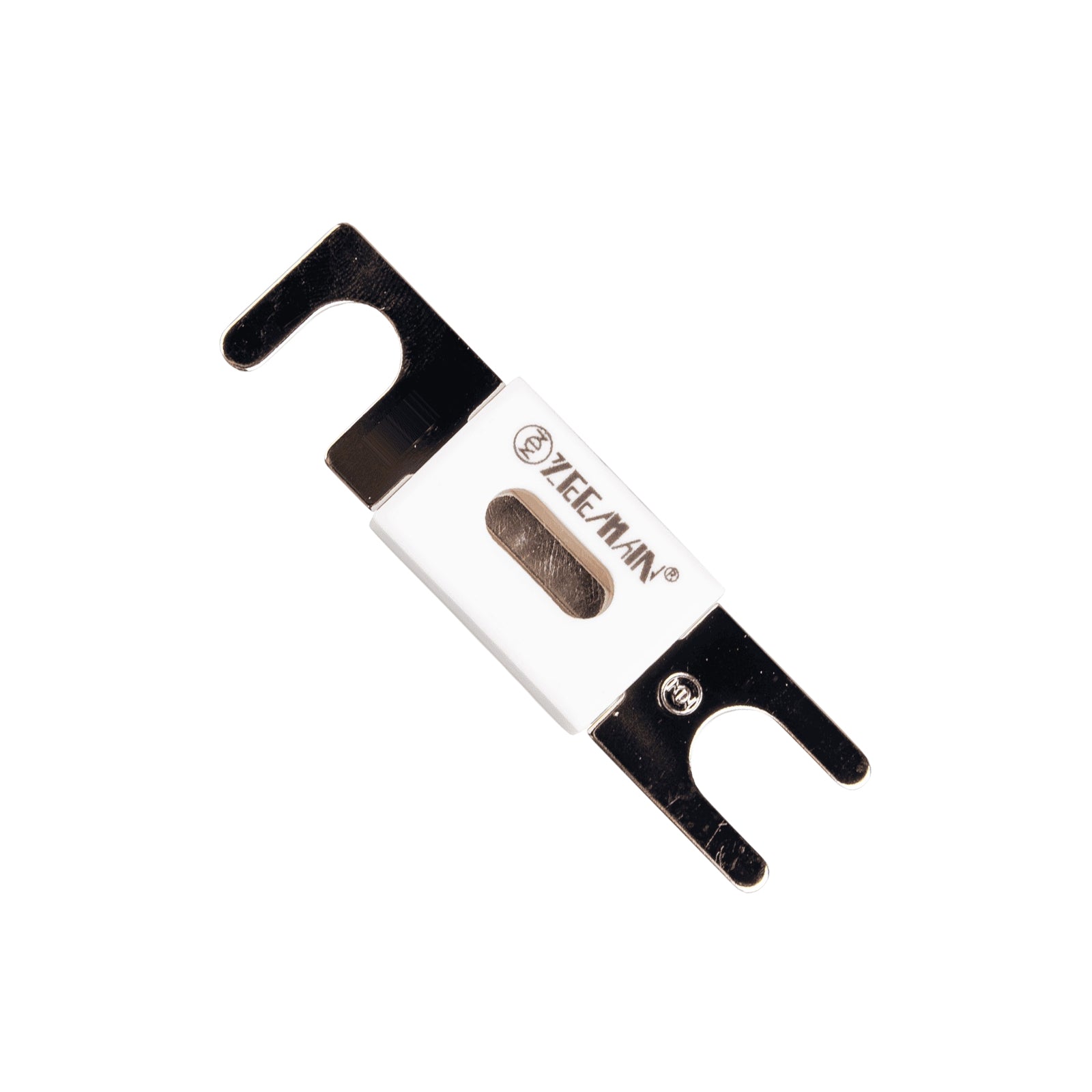

• Visual Inspection: Open-window ANL design allows for quick visual confirmation of a blown fuse during maintenance checks.
• Bulk Convenience: Supplied as a package of five to ensure you have necessary spares on hand for installation and long-term maintenance.
• Seamless Integration: Designed to fit perfectly within Victron ANL fuse holders and compatible heavy-duty DC distribution blocks.

Simple and Safe Installation

When constructing a safe DC power system, selecting the correct fuse is just as important as sizing the cable itself. These Victron ANL fuses are designed to bolt down securely onto 8mm or 10mm studs depending on the holder, providing a low-resistance connection that minimises heat generation under heavy loads. Pair these fuses with a quality Victron ANL fuse holder to maintain the integrity and safety of your power system over its entire lifespan.
