5x Victron 400A 80V ANL Fuse
5x Victron 400A 80V ANL Fuse
High-capacity 400A ANL fuses designed for reliable 80V DC circuit protection.
Key features: High-current 400A rating for primary circuit protection, 80V DC maximum voltage rating suitable for 12V, 24V, and 48V systems, Heat-resistant ceramic body construction for safety, Slotted terminal design compatible with standard ANL fuse holders.
Highlights:Slotted Terminal: Tin-plated copper terminals with open slots for easy installation onto studs,Ceramic Housing: Durable heat-resistant ceramic body provides superior thermal protection,Inspection Window: Clear central window allows for quick visual verification of fuse status.
DESCRIPTION

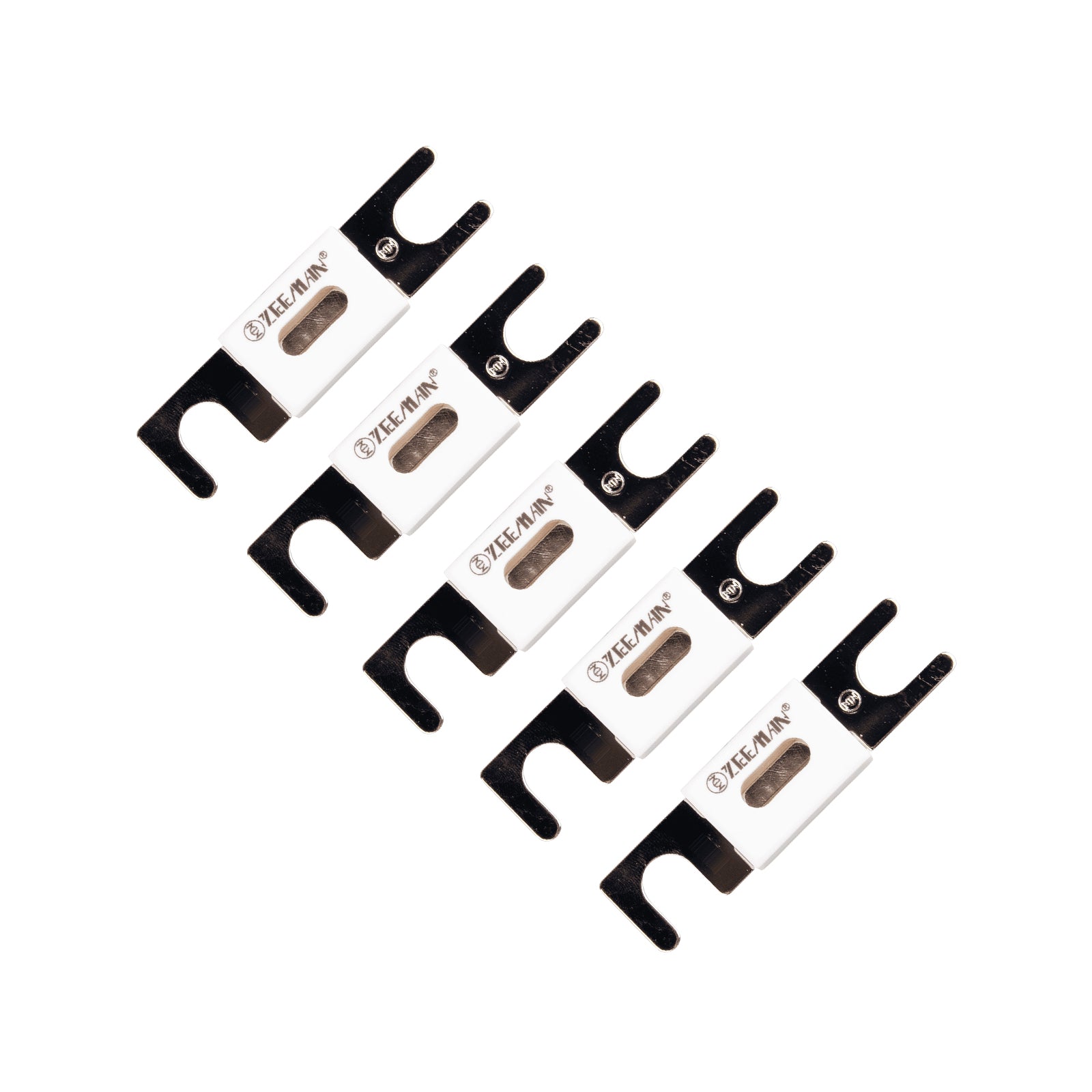

Victron 400A 80V ANL Fuse (5 Pack)
Safeguard your high-current off-grid, marine, and mobile power systems with the Victron 80V 400A ANL Fuse. Engineered for heavy-duty DC applications, this package of five precision-manufactured ANL fuses provides critical overcurrent protection for demanding electrical circuits. The 80V DC rating makes these fuses specifically well suited to 48V battery banks, where standard 32V fuses pose a severe risk of sustained arcing during a fault condition. Whether installing a high-capacity inverter charger or building a large-scale lithium battery bank, these fuses deliver dependable safety and performance.
Critical Circuit Protection for 48V Systems
Proper fusing is a mandatory safety requirement for any high-capacity DC system. The Victron 400A ANL fuse is designed to rapidly interrupt fault currents before wiring can overheat or system components sustain damage. Unlike standard automotive fuses that max out at 32V, this robust 80V-rated fuse safely extinguishes arcs in higher voltage applications. This makes it an essential component for modern 48V solar setups and marine power systems. The visible element design allows for quick visual inspection, helping system operators verify the fuse status without requiring a multimeter during troubleshooting.
Key Specifications and Benefits
- High Voltage Tolerance: Rated up to 80V DC, ensuring safe arc suppression in 12V, 24V, and 48V systems.
- Heavy-Duty 400A Rating: Capable of handling substantial continuous currents for large inverters and heavy DC loads.
- Package of Five: Supplied as a convenient five-pack to ensure you have spare fuses on hand for maintenance or multi-circuit installations.
- Visible Element: Allows for immediate visual confirmation of a blown fuse for faster system diagnostics.
- Broad Compatibility: Works seamlessly with Victron single ANL fuse holders and standard aftermarket ANL mounting hardware.
Seamless Component Integration
These 400A ANL fuses are designed to integrate cleanly into your DC distribution setup. They are directly compatible with Victron Energy single ANL fuse holders, ensuring a secure, low-resistance connection that minimises voltage drop across the circuit. For larger installations, these fuses can be implemented alongside Victron modular busbar accessories to efficiently distribute power across multiple heavy loads. Careful selection of fuse sizing and robust holders helps maintain system integrity under continuous heavy current draw.
Ensure your demanding off-grid and marine electrical systems remain protected against critical overcurrent events. Incorporate the Victron 80V 400A ANL Fuse into your DC distribution design for reliable, high-capacity circuit protection.
SPECIFICATIONS
Specifications
| Brand | Victron Energy |
| Part Number | CIP143400020 |
| Fuse Type | ANL |
| Current Rating | 400A |
| Maximum Voltage | 80V DC |
| Package Quantity | 5 Fuses |
| Weight | 0.106 kg |
| SKU: | VIC-CIP143400020 |
| Barcode: | 8719076061786 |
