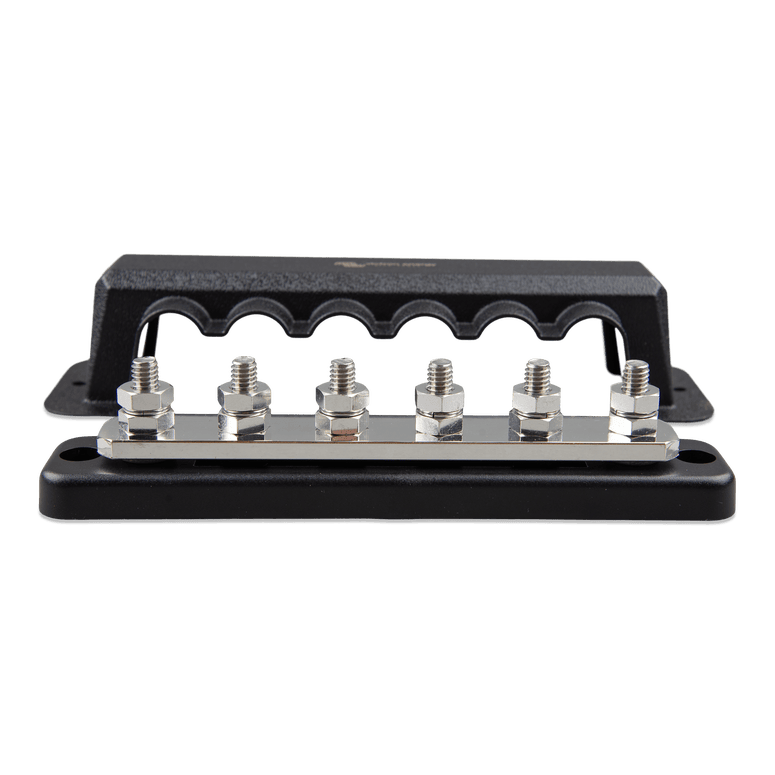

Victron Busbar 250A 6P/Terminals & Cover

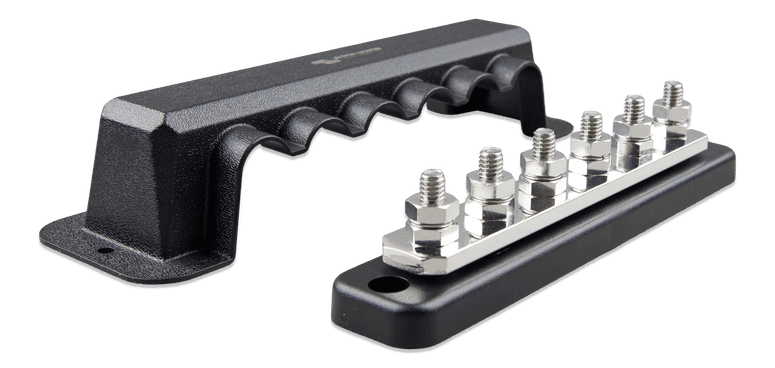

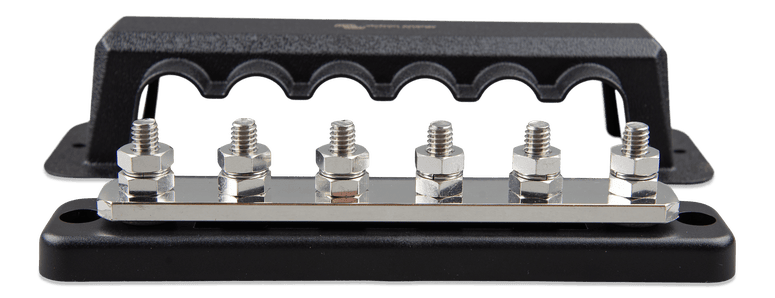

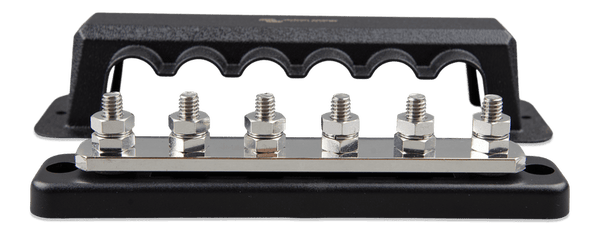

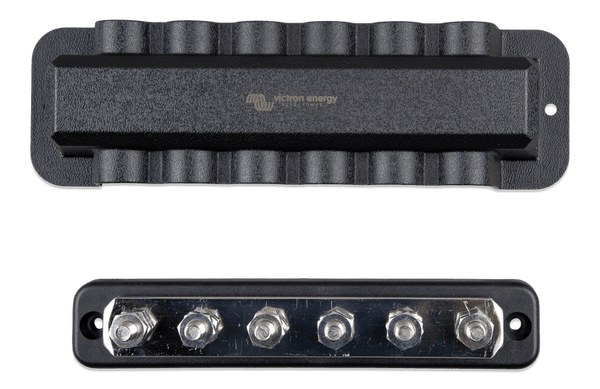

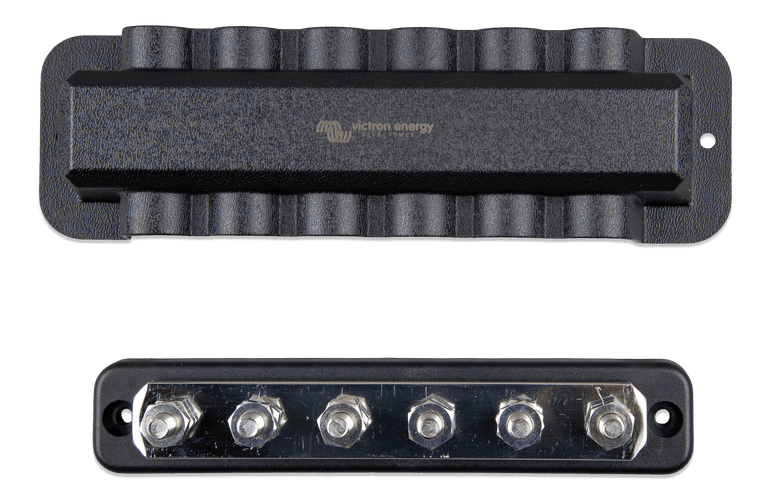

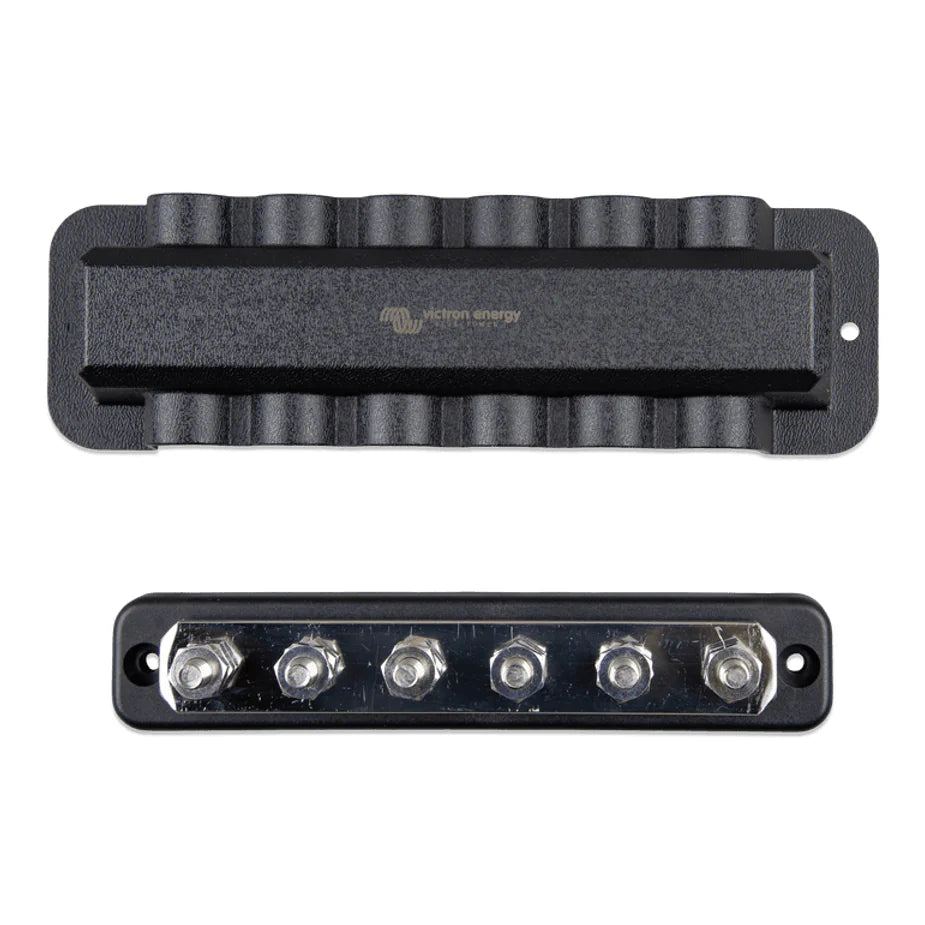

Victron Busbar 250A 6P/Terminals & Cover
6-Way Power Distribution with Tin-Plated Copper & Protective Cover
Highlights:Stainless steel terminals: 8mm stainless steel terminal studs for secure high-current connections,Tin-plated copper strip: High conductivity tin-plated copper busbar strip measuring 5 x 24 mm,Black ABS cover: Protective black ABS cover for safety and cable management,Mounting base: Durable ABS base with mounting holes for secure installation.
Key features: 250A maximum current rating, 70V DC maximum voltage rating, 8mm stainless steel terminal studs, Tin-plated copper busbar strip, Black ABS base and cover construction, Dimensions with cover 48 x 237 x 70 mm.
Guaranteed Safe and Secure Checkout
4
DESCRIPTION
High-Current Power Distribution for Marine, RV, and Solar Systems
When wiring high-capacity battery banks, inverters, and DC loads, relying on direct battery terminal connections often leads to dangerous clutter and voltage drops. The Victron busbar 250A 6P provides a professional, highly efficient central distribution point for heavy-duty DC electrical circuits. Rated for up to 250 Amps and handling voltages up to 70V DC, this distribution block is the ideal solution for robust 12V, 24V, and 48V systems found in off-grid solar setups, marine vessels, and mobile power configurations.
Engineered for Maximum Conductivity and Low Resistance
At the core of this power distribution solution is a high-quality tin-plated copper busbar strip measuring 5 x 24 mm. Copper is renowned for its exceptional electrical conductivity, while the heavy-duty tin plating provides critical protection against oxidation and corrosion. This ensures that your electrical system maintains optimal current flow and minimal voltage drop, even in harsh coastal or humid environments where standard components may degrade over time.
High-Torque Stainless Steel Terminals
A common point of failure in generic power systems is weak terminal connections that loosen over time due to vibration or thermal cycling. To combat this, the Victron busbar features six 5/16 inch (approx. 8mm) stainless steel terminal studs. These heavy-duty studs allow for high-torque tightening (up to 13 N.m), creating a highly secure mechanical and electrical connection for heavy gauge cable lugs. The unique insert-moulded design eliminates the need for separate securing nuts underneath, providing a rigid anchor point that will not spin or break loose during installation.
Protective Busbar Cover and Flame-Retardant Safety
Safety is paramount when dealing with high-amperage DC power. An accidental short circuit across exposed terminals can cause catastrophic damage or fire. This unit includes a dedicated busbar cover made from durable black ABS plastic, which shields the live connections from dropped tools, loose conductive materials, and accidental contact. The mounting base itself is constructed from UL 94 V-0 rated flame-retardant ABS, providing an extra layer of thermal protection. Furthermore, the raised bus configuration allows for straightforward wire routing, creating a clean, highly organised installation that simplifies future maintenance.
Key Features and Benefits
- 250A Maximum Current Rating: Handles heavy loads from large inverters, solar charge controllers, and battery banks.
- 70V DC Maximum Voltage: Perfectly suited for standard 12V, 24V, and 48V nominal battery systems.
- Six 5/16 inch (approx. 8mm) Studs: Ample connection points for main feeds and high-draw branch circuits.
- Tin-Plated Copper Strip: Delivers superior conductivity and excellent long-term corrosion resistance.
- Stainless Steel Hardware: Allows for secure, high-torque connections that withstand heavy mobile vibration.
- Flame-Retardant Construction: UL 94 V-0 base and UL 94 V-2 cover enhance system safety against excessive heat.
Eliminate Battery Terminal Clutter
Stacking multiple heavy-duty ring terminals onto a single battery post is a well-known risk factor for poor contact, increased resistance, and excessive heat generation. By migrating your main distribution cables to a dedicated 200 amp busbar or higher capacity 250A model, you isolate the mechanical stress from the battery terminals and ensure every circuit receives a clean, low-resistance connection. This practice drastically improves system reliability and troubleshooting speed.
Secure your high-current DC circuits with a proven, professional-grade solution. Add the Victron 250A 6-way busbar to your electrical system today to ensure safe, highly efficient power distribution across your entire setup.
SKU: VIC-VBB125060020
Visit Victron's Official Victron Busbar 250A 6P/Terminals & Cover Webpage Here
SPECIFICATIONS

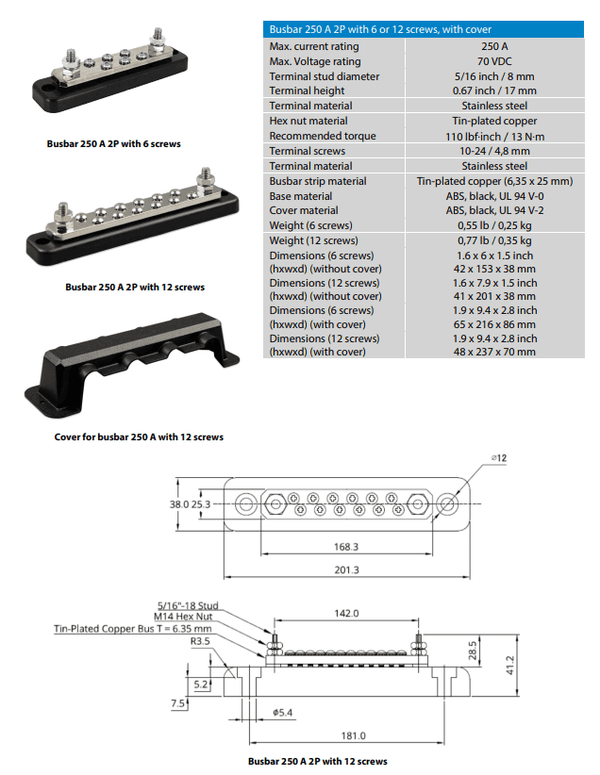

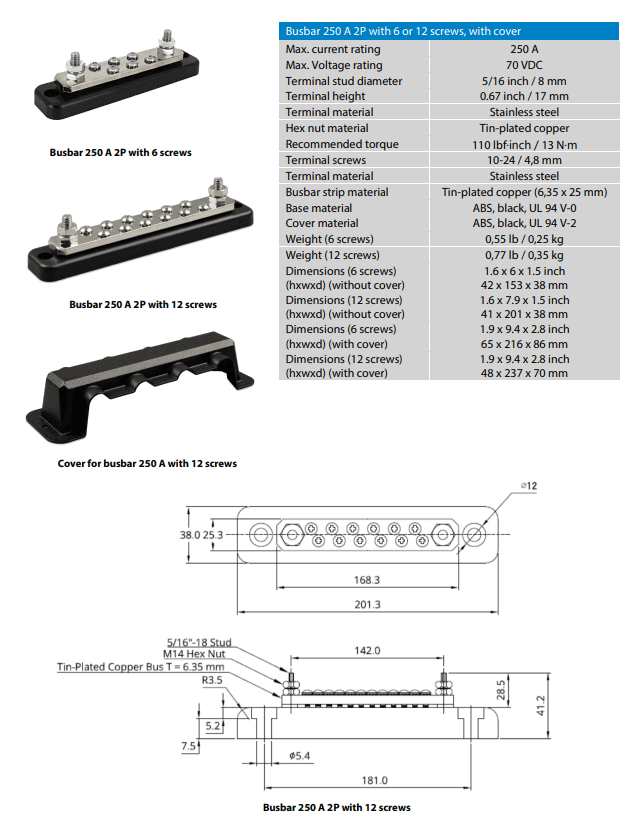

Specifications
| Feature | Specification |
|---|---|
| Max. Current Rating | 250 A |
| Max. Voltage Rating | 70 VDC |
| Terminal Diameter | 5/16 inch / 8 mm |
| Terminal Height | 0.67 inch / 17 mm |
| Terminal Material | Stainless steel |
| Hex Nut Material | Tin-plated copper |
| Recommended Torque | 110 lbf·inch / 13 N·m |
| Busbar Strip Material | Tin-plated copper (5 x 24 mm) |
| Base Material | ABS, black, UL 94 V-0 |
| Cover Material | ABS, black, UL 94 V-2 |
| Weight, 6 Terminals | 1.0 lb / 0.43 kg |
| Dimensions (6 Terminals) (HxWxD) with Cover | 1.9 x 9.4 x 2.8 inch / 48 x 237 x 70 mm |
| SKU: | VIC-VBB125060020 |
| Barcode: | 8719076056416 |
| Model #: | VBB125060020 |
| MPN: | VBB125060020 |
WARRANTY
Victron Energy Limited Warranty Policy
Direct Customers
Victron Energy provides the following warranty to any direct customer (OEM, distributor or dealer) in relation to any products that Victron Energy has directly sold to the direct customer. This warranty is not an end-user warranty between Victron Energy and an end-user, and end-users shall not have any rights or remedies under this limited warranty towards Victron Energy directly. The direct customer shall, in turn, ensure that the end-user is provided with a warranty identical to this warranty, subject to applicable local mandatory law.
End-Users
Victron Energy may also provide a warranty directly to end-users, in which case the below warranty conditions equally apply to such warranty. In that case, end-users shall claim their warranty at their place of purchase or through the original direct customer of Victron, which can be found through the support section on Victron’s website https://www.victronenergy.com/support. Hence, the direct customer shall on behalf of Victron Energy deal with any warranty claims made under any warranty that Victron Energy may provide directly to end-users. This support section on Victron’s website https://www.victronenergy.com/support will provide further guidance on the procedure for end-users to make a claim under this limited warranty.
If the end-user is a consumer – a natural person who is acting for purposes which are outside that person's trade, business, craft or profession – the following applies. The rights and remedies granted to the consumer under this limited warranty are without prejudice to the consumer’s statutory rights. Furthermore, the consumer is entitled by law to remedies from the seller free of charge in the event of a lack of conformity of the goods (such as repair, replacement, price reduction or rescission), which remedies are not affected by this limited warranty.
Warranty
Victron Energy warrants its products to be free from defects in workmanship and materials for a period of 5 years from the date of purchase by the original end-user, with a maximum of 66 months from the Victron Energy invoice date. Exceptions on this are: lead-acid batteries: 2 years from date of purchase by the original end-user, with a maximum of 30 months from the Victron Energy invoice date, Lithium batteries: 3 years from date of purchase by the original end-user, with a maximum of 42 months from the Victron Energy invoice date. In addition to this, proof of correct battery usage is required when making a battery warranty claim.
For a 10% surcharge on the current net price for products that came with a 5-year warranty, an additional 5 years of warranty can be purchased by Victron’s direct customers, bringing the total warranty to 10 years. Warranty extensions need to be applied for ultimately one year before the expiration of the original term. Victron may ask proof that the product was still functional at the time of purchase of the extended warranty.
During the warranty period, Victron Energy will, at its discretion, repair, replace or (partly) credit the defective product free of charge. The warranty does not include performing or reimbursing de‐installation, transportation, and re‐installation.
This warranty will be considered void if the unit has suffered any physical damage or alteration, either internally or externally, and does not cover damages arising from improper use like:
- Reversed battery polarity.
- Inadequate connection.
- Mechanical shock or deformation.
- Contact with liquid or oxidation by condensation.
- Use in an inappropriate environment (dust, corrosive vapour, humidity, high temperature, biological infestation, etc.).
- Breakage or damage due to lightning.
- Connection terminals and screws destroyed or other damages, like overheating, due to insufficient tightening.
- For any electronic breakage except due to lightning (reverse polarity, over‐voltage due to external cause), the state of the internal control diode and/or the input/output X and Y capacitors determine the warranty.
This warranty will not apply where the product has been misused, neglected, improperly installed, or repaired by anyone other than Victron Energy or one of its authorized Repair Centres. In order to qualify for the warranty, the product must not be disassembled or modified.
This warranty and our warranty obligations thereunder (repair, replacement or credit) are the direct customer’s and, if applicable, the end-user’s sole rights and remedies and our sole obligations with respect to any defective and/or non-conforming product or breach of warranty and is subject to and without prejudice to the limitations of liability in this warranty.
Victron Energy shall not be liable for damages, whether direct, incidental, special, or consequential, even caused by negligence or fault.
As a product requires service, it must be brought back to the place of purchase. In case no contact can be made with the merchant, or if he is either unable or not allowed to provide service, direct contact should be made with Victron Energy through the support section on Victron’s website.
In case Victron Energy replaces a product, it will own the replaced product. Victron Energy owns all parts removed from repaired products. Victron Energy uses new or reconditioned parts made by various manufacturers when performing warranty repairs or building replacement products.
If Victron Energy repairs or replaces a part of a product, its warranty term is not extended: the warranty will apply for the remaining term of the original warranty term. For example, if Victron Energy replaces a product with a 5-year warranty after 3 years, the warranty of this product will apply for another 2 years, with a minimum of 6 months.
All remedies and the measure for damages are limited to the above. Victron Energy shall in no event be liable for consequential, incidental, contingent or special damages, even if having been advised of the probability of such damages.
The foregoing limited warranty provided by Victron Energy is in lieu of any other warranties, express or implied arising by law, course of dealing, course of performance, usage of trade or otherwise, of any kind whatsoever including, without limitation, warranties of merchantability or fitness for a particular purpose, with respect to any product. The above is without prejudice to the arrangement for consumers detailed above.
Life Support Policy
As a general policy, Victron Energy does not recommend the use of any of its products in life support applications where failure or malfunction of Victron Energy's product can be reasonably expected to cause the failure of the life support device or to significantly affect its safety or effectiveness. Victron Energy does not recommend the use of any of its products in direct patient care. Victron Energy will not knowingly sell its products for use in such applications unless it receives in writing assurances satisfactory to Victron Energy that the risks of injury or damage have been minimized, the customer assumes all such risks, and the liability of Victron Energy is adequately protected under the circumstances.
Warranty on repairs for products outside their warranty period
The warranty period on products that are outside their warranty period and have been repaired by Victron Energy or one of the Victron Energy Repair centres is six (6) months from delivery. The same applies to spare parts and circuit boards that have been supplied or repaired by Victron Energy.
Transport
It is the responsibility of the sender to sufficiently package these products. The transport must be organized in a way to avoid any damage, especially when a single unit or heavy unit is sent.
Severability
If a part of the terms and conditions of this warranty is held invalid, void or unenforceable due to any particular national or international legislation, it shall not affect other parts of the terms and conditions of this warranty.
Applicable law
This warranty is exclusively governed by the laws of the Netherlands, to the exclusion of the UN Convention on Contracts for the International Sale of Goods.
Contact details
Victron Energy B.V. | De Paal 35, 1351 JG Almere, The Netherlands | https://www.victronenergy.com/support
