Victron Busbar 150A 6P/Terminals & Cover

6-Terminal 150A DC Busbar with Protective Cover - 231.7x31.8x45mm


Regular price $47.52
$52.80
/
Availability: In Stock
View all products from Victron
Guaranteed Safe and Secure Checkout
Apple Pay Google Pay MastercardPayPalShop Pay Visa

3

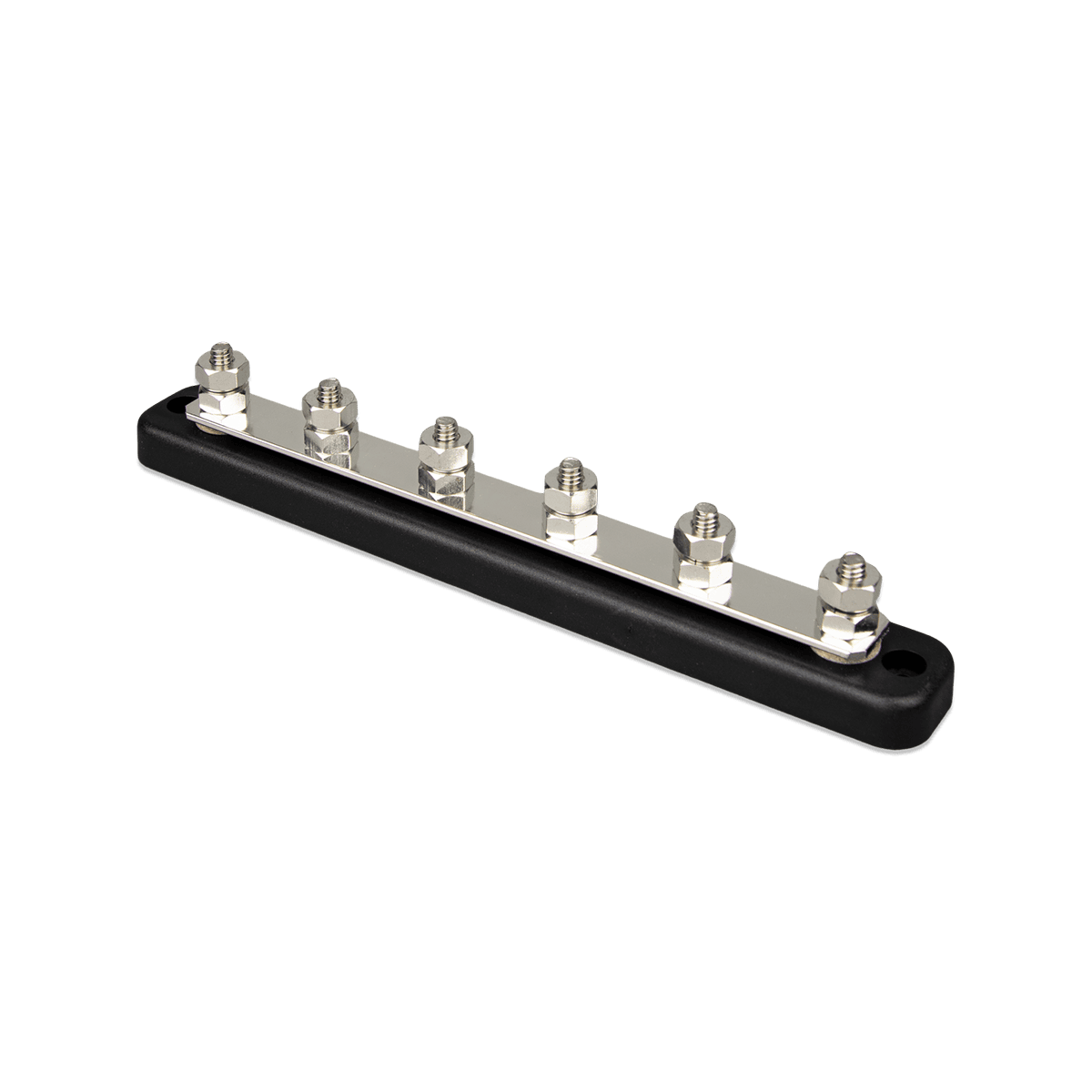

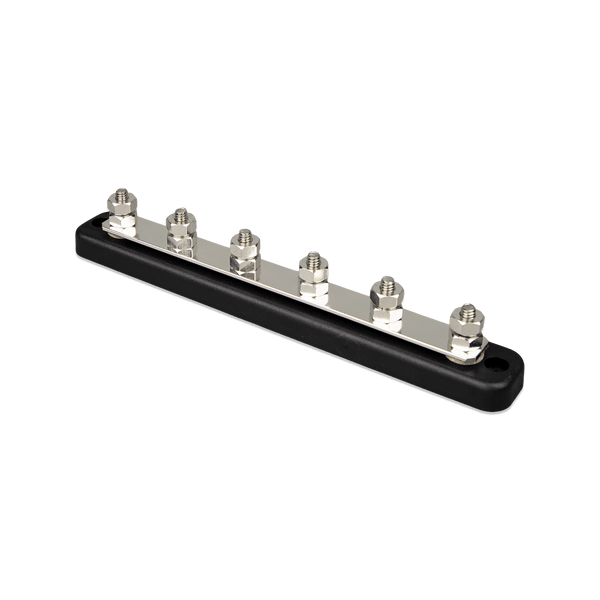

Isometric view of a 6P 150A busbar showing the copper strip and hex nuts

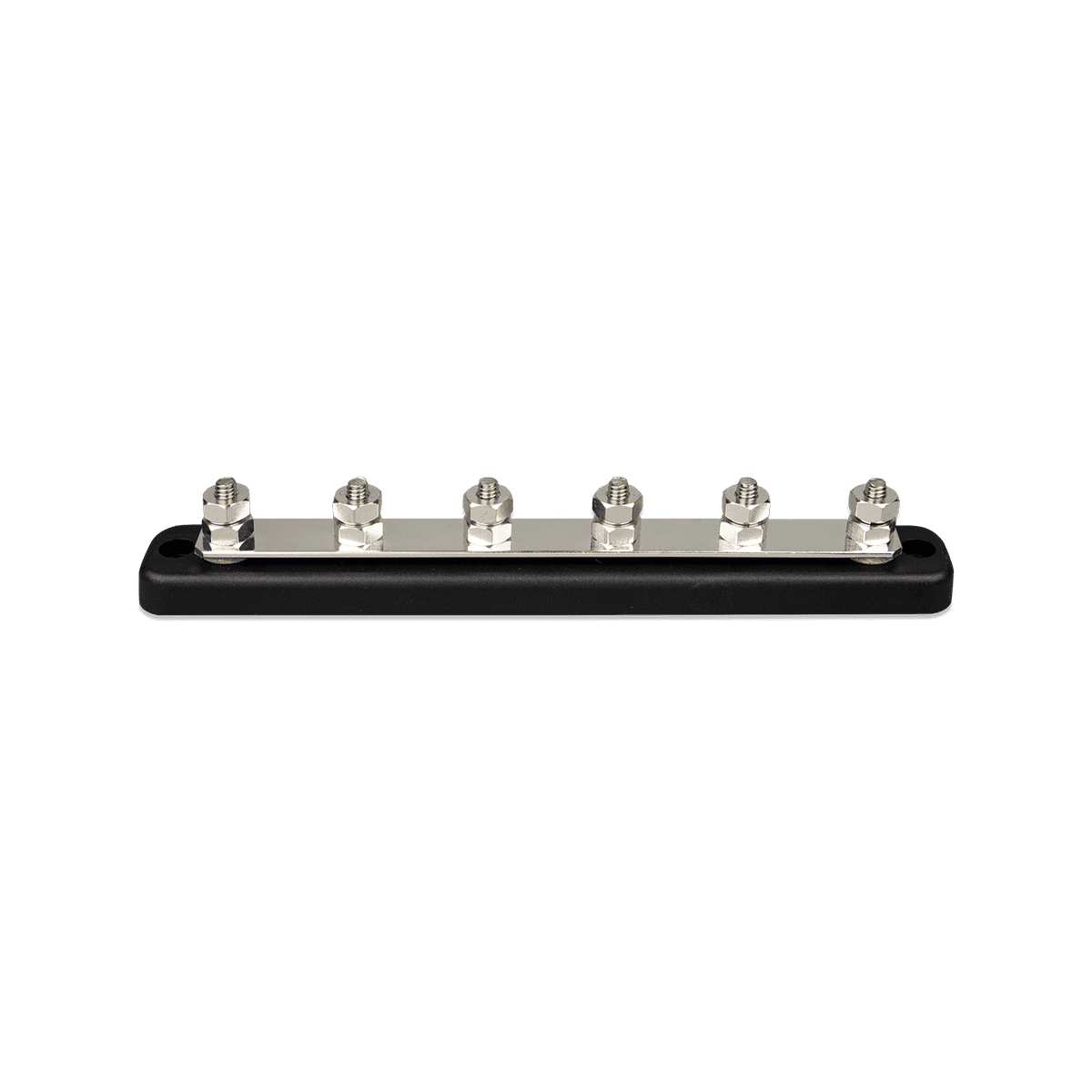

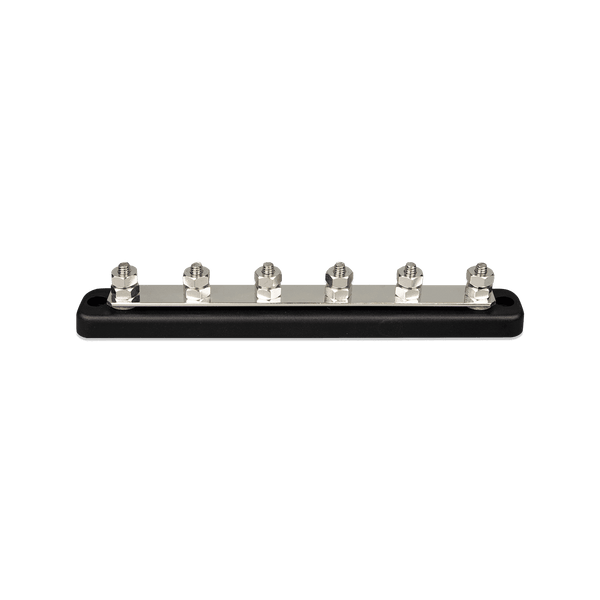

Victron Busbar 150A 6P/Terminals & Cover

DESCRIPTION

Victron 150A 6-Position Busbar: High-Current Distribution with Integrated Protective Cover

Professional Power Distribution for Marine, Automotive, and Off-Grid Systems

The Victron 150A 6-Position Busbar provides a robust and organised solution for managing high-current DC circuits. Engineered for demanding environments, this busbar simplifies connections between batteries, inverters, chargers, and other DC equipment. Its 6-terminal design consolidates multiple high-current connections onto a single, secure point, reducing cable clutter and improving system reliability.

Unlike generic busbars that may use lower-grade materials or lack essential safety features, this Victron model is built with a tin-plated copper conductor for superior conductivity and corrosion resistance. The included clear polycarbonate cover protects against accidental shorts and physical contact, a critical safety feature often overlooked in budget alternatives. This makes it an ideal choice for professional installers and DIY enthusiasts seeking a dependable, long-lasting power distribution hub.

Engineered for Safety and Long-Term Reliability

Safety is paramount in any DC electrical system. The Victron 150A 6-Position Busbar incorporates several design elements to mitigate risks. The flame-retardant ABS base (UL 94 V-0) provides a stable, insulated mounting platform, while pre-drilled mounting holes allow for secure attachment to any flat surface, preventing movement and potential shorts. The raised bus design ensures easy access for wiring and reduces the chance of terminals contacting metal surfaces.

Each terminal features a moulded-in stainless steel stud (1/4 inch / 6.35 mm diameter), eliminating the need for a bottom securing nut. This design allows for higher torque values (up to 7 N·m) without compromising the stud's integrity, ensuring a gas-tight, low-resistance connection that remains stable over time. The tin-plated copper hex nuts further enhance conductivity and resist corrosion, even in humid or salt-laden air.

Key Features

  • 150 A continuous current rating for demanding DC loads
  • 6 stainless steel terminal studs with tin-plated copper nuts for secure, high-torque connections

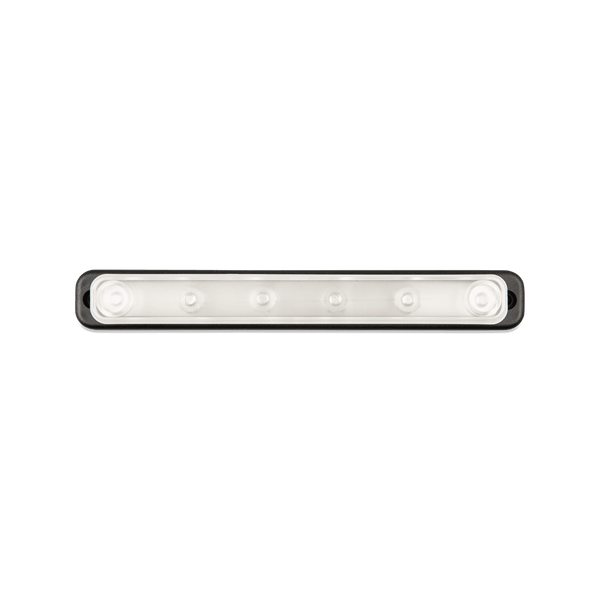

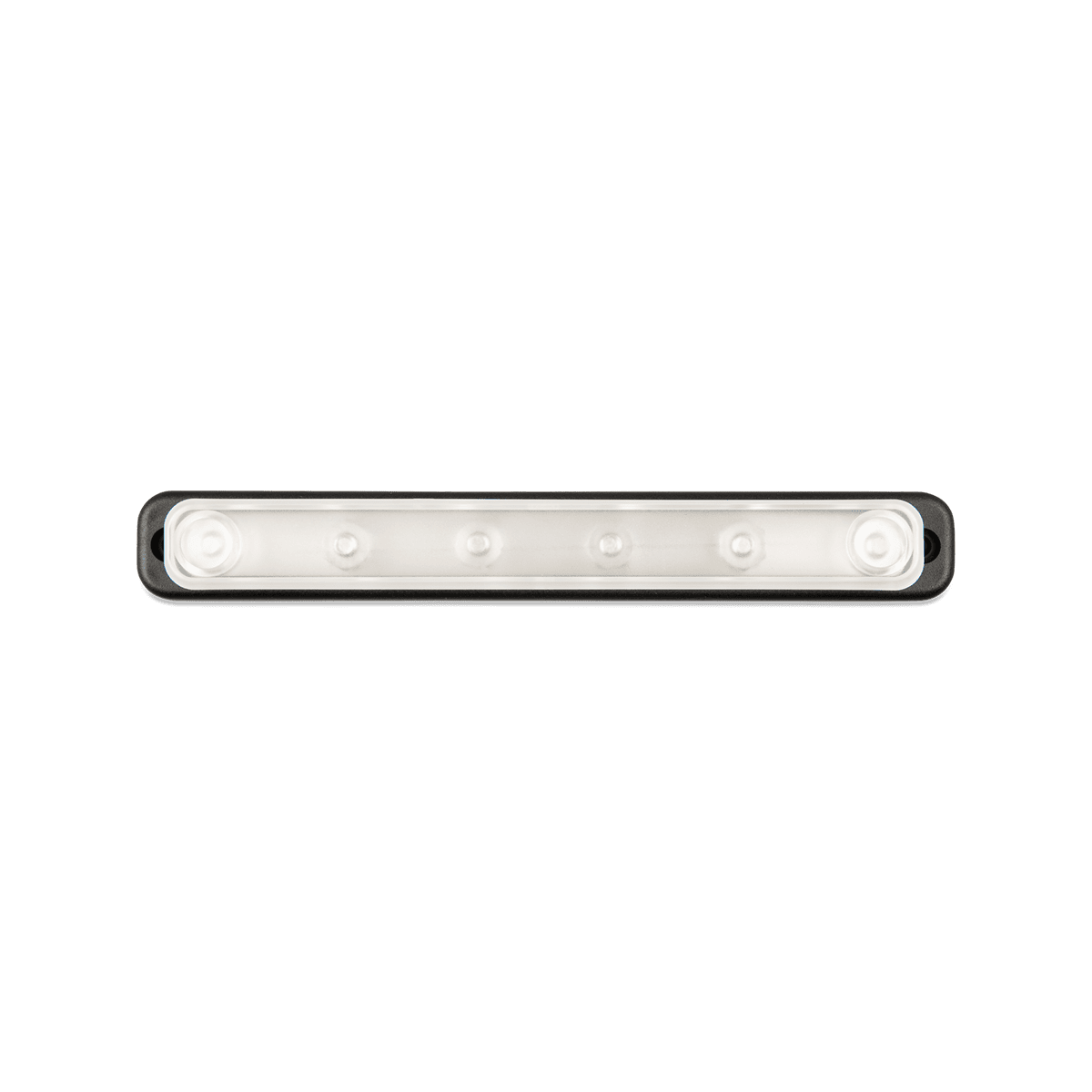

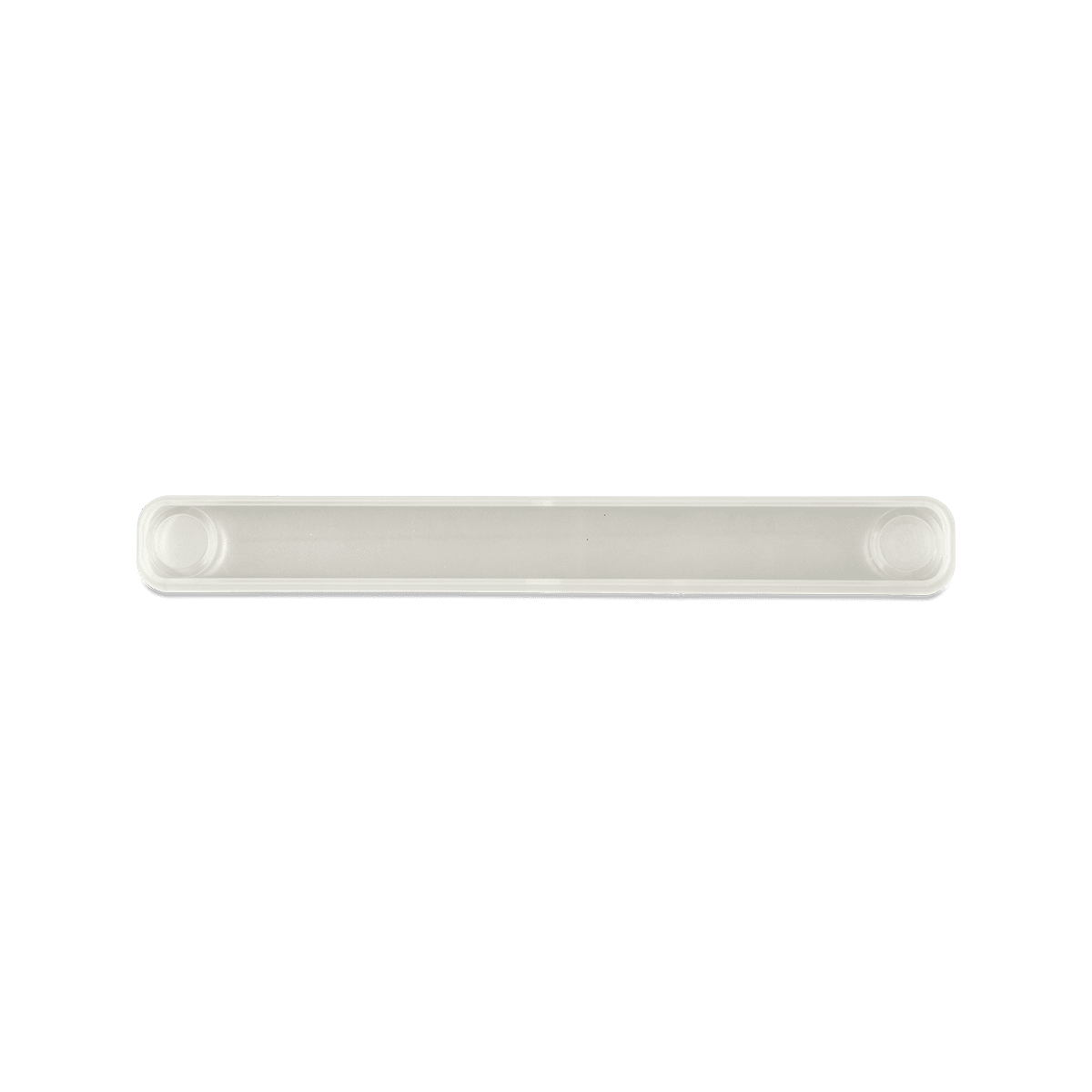

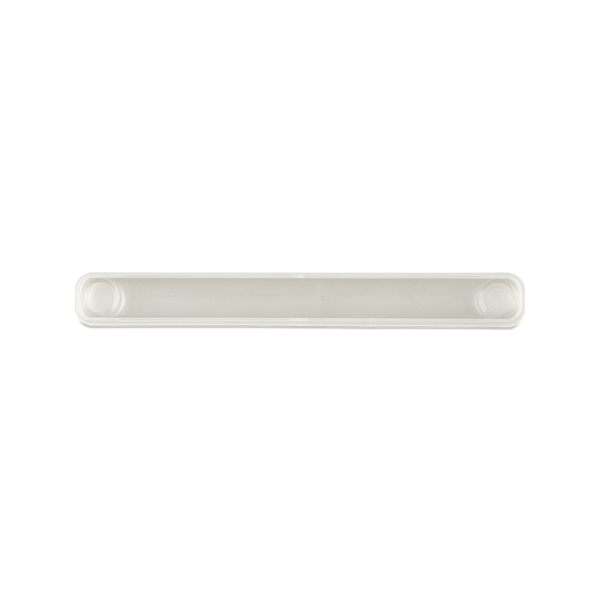

  • Removable clear polycarbonate cover prevents accidental shorts and provides touch-safe operation
  • Tin-plated copper busbar strip (1.4 x 18 mm) ensures excellent conductivity and corrosion resistance
  • Flame-retardant ABS base (UL 94 V-0) with pre-drilled mounting holes for safe, stable installation
  • Compact footprint (231.7 x 31.8 x 45 mm with cover) fits easily into tight battery compartments

Ideal Applications

This busbar is perfectly suited for a wide range of 12 V, 24 V, and 48 V DC systems, including:

  • Marine electrical panels and battery banks
  • RV and caravan power distribution
  • Solar energy storage systems
  • Automotive auxiliary circuits
  • Off-grid power setups

Whether you're upgrading a boat's electrical system or building a new off-grid solar array, the Victron 150A 6-Position Busbar provides the reliability and safety you need. Its professional appearance and organised layout also make troubleshooting and future expansions significantly easier.

Upgrade Your Power Distribution Today

Invest in a busbar that matches the quality of your Victron components. Add the Victron 150A 6-Position Busbar with Cover to your system for a cleaner, safer, and more efficient electrical installation.

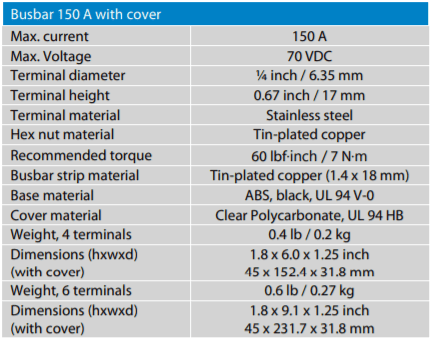

SPECIFICATIONS

Specifications

Max. Current 150 A
Max. Voltage 70 VDC
Terminal Diameter ¼ inch / 6.35 mm
Terminal Height 0.67 inch / 17 mm
Terminal Material Stainless steel
Hex Nut Material Tin-plated copper
Recommended Torque 60 lbf·inch / 7 N·m
Busbar Strip Material Tin-plated copper (1.4 x 18 mm)
Base Material ABS, black, UL 94 V-0
Cover Material Clear Polycarbonate, UL 94 HB
Weight, 6 Terminals 0.6 lb / 0.27 kg

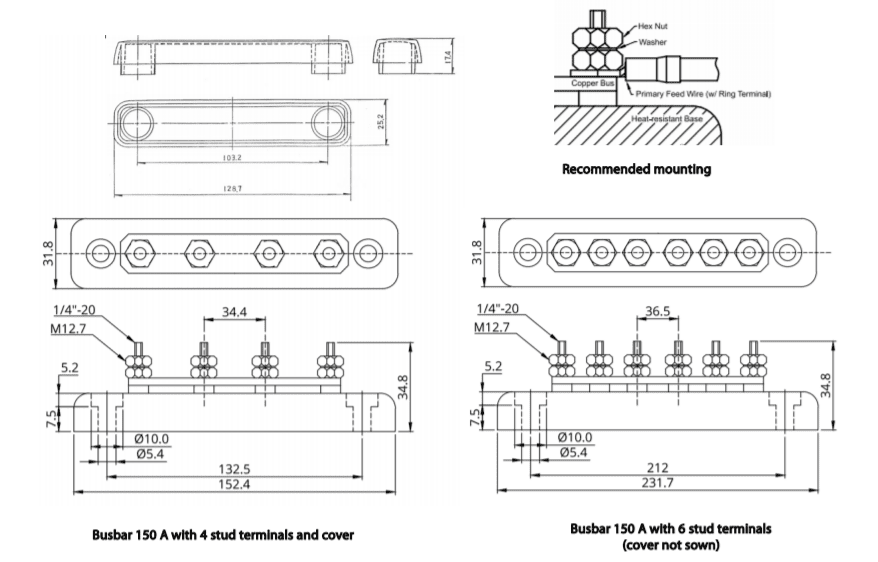

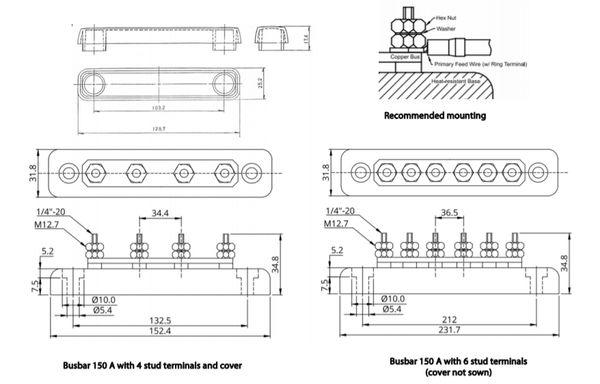

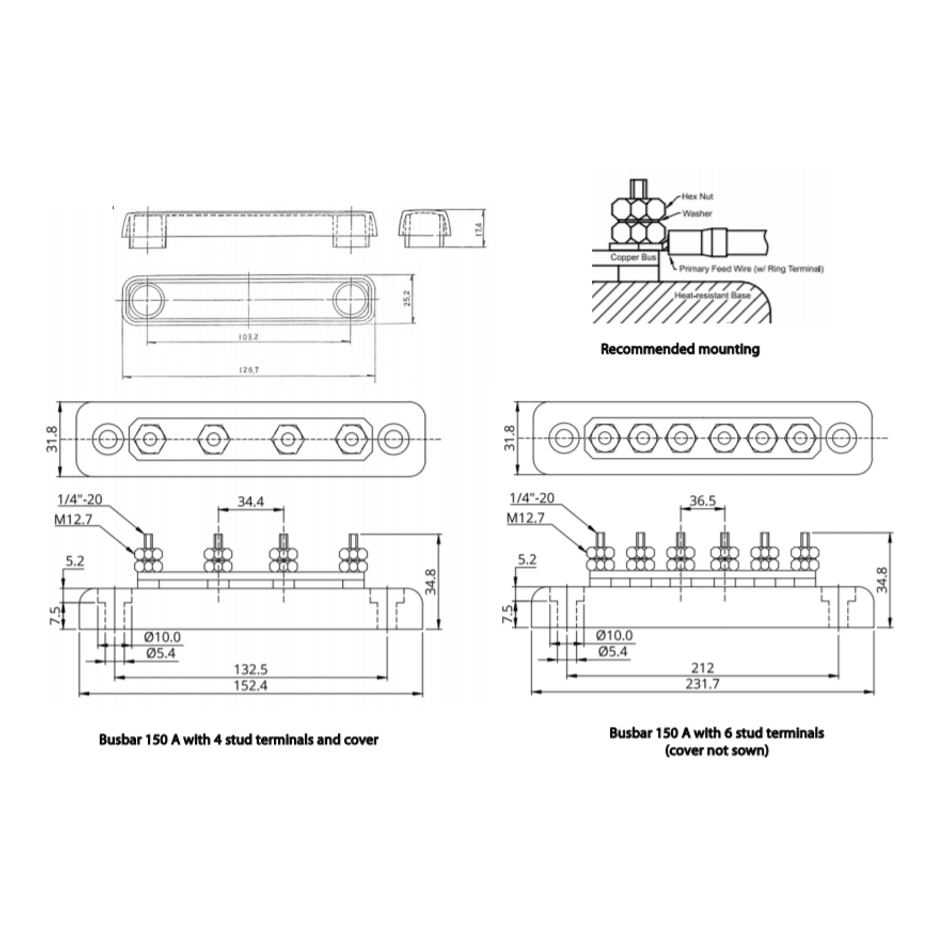

Dimensions (HxWxD), 6 Terminals (with cover) 1.8 x 9.1 x 1.25 inch / 45 x 231.7 x 31.8 mm

SKU: VIC-VBB115060020
Barcode: 8719076052203
Model #: VBB115060020
MPN: VBB115060020

WARRANTY

Victron Energy Limited Warranty Policy

Direct Customers

Victron Energy provides the following warranty to any direct customer (OEM, distributor or dealer) in relation to any products that Victron Energy has directly sold to the direct customer. This warranty is not an end-user warranty between Victron Energy and an end-user, and end-users shall not have any rights or remedies under this limited warranty towards Victron Energy directly. The direct customer shall, in turn, ensure that the end-user is provided with a warranty identical to this warranty, subject to applicable local mandatory law.

End-Users

Victron Energy may also provide a warranty directly to end-users, in which case the below warranty conditions equally apply to such warranty. In that case, end-users shall claim their warranty at their place of purchase or through the original direct customer of Victron, which can be found through the support section on Victron’s website. Hence, the direct customer shall on behalf of Victron Energy deal with any warranty claims made under any warranty that Victron Energy may provide directly to end-users. This support section on Victron’s website will provide further guidance on the procedure for end-users to make a claim under this limited warranty.

If the end-user is a consumer – a natural person who is acting for purposes which are outside that person's trade, business, craft or profession – the following applies. The rights and remedies granted to the consumer under this limited warranty are without prejudice to the consumer’s statutory rights. Furthermore, the consumer is entitled by law to remedies from the seller free of charge in the event of a lack of conformity of the goods (such as repair, replacement, price reduction or rescission), which remedies are not affected by this limited warranty.

Warranty

Victron Energy warrants its products to be free from defects in workmanship and materials for a period of 5 years from the date of purchase by the original end-user, with a maximum of 66 months from the Victron Energy invoice date. Exceptions on this are: lead-acid batteries: 2 years from date of purchase by the original end-user, with a maximum of 30 months from the Victron Energy invoice date, Lithium batteries: 3 years from date of purchase by the original end-user, with a maximum of 42 months from the Victron Energy invoice date. In addition to this, proof of correct battery usage is required when making a battery warranty claim.

For a 10% surcharge on the current net price for products that came with a 5-year warranty, an additional 5 years of warranty can be purchased by Victron’s direct customers, bringing the total warranty to 10 years. Warranty extensions need to be applied for ultimately one year before the expiration of the original term. Victron may ask proof that the product was still functional at the time of purchase of the extended warranty.

During the warranty period, Victron Energy will, at its discretion, repair, replace or (partly) credit the defective product free of charge. The warranty does not include performing or reimbursing de‐installation, transportation, and re‐installation.

This warranty will be considered void if the unit has suffered any physical damage or alteration, either internally or externally, and does not cover damages arising from improper use like:

  • Reversed battery polarity.
  • Inadequate connection.
  • Mechanical shock or deformation.
  • Contact with liquid or oxidation by condensation.
  • Use in an inappropriate environment (dust, corrosive vapour, humidity, high temperature, biological infestation, etc.).
  • Breakage or damage due to lightning.
  • Connection terminals and screws destroyed or other damages, like overheating, due to insufficient tightening.
  • For any electronic breakage except due to lightning (reverse polarity, over‐voltage due to external cause), the state of the internal control diode and/or the input/output X and Y capacitors determine the warranty.

This warranty will not apply where the product has been misused, neglected, improperly installed, or repaired by anyone other than Victron Energy or one of its authorized Repair Centres. In order to qualify for the warranty, the product must not be disassembled or modified.

This warranty and our warranty obligations thereunder (repair, replacement or credit) are the direct customer’s and, if applicable, the end-user’s sole rights and remedies and our sole obligations with respect to any defective and/or non-conforming product or breach of warranty and is subject to and without prejudice to the limitations of liability in this warranty.

Victron Energy shall not be liable for damages, whether direct, incidental, special, or consequential, even caused by negligence or fault.

As a product requires service, it must be brought back to the place of purchase. In case no contact can be made with the merchant, or if he is either unable or not allowed to provide service, direct contact should be made with Victron Energy through the support section on Victron’s website.

In case Victron Energy replaces a product, it will own the replaced product. Victron Energy owns all parts removed from repaired products. Victron Energy uses new or reconditioned parts made by various manufacturers when performing warranty repairs or building replacement products.

If Victron Energy repairs or replaces a part of a product, its warranty term is not extended: the warranty will apply for the remaining term of the original warranty term. For example, if Victron Energy replaces a product with a 5-year warranty after 3 years, the warranty of this product will apply for another 2 years, with a minimum of 6 months.

All remedies and the measure for damages are limited to the above. Victron Energy shall in no event be liable for consequential, incidental, contingent or special damages, even if having been advised of the probability of such damages.

The foregoing limited warranty provided by Victron Energy is in lieu of any other warranties, express or implied arising by law, course of dealing, course of performance, usage of trade or otherwise, of any kind whatsoever including, without limitation, warranties of merchantability or fitness for a particular purpose, with respect to any product. The above is without prejudice to the arrangement for consumers detailed above.

Life Support Policy

As a general policy, Victron Energy does not recommend the use of any of its products in life support applications where failure or malfunction of Victron Energy's product can be reasonably expected to cause the failure of the life support device or to significantly affect its safety or effectiveness. Victron Energy does not recommend the use of any of its products in direct patient care. Victron Energy will not knowingly sell its products for use in such applications unless it receives in writing assurances satisfactory to Victron Energy that the risks of injury or damage have been minimized, the customer assumes all such risks, and the liability of Victron Energy is adequately protected under the circumstances.

Warranty on repairs for products outside their warranty period

The warranty period on products that are outside their warranty period and have been repaired by Victron Energy or one of the Victron Energy Repair centres is six (6) months from delivery. The same applies to spare parts and circuit boards that have been supplied or repaired by Victron Energy.

Transport

It is the responsibility of the sender to sufficiently package these products. The transport must be organized in a way to avoid any damage, especially when a single unit or heavy unit is sent.

Severability

If a part of the terms and conditions of this warranty is held invalid, void or unenforceable due to any particular national or international legislation, it shall not affect other parts of the terms and conditions of this warranty.

Applicable law

This warranty is exclusively governed by the laws of the Netherlands, to the exclusion of the UN Convention on Contracts for the International Sale of Goods.
