Victron Busbar 600A 8P/Terminals & Cover
Victron Busbar 600A 8P/Terminals & Cover
600A Continuous, 8 Studs + 8 Screw Terminals, Tin-Plated Copper, Cover
Highlights:Copper Busbar: 19 x 24 mm tin-plated copper busbar for maximum electrical conductivity,Main Terminals: 9.53 mm (3/8 inch) stainless steel studs with high-torque flange nuts,Screw Terminals: 4.2 mm (#8) stainless steel screw terminals for auxiliary wiring,Insulated Base: Durable black ABS base rated UL 94 V-0 for electrical safety,Mounting Hole: Pre-drilled mounting point for secure installation to flat surfaces.

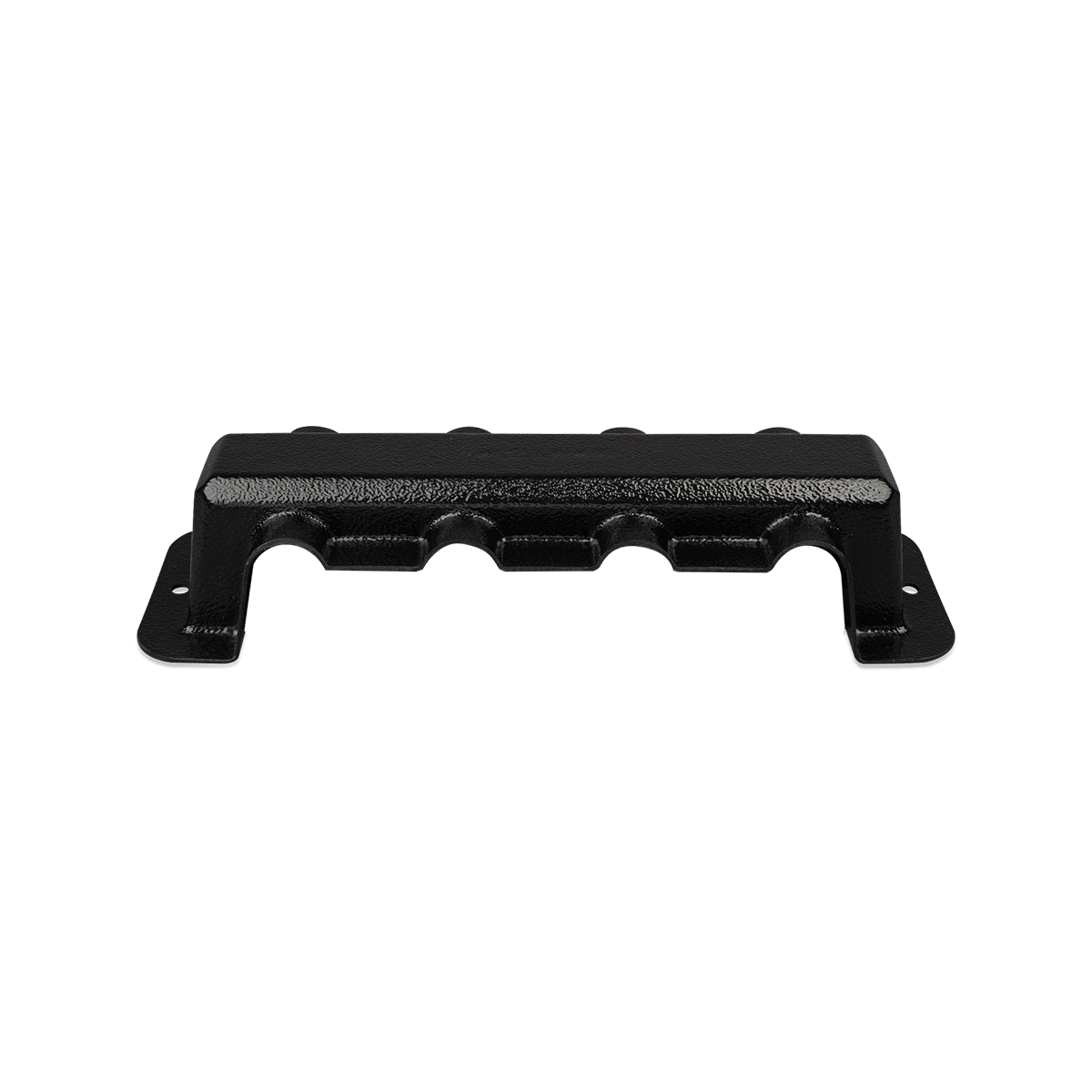

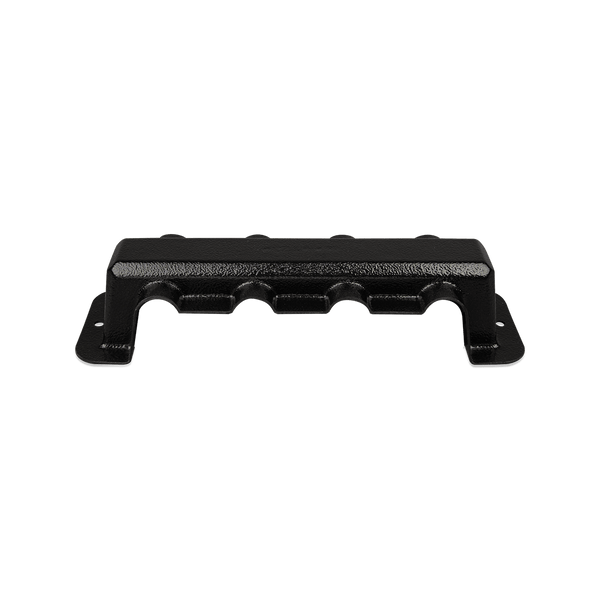

Black textured ABS protective cover (UL 94 V-2) specifically designed for the 600A 8-terminal busbar, providing essential insulation and protection for live terminals.

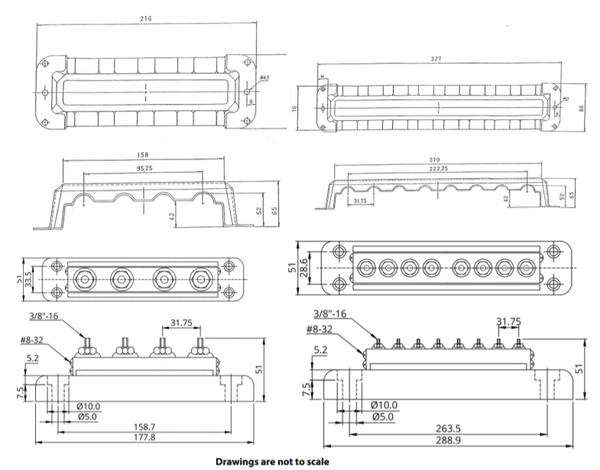

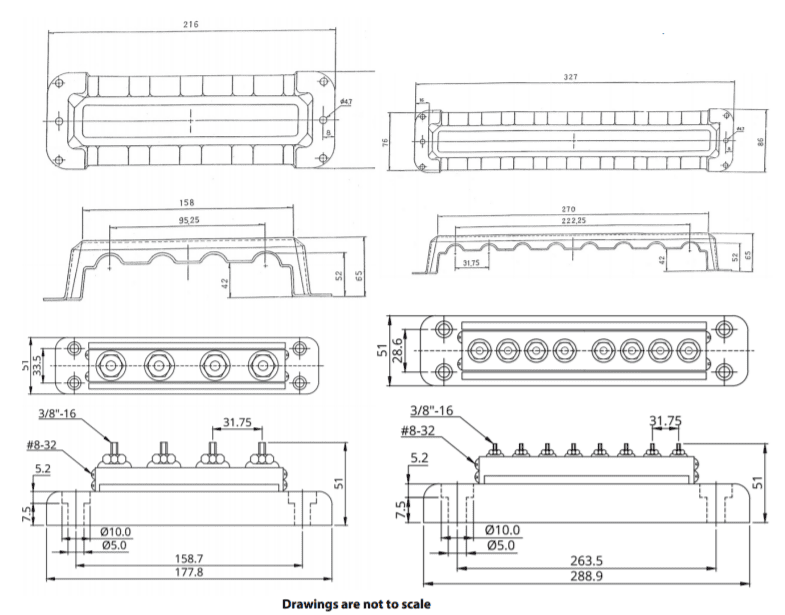

Key features: Comprehensive measurements for both 4 and 8 terminal versions, Clear indicators for mounting hole spacing and diameters, Profile views showing total height with and without protective cover, Detailed stud height and thread specification notations.
DESCRIPTION

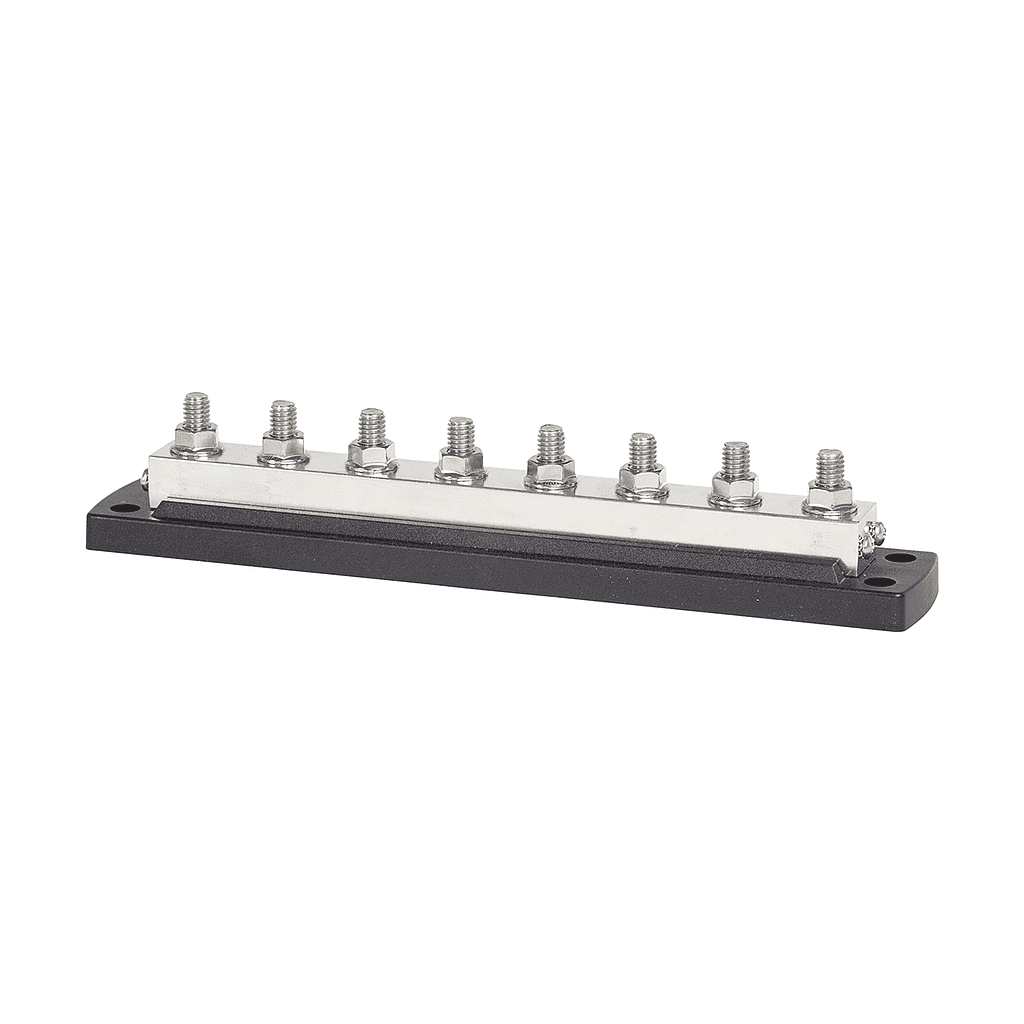

Victron 600A 8-Position Busbar: Professional High-Current Distribution with Integrated Cover
Engineered for Demanding DC Power Systems in Marine, Solar, and Off-Grid Applications
The Victron 600A 8P Busbar is a purpose-built solution for consolidating high-current DC connections in professional electrical installations. Designed to handle up to 600 amps continuous current at 70 VDC, this busbar simplifies complex wiring layouts in marine electrical panels, solar battery banks, RV power systems, and industrial DC distribution. Its robust construction and thoughtful design address common pain points like loose connections, accidental shorts, and cluttered battery terminals, ensuring a safer, more reliable setup.
Unlike generic busbars that rely on basic brass terminals and exposed conductors, the Victron unit features tin-plated copper bars for superior conductivity and corrosion resistance, paired with molded stainless steel studs that eliminate the need for a bottom securing nut. This allows for higher torque values (up to 20 N·m) without compromising the base, delivering consistent, low-resistance connections that stand up to vibration and thermal cycling.
Key Features
- 600 A continuous rating for high-demand DC distribution, supporting large inverters, chargers, and battery banks
- 8 main terminals with 3/8"-16 (approx. M10) stainless steel studs and flange nuts for heavy-duty lugs up to 4/0 AWG (approx. 95 mm²)
- 8 auxiliary screw terminals (#8 / 4.2 mm) for smaller control or monitoring wires, keeping installations tidy
- Detachable ABS protective cover (UL 94 V-2) shields live terminals from accidental contact and debris
- Raised bus design on a flame-retardant ABS base (UL 94 V-0) prevents shorts to mounting surfaces and improves airflow
- Pre-drilled mounting holes for secure, insulated installation on flat surfaces
Built to Solve Real-World Installation Challenges
In crowded battery compartments, managing multiple high-current cables can be frustrating and unsafe. Stacking lugs on battery posts increases resistance, generates heat, and makes maintenance difficult. The Victron 600A 8P busbar centralises connections, reducing the number of terminations directly on battery terminals. This not only improves electrical performance but also creates a cleaner, more professional layout that is easier to inspect and service.
The integrated cover is a critical safety feature often overlooked in budget alternatives. It prevents accidental short circuits from dropped tools or loose hardware, a common risk in engine rooms and equipment bays. The cover is easily removable for access yet stays securely in place during operation.
Materials That Matter
Every component is selected for longevity in harsh environments. The 19 x 24 mm tin-plated copper busbar offers excellent conductivity while resisting oxidation. Stainless steel studs and flange nuts maintain clamping force over time, even in corrosive marine atmospheres. The ABS base and cover are UV-stabilised and rated for flame resistance, meeting UL 94 standards for electrical enclosures.
Applications
- Marine DC systems: Distribute power from house battery banks to navigation equipment, winches, and lighting
- Solar energy storage: Combine multiple charge controllers or battery strings in off-grid and hybrid systems
- RV and caravan electrical: Organise connections between batteries, inverters, and 12V distribution panels
- Industrial DC control: Manage high-current circuits in telecommunications, backup power, and automation
Installation Confidence
Victron provides detailed dimensional drawings and torque specifications, ensuring installers can plan layouts precisely. The busbar's compact footprint (327 x 65 x 86 mm with cover) fits into tight spaces, and the pre-drilled base simplifies mounting to bulkheads or panels. With a weight of just 1.3 kg, it adds minimal mass to mobile installations.
Upgrade your DC distribution with the Victron 600A 8P Busbar and experience the reliability that comes from thoughtful engineering. Whether you're building a new system or retrofitting an existing one, this busbar delivers the performance and safety professionals demand.
SKU: VIC-VBB160080010
Visit Victron's Official Victron Busbar 600A 8P/Terminals & Cover Webpage Here

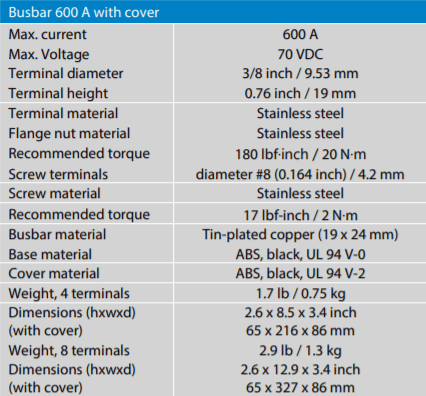

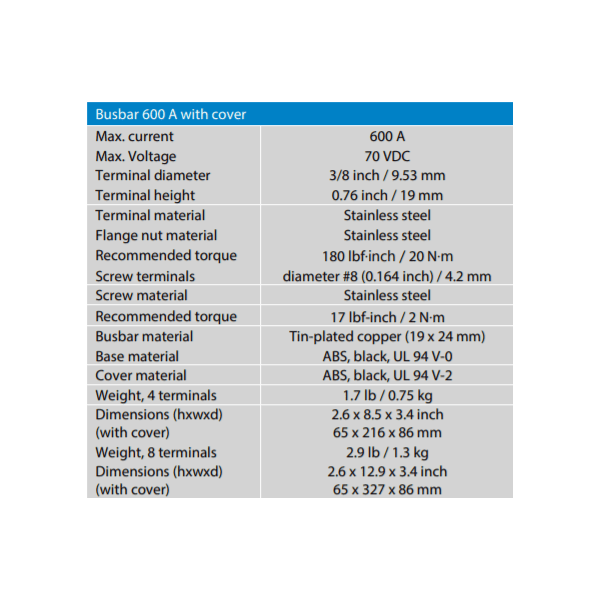

SPECIFICATIONS
Specifications
| Feature | Specification |
|---|---|
| Max. Current | 600 A |
| Max. Voltage | 70 VDC |
| Terminal Diameter | 3/8 inch / 9.53 mm |
| Terminal Height | 0.76 inch / 19 mm |
| Terminal Material | Stainless steel |
| Flange Nut Material | Stainless steel |
| Recommended Torque (Terminal) | 180 lbf·inch / 20 N·m |
| Screw Terminals Diameter | #8 (0.164 inch) / 4.2 mm |
| Screw Material | Stainless steel |
| Recommended Torque (Screw) | 17 lbf·inch / 2 N·m |
| Busbar Material | Tin-plated copper (19 x 24 mm) |
| Base Material | ABS, black, UL 94 V-0 |
| Cover Material | ABS, black, UL 94 V-2 |
| Weight, 8 Terminals | 2.9 lb / 1.3 kg |
| Dimensions (8 Terminals) (HxWxD) with Cover | 2.6 x 12.9 x 3.4 inch / 65 x 327 x 86 mm |
| SKU: | VIC-VBB160080010 |
| Barcode: | 8719076052234 |
| Model #: | VBB160080010 |
| MPN: | VBB160080010 |
