Victron 48V 10000VA Quattro 48/10000/140-100/100+50A Aux Inverter/Charger

Two AC inputs with integrated transfer switch


Front view of a blue Victron Quattro 48V 10000VA inverter charger showing status indicators and main switchHighlights:Charger Status LEDs: LED indicators for mains on, bulk, absorption, and float charging stages,Inverter Status LEDs: Indicators for inverter on, overload, low battery, and temperature warnings,Operation Switch: Three-way toggle switch for On, Off, and Charger Only modes,Model Identification: Label specifying 48V input, 10000VA power rating, and 140A charge current.Perspective view of the Victron Quattro inverter charger showing side cooling vents and aluminium enclosureTechnical specification table for Victron Quattro models detailing power output, efficiency, and charger specsKey features: 10000VA continuous output power at 25 degrees Celsius, Dual AC inputs with 100A maximum feed through current, 96% maximum efficiency rating, 140A maximum house battery charge current, IP21 protection category with aluminium enclosure.Angled view of the blue Victron Quattro unit highlighting the mounting points and casing designSystem diagram of a Victron Quattro setup with inputs for generator, grid, and battery connectionsKey features: Dual AC input support for generator and public grid, AC distribution outputs for multiple load types, Battery bank connection with bidirectional inverter-charger flow, VE.Bus communication for parallel or three-phase configuration, Programmable multifunction relay for automatic generator starting.Dimensional drawing for Victron Quattro 10kVA unit showing front, side, and bottom measurements in millimetresTechnical engineering drawing detailing the physical dimensions of the Quattro 10kVA unit, including a height of 467mm and width of 348mm, essential for installation planning.

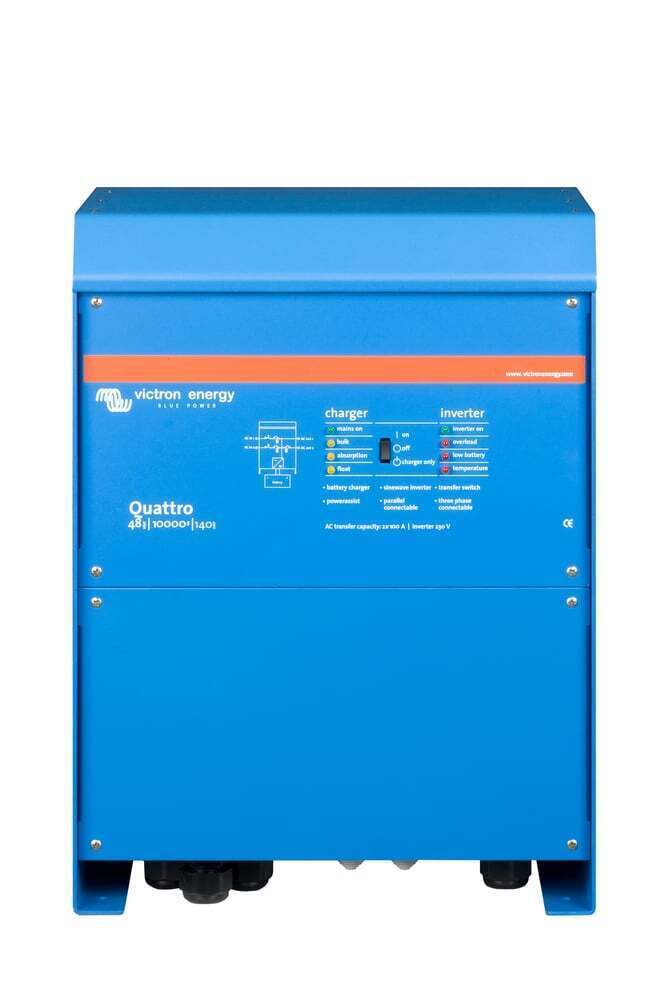

Front view of a blue Victron Quattro 48V 10000VA inverter charger showing status indicators and main switch

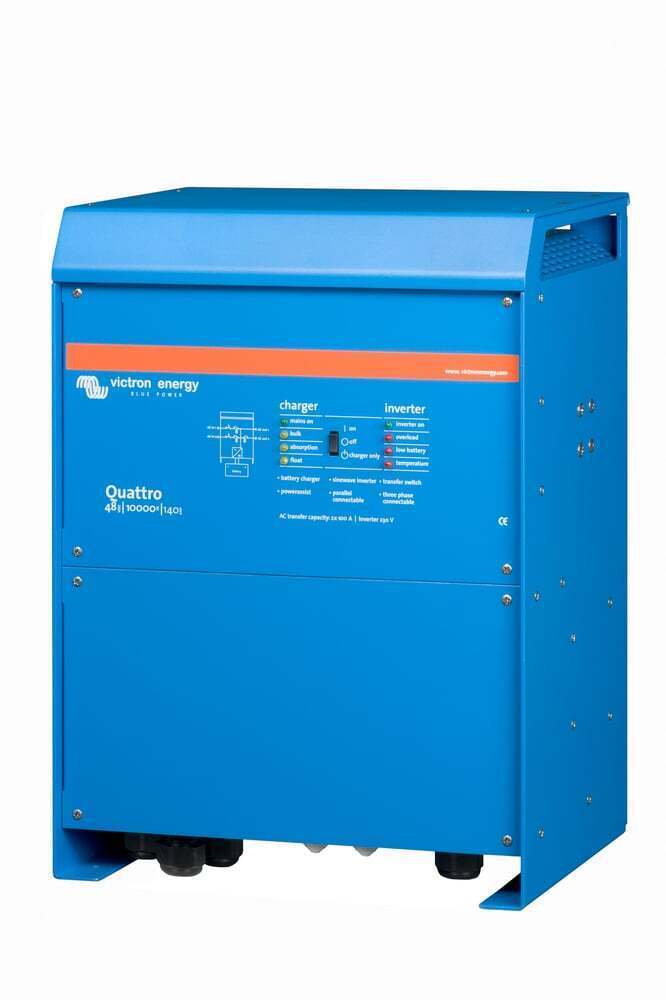

Perspective view of the Victron Quattro inverter charger showing side cooling vents and aluminium enclosure

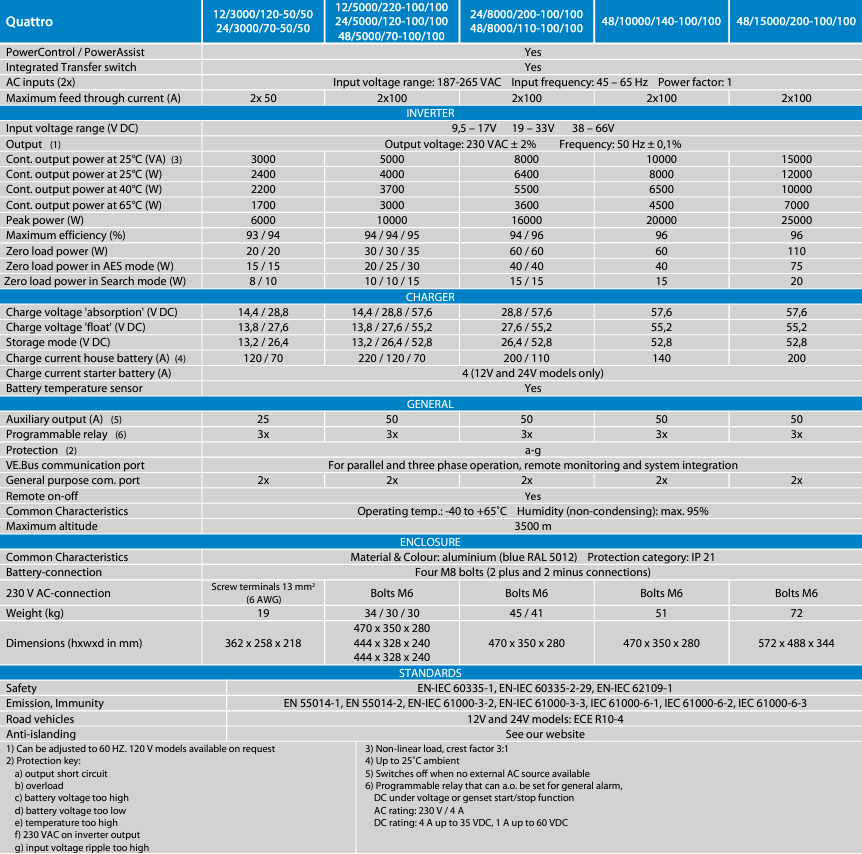

Technical specification table for Victron Quattro models detailing power output, efficiency, and charger specs

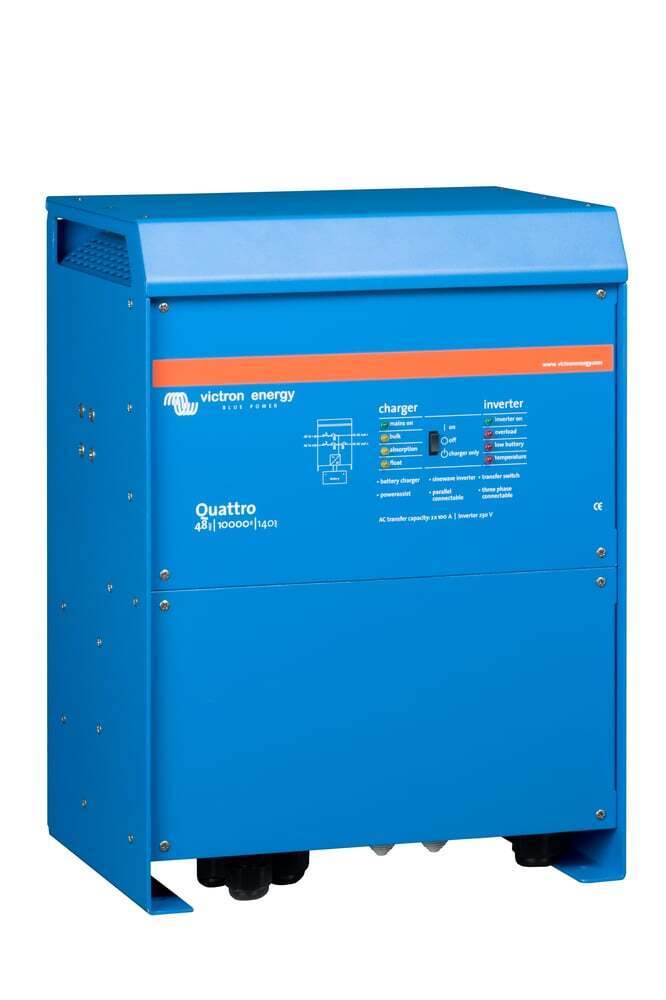

Angled view of the blue Victron Quattro unit highlighting the mounting points and casing design
System diagram of a Victron Quattro setup with inputs for generator, grid, and battery connections
Dimensional drawing for Victron Quattro 10kVA unit showing front, side, and bottom measurements in millimetres
Regular price $4,424.55
$4,436.30
/
Availability: In Stock at Victron Warehouse Allow up to 5 days before dispatch
View all products from Victron

We’re here to help you get it right! Give us a quick call to verify your installation and ensure a seamless setup.

Guaranteed Safe and Secure Checkout
American Express Apple Pay Google Pay MastercardPayPalShop Pay Union PayVisa

0
Front view of a blue Victron Quattro 48V 10000VA inverter charger showing status indicators and main switch

Victron 48V 10000VA Quattro 48/10000/140-100/100+50A Aux Inverter/Charger

DESCRIPTION

Victron 48V 10000VA Quattro 48/10000/140-100/100+50A Aux. Inverter/Charger: A Powerhouse for Off-Grid, Industrial, and Commercial Applications

The Victron 48V 10000VA Quattro Inverter/Charger is a versatile and robust solution designed to meet the demanding power needs of off-grid setups, industrial operations, and commercial projects. Featuring dual AC inputs with an integrated transfer switch, the Quattro ensures seamless transition between power sources, such as the public grid and generators, maintaining uninterrupted power supply (UPS) systems' continuity.

Dual AC Outputs for Uninterrupted Power Supply

The Quattro guarantees a constant power supply with no-break functionality, swiftly responding in less than 20 milliseconds to prevent downtime in critical operations. It supports essential devices during grid failures and offers a secondary output for non-essential loads, optimizing battery usage.

Virtually Unlimited Power with Parallel Operation

Scale your power solution with the capability to operate up to six Quattro units in parallel. This feature provides substantial power, up to 48kW / 60kVA and 840 Amps charging capacity, catering to industrial-scale energy requirements efficiently.

Three-Phase Capability for High-Demand Applications

The Quattro excels in delivering three-phase power, essential for high-demand industrial environments. Configuring up to six sets of three units, it can supply up to 144kW / 180kVA and over 2500A charging capacity, suitable for the most intensive applications.

PowerControl: Smart Management of Generator or Grid Power

Implement efficient power management with PowerControl, setting current limits on AC inputs to prevent overloads. This intelligent feature ensures optimal use of generator or grid power, crucial for off-grid and UPS systems stability.

PowerAssist: Enhancing Your Power Supply

Enhance your power capacity with PowerAssist, compensating for insufficient mains or generator power by utilizing battery reserves. This ensures continuous operation without interruptions, essential for maintaining critical processes.

Seamless Solar Energy Integration for Off-Grid Reliability

The Quattro is ideal for integrating with grid-connected PV and alternative energy systems, providing reliable AC power even during grid failures. Its compatibility with off-grid applications is further enhanced by loss of mains detection software.

Simplified System Configuration and Monitoring

Configure your system effortlessly, whether for standalone, parallel, or three-phase applications, using our dedicated software tools. The Quattro offers comprehensive on-site and remote monitoring and control options, adaptable to a wide range of industrial and off-grid scenarios.

Remote Monitoring and Configuration Capabilities

Leverage remote monitoring and configuration for large-scale projects or off-grid systems with Cerbo GX or other GX devices, accessible via Ethernet. This feature allows for efficient management and adjustments from anywhere, ensuring optimal performance and reliability.

Applications Across Industries

The Victron Quattro Inverter/Charger is indispensable for various sectors, including renewable energy systems, manufacturing facilities, commercial buildings, and remote off-grid locations. Its robust design and versatile features ensure it meets the specific energy requirements of each application, providing a reliable power source that supports sustainability and efficiency.

Talk to Us About Your Project

Are you planning an off-grid, industrial, or commercial project that requires a reliable and efficient power solution? Discover how the Victron 48V 10000VA Quattro Inverter/Charger can meet your needs. Contact us today to discuss your project and learn more about our cutting-edge power solutions tailored to your unique requirements.

SPECIFICATIONS

Specifications

Quattro 48/10000/140-100/100
PowerControl / PowerAssist Yes
Integrated transfer switch (A) Yes
AC Inputs (2x) Input voltage range: 187-265 VAC Input frequency: 45 – 65 Hz Power factor: 1
Maximum feed through current (A) 2x100
Inverter
Input voltage range (V DC) 38 – 66V
Output (1) Output voltage: 230 VAC ± 2% Frequency: 50 Hz ± 0.1%
Cont. output power at 25°C (VA) (3) 10000
Cont. output power at 25°C (W) 8000
Cont. output power at 40°C (W) 6500
Peak power (W) 20000
Maximum efficiency (%) 96
Zero load power (W) 60
Zero load power in AES mode (W) 40
Zero load power in Search mode (W) 15
Charger
Charge voltage 'absorption' (V DC) 57.6 (adjustable)
Charge voltage 'float' (V DC) 55.2 (adjustable)
Storage mode (V DC) 52,8
Charge current house battery (A) (4) 140
Charge current starter battery (A) N/A
Battery temperature sensor Yes
General
Auxiliary output (A) (5) 50
Programmable relay (6) 3x
Protection (2) a-g
VE.Bus communication port For parallel and three phase operation, remote monitoring and system integration
General purpose com. port 2x
Remote on/off Yes
Common Characteristics Operating Temp.: -40C to 65C. Humidity (non-condensing): max. 95%
Maximum altitude 3500 m
Enclosure
Material & Colour: Protection category: IP 21 Aluminium (blue RAL 5012)
Battery-connection Four Bolts M8 (2x Plus & 2x Minus)
230 V AC-connection Bolts M6
Weight (kg) 51
Dimensions hxwxd in mm 470 x 350 x 280
Standards
Safety EN-IEC 60335-1, EN-IEC 60335-2-29, EN-IEC 62109-1
Emission, Immunity EN-IEC 61000-3-2, EN-IEC 61000-3-3, EN-IEC 61000-6-1, EN-IEC 61000-6-2, EN-IEC 61000-6-3
Road Vehicles N/A

1) Can be adjusted to 60 Hz.

2) Protection key:

a) output short circuit b) overload c) battery voltage too high d) battery voltage too low e) inverter over temperature f) 230 VAC on inverter output g) input voltage ripple too high

3) Non-linear load, crest factor 3:1

4) At 25°C ambient

5) Switches off when no external AC source available

6) Programmable relay that can a.o. be set to for general alarm, DC under voltage or genset start/stop function AC Rating: 230V / 4A DC Rating: 4A Up to 35VDC, 1A Up to 60VDC


SKU: Vic-QUA481030010
Barcode: 8719076024200
Model #: QUA481030010
MPN: QUA481030010

WARRANTY

Victron Energy Limited Warranty Policy

Direct Customers

Victron Energy provides the following warranty to any direct customer (OEM, distributor or dealer) in relation to any products that Victron Energy has directly sold to the direct customer. This warranty is not an end-user warranty between Victron Energy and an end-user, and end-users shall not have any rights or remedies under this limited warranty towards Victron Energy directly. The direct customer shall, in turn, ensure that the end-user is provided with a warranty identical to this warranty, subject to applicable local mandatory law.

End-Users

Victron Energy may also provide a warranty directly to end-users, in which case the below warranty conditions equally apply to such warranty. In that case, end-users shall claim their warranty at their place of purchase or through the original direct customer of Victron, which can be found through the support section on Victron’s website https://www.victronenergy.com/support. Hence, the direct customer shall on behalf of Victron Energy deal with any warranty claims made under any warranty that Victron Energy may provide directly to end-users. This support section on Victron’s website https://www.victronenergy.com/support will provide further guidance on the procedure for end-users to make a claim under this limited warranty.

If the end-user is a consumer – a natural person who is acting for purposes which are outside that person's trade, business, craft or profession – the following applies. The rights and remedies granted to the consumer under this limited warranty are without prejudice to the consumer’s statutory rights. Furthermore, the consumer is entitled by law to remedies from the seller free of charge in the event of a lack of conformity of the goods (such as repair, replacement, price reduction or rescission), which remedies are not affected by this limited warranty.

Warranty

Victron Energy warrants its products to be free from defects in workmanship and materials for a period of 5 years from the date of purchase by the original end-user, with a maximum of 66 months from the Victron Energy invoice date. Exceptions on this are: lead-acid batteries: 2 years from date of purchase by the original end-user, with a maximum of 30 months from the Victron Energy invoice date, Lithium batteries: 3 years from date of purchase by the original end-user, with a maximum of 42 months from the Victron Energy invoice date. In addition to this, proof of correct battery usage is required when making a battery warranty claim.

For a 10% surcharge on the current net price for products that came with a 5-year warranty, an additional 5 years of warranty can be purchased by Victron’s direct customers, bringing the total warranty to 10 years. Warranty extensions need to be applied for ultimately one year before the expiration of the original term. Victron may ask proof that the product was still functional at the time of purchase of the extended warranty.

During the warranty period, Victron Energy will, at its discretion, repair, replace or (partly) credit the defective product free of charge. The warranty does not include performing or reimbursing de‐installation, transportation, and re‐installation.

This warranty will be considered void if the unit has suffered any physical damage or alteration, either internally or externally, and does not cover damages arising from improper use like:

  • Reversed battery polarity.
  • Inadequate connection.
  • Mechanical shock or deformation.
  • Contact with liquid or oxidation by condensation.
  • Use in an inappropriate environment (dust, corrosive vapour, humidity, high temperature, biological infestation, etc.).
  • Breakage or damage due to lightning.
  • Connection terminals and screws destroyed or other damages, like overheating, due to insufficient tightening.
  • For any electronic breakage except due to lightning (reverse polarity, over‐voltage due to external cause), the state of the internal control diode and/or the input/output X and Y capacitors determine the warranty.

This warranty will not apply where the product has been misused, neglected, improperly installed, or repaired by anyone other than Victron Energy or one of its authorized Repair Centres. In order to qualify for the warranty, the product must not be disassembled or modified.

This warranty and our warranty obligations thereunder (repair, replacement or credit) are the direct customer’s and, if applicable, the end-user’s sole rights and remedies and our sole obligations with respect to any defective and/or non-conforming product or breach of warranty and is subject to and without prejudice to the limitations of liability in this warranty.

Victron Energy shall not be liable for damages, whether direct, incidental, special, or consequential, even caused by negligence or fault.

As a product requires service, it must be brought back to the place of purchase. In case no contact can be made with the merchant, or if he is either unable or not allowed to provide service, direct contact should be made with Victron Energy through the support section on Victron’s website.

In case Victron Energy replaces a product, it will own the replaced product. Victron Energy owns all parts removed from repaired products. Victron Energy uses new or reconditioned parts made by various manufacturers when performing warranty repairs or building replacement products.

If Victron Energy repairs or replaces a part of a product, its warranty term is not extended: the warranty will apply for the remaining term of the original warranty term. For example, if Victron Energy replaces a product with a 5-year warranty after 3 years, the warranty of this product will apply for another 2 years, with a minimum of 6 months.

All remedies and the measure for damages are limited to the above. Victron Energy shall in no event be liable for consequential, incidental, contingent or special damages, even if having been advised of the probability of such damages.

The foregoing limited warranty provided by Victron Energy is in lieu of any other warranties, express or implied arising by law, course of dealing, course of performance, usage of trade or otherwise, of any kind whatsoever including, without limitation, warranties of merchantability or fitness for a particular purpose, with respect to any product. The above is without prejudice to the arrangement for consumers detailed above.

Life Support Policy

As a general policy, Victron Energy does not recommend the use of any of its products in life support applications where failure or malfunction of Victron Energy's product can be reasonably expected to cause the failure of the life support device or to significantly affect its safety or effectiveness. Victron Energy does not recommend the use of any of its products in direct patient care. Victron Energy will not knowingly sell its products for use in such applications unless it receives in writing assurances satisfactory to Victron Energy that the risks of injury or damage have been minimized, the customer assumes all such risks, and the liability of Victron Energy is adequately protected under the circumstances.

Warranty on repairs for products outside their warranty period

The warranty period on products that are outside their warranty period and have been repaired by Victron Energy or one of the Victron Energy Repair centres is six (6) months from delivery. The same applies to spare parts and circuit boards that have been supplied or repaired by Victron Energy.

Transport

It is the responsibility of the sender to sufficiently package these products. The transport must be organized in a way to avoid any damage, especially when a single unit or heavy unit is sent.

Severability

If a part of the terms and conditions of this warranty is held invalid, void or unenforceable due to any particular national or international legislation, it shall not affect other parts of the terms and conditions of this warranty.

Applicable law

This warranty is exclusively governed by the laws of the Netherlands, to the exclusion of the UN Convention on Contracts for the International Sale of Goods.

Contact details

Victron Energy B.V. | De Paal 35, 1351 JG Almere, The Netherlands | https://www.victronenergy.com/support
