Enerdrive 24V 40W Black Frame Monocrystalline Fixed Solar Panel

Maximise your off-grid energy yield with this rugged 24V monocrystalline solar module designed for RVs and commercial applications - 567 x 670 x 30mm


Regular price $134.00
/
Availability: Expected this week
View all products from Enerdrive

Shipping Calculated in Cart | Add to cart and enter your postcode to see live shipping options.

Guaranteed Safe and Secure Checkout
Apple Pay Google Pay Mastercard PayPalShop Pay Visa
0

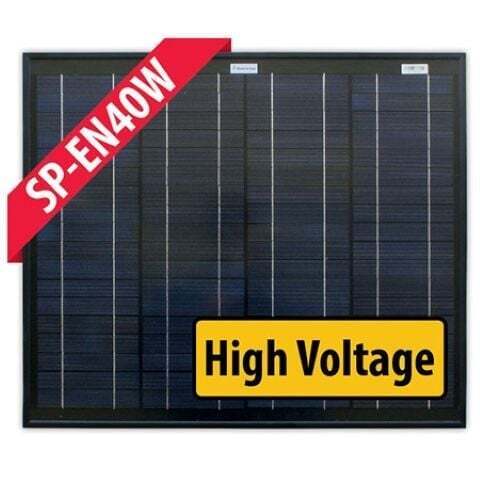

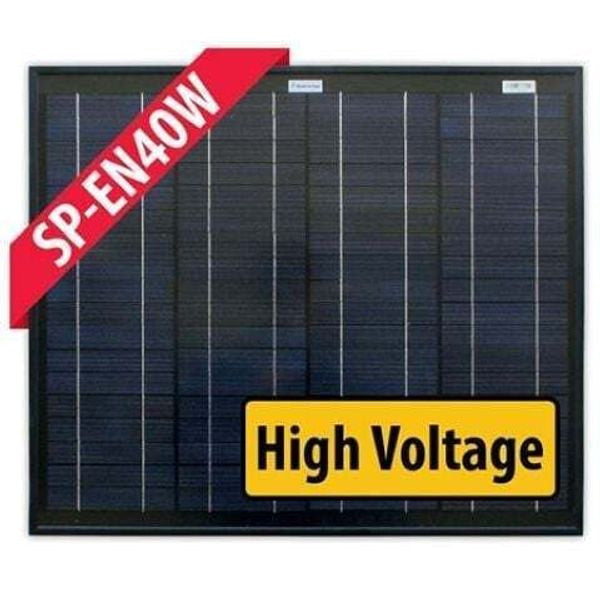

Front view of 40W monocrystalline fixed solar panel with black frame and high voltage label

Enerdrive 24V 40W Black Frame Monocrystalline Fixed Solar Panel

DESCRIPTION

High-Efficiency 24V Monocrystalline Solar Power for Mobile and Off-Grid Environments

Upgrade your remote power system with the Enerdrive 24V 40W Black Frame Monocrystalline Fixed Solar Panel, featuring advanced monocrystalline solar cell technology designed for consistent daily energy production. Engineered to deliver reliable performance across a variety of demanding applications, this 24V fixed solar module provides a highly efficient solution for maintaining battery banks in caravans, motorhomes, marine vessels, and remote commercial sites. By utilising high-grade monocrystalline cells, it maximises energy yield within its physical footprint, making it an excellent choice where installation space is carefully managed.

Operating at a nominal 24V introduces significant electrical advantages for off-grid installations. Higher voltage transmission effectively reduces voltage drop over long cable runs, which is incredibly beneficial for long vehicle chassis. This means you can maintain excellent power efficiency from the roof of your vehicle or remote structure all the way down to your electrical control hub. Featuring a highly compact design, this module is perfect for trickle charging or fitting into exceptionally tight mounting spaces on roof racks or vehicle cabins.

Versatile System Compatibility

One of the standout features of this 24V solar panel is its adaptability across different battery system architectures. When integrated into a native 24V battery bank, it works seamlessly with standard PWM (Pulse Width Modulation) charge controllers, offering a straightforward and highly dependable charging solution. Alternatively, if your vehicle or canopy setup relies on a 12V battery system, this panel remains fully compatible provided an MPPT (Maximum Power Point Tracking) solar controller is used. The MPPT controller will efficiently step down the 24V input to safely and rapidly charge 12V deep cycle batteries, ensuring maximum solar harvesting even in suboptimal lighting conditions.

Built Tough with a Black Powder-Coated Frame

Durability is paramount when designing electrical systems for the harsh Australian climate. This module is housed in a rugged black powder-coated aluminium frame that not only provides superior structural rigidity but also blends seamlessly with modern vehicle aesthetics and stealthy roof rack builds. The robust construction ensures the protective glass and delicate internal cells are well shielded against vibrations, impacts, and heavy wind loads commonly encountered during extensive outback travel or corrugated road driving.

Key Performance Features

  • High-efficiency monocrystalline cells ensure excellent light conversion and superior space efficiency
  • Native 24V nominal output reduces cable voltage drop over longer wiring runs
  • Seamlessly charges 24V battery systems via a standard PWM controller
  • Highly effective for charging 12V battery banks when paired with a compatible MPPT charge controller
  • Heavy-duty black powder-coated aluminium frame offers exceptional durability and a sleek aesthetic finish
  • Positive power tolerance design ensures consistent rated power output
  • Rated for a maximum system voltage of 1000VDC for scalable string configurations

Essential Power for Remote Applications

Finding the right balance between physical footprint and energy production is critical for mobile living and remote industrial applications. The reliable daily energy yield from this monocrystalline panel ensures your essential DC loads, such as refrigeration, lighting, communications equipment, and water pumps, remain active. Whether you are outfitting an off-grid tiny home, an expedition canopy, or a coastal marine vessel, this solar panel integrates cleanly into professional electrical builds.

Equip your mobile or off-grid power setup with reliable 24V solar generation today. Secure your Enerdrive 24V 40W Black Frame Monocrystalline Fixed Solar Panel to maintain peak battery health and power your essential equipment wherever your journey takes you.

SPECIFICATIONS

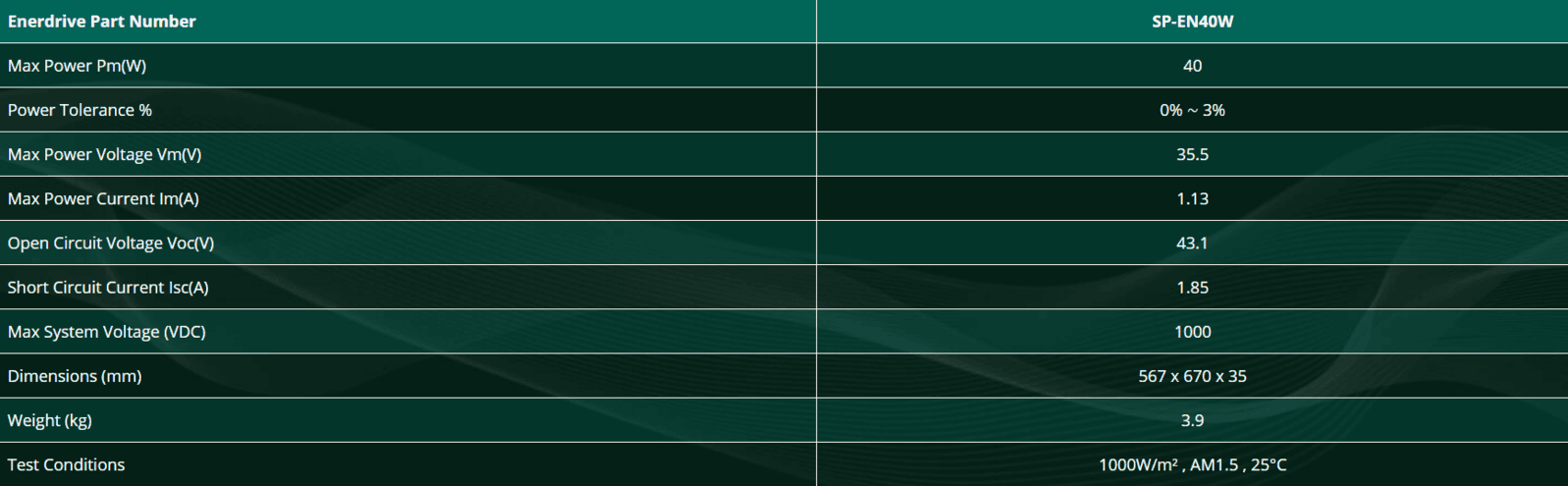

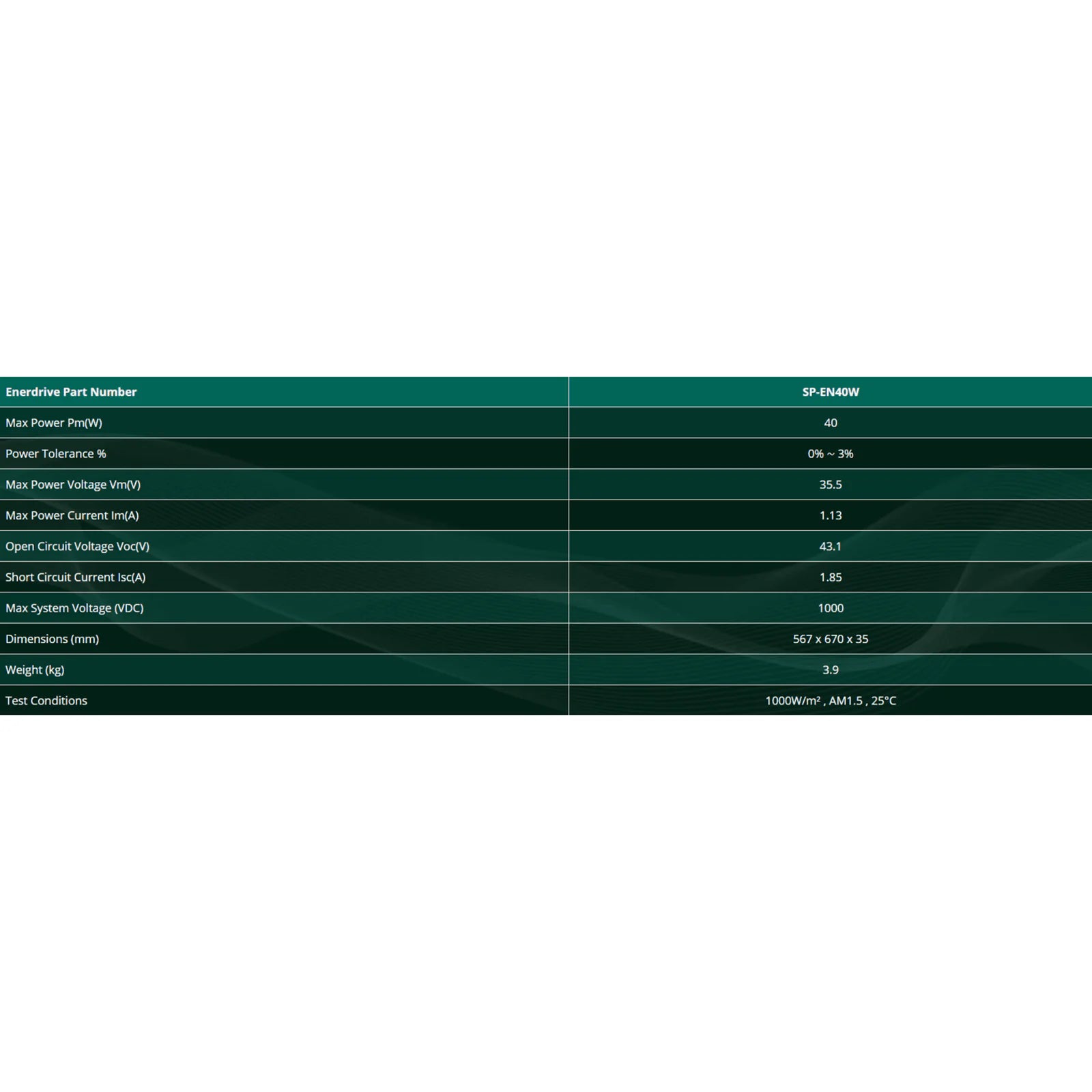

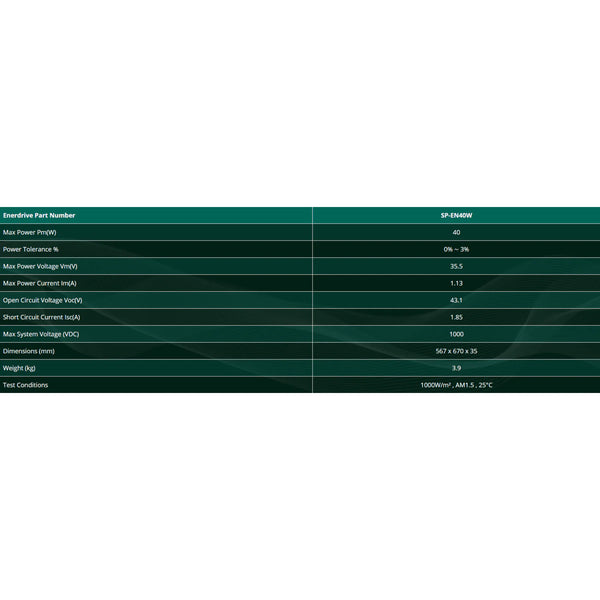

Specifications

Product 40W 24V Fixed Mono Solar Panel
SKU SP-EN40W-24V
Max Power Pm (W) 40
Power Tolerance (%) 0% to 3%
Max Power Voltage Vm (V) 35.5
Max Power Current Im (A) 1.13
Open Circuit Voltage Voc (V) 43.1
Short Circuit Current Isc (A) 1.85
Max System Voltage (VDC) 1000
Dimensions (mm) 567 x 670 x 30
Weight (kg) 3.9
Test Conditions 1000W/m², AM1.5, 25°C
Note Specifications subject to change without notice.

SKU: SP-EN40-24V
Model #: SP-EN40-24V
MPN: SP-EN40-24V
Package weight: 8.5 kg
Package length: 1.59 m
Package width: 0.6 m
Package height: 0.04 m

WARRANTY

ENERDRIVE PRODUCT WARRANTY

In the unlikely event that a technical issue arises with an Enerdrive product, customers are encouraged to initially contact the Enerdrive Support Team for immediate and efficient expertise and first class product support.

Important Note: Consumer Protections

If you have purchased your product in Australia, you should be aware that:

This warranty is provided in addition to other rights and remedies held by a consumer at law. Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and for compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.

If you have purchased your product in New Zealand, you should be aware that:

This warranty is supplemental to any other rights and remedies you have under the Consumer Guarantees Act 1993 NZ, unless your purchase is made for commercial purposes, in which case Enerdrive excludes all consumer guarantees implied in the Consumer Guarantees Act 1993 NZ in respect of your product.

Enerdrive warrants that its Products will be free from defects in materials and workmanship (subject to limits, and in normal conditions, as described later in this warranty) for up to 5 years from the date of purchase.

Warranty Support Team

As part of the Enerdrive warranty process you may be asked to speak with an Enerdrive Support Team member. This team assists with all technical enquiries & are there to ensure a great result is achieved every time. They will typically discover 1 of 3 possible issues:

  1. User Error - This is nothing to be ashamed of. Enerdrive appreciate that reading a user manual from start to finish & taking it all in is not an easy task. Enerdrive recommends every customer reads all associated user manuals. If you are still experiencing problems reach out to the Enerdrive Support Team.
  2. Installation Issues - The Enerdrive Support Team are highly skilled at resolving “Installation” related issues. To assist with your enquiry, you will be asked to share images of the installation and wiring of your system. An installation related issue does not usually lead to a product replacement (unless there are also defects in materials or workmanship of the product). The Enerdrive Support Team are however available to assist by offering support & guidance to both the product owner or a suitably qualified person to achieve an amicable solution.
  3. Product Failure - If in the unlikely event an Enerdrive product has defects in materials or workmanship (in normal conditions, as described in this warranty) and it meets the conditions as described in this warranty statement Enerdrive will arrange for the product to be repaired or replaced promptly.

Advanced Warranty Replacement Program

For a faster turn-around, and to get you up and running as quickly as possible, Enerdrive offer an “Advanced Warranty Replacement” program. This program is valid for the first 18 months of end user ownership; (i.e. The final user of the Enerdrive system). The program differs slightly depending on whether you have a credit account with Enerdrive or not.

Credit Account Customer

At your request Enerdrive will ship you a replacement product straight away and charge your account for the full cost of this replacement product. The advanced warranty replacement will be sent with a Reply-Paid satchel allowing you (or your customer) to return the faulty product via our free return freight service at your earliest convenience. Once the faulty product is received and Enerdrive has determined that it is covered under Enerdrive’s warranty, Enerdrive will credit back to your account the full cost of the advanced warranty replacement you originally received.

COD Customer / End User

At your request Enerdrive will ship you a replacement product straight away and charge your credit card, (as you are a COD customer), for the full cost of this replacement product. The advanced warranty replacement will be sent with a Reply Paid satchel allowing you to return your faulty product on our free return freight service at your convenience. Once the faulty product is received and Enerdrive has determined that it’s covered under Enerdrive’s warranty, Enerdrive will credit back to your credit card the full cost of the advanced warranty replacement you originally received.

Advanced Warranty Program Conditions for All Customers

By requesting an Advanced Warranty Replacement please be advised that if the product you return is found NOT to be faulty or is NOT covered under Enerdrive’s warranty policy (This document in full), then you will not be entitled to a refund for the cost of the Advanced Warranty Replacement and the product you returned will be shipped back to you at your expense.

Which Products does the warranty apply to?

It applies to all products manufactured or supplied under Enerdrive brands (Products). (Non Enerdrive branded products defined within Appendix)

How long does the warranty apply for?

The warranty applies for the period set out in the ‘Table – products and warranty periods’ set out at the end of this document. (Warranty Period). The periods set out in the ‘Table – products and warranty periods’ begin at the time that the first owner (other than a commercial reseller) first purchases a new Product; if the effect of that is to make your Warranty Period shorter than 5 years, then the shorter period applies. Also, if a previous owner of the Product (other than a commercial reseller) has owned it for a period of time before selling it to you, then it is likely that they will have used up part of the Warranty Period offered by Enerdrive, due to the passage of time. In that case, you will receive the benefit of the remaining balance of the Warranty Period, when you purchase it from them. You must also notify Enerdrive of any warranty claim for a Product within a reasonable period (usually 90 days) after you become aware of a Product which malfunctions. stops operating

Who is the warranty offered to? or

The person who purchases the Product from Enerdrive, or a subsequent owner(s) of the Product who purchases it from another person. (You or you)

What is being warranted?

Enerdrive warrants that covered Products will be free from defects in materials and workmanship (in normal conditions, as described in this warranty). Enerdrive does not promise that Products will always operate without interruptions, nor that Products will always be error-free. Enerdrive Products may not be suitable for medical, mining or other commercial use applications where constant uninterrupted operation may be a requirement (for these applications, the warranty period will be defined at point of sale). Each Enerdrive product is designed to operate in accordance with the specifications and in the conditions set out in any datasheet relating to the particular Product, and limits and constraints which are stated in those specifications and conditions for a Product are not defects in the Product. This is the only voluntary warranty made by Enerdrive for the Products. No person at Enerdrive can offer any different or broader warranty.

Who will determine if a Product is defective?

Enerdrive, who must act honestly and reasonably in making that decision. A court with appropriate jurisdiction may review Enerdrive’s decision.

What will Enerdrive do?

If a Product stops operating or malfunctions during the Warranty Period, due to a defect in materials or workmanship, then Enerdrive must choose between:

  1. repairing the defective Product, without charge to You;
  2. replacing the defective Product, without charge to You; or
  3. providing You with a refund of the purchase price paid for the defective Product.

What costs are covered?

  1. Reasonable costs of delivery and installation of any repair and / or replaced Products or components of Products.
  2. Reasonable costs of removal and return of any defective Products; and
  3. If the Australian Consumer Law (ACL) applies to the relationship between Enerdrive and You, then reasonable consequential expenses related to the defect and these other costs.

You must obtain written authorisation from Enerdrive, whenever possible, before incurring costs such as those mentioned above.

What are the limits on this warranty?

This warranty doesn’t cover any defect or fault to the extent to which it arises due to:

  • Improper storage, handling or installation, operation use or maintenance of Products which is careless, inconsistent with instructions provided by Enerdrive, due to failure to follow the procedures and steps set out in any Commission Form, or due to inaccurate completion of the Commission Form;
  • physical damage including to a Product’s surface coating or cabinet;
  • use of the Product for a purpose or in environmental conditions for which it was not designed or sold, or use outside the specified or normal operating ranges for a Product;
  • changes in a Product which occur due to climate or other external influence (for example: foreign material contamination, water entry, exposure to extreme heat or cold or to solvents, lightning, connection with reverse polarity or other inappropriate connection, interference from insects and pests and other issues);
  • use of the Product in a more complex system which does not correctly take into account Product design, the impact of other elements of that system, and related impacts;
  • normal wear and tear;
  • repairs, alterations or modifications to the Product (unless done by Enerdrive);
  • the use of any spare parts not manufactured, sold or approved by Enerdrive;
  • any other defective or malfunctioning parts in the vehicle or device in which the Product has been installed;
  • use of a Product for any unreasonable purpose;
  • If any event or circumstance which is beyond the reasonable control of Enerdrive; or
  • continued use of a Product after it has stopped operating or has malfunctioned.

Commercial, Medical & Mining applications carry a maximum warranty period of 24 months unless agreed to in writing at time of order / contract. an Enerdrive supplied product stops operating or has malfunctioned, you should stop using the Product immediately and make it available for assessment by the Enerdrive Support Team or warranty agent for inspection.

How can You make a warranty claim?

Contact the Enerdrive Support Team.

You must:

  1. make any claim in writing via email to support.enerdrive@dometic.com
  2. include details of the alleged defect or fault and the circumstances surrounding the defect or fault.
  3. provide relevant evidence of the claim, including photographs of the product installed and associated system wiring.
  4. provide evidence of the date when You purchased the Product including proof of purchase for the product from Enerdrive or from another person;
  5. Follow Enerdrive’s reasonable instructions about return of the Product.

Are there other things which may affect the warranty?

Yes. If the Product’s serial number has been altered or removed, or if the case or seal of the Product has been opened or tampered with, then this might adversely affect Your ability to make a warranty claim. Also, if you have not paid for the Product, then this may adversely affect Your ability to make a warranty claim.

How will the warranty process work, practically?

You must follow the reasonable directions and system checks / tests of the Enerdrive Support Team. If the Product is returned to Enerdrive, then upon receipt at Enerdrive, the Product will be assessed for defects, and Your claim will be reviewed. If the warranty claim is valid, then Enerdrive will choose one of the options mentioned above (repair, replacement or refund) and will communicate with You about that, to implement that choice. If the warranty claim is invalid, then Enerdrive will notify You and will provide a reasonable explanation why Enerdrive considers the claim invalid. You must then organise pickup of the Product at Your expense within 30 days. All Products replaced (or components which are replaced), will become the property of Enerdrive. If Enerdrive has ceased manufacturing or supplying a relevant Product or component, then Enerdrive may elect to deliver another type of Product (or component of a Product) which differs in colour, shape, size, weight, brand or other specifications in fulfilling its obligations under this warranty. Also, Enerdrive may always elect to provide a Product which is superior to Your original Product.

What else do You need to know?

Wrong deliveries, incorrect or damaged packing and transit damage claims are not warranty claims. Such cases should be directed to Enerdrive’s customer service 1300 851 535 Enerdrive may be required to seek personal information from you when you seek to make a claim under this warranty. Such personal information may be used by Enerdrive to process warranty claims and carry out repairs. Your information will not be shared with any other parties without your consent.

How does this warranty interact with other promises about the Product?

This warranty is in addition to any other rights and remedies which You are provided with by law. However, any warranties implied by law are limited to the greatest extent that is legally possible.

Enerdrive Five (5) Year Transferrable Product Warranty

Validity Date Enerdrive makes this warranty and associated warranty periods, valid for all products purchased from Enerdrive or its associated dealers / manufacturers from January the 1st, 2020.

Table – Products and Warranty Periods

Enerdrive supports your products “technically” for as long as you own them. Our defined warranty periods are listed below for all products (For purposes of manufacturing defects and faults and as defined in our Enerdrive Warranty Terms and Conditions)

Product / Brand Warranty Period Additional instructions for product
Enerdrive Battery Chargers:
• ePOWER AC Series
• ePOWER Industrial Series
• ePOWER DC2DC
• ePOWER DC Converters
• ePRO AC Series
5 Years • All products must be fitted according to supplied User manual and fitting instructions.
• DC2DC Not approved for Under Bonnet applications.
• Should any product be installed against Electrical Industry ‘Best Practice’ then a maximum warranty of 2 years only will apply **
Enerdrive Power Inverters:
• ePOWER True Sine Series
• ePOWER AC Transfer Inverters
5 Years • All products must be fitted according to supplied User manual and fitting instructions.
• Should any product be installed against Electrical Industry ‘Best Practice’ then a maximum warranty of 2 years only will apply **
Inverter / Charger Combi’s:
• ePOWER Combi Series
• ePRO Combi Series
5 Years • All products must be fitted according to supplied User manual and fitting instructions.
• Should any product be installed against Electrical Industry ‘Best Practice’ then a maximum warranty of 2 years only will apply **
Battery Monitors:
• ePRO+ Series
• Simarine (when sold as part of a pre-built power system)
5 Years • All products must be fitted according to supplied User manual and fitting instructions.
• Should any product be installed against Electrical Industry ‘Best Practice’ then a maximum warranty of 2 years only will apply **
Enerdrive Lithium Batteries
• BTEC Lithium Series
• BTEC ULTRA Series
• Pro Series
5 Years • Battery charger used MUST have and be set to Lithium charge profile set to the correct charge voltages.
• No under bonnet applications – All Warranties voided if done so.
• The maximum discharge current that can be drawn from ALL batteries in a single installation should not exceed the maximum discharge current of a single batteries BMS current rating.
• Paralleled battery systems must be installed according to the Enerdrive ‘How to Parallel Lithium Batteries’ guidelines found HERE
• It is reasonable to expect a decrease in useable amp-hour capacity over time with Lithium batteries due to factors such as number of cycles, and discharge rates.
• The Lithium Battery warranty will cover all failures (no power delivery), however natural capacity decrease is not supported with the 5-year period. Should a battery deliver less than 70% of its capacity as recorded by 2 full discharge / recharge cycles as measured by an ePRO+ Battery monitor with no signs of excessive use / wear & tear, it will be considered a warrantable claim.
• Any Lithium battery mounted externally must be protected from the elements to avoid any possibility of water ingress.

Table – Products and Warranty Periods

Enerdrive supports your products “technically” for as long as you own them. Our defined warranty periods are listed below for all products (For purposes of manufacturing defects and faults and as defined in our Enerdrive Warranty Terms and Conditions)

Enerdrive Solar Panels:
• Fixed Frame
5 Years • It is reasonable to expect a decrease in produced watts delivered from solar panels over time. This is not covered under the 5-year period.
• However, should a solar panel deliver less than 70% of its capacity as recorded by a short circuit test in full sunlight, with panel angled according to the seasonal time of year it may be considered a warrantable claim.
• Any signs of pressure, hail damage or incorrect mounting will however void any claim.
• In the event of a claim for Warranty being approved, Enerdrive cannot be held accountable for labour or removal / replacement costs of faulty solar panels.
Solar Controllers:
• ePOWER Series
• MorningStar Series (see note)
5 Years • All products must be fitted according to supplied User manual and fitting instructions.
• Should any product be installed against Electrical Industry ‘Best Practice’ then a maximum warranty of 2 years will only apply **.
Enerdrive Complete System Packages: Fully assembled System Plates, Canopy panels, DIY Install Kits, 5 Years All Enerdrive components and workmanship included • All systems plates must be fitted according to supplied User manual and fitting instructions.
• It is recommended that all high current and charge cable connections be checked for tightness on a regular basis.
Connection Accessories: BLUE SEA Connection Accessories, Bussmann, Carling & Enerdrive Range For as Long as the System is Installed up to 5 Years • All products must be fitted according to supplied User manual and fitting instructions.
• Should any product be installed against Electrical Industry ‘Best Practice’ then a maximum warranty of 2 years will only apply.
Simarine (when sold separately) 3 Years • As per standard manufacturer warranty periods defined with product
For all other brands sold by Enerdrive|Dometic See notes • As per standard manufacturer warranty periods defined with product

** The Term ‘Industry Best Practice’ relates to how a cross section of professionals within the DC / AC related industries would view what is considered Right or Wrong in a wiring system. It is not an attempt by Enerdrive to void any warranty obligations, however considering a large proportion of product issues are related to installation or system-based problems of some nature, it’s ensuring that an Enerdrive product is installed and used correctly as originally intended. All Enerdrive products have an installation manual which shows the requirements for installation, with ‘Industry Best Practice’. Installations shall be compliant to relevant standards including but not limited to AS/NZ 3001 (Electrical Installation Transportable Structures) and AS/NZ 3004 (Electrical Installation Marinas and Boats)

Other Notes:

  • While warranty is transferrable to subsequent owners, it is ONLY valid to original installation.
  • Commercial, Medical and Mining Application Warranty: Unless agreed otherwise, the standard warranty for all Commercial Vehicle, Medical or Mining applications is 24 Months, unless agreed to in writing at time of order / supply contract. Enerdrive will evaluate the application fairly on all merits of use to determine the best possible warranty period to assist the client.

DOCUMENTS

Loading product documents…

WIRING INSTALLATION

SOLAR 4 RVS

OFF-GRID, EXTRA LOW VOLTAGE SOLAR PANEL WIRING GUIDE

Please read this document in full before commencing installation.



To maximise the efficiency and longevity of your new solar panels, please ensure you follow the instructions in this guide carefully. Failure to do so WILL result in shortened panel lifespan AND void your warranty.

While it seems simple to connect solar panels to your battery, common installations practices such as using non-waterproof connectors as permanent connection points CAN damage the solar panel AND void your warranty, please continue reading the guide for more details.

Whilst due care has been taken to ensure the recommended wiring practices will provide a safe and efficient installation, we cannot guarantee these methods will be suitable in every scenario due to variations in cable, connectors, solar charge controllers, environment, and installation practices.  It is the duty of the installer to verify the installation is installed to local standards and refer to each manufacturer’s instructions.

This guide is limited to 12 and 24V battery systems.



Contents

Safety. 3

Selecting an Appropriate Solar Panel based on the Specifications. 4

Series, Parallel and Combination Wiring Installations. 4

Installation Type 1 – Parallel Wiring. 5

Installation Type 2 – Series Wiring. 6

Installation Type 3 – Series/Parallel Combination Wiring. 7

Paralleling and Series of Different Solar Panels. 8

Cable Size. 8

Solar Array Performance. 8

Bypass, Blocking Diodes and Shading. 9

Sizing a Solar Charge Controller. 10

Solar Panel Efficiency. 10

Maintenance. 12

Ongoing Support. 12

Safety

  • All work should be carried out in shade or inside out of direct sunlight. Use a towel or blanket on top of the panel to reduce light exposure;
  • Ladder indicating safety Work safely at heights.  Ensure you have a sturdy, secure ladder;
  • Use insulated tools;
  • Ensure the panels are kept covered during installation;
  • Wear appropriate footwear;
  • Exotronic 200W solar panel specifications Use gloves and other PPE where appropriate;
  • Seek help where needed.
  • This guide is only relevant for installations installed at below 120V DC using the Open Circuit Voltage (Voc) rating of the solar panel.

Example: Model Exo-SP-F4-200, the Voc is 24.1V, therefore 5 panels in series is 120.5V and would require a licensed electrician to complete an installation.

  • Extra low voltage solar arrays CAN cause fires AND/OR injury/death if adequate precautions are not taken.
  • Do not leave the solar panel short-circuited (i.e. the MC4 connectors should NOT be connected together) and exposed to the sun, this can cause failure of the bypass diodes, hot-spots and permanent damage to the solar panel within minutes.



Selecting an Appropriate Solar Panel based on the Specifications

Solar panel, MPPT and battery wiring showing cable sizes, connections, battery fuse and solar isolation switch The wattage of the solar panel is calculated by Max Power Voltage (Vmp) x Max Power Current (Imp), i.e. 10.2A x 19.8V = 202W.

When no power is being drawn from the solar panel, the Voc will be present.

To charge a 12V battery bank, dependent on the charge controller, approximately 7V is required between the absorption voltage requirement of the battery and the solar panel Voc.  I.e. a calcium 12V battery that requires 14.8V absorption voltage, will need a panel with at least 21.8Voc.  Most solar panels are approx. 23Voc.  When calculating the array current, use the short circuit current (Isc).

The diagram to the right shows a simple photovoltaic (PV) / solar array connected to a 12V battery.

Never install a solar panel in a permanently shaded location, this can damage the bypass diode and cause hot spots.

If a solar isolation switch is used, it should be sized to handle the full short circuit current of the array, plus ~20% to avoid nuisance tripping. I.e. if an array is rated to 30Asc, then the circuit breaker should be at least 36A, the closest match will be a 40A circuit breaker.



Series, Parallel and Combination Wiring Installations

When more than one solar panel is used, each solar panel can be connected to an individual solar charge controller, this will generally lead to the best performance but at the highest cost and complexity.

An alternative is to wire the panels in either series or parallel or a combination of both.

two solar panels wired in parallel Installation Type 1 – Parallel Wiring

This type of installation, most common for off-grid 12V systems, each solar panel positive is connected together, and each negative connected together.  In this case, the array voltage will remain the same as a single solar panel, however the array current will increase.

three solar panels wired in parallel with string fusing

If a solar panel were to fail by an internal fault, such as an internal bypass diode short circuit, the fault current of the array would all flow through the failed diode.  There are many examples of this causing fires, string fusing has been designed to minimise the risk.

In the example (above) of three solar panels, if the left panel were to fail from a shorted bypass diode, the middle and right solar panels would each pass 10A into the left solar panel. Therefore, 20A would pass through the 15A fuse, and cause it to disconnect the failed solar panel from the array.

The fuses should be located close to 3 to 1 branch connector.

Fusing is not required when two or fewer solar panel are used because it is not possible for the fuse to reach the required tripping current.

Parallel arrays provide good tolerance to shade and keeps the voltage low, and thus safer.



Installation Type 2 – Series Wiring

two solar panels wired in series In this type of installation, commonly used in 24V systems, one solar panel positive is connected to the next solar panel negative.  In this case, the array current will remain the same as a single solar panel, however the array voltage will increase.  Typically, 24V systems require an open circuit array voltage of at least 36.6V.

Each group of panels wired in series is called a “string”.

The advantages of series wiring are:

  • Reduced wiring cost
  • Reduced power losses in cables
  • Typically improved performance in MPPT solar charge controllers

The disadvantages are:

  • Poor shade tolerance
  • High voltage rated solar controllers often required
  • Less safe



Installation Type 3 – Series/Parallel Combination Wiring

This type of installation, commonly used in larger systems, two or more solar panels are connected in series to make a string, and two or more strings are paralleled together. In this case, the array current AND the array voltage will increase.

A note on MC4 solar connectors, these types of connectors are waterproof, affordable, high voltage rated, are pre-installed on most solar panels and are usually disconnectable.  The current rating is typically limited to approx. 30A when 6mm2 or larger PV1-F solar cable is used, therefore they would not be suitable for four 10A solar panels wired in parallel without overloading the connector.  Series/parallel wiring arrangements are a good way to overcome this while still being able to use these types of connectors

4 solar panels wired in series parallel combination

The advantages of this type of system wiring are:

  • Partially reduced wiring cost
  • Partially reduced power losses in cables
  • Typically improved performance in MPPT solar charge controllers
  • Avoids the need of string fuses when less than two strings are paralleled
  • Reasonable shade tolerance

The disadvantages are:

  • High voltage rated solar controllers often required

Paralleling and Series of Different Solar Panels

Panels can typically be wired in parallel when the same type of solar cell and voltage is used.  I.e. two solar panels using P-type mono-PERC cells and both 24Voc can be paralleled, but if a P-type mono-PERC cell and n-type IBC cell are paralleled, differing coefficients of performance will cause a mismatch in voltages, causing the higher voltage panel to be “dragged down” to the lower voltage panel and increasing the risk of panel failure.  Consult your distributor for verification before paralleling different types of solar panels.

At the time of writing, the Exotronic PERC series of solar panels are all designed to use the exact same cell cut into 36 pieces and therefore the voltage and performance will be nearly identical, and will thus provide good performance when paralleled.

Panels can only be wired in series when the cell type and current are the same, this is quite rare.  Therefore typically only the same solar panel make and model can be wired in series.

Example: 2x 200W Exotronic Solar fixed solar panels can be wired in series, and 2x 30W Exotronic fixed solar panels can be wired in series, and each string can be wired in parallel.  But the 30W and 200W panel cannot be wired in series.

Cable Size

The most practical wire for solar panels is PV1-F solar cable, this cable is most common in 4mm2 and 6mm2.  A very rough rule of thumb is for arrays of less than 20A can use 4mm2, and 20A or larger should use 6mm2.  If a larger size is required, it is recommended to run two runs from the array to the solar controller.  There is no harm in using larger size cable except for practicality and cost considerations.

PV1-F cable is highly UV resistant, durable, high voltage rated, designed to fit MC4 connectors, highly stranded, and tinned copper.  It’s properties mean the cable is well suited for most applications including marine, and it is also cost effective.

Solar Array Performance

Solar panels are rated at Standard Test Conditions (STC), this means solar panels are placed on a bed of light rated at 1000W/m2 at 25C and at sea level.  This is why it is not typical to see the solar panel output in typical conditions, combined with the other losses (dirt on panel, cable/connection losses, sun orientation, panel temperature, solar controller losses, battery efficiency losses) the actual output that will be seen will likely be much lower.

Often a rule of thumb is you will see up to 75% of the STC rating of the solar panel at midday in summer.  I.e. 150W from a 200W solar panel.

In some rare cases you may see close to full output, i.e. the solar panel has been stored in a cool garage, and suddenly exposed to full midday summer sun. As the panel heats up, performance will drop to the more typical 75% output.

For the best performance, the solar panel should be perpendicular to the sun, however normally brackets to make the solar panel face the sun provide minimal performance improvement at a much higher complexity and cost.

Bypass, Blocking Diodes and Shading

internal view of how a bypass diode works Each solar panel will have one or more bypass diodes.  Despite the marketing claims, the main purpose of bypass diodes is to protect the cells from overheating.  When a cell is shaded it causes the cell to increase resistance, as current flows through the resistance, the cell heats up, and if the current is not bypassed around the cell, it will cause a hot spot and subsequent failure of the cell, and as each cell is wired in series, failure of the whole solar panel.

In 12V arrays, the bypass diodes, while necessary for the purpose of protection of the cells, provide minimal performance improvement.

3 panels wired in parallel with string fusing and blocking diodes

When a solar panel is completely shaded, it can become a resistance, causing the power flow of other solar panels to flow through it in reverse thus causing power loss in the system.

Blocking diodes can be installed to prevent this.  However, this event is rare, and the diodes will cause power loss at all times.  Therefore, unless specifically required by the manufacturer, blocking diodes should be avoided.  Most good quality solar controllers should have their own blocking diode installed, and therefore an additional blocking diode is not necessary for single panel installations. They are also not a replacement for string fusing.



Sizing a Solar Charge Controller

The solar charge controller or solar regulator must be sized appropriately for the array.  A too small charge controller can be damaged, and too large can be unnecessary.

If using a PWM controller, typically you must use a larger controller than required. You must also use a 30-36 cell (17 to 20Vmp) solar panel on a 12V battery or 60-72 cell (34 to 40Vmp) solar panel on a 24V battery.  To size a PWM controller, a simple calculation is: Power of Array in Watts / Battery Bank Voltage x 0.8 for losses, i.e. 400W / 12V x 0.8 = 26.7A controller required.

If using an MPPT controller, you can often size the controller smaller to reduce costs, while still allowing maximum performance in winter.  When using an MPPT, ideally use a 36 cell or more (19Vmp+ limited by the maximum input voltage rating of the PV input of the solar controller) solar panel on a 12V battery.  To size an MPPT controller, a simple calculation is: Power of Array in Watts / Battery Bank Voltage x 0.8 for losses, i.e. 400W / 12V x 0.8 = 26.7A controller required.  However you can often downsize to a 20 or 25A controller as it is often only in summer when the most power is available, that the controller will reach the maximum output, and therefore oversizing is not necessary.

MPPTs will have significantly improved performance when it is required the most, i.e. during the cooler months where there is more likely to be shading, and low light conditions.

Solar Panel Efficiency

two identical vans, side by side, one with a large panel, and one with many smaller panels Solar cell efficiency is effectively how much light is converted to power in terms of m2 of the solar cell.

Solar panel efficiency is the same measurement, but takes into account the entire panel, i.e. the space between the cells and the frame.  Therefore solar panel panels can be more efficient simply by decreasing the space between the cells, and to the frame.  This is why larger solar panels are more efficient then smaller panels; less borders/gaps to cell ratio.

Practically speaking, when useable area is limited, a 22% efficient 300W solar panel could take up most of the available space, limiting the room for future panels and increasing the complexity of wiring, whereas it could be possible to install 2x 200W modules plus a 160W solar panel on a single controller, greatly increasing the total power of the array and keeping the wiring relatively simple. There are many different solar technologies, the most common is monocrystalline. While the highest cost, it is higher in efficiency compared to polycrystalline and amorphous, and therefore reduces the quantity of solar panels needed and simplifies the system.  Amorphous, while having improved shade tolerance, is very low efficiency, therefore even when compared to a shaded monocrystalline module, the overall output can often be worse.

Cells get exponentially more expensive as the efficiency increases, the easiest way for unscrupulous retailers to increase profits is to overstate the rated output of the solar panel.  In the example below, the solar panel is 18V and advertised to be 350W, therefore it should have an Imp of approximately 19.4A.  The cells, based on the specifications and appearance are ¾ cut 156mm cells with 5 wire busbars.  The highest output possible on cells of this nature is approximately 7.5A.  Therefore it is not physically possible for this solar panel to exist.  A true output of a panel this size will be approximately 120 to 130W based on several reasonable assumptions.  As Sunpower uses interdigitated back contact cells, there are no busbars on the front, so the cells type stated below is also incorrect.

competitors solar panel with misleading specifications

The highest cost and most efficient solar cells commercially available at the time of writing are approximately 24% efficient, and therefore the maximum efficiency for a very large module could approach 23% efficient.

Maintenance

To ensure your solar panels are performing optimally, be sure to keep on top of this simple maintenance checklist.

  • Clean on a regular basis with neutral soap & clean water, using a soft sponge or cloth;
  • If in a marine environment, wash regularly with fresh water to avoid damage caused by saltwater;
  • Periodically inspect the mechanical and electrical connections;
  • Denatured alcohol (methylated spirit) can be used to remove grease etc.

Ongoing Support

Solar 4 RVs are proud to offer a support service beyond the purchase of your solar panels. If you require further technical support, please feel free to contact us. We are happy to help!

RECENTLY VIEWED PRODUCTS

Add notes to your order

Powering Your Adventure

We gave it full sun... ☀️

Official Pricing Reference
