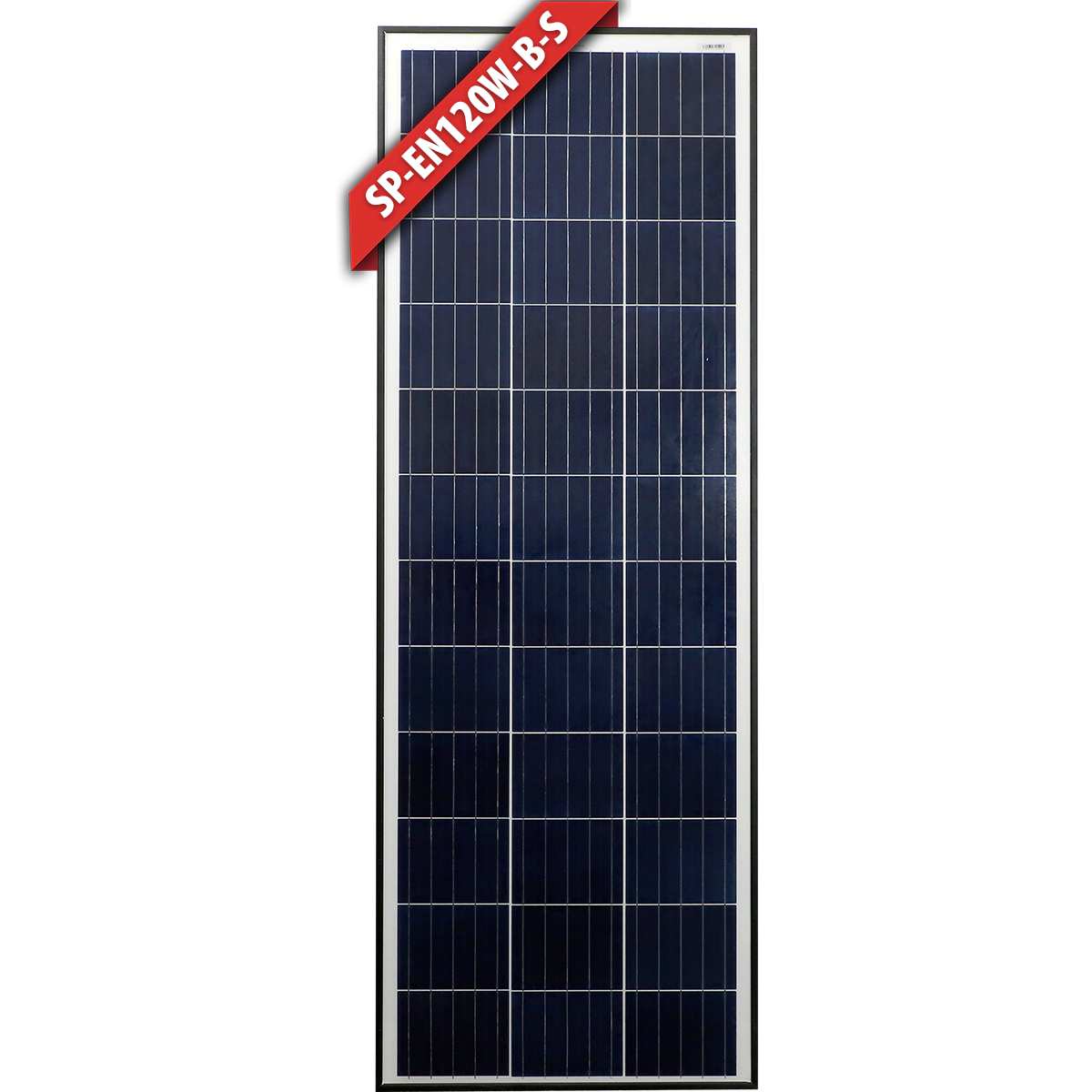

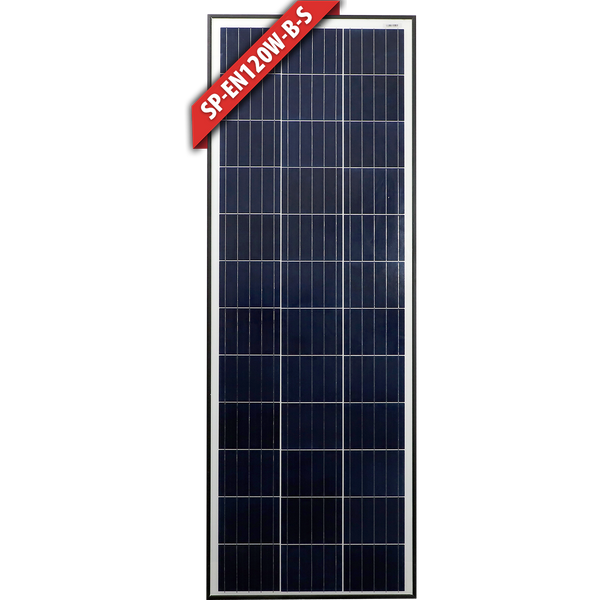

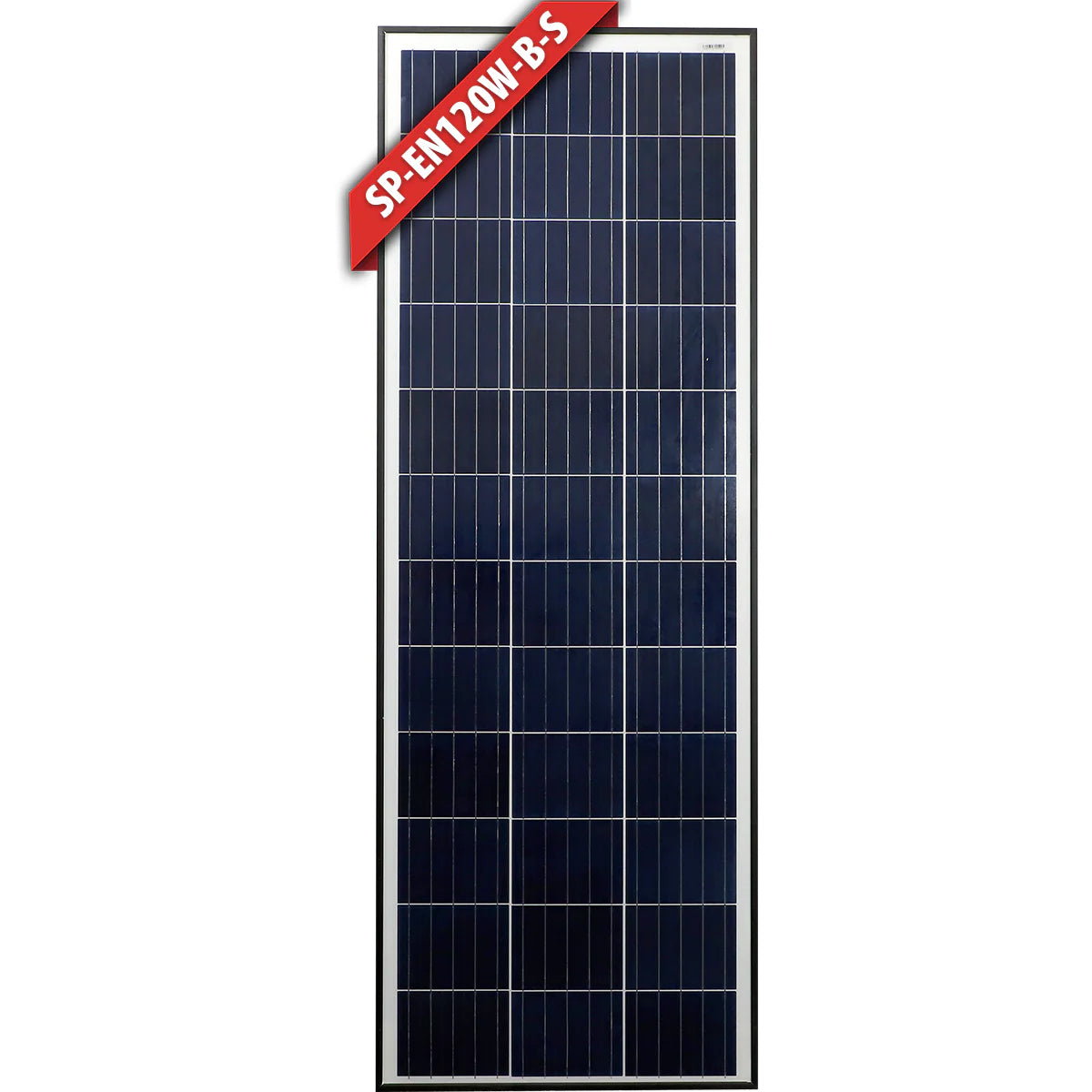

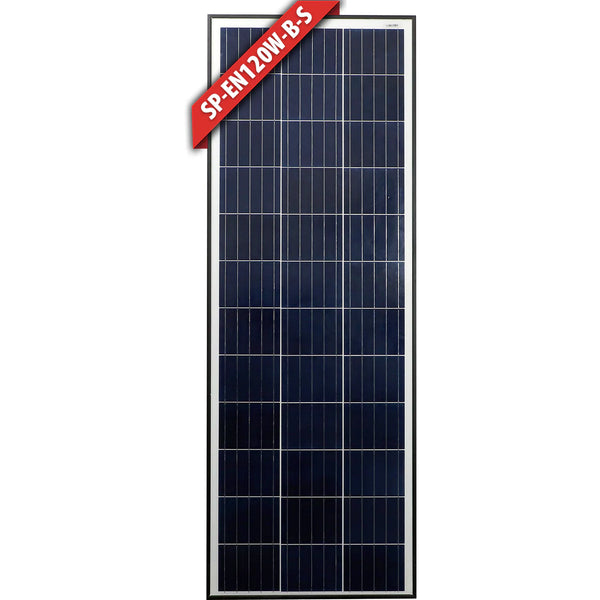

Enerdrive 120W Black Frame Polycrystalline Fixed Solar Panel

Slim 12V charging solution for narrow roof spaces - 1578x541x35mm


Regular price $247.11
/
Availability: In Stock at Enerdrive Warehouse Allow up to 7 days before dispatch
View all products from Enerdrive

Shipping Calculated in Cart | Add to cart and enter your postcode to see live shipping options.

Guaranteed Safe and Secure Checkout
Apple Pay Google Pay Mastercard PayPalShop Pay Visa
0
Enerdrive 120W slim fixed polycrystalline solar panel with a black aluminium frame

Enerdrive 120W Black Frame Polycrystalline Fixed Solar Panel

DESCRIPTION

High-Performance Slim Power for Caravans and 4x4s

The Enerdrive 120W Black Frame Polycrystalline Fixed Solar Panel provides an excellent balance of power output and spatial efficiency for off-grid vehicle setups. Specifically engineered with a narrow profile, this 120-watt solar module is an ideal solution for marine vessels, camper trailers, RVs, and four-wheel drives where roof space is highly contested. Featuring proven polycrystalline solar cell technology, it delivers consistent energy generation to keep your deep cycle battery banks charged during remote travel.

Slimline Form Factor for Tricky Installations

A primary challenge when designing an off-grid solar system for a vehicle is fitting adequate solar capacity around roof vents, air conditioning units, and storage boxes. At just 541mm wide, this slimline solar panel slides seamlessly into narrow gaps that standard square or wider rectangular panels cannot accommodate. This allows you to maximise your available roof real estate and increase your total solar array capacity without compromising on your vehicle layout.

Robust Black Anodised Aluminium Frame

Built to withstand the harsh Australian climate, the module is housed within a rigid 35mm black anodised aluminium frame. This not only provides essential structural integrity against wind and vibration during transit but also offers a sleek, modern aesthetic that blends cleanly with black roof racks and contemporary vehicle designs. The tough tempered glass surface ensures durability against light impacts and environmental wear while maintaining high light transmission to the underlying polycrystalline cells.

Versatile 12V and 24V System Compatibility

Electrically, this solar panel is highly versatile. Producing an open circuit voltage (Voc) of 22.8V, it is optimally configured for 12V battery installations when paired with a suitable solar charge controller. For users running larger energy systems, multiple panels can easily be wired in series to support 24V or even 48V battery banks. Supplied with a convenient fly lead and industry standard MC4 compatible solar connectors, integrating this panel into your existing wiring is straightforward and secure.

Key Features

  • Narrow 541mm profile engineered for constrained roof spaces on caravans, 4x4s, and boats
  • Sleek black anodised frame provides robust structural support and a modern appearance
  • Proven polycrystalline cells deliver dependable daily power generation
  • Optimised for 12V systems with the ability to wire in series for 24V or 48V setups
  • Pre-wired MC4 compatible connectors ensure quick and reliable electrical integration
  • Supported by Enerdrive for local Australian warranty and technical backing

Trusted Enerdrive Quality

Selecting the right solar hardware is critical for long-term off-grid reliability. Enerdrive is highly regarded in the Australian power electronics market for their rigorous quality standards and dependable product support. Integrating an Enerdrive solar panel means you benefit from high-grade manufacturing and a local point of contact for technical assistance, reducing the risk of premature failure common with generic grade alternatives.

Enhance Your Off-Grid Energy Capacity

Secure dependable power for your next journey by maximising your available roof space. Add the Enerdrive 120W slimline solar panel to your off-grid system today and enjoy sustained battery charging wherever your travels take you.

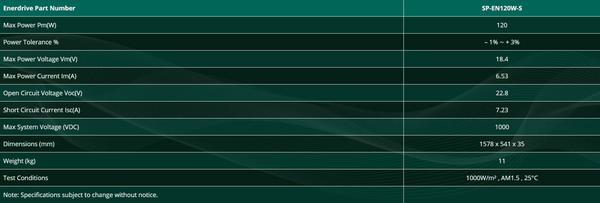

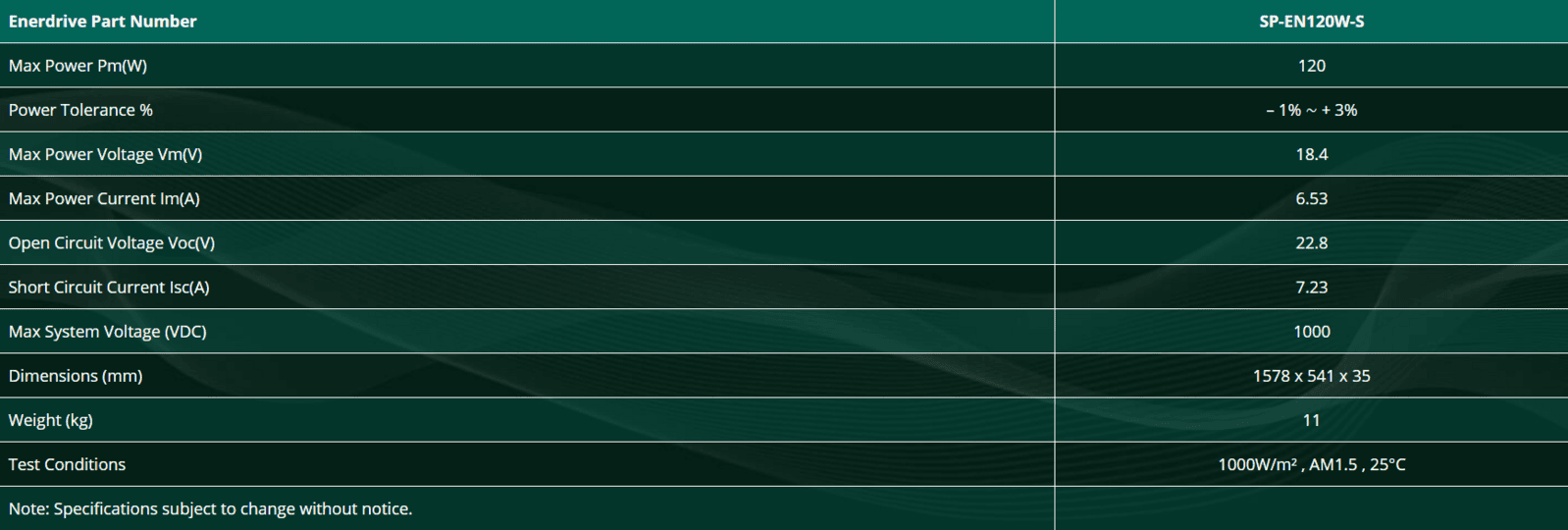

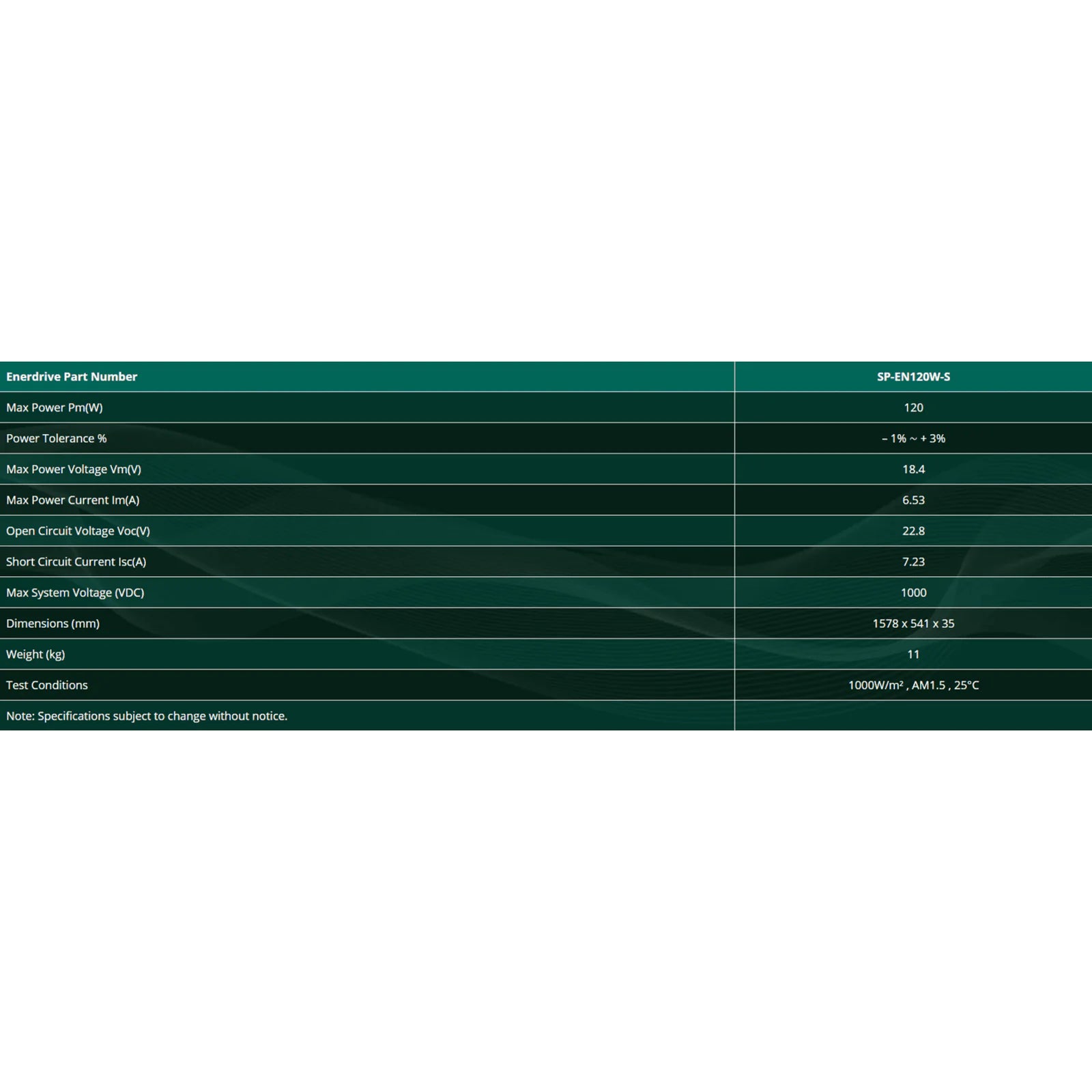

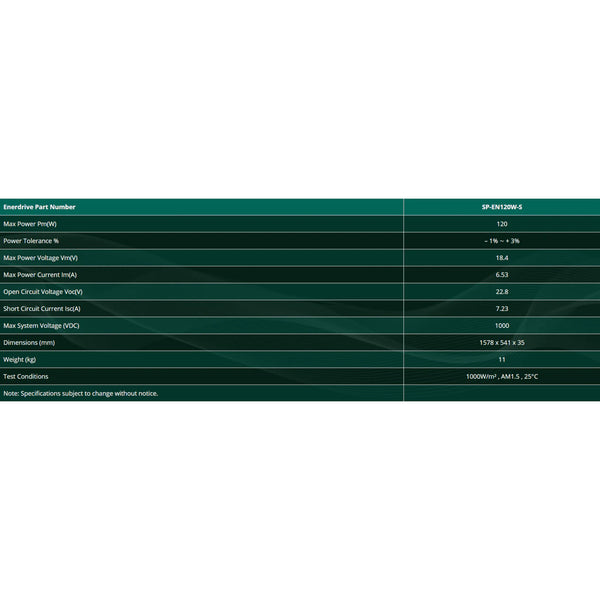

SPECIFICATIONS

Specifications

Product 120W Slim Fixed Poly Solar Panel (Black Frame)
SKU SP-EN120W-B-S (Black Frame)
Max Power Pm (W) 120
Power Tolerance (%) –1% to +3%
Max Power Voltage Vm (V) 18.4
Max Power Current Im (A) 6.53
Open Circuit Voltage Voc (V) 22.8
Short Circuit Current Isc (A) 7.23
Max System Voltage (VDC) 1000
Dimensions (mm) 1578 x 541 x 35
Weight (kg) 11
Test Conditions 1000W/m², AM1.5, 25°C
Note Specifications subject to change without notice.

SKU: SP-EN120W-B-S
Model #: SP-EN120W-B-S
MPN: SP-EN120W-B-S
HS code: 8541430010
Country of origin: CN
Package weight: 8.5 kg
Package length: 1.59 m
Package width: 0.6 m
Package height: 0.04 m

WARRANTY

ENERDRIVE PRODUCT WARRANTY

In the unlikely event that a technical issue arises with an Enerdrive product, customers are encouraged to initially contact the Enerdrive Support Team for immediate and efficient expertise and first class product support.

Important Note: Consumer Protections

If you have purchased your product in Australia, you should be aware that:

This warranty is provided in addition to other rights and remedies held by a consumer at law. Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and for compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.

If you have purchased your product in New Zealand, you should be aware that:

This warranty is supplemental to any other rights and remedies you have under the Consumer Guarantees Act 1993 NZ, unless your purchase is made for commercial purposes, in which case Enerdrive excludes all consumer guarantees implied in the Consumer Guarantees Act 1993 NZ in respect of your product.

Enerdrive warrants that its Products will be free from defects in materials and workmanship (subject to limits, and in normal conditions, as described later in this warranty) for up to 5 years from the date of purchase.

Warranty Support Team

As part of the Enerdrive warranty process you may be asked to speak with an Enerdrive Support Team member. This team assists with all technical enquiries & are there to ensure a great result is achieved every time. They will typically discover 1 of 3 possible issues:

  1. User Error - This is nothing to be ashamed of. Enerdrive appreciate that reading a user manual from start to finish & taking it all in is not an easy task. Enerdrive recommends every customer reads all associated user manuals. If you are still experiencing problems reach out to the Enerdrive Support Team.
  2. Installation Issues - The Enerdrive Support Team are highly skilled at resolving “Installation” related issues. To assist with your enquiry, you will be asked to share images of the installation and wiring of your system. An installation related issue does not usually lead to a product replacement (unless there are also defects in materials or workmanship of the product). The Enerdrive Support Team are however available to assist by offering support & guidance to both the product owner or a suitably qualified person to achieve an amicable solution.
  3. Product Failure - If in the unlikely event an Enerdrive product has defects in materials or workmanship (in normal conditions, as described in this warranty) and it meets the conditions as described in this warranty statement Enerdrive will arrange for the product to be repaired or replaced promptly.

Advanced Warranty Replacement Program

For a faster turn-around, and to get you up and running as quickly as possible, Enerdrive offer an “Advanced Warranty Replacement” program. This program is valid for the first 18 months of end user ownership; (i.e. The final user of the Enerdrive system). The program differs slightly depending on whether you have a credit account with Enerdrive or not.

Credit Account Customer

At your request Enerdrive will ship you a replacement product straight away and charge your account for the full cost of this replacement product. The advanced warranty replacement will be sent with a Reply-Paid satchel allowing you (or your customer) to return the faulty product via our free return freight service at your earliest convenience. Once the faulty product is received and Enerdrive has determined that it is covered under Enerdrive’s warranty, Enerdrive will credit back to your account the full cost of the advanced warranty replacement you originally received.

COD Customer / End User

At your request Enerdrive will ship you a replacement product straight away and charge your credit card, (as you are a COD customer), for the full cost of this replacement product. The advanced warranty replacement will be sent with a Reply Paid satchel allowing you to return your faulty product on our free return freight service at your convenience. Once the faulty product is received and Enerdrive has determined that it’s covered under Enerdrive’s warranty, Enerdrive will credit back to your credit card the full cost of the advanced warranty replacement you originally received.

Advanced Warranty Program Conditions for All Customers

By requesting an Advanced Warranty Replacement please be advised that if the product you return is found NOT to be faulty or is NOT covered under Enerdrive’s warranty policy (This document in full), then you will not be entitled to a refund for the cost of the Advanced Warranty Replacement and the product you returned will be shipped back to you at your expense.

Which Products does the warranty apply to?

It applies to all products manufactured or supplied under Enerdrive brands (Products). (Non Enerdrive branded products defined within Appendix)

How long does the warranty apply for?

The warranty applies for the period set out in the ‘Table – products and warranty periods’ set out at the end of this document. (Warranty Period). The periods set out in the ‘Table – products and warranty periods’ begin at the time that the first owner (other than a commercial reseller) first purchases a new Product; if the effect of that is to make your Warranty Period shorter than 5 years, then the shorter period applies. Also, if a previous owner of the Product (other than a commercial reseller) has owned it for a period of time before selling it to you, then it is likely that they will have used up part of the Warranty Period offered by Enerdrive, due to the passage of time. In that case, you will receive the benefit of the remaining balance of the Warranty Period, when you purchase it from them. You must also notify Enerdrive of any warranty claim for a Product within a reasonable period (usually 90 days) after you become aware of a Product which malfunctions. stops operating

Who is the warranty offered to? or

The person who purchases the Product from Enerdrive, or a subsequent owner(s) of the Product who purchases it from another person. (You or you)

What is being warranted?

Enerdrive warrants that covered Products will be free from defects in materials and workmanship (in normal conditions, as described in this warranty). Enerdrive does not promise that Products will always operate without interruptions, nor that Products will always be error-free. Enerdrive Products may not be suitable for medical, mining or other commercial use applications where constant uninterrupted operation may be a requirement (for these applications, the warranty period will be defined at point of sale). Each Enerdrive product is designed to operate in accordance with the specifications and in the conditions set out in any datasheet relating to the particular Product, and limits and constraints which are stated in those specifications and conditions for a Product are not defects in the Product. This is the only voluntary warranty made by Enerdrive for the Products. No person at Enerdrive can offer any different or broader warranty.

Who will determine if a Product is defective?

Enerdrive, who must act honestly and reasonably in making that decision. A court with appropriate jurisdiction may review Enerdrive’s decision.

What will Enerdrive do?

If a Product stops operating or malfunctions during the Warranty Period, due to a defect in materials or workmanship, then Enerdrive must choose between:

  1. repairing the defective Product, without charge to You;
  2. replacing the defective Product, without charge to You; or
  3. providing You with a refund of the purchase price paid for the defective Product.

What costs are covered?

  1. Reasonable costs of delivery and installation of any repair and / or replaced Products or components of Products.
  2. Reasonable costs of removal and return of any defective Products; and
  3. If the Australian Consumer Law (ACL) applies to the relationship between Enerdrive and You, then reasonable consequential expenses related to the defect and these other costs.

You must obtain written authorisation from Enerdrive, whenever possible, before incurring costs such as those mentioned above.

What are the limits on this warranty?

This warranty doesn’t cover any defect or fault to the extent to which it arises due to:

  • Improper storage, handling or installation, operation use or maintenance of Products which is careless, inconsistent with instructions provided by Enerdrive, due to failure to follow the procedures and steps set out in any Commission Form, or due to inaccurate completion of the Commission Form;
  • physical damage including to a Product’s surface coating or cabinet;
  • use of the Product for a purpose or in environmental conditions for which it was not designed or sold, or use outside the specified or normal operating ranges for a Product;
  • changes in a Product which occur due to climate or other external influence (for example: foreign material contamination, water entry, exposure to extreme heat or cold or to solvents, lightning, connection with reverse polarity or other inappropriate connection, interference from insects and pests and other issues);
  • use of the Product in a more complex system which does not correctly take into account Product design, the impact of other elements of that system, and related impacts;
  • normal wear and tear;
  • repairs, alterations or modifications to the Product (unless done by Enerdrive);
  • the use of any spare parts not manufactured, sold or approved by Enerdrive;
  • any other defective or malfunctioning parts in the vehicle or device in which the Product has been installed;
  • use of a Product for any unreasonable purpose;
  • If any event or circumstance which is beyond the reasonable control of Enerdrive; or
  • continued use of a Product after it has stopped operating or has malfunctioned.

Commercial, Medical & Mining applications carry a maximum warranty period of 24 months unless agreed to in writing at time of order / contract. an Enerdrive supplied product stops operating or has malfunctioned, you should stop using the Product immediately and make it available for assessment by the Enerdrive Support Team or warranty agent for inspection.

How can You make a warranty claim?

Contact the Enerdrive Support Team.

You must:

  1. make any claim in writing via email to support.enerdrive@dometic.com
  2. include details of the alleged defect or fault and the circumstances surrounding the defect or fault.
  3. provide relevant evidence of the claim, including photographs of the product installed and associated system wiring.
  4. provide evidence of the date when You purchased the Product including proof of purchase for the product from Enerdrive or from another person;
  5. Follow Enerdrive’s reasonable instructions about return of the Product.

Are there other things which may affect the warranty?

Yes. If the Product’s serial number has been altered or removed, or if the case or seal of the Product has been opened or tampered with, then this might adversely affect Your ability to make a warranty claim. Also, if you have not paid for the Product, then this may adversely affect Your ability to make a warranty claim.

How will the warranty process work, practically?

You must follow the reasonable directions and system checks / tests of the Enerdrive Support Team. If the Product is returned to Enerdrive, then upon receipt at Enerdrive, the Product will be assessed for defects, and Your claim will be reviewed. If the warranty claim is valid, then Enerdrive will choose one of the options mentioned above (repair, replacement or refund) and will communicate with You about that, to implement that choice. If the warranty claim is invalid, then Enerdrive will notify You and will provide a reasonable explanation why Enerdrive considers the claim invalid. You must then organise pickup of the Product at Your expense within 30 days. All Products replaced (or components which are replaced), will become the property of Enerdrive. If Enerdrive has ceased manufacturing or supplying a relevant Product or component, then Enerdrive may elect to deliver another type of Product (or component of a Product) which differs in colour, shape, size, weight, brand or other specifications in fulfilling its obligations under this warranty. Also, Enerdrive may always elect to provide a Product which is superior to Your original Product.

What else do You need to know?

Wrong deliveries, incorrect or damaged packing and transit damage claims are not warranty claims. Such cases should be directed to Enerdrive’s customer service 1300 851 535 Enerdrive may be required to seek personal information from you when you seek to make a claim under this warranty. Such personal information may be used by Enerdrive to process warranty claims and carry out repairs. Your information will not be shared with any other parties without your consent.

How does this warranty interact with other promises about the Product?

This warranty is in addition to any other rights and remedies which You are provided with by law. However, any warranties implied by law are limited to the greatest extent that is legally possible.

Enerdrive Five (5) Year Transferrable Product Warranty

Validity Date Enerdrive makes this warranty and associated warranty periods, valid for all products purchased from Enerdrive or its associated dealers / manufacturers from January the 1st, 2020.

Table – Products and Warranty Periods

Enerdrive supports your products “technically” for as long as you own them. Our defined warranty periods are listed below for all products (For purposes of manufacturing defects and faults and as defined in our Enerdrive Warranty Terms and Conditions)

Product / Brand Warranty Period Additional instructions for product
Enerdrive Battery Chargers:
• ePOWER AC Series
• ePOWER Industrial Series
• ePOWER DC2DC
• ePOWER DC Converters
• ePRO AC Series
5 Years • All products must be fitted according to supplied User manual and fitting instructions.
• DC2DC Not approved for Under Bonnet applications.
• Should any product be installed against Electrical Industry ‘Best Practice’ then a maximum warranty of 2 years only will apply **
Enerdrive Power Inverters:
• ePOWER True Sine Series
• ePOWER AC Transfer Inverters
5 Years • All products must be fitted according to supplied User manual and fitting instructions.
• Should any product be installed against Electrical Industry ‘Best Practice’ then a maximum warranty of 2 years only will apply **
Inverter / Charger Combi’s:
• ePOWER Combi Series
• ePRO Combi Series
5 Years • All products must be fitted according to supplied User manual and fitting instructions.
• Should any product be installed against Electrical Industry ‘Best Practice’ then a maximum warranty of 2 years only will apply **
Battery Monitors:
• ePRO+ Series
• Simarine (when sold as part of a pre-built power system)
5 Years • All products must be fitted according to supplied User manual and fitting instructions.
• Should any product be installed against Electrical Industry ‘Best Practice’ then a maximum warranty of 2 years only will apply **
Enerdrive Lithium Batteries
• BTEC Lithium Series
• BTEC ULTRA Series
• Pro Series
5 Years • Battery charger used MUST have and be set to Lithium charge profile set to the correct charge voltages.
• No under bonnet applications – All Warranties voided if done so.
• The maximum discharge current that can be drawn from ALL batteries in a single installation should not exceed the maximum discharge current of a single batteries BMS current rating.
• Paralleled battery systems must be installed according to the Enerdrive ‘How to Parallel Lithium Batteries’ guidelines found HERE
• It is reasonable to expect a decrease in useable amp-hour capacity over time with Lithium batteries due to factors such as number of cycles, and discharge rates.
• The Lithium Battery warranty will cover all failures (no power delivery), however natural capacity decrease is not supported with the 5-year period. Should a battery deliver less than 70% of its capacity as recorded by 2 full discharge / recharge cycles as measured by an ePRO+ Battery monitor with no signs of excessive use / wear & tear, it will be considered a warrantable claim.
• Any Lithium battery mounted externally must be protected from the elements to avoid any possibility of water ingress.

Table – Products and Warranty Periods

Enerdrive supports your products “technically” for as long as you own them. Our defined warranty periods are listed below for all products (For purposes of manufacturing defects and faults and as defined in our Enerdrive Warranty Terms and Conditions)

Enerdrive Solar Panels:
• Fixed Frame
5 Years • It is reasonable to expect a decrease in produced watts delivered from solar panels over time. This is not covered under the 5-year period.
• However, should a solar panel deliver less than 70% of its capacity as recorded by a short circuit test in full sunlight, with panel angled according to the seasonal time of year it may be considered a warrantable claim.
• Any signs of pressure, hail damage or incorrect mounting will however void any claim.
• In the event of a claim for Warranty being approved, Enerdrive cannot be held accountable for labour or removal / replacement costs of faulty solar panels.
Solar Controllers:
• ePOWER Series
• MorningStar Series (see note)
5 Years • All products must be fitted according to supplied User manual and fitting instructions.
• Should any product be installed against Electrical Industry ‘Best Practice’ then a maximum warranty of 2 years will only apply **.
Enerdrive Complete System Packages: Fully assembled System Plates, Canopy panels, DIY Install Kits, 5 Years All Enerdrive components and workmanship included • All systems plates must be fitted according to supplied User manual and fitting instructions.
• It is recommended that all high current and charge cable connections be checked for tightness on a regular basis.
Connection Accessories: BLUE SEA Connection Accessories, Bussmann, Carling & Enerdrive Range For as Long as the System is Installed up to 5 Years • All products must be fitted according to supplied User manual and fitting instructions.
• Should any product be installed against Electrical Industry ‘Best Practice’ then a maximum warranty of 2 years will only apply.
Simarine (when sold separately) 3 Years • As per standard manufacturer warranty periods defined with product
For all other brands sold by Enerdrive|Dometic See notes • As per standard manufacturer warranty periods defined with product

** The Term ‘Industry Best Practice’ relates to how a cross section of professionals within the DC / AC related industries would view what is considered Right or Wrong in a wiring system. It is not an attempt by Enerdrive to void any warranty obligations, however considering a large proportion of product issues are related to installation or system-based problems of some nature, it’s ensuring that an Enerdrive product is installed and used correctly as originally intended. All Enerdrive products have an installation manual which shows the requirements for installation, with ‘Industry Best Practice’. Installations shall be compliant to relevant standards including but not limited to AS/NZ 3001 (Electrical Installation Transportable Structures) and AS/NZ 3004 (Electrical Installation Marinas and Boats)

Other Notes:

  • While warranty is transferrable to subsequent owners, it is ONLY valid to original installation.
  • Commercial, Medical and Mining Application Warranty: Unless agreed otherwise, the standard warranty for all Commercial Vehicle, Medical or Mining applications is 24 Months, unless agreed to in writing at time of order / supply contract. Enerdrive will evaluate the application fairly on all merits of use to determine the best possible warranty period to assist the client.

WIRING INSTALLATION

SOLAR 4 RVS

OFF-GRID, EXTRA LOW VOLTAGE SOLAR PANEL WIRING GUIDE

Please read this document in full before commencing installation.



To maximise the efficiency and longevity of your new solar panels, please ensure you follow the instructions in this guide carefully. Failure to do so WILL result in shortened panel lifespan AND void your warranty.

While it seems simple to connect solar panels to your battery, common installations practices such as using non-waterproof connectors as permanent connection points CAN damage the solar panel AND void your warranty, please continue reading the guide for more details.

Whilst due care has been taken to ensure the recommended wiring practices will provide a safe and efficient installation, we cannot guarantee these methods will be suitable in every scenario due to variations in cable, connectors, solar charge controllers, environment, and installation practices.  It is the duty of the installer to verify the installation is installed to local standards and refer to each manufacturer’s instructions.

This guide is limited to 12 and 24V battery systems.



Contents

Safety. 3

Selecting an Appropriate Solar Panel based on the Specifications. 4

Series, Parallel and Combination Wiring Installations. 4

Installation Type 1 – Parallel Wiring. 5

Installation Type 2 – Series Wiring. 6

Installation Type 3 – Series/Parallel Combination Wiring. 7

Paralleling and Series of Different Solar Panels. 8

Cable Size. 8

Solar Array Performance. 8

Bypass, Blocking Diodes and Shading. 9

Sizing a Solar Charge Controller. 10

Solar Panel Efficiency. 10

Maintenance. 12

Ongoing Support. 12

Safety

  • All work should be carried out in shade or inside out of direct sunlight. Use a towel or blanket on top of the panel to reduce light exposure;
  • Ladder indicating safety Work safely at heights.  Ensure you have a sturdy, secure ladder;
  • Use insulated tools;
  • Ensure the panels are kept covered during installation;
  • Wear appropriate footwear;
  • Exotronic 200W solar panel specifications Use gloves and other PPE where appropriate;
  • Seek help where needed.
  • This guide is only relevant for installations installed at below 120V DC using the Open Circuit Voltage (Voc) rating of the solar panel.

Example: Model Exo-SP-F4-200, the Voc is 24.1V, therefore 5 panels in series is 120.5V and would require a licensed electrician to complete an installation.

  • Extra low voltage solar arrays CAN cause fires AND/OR injury/death if adequate precautions are not taken.
  • Do not leave the solar panel short-circuited (i.e. the MC4 connectors should NOT be connected together) and exposed to the sun, this can cause failure of the bypass diodes, hot-spots and permanent damage to the solar panel within minutes.



Selecting an Appropriate Solar Panel based on the Specifications

Solar panel, MPPT and battery wiring showing cable sizes, connections, battery fuse and solar isolation switch The wattage of the solar panel is calculated by Max Power Voltage (Vmp) x Max Power Current (Imp), i.e. 10.2A x 19.8V = 202W.

When no power is being drawn from the solar panel, the Voc will be present.

To charge a 12V battery bank, dependent on the charge controller, approximately 7V is required between the absorption voltage requirement of the battery and the solar panel Voc.  I.e. a calcium 12V battery that requires 14.8V absorption voltage, will need a panel with at least 21.8Voc.  Most solar panels are approx. 23Voc.  When calculating the array current, use the short circuit current (Isc). Our guide to reading solar panel specifications explains Voc, Isc, Vmp and Imp in more detail.

The diagram to the right shows a simple photovoltaic (PV) / solar array connected to a 12V battery.

Never install a solar panel in a permanently shaded location, this can damage the bypass diode and cause hot spots.

If a solar isolation switch is used, it should be sized to handle the full short circuit current of the array, plus ~20% to avoid nuisance tripping. I.e. if an array is rated to 30Asc, then the circuit breaker should be at least 36A, the closest match will be a 40A circuit breaker.



Series, Parallel and Combination Wiring Installations

When more than one solar panel is used, each solar panel can be connected to an individual solar charge controller, this will generally lead to the best performance but at the highest cost and complexity.

An alternative is to wire the panels in either series or parallel or a combination of both.

two solar panels wired in parallel Installation Type 1 – Parallel Wiring

This type of installation, most common for off-grid 12V systems, each solar panel positive is connected together, and each negative connected together.  In this case, the array voltage will remain the same as a single solar panel, however the array current will increase.

three solar panels wired in parallel with string fusing

If a solar panel were to fail by an internal fault, such as an internal bypass diode short circuit, the fault current of the array would all flow through the failed diode.  There are many examples of this causing fires, string fusing has been designed to minimise the risk.

In the example (above) of three solar panels, if the left panel were to fail from a shorted bypass diode, the middle and right solar panels would each pass 10A into the left solar panel. Therefore, 20A would pass through the 15A fuse, and cause it to disconnect the failed solar panel from the array. Choose a string fuse rated above the panel’s Isc but no higher than the “maximum series fuse rating” printed on the panel label, and use DC-rated PV fuses rated for the array voltage.

The fuses should be located close to 3 to 1 branch connector.

Fusing is not required when two or fewer solar panel are used because it is not possible for the fuse to reach the required tripping current.

Parallel arrays provide good tolerance to shade and keeps the voltage low, and thus safer.



Installation Type 2 – Series Wiring

two solar panels wired in series In this type of installation, commonly used in 24V systems, one solar panel positive is connected to the next solar panel negative.  In this case, the array current will remain the same as a single solar panel, however the array voltage will increase.  Typically, 24V systems require an open circuit array voltage of at least 36.6V.

Each group of panels wired in series is called a “string”.

The advantages of series wiring are:

  • Reduced wiring cost
  • Reduced power losses in cables
  • Typically improved performance in MPPT solar charge controllers

The disadvantages are:

  • Poor shade tolerance
  • High voltage rated solar controllers often required
  • Less safe



Installation Type 3 – Series/Parallel Combination Wiring

This type of installation, commonly used in larger systems, two or more solar panels are connected in series to make a string, and two or more strings are paralleled together. In this case, the array current AND the array voltage will increase.

A note on MC4 solar connectors, these types of connectors are waterproof, affordable, high voltage rated, are pre-installed on most solar panels and are usually disconnectable.  The current rating is typically limited to approx. 30A when 6mm2 or larger PV1-F solar cable is used, therefore they would not be suitable for four 10A solar panels wired in parallel without overloading the connector.  Series/parallel wiring arrangements are a good way to overcome this while still being able to use these types of connectors

4 solar panels wired in series parallel combination

The advantages of this type of system wiring are:

  • Partially reduced wiring cost
  • Partially reduced power losses in cables
  • Typically improved performance in MPPT solar charge controllers
  • Avoids the need for string fuses when no more than two strings are paralleled
  • Reasonable shade tolerance

The disadvantages are:

  • High voltage rated solar controllers often required

Paralleling and Series of Different Solar Panels

Panels can typically be wired in parallel when the same type of solar cell and voltage is used.  I.e. two solar panels using P-type mono-PERC cells and both 24Voc can be paralleled, but if a P-type mono-PERC cell and n-type IBC cell are paralleled, differing coefficients of performance will cause a mismatch in voltages, causing the higher voltage panel to be “dragged down” to the lower voltage panel and increasing the risk of panel failure.  Consult your distributor for verification before paralleling different types of solar panels.

At the time of writing, the Exotronic PERC series of solar panels are all designed to use the exact same cell cut into 36 pieces and therefore the voltage and performance will be nearly identical, and will thus provide good performance when paralleled.

Panels can only be wired in series when the cell type and current are the same, this is quite rare.  Therefore typically only the same solar panel make and model can be wired in series.

Example: 2x 200W Exotronic Solar fixed solar panels can be wired in series, and 2x 30W Exotronic fixed solar panels can be wired in series, and each string can be wired in parallel.  But the 30W and 200W panel cannot be wired in series. If you are adding a panel to an existing system, see how to add a second solar panel to your caravan.

Cable Size

The most practical wire for solar panels is PV1-F solar cable, this cable is most common in 4mm2 and 6mm2.  A very rough rule of thumb is for arrays of less than 20A can use 4mm2, and 20A or larger should use 6mm2.  If a larger size is required, it is recommended to run two runs from the array to the solar controller.  There is no harm in using larger size cable except for practicality and cost considerations.

The rule of thumb above does not allow for cable length. The table below shows the approximate voltage drop on tinned-copper PV1-F cable for a typical 12V parallel array (array Vmp about 18V), counting both the positive and negative cables. Aim for about 3% or less; on longer runs use the larger cable or run two cables.

Array current One-way cable run 4mm² PV1-F 6mm² PV1-F
10A (e.g. one 200W panel) 3m 0.31V (1.7%) 0.20V (1.1%)
10A 5m 0.51V (2.8%) 0.34V (1.9%)
10A 10m 1.02V (5.7%) 0.68V (3.8%)
20A (e.g. two 200W panels in parallel) 3m 0.61V (3.4%) 0.41V (2.3%)
20A 5m 1.02V (5.7%) 0.68V (3.8%)

Values use the standard conductor resistance at 20°C (5.09 ohm/km for 4mm² and 3.39 ohm/km for 6mm² tinned cable); cable on a hot roof has slightly higher resistance. To check your own runs, use our Ultimate DC Cable Sizing & System Calculator or the RV Cable Sizing and Wiring Diagram Tool, and see our cable size conversion tables to convert between mm², B&S and AWG.

PV1-F cable is highly UV resistant, durable, high voltage rated, designed to fit MC4 connectors, highly stranded, and tinned copper.  It’s properties mean the cable is well suited for most applications including marine, and it is also cost effective.

Solar Array Performance

Solar panels are rated at Standard Test Conditions (STC), this means solar panels are tested under a light source of 1000W/m2 with a cell temperature of 25°C and an AM1.5 light spectrum.  This is why it is not typical to see the solar panel output in typical conditions, combined with the other losses (dirt on panel, cable/connection losses, sun orientation, panel temperature, solar controller losses, battery efficiency losses) the actual output that will be seen will likely be much lower.

Often a rule of thumb is you will see up to 75% of the STC rating of the solar panel at midday in summer.  I.e. 150W from a 200W solar panel.

In some rare cases you may see close to full output, i.e. the solar panel has been stored in a cool garage, and suddenly exposed to full midday summer sun. As the panel heats up, performance will drop to the more typical 75% output.

For the best performance, the solar panel should be perpendicular to the sun, however normally brackets to make the solar panel face the sun provide minimal performance improvement at a much higher complexity and cost.

Bypass, Blocking Diodes and Shading

internal view of how a bypass diode works Each solar panel will have one or more bypass diodes.  Despite the marketing claims, the main purpose of bypass diodes is to protect the cells from overheating.  When a cell is shaded it causes the cell to increase resistance, as current flows through the resistance, the cell heats up, and if the current is not bypassed around the cell, it will cause a hot spot and subsequent failure of the cell, and as each cell is wired in series, failure of the whole solar panel.

In 12V arrays, the bypass diodes, while necessary for the purpose of protection of the cells, provide minimal performance improvement.

3 panels wired in parallel with string fusing and blocking diodes

When a solar panel is completely shaded, it can become a resistance, causing the power flow of other solar panels to flow through it in reverse thus causing power loss in the system.

Blocking diodes can be installed to prevent this.  However, this event is rare, and the diodes will cause power loss at all times.  Therefore, unless specifically required by the manufacturer, blocking diodes should be avoided.  Most good quality solar controllers should have their own blocking diode installed, and therefore an additional blocking diode is not necessary for single panel installations. They are also not a replacement for string fusing. If you suspect a failed panel, see how to test a solar panel’s output with a multimeter and our article on caravan solar panel failures.



Sizing a Solar Charge Controller

The solar charge controller or solar regulator must be sized appropriately for the array.  A too small charge controller can be damaged, and too large can be unnecessary.

If using a PWM controller, typically you must use a larger controller than required. You must also use a 30-36 cell (17 to 20Vmp) solar panel on a 12V battery or 60-72 cell (34 to 40Vmp) solar panel on a 24V battery.  A PWM controller passes the array current straight through to the battery, so size it from the array’s short-circuit current rather than its wattage: add the Isc of every panel wired in parallel and allow a margin of about 25%. For example, two panels with an Isc of 11A each give 22A, so choose a controller rated for at least 27.5A, i.e. a 30A PWM controller.

If using an MPPT controller, you can often size the controller smaller to reduce costs, while still allowing maximum performance in winter.  When using an MPPT, ideally use a 36 cell or more (19Vmp+ limited by the maximum input voltage rating of the PV input of the solar controller) solar panel on a 12V battery.  To size an MPPT controller, a simple calculation is: Power of Array in Watts / Battery Bank Voltage x 0.8 for losses, i.e. 400W / 12V x 0.8 = 26.7A controller required.  However you can often downsize to a 20 or 25A controller as it is often only in summer when the most power is available, that the controller will reach the maximum output, and therefore oversizing is not necessary.

MPPTs will have significantly improved performance when it is required the most, i.e. during the cooler months where there is more likely to be shading, and low light conditions. For a fuller comparison, see our guide to choosing between PWM and MPPT solar charge controllers.

Solar Panel Efficiency

two identical vans, side by side, one with a large panel, and one with many smaller panels Solar cell efficiency is effectively how much light is converted to power in terms of m2 of the solar cell.

Solar panel efficiency is the same measurement, but takes into account the entire panel, i.e. the space between the cells and the frame.  Therefore solar panel panels can be more efficient simply by decreasing the space between the cells, and to the frame.  This is why larger solar panels are more efficient then smaller panels; less borders/gaps to cell ratio.

Practically speaking, when useable area is limited, a 22% efficient 300W solar panel could take up most of the available space, limiting the room for future panels and increasing the complexity of wiring, whereas it could be possible to install 2x 200W modules plus a 160W solar panel on a single controller, greatly increasing the total power of the array and keeping the wiring relatively simple. There are many different solar technologies, the most common is monocrystalline. While the highest cost, it is higher in efficiency compared to polycrystalline and amorphous, and therefore reduces the quantity of solar panels needed and simplifies the system.  Amorphous, while having improved shade tolerance, is very low efficiency, therefore even when compared to a shaded monocrystalline module, the overall output can often be worse.

Cells get exponentially more expensive as the efficiency increases, the easiest way for unscrupulous retailers to increase profits is to overstate the rated output of the solar panel.  In the example below, the solar panel is 18V and advertised to be 350W, therefore it should have an Imp of approximately 19.4A.  The cells, based on the specifications and appearance are ¾ cut 156mm cells with 5 wire busbars.  The highest output possible on cells of this nature is approximately 7.5A.  Therefore it is not physically possible for this solar panel to exist.  A true output of a panel this size will be approximately 120 to 130W based on several reasonable assumptions.  As Sunpower uses interdigitated back contact cells, there are no busbars on the front, so the cells type stated below is also incorrect.

competitors solar panel with misleading specifications

The highest cost and most efficient solar cells commercially available at the time of writing are approximately 24% efficient, and therefore the maximum efficiency for a very large module could approach 23% efficient.

Maintenance

To ensure your solar panels are performing optimally, be sure to keep on top of this simple maintenance checklist.

  • Clean on a regular basis with neutral soap & clean water, using a soft sponge or cloth;
  • If in a marine environment, wash regularly with fresh water to avoid damage caused by saltwater;
  • Periodically inspect the mechanical and electrical connections;
  • Denatured alcohol (methylated spirit) can be used to remove grease etc. See how to clean solar panels on your roof for step-by-step advice.

Ongoing Support

Solar 4 RVs are proud to offer a support service beyond the purchase of your solar panels. If you require further technical support, please feel free to contact us. We are happy to help!

MOUNTING INSTALLATION

Glass Solar Panel Mounting Guide for Caravans, RVs, 4WDs and Boats

A framed glass solar panel is only as reliable as the way it is mounted. This guide covers mounting the framed glass solar panels we sell on caravans, motorhomes, 4WDs and boats.

Never assume one panel's mounting arrangement suits another. If your panel's maker has its own installation manual or warranty terms (in the box or on its website), follow them where they differ from this guide.

Multiple framed solar panels installed across the roof of an RV
A good roof layout allows for panel support, airflow, shading, cable routing, drainage and service access.

Every roof, rack and boat is different, and this guide can't assess yours. It doesn't replace a site-specific structural assessment or electrical design. The installer is responsible for confirming that the complete installation suits the expected wind, vibration, wave impact and operating environment, and that it meets the requirements that apply to the vehicle, vessel and location. Follow the instructions supplied with the brackets, adhesive, sealant, rack or canopy you use, and the roof, vehicle or vessel maker's limits. Use qualified tradespeople where required, and have electrical work done by a suitably qualified or licensed person where applicable.

Incorrect mounting or wiring can cause electric shock, arcing, fire, water or structural damage, or a panel coming loose from a moving vehicle or boat, resulting in serious injury or death. If you can't verify the roof structure, fixing method, adhesive compatibility or mounting arrangement, stop and get advice before continuing.

Contents

Start with the exact panel

Choose the mounting to suit the panel's size and weight, not its wattage. Before buying brackets or marking the roof, confirm the panel's overall dimensions, frame depth, weight and factory mounting-hole positions, measuring the panel itself rather than relying on another model's figures.

Example solar panel dimensional drawing showing overall size, frame depth and rear mounting holes
An example product drawing. Check these dimensions and mounting-hole positions for your exact panel.

Treat the installation as one load path: wind and vibration pass from the frame through the brackets into the roof, rack or hardtop, and every connection must be strong enough. On a vehicle or boat, allow for wind uplift, braking, corrugations, wave impacts and heat cycles, not just the panel's weight.

Safety before work starts

  • Plan safe roof access with a suitable platform and fall protection, keep people clear of the area below and secure tools and parts against falling.
  • Don't work in rain or strong or gusty wind, or on a wet or very hot roof.
  • Check the panel's weight and size, and have enough people to lift it under control.
  • Wear gloves, eye protection and suitable footwear, and remove rings and watches before electrical work.
  • A panel produces electricity whenever light reaches it. Cover it with an opaque sheet while working, use insulated tools and never connect or disconnect PV connectors under load.
  • Never stand, kneel or put tools on the panel, or lift it by its junction box or cables.
  • Handle the panel carefully: tempered glass resists loads across its surface but is vulnerable to edge knocks, twisting and point loads.
  • Check the panel when you unpack it and report any damage to the seller before installing. Don't install a panel with cracked or chipped glass, a bent or separated frame, a damaged backsheet (the back of the panel), a loose junction box, damaged cables or connectors, or any other visible damage. A damaged panel can still be live in daylight, so keep people away from it until it has been assessed.

Plan the panel location

Draw a scaled layout of the roof, rack or deck before drilling, bonding or ordering parts, allowing room for brackets, cable bends, cable entry and future servicing.

Installer marking a solar panel position on a vehicle roof before mounting
Mark the panel, bracket and cable-entry footprint before drilling or bonding.

A good location:

  • stays within the vehicle's or vessel's permitted dimensions;
  • avoids regular shade from air conditioners, vents, antennas, masts and racks;
  • keeps an air gap under the panel and lets water and debris drain away;
  • is clear of exhausts, flues and other heat sources, and of hatches, awnings, cargo and branches;
  • leaves access for cleaning, inspection and eventual removal; and
  • has a confirmed structural fixing point under every mounting point.

Roof edges and corners can see stronger, more turbulent wind than the middle of the roof, so don't copy another installation unless the panel size, roof shape and bracket spacing are comparable. For bifacial or glass-glass panels, also allow for rear clearance and protect the rear glass. This guide does not cover frameless panels.

Check the supporting structure

The roof skin alone may not carry the panel's loads. Caravan and RV roofs can be thin aluminium or fibreglass over framing, sandwich panels or empty voids, with wiring and plumbing hidden inside. Canopies, racks and hardtops can also have limited fixing zones.

Before installing:

  • check the vehicle, roof or rack documentation for permitted mounting locations, and stay within the roof, rack, axle, payload and total-mass limits;
  • find the structural members, and any wiring and plumbing, before drilling;
  • look for corrosion, delamination, chalking, loose paint, soft spots and old repairs; and
  • get written advice from the vehicle, roof or rack maker, or an engineer, if their documentation doesn't cover your arrangement.

An adhesive is only as strong as the surface under it: a bracket bonded to loose paint comes away with the paint. Sealant can't make up for a weak roof or a poorly supported fixing point.

Mounting basics

Use enough brackets, in the right places

Use at least four brackets on panels up to 1,500 mm long, and at least six on longer panels, adding a pair in the middle of the long sides. Panels in exposed positions, such as a roof edge or a boat, may need more support.

Brackets that bolt to the frame go at its factory mounting holes; corner brackets go at the corners. If the roof structure doesn't line up with the bracket positions, move the whole panel, or add a rail or backing that carries the load into the structure, rather than moving individual brackets.

Where a bracket has no factory hole, such as the middle pair on a long panel, drill only the holes for that bracket's screws, in the same flange as the factory holes, keeping the drill clear of the glass, the backsheet, the junction box and the cables. If your panel's maker has no installation manual of its own, this guide is its installation instruction, and drilling these screw holes as described here is part of the installation, not a modification. If the maker has its own manual, drill the frame only if that manual and the maker's warranty terms allow it; otherwise use only the factory holes and contact us before you start. Any other hole, enlarged hole, notch or cut is a modification that can weaken the panel and void its warranty. Don't clamp the frame anywhere else unless the panel's own manual gives clamping positions, and never let anything press on the glass.

Brackets must not shade cells or block the frame's drainage openings. Tighten bolts and screws evenly until each bracket is held firmly, using any torque the bracket, rack or fastener maker gives. Overtightening can distort the frame or load the glass, and an overdriven screw strips its hole and stops holding; undertightening lets the bracket move. Set the drill's clutch low or finish screws by hand.

Keep the panel ventilated

Framed glass panels must sit on brackets or rails above the surface, not be bonded flat. The air gap lets heat escape, keeps heat out of the roof, lets water drain and leaves room for cables. Don't seal around the panel's edges or fill the gap underneath, and don't reduce the gap just to make the panel sit closer to the roof.

Prevent corrosion

Most framed panels have anodised aluminium frames. Galvanic corrosion can occur where aluminium touches a different metal, such as a steel rack or a stainless rail, with moisture or salt present. Stray-current corrosion can progress much faster: it happens when DC current leaks from damaged, wet or badly assembled wiring and returns through the frame, brackets, chassis or hull. Only fixing the wiring fault stops it; a new bracket or more sealant won't.

Close-up of a black anodised aluminium solar panel frame corner
Protect the anodised finish, and isolate the mounting from any metal structure it's fixed to.
Close-up of a solar panel junction box, cables and PV connectors
Weather-rated connectors still need correct assembly, support and routing to keep water out.
  • Isolate the mounting from the metal structure it's fixed to, such as a steel rack, rail or hull, not the bracket from the panel. Use non-conductive pads under the brackets and insulating sleeves or washers on their fixings, so no bolt or screw bridges the isolation. Seal the screws and bolts that go into the aluminium frame and brackets against water.
  • Seal drilled holes, cut edges and scratches, and avoid joints that trap water.
  • Don't rely on paint, powder coat or a thin adhesive layer as the only isolation, because coatings get damaged during tightening and movement.
  • Keep the PV cables electrically separate from the frame and mounting, apart from any earthing the electrical design requires. Never use the frame, roof, chassis or hull as a return path for PV current.
  • Assemble PV connectors with the correct tools, keep them supported and clear of standing water, and seal cable entries with covers suited to the cable and surface. Replace damaged, corroded or overheated connectors rather than taping or sealing over them.

On boats, the panel and its brackets must be isolated from all metal on the boat, including rails, arches, metal hardtops and the hull. Non-conductive brackets such as ABS help, provided no fastener runs from the panel or bracket into the boat's metal. The panel frame, DC negative, earthing, bonding system, shore power and anodes all interact, so don't change bonding or earth connections to fix panel corrosion without advice from a marine electrician. White powder, pitting, blistering or a voltage between the frame and the boat points to a mounting or wiring fault: isolate the PV system and have it inspected.

Use the right fasteners

Use corrosion-resistant fasteners, washers, backing plates and locking devices that fit the frame holes and brackets, and keep them accessible for inspection. They must stay secure under vibration without crushing the frame, bracket or roof. Use the locking method supplied with the bracket rather than adding extra ones; lubricants, anti-seize and thread lockers change how tight a joint ends up for the same effort.

Mounting methods

Brackets through the factory frame holes

Corner, side and Z-style brackets in aluminium or ABS plastic can be suitable where they fit the panel's frame and suit the supporting structure. Check the hole diameter, fastener clearance and tool access before buying.

The bracket-to-roof connection needs its own structural fixing and waterproofing; a well-fitted bracket doesn't make a poor roof fixing safe.

Black aluminium solar panel bracket installed through a panel frame mounting hole
An aluminium bracket fitted through a factory frame hole. Its roof fixing and metal isolation still need checking.
Black ABS plastic solar panel corner and side mounting brackets
ABS plastic brackets give a non-metallic roof interface, but the adhesive joint and the roof under it still need to be right.

Bonded feet or brackets

Bonding avoids roof penetrations, but the adhesive then becomes a structural part of the installation. It must suit the bracket material, the roof and its coating, and the loads, temperature, UV, moisture and vibration it will see. Choose it from its documented suitability for that joint, not a general strength claim, and follow its full process for cleaning, primer, bond thickness and cure.

  • Prepare and test the actual roof surface, including its coating, and never bond over chalking, oxidation, loose paint, polish, wax or dirt.
  • Observe the cleaner and primer flash-off times, and control the adhesive thickness.
  • Keep the vehicle or boat stationary and unloaded for the full cure time, and don't drive, tow or launch until curing and inspection are complete.
  • Add mechanical fixings where the bracket instructions, the roof maker, the adhesive instructions or an engineering assessment call for them.

A sealant keeps water out; a structural adhesive carries load. Use a product documented for each job it does; some adhesive sealants are made for both.

Roof racks, canopies and marine hardtops

Check that the rack, canopy or hardtop can carry the panel's weight plus wind uplift and road or wave loads; a load rating alone doesn't show that. The rails must be straight and in line so the panel isn't twisted when tightened, with spans short enough not to flex. Rack clamps must not be able to slide along round or coated bars, and cables must be protected from cargo, sharp edges and branches.

Installation steps

1. Record the design

Note the panel model and serial number, mounting parts, fixing points and fasteners, adhesives and sealants, cable route and cure times. Photograph the serial number and rating label (the serial is on the front of some panels), keep the purchase invoice, and don't cover either with brackets, adhesive, sealant or paint. Keep a copy of this guide and the bracket, adhesive and sealant instructions with the vehicle or vessel records.

2. Mark the installation area

Mark the structural members, mounting points, cable entry and no-go zones, and check both sides of every hole before drilling. Stop if hidden wiring, plumbing or structure can't be confirmed.

3. Dry-fit everything

Position the brackets, rails, cable entry and panel before bonding or final tightening. The panel should sit flat without forcing, keep its ventilation and drainage gaps, come off again for service and stay clear of hatches, awnings and roof equipment.

4. Fit brackets that attach to the panel

Brackets that attach to the panel first, such as Z brackets, go on before it goes on the roof. Lay the panel face down on a clean, flat, padded surface, bolt them through the factory holes and drill any middle-pair screw holes there, not on the roof.

5. Drill the roof

Drill the fixing holes into the confirmed structure, clear of the edges of roof members and roof panels. For brackets already on the panel, set the panel in place to mark the holes, then lift it aside to drill. Clear away all swarf.

6. Prepare the surfaces

Prepare bonding surfaces only after all drilling is done. Follow the cleaner, primer and adhesive instructions exactly and within their temperature and humidity limits, without substituting products. Keep prepared surfaces clean and dry until bonding.

Installer cleaning and preparing a vehicle roof before bonding solar panel mounts
Cleaning is only part of the job: the roof coating must also be sound and suit the cleaner, primer and adhesive.

7. Bond and fix the roof attachments

Apply the adhesive as its instructions describe, then screw each bracket, foot or rail down with suitable fasteners and backing, and seal penetrations without blocking drainage. Brackets already on the panel go down with it, so have enough people to lift and place it. For bonded feet, control the bond thickness and allow the full cure.

8. Fit and tighten the panel

Where the brackets, feet or rails were fixed to the roof first, lift the panel onto them with enough people to support the glass and frame. Always start each bolt and screw before tightening any, tighten them evenly in sequence, and add witness marks so later movement is easy to spot.

9. Route the cables

Support the cables so their weight doesn't hang from the junction box or connectors. Use suitable solar cable, keep it away from sharp edges, heat, moving parts and pooling water, and secure the connectors so they can't flap or rub. Complete the electrical work using the Solar Panel Wiring Guide.

10. Cure, inspect and record

Keep the vehicle or boat stationary for the full cure time, and inspect the installation in good light before driving, towing, launching or connecting the system. Keep photos of the finished installation, a wiring diagram, the models of the controller and other connected equipment, any torque values used, adhesive batch details and electrical test results.

Final checks

Don't drive, tow, launch or connect the system until you have confirmed that:

  • the exact panel model suits the application, and every bracket, fastener, adhesive and sealant is identified and compatible;
  • the supporting structure has been verified and the panel stays within the permitted dimensions;
  • the panel has enough brackets (at least six on panels over 1,500 mm long), the frame has no holes or cuts beyond the bracket fixings, and nothing presses on the glass;
  • the panel sits flat and unstressed, with its ventilation and drainage gaps clear;
  • the mounting is isolated from any metal structure it's fixed to (on a boat, from all metal on the boat), no bolt or screw bridges the isolation, and fixings into aluminium are sealed;
  • there is no unintended electrical continuity between either PV cable and the frame, brackets, roof, chassis or hull;
  • fasteners are evenly tightened and witness-marked, and bonded joints have fully cured;
  • roof penetrations and cable entries are secure and sealed;
  • cables and connectors are supported, protected from rubbing and clear of heat, moving parts and standing water;
  • polarity, open-circuit voltage and any other required electrical tests have passed;
  • no tools, swarf or packing are left on or under the panel; and
  • the owner has the installation records and knows what to inspect and when (see Inspection and maintenance).

Then check for leaks using a method suited to the roof. Don't aim a pressure washer at seals, connectors or the junction box.

Inspection and maintenance

Vibration, salt, UV, heat and roof flex change an installation over time. Inspect it regularly, including while the vehicle or boat is parked or stored, and also after the first few trips, after rough roads, storms or impacts, and before long trips. Check boats, coastal vehicles and vehicles used on corrugated roads more often.

Look for:

  • loose, missing or corroded fasteners and clamps, or movement marks around brackets;
  • lifting, cracked or hollow adhesive and sealant, and signs of water getting in;
  • cracked glass, a bent frame, delamination, discolouration or hot spots;
  • dirt, leaves, bird droppings or other build-up on the glass: clean it off gently without abrasive cleaners, because build-up can cause hot spots;
  • a loose junction box, strained or unsupported cables, damaged insulation, and loose, wet, corroded or overheated connectors;
  • white powder, pitting or blistering where the frame, fasteners and supports meet, or damaged isolation washers; and
  • blocked ventilation or drainage, or new equipment or cargo that shades or hits the panel.

If a fastener has moved, find out why before retightening it. If the panel rattles, shifts, lifts, makes unusual wind noise, has broken glass or damaged wiring, smells hot or lets water in, stop using the installation, keep people away and have it made safe and inspected. It can still be live in daylight. If you think the panel itself is faulty, photograph it in place, including the mounting and wiring, and contact the seller before removing it, unless it's unsafe to leave it where it is.

Frequently asked questions

Can I glue a framed glass panel directly to the roof?

No. Bonding the whole back traps heat, blocks drainage and loads the frame and glass in ways they weren't designed for. Mount it on brackets or rails with an air gap underneath.

Which adhesive should I use, and can mounting feet be held on with adhesive alone?

No single product suits every roof and bracket. Choose one documented for the roof material and coating, the bracket and the conditions, and follow its full preparation and cure process. Rely on adhesive alone only where the bracket instructions, the adhesive, and the roof maker or an engineer all allow it; many brackets are designed to be bonded and screwed.

Can any glass solar panel be installed on a caravan, 4WD or boat?

Not automatically. Check that the panel is suitable for mobile or marine use, and that its size, weight and mounting holes suit the structure available.

Will a marine galvanic isolator protect the panel frame?

Not necessarily. A galvanic isolator is intended to block small galvanic currents in the shore-power earth. It doesn't fix metal-to-metal contact in the mounting, damaged PV wiring or DC leakage, so find the actual corrosion path first.

Need help choosing mounting parts?

If you're not sure whether a bracket suits your panel, contact our team with the panel's brand and model before you start. For structural, electrical, marine bonding or vehicle modification decisions, use a qualified professional who can inspect the installation.

RECENTLY VIEWED PRODUCTS

Add notes to your order

Powering Your Adventure

We gave it full sun... ☀️

Official Pricing Reference
