6B&S (13.51mm²) Red Single Core Automotive Cable per Metre

98A Rated (AS/NZS 3008, Free Air 40°C), Plain Copper, V90HT PVC, Max 120V DC


Regular price $6.90
/
Availability: In Stock
View all products from Key
Guaranteed Safe and Secure Checkout
Apple Pay Google Pay Mastercard PayPalShop Pay Visa
95815

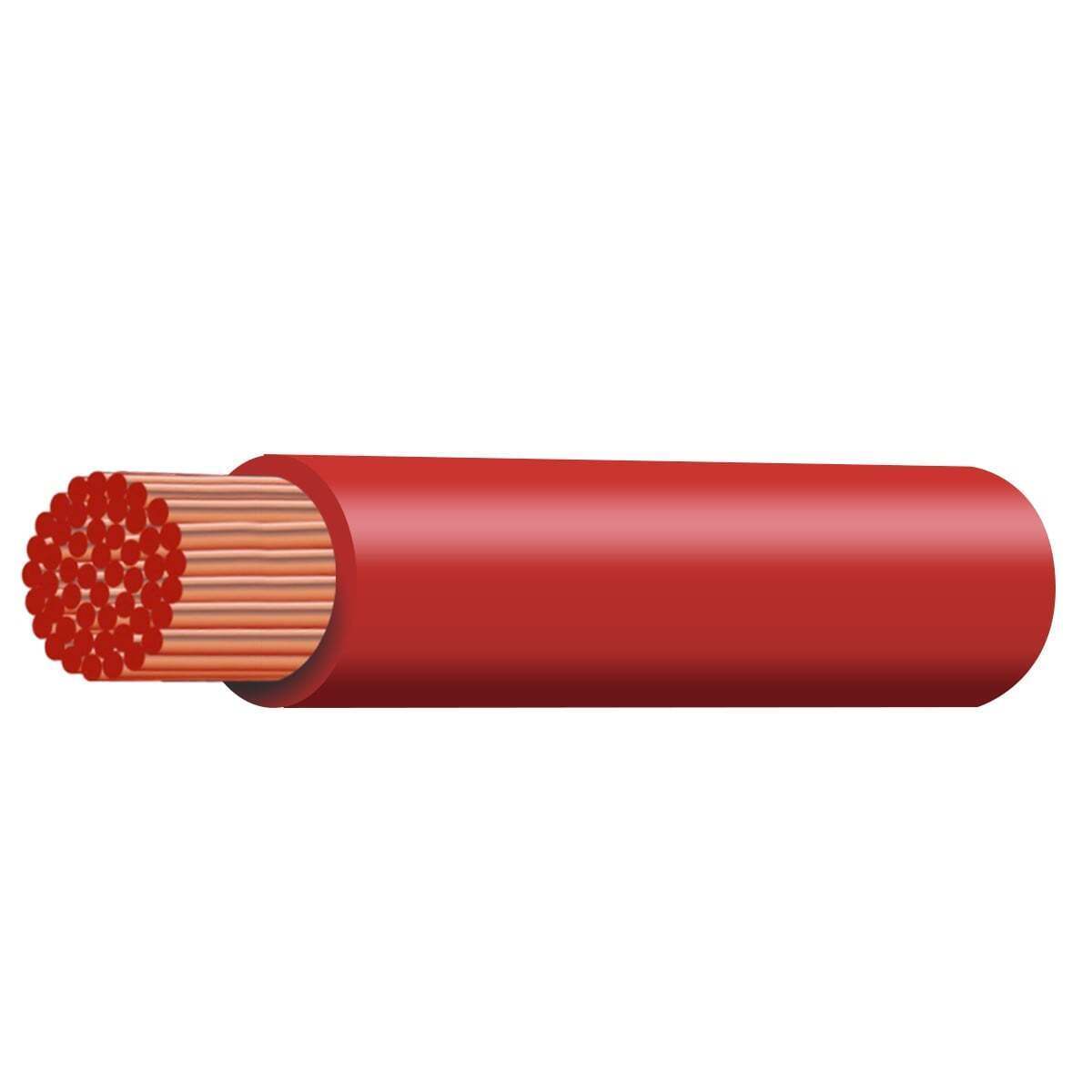

Cutaway view of 6 B&S red single core automotive cable showing multi-stranded copper conductors

6B&S (13.51mm²) Red Single Core Automotive Cable per Metre

DESCRIPTION

6 B&S (13.51mm²) Red Single Core Automotive Cable: High-Current Wiring for 12V, 24V, and 48V Systems

Engineered for Demanding Automotive and Low-Voltage Applications

This 6 B&S (13.51mm²) red single core cable delivers reliable power in 12V, 24V and 48V DC systems, with a voltage rating of 120V DC / 50V AC (not for mains connection). Australian made by KEY from plain copper conductors to AS/NZS 1125, it keeps voltage drop low across critical connections. Its red V90HT heat-resistant PVC insulation suits engine bays and under-vehicle runs.

Rated 98A to AS/NZS 3008.1.1 (two single-core cables spaced in free air at 40°C ambient), it suits high-demand circuits such as dual battery systems, inverter supply lines, winch feeds and solar charge controller connections in caravans, 4WDs and boats. The fine 168/0.32mm stranding keeps it flexible through tight spaces.

*Derating factors apply for bundled cables, enclosure and higher ambient temperatures. Use our cable sizing calculator for your installation.

Key Features

  • Rated 98A in free air at 40°C (AS/NZS 3008.1.1); derate when bundled or enclosed
  • 13.51mm² (6 B&S): 168 strands of 0.32mm plain copper to AS/NZS 1125
  • Red V90HT PVC insulation
  • 120V DC / 50V AC voltage rating, suits 12V, 24V and 48V systems
  • Australian made

Why Quality Cable Matters

In low-voltage DC systems, undersized or inferior cables can cause significant voltage drop, leading to underperforming equipment, battery charging issues, and potential safety hazards. This 6 B&S cable, with its low electrical resistance of 1.4 ohm/km at 20°C, helps maintain system efficiency and reduces heat buildup under load. Unlike generic alternatives that may use copper-clad aluminium, this cable is plain copper throughout for long-term reliability.

Applications

Ideal for a wide range of automotive and off-grid energy projects:

  • Dual battery isolator and management systems
  • High-current alternator and starter motor wiring
  • Inverter and DC-DC charger connections
  • Solar panel to regulator cabling
  • Winch and compressor power supply
  • General low-voltage wiring in caravans, motorhomes, and boats

Installation Notes

Choose the cable size from your system's current and allowable voltage drop; our cable sizing calculator works this out for your run. Always use quality crimp terminals and consider protective conduit when routing through metal panels or high-abrasion areas. The 98A rating applies to cables spaced in free air at 40°C, so derate when cables are bundled, enclosed or in hotter locations. Consult a qualified auto electrician for complex installations.

Power Your Project with Confidence

Equip your vehicle or off-grid setup with a cable that matches the demands of modern electrical systems. Order your 6 B&S red single core automotive cable by the metre today and ensure your power delivery is as robust as the rest of your build.


SKU: Key-KABC1192030RD1

SPECIFICATIONS

Specifications

Conductor: plain copper to AS/NZS 1125. Insulation / sheath: V90HT PVC. Voltage rating: 120V DC / 50V AC – not for mains connection.

This listing is the highlighted row. Source: KEY Battery Cable Spec Sheet F181a-1 (July 2026); AMP ratings per the note below.

Part No. Size B&S No. of Cores Conductor No. / Dia. (mm) Nominal Area (mm²) Insulation Thickness (mm) Electrical Resistance at 20°C (ohm/km) Nominal O.D. (mm) **AMP Rating (free air, 40°C)
KABC1112030 8 1 96/0.32 7.72 0.9 2.4 5.5 69
KABC1192030 6 1 168/0.32 13.51 1.1 1.4 7.0 98
KABC1287030 4 1 252/0.32 20.27 1.1 0.9 8.7 127
KABC1364030 3 1 329/0.32 26.46 1.6 0.7 10.6 152
KABC1455030 2 1 399/0.32 32.09 1.7 0.6 11.7 172
KABC1492032 1 1 492/0.32 39.57 1.7 0.5 12.4 197
KABC1609032 0 1 608/0.32 48.90 1.7 0.4 13.7 227
KABC1912030 2/0 1 798/0.32 64.18 1.7 0.3 14.9 274
KABC11204030 3/0 1 1035/0.32 83.24 2.0 0.23 17 323
KABC2T11230 8 2 96/0.32 7.72 0.9 2.4 7.6 x 13.1 64
KABC2T19230 6 2 168/0.32 13.51 1.1 1.4 9.1 x 16.0 92
KABC2TW28703 4 2 252/0.32 20.27 1.1 0.9 10.8 x 19.4 118

** AMP rating: AS/NZS 3008.1.1 value in free air at 40°C ambient (single core: two cables spaced in free air; twin core: one cable in free air), with the V90HT PVC insulation rated at 90°C, interpolated for each conductor size. Derating factors apply for bundled cables, enclosure and higher ambient temperatures. Use our cable sizing calculator for your installation.


SKU: Key-KABC1192030RD1
Model #: KABC1192030-RD
MPN: KABC1192030-RD
HS code: 8544493080
Country of origin: AU
Package weight: 0.1 kg
Package length: 0.02 m
Package width: 0.02 m
Package height: 0.02 m
